◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#123771) — 201 parça

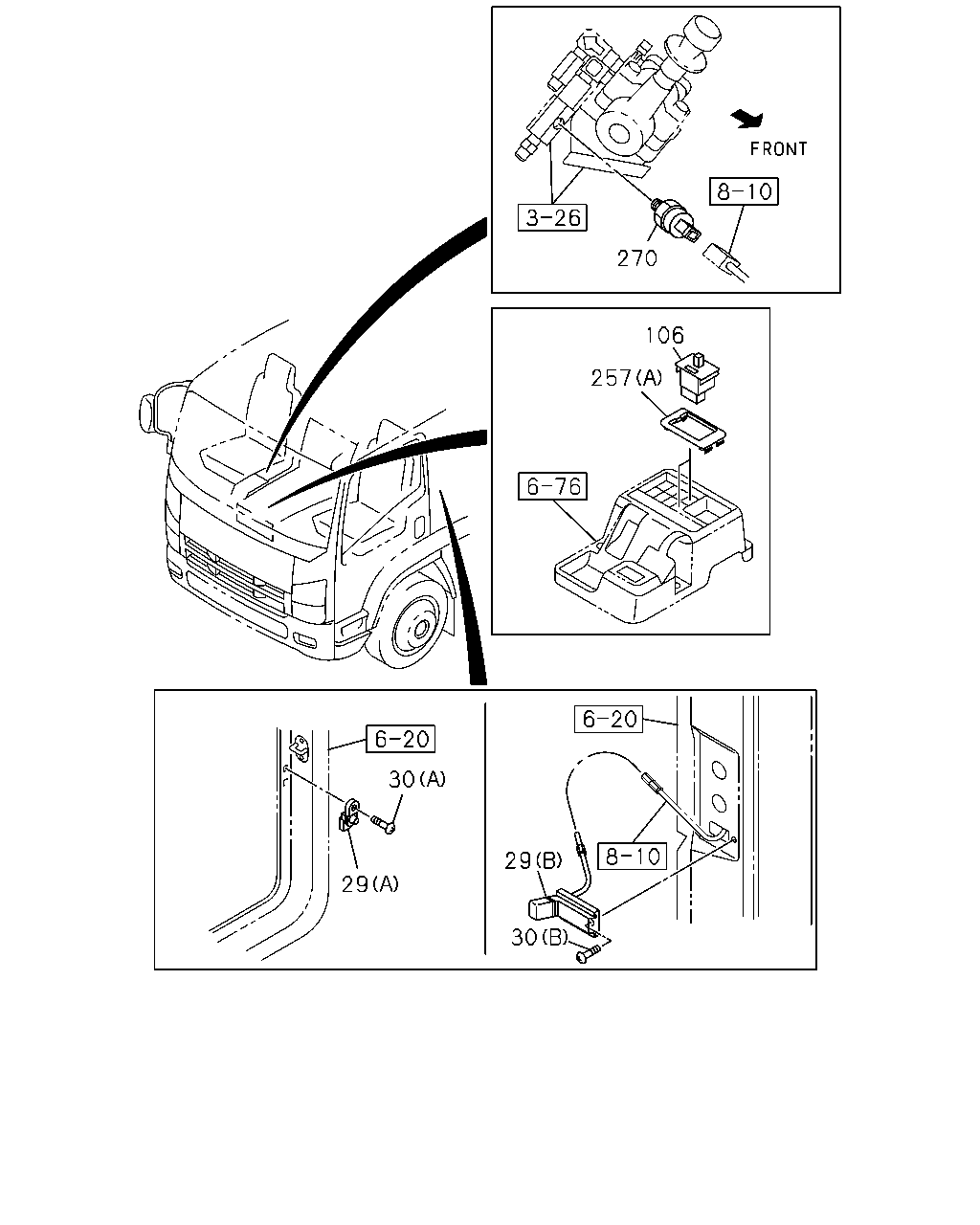

çizim 363896
270 106 257 29 30 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C
29 SWITCH; DOOR
(A) BLACK 		8-98022-211-0 01 1 1307-1312 ●
29 SWITCH; DOOR
(A) BLACK 		8-98022-211-0 01 1 1401- ● ●
29 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 02 1 1307- ●
29 SWITCH; DOOR
(B) REAR 		8-98054-195-0 02 1 1307- ●
30 SCREW; DOOR SW
(A) M5X18 		8-98047-201-0 01 1 1307-1312 ●
30 SCREW; DOOR SW
(A) M5X18 		8-98047-201-0 01 1 1401- ● ●
30 SCREW; DOOR SW
(B) M5X11 		1-09981-536-1 04 1 1307- ●
106 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		1-82350-223-0 02 1 1307-1312 ● ●
106 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		1-82350-223-0 02 1 1401- ● ● ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1307-1312 ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1401- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 03 1 1307-1312 ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 03 1 1401- ● ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1307-1312 ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 1307-1312 ● ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) 		8-98025-954-1 01 1 1307-1312 ● ●
257 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1307-1312 ● ●
257 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1307-1312 ● ●
257 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1307-1312 ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 1401- ● ● ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) 		8-98025-954-1 01 1 1401- ● ● ●
257 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1401- ● ● ●
257 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1401- ● ● ●
257 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1401- ● ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1401- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1401- ●
257 COVER; HOLE,SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		8-97619-254-1 02 1 1307-1312 ● ●
257 COVER; HOLE,SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		8-97619-254-1 02 1 1401- ● ● ●
270 SWITCH; PRESS,WHEEL PARKING
STAMP 2.0 		8-98010-856-2 01 1 1307-1312 ● ●
270 SWITCH; PRESS,WHEEL PARKING
STAMP 2.0 		8-98010-856-2 01 1 1401- ● ● ●

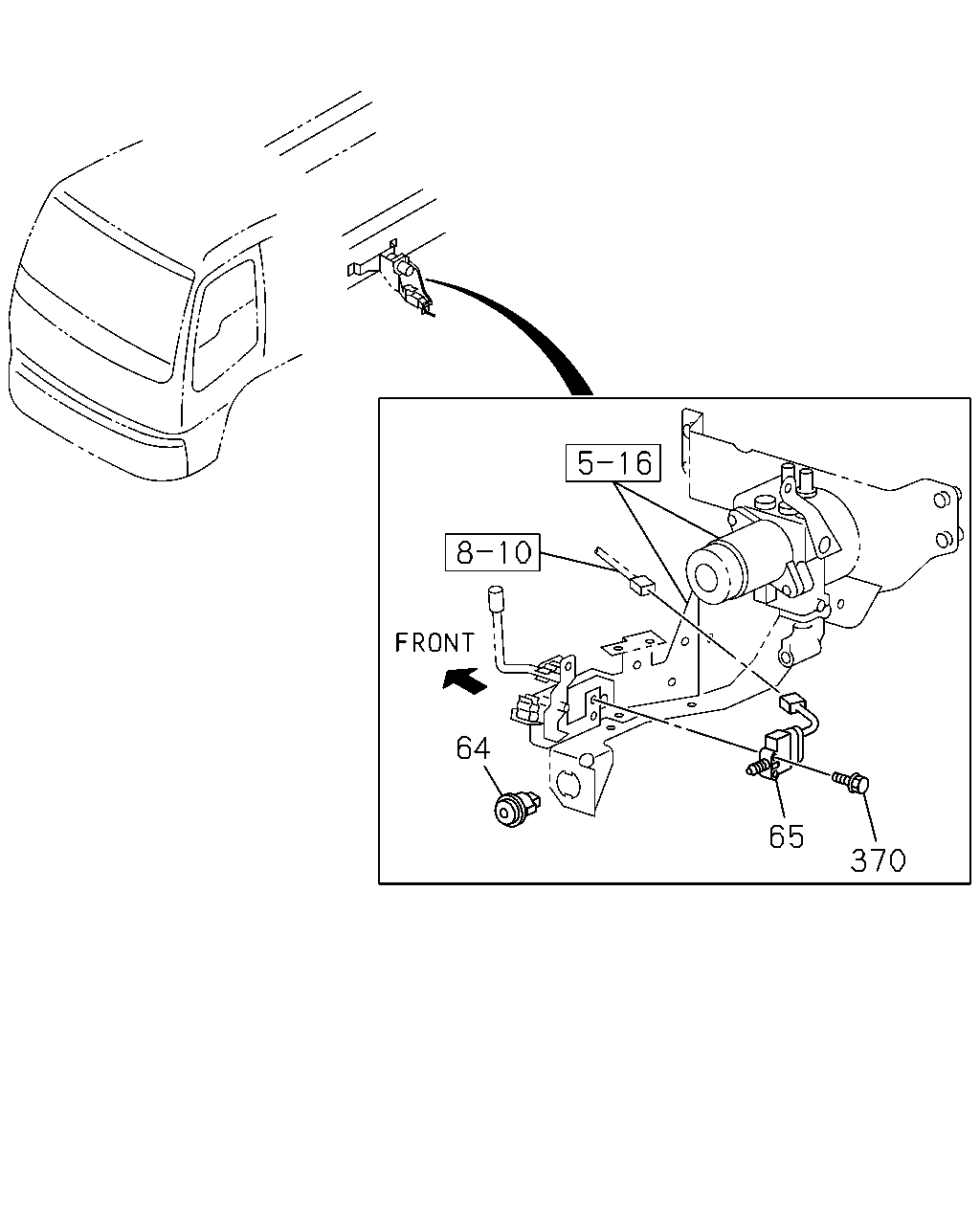

çizim 363950
370 65 64
BalonParca AdiParca NoAdetTipApplied Date A B C
64 SWITCH; CAB TILT MAIN 1-82380-173-2 01 1 1307- ●
65 SWITCH; CAB TILT LK
STAMP NO 		1-82380-172-1 01 1 1307- ●
370 BOLT; SW
M6X30 FLANGE 		0-28650-630-0 02 1 1307- ●

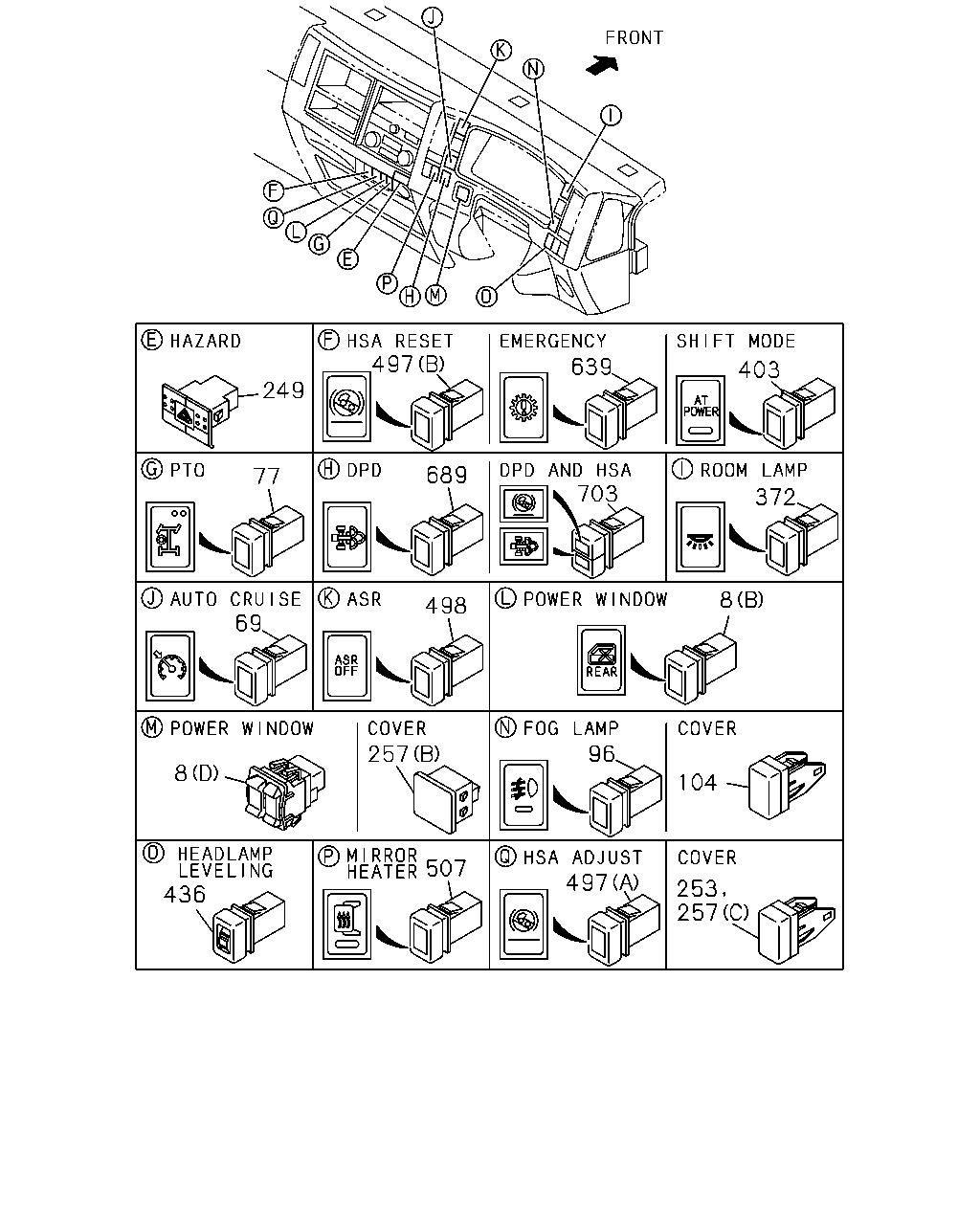

çizim 365320
249 497 639 403 77 689 703 372 8 498 69 8 436 507 497 253 257 104 96 257
BalonParca AdiParca NoAdetTipApplied Date A B C
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) (A) PASSENGER SIDE 		8-97387-034-2 01 1 1307-1312 ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY) (A) PASSENGER SIDE 		8-97387-034-2 01 1 1307-1312 ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) (A) PASSENGER SIDE 		8-97387-034-2 01 1 1401-1509 ● ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY) (A) PASSENGER SIDE 		8-97387-034-2 01 1 1401-1509 ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) (A) DRIVER SIDE 		8-98298-750-0 01 1 1510- ● ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY) (A) DRIVER SIDE 		8-98298-750-0 01 1 1510- ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) (A) DRIVER SIDE 		8-98159-543-0 01 1 1307-1312 ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY) (A) DRIVER SIDE 		8-98159-543-0 01 1 1307-1312 ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) (A) DRIVER SIDE 		8-98159-543-0 01 1 1401-1509 ● ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY) (A) DRIVER SIDE 		8-98159-543-0 01 1 1401-1509 ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) (A) PASSENGER SIDE 		8-98316-415-0 01 1 1510- ● ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY) (A) PASSENGER SIDE 		8-98316-415-0 01 1 1510- ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) (A) DRIVER SIDE 		8-98227-828-0 01 1 1307-1312 ● ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) (A) DRIVER SIDE 		8-98227-828-0 01 1 1401-1509 ● ● ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) (A) DRIVER SIDE 		8-98298-754-0 01 1 1510- ● ● ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) (A) PASSENGER SIDE 		8-98227-829-0 01 1 1307-1312 ● ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) (A) PASSENGER SIDE 		8-98227-829-0 01 1 1401-1509 ● ● ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) (A) PASSENGER SIDE 		8-98316-423-0 01 1 1510- ● ● ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),CUSTOM PACKAGE(YM8) (C) REAR 		8-97387-035-0 02 1 1307- ●
8 SWITCH; POWER WINDOW
(D) REAR 		8-98113-578-1 01 1 1307- ●
8 SWITCH; POWER WINDOW
(B) REAR 		8-98128-755-2 01 1 1307- ●
69 SWITCH; AUTO CRUISE
AUTO CRUISE<K30> 		8-98011-344-1 01 1 1307-1312 ● ●
69 SWITCH; AUTO CRUISE
AUTO CRUISE<K30> 		8-98011-344-1 01 1 1401- ● ● ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97615-488-2 01 1 1307-1312 ● ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97615-488-2 01 1 1401- ● ● ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-2 01 1 1307-1312 ● ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-2 01 1 1401- ● ● ●
96 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1307-1312 ● ●
96 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1401- ● ● ●
104 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 		8-98025-954-1 01 1 1307-1312 ● ●
104 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 		8-98025-954-1 01 1 1401- ● ● ●
249 SWITCH; HAZARD 8-97386-922-1 01 1 1307-1312 ● ●
249 SWITCH; HAZARD 8-97386-922-1 01 1 1401- ● ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1307-1312 ● ●
253 COVER; SW HOLE
EXC. AUTO CRUISE<K30> 		8-98025-954-1 01 1 1307-1312 ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1307-1312 ● ●
253 COVER; SW HOLE
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98025-954-1 01 1 1307-1312 ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1401- ● ● ●
253 COVER; SW HOLE
EXC. AUTO CRUISE<K30> 		8-98025-954-1 01 1 1401- ● ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1401- ● ● ●
253 COVER; SW HOLE
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98025-954-1 01 1 1401- ● ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1307-1312 ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1401- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 03 1 1307-1312 ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 03 1 1401- ● ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1307-1312 ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 1307-1312 ● ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) 		8-98025-954-1 01 1 1307-1312 ● ●
257 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1307-1312 ● ●
257 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1307-1312 ● ●
257 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1307-1312 ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 1401- ● ● ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) 		8-98025-954-1 01 1 1401- ● ● ●
257 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1401- ● ● ●
257 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1401- ● ● ●
257 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1401- ● ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1401- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1401- ●
257 COVER; HOLE,SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		8-97619-254-1 02 1 1307-1312 ● ●
257 COVER; HOLE,SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		8-97619-254-1 02 1 1401- ● ● ●
372 SWITCH; ROOM LAMP 8-97386-917-2 01 1 1307-1312 ● ●
372 SWITCH; ROOM LAMP 8-97386-917-2 01 1 1401- ● ● ●
403 SWITCH
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98240-737-1 01 1 1307-1312 ● ●
403 SWITCH
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98240-737-1 01 1 1401- ● ● ●
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97386-981-2 01 1 1307- ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98119-946-0 01 1 1307-1312 ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98119-946-0 01 1 1401- ● ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98119-947-1 01 1 1307-1312 ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98119-947-1 01 1 1401- ● ● ●
498 SWITCH; ASR
THROTTLE CONTROL SYSTEM(6XH) 		8-97386-920-2 01 1 1307-1312 ●
498 SWITCH; ASR
THROTTLE CONTROL SYSTEM(6XH) 		8-97386-920-2 01 1 1401- ● ●
507 SWITCH; MIRROR HEATER 8-97386-924-3 01 1 1307-1312 ● ●
507 SWITCH; MIRROR HEATER 8-97386-924-3 01 1 1401- ● ● ●
639 SWITCH; EMERGENCY
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 1307-1312 ● ●
639 SWITCH; EMERGENCY
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 1401- ● ● ●
689 SWITCH; DPD
EXC. H.S.A SYSTEM<6EP> 		8-97386-921-2 01 1 1307-1312 ● ●
689 SWITCH; DPD
EXC. H.S.A SYSTEM<6EP> 		8-97386-921-2 01 1 1401- ● ● ●
703 SWITCH; DPD & HSA
H.S.A SYSTEM<6EP> 		8-98011-346-2 01 1 1307-1312 ● ●
703 SWITCH; DPD & HSA
H.S.A SYSTEM<6EP> 		8-98011-346-2 01 1 1401- ● ● ●
çizim 365581
164
BalonParca AdiParca NoAdetTipApplied Date A B C
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1307-1312 ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1307-1312 ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1401- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1401- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1307-1312 ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1307-1312 ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1401- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1401- ●

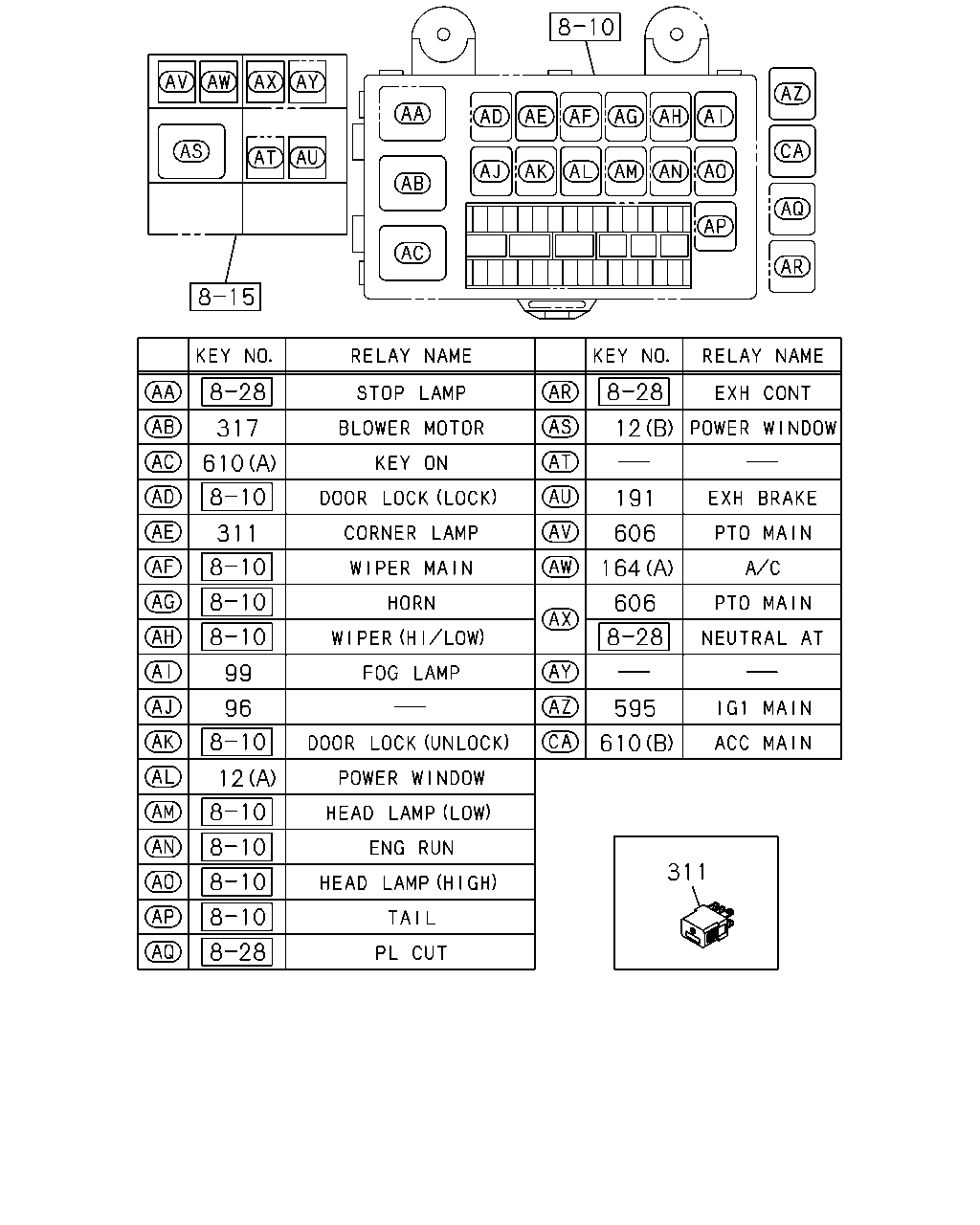

çizim 366116
317 311 610 96 99 12 191 12 606 606 164 595 610 311
BalonParca AdiParca NoAdetTipApplied Date A B C
12 RELAY; POWER WINDOW
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1307-1312 ● ●
12 RELAY; POWER WINDOW
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1401- ● ● ●
12 RELAY; POWER WINDOW
(B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1307- ●
96 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1307-1312 ● ●
96 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1401- ● ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC 		8-97173-035-1 01 1 1307-1312 ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC 		8-97173-035-1 01 1 1401- ● ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1307-1312 ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1307-1312 ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1401- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1401- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1307-1312 ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1307-1312 ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1401- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1401- ●
191 RELAY; EXH BRK CUT
A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 01 1 1307-1312 ●
191 RELAY; EXH BRK CUT
A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 01 1 1401- ● ●
311 RELAY; CORNERING LAMP
CORNERING LAMP<T87> 24V 10A PANASONIC 		8-97173-035-1 01 1 1307-1312 ●
311 RELAY; CORNERING LAMP
24V 10A PANASONIC 		8-97173-035-1 01 1 1307-1312 ●
311 RELAY; CORNERING LAMP
CORNERING LAMP<T87> 24V 10A PANASONIC 		8-97173-035-1 01 1 1401- ●
311 RELAY; CORNERING LAMP
24V 10A PANASONIC 		8-97173-035-1 01 1 1401- ● ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1307-1312 ● ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1401- ● ● ●
595 RELAY; IGNITION
24V 10A PANASONIC 		8-97173-035-1 01 1 1307-1312 ● ●
595 RELAY; IGNITION
24V 10A PANASONIC 		8-97173-035-1 01 1 1401- ● ● ●
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC 		8-97173-035-1 01 1 1307-1312 ● ●
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 10A PANASONIC 		8-97173-035-1 01 1 1307-1312 ● ●
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC 		8-97173-035-1 01 1 1401- ● ● ●
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 10A PANASONIC 		8-97173-035-1 01 1 1401- ● ● ●
610 RELAY; KEY ON
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1307-1312 ● ●
610 RELAY; KEY ON
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1401- ● ● ●
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1307-1312 ● ●
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1401- ● ● ●

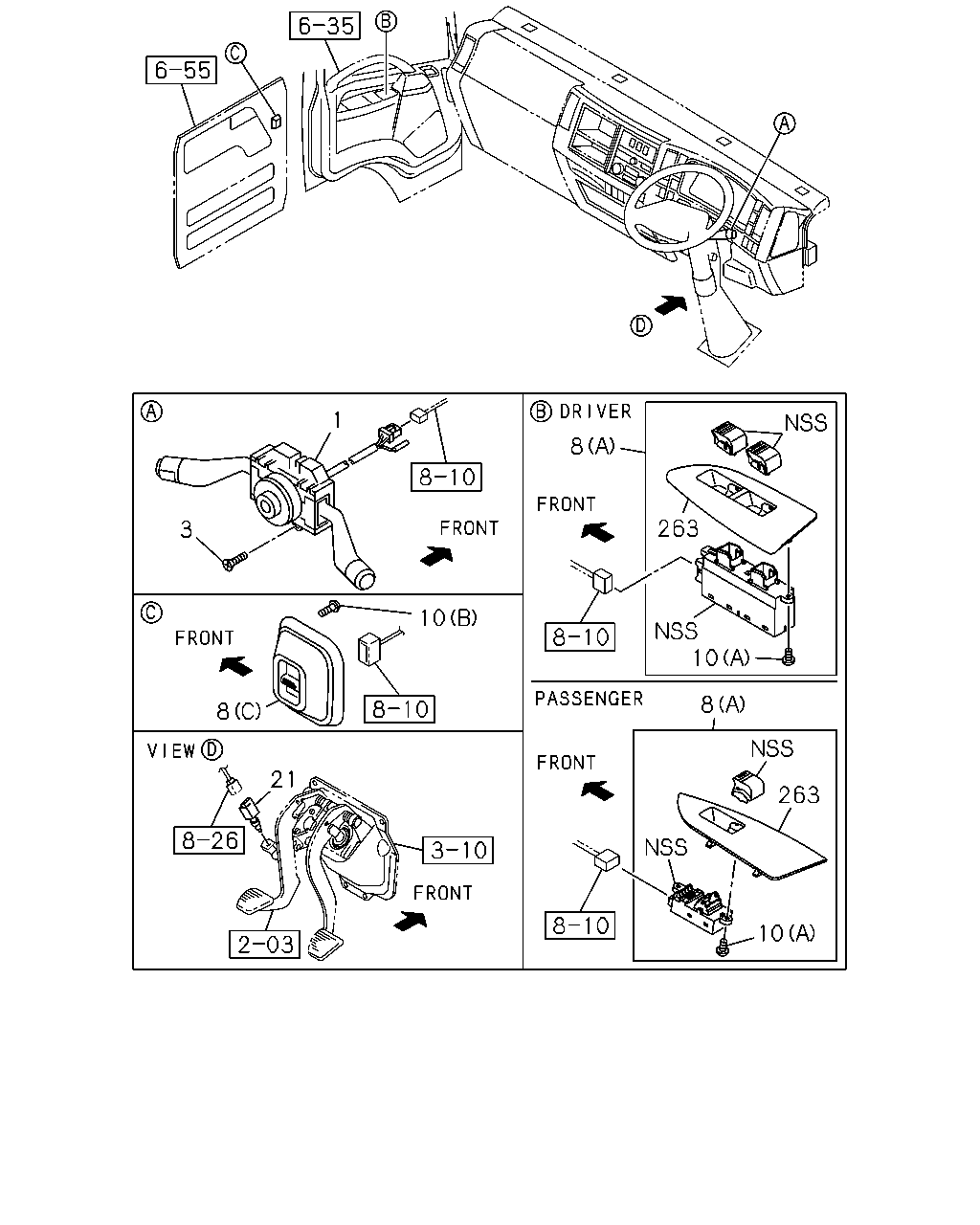

çizim 366757
1 3 10 8 21 8 263 10 8 263 10
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30>,CORNERING LAMP<T87> 		8-98060-302-1 01 1 1307-1310 ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30>,CORNERING LAMP<T87> 		8-98243-704-0 01 1 1311- ●
1 SWITCH; COMB
AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),CORNERING LAMP<T87> 		8-98024-269-1 01 1 1307-1310 ●
1 SWITCH; COMB
AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),CORNERING LAMP<T87> 		8-98243-705-0 01 1 1311- ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30> 		8-98217-821-0 01 1 1307-1310 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30> 		8-98243-692-0 01 1 1311-1312 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30> 		8-98243-692-0 01 1 1401- ● ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30> 		8-98217-820-0 01 1 1307-1310 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30> 		8-98243-691-0 01 1 1311-1312 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30> 		8-98243-691-0 01 1 1401- ● ● ●
3 SCREW; COMB SW
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) CORNERING LAMP<T87> M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1307-1312 ●
3 SCREW; COMB SW
EXC. CORNERING LAMP<T87> M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1307-1312 ●
3 SCREW; COMB SW
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1307-1312 ●
3 SCREW; COMB SW
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) CORNERING LAMP<T87> M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1401- ●
3 SCREW; COMB SW
EXC. CORNERING LAMP<T87> M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1401- ●
3 SCREW; COMB SW
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1401- ● ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) (A) PASSENGER SIDE 		8-97387-034-2 01 1 1307-1312 ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY) (A) PASSENGER SIDE 		8-97387-034-2 01 1 1307-1312 ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) (A) PASSENGER SIDE 		8-97387-034-2 01 1 1401-1509 ● ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY) (A) PASSENGER SIDE 		8-97387-034-2 01 1 1401-1509 ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) (A) DRIVER SIDE 		8-98298-750-0 01 1 1510- ● ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY) (A) DRIVER SIDE 		8-98298-750-0 01 1 1510- ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) (A) DRIVER SIDE 		8-98159-543-0 01 1 1307-1312 ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY) (A) DRIVER SIDE 		8-98159-543-0 01 1 1307-1312 ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) (A) DRIVER SIDE 		8-98159-543-0 01 1 1401-1509 ● ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY) (A) DRIVER SIDE 		8-98159-543-0 01 1 1401-1509 ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) (A) PASSENGER SIDE 		8-98316-415-0 01 1 1510- ● ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY) (A) PASSENGER SIDE 		8-98316-415-0 01 1 1510- ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) (A) DRIVER SIDE 		8-98227-828-0 01 1 1307-1312 ● ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) (A) DRIVER SIDE 		8-98227-828-0 01 1 1401-1509 ● ● ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) (A) DRIVER SIDE 		8-98298-754-0 01 1 1510- ● ● ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) (A) PASSENGER SIDE 		8-98227-829-0 01 1 1307-1312 ● ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) (A) PASSENGER SIDE 		8-98227-829-0 01 1 1401-1509 ● ● ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) (A) PASSENGER SIDE 		8-98316-423-0 01 1 1510- ● ● ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),CUSTOM PACKAGE(YM8) (C) REAR 		8-97387-035-0 02 1 1307- ●
8 SWITCH; POWER WINDOW
(D) REAR 		8-98113-578-1 01 1 1307- ●
8 SWITCH; POWER WINDOW
(B) REAR 		8-98128-755-2 01 1 1307- ●
10 SCREW; POWER WINDOW SW
(A) 		8-98153-865-0 03 1 1307-1312 ● ●
10 SCREW; POWER WINDOW SW
(A) 		8-98153-865-0 03 1 1401- ● ● ●
10 SCREW; POWER WINDOW SW
STANDARD CAB(SAY),CUSTOM PACKAGE(YM8) (B) M4X14 TAPPING 		0-74360-414-0 04 1 1307- ●
21 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97358-248-0 01 1 1307-1312 ● ●
21 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97358-248-0 01 1 1401- ● ● ●
21 SWITCH; CLU
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94337-761-0 01 1 1307-1312 ● ●
21 SWITCH; CLU
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94337-761-0 01 1 1401- ● ● ●
263 COVER; SW
DRIVER SIDE 		8-98153-836-0 01 1 1307-1312 ● ●
263 COVER; SW
DRIVER SIDE 		8-98153-836-0 01 1 1401- ● ● ●
263 COVER; SW
PASSENGER SIDE 		8-98153-841-0 01 1 1307-1312 ● ●
263 COVER; SW
PASSENGER SIDE 		8-98153-841-0 01 1 1401- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
