◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#123769) — 22 parça

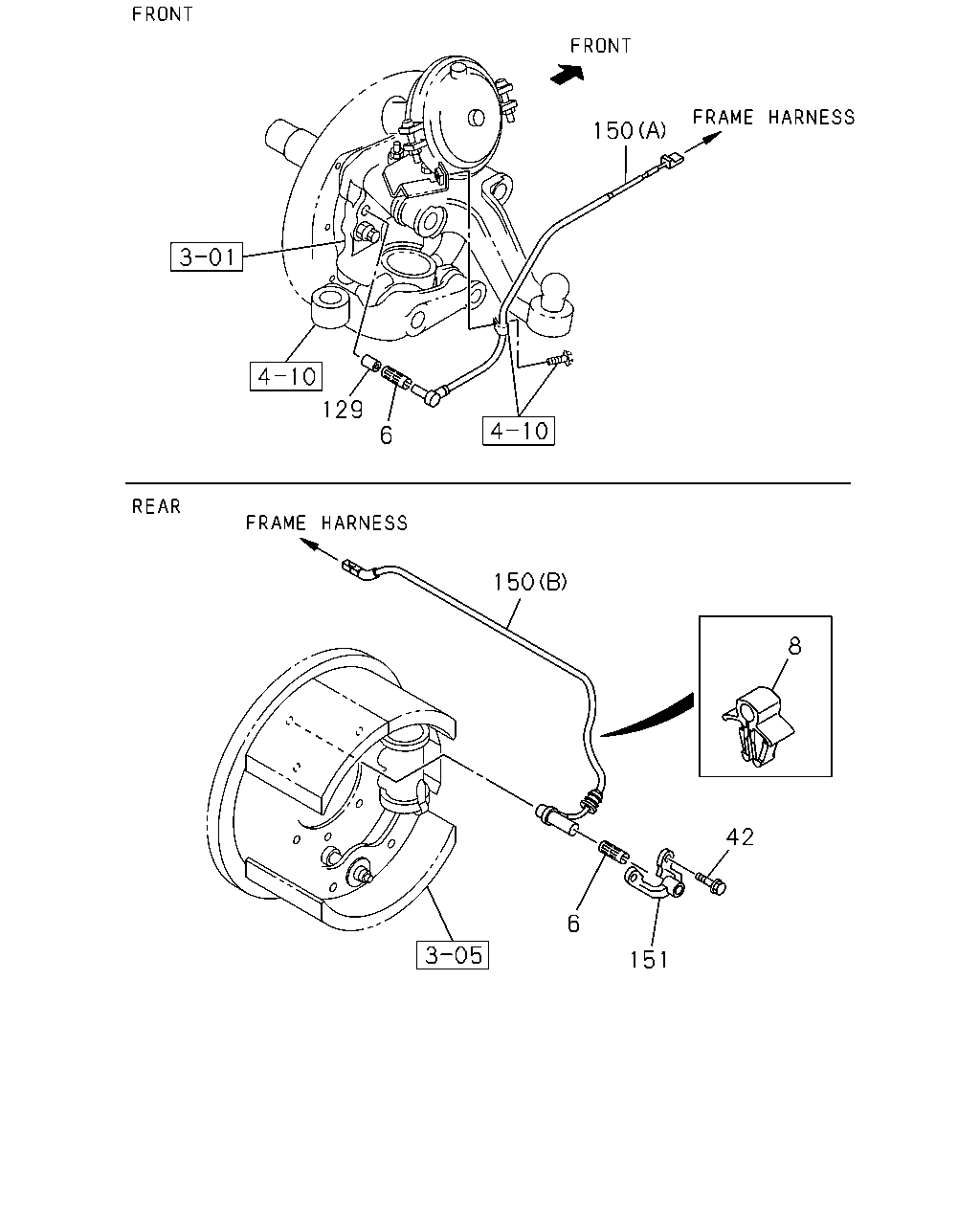

çizim 363726
150 8 150 42 151 6 129 6
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 1307-1312 ● ●
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 1307-1312 ● ●
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 1401- ● ● ●
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 1401- ● ● ●
8 CLIP; HARNESS
ID=4.8 		1-09701-218-0 02 1 1307-1312 ● ●
8 CLIP; HARNESS
ID=4.8 		1-09701-218-0 02 1 1401- ● ● ●
42 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1307-1312 ● ●
42 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1401- ● ● ●
129 COLLAR 1-83129-471-0 02 1 1307-1312 ● ●
129 COLLAR 1-83129-471-0 02 1 1401- ● ● ●
150 SENSOR; SPEED,ABS
(A) 		1-83227-019-1 02 1 1307-1312 ● ●
150 SENSOR; SPEED,ABS
(A) 		1-83227-019-1 02 1 1401- ● ● ●
150 SENSOR; SPEED,ABS
(B) 		8-98012-782-4 02 1 1307-1312 ● ●
150 SENSOR; SPEED,ABS
(B) 		8-98012-782-4 02 1 1401- ● ● ●
151 BRACKET; SPD SENSOR 8-98064-696-0 01 1 1307-1312 ● ●
151 BRACKET; SPD SENSOR 8-98064-696-0 01 1 1401- ● ● ●
151 BRACKET; SPD SENSOR 8-98064-697-0 01 1 1307-1312 ● ●
151 BRACKET; SPD SENSOR 8-98064-697-0 01 1 1401- ● ● ●

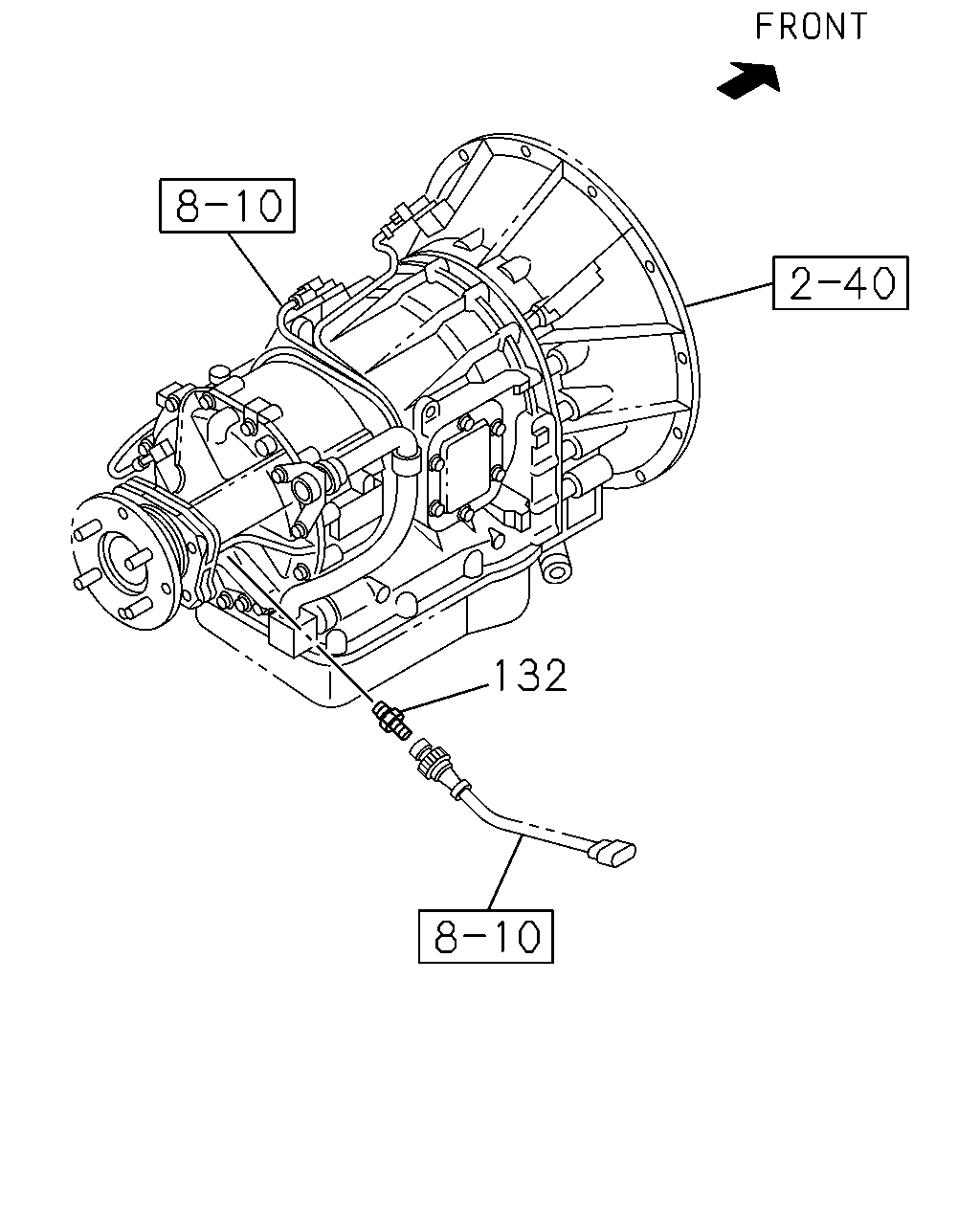

çizim 363785
132
BalonParca AdiParca NoAdetTipApplied Date A B C
132 SENSOR; SPD,SPEEDOMETER
LCT2500 A/T ALLISON(Y5W) 		8-98151-663-0 01 1 1307-1312 ●
132 SENSOR; SPD,SPEEDOMETER
LCT2500 A/T ALLISON(Y5W) 		8-98151-663-0 01 1 1401-1501 ● ●
132 SENSOR; SPD,SPEEDOMETER
LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> 		8-98151-663-0 01 1 1502-1503 ● ●
132 SENSOR; SPD,SPEEDOMETER
LCT2500 A/T ALLISON(Y5W) 		8-98151-663-0 01 1 1504- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
