Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#123768) — 549 parça

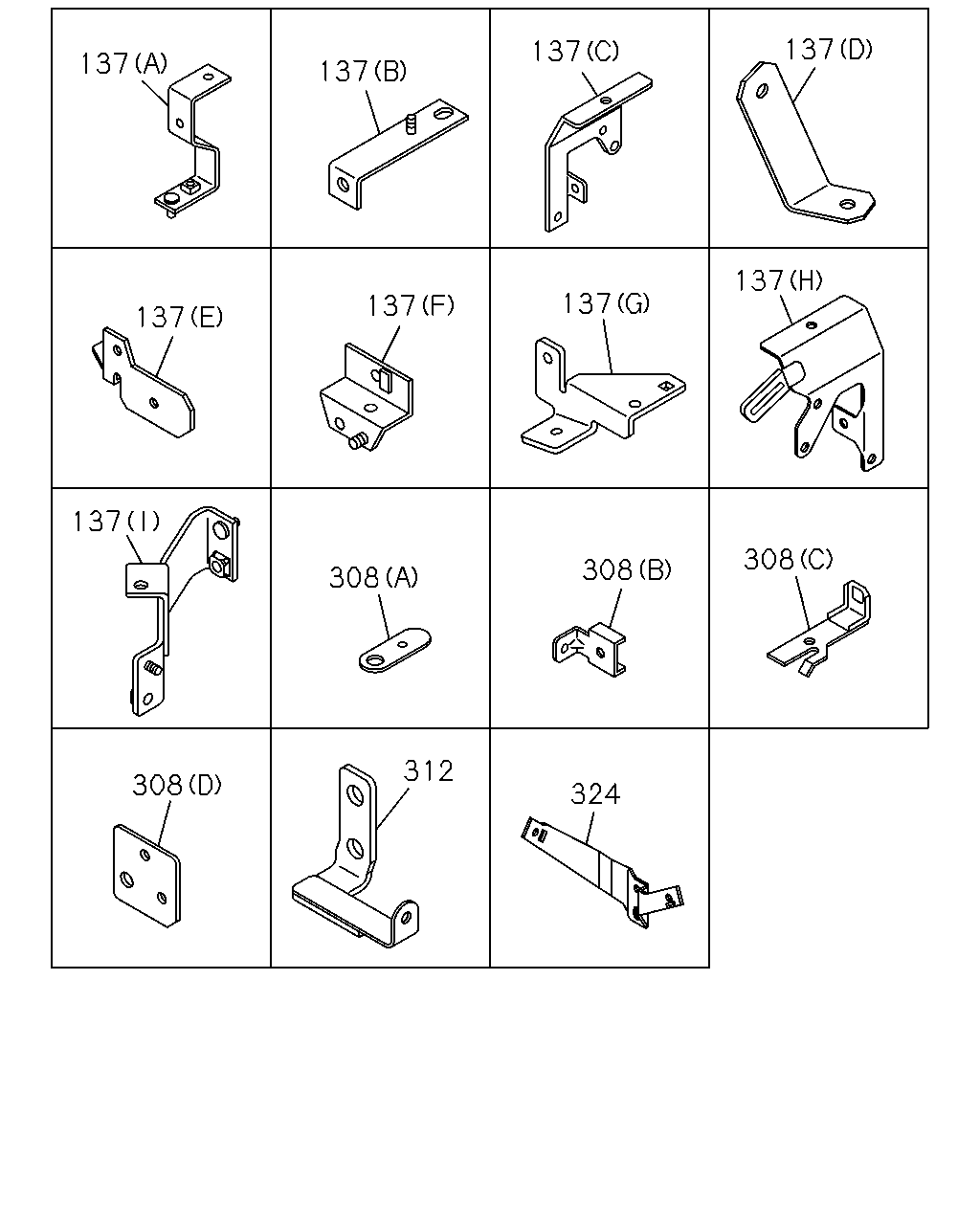

69 59 59 59 7 53 53 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1307-1312	●	●
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1401-	●	●	●
53	BRACKET; HARNESS LCT2500 A/T ALLISON(Y5W) (A)	1-82698-296-0	02	1	1307-1312	●
53	BRACKET; HARNESS LCT2500 A/T ALLISON(Y5W) (A)	1-82698-296-0	02	1	1401-1501	●		●
53	BRACKET; HARNESS LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> (A)	1-82698-296-0	02	1	1502-1503	●		●
53	BRACKET; HARNESS LCT2500 A/T ALLISON(Y5W) (A)	1-82698-296-0	02	1	1504-	●		●
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	1307-1312	●	●
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	1401-	●	●	●
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (C)	8-98099-963-0	01	1	1307-		●
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (D) L=75	1-47478-323-0	01	1	1307-		●
59	BRACKET; FRAME HARNESS (C)	8-97609-264-2	01	1	1307-1312	●
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (C)	8-97609-264-2	01	1	1307-1312		●
59	BRACKET; FRAME HARNESS (C)	8-97609-264-2	01	1	1401-	●		●
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (C)	8-97609-264-2	01	1	1401-		●
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) MANUAL TRANSMISSION<X9C> (A) L=85	8-98044-743-0	01	1	1307-1312	●
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) MANUAL TRANSMISSION<X9C> (A) L=85	8-98044-743-0	01	1	1401-	●
59	BRACKET; FRAME HARNESS 6HK1-TCC ENG(81L) MANUAL TRANSMISSION<X9C> (A) L=85	8-98044-743-0	01	1	1401-			●
59	BRACKET; FRAME HARNESS (B)	8-97616-357-3	01	1	1307-1312	●
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (B)	8-97616-357-3	01	1	1307-1312		●
59	BRACKET; FRAME HARNESS (B)	8-97616-357-3	01	1	1401-	●		●
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (B)	8-97616-357-3	01	1	1401-		●
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-82698-167-0	01	1	1307-1312	●	●
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-82698-167-0	01	1	1401-	●	●	●

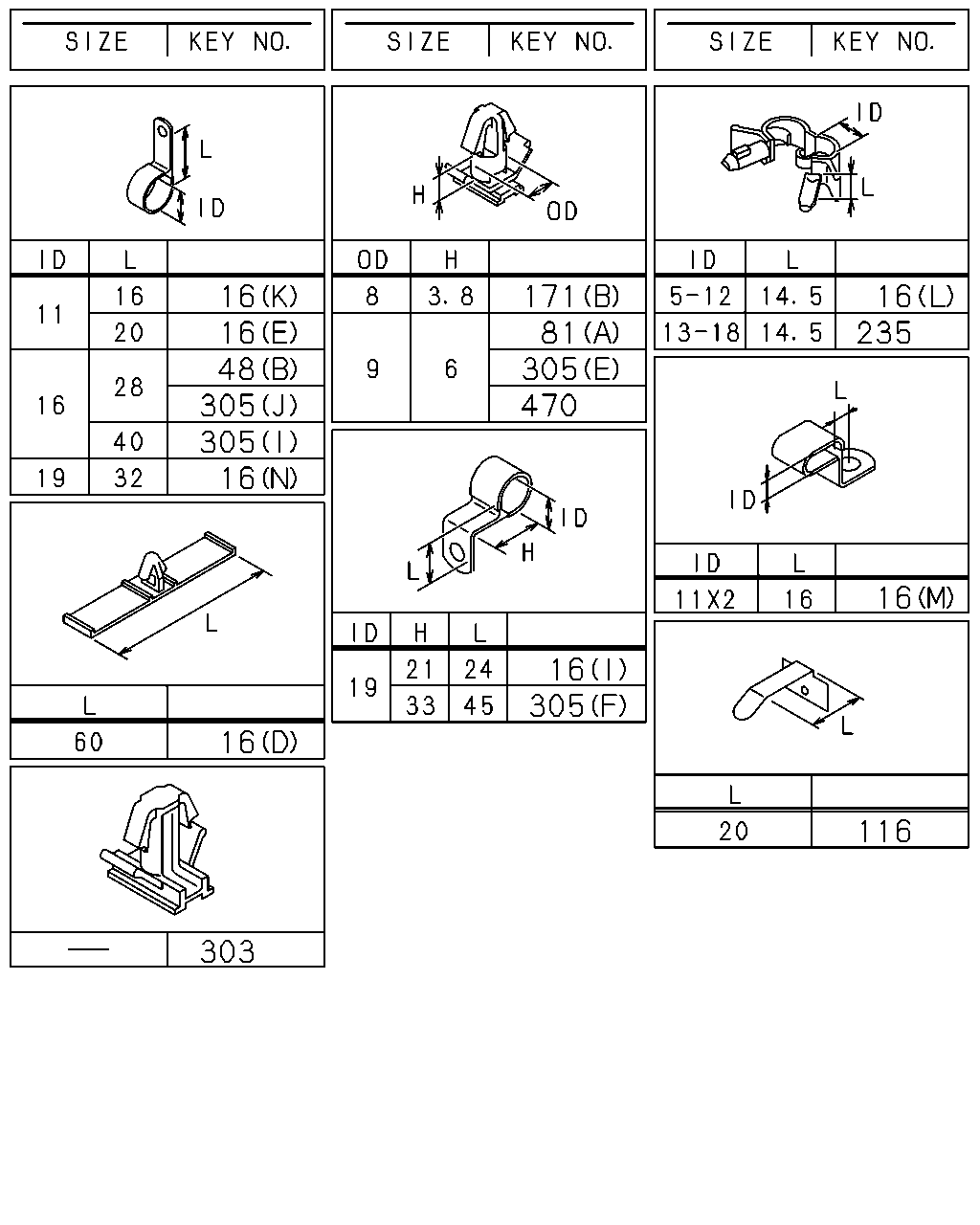

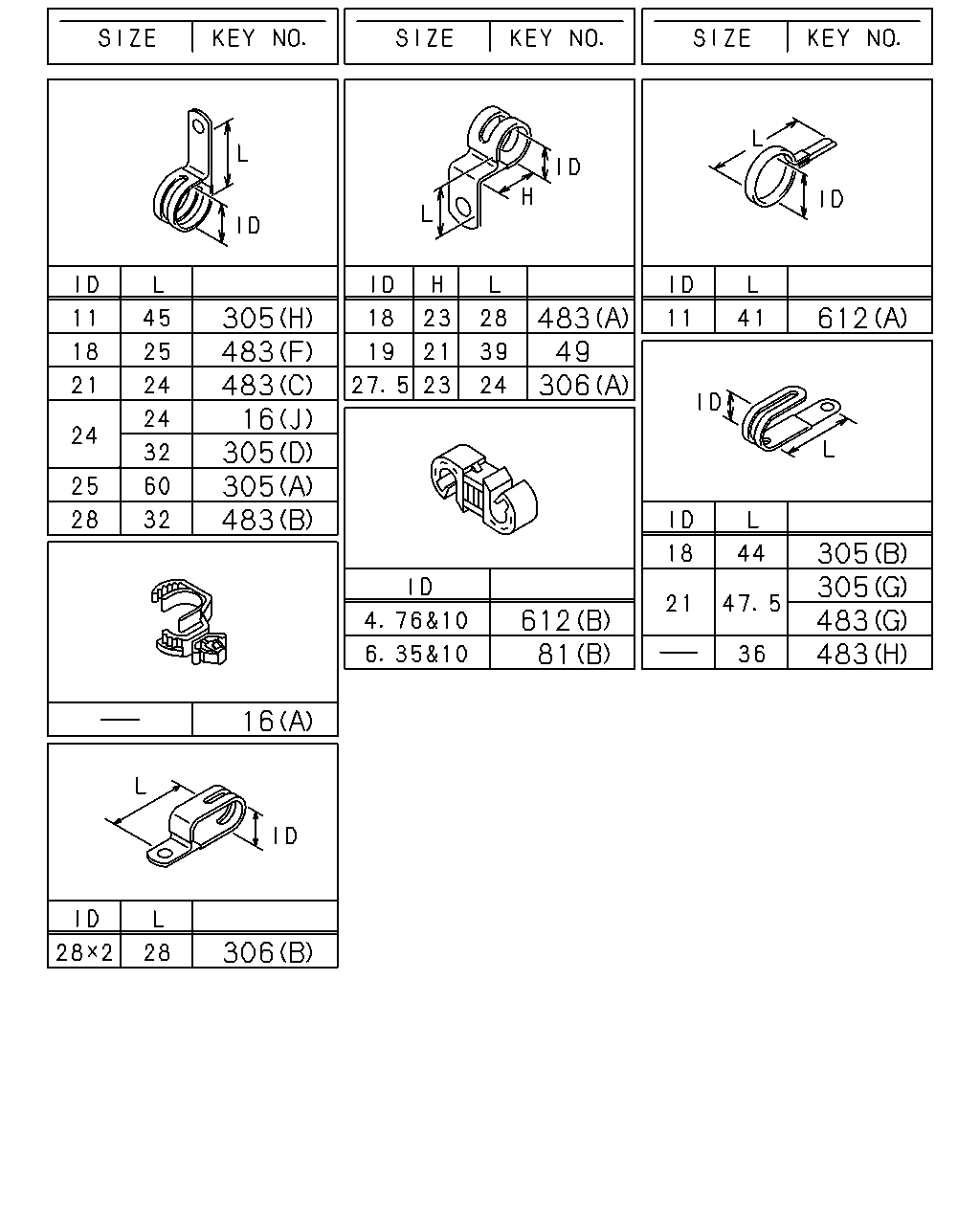

305 483 483 16 305 305 483 16 306 483 49 306 612 81 612 305 305 483 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (N) ID=19 L=32	0-95235-866-0	02	1	1307-1312	●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (N) ID=19 L=32	0-95235-866-0	02	1	1401-	●		●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (E) ID=11 L=20	0-95235-035-0	02	1	1307-1312	●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (E) ID=11 L=20	0-95235-035-0	02	1	1401-1501	●		●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> (E) ID=11 L=20	0-95235-035-0	02	1	1502-1503	●		●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (E) ID=11 L=20	0-95235-035-0	02	1	1504-	●		●
16	CLIP; HARNESS (K) ID=11 L=16	0-95235-025-0	02	1	1307-1312	●	●
16	CLIP; HARNESS (K) ID=11 L=16	0-95235-025-0	02	1	1401-	●	●	●
16	CLIP; HARNESS (M) ID=11X2 L=16	1-09700-734-0	01	1	1307-1312	●	●
16	CLIP; HARNESS (M) ID=11X2 L=16	1-09700-734-0	01	1	1401-	●	●	●
16	CLIP; HARNESS (F) L=350	1-09707-183-0	01	1	1307-1312	●	●
16	CLIP; HARNESS (F) L=350	1-09707-183-0	01	1	1401-	●	●	●
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	03	1	1307-1312	●	●
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	03	1	1401-	●	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1307-1312	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1401-	●	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1307-1312	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1401-	●	●	●
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (H) L=40.6	8-97229-357-0	02	1	1307-1312	●	●
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1307-1312		●
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1401-	●	●	●
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1401-		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1307-1312	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1401-	●	●	●
16	CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	1307-		●
16	CLIP; HARNESS (D) L=60	8-97063-335-0	02	1	1307-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (J) ID=24 L=24	1-09701-001-1	02	1	1307-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (I) ID=19 H=21 L=24	5-09700-360-0	01	1	1307-		●
49	CLIP; GEN HARNESS 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=19 L=39 H=21	1-09700-972-1	01	1	1307-		●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1307-1312	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1307-1312	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1401-	●	●	●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1307-1312		●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1401-		●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=40	0-95235-576-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=40	0-95235-576-0	01	1	1401-		●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=32	1-09700-766-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=32	1-09700-766-1	01	1	1401-		●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1401-		●
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1401-		●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) OD=9 H=6	1-09709-178-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) OD=9 H=6	1-09709-178-0	01	1	1401-		●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=11 L=45	8-94296-897-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=11 L=45	8-94296-897-1	01	1	1401-		●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1401-		●
305	CLIP; ENG HARNESS (K) L=140	8-97122-360-0	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (K) L=140	8-97122-360-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (K) L=140	8-97122-360-0	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (K) L=140	8-97122-360-0	01	1	1401-		●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=18 L=44	8-97367-985-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=18 L=44	8-97367-985-1	01	1	1401-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	1307-1312	●	●
305	CLIP; ENG HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	1401-	●	●	●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (L) L=300	1-09707-001-1	01	1	1307-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (N) L=140	5-09707-031-1	02	1	1307-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (M) L=250	5-09707-030-1	01	1	1307-		●
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1307-1312	●
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1307-1312		●
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1401-	●		●
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1401-		●
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1307-1312	●
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (B) ID=28X2 L=28	1-09701-302-0	02	1	1307-1312		●
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1401-	●		●
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (B) ID=28X2 L=28	1-09701-302-0	02	1	1401-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1307-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) ID=28 L=32	1-09701-107-1	01	1	1307-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=21 L=24	1-09701-201-0	01	1	1307-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D)	1-09987-281-0	01	1	1307-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (E) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1307-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) ID=18 L=25	8-94121-004-1	01	1	1307-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (G) ID=21 L=47.5	8-94178-108-0	01	1	1307-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (H) L=36	8-94224-891-1	01	1	1307-		●
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	1307-1312	●	●
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	1401-	●	●	●
612	CLIP; HARNESS DPD (B) ID=4.76 & 10.0	1-09709-305-0	03	1	1307-1312	●	●
612	CLIP; HARNESS DPD (B) ID=4.76 & 10.0	1-09709-305-0	03	1	1401-	●	●	●

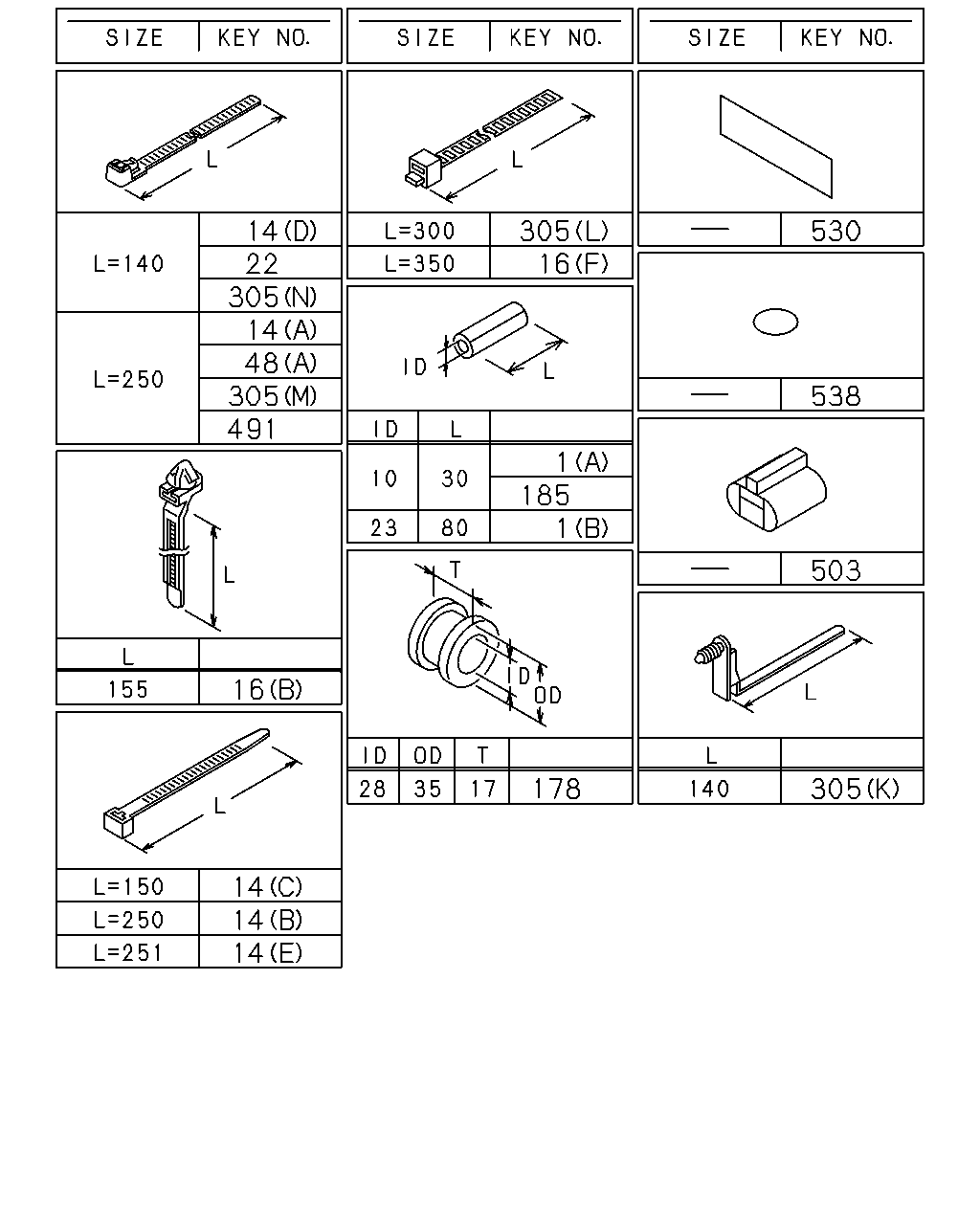

14 22 305 14 48 305 491 16 14 14 14 305 16 1 185 1 178 530 538 503 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	1307-1312	●
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	1307-1312		●
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	1401-	●		●
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	1401-		●
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1307-1312	●
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1307-1312		●
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1401-	●		●
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1401-		●
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) (B) L=250	8-98216-430-0	14	1	1307-1312	●
14	CLIP; BAND,HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) (B) L=250	8-98216-430-0	14	1	1401-	●		●
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=250	8-98216-430-0	13	1	1307-1312	●	●
14	CLIP; BAND,HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=250	8-98216-430-0	13	1	1401-	●	●	●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (A) L=250	5-09707-030-1	01	1	1307-		●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (C) L=150	8-97355-273-0	02	1	1307-		●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) L=140	5-09707-031-1	02	1	1307-		●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (D) L=140	5-09707-031-1	02	1	1307-		●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E) L=251	8-97619-917-0	01	1	1307-		●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (N) ID=19 L=32	0-95235-866-0	02	1	1307-1312	●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (N) ID=19 L=32	0-95235-866-0	02	1	1401-	●		●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (E) ID=11 L=20	0-95235-035-0	02	1	1307-1312	●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (E) ID=11 L=20	0-95235-035-0	02	1	1401-1501	●		●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> (E) ID=11 L=20	0-95235-035-0	02	1	1502-1503	●		●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (E) ID=11 L=20	0-95235-035-0	02	1	1504-	●		●
16	CLIP; HARNESS (K) ID=11 L=16	0-95235-025-0	02	1	1307-1312	●	●
16	CLIP; HARNESS (K) ID=11 L=16	0-95235-025-0	02	1	1401-	●	●	●
16	CLIP; HARNESS (M) ID=11X2 L=16	1-09700-734-0	01	1	1307-1312	●	●
16	CLIP; HARNESS (M) ID=11X2 L=16	1-09700-734-0	01	1	1401-	●	●	●
16	CLIP; HARNESS (F) L=350	1-09707-183-0	01	1	1307-1312	●	●
16	CLIP; HARNESS (F) L=350	1-09707-183-0	01	1	1401-	●	●	●
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	03	1	1307-1312	●	●
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	03	1	1401-	●	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1307-1312	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1401-	●	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1307-1312	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1401-	●	●	●
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (H) L=40.6	8-97229-357-0	02	1	1307-1312	●	●
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1307-1312		●
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1401-	●	●	●
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1401-		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1307-1312	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1401-	●	●	●
16	CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	1307-		●
16	CLIP; HARNESS (D) L=60	8-97063-335-0	02	1	1307-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (J) ID=24 L=24	1-09701-001-1	02	1	1307-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (I) ID=19 H=21 L=24	5-09700-360-0	01	1	1307-		●
22	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) L=140	5-09707-031-1	02	1	1307-		●
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (B) ID=16 L=28	0-95235-556-0	01	1	1307-		●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	01	1	1307-1312	●
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (A) L=250	5-09707-030-1	01	1	1307-1312		●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	01	1	1401-	●		●
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (A) L=250	5-09707-030-1	01	1	1401-		●
178	GROMMET; HARNESS ID=28 OD=35 T=17	9-09956-256-2	01	1	1307-1312	●	●
178	GROMMET; HARNESS ID=28 OD=35 T=17	9-09956-256-2	01	1	1307-1312	●	●
178	GROMMET; HARNESS ID=28 OD=35 T=17	9-09956-256-2	01	1	1401-	●	●	●
178	GROMMET; HARNESS ID=28 OD=35 T=17	9-09956-256-2	01	1	1401-	●	●	●
185	SLEEVE; RUBBER 4HK1-TCS ENG(RJS) ID=10 OD=14 L=30	9-09956-682-0	01	1	1307-		●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1307-1312		●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1401-		●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=40	0-95235-576-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=40	0-95235-576-0	01	1	1401-		●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=32	1-09700-766-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=32	1-09700-766-1	01	1	1401-		●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1401-		●
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1401-		●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) OD=9 H=6	1-09709-178-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) OD=9 H=6	1-09709-178-0	01	1	1401-		●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=11 L=45	8-94296-897-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=11 L=45	8-94296-897-1	01	1	1401-		●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1401-		●
305	CLIP; ENG HARNESS (K) L=140	8-97122-360-0	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (K) L=140	8-97122-360-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (K) L=140	8-97122-360-0	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (K) L=140	8-97122-360-0	01	1	1401-		●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=18 L=44	8-97367-985-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=18 L=44	8-97367-985-1	01	1	1401-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	1307-1312	●	●
305	CLIP; ENG HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	1401-	●	●	●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (L) L=300	1-09707-001-1	01	1	1307-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (N) L=140	5-09707-031-1	02	1	1307-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (M) L=250	5-09707-030-1	01	1	1307-		●
491	CLIP; BAND,HTR HOSE & HARNESS A/T<X9D> L=250	5-09707-030-1	03	1	1307-1312	●
491	CLIP; BAND,HTR HOSE & HARNESS A/T<X9D> L=250	5-09707-030-1	03	1	1401-	●		●
503	CONNECTOR 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41)	1-82690-668-0	01	1	1307-1312	●	●
503	CONNECTOR 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41)	1-82690-668-0	01	1	1401-	●	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1307-1312	●
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1401-	●		●
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	1307-1312	●	●
530	SEAL; HARNESS A/T<X9D> 180X40	1-72498-019-1	01	1	1307-1312	●
530	SEAL; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. A/T<X9D> 180X40	1-72498-019-1	01	1	1307-1312	●
530	SEAL; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40	1-72498-019-1	01	1	1307-1312		●
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	1401-	●	●	●
530	SEAL; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40	1-72498-019-1	01	1	1401-	●	●	●
530	SEAL; HARNESS A/T<X9D> 180X40	1-72498-019-1	01	1	1401-	●		●
530	SEAL; HARNESS 180X40	1-72498-019-1	23	1	1307-		●
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1307-1312	●	●
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1401-	●	●	●

304 150 139 150 304 38 304 38 304 139 524 219 294 525 524 139 139 139 38 139 38 150 38 386 47 516 377 184 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
38	BOLT; CLIP,HARNESS LCT2500 A/T ALLISON(Y5W) (C) M8X16 FLANGE	0-28050-816-0	01	1	1307-1312	●
38	BOLT; CLIP,HARNESS LCT2500 A/T ALLISON(Y5W) (C) M8X16 FLANGE	0-28050-816-0	01	1	1401-1501	●		●
38	BOLT; CLIP,HARNESS LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> (C) M8X16 FLANGE	0-28050-816-0	01	1	1502-1503	●		●
38	BOLT; CLIP,HARNESS LCT2500 A/T ALLISON(Y5W) (C) M8X16 FLANGE	0-28050-816-0	01	1	1504-	●		●
38	BOLT; CLIP,HARNESS LCT2500 A/T ALLISON(Y5W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1307-1312	●
38	BOLT; CLIP,HARNESS LCT2500 A/T ALLISON(Y5W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1401-	●		●
38	BOLT; CLIP,HARNESS LCT2500 A/T ALLISON(Y5W) (A) M8X20 FLANGE	8-98105-048-0	01	1	1307-1312	●
38	BOLT; CLIP,HARNESS LCT2500 A/T ALLISON(Y5W) (A) M8X20 FLANGE	8-98105-048-0	01	1	1401-1501	●		●
38	BOLT; CLIP,HARNESS LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> (A) M8X20 FLANGE	8-98105-048-0	01	1	1502-1503	●		●
38	BOLT; CLIP,HARNESS LCT2500 A/T ALLISON(Y5W) (A) M8X20 FLANGE	8-98105-048-0	01	1	1504-	●		●
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE	0-28050-816-0	03	1	1307-1312	●	●
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE	0-28050-816-0	03	1	1401-	●	●	●
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28050-820-0	01	1	1307-	●	●
38	BOLT; CLIP,HARNESS (E) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1307-1312	●	●
38	BOLT; CLIP,HARNESS (E) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1401-	●	●	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	1307-1312	●
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (B) M8X25 FLANGE	0-28650-825-0	03	1	1307-1312		●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	1401-	●		●
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (B) M8X25 FLANGE	0-28650-825-0	03	1	1401-		●
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-		●
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-	●	●	●
84	WASHER; LK BRKT,HARNESS ID=14.2	0-91510-814-0	02	1	1307-1312	●	●
84	WASHER; LK BRKT,HARNESS ID=14.2	0-91510-814-0	02	1	1401-	●	●	●
139	BOLT; BRKT (F) M10X30 FLANGE	0-28651-030-0	01	1	1307-1312	●	●
139	BOLT; BRKT (F) M10X30 FLANGE	0-28651-030-0	01	1	1401-	●	●	●
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1307-1312	●	●
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1401-	●	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28050-830-0	04	1	1307-1312	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28050-830-0	04	1	1401-	●	●	●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1307-1312	●	●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1401-	●	●	●
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	02	1	1307-1312	●	●
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	02	1	1401-	●	●	●
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE	0-28650-825-0	01	1	1307-1312	●	●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	1307-1312		●
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE	0-28650-825-0	01	1	1401-	●	●	●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	1401-		●
139	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	01	1	1307-1312	●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (C) M8X20 FLANGE	0-28650-820-0	01	1	1307-1312		●
139	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	01	1	1401-	●		●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (C) M8X20 FLANGE	0-28650-820-0	01	1	1401-		●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1307-1312	●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M8X30 FLANGE	0-28650-830-0	02	1	1307-1312		●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1401-	●		●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M8X30 FLANGE	0-28650-830-0	02	1	1401-		●
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M6X20 FLANGE	0-28050-620-0	02	1	1307-		●
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M8X12 FLANGE	0-28050-812-0	01	1	1307-		●
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M6X16 FLANGE	0-28650-616-0	01	1	1307-		●
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1307-1312	●	●
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1401-	●	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1307-1312	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1401-	●	●	●
294	NUT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	05	1	1307-1312	●	●
294	NUT M8 FLANGE	0-91180-108-0	05	1	1401-	●		●
294	NUT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	05	1	1401-		●
294	NUT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1307-1312	●	●
294	NUT 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1307-1312		●
294	NUT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
294	NUT M8 FLANGE	0-91180-108-0	01	1	1401-		●	●
294	NUT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1307-		●
294	NUT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1307-		●
304	BOLT; ENG HARNESS CLIP (D) M6X12 FLANGE	0-28050-612-0	01	1	1307-1312	●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (D) M6X12 FLANGE	0-28050-612-0	01	1	1307-1312		●
304	BOLT; ENG HARNESS CLIP (D) M6X12 FLANGE	0-28050-612-0	01	1	1401-	●		●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (D) M6X12 FLANGE	0-28050-612-0	01	1	1401-		●
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	1307-1312	●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (B) M8X12 FLANGE	0-28050-812-0	02	1	1307-1312		●
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	1401-	●		●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (B) M8X12 FLANGE	0-28050-812-0	02	1	1401-		●
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	02	1	1307-1312	●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (C) M8X16 FLANGE	0-28050-816-0	02	1	1307-1312		●
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	02	1	1401-	●		●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (C) M8X16 FLANGE	0-28050-816-0	02	1	1401-		●
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	1307-1312	●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28050-820-0	01	1	1307-1312		●
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	1401-	●		●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28050-820-0	01	1	1401-		●
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1307-1312	●	●
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1401-	●	●	●
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1307-1312	●	●
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1401-	●	●	●
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1307-1312	●
516	BOLT; HARNESS 6HK1-TCN ENG(82L) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1307-1312		●
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1401-	●		●
516	BOLT; HARNESS 6HK1-TCN ENG(82L) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1401-		●
524	NUT; HARNESS (A) M6 FLANGE	0-91180-106-0	04	1	1307-1312	●	●
524	NUT; HARNESS (A) M6 FLANGE	0-91180-106-0	04	1	1401-	●	●	●
524	NUT; HARNESS 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M10 FLANGE	0-91180-110-0	01	1	1307-		●
525	NUT; CLIP 6HK1-TCN ENG(82L) T=8.0 M8 FLANGE	0-91180-108-0	02	1	1307-1312	●	●
525	NUT; CLIP 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) T=8.0 M8 FLANGE	0-91180-108-0	02	1	1307-1312		●
525	NUT; CLIP 6HK1-TCN ENG(82L) T=8.0 M8 FLANGE	0-91180-108-0	02	1	1401-	●	●
525	NUT; CLIP 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) T=8.0 M8 FLANGE	0-91180-108-0	02	1	1401-		●
525	NUT; CLIP 6HK1-TCC ENG(81L) T=8.0 M8 FLANGE	0-91180-108-0	02	1	1401-			●
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	1307-1312	●
525	NUT; CLIP 6HK1-TCN ENG(82L) T=8.5 M8 FLANGE	5-09440-010-0	01	1	1307-1312		●
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	1401-	●		●
525	NUT; CLIP 6HK1-TCN ENG(82L) T=8.5 M8 FLANGE	5-09440-010-0	01	1	1401-		●

16 16 48 305 305 16 16 303 171 81 305 470 16 305 16 235 16 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (N) ID=19 L=32	0-95235-866-0	02	1	1307-1312	●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (N) ID=19 L=32	0-95235-866-0	02	1	1401-	●		●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (E) ID=11 L=20	0-95235-035-0	02	1	1307-1312	●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (E) ID=11 L=20	0-95235-035-0	02	1	1401-1501	●		●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> (E) ID=11 L=20	0-95235-035-0	02	1	1502-1503	●		●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (E) ID=11 L=20	0-95235-035-0	02	1	1504-	●		●
16	CLIP; HARNESS (K) ID=11 L=16	0-95235-025-0	02	1	1307-1312	●	●
16	CLIP; HARNESS (K) ID=11 L=16	0-95235-025-0	02	1	1401-	●	●	●
16	CLIP; HARNESS (M) ID=11X2 L=16	1-09700-734-0	01	1	1307-1312	●	●
16	CLIP; HARNESS (M) ID=11X2 L=16	1-09700-734-0	01	1	1401-	●	●	●
16	CLIP; HARNESS (F) L=350	1-09707-183-0	01	1	1307-1312	●	●
16	CLIP; HARNESS (F) L=350	1-09707-183-0	01	1	1401-	●	●	●
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	03	1	1307-1312	●	●
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	03	1	1401-	●	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1307-1312	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1401-	●	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1307-1312	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1401-	●	●	●
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (H) L=40.6	8-97229-357-0	02	1	1307-1312	●	●
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1307-1312		●
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1401-	●	●	●
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1401-		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1307-1312	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1401-	●	●	●
16	CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	1307-		●
16	CLIP; HARNESS (D) L=60	8-97063-335-0	02	1	1307-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (J) ID=24 L=24	1-09701-001-1	02	1	1307-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (I) ID=19 H=21 L=24	5-09700-360-0	01	1	1307-		●
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (B) ID=16 L=28	0-95235-556-0	01	1	1307-		●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	01	1	1307-1312	●
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (A) L=250	5-09707-030-1	01	1	1307-1312		●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	01	1	1401-	●		●
48	CLIP; FRAME HARNESS 6HK1-TCN ENG(82L) (A) L=250	5-09707-030-1	01	1	1401-		●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1307-1312	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1307-1312	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1401-	●	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	1307-1312	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	1401-	●	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	02	1	1307-		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97101-436-0	01	1	1307-		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1307-		●
235	CLIP; HARNESS,SPD SENSOR,SSPS ID=13-18 L=14.5	1-09709-290-0	01	1	1307-1312	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS ID=13-18 L=14.5	1-09709-290-0	01	1	1401-	●	●	●
303	CLIP; HARNESS POWER TILT RELAY OD=8.95 H=6.25	8-97375-754-0	01	1	1307-		●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1307-1312		●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1401-		●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=40	0-95235-576-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=40	0-95235-576-0	01	1	1401-		●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=32	1-09700-766-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=32	1-09700-766-1	01	1	1401-		●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1401-		●
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1401-		●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) OD=9 H=6	1-09709-178-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) OD=9 H=6	1-09709-178-0	01	1	1401-		●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=11 L=45	8-94296-897-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=11 L=45	8-94296-897-1	01	1	1401-		●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1401-		●
305	CLIP; ENG HARNESS (K) L=140	8-97122-360-0	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (K) L=140	8-97122-360-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (K) L=140	8-97122-360-0	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (K) L=140	8-97122-360-0	01	1	1401-		●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=18 L=44	8-97367-985-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=18 L=44	8-97367-985-1	01	1	1401-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	1307-1312	●	●
305	CLIP; ENG HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	1401-	●	●	●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (L) L=300	1-09707-001-1	01	1	1307-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (N) L=140	5-09707-031-1	02	1	1307-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (M) L=250	5-09707-030-1	01	1	1307-		●
470	CLIP; HARNESS,LICENSE LAMP COUNTRY NEW ZEALAND(CX6) OD=9 H=6	1-09709-178-0	01	1	1307-	●

137 137 137 137 137 137 137 137 137 308 308 308 308 312 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
137	BRACKET; HARNESS CLAMP 6HK1-TCC ENG(81L) (I)	8-98249-803-1	01	1	1401-			●
137	BRACKET; HARNESS CLAMP MZW6P M/T(RSZ) (C)	8-97618-098-2	01	1	1307-1312	●	●
137	BRACKET; HARNESS CLAMP MZW6P M/T(RSZ) (C)	8-97618-098-2	01	1	1401-	●	●	●
137	BRACKET; HARNESS CLAMP (A)	8-98065-904-0	01	1	1307-	●	●
137	BRACKET; HARNESS CLAMP (D)	8-97614-728-1	01	1	1307-1312	●
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (D)	8-97614-728-1	01	1	1307-1312		●
137	BRACKET; HARNESS CLAMP (D)	8-97614-728-1	01	1	1401-	●		●
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (D)	8-97614-728-1	01	1	1401-		●
137	BRACKET; HARNESS CLAMP (B)	8-97624-013-0	01	1	1307-1312	●
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (B)	8-97624-013-0	01	1	1307-1312		●
137	BRACKET; HARNESS CLAMP (B)	8-97624-013-0	01	1	1401-	●		●
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (B)	8-97624-013-0	01	1	1401-		●
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (E)	8-98059-231-1	01	1	1307-1312	●	●
137	BRACKET; HARNESS CLAMP (E)	8-98059-231-1	01	1	1401-	●		●
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (E)	8-98059-231-1	01	1	1401-		●
137	BRACKET; HARNESS CLAMP 4HK1-TCS ENG(RJS) (F)	8-98058-354-1	01	1	1307-		●
137	BRACKET; HARNESS CLAMP 4HK1-TCS ENG(RJS) (G)	8-98085-819-0	01	1	1307-		●
137	BRACKET; HARNESS CLAMP LCT2500 A/T ALLISON(Y5W) (H)	8-98246-061-0	01	1	1307-1312	●
137	BRACKET; HARNESS CLAMP LCT2500 A/T ALLISON(Y5W) (H)	8-98246-061-0	01	1	1401-	●		●
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1307-1312	●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (A)	8-97601-310-0	02	1	1307-1312		●
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1401-	●		●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (A)	8-97601-310-0	02	1	1401-		●
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	1307-1312	●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (B)	8-97614-078-0	01	1	1307-1312		●
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	1401-	●		●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (B)	8-97614-078-0	01	1	1401-		●
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	1307-1312	●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (C)	8-98021-291-2	01	1	1307-1312		●
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	1401-	●		●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (C)	8-98021-291-2	01	1	1401-		●
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	1307-1312	●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (D)	8-98021-692-1	01	1	1307-1312		●
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	1401-	●		●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (D)	8-98021-692-1	01	1	1401-		●
312	BRACKET; CLIP HARNESS 4HK1-TCS ENG(RJS)	8-98094-804-0	01	1	1307-		●
324	BRACKET; CLIP	8-98061-654-2	01	1	1307-1312	●	●
324	BRACKET; CLIP	8-98061-654-2	01	1	1401-	●	●	●
324	BRACKET; CLIP	8-98061-653-2	01	1	1307-1312	●	●
324	BRACKET; CLIP	8-98061-653-2	01	1	1401-	●	●	●

483 171 16 16 16 305 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (N) ID=19 L=32	0-95235-866-0	02	1	1307-1312	●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (N) ID=19 L=32	0-95235-866-0	02	1	1401-	●		●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (E) ID=11 L=20	0-95235-035-0	02	1	1307-1312	●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (E) ID=11 L=20	0-95235-035-0	02	1	1401-1501	●		●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> (E) ID=11 L=20	0-95235-035-0	02	1	1502-1503	●		●
16	CLIP; HARNESS LCT2500 A/T ALLISON(Y5W) (E) ID=11 L=20	0-95235-035-0	02	1	1504-	●		●
16	CLIP; HARNESS (K) ID=11 L=16	0-95235-025-0	02	1	1307-1312	●	●
16	CLIP; HARNESS (K) ID=11 L=16	0-95235-025-0	02	1	1401-	●	●	●
16	CLIP; HARNESS (M) ID=11X2 L=16	1-09700-734-0	01	1	1307-1312	●	●
16	CLIP; HARNESS (M) ID=11X2 L=16	1-09700-734-0	01	1	1401-	●	●	●
16	CLIP; HARNESS (F) L=350	1-09707-183-0	01	1	1307-1312	●	●
16	CLIP; HARNESS (F) L=350	1-09707-183-0	01	1	1401-	●	●	●
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	03	1	1307-1312	●	●
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	03	1	1401-	●	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1307-1312	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1401-	●	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1307-1312	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1401-	●	●	●
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (H) L=40.6	8-97229-357-0	02	1	1307-1312	●	●
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1307-1312		●
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1401-	●	●	●
16	CLIP; HARNESS (H) L=40.6	8-97229-357-0	02	1	1401-		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1307-1312	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1401-	●	●	●
16	CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	1307-		●
16	CLIP; HARNESS (D) L=60	8-97063-335-0	02	1	1307-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (J) ID=24 L=24	1-09701-001-1	02	1	1307-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (I) ID=19 H=21 L=24	5-09700-360-0	01	1	1307-		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97101-436-0	01	1	1307-		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1307-		●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1307-1312		●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (J) ID=16 L=28	0-95235-556-0	02	1	1401-		●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=40	0-95235-576-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=40	0-95235-576-0	01	1	1401-		●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=32	1-09700-766-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=32	1-09700-766-1	01	1	1401-		●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1401-		●
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1401-		●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) OD=9 H=6	1-09709-178-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) OD=9 H=6	1-09709-178-0	01	1	1401-		●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=11 L=45	8-94296-897-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=11 L=45	8-94296-897-1	01	1	1401-		●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1401-		●
305	CLIP; ENG HARNESS (K) L=140	8-97122-360-0	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (K) L=140	8-97122-360-0	01	1	1307-1312		●
305	CLIP; ENG HARNESS (K) L=140	8-97122-360-0	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (K) L=140	8-97122-360-0	01	1	1401-		●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1307-1312	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=18 L=44	8-97367-985-1	01	1	1307-1312		●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1401-	●		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=18 L=44	8-97367-985-1	01	1	1401-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	1307-1312	●	●
305	CLIP; ENG HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	1401-	●	●	●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (L) L=300	1-09707-001-1	01	1	1307-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (N) L=140	5-09707-031-1	02	1	1307-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (M) L=250	5-09707-030-1	01	1	1307-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1307-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) ID=28 L=32	1-09701-107-1	01	1	1307-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=21 L=24	1-09701-201-0	01	1	1307-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D)	1-09987-281-0	01	1	1307-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (E) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1307-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (F) ID=18 L=25	8-94121-004-1	01	1	1307-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (G) ID=21 L=47.5	8-94178-108-0	01	1	1307-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (H) L=36	8-94224-891-1	01	1	1307-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
