◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#123767) — 738 parça

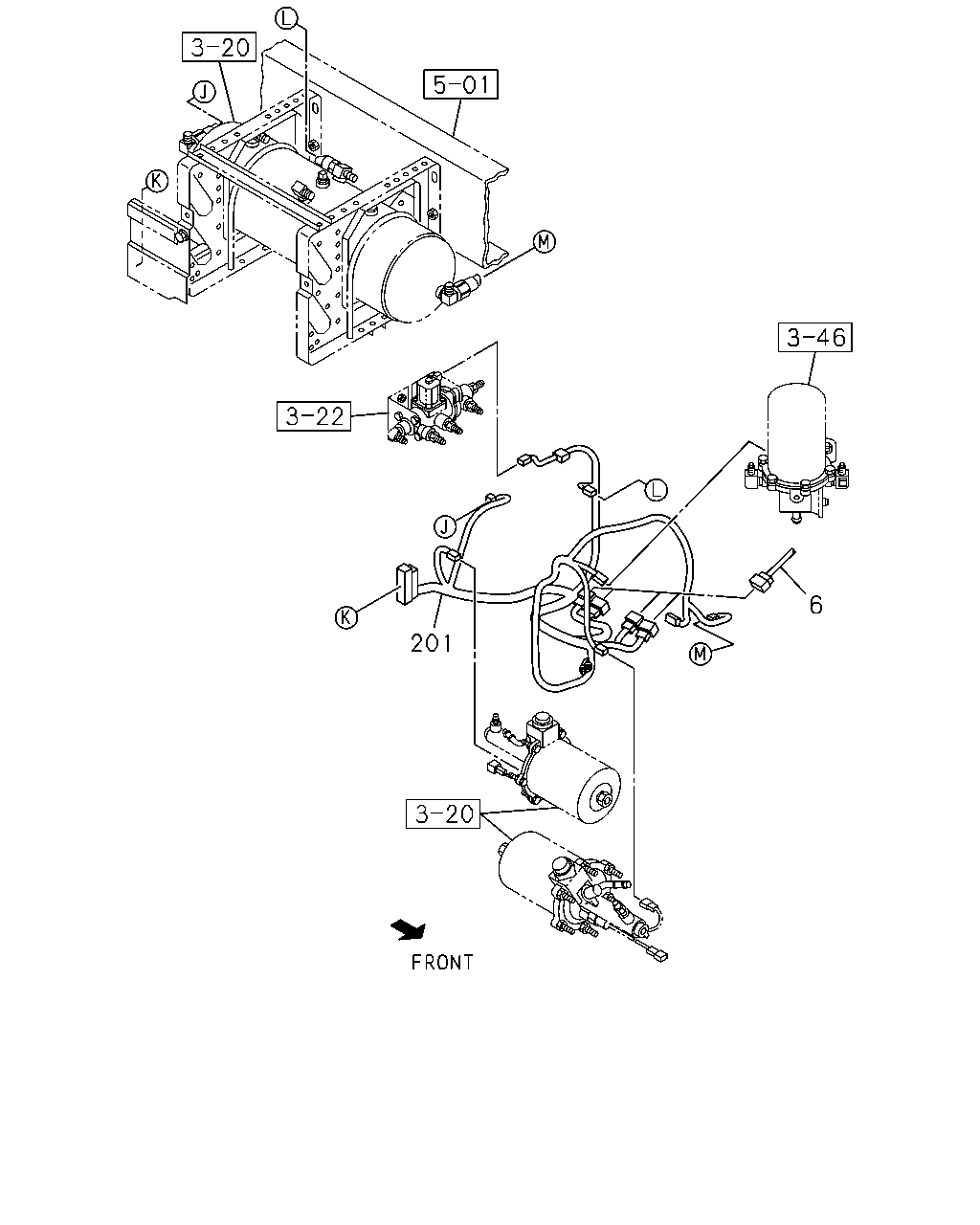

çizim 363683
201 6
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HARNESS; FRAME
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-886-2 01 1 1307-1312 ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-886-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCC ENG(81L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-886-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-884-2 01 1 1307-1312 ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-884-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-884-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-885-2 01 1 1307-1312 ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-885-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-885-2 01 1 1401- ●
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-895-2 01 1 1307- ●
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-896-2 01 1 1307- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-897-1 01 1 1307- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-898-1 01 1 1307- ●
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) THROTTLE CONTROL SYSTEM(6XH) 		8-98156-702-2 01 1 1307-1312 ●
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) THROTTLE CONTROL SYSTEM(6XH) 		8-98156-702-2 01 1 1401- ●
201 HARNESS; AIR TANK
6HK1-TCC ENG(81L) THROTTLE CONTROL SYSTEM(6XH) 		8-98156-702-2 01 1 1401- ●
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98156-703-2 01 1 1307-1312 ●
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98156-703-2 01 1 1401- ●
201 HARNESS; AIR TANK
6HK1-TCC ENG(81L) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98156-703-2 01 1 1401- ●
201 HARNESS; AIR TANK
4HK1-TCS ENG(RJS) 		8-98090-496-2 01 1 1307- ●
201 HARNESS; AIR TANK
6HK1-TCN ENG(82L) 		8-98096-484-2 01 1 1307- ●

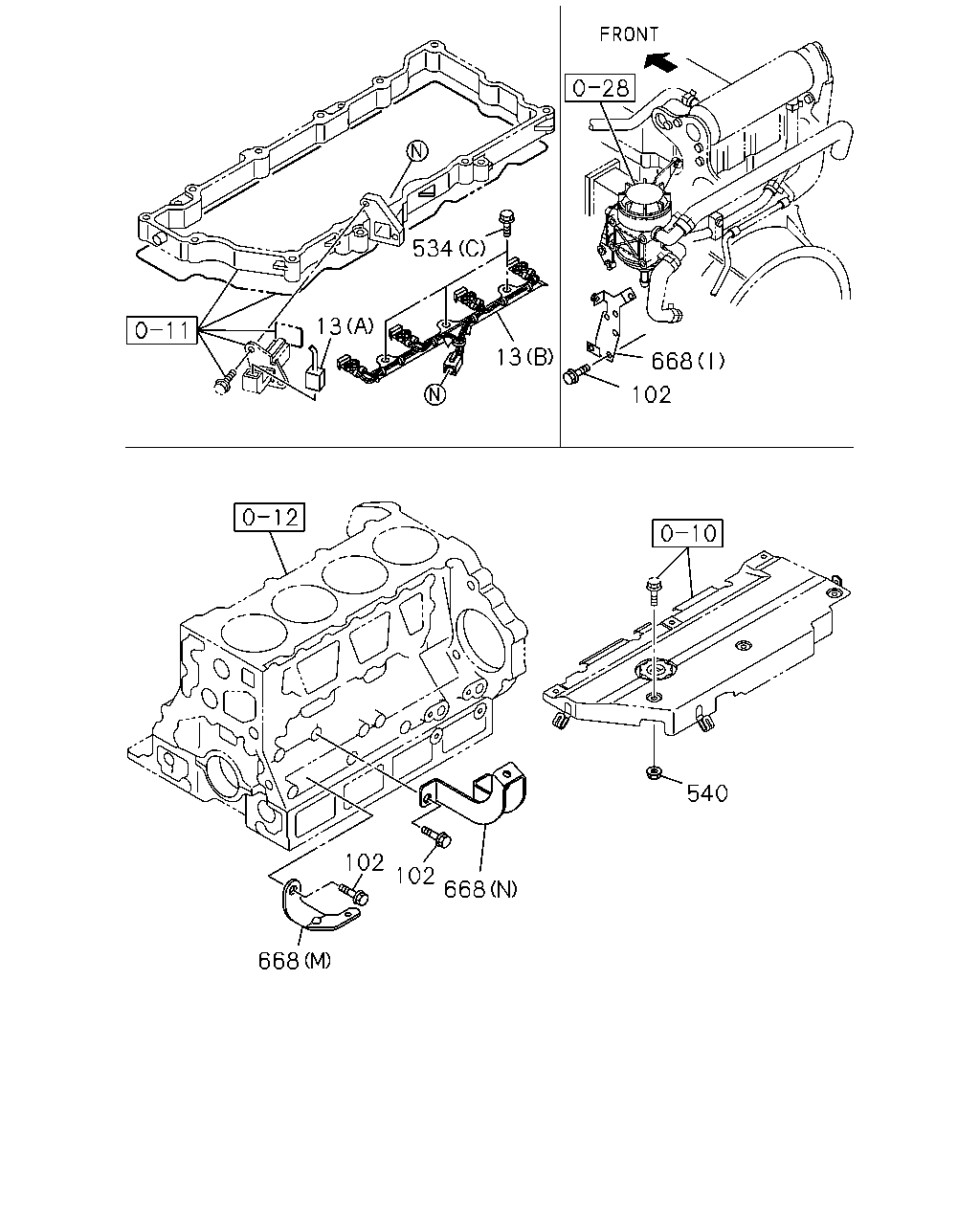

çizim 363686
540 102 102 668 668 102 13 534 13 668
BalonParca AdiParca NoAdetTipApplied Date A B C
13 HARNESS; ENG
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) GENERATOR 24V50A(K89) (C) 		8-98177-213-0 01 1 1307-1312 ●
13 HARNESS; ENG
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) GENERATOR 24V50A(K89) (C) 		8-98177-213-0 01 1 1401- ● ●
13 HARNESS; ENG
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (C) 		8-98177-214-0 01 1 1307-1312 ●
13 HARNESS; ENG
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (C) 		8-98177-214-0 01 1 1401- ● ●
13 HARNESS; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) GENERATOR 24V50A(K89) (C) 		8-98177-206-0 01 1 1307-1312 ● ●
13 HARNESS; ENG
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) GENERATOR 24V50A(K89) (C) 		8-98177-206-0 01 1 1401- ● ● ●
13 HARNESS; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (C) 		8-98177-207-0 01 1 1307-1312 ● ●
13 HARNESS; ENG
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (C) 		8-98177-207-0 01 1 1401- ● ● ●
13 HARNESS; ENG
4HK1-TCS ENG(RJS) (B) 		8-98171-638-0 01 1 1307- ●
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) (A) 		8-98171-702-0 01 1 1307-1406 ●
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) (A) 		8-98274-045-0 01 1 1407- ●
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98171-703-0 01 1 1307-1406 ●
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98274-046-0 01 1 1407- ●
102 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCS ENG(RJS) M8X16 FLANGE 		0-28050-816-0 03 1 1307- ●
102 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCS ENG(RJS) M10X16 FLANGE 		0-28151-016-0 03 1 1307- ●
534 BOLT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1307-1312 ● ●
534 BOLT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1401- ● ● ●
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1307-1312 ● ●
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1401- ● ● ●
534 BOLT
(D) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1307- ●
534 BOLT
4HK1-TCS ENG(RJS) (C) M10X55 FLANGE 		8-97365-449-0 03 1 1307- ●
540 NUT; BRKT FIX
4HK1-TCS ENG(RJS) M6 FLANGE 		0-91180-106-0 01 1 1307- ●
668 BRACKET; HARNESS
(A) L=55 		1-47475-304-0 01 1 1307-1312 ● ●
668 BRACKET; HARNESS
(A) L=55 		1-47475-304-0 01 1 1401- ● ● ●
668 BRACKET; HARNESS
(G) L=170 		1-47479-380-0 01 1 1307-1312 ● ●
668 BRACKET; HARNESS
(G) L=170 		1-47479-380-0 01 1 1401- ● ● ●
668 BRACKET; HARNESS
(B) 		8-97619-097-1 01 1 1307-1312 ● ●
668 BRACKET; HARNESS
(B) 		8-97619-097-1 01 1 1401- ● ● ●
668 BRACKET; HARNESS
(C) 		8-97619-533-0 01 1 1307-1312 ● ●
668 BRACKET; HARNESS
(C) 		8-97619-533-0 01 1 1401- ● ● ●
668 BRACKET; HARNESS
(D) 		8-97616-305-0 01 1 1307-1312 ● ●
668 BRACKET; HARNESS
(D) 		8-97616-305-0 01 1 1401-1502 ● ● ●
668 BRACKET; HARNESS
(O) 		8-98254-592-0 01 1 1503- ● ● ●
668 BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (J) 		8-98095-653-2 01 1 1307-1312 ● ●
668 BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (J) 		8-98095-653-2 01 1 1401- ● ● ●
668 BRACKET; HARNESS
(E) 		8-98090-952-0 01 1 1307-1312 ●
668 BRACKET; HARNESS
6HK1-TCN ENG(82L) (E) 		8-98090-952-0 01 1 1307-1312 ●
668 BRACKET; HARNESS
(E) 		8-98090-952-0 01 1 1401- ● ●
668 BRACKET; HARNESS
6HK1-TCN ENG(82L) (E) 		8-98090-952-0 01 1 1401- ●
668 BRACKET; HARNESS
(F) 		8-97619-534-0 01 1 1307-1312 ●
668 BRACKET; HARNESS
6HK1-TCN ENG(82L) (F) 		8-97619-534-0 01 1 1307-1312 ●
668 BRACKET; HARNESS
(F) 		8-97619-534-0 01 1 1401- ● ●
668 BRACKET; HARNESS
6HK1-TCN ENG(82L) (F) 		8-97619-534-0 01 1 1401- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (F) 		8-97619-535-0 01 1 1307- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (M) 		8-98009-245-0 01 1 1307-1408 ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (M) 		8-98273-295-0 01 1 1409- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (N) 		8-98011-484-0 01 1 1307- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (I) 		8-98024-765-0 01 1 1307- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (K) 		8-98061-780-0 01 1 1307- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (L) 		8-98097-674-0 01 1 1307- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (H) 		8-98116-461-0 01 1 1307- ●

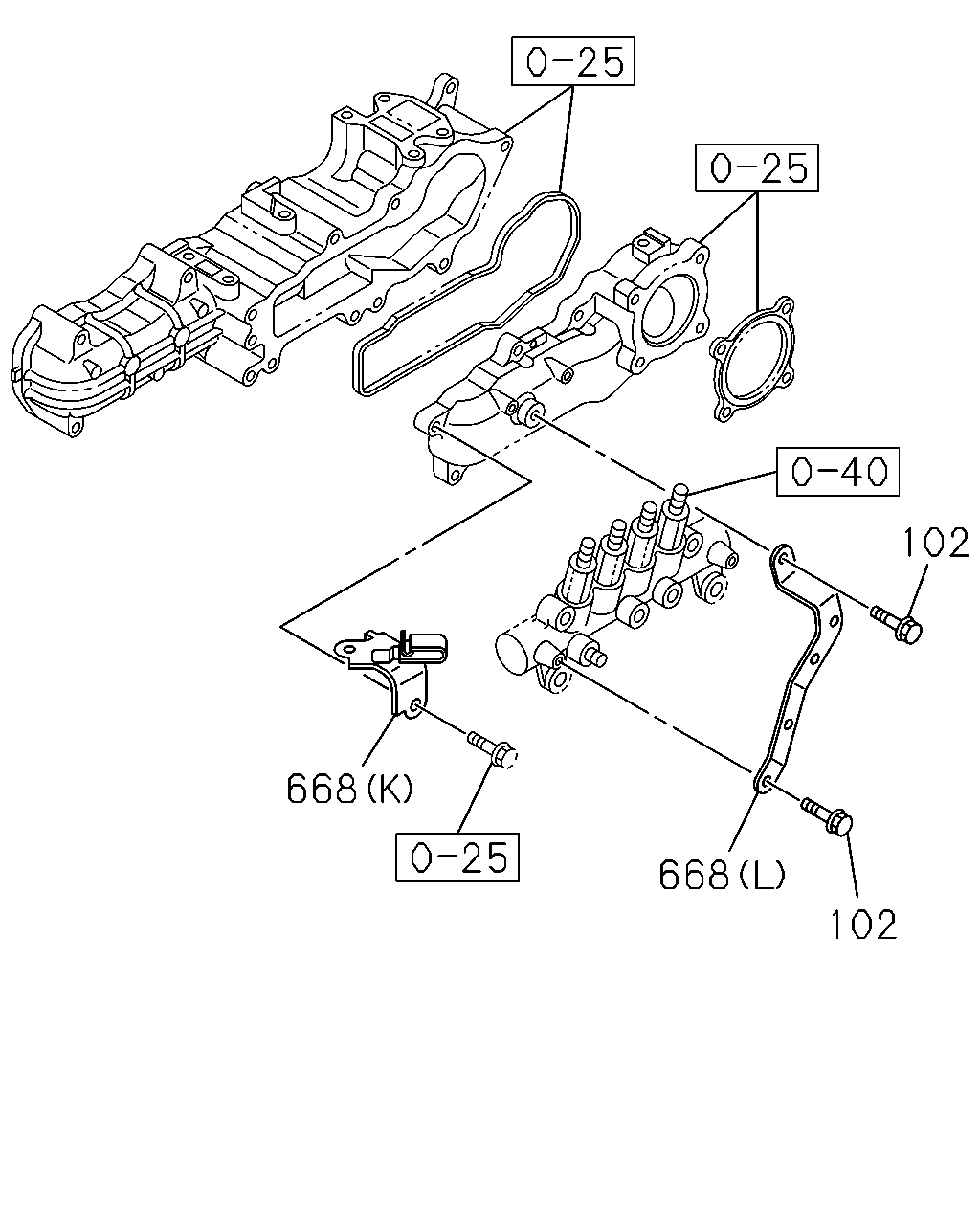

çizim 363721
102 102 668 668
BalonParca AdiParca NoAdetTipApplied Date A B C
102 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCS ENG(RJS) M8X16 FLANGE 		0-28050-816-0 03 1 1307- ●
102 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCS ENG(RJS) M10X16 FLANGE 		0-28151-016-0 03 1 1307- ●
668 BRACKET; HARNESS
(A) L=55 		1-47475-304-0 01 1 1307-1312 ● ●
668 BRACKET; HARNESS
(A) L=55 		1-47475-304-0 01 1 1401- ● ● ●
668 BRACKET; HARNESS
(G) L=170 		1-47479-380-0 01 1 1307-1312 ● ●
668 BRACKET; HARNESS
(G) L=170 		1-47479-380-0 01 1 1401- ● ● ●
668 BRACKET; HARNESS
(B) 		8-97619-097-1 01 1 1307-1312 ● ●
668 BRACKET; HARNESS
(B) 		8-97619-097-1 01 1 1401- ● ● ●
668 BRACKET; HARNESS
(C) 		8-97619-533-0 01 1 1307-1312 ● ●
668 BRACKET; HARNESS
(C) 		8-97619-533-0 01 1 1401- ● ● ●
668 BRACKET; HARNESS
(D) 		8-97616-305-0 01 1 1307-1312 ● ●
668 BRACKET; HARNESS
(D) 		8-97616-305-0 01 1 1401-1502 ● ● ●
668 BRACKET; HARNESS
(O) 		8-98254-592-0 01 1 1503- ● ● ●
668 BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (J) 		8-98095-653-2 01 1 1307-1312 ● ●
668 BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (J) 		8-98095-653-2 01 1 1401- ● ● ●
668 BRACKET; HARNESS
(E) 		8-98090-952-0 01 1 1307-1312 ●
668 BRACKET; HARNESS
6HK1-TCN ENG(82L) (E) 		8-98090-952-0 01 1 1307-1312 ●
668 BRACKET; HARNESS
(E) 		8-98090-952-0 01 1 1401- ● ●
668 BRACKET; HARNESS
6HK1-TCN ENG(82L) (E) 		8-98090-952-0 01 1 1401- ●
668 BRACKET; HARNESS
(F) 		8-97619-534-0 01 1 1307-1312 ●
668 BRACKET; HARNESS
6HK1-TCN ENG(82L) (F) 		8-97619-534-0 01 1 1307-1312 ●
668 BRACKET; HARNESS
(F) 		8-97619-534-0 01 1 1401- ● ●
668 BRACKET; HARNESS
6HK1-TCN ENG(82L) (F) 		8-97619-534-0 01 1 1401- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (F) 		8-97619-535-0 01 1 1307- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (M) 		8-98009-245-0 01 1 1307-1408 ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (M) 		8-98273-295-0 01 1 1409- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (N) 		8-98011-484-0 01 1 1307- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (I) 		8-98024-765-0 01 1 1307- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (K) 		8-98061-780-0 01 1 1307- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (L) 		8-98097-674-0 01 1 1307- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (H) 		8-98116-461-0 01 1 1307- ●

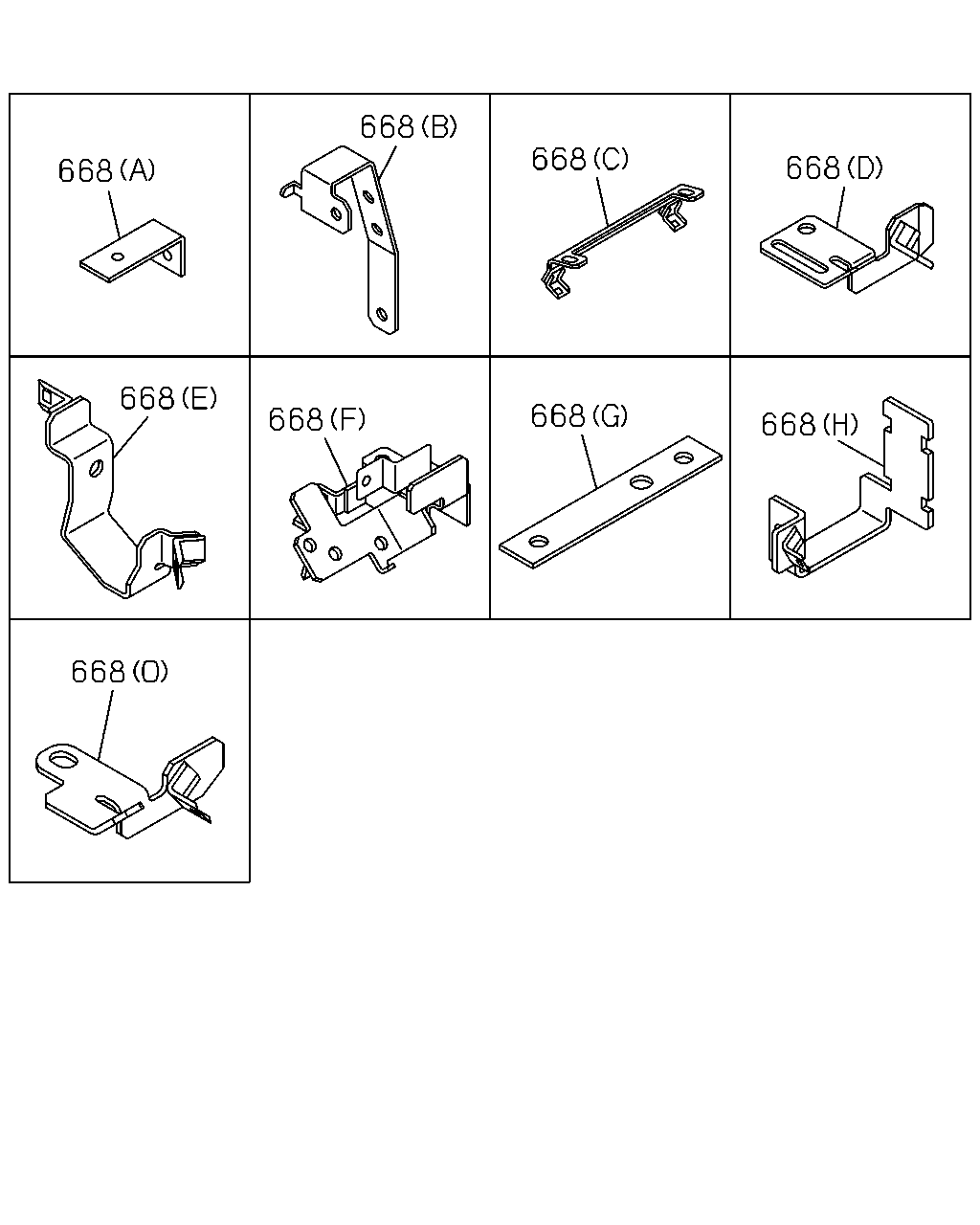

çizim 363722
668 668 668 668 668 668 668 668 668
BalonParca AdiParca NoAdetTipApplied Date A B C
668 BRACKET; HARNESS
(A) L=55 		1-47475-304-0 01 1 1307-1312 ● ●
668 BRACKET; HARNESS
(A) L=55 		1-47475-304-0 01 1 1401- ● ● ●
668 BRACKET; HARNESS
(G) L=170 		1-47479-380-0 01 1 1307-1312 ● ●
668 BRACKET; HARNESS
(G) L=170 		1-47479-380-0 01 1 1401- ● ● ●
668 BRACKET; HARNESS
(B) 		8-97619-097-1 01 1 1307-1312 ● ●
668 BRACKET; HARNESS
(B) 		8-97619-097-1 01 1 1401- ● ● ●
668 BRACKET; HARNESS
(C) 		8-97619-533-0 01 1 1307-1312 ● ●
668 BRACKET; HARNESS
(C) 		8-97619-533-0 01 1 1401- ● ● ●
668 BRACKET; HARNESS
(D) 		8-97616-305-0 01 1 1307-1312 ● ●
668 BRACKET; HARNESS
(D) 		8-97616-305-0 01 1 1401-1502 ● ● ●
668 BRACKET; HARNESS
(O) 		8-98254-592-0 01 1 1503- ● ● ●
668 BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (J) 		8-98095-653-2 01 1 1307-1312 ● ●
668 BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (J) 		8-98095-653-2 01 1 1401- ● ● ●
668 BRACKET; HARNESS
(E) 		8-98090-952-0 01 1 1307-1312 ●
668 BRACKET; HARNESS
6HK1-TCN ENG(82L) (E) 		8-98090-952-0 01 1 1307-1312 ●
668 BRACKET; HARNESS
(E) 		8-98090-952-0 01 1 1401- ● ●
668 BRACKET; HARNESS
6HK1-TCN ENG(82L) (E) 		8-98090-952-0 01 1 1401- ●
668 BRACKET; HARNESS
(F) 		8-97619-534-0 01 1 1307-1312 ●
668 BRACKET; HARNESS
6HK1-TCN ENG(82L) (F) 		8-97619-534-0 01 1 1307-1312 ●
668 BRACKET; HARNESS
(F) 		8-97619-534-0 01 1 1401- ● ●
668 BRACKET; HARNESS
6HK1-TCN ENG(82L) (F) 		8-97619-534-0 01 1 1401- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (F) 		8-97619-535-0 01 1 1307- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (M) 		8-98009-245-0 01 1 1307-1408 ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (M) 		8-98273-295-0 01 1 1409- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (N) 		8-98011-484-0 01 1 1307- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (I) 		8-98024-765-0 01 1 1307- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (K) 		8-98061-780-0 01 1 1307- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (L) 		8-98097-674-0 01 1 1307- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (H) 		8-98116-461-0 01 1 1307- ●

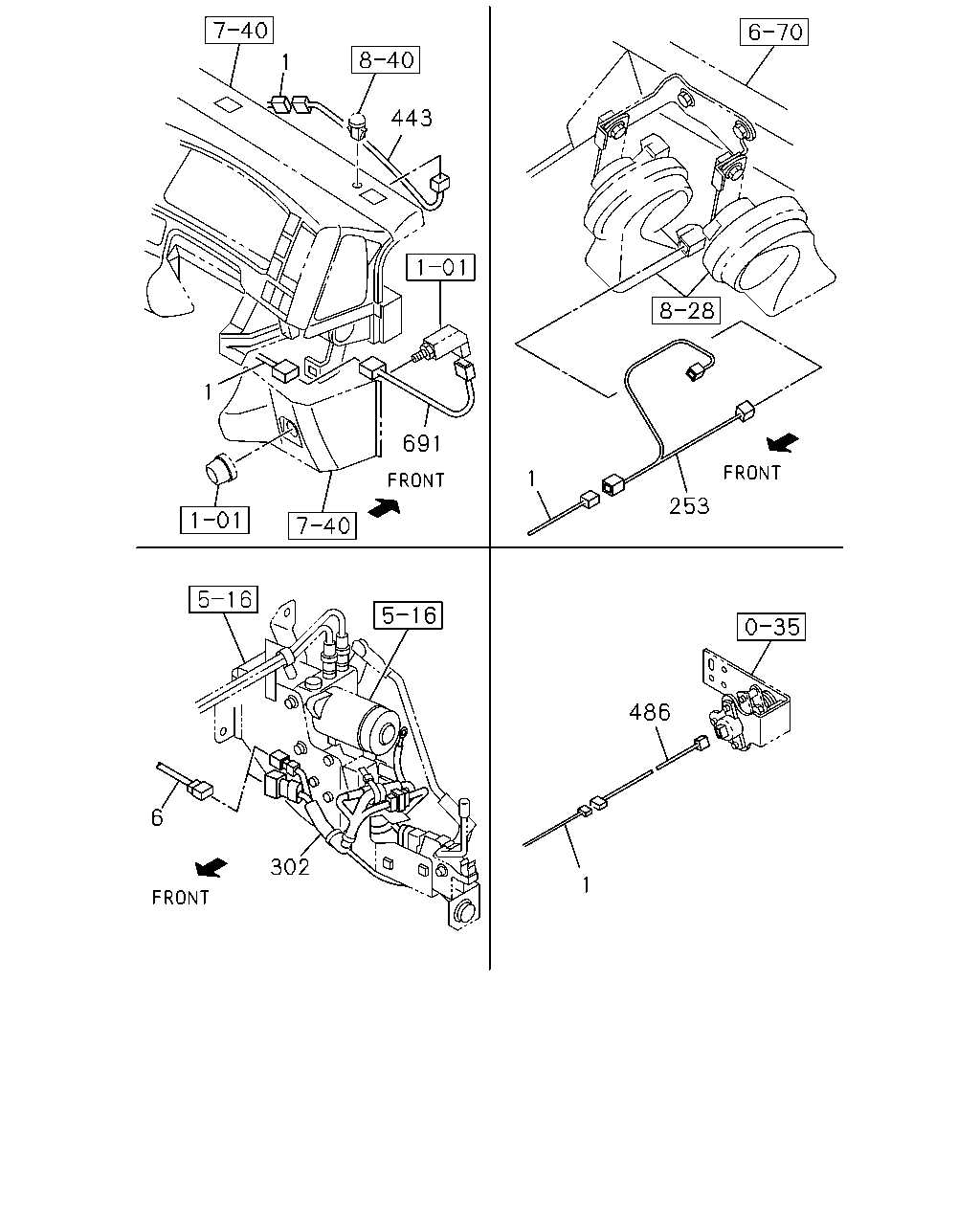

çizim 363775
486 1 1 253 443 691 1 1 6 302
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-537-1 01 1 1307-1312 ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-537-1 01 1 1401- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-536-1 01 1 1307-1312 ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-536-1 01 1 1401- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-535-1 01 1 1307-1312 ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-535-1 01 1 1401- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-534-1 01 1 1307-1312 ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-534-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-931-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-931-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-945-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-945-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-927-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-927-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-941-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-941-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-930-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-930-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-944-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-944-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-926-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-926-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-940-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-940-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-949-1 01 1 1307- ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-951-1 01 1 1307- ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-948-1 01 1 1307- ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-950-1 01 1 1307- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-886-2 01 1 1307-1312 ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-886-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCC ENG(81L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-886-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-884-2 01 1 1307-1312 ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-884-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-884-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-885-2 01 1 1307-1312 ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-885-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-885-2 01 1 1401- ●
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-895-2 01 1 1307- ●
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-896-2 01 1 1307- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-897-1 01 1 1307- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-898-1 01 1 1307- ●
253 HARNESS; EXT,HORN 8-98074-081-2 01 1 1307-1312 ● ●
253 HARNESS; EXT,HORN 8-98074-081-2 01 1 1401- ● ● ●
302 HARNESS; POWER CAB TILT 8-97622-116-0 01 1 1307- ●
443 HARNESS; EXT,A/C
FULLAUTO AIR CONDITIONER(C68) 		8-98096-565-0 01 1 1307-1312 ●
443 HARNESS; EXT,A/C
FULLAUTO AIR CONDITIONER(C68) 		8-98096-565-0 01 1 1401- ● ●
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 1307-1312 ● ●
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 1401- ● ● ●
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 1307-1312 ● ●
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 1401- ● ● ●
çizim 363849
1 2 2 431 431 431
BalonParca AdiParca NoAdetTipApplied Date A B C

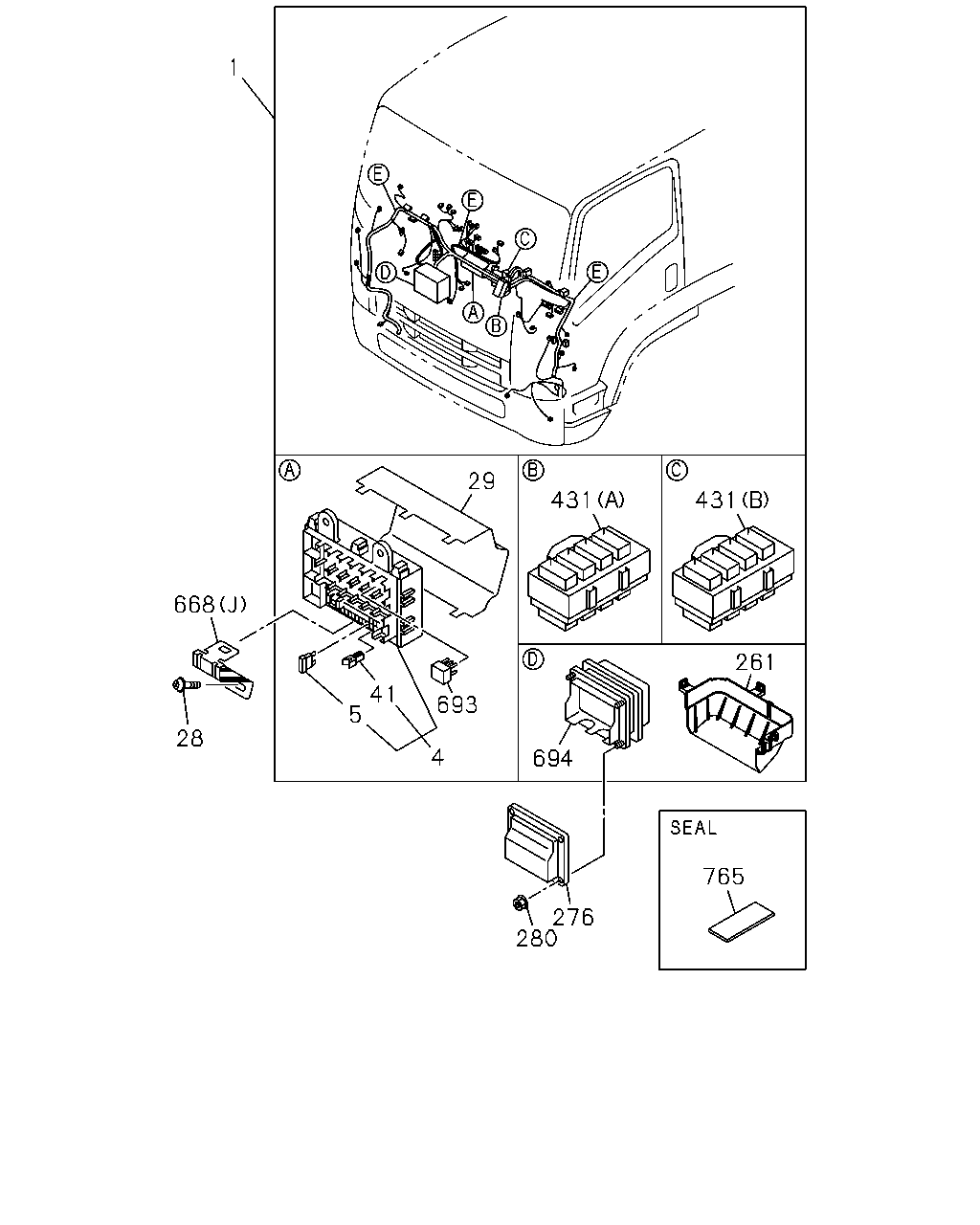

1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-537-1 01 1 1307-1312 ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-537-1 01 1 1401- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-536-1 01 1 1307-1312 ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-536-1 01 1 1401- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-535-1 01 1 1307-1312 ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-535-1 01 1 1401- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-534-1 01 1 1307-1312 ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-534-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-931-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-931-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-945-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-945-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-927-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-927-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-941-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-941-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-930-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-930-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-944-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-944-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-926-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-926-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-940-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-940-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-949-1 01 1 1307- ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-951-1 01 1 1307- ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-948-1 01 1 1307- ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-950-1 01 1 1307- ●
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 AR 1 1307-1312 ● ●
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 AR 1 1401- ● ● ●
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1307-1312 ● ●
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1401- ● ● ●

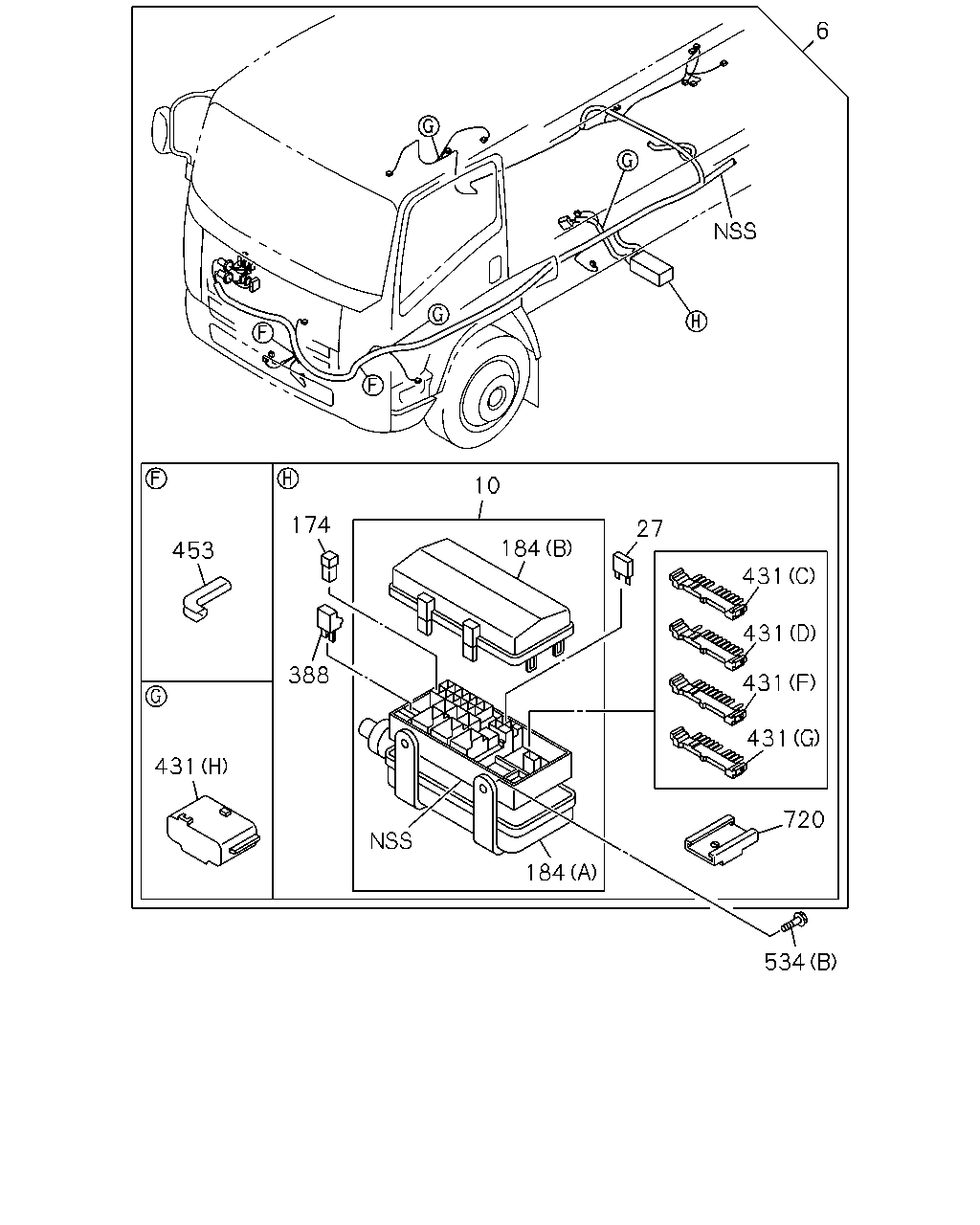

431 CONNECTOR; JOINT
4HK1-TCS ENG(RJS) (H) 6P BLACK 		8-97616-194-0 01 1 1307- ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1307- ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1307- ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1307- ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1307- ●
431 CONNECTOR; JOINT
6HK1-TCN ENG(82L) (H) 6P BLACK 		8-97616-194-0 02 1 1307- ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1307-1312 ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1401- ● ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1307-1312 ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1401- ● ● ●

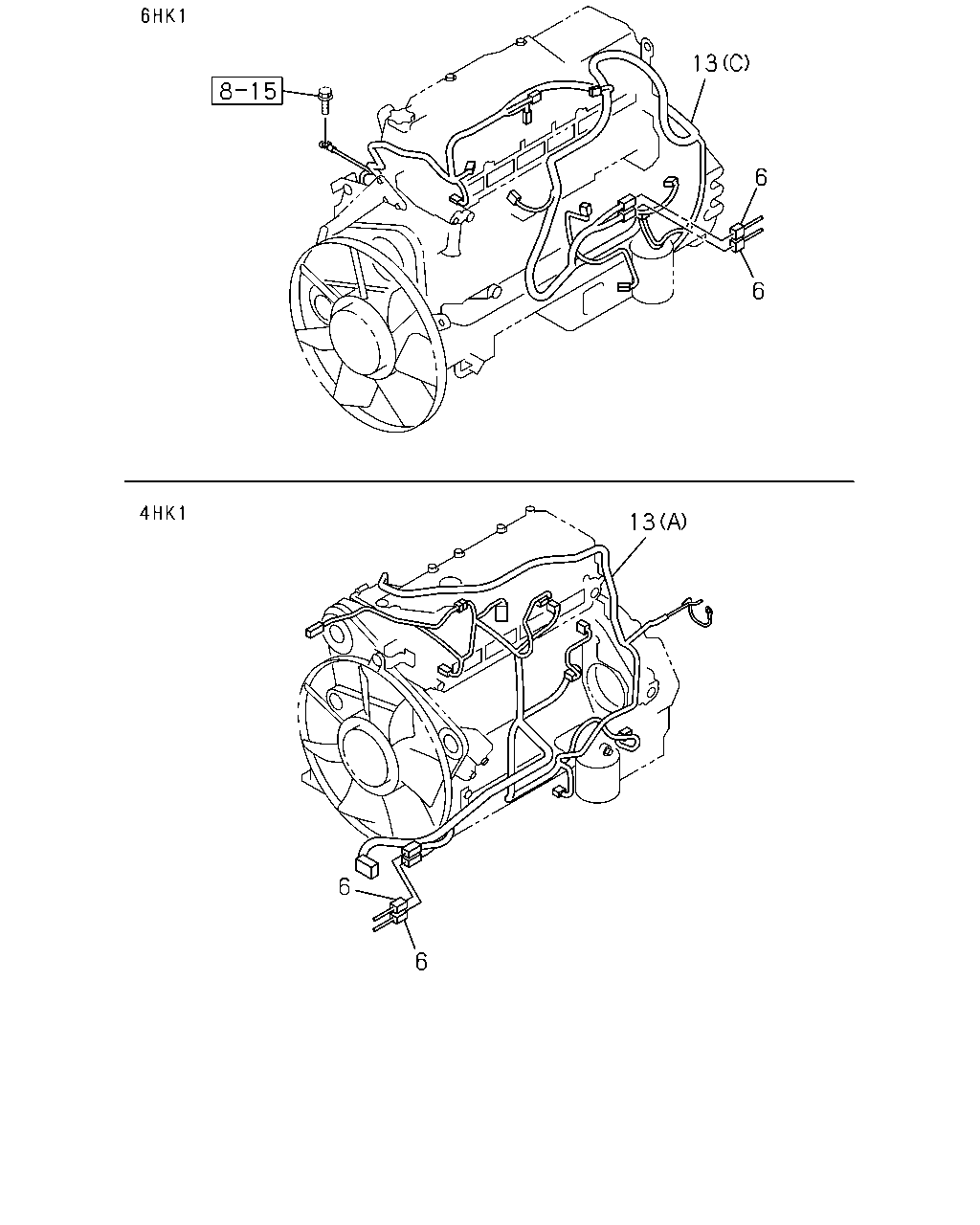

çizim 363885
13 6 6 13 6 6
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HARNESS; FRAME
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-886-2 01 1 1307-1312 ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-886-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCC ENG(81L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-886-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-884-2 01 1 1307-1312 ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-884-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-884-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-885-2 01 1 1307-1312 ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-885-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-885-2 01 1 1401- ●
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-895-2 01 1 1307- ●
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-896-2 01 1 1307- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-897-1 01 1 1307- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-898-1 01 1 1307- ●
13 HARNESS; ENG
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) GENERATOR 24V50A(K89) (C) 		8-98177-213-0 01 1 1307-1312 ●
13 HARNESS; ENG
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) GENERATOR 24V50A(K89) (C) 		8-98177-213-0 01 1 1401- ● ●
13 HARNESS; ENG
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (C) 		8-98177-214-0 01 1 1307-1312 ●
13 HARNESS; ENG
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (C) 		8-98177-214-0 01 1 1401- ● ●
13 HARNESS; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) GENERATOR 24V50A(K89) (C) 		8-98177-206-0 01 1 1307-1312 ● ●
13 HARNESS; ENG
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) GENERATOR 24V50A(K89) (C) 		8-98177-206-0 01 1 1401- ● ● ●
13 HARNESS; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (C) 		8-98177-207-0 01 1 1307-1312 ● ●
13 HARNESS; ENG
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (C) 		8-98177-207-0 01 1 1401- ● ● ●
13 HARNESS; ENG
4HK1-TCS ENG(RJS) (B) 		8-98171-638-0 01 1 1307- ●
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) (A) 		8-98171-702-0 01 1 1307-1406 ●
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) (A) 		8-98274-045-0 01 1 1407- ●
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98171-703-0 01 1 1307-1406 ●
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A) 		8-98274-046-0 01 1 1407- ●

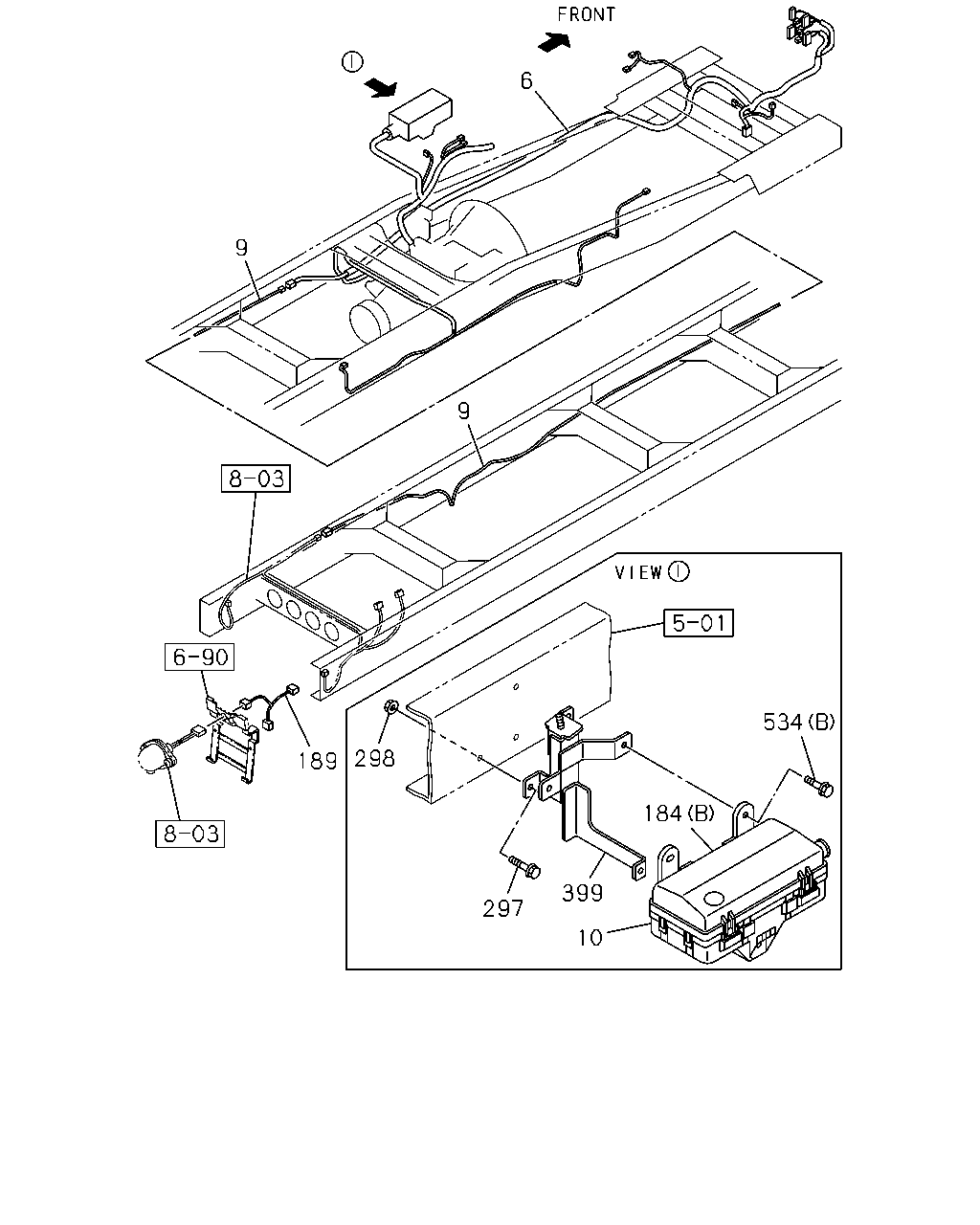

çizim 363907
10 297 184 399 534 9 9 6 189 298
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HARNESS; FRAME
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-886-2 01 1 1307-1312 ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-886-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCC ENG(81L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-886-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-884-2 01 1 1307-1312 ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-884-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-884-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-885-2 01 1 1307-1312 ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-885-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-885-2 01 1 1401- ●
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-895-2 01 1 1307- ●
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-896-2 01 1 1307- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-897-1 01 1 1307- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-898-1 01 1 1307- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4300MM(43W) 		8-98232-915-1 01 1 1401- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5100MM(51W) 		8-98232-916-1 01 1 1401- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4300MM(43W) 		8-98168-581-0 01 1 1307- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) 		8-98168-596-0 01 1 1307- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5100MM(51W) 		8-98168-586-0 01 1 1307- ● ●
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1307-1312 ● ●
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1401- ● ● ●
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1307-1312 ● ●
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1401- ● ● ●
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1307-1312 ● ●
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1401- ● ● ●
189 HARNESS; EXT
EXC. COUNTRY NEW ZEALAND(CX6) 		8-98131-066-0 01 1 1307-1312 ●
189 HARNESS; EXT 8-98131-066-0 01 1 1307-1312 ●
189 HARNESS; EXT
EXC. COUNTRY NEW ZEALAND(CX6) 		8-98131-066-0 01 1 1401- ●
189 HARNESS; EXT 8-98131-066-0 01 1 1401- ● ●
297 BOLT; BOX BRKT
4HK1-TCS ENG(RJS) M8X30 FLANGE 		0-28650-830-0 03 1 1307- ●
298 NUT; BOX BRKT
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 03 1 1307- ●
399 BRACKET; BOX
4HK1-TCS ENG(RJS) 		8-98100-666-0 01 1 1307- ●
534 BOLT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1307-1312 ● ●
534 BOLT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1401- ● ● ●
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1307-1312 ● ●
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1401- ● ● ●
534 BOLT
(D) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1307- ●
534 BOLT
4HK1-TCS ENG(RJS) (C) M10X55 FLANGE 		8-97365-449-0 03 1 1307- ●

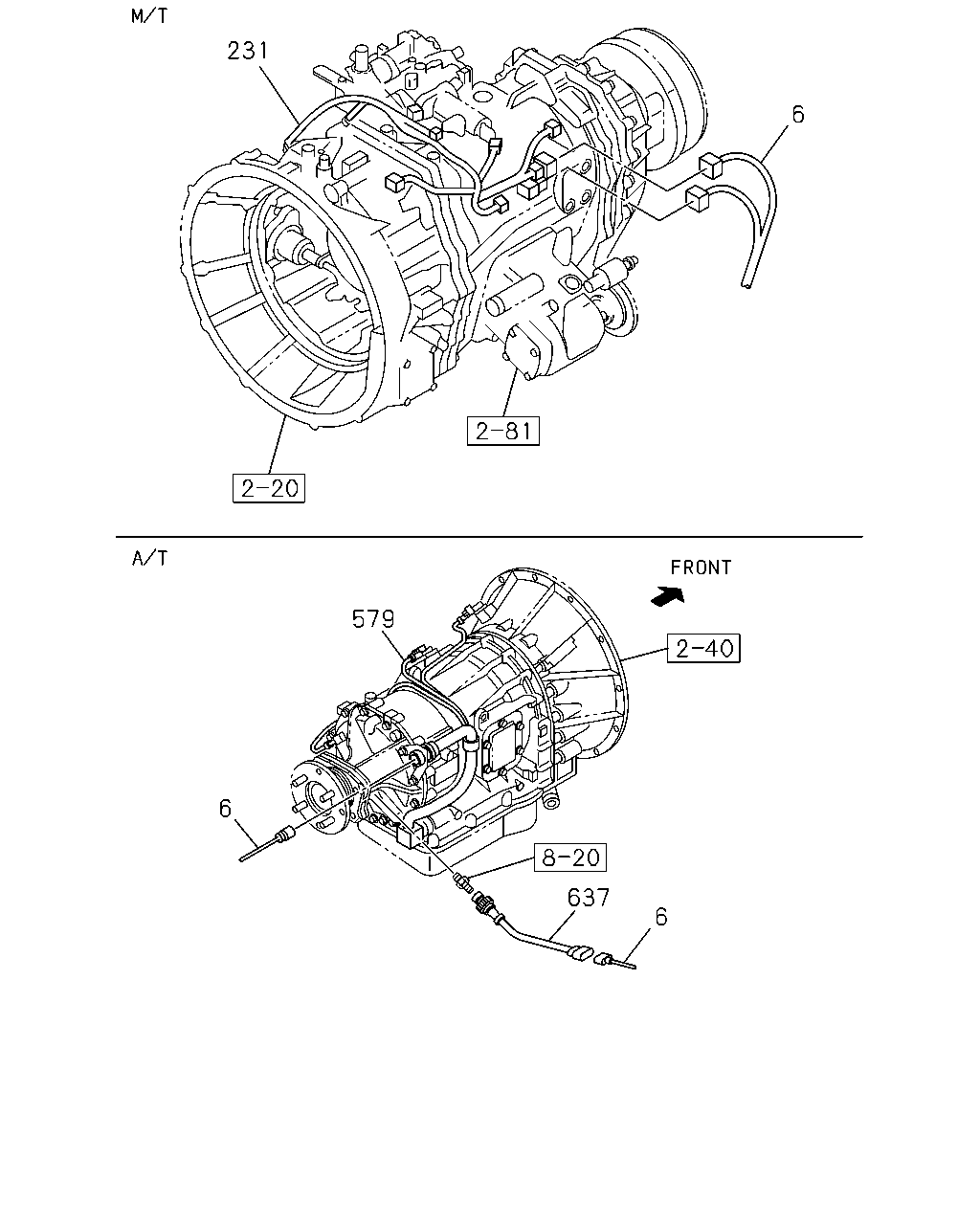

çizim 363972
6 6 637 6 579 231
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HARNESS; FRAME
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-886-2 01 1 1307-1312 ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-886-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCC ENG(81L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-886-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-884-2 01 1 1307-1312 ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-884-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-884-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-885-2 01 1 1307-1312 ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-885-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-885-2 01 1 1401- ●
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-895-2 01 1 1307- ●
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-896-2 01 1 1307- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-897-1 01 1 1307- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-898-1 01 1 1307- ●
231 HARNESS; TRANS
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98243-722-0 01 1 1307-1312 ● ●
231 HARNESS; TRANS
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98243-722-0 01 1 1401- ● ●
231 HARNESS; TRANS
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98243-722-0 01 1 1401- ●
231 HARNESS; TRANS
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98234-229-1 01 1 1307-1312 ●
231 HARNESS; TRANS
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98234-229-1 01 1 1307-1312 ●
231 HARNESS; TRANS
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98234-229-1 01 1 1401- ●
231 HARNESS; TRANS
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98234-229-1 01 1 1401- ●
231 HARNESS; TRANS
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98234-229-1 01 1 1401- ●
231 HARNESS; TRANS
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98234-230-1 01 1 1307- ●
579 HARNESS; A/T
LCT2500 A/T ALLISON(Y5W) 		8-98276-300-0 01 1 1307-1312 ●
579 HARNESS; A/T
LCT2500 A/T ALLISON(Y5W) 		8-98276-300-0 01 1 1401-1501 ● ●
579 HARNESS; A/T
LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> 		8-98276-300-0 01 1 1502-1503 ● ●
579 HARNESS; A/T
LCT2500 A/T ALLISON(Y5W) 		8-98276-300-0 01 1 1504- ● ●
637 HARNESS; EXT,S/SENSOR
LCT2500 A/T ALLISON(Y5W) 		1-82671-045-1 01 1 1307-1312 ●
637 HARNESS; EXT,S/SENSOR
LCT2500 A/T ALLISON(Y5W) 		1-82671-045-1 01 1 1401-1501 ● ●
637 HARNESS; EXT,S/SENSOR
LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> 		1-82671-045-1 01 1 1502-1503 ● ●
637 HARNESS; EXT,S/SENSOR
LCT2500 A/T ALLISON(Y5W) 		1-82671-045-1 01 1 1504- ● ●

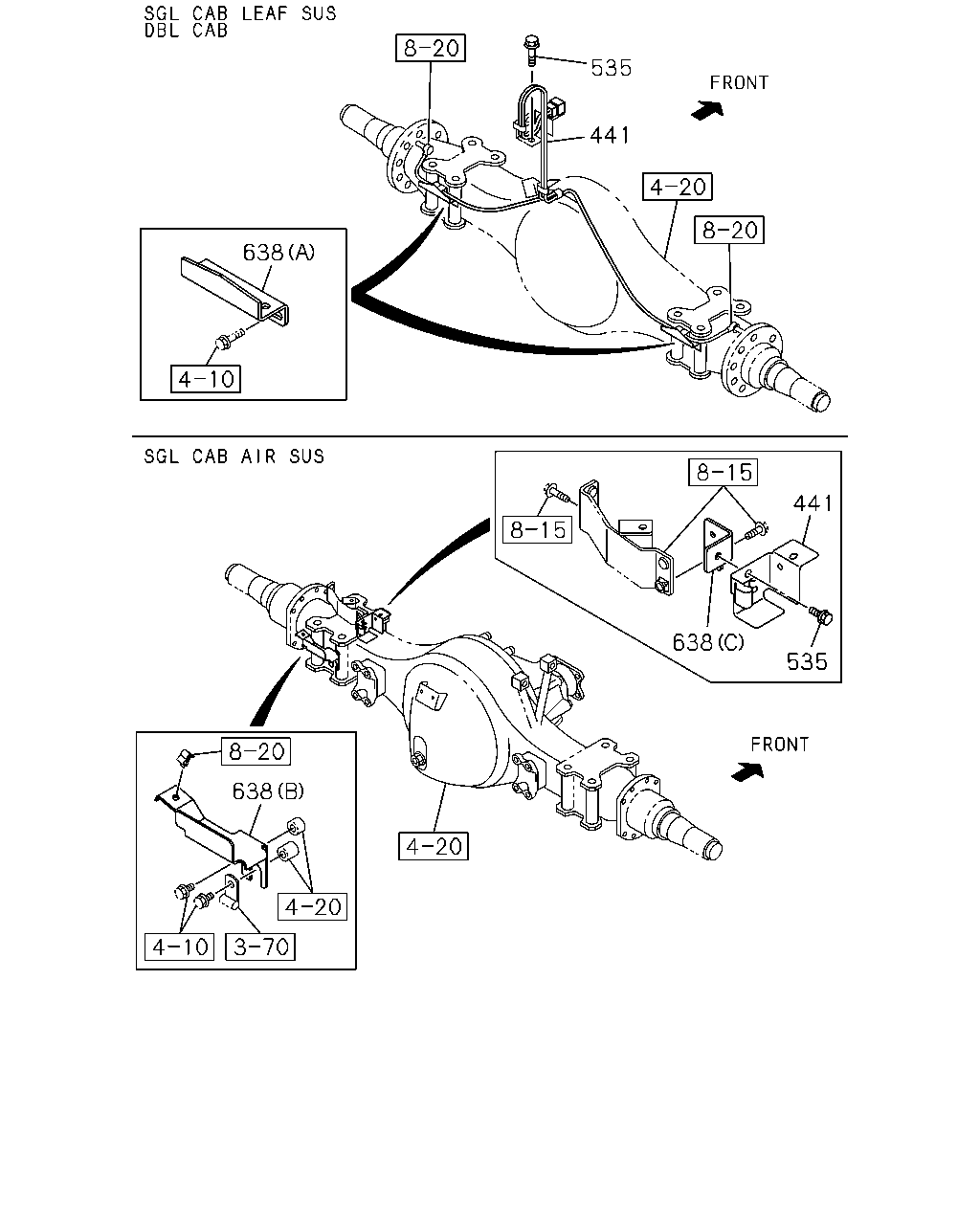

çizim 364009
638 638 535 441 638 441 535
BalonParca AdiParca NoAdetTipApplied Date A B C
441 HARNESS; CABLE,SPEED SENSOR 8-98061-652-0 01 1 1307-1312 ● ●
441 HARNESS; CABLE,SPEED SENSOR 8-98061-652-0 01 1 1401- ● ● ●
535 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 01 1 1307-1312 ● ●
535 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 01 1 1307-1312 ● ●
535 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 01 1 1401- ● ● ●
535 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 01 1 1401- ● ● ●
535 BOLT; BRKT FIX
M8X10 W/LK WASHER 		8-98029-928-0 02 1 1307-1312 ● ●
535 BOLT; BRKT FIX
M8X10 W/LK WASHER 		8-98029-928-0 02 1 1401- ● ● ●
638 BRACKET; SPD SENSOR
(B) 		8-98236-731-0 01 1 1401- ● ● ●
638 BRACKET; SPD SENSOR
(B) 		8-98236-732-0 01 1 1401- ● ● ●
638 BRACKET; SPD SENSOR
(C) 		8-98249-802-0 01 1 1401- ● ● ●
638 BRACKET; SPD SENSOR
(A) 		8-98012-580-1 02 1 1307- ● ●
çizim 365199
6 431 431 431 431 10 184 27 184 388 174 453 431 720 534
BalonParca AdiParca NoAdetTipApplied Date A B C
6 HARNESS; FRAME
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-886-2 01 1 1307-1312 ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-886-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCC ENG(81L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-886-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-884-2 01 1 1307-1312 ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-884-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-884-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-885-2 01 1 1307-1312 ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-885-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-885-2 01 1 1401- ●
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-895-2 01 1 1307- ●
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-896-2 01 1 1307- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-897-1 01 1 1307- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-898-1 01 1 1307- ●
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1307-1312 ● ●
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1401- ● ● ●
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1307-1312 ● ●
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1401- ● ● ●
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 1307-1312 ● ●
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 1401- ● ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1307-1312 ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1401- ● ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1307-1312 ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1401- ● ● ●
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 02 1 1307-1312 ● ●
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 02 1 1401- ● ● ●
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 02 1 1307-1312 ● ●
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 02 1 1401- ● ● ●
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1307-1312 ● ●
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1401- ● ● ●
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1307-1312 ● ●
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1401- ● ● ●
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1307-1312 ● ●
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1401- ● ● ●
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1307- ●
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 02 1 1307- ● ●
431 CONNECTOR; JOINT
4HK1-TCS ENG(RJS) (H) 6P BLACK 		8-97616-194-0 01 1 1307- ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1307- ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1307- ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1307- ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1307- ●
431 CONNECTOR; JOINT
6HK1-TCN ENG(82L) (H) 6P BLACK 		8-97616-194-0 02 1 1307- ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1307-1312 ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1401- ● ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1307-1312 ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1401- ● ● ●
453 PROTECTOR; HARNESS 1-82699-709-0 02 1 1307-1312 ● ●
453 PROTECTOR; HARNESS 1-82699-709-0 02 1 1401- ● ● ●
534 BOLT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1307-1312 ● ●
534 BOLT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1401- ● ● ●
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1307-1312 ● ●
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1401- ● ● ●
534 BOLT
(D) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1307- ●
534 BOLT
4HK1-TCS ENG(RJS) (C) M10X55 FLANGE 		8-97365-449-0 03 1 1307- ●
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1307-1312 ● ●
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1401- ● ● ●
çizim 365293
765 276 280 694 261 431 431 29 693 4 41 5 28 668 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-537-1 01 1 1307-1312 ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-537-1 01 1 1401- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-536-1 01 1 1307-1312 ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-536-1 01 1 1401- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-535-1 01 1 1307-1312 ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-535-1 01 1 1401- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-534-1 01 1 1307-1312 ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-534-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-931-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-931-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-945-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-945-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-927-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-927-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-941-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-941-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-930-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-930-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-944-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-944-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-926-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-926-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-940-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-940-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-949-1 01 1 1307- ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-951-1 01 1 1307- ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-948-1 01 1 1307- ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-950-1 01 1 1307- ●
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1307-1312 ● ●
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1401- ● ● ●
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1307-1312 ● ●
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1401- ● ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1307-1312 ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1401- ● ● ●
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1307-1312 ● ●
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1401- ● ● ●
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1307-1312 ● ●
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1401- ● ● ●
28 SCREW; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1307-1312 ● ●
28 SCREW; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1401- ● ● ●
29 COVER; FUSE BOX 8-98056-968-0 01 1 1307-1312 ● ●
29 COVER; FUSE BOX 8-98056-968-0 01 1 1401- ● ● ●
41 PULLER; FUSE 8-98054-260-0 01 1 1307-1312 ● ●
41 PULLER; FUSE 8-98054-260-0 01 1 1401- ● ● ●
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1307-1312 ● ●
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1401- ● ● ●
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1307-1312 ● ●
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1401- ● ● ●
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1307-1312 ● ●
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1401- ● ● ●
431 CONNECTOR; JOINT
4HK1-TCS ENG(RJS) (H) 6P BLACK 		8-97616-194-0 01 1 1307- ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1307- ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1307- ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1307- ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1307- ●
431 CONNECTOR; JOINT
6HK1-TCN ENG(82L) (H) 6P BLACK 		8-97616-194-0 02 1 1307- ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1307-1312 ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1401- ● ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1307-1312 ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1401- ● ● ●
668 BRACKET; HARNESS
(A) L=55 		1-47475-304-0 01 1 1307-1312 ● ●
668 BRACKET; HARNESS
(A) L=55 		1-47475-304-0 01 1 1401- ● ● ●
668 BRACKET; HARNESS
(G) L=170 		1-47479-380-0 01 1 1307-1312 ● ●
668 BRACKET; HARNESS
(G) L=170 		1-47479-380-0 01 1 1401- ● ● ●
668 BRACKET; HARNESS
(B) 		8-97619-097-1 01 1 1307-1312 ● ●
668 BRACKET; HARNESS
(B) 		8-97619-097-1 01 1 1401- ● ● ●
668 BRACKET; HARNESS
(C) 		8-97619-533-0 01 1 1307-1312 ● ●
668 BRACKET; HARNESS
(C) 		8-97619-533-0 01 1 1401- ● ● ●
668 BRACKET; HARNESS
(D) 		8-97616-305-0 01 1 1307-1312 ● ●
668 BRACKET; HARNESS
(D) 		8-97616-305-0 01 1 1401-1502 ● ● ●
668 BRACKET; HARNESS
(O) 		8-98254-592-0 01 1 1503- ● ● ●
668 BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (J) 		8-98095-653-2 01 1 1307-1312 ● ●
668 BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (J) 		8-98095-653-2 01 1 1401- ● ● ●
668 BRACKET; HARNESS
(E) 		8-98090-952-0 01 1 1307-1312 ●
668 BRACKET; HARNESS
6HK1-TCN ENG(82L) (E) 		8-98090-952-0 01 1 1307-1312 ●
668 BRACKET; HARNESS
(E) 		8-98090-952-0 01 1 1401- ● ●
668 BRACKET; HARNESS
6HK1-TCN ENG(82L) (E) 		8-98090-952-0 01 1 1401- ●
668 BRACKET; HARNESS
(F) 		8-97619-534-0 01 1 1307-1312 ●
668 BRACKET; HARNESS
6HK1-TCN ENG(82L) (F) 		8-97619-534-0 01 1 1307-1312 ●
668 BRACKET; HARNESS
(F) 		8-97619-534-0 01 1 1401- ● ●
668 BRACKET; HARNESS
6HK1-TCN ENG(82L) (F) 		8-97619-534-0 01 1 1401- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (F) 		8-97619-535-0 01 1 1307- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (M) 		8-98009-245-0 01 1 1307-1408 ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (M) 		8-98273-295-0 01 1 1409- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (N) 		8-98011-484-0 01 1 1307- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (I) 		8-98024-765-0 01 1 1307- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (K) 		8-98061-780-0 01 1 1307- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (L) 		8-98097-674-0 01 1 1307- ●
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (H) 		8-98116-461-0 01 1 1307- ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1307-1312 ● ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1401- ● ● ●
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 1307-1312 ● ●
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 1401- ● ● ●
765 TAPE
100X40 		1-72498-022-1 01 1 1409- ● ● ●

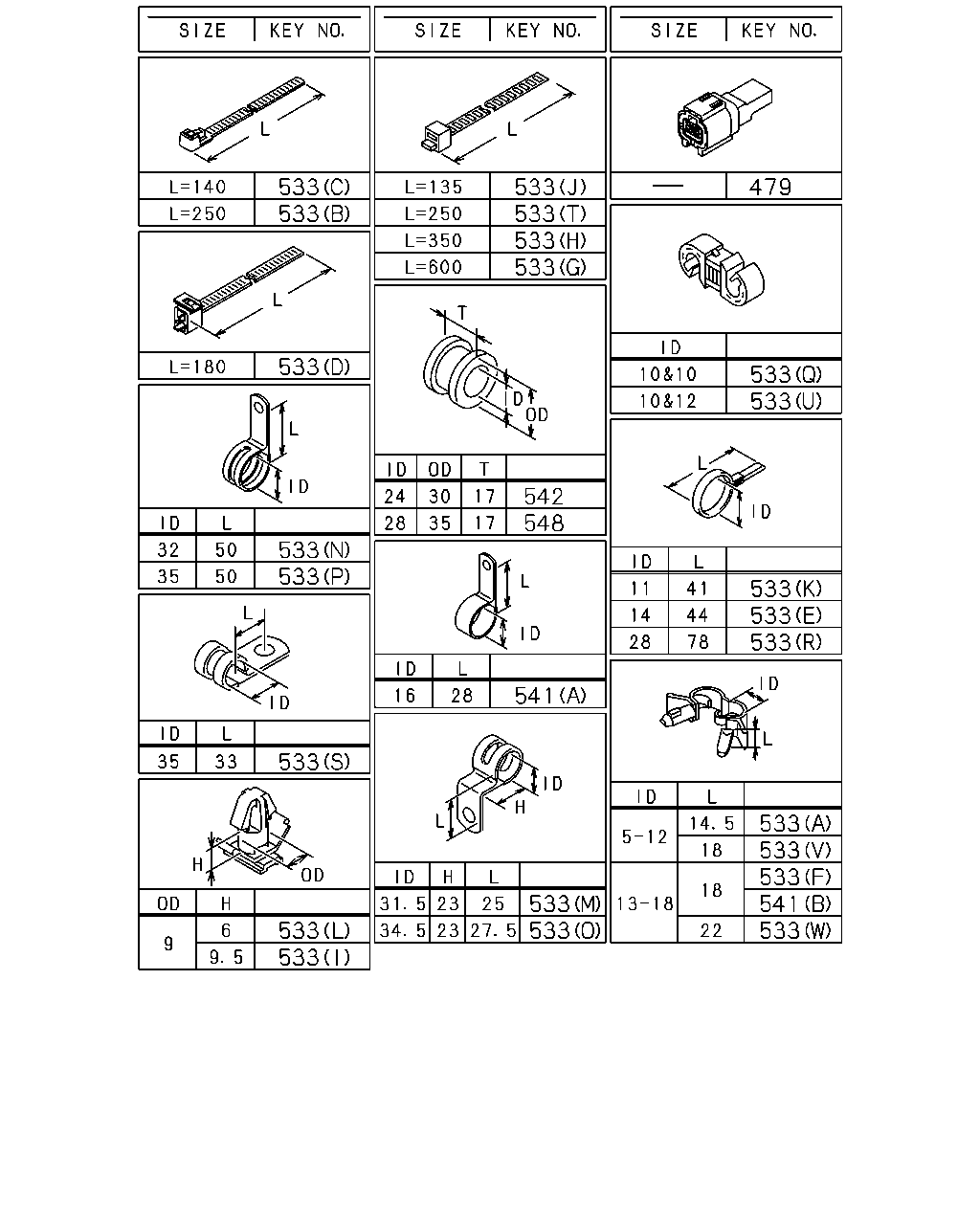

çizim 365313
533 533 533 533 533 533 533 533 533 533 533 533 542 548 541 533 533 479 533 533 533 533 533 533 533 533 541 533
BalonParca AdiParca NoAdetTipApplied Date A B C
479 CAP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> 		1-82691-191-0 01 1 1307-1312 ● ●
479 CAP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> 		1-82691-191-0 01 1 1401- ● ● ●
533 CLIP
(Q) ID=10 & 10 		1-09709-277-1 02 1 1307- ●
533 CLIP
(A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1307- ●
533 CLIP
WHEEL BASE 5100MM(51W) (E) ID=14 L=44 		9-09917-427-0 18 1 1401- ●
533 CLIP
(W) ID=13-18 L=22 		1-09709-292-0 01 1 1401- ●
533 CLIP
WHEEL BASE 5100MM(51W) (W) ID=13-18 L=22 		1-09709-292-0 01 1 1401- ●
533 CLIP
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307-1312 ●
533 CLIP
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1401- ● ●
533 CLIP
(B) L=250 		5-09707-030-1 04 1 1307-1312 ●
533 CLIP
(B) L=250 		5-09707-030-1 04 1 1401- ● ●
533 CLIP
(C) L=140 		5-09707-031-1 02 1 1307-1312 ●
533 CLIP
(C) L=140 		5-09707-031-1 02 1 1401- ● ●
533 CLIP
EXC. COUNTRY NEW ZEALAND(CX6) (D) L=180 		1-09707-162-1 01 1 1307-1312 ●
533 CLIP
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) L=180 		1-09707-162-1 01 1 1307-1312 ●
533 CLIP
(D) L=180 		1-09707-162-1 01 1 1307-1312 ●
533 CLIP
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (D) L=180 		1-09707-162-1 01 1 1307-1312 ●
533 CLIP
EXC. COUNTRY NEW ZEALAND(CX6) (D) L=180 		1-09707-162-1 01 1 1401- ●
533 CLIP
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) L=180 		1-09707-162-1 01 1 1401- ●
533 CLIP
(D) L=180 		1-09707-162-1 01 1 1401- ● ●
533 CLIP
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (D) L=180 		1-09707-162-1 01 1 1401- ●
533 CLIP
6HK1-TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) L=180 		1-09707-162-1 01 1 1401- ●
533 CLIP
WHEEL BASE 4300MM(43W) (E) ID=14 L=44 		9-09917-427-0 13 1 1307- ●
533 CLIP
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (F) ID=13-18 L=18 		1-09709-291-0 01 1 1307- ●
533 CLIP
WHEEL BASE 5100MM(51W) (F) ID=13-18 L=18 		1-09709-291-0 01 1 1307- ●
533 CLIP
WHEEL BASE 5500MM(55W) (E) ID=14 L=44 		9-09917-427-0 19 1 1307- ●
533 CLIP
(G) L=600 		1-09707-107-1 01 1 1307-1312 ● ●
533 CLIP
(G) L=600 		1-09707-107-1 01 1 1401- ● ● ●
533 CLIP
(H) L=350 		1-09707-183-0 01 1 1307-1312 ● ●
533 CLIP
6HK1-TCN ENG(82L) (H) L=350 		1-09707-183-0 01 1 1307-1312 ● ●
533 CLIP
(H) L=350 		1-09707-183-0 01 1 1401- ● ● ●
533 CLIP
6HK1-TCN ENG(82L) (H) L=350 		1-09707-183-0 01 1 1401- ● ●
533 CLIP
6HK1-TCC ENG(81L) (H) L=350 		1-09707-183-0 01 1 1401- ●
533 CLIP
(I) OD=9 H=9.5 		1-09709-179-0 01 1 1307-1312 ● ●
533 CLIP
(I) OD=9 H=9.5 		1-09709-179-0 01 1 1401- ● ● ●
533 CLIP
(J) L=135 		1-09987-143-1 01 1 1307-1312 ● ●
533 CLIP
(J) L=135 		1-09987-143-1 01 1 1401- ● ● ●
533 CLIP
(B) L=250 		5-09707-030-1 01 1 1307-1312 ● ●
533 CLIP
EXC. COUNTRY NEW ZEALAND(CX6) (B) L=250 		5-09707-030-1 01 1 1307-1312 ●
533 CLIP
(B) L=250 		5-09707-030-1 01 1 1307-1312 ●
533 CLIP
(B) L=250 		5-09707-030-1 01 1 1307-1312 ●
533 CLIP
(B) L=250 		5-09707-030-1 01 1 1401- ● ● ●
533 CLIP
EXC. COUNTRY NEW ZEALAND(CX6) (B) L=250 		5-09707-030-1 01 1 1401- ●
533 CLIP
(B) L=250 		5-09707-030-1 01 1 1401- ● ●
533 CLIP
(B) L=250 		5-09707-030-1 01 1 1401- ● ●
533 CLIP
(B) L=250 		5-09707-030-1 02 1 1307-1312 ● ●
533 CLIP
(B) L=250 		5-09707-030-1 02 1 1401- ● ● ●
533 CLIP
(B) L=250 		5-09707-030-1 03 1 1307-1312 ● ●
533 CLIP
(B) L=250 		5-09707-030-1 03 1 1401- ● ● ●
533 CLIP
(K) ID=11 L=41 		1-09700-403-0 01 1 1307-1312 ● ●
533 CLIP
(K) ID=11 L=41 		1-09700-403-0 01 1 1401- ● ● ●
533 CLIP
(E) ID=14 L=44 		9-09917-427-0 02 1 1307-1312 ● ●
533 CLIP
(E) ID=14 L=44 		9-09917-427-0 02 1 1401- ● ● ●
533 CLIP
EXC. H.S.A SYSTEM<6EP> (L) OD=9 H=6 		1-09709-178-0 01 1 1307-1312 ● ●
533 CLIP
(L) OD=9 H=6 		1-09709-178-0 01 1 1307-1312 ● ●
533 CLIP
6HK1-TCN ENG(82L) (L) OD=9 H=6 		1-09709-178-0 01 1 1307-1312 ● ●
533 CLIP
EXC. H.S.A SYSTEM<6EP> (L) OD=9 H=6 		1-09709-178-0 01 1 1401- ● ● ●
533 CLIP
(L) OD=9 H=6 		1-09709-178-0 01 1 1401- ● ● ●
533 CLIP
6HK1-TCN ENG(82L) (L) OD=9 H=6 		1-09709-178-0 01 1 1401- ● ●
533 CLIP
6HK1-TCC ENG(81L) (L) OD=9 H=6 		1-09709-178-0 01 1 1401- ●
533 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (M) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1307-1312 ● ●
533 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (M) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1401- ● ● ●
533 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (N) ID=32 L=50 		1-09701-055-1 01 1 1307-1312 ● ●
533 CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (N) ID=32 L=50 		1-09701-055-1 01 1 1401- ● ● ●
533 CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1307-1312 ● ●
533 CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1401- ● ● ●
533 CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=35 L=50 		1-09701-214-0 01 1 1307-1312 ● ●
533 CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=35 L=50 		1-09701-214-0 01 1 1401- ● ● ●
533 CLIP
WHEEL BASE 5100MM(51W) (E) ID=14 L=44 		9-09917-427-0 16 1 1307-1312 ● ●
533 CLIP
WHEEL BASE 5100MM(51W) (E) ID=14 L=44 		9-09917-427-0 16 1 1401- ● ●
533 CLIP
WHEEL BASE 4300MM(43W) (E) ID=14 L=44 		9-09917-427-0 16 1 1401- ●
533 CLIP
6HK1-TCN ENG(82L) (Q) ID=10 & 10 		1-09709-277-1 04 1 1307-1312 ● ●
533 CLIP
6HK1-TCN ENG(82L) (Q) ID=10 & 10 		1-09709-277-1 04 1 1401- ● ●
533 CLIP
6HK1-TCC ENG(81L) (Q) ID=10 & 10 		1-09709-277-1 04 1 1401- ●
533 CLIP
4HK1-TCS ENG(RJS) (R) ID=28 L=78 		1-09700-858-0 01 1 1307-1308 ●
533 CLIP
4HK1-TCS ENG(RJS) (S) ID=35 L=33 		1-09700-945-0 01 1 1307- ●
533 CLIP
4HK1-TCS ENG(RJS) (T) L=250 		1-09707-126-0 02 1 1307- ●
533 CLIP
4HK1-TCS ENG(RJS) (L) OD=9 H=6 		1-09709-178-0 02 1 1307- ●
533 CLIP
4HK1-TCS ENG(RJS) (Q) ID=10 & 10 		1-09709-277-1 03 1 1307- ●
533 CLIP
4HK1-TCS ENG(RJS) (U) ID=10 & 12 		1-09709-278-1 02 1 1307- ●
533 CLIP
4HK1-TCS ENG(RJS) (V) ID=5-12 L=18 		1-09709-287-0 02 1 1307- ●
541 CLIP
(A) ID=16 L=28 		0-95235-556-0 01 1 1307- ●
541 CLIP
(B) ID=13-18 L=18 		1-09709-291-0 02 1 1307- ●
542 GROMMET; HARNESS
ID=24 OD=30 T=17 		9-09956-092-1 01 1 1307-1312 ● ●
542 GROMMET; HARNESS
6HK1-TCN ENG(82L) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1307-1312 ● ●
542 GROMMET; HARNESS
ID=24 OD=30 T=17 		9-09956-092-1 01 1 1401- ● ● ●
542 GROMMET; HARNESS
6HK1-TCN ENG(82L) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1401- ● ●
542 GROMMET; HARNESS
6HK1-TCC ENG(81L) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1401- ●
542 GROMMET; HARNESS
4HK1-TCS ENG(RJS) ID=24 OD=30 T=17 		9-09956-092-1 02 1 1307- ●
548 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1307-1312 ● ●
548 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1401- ● ● ●
çizim 365335
290 293 525 290 639 267 639 267 534 639 267 267 534
BalonParca AdiParca NoAdetTipApplied Date A B C
267 BOLT; BRKT
6HK1-TCN ENG(82L) EXC. A/T<X9D> (A) M8X25 FLANGE 		0-28650-825-0 01 1 1307-1312 ●
267 BOLT; BRKT
6HK1-TCN ENG(82L) EXC. A/T<X9D> (A) M8X25 FLANGE 		0-28650-825-0 01 1 1401- ●
267 BOLT; BRKT
6HK1-TCC ENG(81L) EXC. A/T<X9D> (A) M8X25 FLANGE 		0-28650-825-0 01 1 1401- ●
267 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1307-1312 ● ●
267 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1401- ● ● ●
267 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1307-1312 ● ●
267 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1401- ● ● ●
267 BOLT; BRKT
(D) M10X30 FLANGE 		0-28651-030-0 01 1 1307-1312 ●
267 BOLT; BRKT
6HK1-TCN ENG(82L) (D) M10X30 FLANGE 		0-28651-030-0 01 1 1307-1312 ●
267 BOLT; BRKT
(D) M10X30 FLANGE 		0-28651-030-0 01 1 1401- ● ●
267 BOLT; BRKT
6HK1-TCN ENG(82L) (D) M10X30 FLANGE 		0-28651-030-0 01 1 1401- ●
267 BOLT; BRKT
4HK1-TCS ENG(RJS) (B) M8X30 FLANGE 		0-28650-830-0 01 1 1307- ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 04 1 1307-1312 ● ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 04 1 1401- ● ● ●
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 03 1 1307-1312 ● ●
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 03 1 1401- ● ● ●
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1307-1312 ●
290 NUT; BRKT
6HK1-TCN ENG(82L) (B) M10 FLANGE 		0-91180-210-0 01 1 1307-1312 ●
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1401- ● ●
290 NUT; BRKT
6HK1-TCN ENG(82L) (B) M10 FLANGE 		0-91180-210-0 01 1 1401- ●
290 NUT; BRKT
4HK1-TCS ENG(RJS) (A) M8 FLANGE 		0-91180-108-0 01 1 1307- ●
293 NUT
M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ● ●
293 NUT
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ● ●
293 NUT
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ● ●
293 NUT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 01 1 1401- ● ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1401- ●
534 BOLT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1307-1312 ● ●
534 BOLT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1401- ● ● ●
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1307-1312 ● ●
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1401- ● ● ●
534 BOLT
(D) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1307- ●
534 BOLT
4HK1-TCS ENG(RJS) (C) M10X55 FLANGE 		8-97365-449-0 03 1 1307- ●
639 BOLT; CLIP
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1307-1312 ● ●
639 BOLT; CLIP
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1401- ● ● ●
639 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1307- ●
639 BOLT; CLIP
4HK1-TCS ENG(RJS) (C) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ●
çizim 365738
293 440
BalonParca AdiParca NoAdetTipApplied Date A B C
293 NUT
M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ● ●
293 NUT
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ● ●
293 NUT
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ● ●
293 NUT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 01 1 1401- ● ● ●
440 CABLE; EARTH 8-97606-639-0 01 1 1307-1312 ●
440 CABLE; EARTH
6HK1-TCN ENG(82L) 		8-97606-639-0 01 1 1307-1312 ●
440 CABLE; EARTH 8-97606-639-0 01 1 1401- ● ●
440 CABLE; EARTH
6HK1-TCN ENG(82L) 		8-97606-639-0 01 1 1401- ●
çizim 365799
18 18 12 18 204 18 204 18 12 18
BalonParca AdiParca NoAdetTipApplied Date A B C
12 HARNESS; ROOF 8-98079-071-1 01 1 1307-1312 ●
12 HARNESS; ROOF 8-98079-071-1 01 1 1401- ● ●
12 HARNESS; ROOF 8-98085-265-0 01 1 1307- ●
18 HARNESS; DOOR
CORNERING LAMP<T87> FRONT 		8-98225-379-0 01 1 1307-1312 ●
18 HARNESS; DOOR
FRONT 		8-98225-379-0 01 1 1307-1312 ●
18 HARNESS; DOOR
CORNERING LAMP<T87> FRONT 		8-98225-379-0 01 1 1401- ●
18 HARNESS; DOOR
FRONT 		8-98225-379-0 01 1 1401- ● ●
18 HARNESS; DOOR
CORNERING LAMP<T87> FRONT 		8-98225-378-0 01 1 1307-1312 ●
18 HARNESS; DOOR
FRONT 		8-98225-378-0 01 1 1307-1312 ●
18 HARNESS; DOOR
CORNERING LAMP<T87> FRONT 		8-98225-378-0 01 1 1401- ●
18 HARNESS; DOOR
FRONT 		8-98225-378-0 01 1 1401- ● ●
18 HARNESS; DOOR
EXC. CORNERING LAMP<T87> FRONT 		8-98079-079-5 01 1 1307- ●
18 HARNESS; DOOR
EXC. CORNERING LAMP<T87> FRONT 		8-98079-076-5 01 1 1307- ●
18 HARNESS; DOOR
REAR 		8-98056-047-1 02 1 1307- ●
204 HARNESS; CABLE,FLOOR
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-251-1 01 1 1307-1312 ●
204 HARNESS; CABLE,FLOOR
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-251-1 01 1 1401- ● ●
204 HARNESS; CABLE,FLOOR
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) 		8-98085-250-2 01 1 1307-1312 ●
204 HARNESS; CABLE,FLOOR
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) 		8-98085-250-2 01 1 1401- ● ●
204 HARNESS; CABLE,FLOOR
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-214-1 01 1 1307-1312 ●
204 HARNESS; CABLE,FLOOR
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-214-1 01 1 1401- ● ●
204 HARNESS; CABLE,FLOOR
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-201-1 01 1 1307-1312 ●
204 HARNESS; CABLE,FLOOR
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-201-1 01 1 1401- ● ●
204 HARNESS; CABLE,FLOOR
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-210-2 01 1 1307-1312 ●
204 HARNESS; CABLE,FLOOR
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-210-2 01 1 1401- ● ●
204 HARNESS; CABLE,FLOOR
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-196-2 01 1 1307-1312 ●
204 HARNESS; CABLE,FLOOR
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98084-196-2 01 1 1401- ● ●
204 HARNESS; CABLE,FLOOR
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-259-1 01 1 1307- ●
204 HARNESS; CABLE,FLOOR
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-255-1 01 1 1307- ●
204 HARNESS; CABLE,FLOOR
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-258-2 01 1 1307- ●
204 HARNESS; CABLE,FLOOR
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98085-253-1 01 1 1307- ●
çizim 366506
339 570 1 6 595
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-537-1 01 1 1307-1312 ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-537-1 01 1 1401- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-536-1 01 1 1307-1312 ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-536-1 01 1 1401- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-535-1 01 1 1307-1312 ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-535-1 01 1 1401- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-534-1 01 1 1307-1312 ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-534-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-931-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-931-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-945-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-945-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-927-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-927-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-941-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-941-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-930-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-930-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-944-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-944-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-926-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-926-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-940-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-940-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-949-1 01 1 1307- ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-951-1 01 1 1307- ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-948-1 01 1 1307- ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-950-1 01 1 1307- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-886-2 01 1 1307-1312 ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-886-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCC ENG(81L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-886-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-884-2 01 1 1307-1312 ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-884-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-884-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-885-2 01 1 1307-1312 ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-885-2 01 1 1401- ●
6 HARNESS; FRAME
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 4300MM(43W),WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-885-2 01 1 1401- ●
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-895-2 01 1 1307- ●
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-896-2 01 1 1307- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-897-1 01 1 1307- ●
6 HARNESS; FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-898-1 01 1 1307- ●
339 HARNESS; EXT,FUEL
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) 		8-98239-526-1 01 1 1307-1312 ●
339 HARNESS; EXT,FUEL
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) 		8-98239-526-1 01 1 1401- ●
339 HARNESS; EXT,FUEL
6HK1-TCC ENG(81L) WHEEL BASE 4300MM(43W) 		8-98239-526-1 01 1 1401- ●
339 HARNESS; EXT,FUEL
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) 		8-98124-758-0 01 1 1307-1312 ●
339 HARNESS; EXT,FUEL
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) 		8-98124-758-0 01 1 1401- ●
339 HARNESS; EXT,FUEL
6HK1-TCC ENG(81L) WHEEL BASE 5100MM(51W) 		8-98124-758-0 01 1 1401- ●
570 HARNESS; SPEED SENSOR
MZW6P M/T(RSZ) SPEED LIMITER 95KM(NNT) 		8-98058-327-1 01 1 1406- ● ● ●
570 HARNESS; SPEED SENSOR
LCT2500 A/T ALLISON(Y5W) 		8-98091-562-0 01 1 1307-1312 ●
570 HARNESS; SPEED SENSOR
LCT2500 A/T ALLISON(Y5W) 		8-98091-562-0 01 1 1401- ● ●
595 HARNESS; WARNING,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97621-005-3 01 1 1307-1312 ● ●
595 HARNESS; WARNING,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97621-005-3 01 1 1401- ● ● ●
595 HARNESS; WARNING,BRK
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97621-003-3 01 1 1307-1312 ● ●
595 HARNESS; WARNING,BRK
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97621-003-3 01 1 1401- ● ● ●
çizim 367129
408 409 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-537-1 01 1 1307-1312 ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-537-1 01 1 1401- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-536-1 01 1 1307-1312 ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-536-1 01 1 1401- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-535-1 01 1 1307-1312 ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-535-1 01 1 1401- ● ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-534-1 01 1 1307-1312 ●
1 HARNESS; CAB
LCT2500 A/T ALLISON(Y5W) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98233-534-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-931-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-931-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-945-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-945-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-927-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-927-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-941-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-941-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-930-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-930-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-944-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-944-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-926-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-926-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-940-1 01 1 1307-1312 ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-940-1 01 1 1401- ● ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-949-1 01 1 1307- ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-951-1 01 1 1307- ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-948-1 01 1 1307- ●
1 HARNESS; CAB
MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-950-1 01 1 1307- ●
408 SOCKET ASM; ACCESSORY
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98169-757-0 01 1 1307-1312 ● ●
408 SOCKET ASM; ACCESSORY
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98169-757-0 01 1 1401- ● ● ●
409 CAP; ACCESSORY SOCKET
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98183-771-0 01 1 1307-1312 ● ●
409 CAP; ACCESSORY SOCKET
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98183-771-0 01 1 1401- ● ● ●
çizim 367317
4 693 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B C
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1307-1312 ● ●
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1401- ● ● ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1307-1312 ● ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1401- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
