◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#123764) — 180 parça

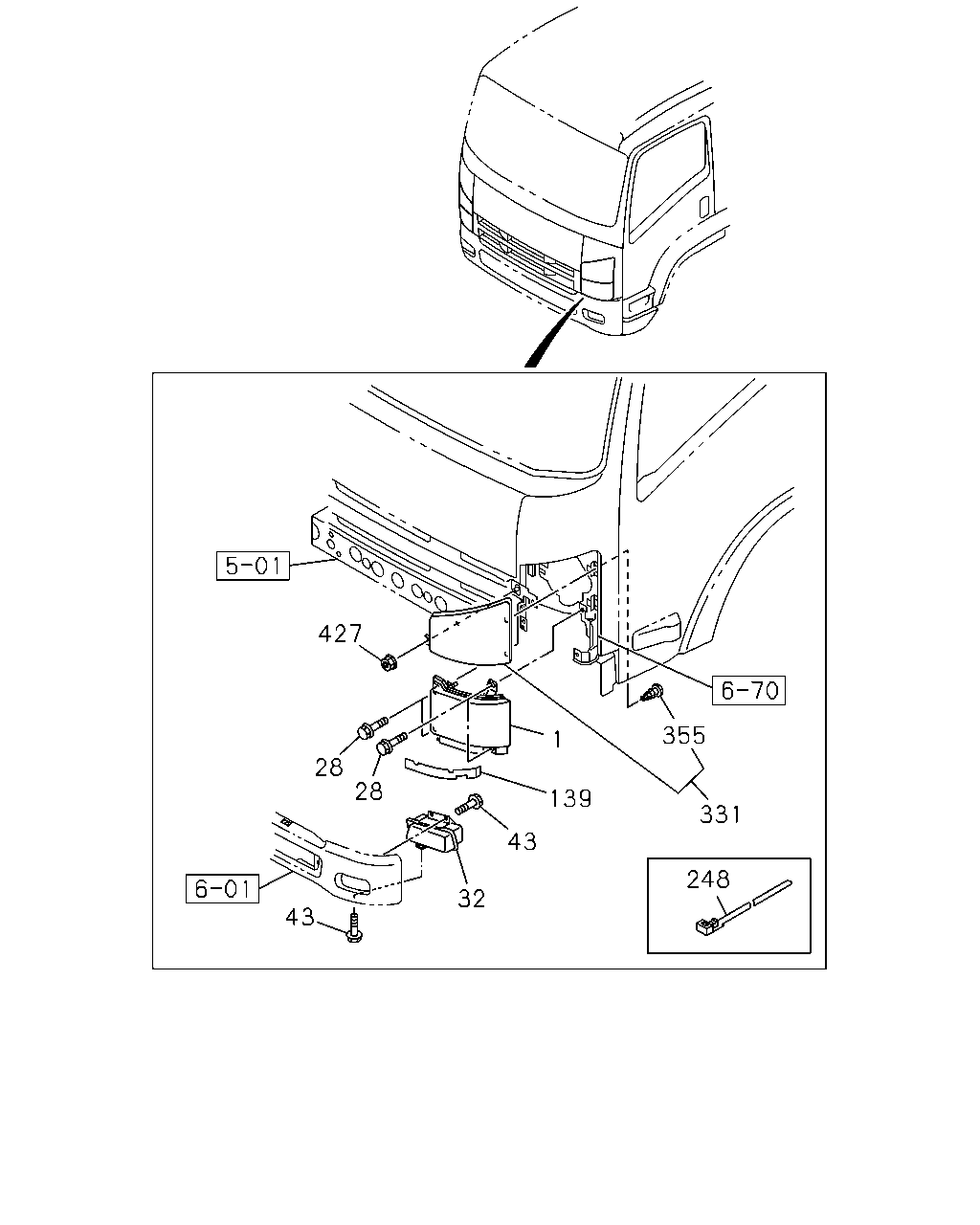

çizim 363766
331 355 1 139 43 32 43 28 28 427 248
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-320-0 01 1 1307- ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-319-0 01 1 1307- ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-326-0 01 1 1307-1312 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-326-0 01 1 1401- ● ●
1 LAMP ASM; HEAD 8-98241-326-0 01 1 1401- ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-325-0 01 1 1307-1312 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-325-0 01 1 1401- ● ●
1 LAMP ASM; HEAD 8-98241-325-0 01 1 1401- ●
28 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1307-1312 ● ●
28 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1401- ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-1 01 1 1307-1312 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-1 01 1 1401- ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-1 01 1 1307-1312 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-1 01 1 1401- ● ● ●
43 BOLT; FOG LAMP
FOG LAMP<T96> M6X19.5 W/LK&PL WASHER 		8-97360-226-0 06 1 1307-1312 ● ●
43 BOLT; FOG LAMP
FOG LAMP<T96> M6X19.5 W/LK&PL WASHER 		8-97360-226-0 06 1 1401- ● ● ●
139 COVER; HEADLAMP 8-98054-342-0 02 1 1307-1312 ● ●
139 COVER; HEADLAMP 8-98054-342-0 02 1 1401- ● ● ●
248 CLIP; HARNESS
EXC. FOG LAMP<T96> L=140 		5-09707-031-1 02 1 1307-1312 ● ●
248 CLIP; HARNESS
EXC. FOG LAMP<T96> L=140 		5-09707-031-1 02 1 1401- ● ● ●
331 LAMP; TURN SIGNAL 8-98155-459-0 01 1 1307-1312 ● ●
331 LAMP; TURN SIGNAL 8-98155-459-0 01 1 1401- ● ● ●
331 LAMP; TURN SIGNAL 8-98155-458-0 01 1 1307-1312 ● ●
331 LAMP; TURN SIGNAL 8-98155-458-0 01 1 1401- ● ● ●
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 1307-1312 ● ●
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 1401- ● ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1307-1312 ● ●
427 NUT; TURN SIGNAL LAMP
EXC. CORNERING LAMP<T87> M6 FLANGE 		0-91180-106-0 02 1 1307-1312 ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1401- ● ● ●
427 NUT; TURN SIGNAL LAMP
EXC. CORNERING LAMP<T87> M6 FLANGE 		0-91180-106-0 02 1 1401- ●
çizim 363813
1 4 338 339 408 420 20 23 5 5 382 457
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-320-0 01 1 1307- ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-319-0 01 1 1307- ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-326-0 01 1 1307-1312 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-326-0 01 1 1401- ● ●
1 LAMP ASM; HEAD 8-98241-326-0 01 1 1401- ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-325-0 01 1 1307-1312 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-325-0 01 1 1401- ● ●
1 LAMP ASM; HEAD 8-98241-325-0 01 1 1401- ●
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-181-0 01 1 1307- ● ●
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-180-0 01 1 1307- ● ●
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-183-0 01 1 1307-1312 ● ●
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-183-0 01 1 1401- ● ●
4 HEADLAMP UNIT 8-98226-183-0 01 1 1401- ●
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-182-0 01 1 1307-1312 ● ●
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-182-0 01 1 1401- ● ●
4 HEADLAMP UNIT 8-98226-182-0 01 1 1401- ●
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 1307-1312 ● ●
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 1401- ● ● ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 1307-1312 ● ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 1401- ● ● ●
20 SCREW; HEADLAMP 8-97378-871-0 06 1 1307-1312 ● ●
20 SCREW; HEADLAMP 8-97378-871-0 06 1 1401- ● ● ●
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 1307-1312 ● ●
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 1401- ● ● ●
338 LEVELING; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98010-256-0 02 1 1307- ● ●
339 GASKET; LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		1-86830-158-0 02 1 1307- ● ●
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1307-1312 ● ●
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1401- ● ● ●
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 1307-1312 ● ●
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 1401- ● ● ●
420 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1307-1312 ● ●
420 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1401- ● ● ●
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1307-1312 ● ●
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1401- ● ● ●
çizim 365173
36 448 15 44 32 47 49 432 355 399 357 431 331
BalonParca AdiParca NoAdetTipApplied Date A B C
15 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		1-82194-106-0 02 1 1307-1312 ● ●
15 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		1-82194-106-0 02 1 1401- ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-1 01 1 1307-1312 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-1 01 1 1401- ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-1 01 1 1307-1312 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-1 01 1 1401- ● ● ●
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-016-0 01 1 1307-1312 ● ●
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-016-0 01 1 1401- ● ● ●
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-015-0 01 1 1307-1312 ● ●
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-015-0 01 1 1401- ● ● ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 		8-98217-430-0 02 1 1307-1312 ● ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 		8-98217-430-0 02 1 1401- ● ● ●
47 WASHER; PL,FOG LAMP
FOG LAMP<T96> 		8-98217-429-0 02 1 1307-1312 ● ●
47 WASHER; PL,FOG LAMP
FOG LAMP<T96> 		8-98217-429-0 02 1 1401- ● ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-435-0 01 1 1307-1312 ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-435-0 01 1 1401- ● ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-436-0 01 1 1307-1312 ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-436-0 01 1 1401- ● ● ●
331 LAMP; TURN SIGNAL 8-98155-459-0 01 1 1307-1312 ● ●
331 LAMP; TURN SIGNAL 8-98155-459-0 01 1 1401- ● ● ●
331 LAMP; TURN SIGNAL 8-98155-458-0 01 1 1307-1312 ● ●
331 LAMP; TURN SIGNAL 8-98155-458-0 01 1 1401- ● ● ●
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 1307-1312 ● ●
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 1401- ● ● ●
357 BULB; TURN SIGNAL
24V 21W AMBER 		8-97323-806-0 02 1 1307-1312 ● ●
357 BULB; TURN SIGNAL
24V 21W AMBER 		8-97323-806-0 02 1 1401- ● ● ●
399 SOCKET; TURN SIGNAL 8-98051-387-0 02 1 1307-1312 ● ●
399 SOCKET; TURN SIGNAL 8-98051-387-0 02 1 1401- ● ● ●
431 CAP; TURN SIGNAL,LAMP 8-97378-874-0 02 1 1307-1312 ● ●
431 CAP; TURN SIGNAL,LAMP 8-97378-874-0 02 1 1401- ● ● ●
432 FASTENER; TURN SIGNAL,LAMP 8-98051-431-0 04 1 1307-1312 ● ●
432 FASTENER; TURN SIGNAL,LAMP 8-98051-431-0 04 1 1401- ● ● ●
448 CAP ASM; LAMP
FOG LAMP<T96> 		8-97378-874-0 02 1 1307-1312 ● ●
448 CAP ASM; LAMP
FOG LAMP<T96> 		8-97378-874-0 02 1 1401- ● ● ●

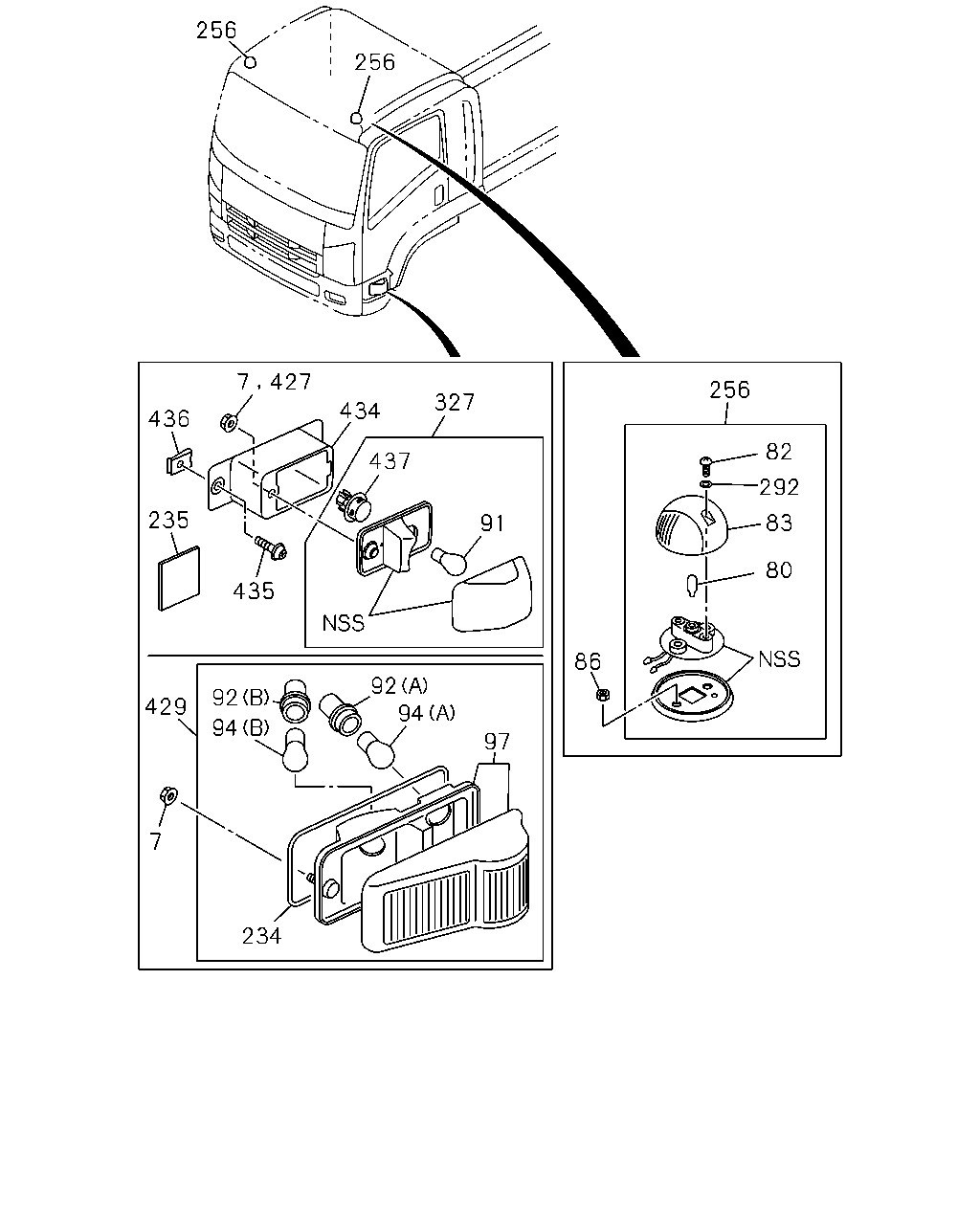

çizim 365240
80 83 292 82 256 327 91 86 97 94 92 92 94 429 7 234 435 437 434 427 7 256 256 436 235
BalonParca AdiParca NoAdetTipApplied Date A B C
7 NUT; FRT COMB LAMP
CORNERING LAMP<T87> M6 FLANGE 		0-91180-106-0 02 1 1307-1312 ●
7 NUT; FRT COMB LAMP
M6 FLANGE 		0-91180-106-0 02 1 1307-1312 ●
7 NUT; FRT COMB LAMP
CORNERING LAMP<T87> M6 FLANGE 		0-91180-106-0 02 1 1401- ●
7 NUT; FRT COMB LAMP
M6 FLANGE 		0-91180-106-0 02 1 1401- ● ●
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 1307-1312 ● ●
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 1401- ● ● ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 1307-1312 ● ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 1401- ● ● ●
83 LENS; MARKER LAMP 8-98057-958-0 02 1 1307-1312 ● ●
83 LENS; MARKER LAMP 8-98057-958-0 02 1 1401- ● ● ●
86 NUT; MARKER LAMP
M6 FLANGE 		0-91180-106-0 04 1 1307-1312 ● ●
86 NUT; MARKER LAMP
M6 FLANGE 		0-91180-106-0 04 1 1401- ● ● ●
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1307-1312 ● ●
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1401- ● ● ●
92 SOCKET ASM; SIDE COMB LAMP
CORNERING LAMP<T87> (B) 		8-97172-959-0 02 1 1307-1312 ●
92 SOCKET ASM; SIDE COMB LAMP
(B) 		8-97172-959-0 02 1 1307-1312 ●
92 SOCKET ASM; SIDE COMB LAMP
CORNERING LAMP<T87> (B) 		8-97172-959-0 02 1 1401- ●
92 SOCKET ASM; SIDE COMB LAMP
(B) 		8-97172-959-0 02 1 1401- ● ●
92 SOCKET ASM; SIDE COMB LAMP
CORNERING LAMP<T87> (A) 		8-98051-390-0 02 1 1307-1312 ●
92 SOCKET ASM; SIDE COMB LAMP
(A) 		8-98051-390-0 02 1 1307-1312 ●
92 SOCKET ASM; SIDE COMB LAMP
CORNERING LAMP<T87> (A) 		8-98051-390-0 02 1 1401- ●
92 SOCKET ASM; SIDE COMB LAMP
(A) 		8-98051-390-0 02 1 1401- ● ●
94 BULB; SIDE COMB LAMP
CORNERING LAMP<T87> (A) 24V 21W 		8-98051-495-0 02 1 1307-1312 ●
94 BULB; SIDE COMB LAMP
(A) 24V 21W 		8-98051-495-0 02 1 1307-1312 ●
94 BULB; SIDE COMB LAMP
CORNERING LAMP<T87> (A) 24V 21W 		8-98051-495-0 02 1 1401- ●
94 BULB; SIDE COMB LAMP
(A) 24V 21W 		8-98051-495-0 02 1 1401- ● ●
94 BULB; SIDE COMB LAMP
CORNERING LAMP<T87> (B) 24V 21W 		8-98051-496-0 02 1 1307-1312 ●
94 BULB; SIDE COMB LAMP
(B) 24V 21W 		8-98051-496-0 02 1 1307-1312 ●
94 BULB; SIDE COMB LAMP
CORNERING LAMP<T87> (B) 24V 21W 		8-98051-496-0 02 1 1401- ●
94 BULB; SIDE COMB LAMP
(B) 24V 21W 		8-98051-496-0 02 1 1401- ● ●
97 LAMP UNIT; COMB
CORNERING LAMP<T87> 		8-98051-420-0 01 1 1307-1312 ●
97 LAMP UNIT; COMB 8-98051-420-0 01 1 1307-1312 ●
97 LAMP UNIT; COMB
CORNERING LAMP<T87> 		8-98051-420-0 01 1 1401- ●
97 LAMP UNIT; COMB 8-98051-420-0 01 1 1401- ● ●
97 LAMP UNIT; COMB
CORNERING LAMP<T87> 		8-98051-419-0 01 1 1307-1312 ●
97 LAMP UNIT; COMB 8-98051-419-0 01 1 1307-1312 ●
97 LAMP UNIT; COMB
CORNERING LAMP<T87> 		8-98051-419-0 01 1 1401- ●
97 LAMP UNIT; COMB 8-98051-419-0 01 1 1401- ● ●
234 GASKET; SIDE COMB LAMP
CORNERING LAMP<T87> 		8-98051-432-0 02 1 1307-1312 ●
234 GASKET; SIDE COMB LAMP 8-98051-432-0 02 1 1307-1312 ●
234 GASKET; SIDE COMB LAMP
CORNERING LAMP<T87> 		8-98051-432-0 02 1 1401- ●
234 GASKET; SIDE COMB LAMP 8-98051-432-0 02 1 1401- ● ●
235 PROTECTOR; CORNERING LAMP
CORNERING LAMP<T87> 		1-82699-922-0 02 1 1307-1312 ●
235 PROTECTOR; CORNERING LAMP 1-82699-922-0 02 1 1307-1312 ●
235 PROTECTOR; CORNERING LAMP
CORNERING LAMP<T87> 		1-82699-922-0 02 1 1401- ●
235 PROTECTOR; CORNERING LAMP 1-82699-922-0 02 1 1401- ● ●
256 LAMP; MARKER 8-98097-467-3 01 1 1307-1312 ● ●
256 LAMP; MARKER 8-98097-467-3 01 1 1401- ● ● ●
256 LAMP; MARKER 8-98097-466-3 01 1 1307-1312 ● ●
256 LAMP; MARKER 8-98097-466-3 01 1 1401- ● ● ●
292 WASHER; MARKER LAMP 1-82219-012-0 04 1 1307-1312 ● ●
292 WASHER; MARKER LAMP 1-82219-012-0 04 1 1401- ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1307-1312 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1401- ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1307-1312 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1401- ● ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1307-1312 ● ●
427 NUT; TURN SIGNAL LAMP
EXC. CORNERING LAMP<T87> M6 FLANGE 		0-91180-106-0 02 1 1307-1312 ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1401- ● ● ●
427 NUT; TURN SIGNAL LAMP
EXC. CORNERING LAMP<T87> M6 FLANGE 		0-91180-106-0 02 1 1401- ●
429 LAMP ASM; SIDE COMB
CORNERING LAMP<T87> 		8-98039-777-2 01 1 1307-1312 ●
429 LAMP ASM; SIDE COMB 8-98039-777-2 01 1 1307-1312 ●
429 LAMP ASM; SIDE COMB
CORNERING LAMP<T87> 		8-98039-777-2 01 1 1401- ●
429 LAMP ASM; SIDE COMB 8-98039-777-2 01 1 1401- ● ●
429 LAMP ASM; SIDE COMB
CORNERING LAMP<T87> 		8-98039-776-2 01 1 1307-1312 ●
429 LAMP ASM; SIDE COMB 8-98039-776-2 01 1 1307-1312 ●
429 LAMP ASM; SIDE COMB
CORNERING LAMP<T87> 		8-98039-776-2 01 1 1401- ●
429 LAMP ASM; SIDE COMB 8-98039-776-2 01 1 1401- ● ●
434 BASE; LAMP,SIDE TURN SIGNAL 8-98063-727-1 01 1 1307-1312 ● ●
434 BASE; LAMP,SIDE TURN SIGNAL 8-98063-727-1 01 1 1401- ● ● ●
434 BASE; LAMP,SIDE TURN SIGNAL 8-98063-726-1 01 1 1307-1312 ● ●
434 BASE; LAMP,SIDE TURN SIGNAL 8-98063-726-1 01 1 1401- ● ● ●
435 SCREW; BASE,SIDE TURN
CORNERING LAMP<T87> M6X20 W/PL WASHER 		0-36210-620-0 02 1 1307-1312 ●
435 SCREW; BASE,SIDE TURN
M6X20 W/PL WASHER 		0-36210-620-0 02 1 1307-1312 ●
435 SCREW; BASE,SIDE TURN
CORNERING LAMP<T87> M6X20 W/PL WASHER 		0-36210-620-0 02 1 1401- ●
435 SCREW; BASE,SIDE TURN
M6X20 W/PL WASHER 		0-36210-620-0 02 1 1401- ● ●
436 NUT; SPIRE,BASE SIDE TURN
CORNERING LAMP<T87> 		8-94279-501-0 02 1 1307-1312 ●
436 NUT; SPIRE,BASE SIDE TURN 8-94279-501-0 02 1 1307-1312 ●
436 NUT; SPIRE,BASE SIDE TURN
CORNERING LAMP<T87> 		8-94279-501-0 02 1 1401- ●
436 NUT; SPIRE,BASE SIDE TURN 8-94279-501-0 02 1 1401- ● ●
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1307-1312 ● ●
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1401- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
