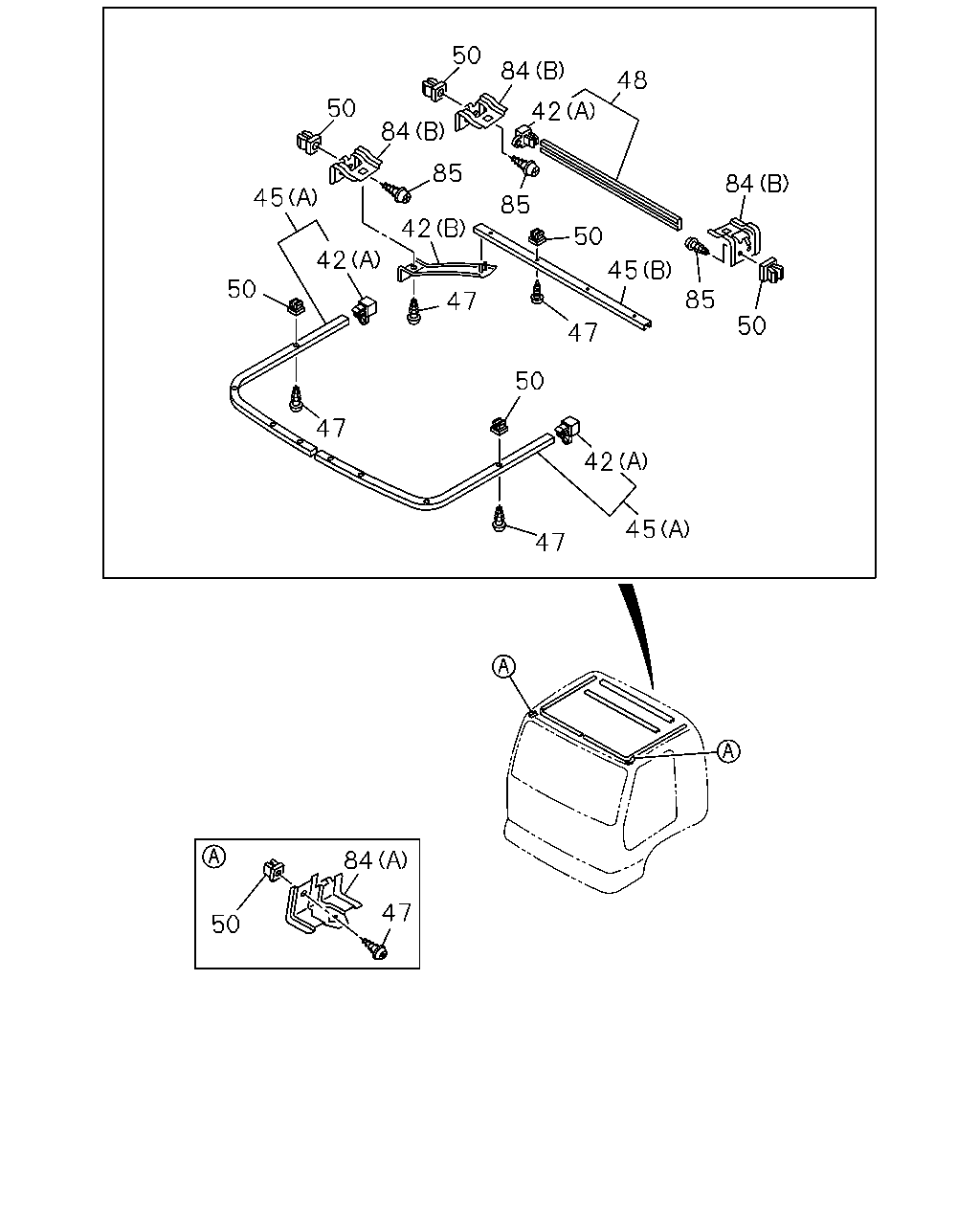

7-70 — SEPARATER AND BED (#123763) — 39 parça

50 84 47 47 42 50 47 45 50 50 85 84 48 42 84 50 84 50 45 42 50 47 42 85 47 85 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	03	1	1307-1312	●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	03	1	1401-	●	●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-972-2	01	1	1307-1312	●		●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-972-2	01	1	1401-	●	●	●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-499-2	01	1	1307-1312	●		●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-499-2	01	1	1401-	●	●	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-672-0	01	1	1307-1312	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-672-0	01	1	1401-	●	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-671-0	01	1	1307-1312	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-671-0	01	1	1401-	●	●
45	RAIL; CURTAIN,FRT (B) DARK GRAY	8-97407-485-0	01	1	1307-1312	●		●
45	RAIL; CURTAIN,FRT (B) DARK GRAY	8-97407-485-0	01	1	1401-	●	●	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	14	1	1307-1312	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	14	1	1401-	●	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	1307-1312	●		●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	1401-	●	●	●
48	RAIL; CURTAIN,BACK ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97407-866-2	01	1	1307-1312	●
48	RAIL; CURTAIN,BACK ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97407-866-2	01	1	1401-	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1406-	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	14	1	1307-1312	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	14	1	1401-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	20	1	1406-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1307-1312	●		●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1307-1312	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1401-1405	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1401-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1406-	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	02	1	1307-			●
84	BRACKET; CURTAIN RAIL (A)	8-98028-326-1	02	1	1307-1312	●
84	BRACKET; CURTAIN RAIL (A)	8-98028-326-1	02	1	1401-1405	●	●
84	BRACKET; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A)	8-98028-326-1	02	1	1406-	●	●
84	BRACKET; CURTAIN RAIL (B)	8-98042-152-0	04	1	1307-1312	●
84	BRACKET; CURTAIN RAIL (B)	8-98042-152-0	04	1	1401-	●	●
84	BRACKET; CURTAIN RAIL (B)	8-98042-152-0	02	1	1307-			●
85	SCREW; BRKT EXC. ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	04	1	1406-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	06	1	1307-1312	●
85	SCREW; BRKT M5X20	5-09981-059-0	06	1	1401-1405	●	●
85	SCREW; BRKT ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	1406-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	1307-			●
