◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#123756) — 236 parça

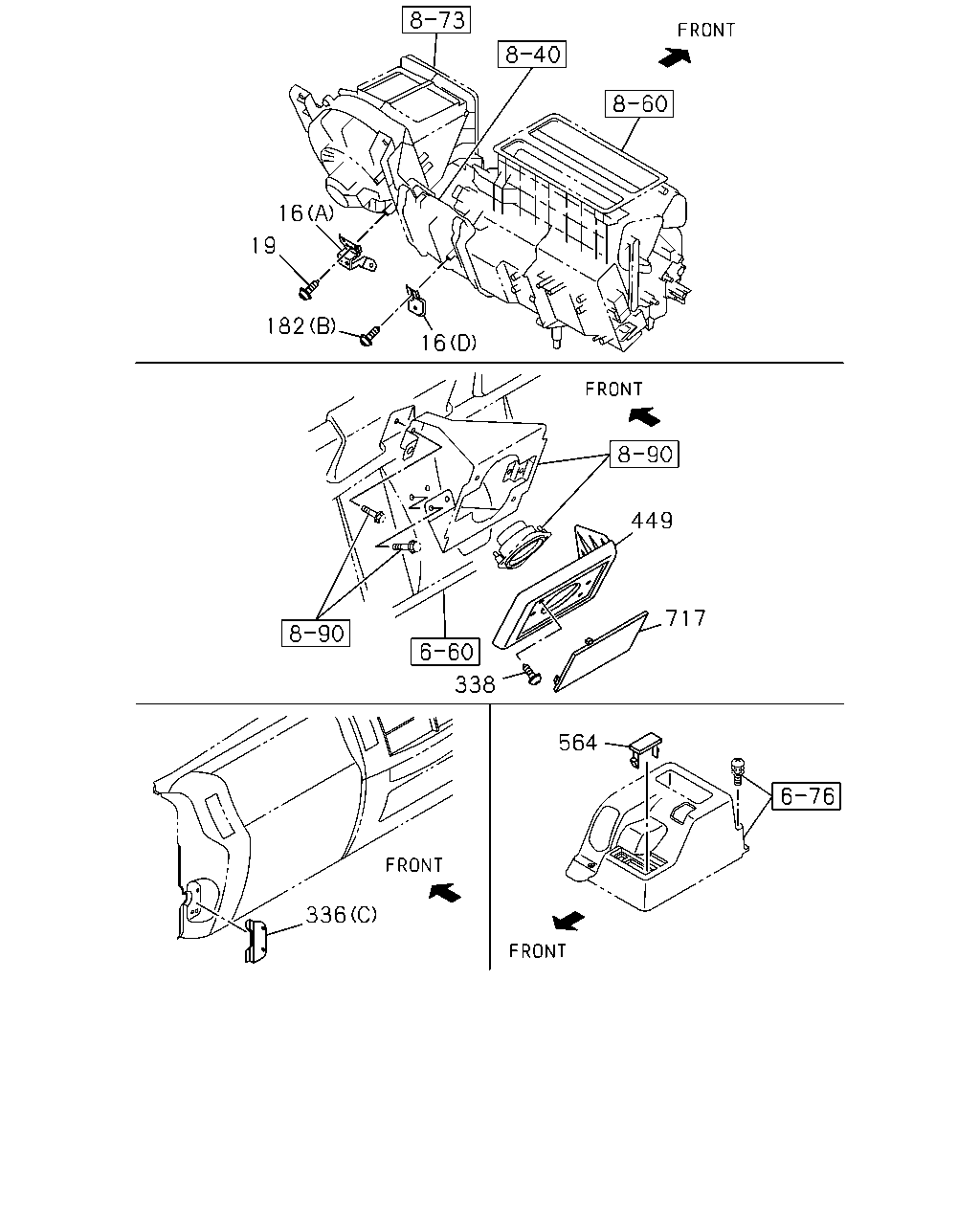

çizim 363422
16 19 182 16 449 717 338 336 564
BalonParca AdiParca NoAdetTipApplied Date A B C
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1307-1312 ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1401- ● ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1307-1312 ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1401- ● ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1307-1312 ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1401- ● ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1307-1312 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1401- ● ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98010-154-0 01 1 1307-1312 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98010-154-0 01 1 1401- ● ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1307-1312 ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1401- ● ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1307-1312 ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1401- ● ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1307-1312 ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1401- ● ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1307-1312 ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1401- ● ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1307-1312 ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1401- ● ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1307-1312 ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1401- ● ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1307-1312 ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1401- ● ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1307-1312 ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1401- ● ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1307-1312 ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1401- ● ● ●
338 SCREW; COVER
3-SPEAKER SYSTEM FRT<NNR> M6X16 TAPPING 		1-09981-524-0 02 1 1307-1308 ● ●
449 COVER; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-978-2 01 1 1307-1308 ● ●
564 COVER; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97043-732-1 02 1 1307-1312 ● ●
564 COVER; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97043-732-1 02 1 1401- ● ● ●
564 COVER; SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		1-82359-069-2 06 1 1307-1312 ● ●
564 COVER; SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		1-82359-069-2 06 1 1401- ● ● ●
717 GRILLE; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-979-1 01 1 1307-1308 ● ●

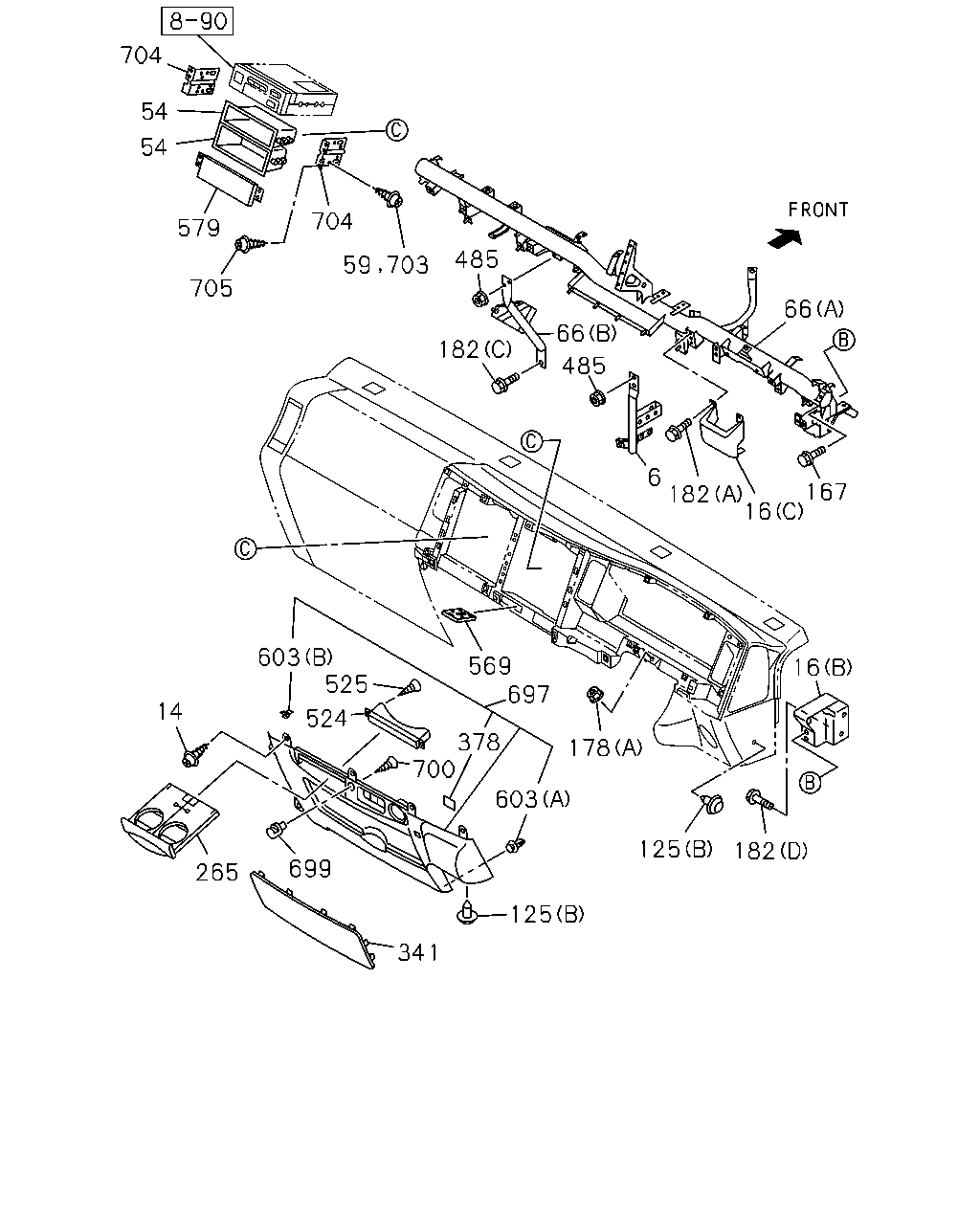

çizim 365863
704 54 579 705 704 59 703 485 182 66 66 485 6 16 182 167 16 182 125 178 603 378 697 569 603 524 14 525 699 125 341 265 700 54
BalonParca AdiParca NoAdetTipApplied Date A B C
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1307-1312 ● ●
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1401- ● ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1307-1312 ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1401- ● ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1307-1312 ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1401- ● ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1307-1312 ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1401- ● ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1307-1312 ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1401- ● ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1307-1312 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1401- ● ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98010-154-0 01 1 1307-1312 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98010-154-0 01 1 1401- ● ● ●
54 POCKET; CENTER CLUSTER
H=58.4 BLACK 		8-97408-864-3 01 1 1307-1312 ● ●
54 POCKET; CENTER CLUSTER
H=58.4 BLACK 		8-97408-864-3 01 1 1307-1312 ● ●
54 POCKET; CENTER CLUSTER
H=58.4 BLACK 		8-97408-864-3 01 1 1401- ● ● ●
54 POCKET; CENTER CLUSTER
H=58.4 BLACK 		8-97408-864-3 01 1 1401- ● ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1307-1312 ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1307-1312 ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1401- ● ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1401- ● ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-604-0 01 1 1307-1312 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-604-0 01 1 1401- ● ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-605-0 01 1 1307-1312 ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-605-0 01 1 1401- ● ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-97585-580-2 01 1 1307-1312 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-97585-580-2 01 1 1401- ● ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98151-167-0 01 1 1307-1312 ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98151-167-0 01 1 1401- ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1307-1312 ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1401- ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1307-1312 ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1401- ● ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1307-1312 ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1401- ● ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1307-1312 ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1401- ● ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1307-1312 ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1401- ● ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1307-1312 ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1401- ● ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1307-1312 ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1401- ● ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1307-1312 ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1401- ● ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1307-1312 ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1401- ● ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1307-1312 ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1401- ● ● ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1307-1312 ● ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1401- ● ● ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1307-1312 ● ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1401- ● ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1307-1312 ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1401- ● ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1307-1312 ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1401- ● ● ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1307-1312 ● ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1401- ● ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 1307-1312 ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 1401- ● ● ●
579 COVER; INST PNL
BLACK 		8-97466-735-0 01 1 1508- ● ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1307-1312 ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1401- ● ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1307-1312 ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1401- ● ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1307-1312 ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1401- ● ● ●
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1307-1312 ● ●
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1401- ● ● ●
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1307-1312 ● ●
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1401- ● ● ●
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1307-1312 ● ●
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1401- ● ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1307-1312 ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1401- ● ● ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1307-1312 ● ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1401- ● ● ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1307-1312 ● ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1401- ● ● ●
704 BRACKET; CENTER POCKET 8-97585-618-2 02 1 1307-1312 ● ●
704 BRACKET; CENTER POCKET 8-97585-618-2 02 1 1401- ● ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1307-1312 ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1401- ● ● ●

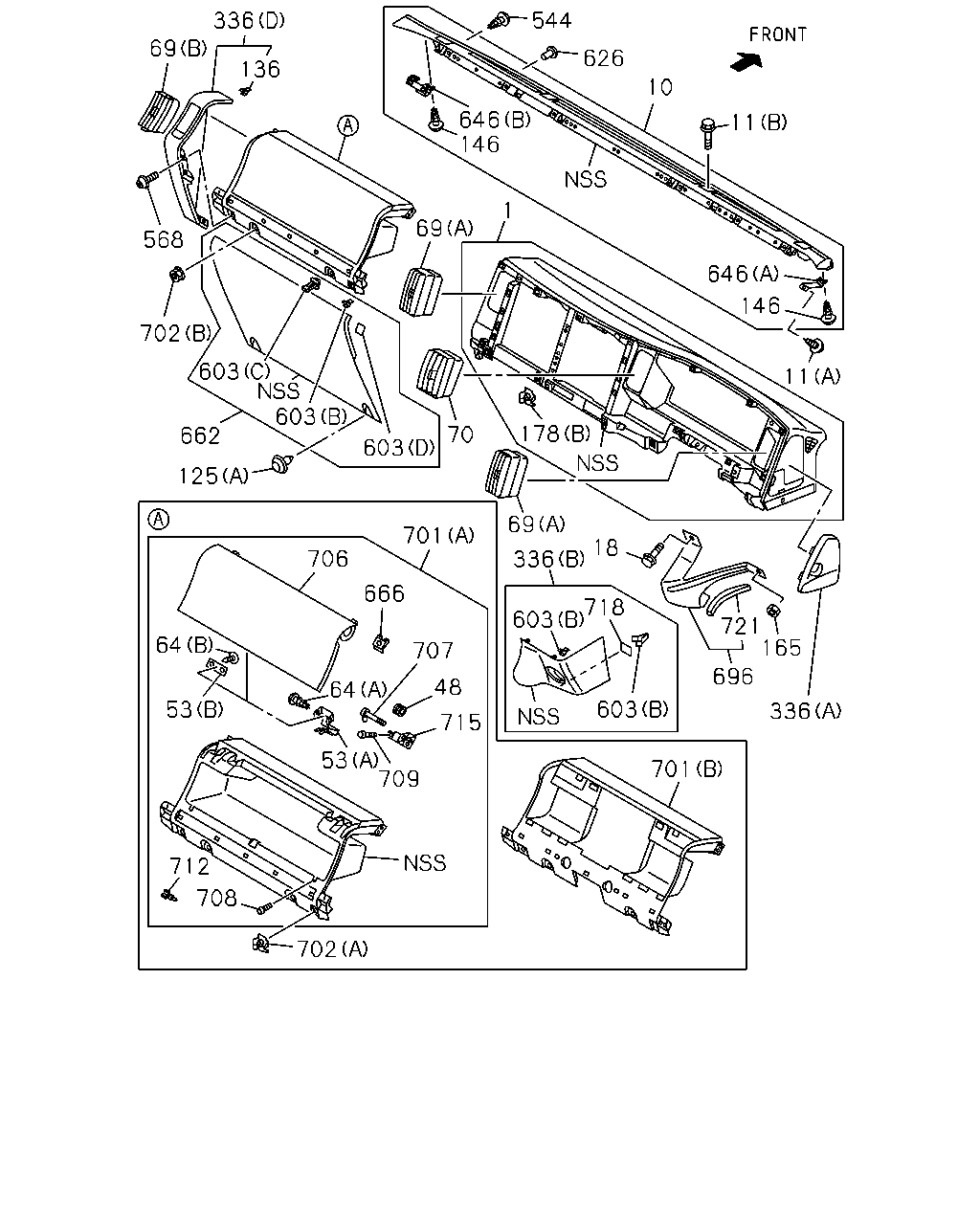

çizim 366294
336 69 136 568 702 603 603 662 125 706 666 701 603 70 64 53 64 707 48 715 53 709 712 708 702 701 603 603 18 718 336 69 178 721 165 696 336 11 146 646 11 10 626 544 646 146 69 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1307-1312 ● ●
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1401- ● ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-095-1 01 1 1307-1312 ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-095-1 01 1 1401- ● ● ●
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1307-1312 ● ●
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1401- ● ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1307-1312 ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1401- ● ● ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1307-1312 ● ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1401- ● ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 1307-1311 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-410-0 01 1 1312-1312 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-410-0 01 1 1401-1405 ● ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-763-0 01 1 1406- ● ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 1307-1311 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-411-0 01 1 1312-1312 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-411-0 01 1 1401-1405 ● ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-764-0 01 1 1406- ● ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 1307-1312 ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 1401-1405 ● ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98270-765-0 01 1 1406- ● ● ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 1307-1312 ● ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 1401-1405 ● ● ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) M4X85 		8-97926-404-0 02 1 1406- ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1307-1312 ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1401- ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1307-1312 ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1401- ● ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1307-1312 ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1401- ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1307-1312 ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1401- ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1307-1312 ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1401- ● ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 1307-1312 ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 1401- ● ● ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1307-1312 ● ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1401- ● ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1307-1312 ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1401- ● ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1307-1312 ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1401- ● ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1307-1312 ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1401- ● ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1307-1312 ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1401- ● ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1307-1312 ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1401- ● ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1307-1312 ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1401- ● ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1307-1312 ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1401- ● ● ●
544 SCREW; TRAY
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1307-1312 ● ●
544 SCREW; TRAY
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1307-1312 ● ●
544 SCREW; TRAY
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1401- ● ● ●
544 SCREW; TRAY
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1401- ● ● ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1307-1312 ● ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1401- ● ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1307-1312 ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1401- ● ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1307-1312 ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1401- ● ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1307-1312 ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1401- ● ● ●
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1307-1312 ● ●
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1401- ● ● ●
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1307-1312 ● ●
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1401- ● ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1307-1312 ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1401- ● ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1307-1312 ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1401- ● ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1307-1312 ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1401- ● ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97419-960-2 01 1 1307-1312 ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97419-960-2 01 1 1401- ● ● ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 1307-1311 ● ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5 		8-97926-400-0 04 1 1312-1312 ● ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5 		8-97926-400-0 04 1 1401- ● ● ●
696 BRACKET; KNEE 8-98066-085-1 01 1 1307-1312 ● ●
696 BRACKET; KNEE 8-98066-085-1 01 1 1401- ● ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) GRAY 		8-97417-196-2 01 1 1307-1312 ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) GRAY 		8-97417-196-2 01 1 1401- ● ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-6 01 1 1307-1312 ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-6 01 1 1401-1405 ● ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97429-703-1 01 1 1406- ● ● ●
702 NUT; TRAY
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) M6 FLANGE 		0-91180-106-0 02 1 1307-1312 ● ●
702 NUT; TRAY
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) M6 FLANGE 		0-91180-106-0 02 1 1307-1312 ● ●
702 NUT; TRAY
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) M6 FLANGE 		0-91180-106-0 02 1 1401- ● ● ●
702 NUT; TRAY
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) M6 FLANGE 		0-91180-106-0 02 1 1401- ● ● ●
702 NUT; TRAY
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) 		8-98037-629-0 01 1 1307-1312 ● ●
702 NUT; TRAY
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98037-629-0 01 1 1307-1312 ● ●
702 NUT; TRAY
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) 		8-98037-629-0 01 1 1401- ● ● ●
702 NUT; TRAY
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98037-629-0 01 1 1401- ● ● ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 1307-1312 ● ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 1401-1405 ● ● ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97429-992-0 01 1 1406- ● ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 1307-1311 ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-393-0 02 1 1312-1312 ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-393-0 02 1 1401- ● ● ●
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 1307-1312 ● ●
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 1401- ● ● ●
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 1307-1312 ● ●
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 1401- ● ● ●
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 1307-1312 ● ●
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 1401- ● ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 1307-1311 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-396-0 01 1 1312-1312 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-396-0 01 1 1401- ● ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 1307-1311 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-397-0 01 1 1312-1312 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-397-0 01 1 1401- ● ● ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1307-1312 ● ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1401- ● ● ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1307-1312 ● ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1401- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
