Isuzu WW
▶
TRUCKS
▶
FRR
▶
11548 - FRR AUST/NZ EURO5 EXC.SPACECAB
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-30 - LOCK CYLINDER SET
▶

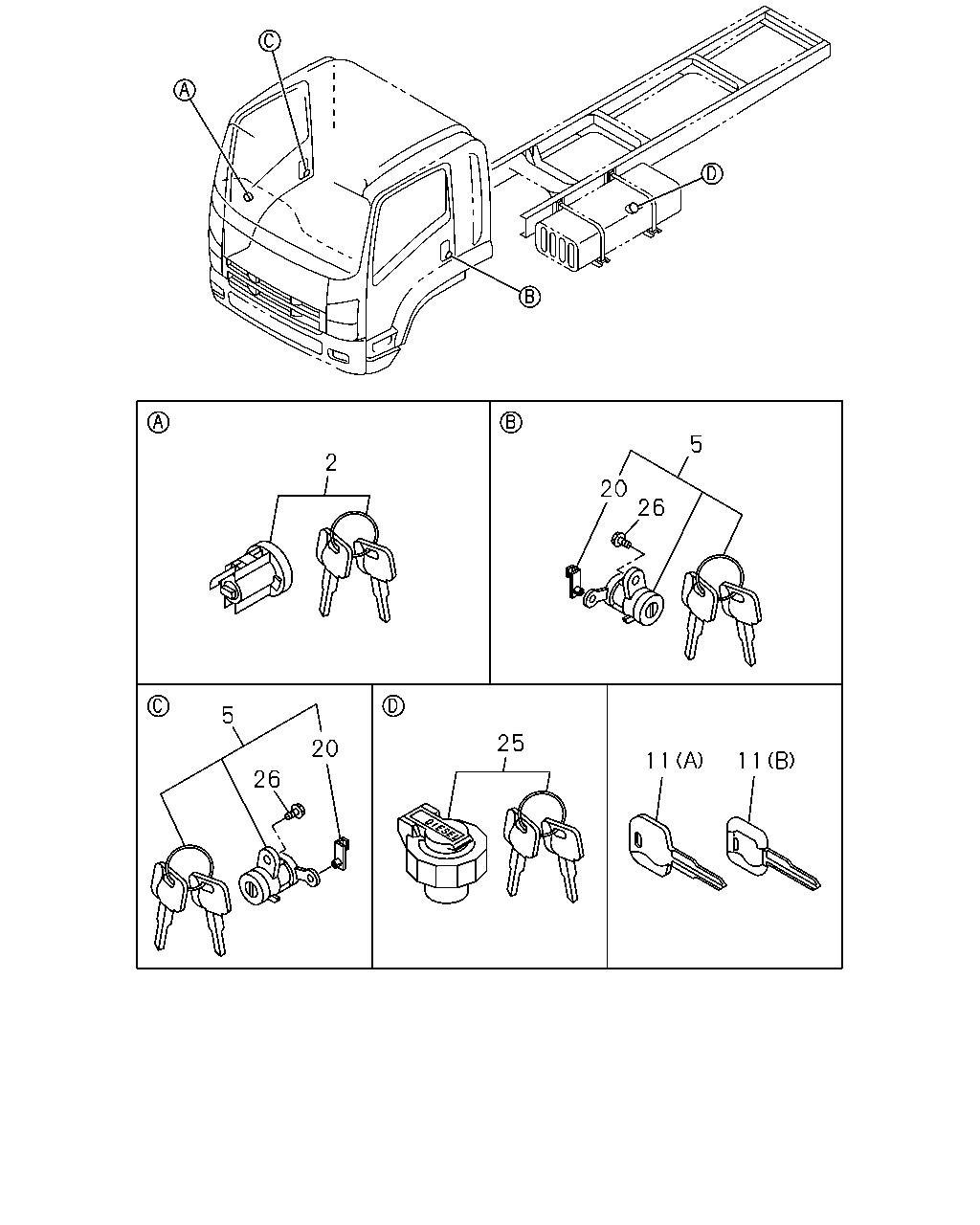

7-30 — LOCK CYLINDER SET
(#123755) — 20 parça
Tümü
A - FCR5MS
B - FCR5WS
C - FCD5MS
◀
[730A] NO.1 (18 parça)
[730A] NO.2 (2 parça)
▶
5
26
20
11
11
25
20
26
2
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
BARREL ASM; W/KEY,STRG LOCK
8-98201-341-0
01
1
1307-1312
●
●
2
BARREL ASM; W/KEY,STRG LOCK
8-98201-341-0
01
1
1401-
●
●
●
5
CYLINDER ASM; DOOR LOCK
8-98055-149-0
01
1
1307-1312
●
●
5
CYLINDER ASM; DOOR LOCK
8-98055-149-0
01
1
1401-
●
●
●
5
CYLINDER ASM; DOOR LOCK
8-98055-150-0
01
1
1307-1312
●
●
5
CYLINDER ASM; DOOR LOCK
8-98055-150-0
01
1
1401-
●
●
●
11
KEY; BLANK
(B) IMMOBILIZER
8-98055-168-0
AR
1
1307-1312
●
●
11
KEY; BLANK
(B) IMMOBILIZER
8-98055-168-0
AR
1
1401-
●
●
●
11
KEY; BLANK
(A)
8-98055-170-0
AR
1
1307-1312
●
●
11
KEY; BLANK
(A)
8-98055-170-0
AR
1
1401-
●
●
●
20
SNAP; DOOR LOCK CYL
8-98055-181-0
01
1
1307-1312
●
●
20
SNAP; DOOR LOCK CYL
8-98055-181-0
01
1
1401-
●
●
●
20
SNAP; DOOR LOCK CYL
8-98055-182-0
01
1
1307-1312
●
●
20
SNAP; DOOR LOCK CYL
8-98055-182-0
01
1
1401-
●
●
●
25
CAP; FUEL TANK,W/KEY
8-98146-010-0
01
1
1307-1312
●
●
25
CAP; FUEL TANK,W/KEY
8-98146-010-0
01
1
1401-
●
●
●
26
BOLT; KEY CYL,DOOR
M6X8 FLANGE
8-98031-839-0
02
1
1307-1312
●
●
26
BOLT; KEY CYL,DOOR
M6X8 FLANGE
8-98031-839-0
02
1
1401-
●
●
●
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
CYLINDER SET; CAR LOCK
8-98201-214-0
01
1
1307-1312
●
●
1
CYLINDER SET; CAR LOCK
8-98201-214-0
01
1
1401-
●
●
●
