◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#123754) — 178 parça

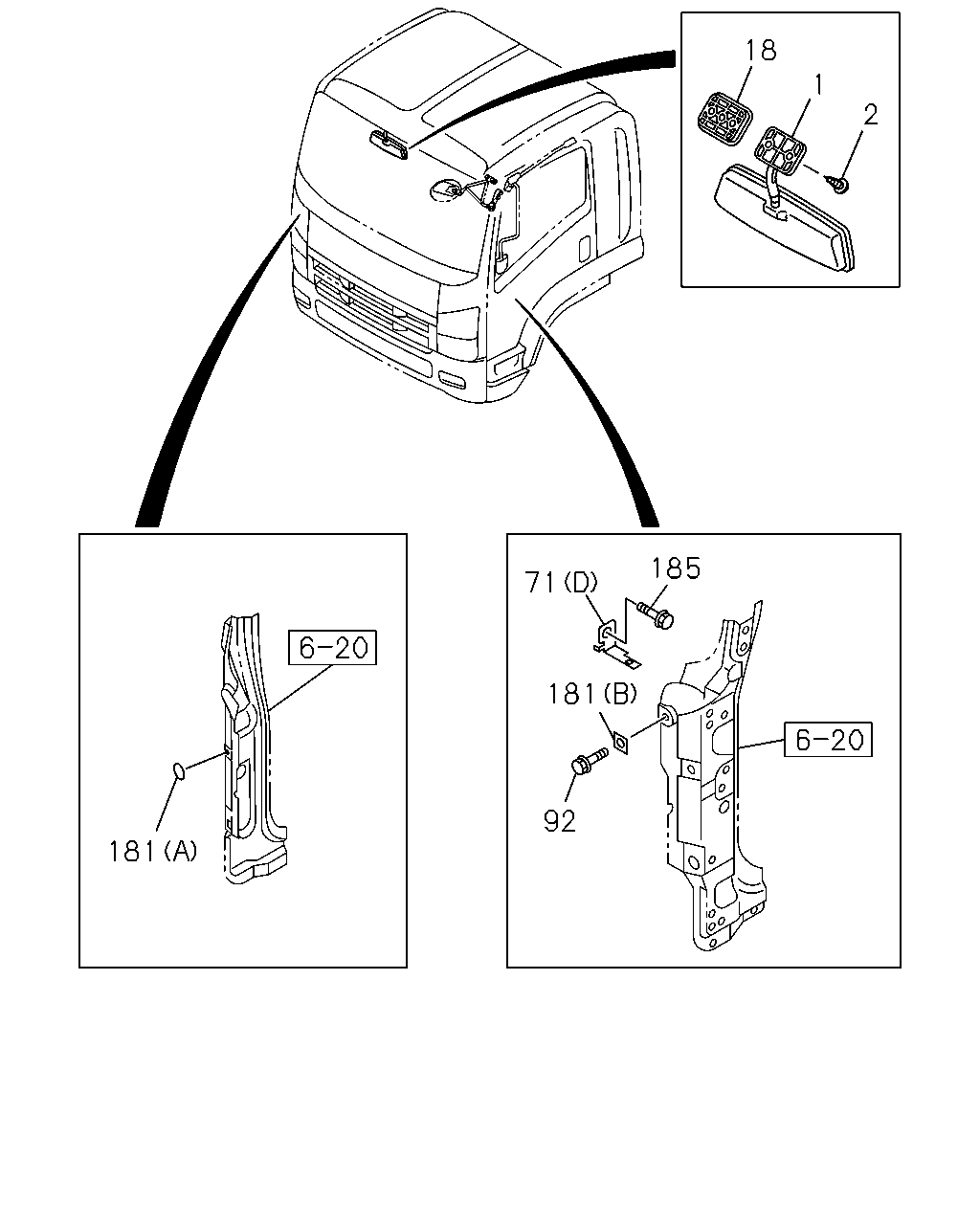

çizim 363330
181 71 181 92 185 2 1 18
BalonParca AdiParca NoAdetTipApplied Date A B C
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1307-1312 ● ●
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1401- ● ● ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1307-1312 ● ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1401- ● ● ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1307-1312 ● ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1401- ● ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1307-1312 ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1401- ● ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1307-1312 ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1401- ● ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98060-240-0 01 1 1307-1312 ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98060-240-0 01 1 1401- ● ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98092-492-3 01 1 1307-1312 ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98092-492-3 01 1 1401- ● ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98039-277-2 02 1 1307- ● ● ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 1307-1312 ● ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 1401- ● ● ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1307-1312 ● ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1401- ● ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1307-1312 ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1401- ● ● ●
185 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1307-1312 ● ●
185 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1401- ● ● ●

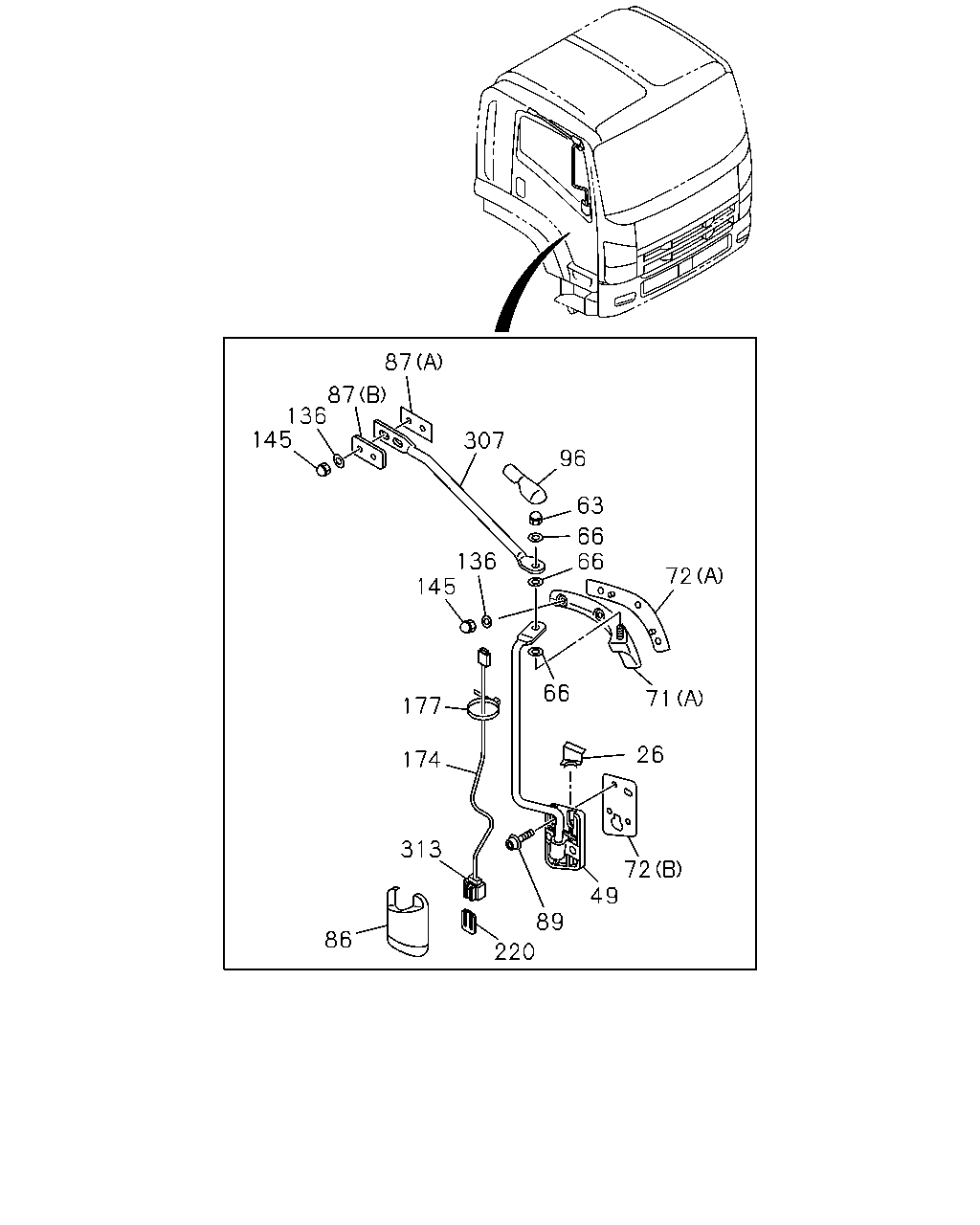

çizim 365094
145 136 87 87 307 96 63 66 66 72 71 26 72 49 89 220 86 313 174 177 145 136 66
BalonParca AdiParca NoAdetTipApplied Date A B C
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1307-1312 ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1401- ● ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1307-1312 ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1401- ● ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-185-0 01 1 1307-1312 ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-185-0 01 1 1401- ● ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-184-0 01 1 1307-1312 ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-184-0 01 1 1401- ● ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-201-0 01 1 1307-1312 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-201-0 01 1 1401- ● ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-200-0 01 1 1307-1312 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-200-0 01 1 1401- ● ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-213-0 01 1 1307-1312 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-213-0 01 1 1401- ● ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-212-0 01 1 1307-1312 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-212-0 01 1 1401- ● ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1307-1312 ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1401- ● ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1307-1312 ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1401- ● ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1307-1312 ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1401- ● ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1307-1312 ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1401- ● ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98060-240-0 01 1 1307-1312 ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98060-240-0 01 1 1401- ● ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98092-492-3 01 1 1307-1312 ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98092-492-3 01 1 1401- ● ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98039-277-2 02 1 1307- ● ● ●
72 SHEET
(A) 		8-98031-797-0 01 1 1307-1312 ● ●
72 SHEET
(A) 		8-98031-797-0 01 1 1401- ● ● ●
72 SHEET
(A) 		8-98031-796-0 01 1 1307-1312 ● ●
72 SHEET
(A) 		8-98031-796-0 01 1 1401- ● ● ●
72 SHEET
(B) 		8-98101-865-0 01 1 1307-1312 ● ●
72 SHEET
(B) 		8-98101-865-0 01 1 1401- ● ● ●
72 SHEET
(B) 		8-98101-864-0 01 1 1307-1312 ● ●
72 SHEET
(B) 		8-98101-864-0 01 1 1401- ● ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98060-245-1 01 1 1307-1312 ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98060-245-1 01 1 1401- ● ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (D) 		8-98064-776-0 01 1 1307-1312 ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (D) 		8-98064-776-0 01 1 1401- ● ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1307-1312 ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1401- ● ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1307-1312 ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1401- ● ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 1307-1312 ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 1401- ● ● ●
87 SPACER
(B) 		8-98063-789-0 02 1 1307-1312 ● ●
87 SPACER
(B) 		8-98063-789-0 02 1 1401- ● ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1307-1312 ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1401- ● ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1307-1312 ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1401- ● ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1307-1312 ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1401- ● ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1307-1312 ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1401- ● ● ●
174 HARNESS; MIRROR
MIR O/S RR VIEW LONG ARM<DH2> 		8-98136-172-0 02 1 1307-1312 ● ●
174 HARNESS; MIRROR
MIR O/S RR VIEW LONG ARM<DH2> 		8-98136-172-0 02 1 1401- ● ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98137-139-0 02 1 1307-1312 ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98137-139-0 02 1 1401- ● ● ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1307-1312 ● ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1401- ● ● ●
220 HOLDER; CONNECTOR 8-94479-375-0 02 1 1307-1312 ● ●
220 HOLDER; CONNECTOR 8-94479-375-0 02 1 1401- ● ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1307-1312 ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1401- ● ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1307-1312 ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1401- ● ● ●
313 CONNECTOR; MIRROR 8-94479-370-0 02 1 1307-1312 ● ●
313 CONNECTOR; MIRROR 8-94479-370-0 02 1 1401- ● ● ●

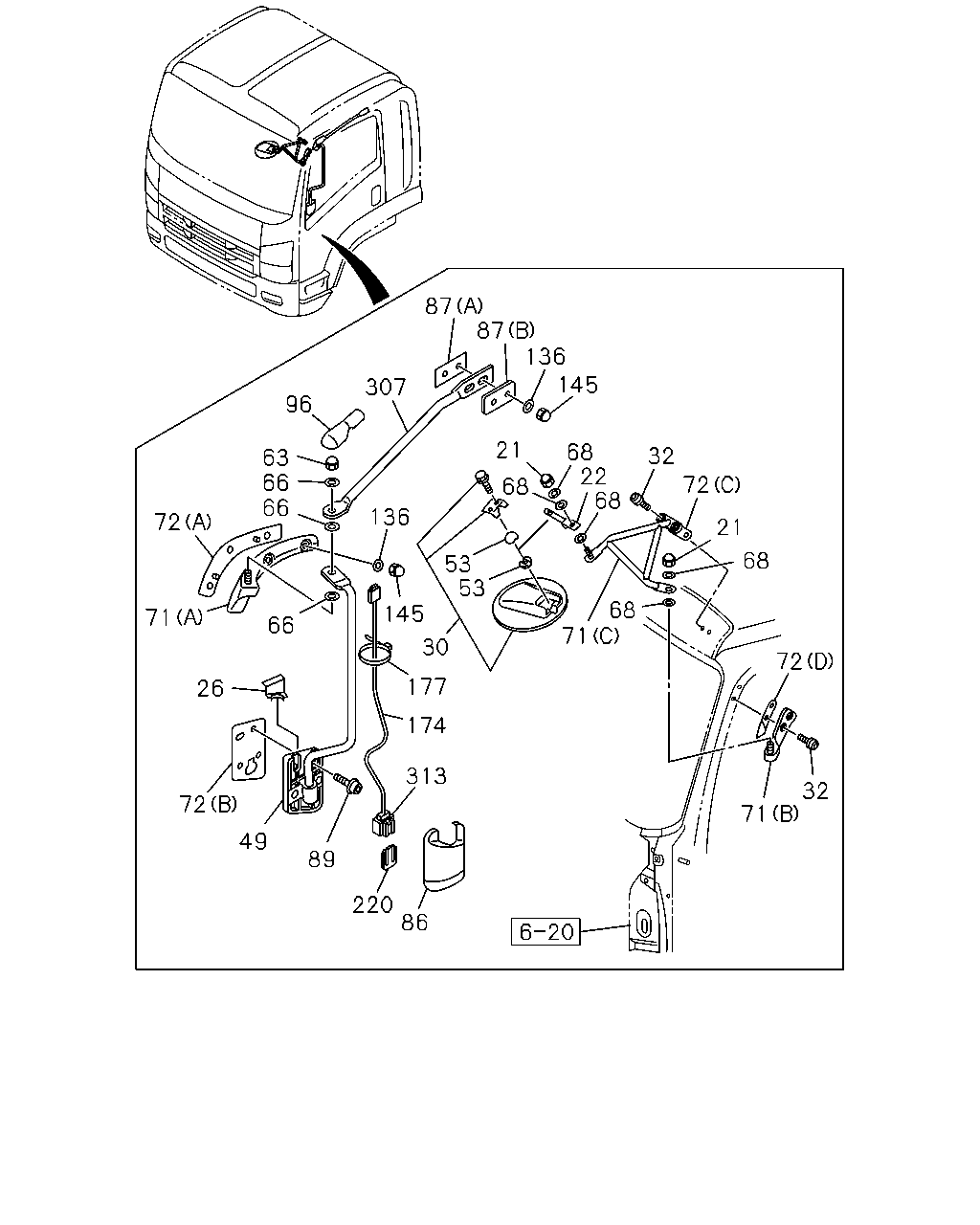

çizim 366859
71 72 66 66 63 96 307 87 87 136 145 21 68 68 22 68 32 72 21 68 72 32 71 68 71 53 53 136 145 30 177 174 313 86 220 89 49 72 26 66
BalonParca AdiParca NoAdetTipApplied Date A B C
21 NUT; MIRROR
MIRROR O/S UNDER VIEW<RR9> M10 CAP NUT 		1-09984-134-0 02 1 1307-1312 ● ●
21 NUT; MIRROR
MIRROR O/S UNDER VIEW<RR9> M10 CAP NUT 		1-09984-134-0 02 1 1401- ● ● ●
22 STAY; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-493-0 01 1 1307-1312 ● ●
22 STAY; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-493-0 01 1 1401- ● ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1307-1312 ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1401- ● ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1307-1312 ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1401- ● ● ●
30 MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9> 		8-98055-994-0 01 1 1307-1312 ● ●
30 MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9> 		8-98055-994-0 01 1 1401-1504 ● ● ●
30 MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9> 		8-98309-725-0 01 1 1505- ● ● ●
32 SCREW; UNDER MIRROR
MIRROR O/S UNDER VIEW<RR9> M8X26 W/PL WASHER 		8-98067-249-2 04 1 1307-1312 ● ●
32 SCREW; UNDER MIRROR
MIRROR O/S UNDER VIEW<RR9> M8X26 W/PL WASHER 		8-98067-249-2 04 1 1401- ● ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-185-0 01 1 1307-1312 ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-185-0 01 1 1401- ● ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-184-0 01 1 1307-1312 ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-184-0 01 1 1401- ● ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-201-0 01 1 1307-1312 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-201-0 01 1 1401- ● ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-200-0 01 1 1307-1312 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-200-0 01 1 1401- ● ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-213-0 01 1 1307-1312 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-213-0 01 1 1401- ● ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-212-0 01 1 1307-1312 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-212-0 01 1 1401- ● ● ●
53 PIVOT; SIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> ID=19.1 		1-71737-633-2 02 1 1307-1312 ● ●
53 PIVOT; SIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> ID=19.1 		1-71737-633-2 02 1 1401- ● ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1307-1312 ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1401- ● ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1307-1312 ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1401- ● ● ●
68 WASHER; STAY
MIRROR O/S UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1307-1312 ● ●
68 WASHER; STAY
MIRROR O/S UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1401- ● ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1307-1312 ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1401- ● ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1307-1312 ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1401- ● ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98060-240-0 01 1 1307-1312 ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98060-240-0 01 1 1401- ● ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98092-492-3 01 1 1307-1312 ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98092-492-3 01 1 1401- ● ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98039-277-2 02 1 1307- ● ● ●
72 SHEET
(A) 		8-98031-797-0 01 1 1307-1312 ● ●
72 SHEET
(A) 		8-98031-797-0 01 1 1401- ● ● ●
72 SHEET
(A) 		8-98031-796-0 01 1 1307-1312 ● ●
72 SHEET
(A) 		8-98031-796-0 01 1 1401- ● ● ●
72 SHEET
(B) 		8-98101-865-0 01 1 1307-1312 ● ●
72 SHEET
(B) 		8-98101-865-0 01 1 1401- ● ● ●
72 SHEET
(B) 		8-98101-864-0 01 1 1307-1312 ● ●
72 SHEET
(B) 		8-98101-864-0 01 1 1401- ● ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98060-245-1 01 1 1307-1312 ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98060-245-1 01 1 1401- ● ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (D) 		8-98064-776-0 01 1 1307-1312 ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (D) 		8-98064-776-0 01 1 1401- ● ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1307-1312 ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1401- ● ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1307-1312 ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1401- ● ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 1307-1312 ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 1401- ● ● ●
87 SPACER
(B) 		8-98063-789-0 02 1 1307-1312 ● ●
87 SPACER
(B) 		8-98063-789-0 02 1 1401- ● ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1307-1312 ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1401- ● ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1307-1312 ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1401- ● ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1307-1312 ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1401- ● ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1307-1312 ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1401- ● ● ●
174 HARNESS; MIRROR
MIR O/S RR VIEW LONG ARM<DH2> 		8-98136-172-0 02 1 1307-1312 ● ●
174 HARNESS; MIRROR
MIR O/S RR VIEW LONG ARM<DH2> 		8-98136-172-0 02 1 1401- ● ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98137-139-0 02 1 1307-1312 ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98137-139-0 02 1 1401- ● ● ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1307-1312 ● ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1401- ● ● ●
220 HOLDER; CONNECTOR 8-94479-375-0 02 1 1307-1312 ● ●
220 HOLDER; CONNECTOR 8-94479-375-0 02 1 1401- ● ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1307-1312 ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1401- ● ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1307-1312 ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1401- ● ● ●
313 CONNECTOR; MIRROR 8-94479-370-0 02 1 1307-1312 ● ●
313 CONNECTOR; MIRROR 8-94479-370-0 02 1 1401- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
