◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#123750) — 17 parça

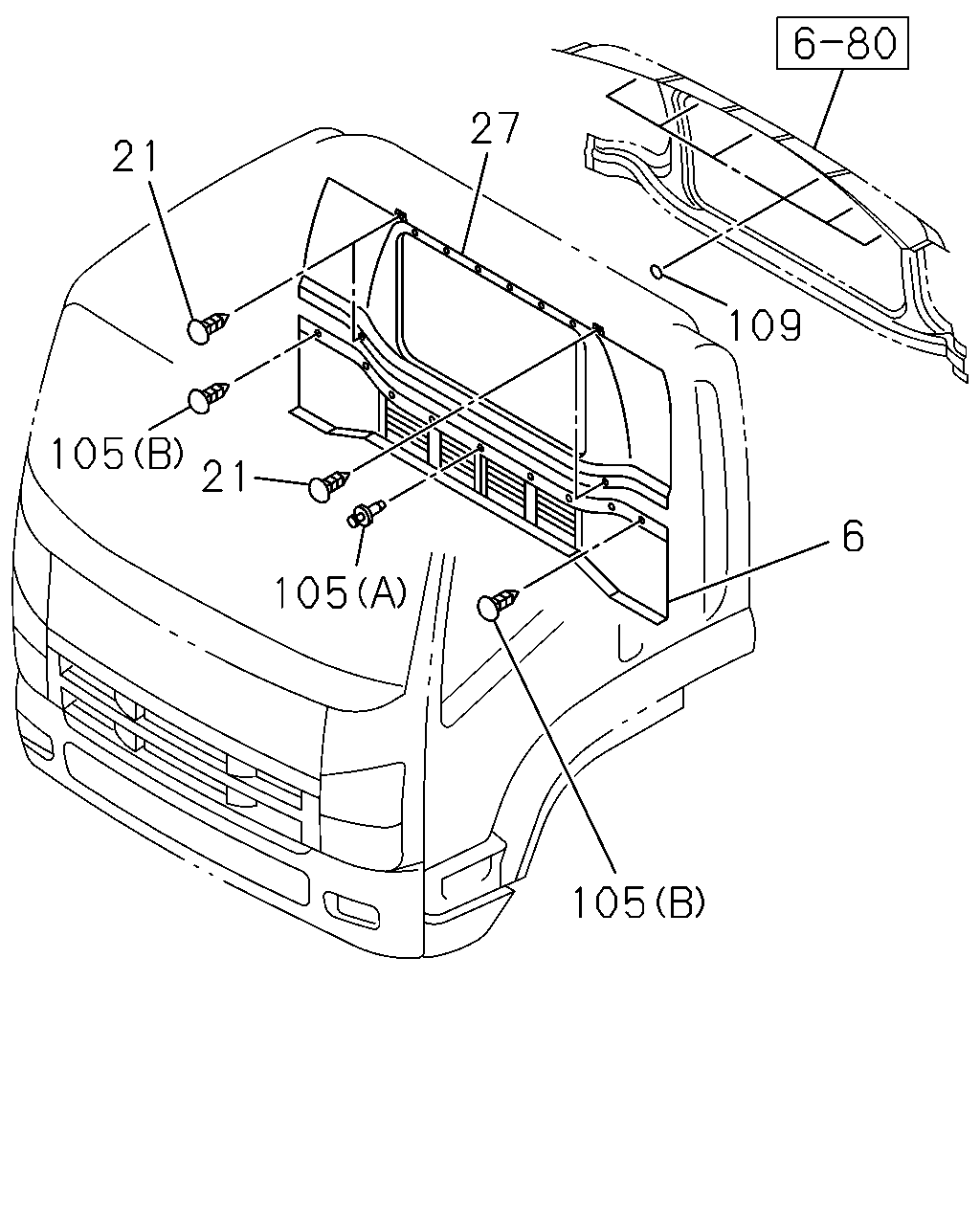

çizim 363503
21 27 109 6 105 105 21 105
BalonParca AdiParca NoAdetTipApplied Date A B
6 MAT; SILENCER,CAB BACK
GRAY 		8-97407-457-1 01 1 1307-1312 ●
6 MAT; SILENCER,CAB BACK
GRAY 		8-97407-457-1 01 1 1401- ● ●
21 RETAINER; TRIM,BED ROOM
INTERIOR FULL TRIM<WM3> GRAY 		8-97407-467-0 04 1 1307-1312 ●
21 RETAINER; TRIM,BED ROOM
INTERIOR FULL TRIM<WM3> GRAY 		8-97407-467-0 04 1 1401- ● ●
27 COVER; TRIM,BACK
INTERIOR FULL TRIM<WM3> EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97407-463-2 01 1 1307-1312 ●
27 COVER; TRIM,BACK
INTERIOR FULL TRIM<WM3> EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97407-463-2 01 1 1401- ● ●
27 COVER; TRIM,BACK
ROUND CURTAIN RAIL<EDH> INTERIOR FULL TRIM<WM3> DARK GRAY 		8-97407-465-2 01 1 1307-1312 ●
27 COVER; TRIM,BACK
ROUND CURTAIN RAIL<EDH> INTERIOR FULL TRIM<WM3> DARK GRAY 		8-97407-465-2 01 1 1401- ● ●
105 CLIP; BACK TRIM
(B) GRAY 		8-97407-467-0 02 1 1307-1312 ●
105 CLIP; BACK TRIM
(B) GRAY 		8-97407-467-0 02 1 1401- ● ●
105 CLIP; BACK TRIM
(A) GRAY 		8-97408-022-0 07 1 1307-1312 ●
105 CLIP; BACK TRIM
(A) GRAY 		8-97408-022-0 07 1 1401- ● ●
109 SEAL; HOLE
BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLORGERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREE N(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),B ODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) EXC. ROUND CURTAIN RAIL<EDH>,INTERIOR FULL TRIM<WM3> OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 1307-1312 ●
109 SEAL; HOLE
BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLORGERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREE N(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),B ODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) EXC. ROUND CURTAIN RAIL<EDH>,INTERIOR FULL TRIM<WM3> OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 1401-1404 ● ●
109 SEAL; HOLE
BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TOLL GREEN(543),BODY COLOR A P RED(549),BODY COLOR RMS ORANGE(550),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BO DY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890) ,BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLORGREEN(989),BODY COLOR TRANS BLUE(999) EXC. ROUND CURTAIN RAIL<EDH>,INTERIOR FULL TRIM<WM3> OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 1405- ● ●
109 SEAL; HOLE
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) EXC. ROUND CURTAIN RAIL<EDH>,INTERIOR FULL TRIM<WM3> OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 1307-1312 ●
109 SEAL; HOLE
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) EXC. ROUND CURTAIN RAIL<EDH>,INTERIOR FULL TRIM<WM3> OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 1401- ● ●
