◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#123744) — 296 parça

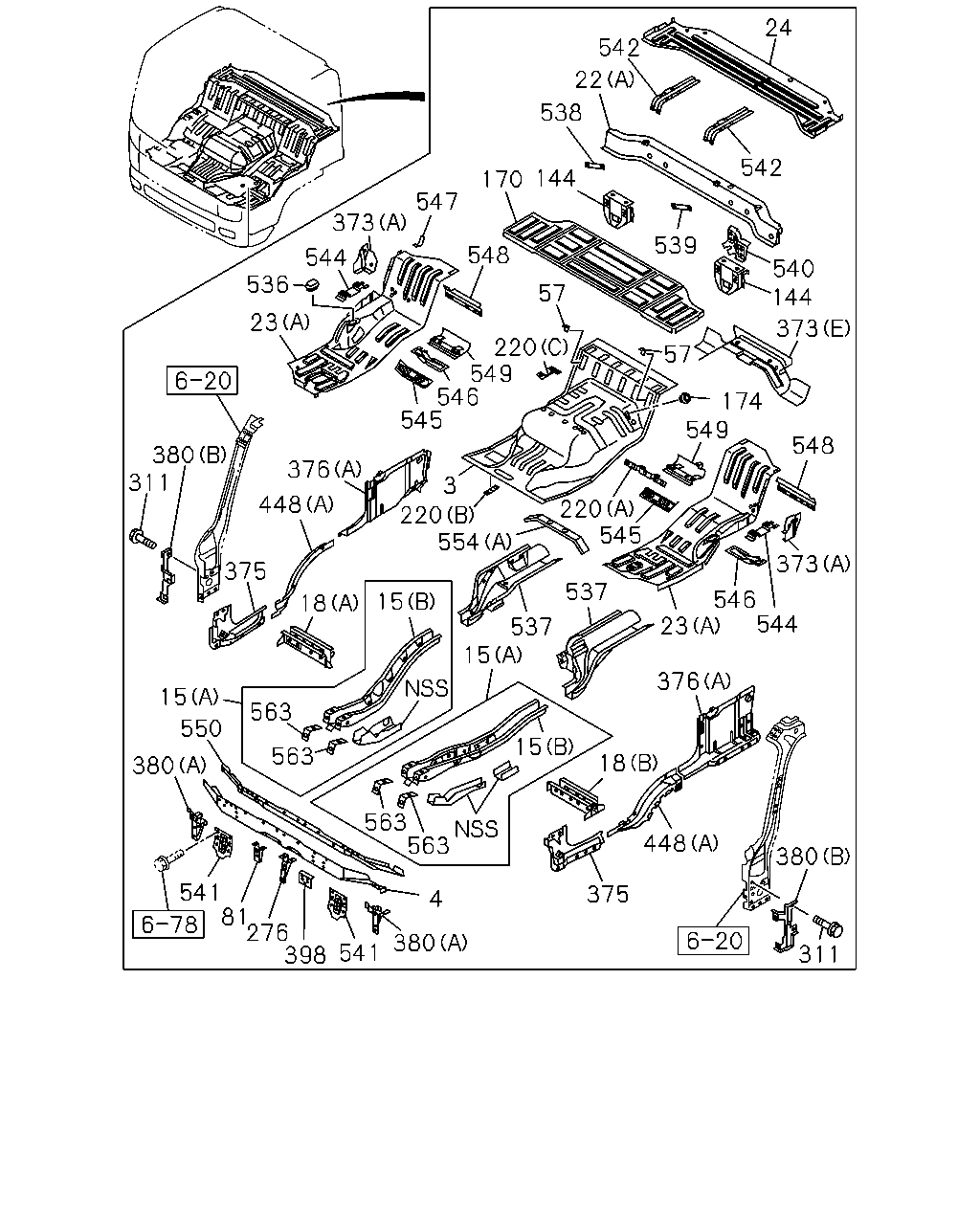

çizim 363442
380 541 398 276 81 541 380 550 15 563 563 563 563 375 311 380 448 18 15 15 376 15 18 375 311 380 376 448 220 554 537 537 23 544 546 373 545 220 3 548 549 174 57 545 546 549 220 57 548 547 373 544 536 23 170 144 539 373 144 540 542 24 542 22 538 4
BalonParca AdiParca NoAdetTipApplied Date A B C
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-357-4 01 1 1307-1312 ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-357-4 01 1 1401- ● ●
3 HOOD ASM; ENG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98065-705-8 01 1 1307-1312 ●
3 HOOD ASM; ENG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98065-705-8 01 1 1401- ● ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98167-037-0 01 1 1307-1312 ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98167-037-0 01 1 1401- ● ●
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1307-1312 ● ●
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1401- ● ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1307-1312 ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1401- ● ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1307-1312 ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1401- ● ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1307-1312 ● ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1401- ● ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1307-1312 ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1401- ● ● ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-397-5 01 1 1307-1312 ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-397-5 01 1 1401- ● ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-420-4 01 1 1307-1312 ● ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-420-4 01 1 1401- ● ● ●
18 FRAME; FLOOR,CENTER SIDE
(C) 		8-97610-539-2 01 1 1307- ●
22 FRAME; FLOOR REAR
(A) 		8-97584-430-5 01 1 1307-1312 ●
22 FRAME; FLOOR REAR
(A) 		8-97584-430-5 01 1 1401- ● ●
22 FRAME; FLOOR REAR
(B) 		8-97410-959-1 01 1 1307- ●
23 PANEL; FLOOR,SIDE
(A) 		8-98073-690-1 01 1 1307-1312 ●
23 PANEL; FLOOR,SIDE
(A) 		8-98073-690-1 01 1 1401- ● ●
23 PANEL; FLOOR,SIDE
(A) 		8-97584-371-7 01 1 1307-1312 ●
23 PANEL; FLOOR,SIDE
(A) 		8-97584-371-7 01 1 1401- ● ●
23 PANEL; FLOOR,SIDE
(B) 		8-97410-882-4 01 1 1307- ●
23 PANEL; FLOOR,SIDE
(B) 		8-98216-751-0 01 1 1307- ●
24 PANEL; BED PAN 8-97584-377-6 01 1 1307-1312 ●
24 PANEL; BED PAN 8-97584-377-6 01 1 1401- ● ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1307-1312 ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1401- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1307-1312 ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1401- ● ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1307-1312 ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1401- ● ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1307-1312 ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1401- ● ● ●
170 EXTENSION; RR FLOOR 8-97589-205-4 01 1 1307-1312 ●
170 EXTENSION; RR FLOOR 8-97589-205-4 01 1 1401- ● ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1307-1312 ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1401- ● ●
220 PATCH
(A) 		8-97588-840-4 01 1 1307-1312 ●
220 PATCH
(A) 		8-97588-840-4 01 1 1401- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 1307-1312 ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 1401- ● ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1307-1312 ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1401- ● ● ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1307-1312 ● ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1401- ● ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1307-1312 ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1401- ● ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1307-1312 ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1401- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1307-1312 ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1401- ● ●
373 REINFORCEMENT; SEAT BELT
(E) 		8-98081-349-3 01 1 1307-1312 ●
373 REINFORCEMENT; SEAT BELT
(E) 		8-98081-349-3 01 1 1401-1507 ● ●
373 REINFORCEMENT; SEAT BELT
(E) 		8-98228-266-0 01 1 1508- ● ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-943-0 01 1 1307- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-954-0 01 1 1307- ●
373 REINFORCEMENT; SEAT BELT
(D) 		8-97410-963-1 01 1 1307- ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-97410-965-0 02 1 1307- ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1307-1312 ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1401- ● ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1307-1312 ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1401- ● ● ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-554-4 01 1 1307-1312 ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-554-4 01 1 1401-1403 ● ●
376 CLOSING; PILLAR,LWR
(A) 		8-98199-228-0 01 1 1404- ● ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-556-5 01 1 1307-1312 ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-556-5 01 1 1401- ● ●
376 CLOSING; PILLAR,LWR
(B) 		8-97612-016-5 01 1 1307- ●
376 CLOSING; PILLAR,LWR
(B) 		8-98088-029-3 01 1 1307- ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1307-1312 ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1401- ● ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1307-1312 ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1401- ● ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1307-1312 ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1401- ● ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1307-1312 ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1401- ● ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1307-1312 ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1401- ● ● ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 1307-1312 ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 1401- ● ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 1307-1312 ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 1401- ● ●
448 CLOSING; ROCKER
(C) 		8-97610-658-1 01 1 1307- ●
448 CLOSING; ROCKER
(C) 		8-97610-659-1 01 1 1307- ●
448 CLOSING; ROCKER
(B) 		8-97611-856-0 01 1 1307- ●
448 CLOSING; ROCKER
(B) 		8-97611-857-0 01 1 1307- ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1307-1312 ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1401- ● ● ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1307-1312 ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1401- ● ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1307-1312 ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1401- ● ●
537 SUPPORT ASM; MTG RR 8-97410-940-1 01 1 1307- ●
537 SUPPORT ASM; MTG RR 8-97410-951-1 01 1 1307- ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1307-1312 ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1401- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97613-311-0 01 1 1307- ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1307-1312 ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1401- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1307-1312 ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1401- ● ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1307-1312 ● ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1401- ● ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1307-1312 ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1401- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1307-1312 ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1401- ● ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1307-1312 ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1401- ● ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1307-1312 ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1401- ● ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1307-1312 ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1401- ● ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1307-1312 ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1401- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1307-1312 ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1401- ● ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1307-1312 ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1401- ● ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1307-1312 ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1401- ● ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1307-1312 ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1401- ● ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 1307-1312 ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 1401- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1307-1312 ● ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1401- ● ● ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1307-1312 ● ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1401- ● ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 1307- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 1307- ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1307-1312 ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1401- ● ● ●

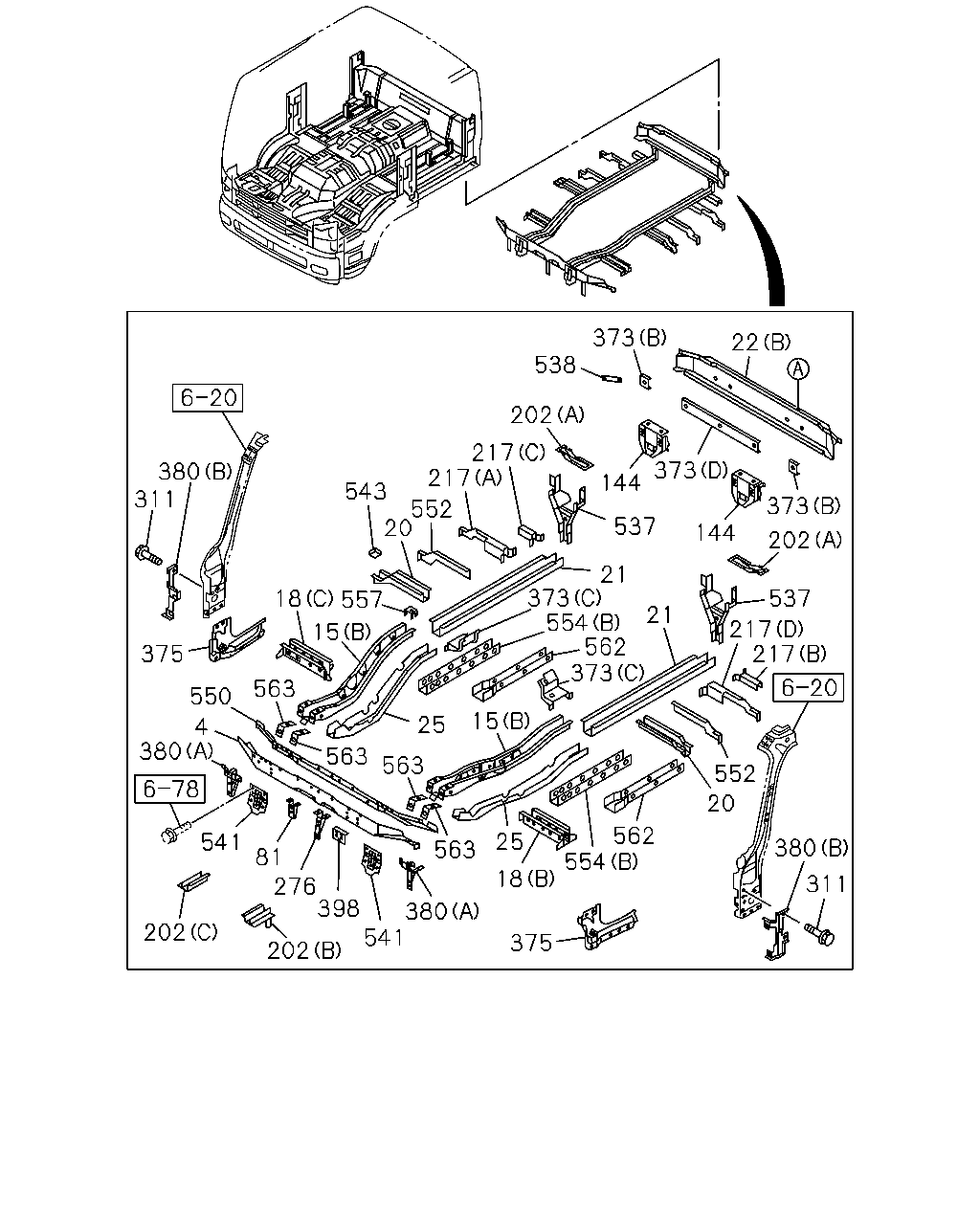

çizim 366703
202 202 541 398 276 81 541 380 550 375 563 311 380 18 15 563 563 380 563 375 18 25 554 562 25 557 543 20 15 20 311 380 552 373 562 554 373 21 21 217 217 537 202 373 144 373 144 537 22 373 538 202 217 217 552 4
BalonParca AdiParca NoAdetTipApplied Date A B C
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1307-1312 ● ●
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1401- ● ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1307-1312 ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1401- ● ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1307-1312 ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1401- ● ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1307-1312 ● ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1401- ● ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1307-1312 ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1401- ● ● ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-397-5 01 1 1307-1312 ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-397-5 01 1 1401- ● ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-420-4 01 1 1307-1312 ● ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-420-4 01 1 1401- ● ● ●
18 FRAME; FLOOR,CENTER SIDE
(C) 		8-97610-539-2 01 1 1307- ●
20 FRAME; FLOOR SIDE,REAR 8-98057-164-1 01 1 1307- ●
20 FRAME; FLOOR SIDE,REAR 8-98057-167-1 01 1 1307- ●
21 FRAME; FLOOR CENTER 8-97410-938-2 01 1 1307- ●
21 FRAME; FLOOR CENTER 8-97410-950-3 01 1 1307- ●
22 FRAME; FLOOR REAR
(A) 		8-97584-430-5 01 1 1307-1312 ●
22 FRAME; FLOOR REAR
(A) 		8-97584-430-5 01 1 1401- ● ●
22 FRAME; FLOOR REAR
(B) 		8-97410-959-1 01 1 1307- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-225-4 01 1 1307- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-226-4 01 1 1307- ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1307-1312 ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1401- ● ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1307-1312 ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1401- ● ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1307-1312 ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1401- ● ● ●
202 PANEL; CENTER MTG REINF
(A) 		8-97584-426-0 02 1 1307- ●
202 PANEL; CENTER MTG REINF
(C) 		8-97607-514-0 01 1 1307- ●
202 PANEL; CENTER MTG REINF
(B) 		8-97607-515-0 01 1 1307- ●
217 PANEL; SEAT STAND
(C) 		8-97410-945-1 01 1 1307- ●
217 PANEL; SEAT STAND
(B) 		8-97410-956-1 01 1 1307- ●
217 PANEL; SEAT STAND
(A) 		8-98057-178-1 01 1 1307- ●
217 PANEL; SEAT STAND
(D) 		8-98057-196-1 01 1 1307- ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1307-1312 ● ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1401- ● ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1307-1312 ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1401- ● ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1307-1312 ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1401- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1307-1312 ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1401- ● ●
373 REINFORCEMENT; SEAT BELT
(E) 		8-98081-349-3 01 1 1307-1312 ●
373 REINFORCEMENT; SEAT BELT
(E) 		8-98081-349-3 01 1 1401-1507 ● ●
373 REINFORCEMENT; SEAT BELT
(E) 		8-98228-266-0 01 1 1508- ● ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-943-0 01 1 1307- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-954-0 01 1 1307- ●
373 REINFORCEMENT; SEAT BELT
(D) 		8-97410-963-1 01 1 1307- ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-97410-965-0 02 1 1307- ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1307-1312 ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1401- ● ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1307-1312 ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1401- ● ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1307-1312 ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1401- ● ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1307-1312 ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1401- ● ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1307-1312 ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1401- ● ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1307-1312 ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1401- ● ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1307-1312 ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1401- ● ● ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1307-1312 ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1401- ● ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1307-1312 ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1401- ● ●
537 SUPPORT ASM; MTG RR 8-97410-940-1 01 1 1307- ●
537 SUPPORT ASM; MTG RR 8-97410-951-1 01 1 1307- ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1307-1312 ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1401- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97613-311-0 01 1 1307- ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1307-1312 ● ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1401- ● ● ●
543 GUSSET; RR PILLAR,LWR 8-98024-396-0 01 1 1307- ●
543 GUSSET; RR PILLAR,LWR 8-98035-734-0 01 1 1307- ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1307-1312 ● ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1401- ● ● ●
552 PANEL; STEP RR 8-98057-170-0 01 1 1307- ●
552 PANEL; STEP RR 8-98057-171-0 01 1 1307- ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1307-1312 ● ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1401- ● ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 1307- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 1307- ●
557 PATCH; SEAT 8-98074-333-0 01 1 1307- ●
562 REINFORCEMENT; FLOOR 8-97410-939-3 02 1 1307- ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1307-1312 ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1401- ● ● ●

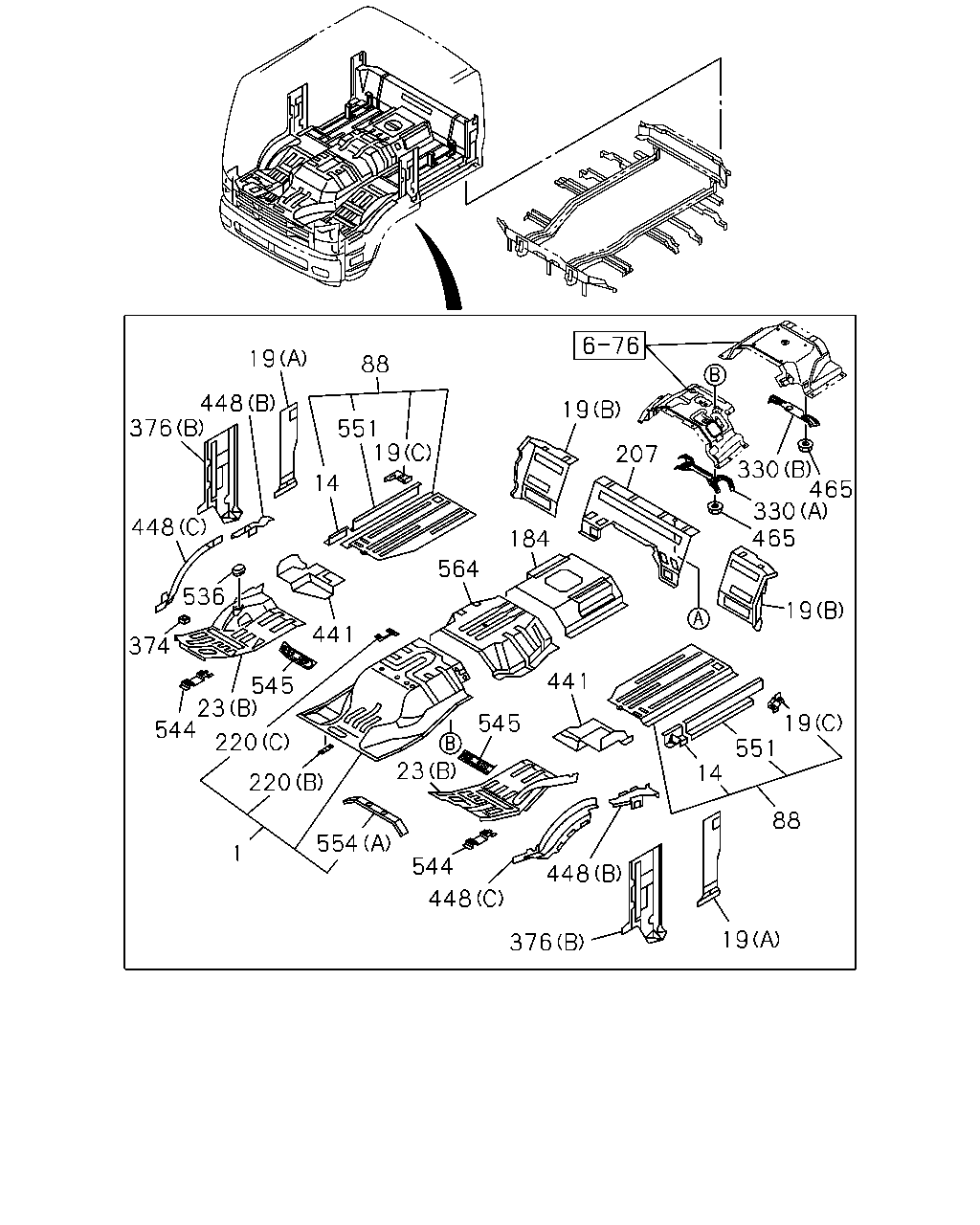

çizim 367304
88 19 551 19 14 448 376 448 536 374 545 23 544 220 220 1 554 544 448 376 448 19 23 441 564 545 441 184 14 88 551 19 19 465 330 465 330 207 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; FLOOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97410-865-7 01 1 1307- ●
1 PANEL; FLOOR
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-815-5 01 1 1307- ●
14 PANEL; FLOOR SIDE,FRT 8-98010-047-0 01 1 1307- ●
14 PANEL; FLOOR SIDE,FRT 8-98010-048-0 01 1 1307- ●
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-051-1 01 1 1307- ●
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-052-1 01 1 1307- ●
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-963-1 01 1 1307- ●
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-964-1 01 1 1307- ●
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98084-841-1 01 1 1307- ●
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98084-842-1 01 1 1307- ●
23 PANEL; FLOOR,SIDE
(A) 		8-98073-690-1 01 1 1307-1312 ●
23 PANEL; FLOOR,SIDE
(A) 		8-98073-690-1 01 1 1401- ● ●
23 PANEL; FLOOR,SIDE
(A) 		8-97584-371-7 01 1 1307-1312 ●
23 PANEL; FLOOR,SIDE
(A) 		8-97584-371-7 01 1 1401- ● ●
23 PANEL; FLOOR,SIDE
(B) 		8-97410-882-4 01 1 1307- ●
23 PANEL; FLOOR,SIDE
(B) 		8-98216-751-0 01 1 1307- ●
88 BOARD ASM; FLOOR 8-97615-912-2 01 1 1307- ●
88 BOARD ASM; FLOOR 8-97615-913-3 01 1 1307- ●
184 HOOD ASM; ENG RR 8-97410-869-1 01 1 1307- ●
207 PANEL; FLOOR,RR CTR 8-97410-927-3 01 1 1307- ●
220 PATCH
(A) 		8-97588-840-4 01 1 1307-1312 ●
220 PATCH
(A) 		8-97588-840-4 01 1 1401- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 1307-1312 ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 1401- ● ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1307-1312 ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1401- ● ● ●
330 REINFORCEMENT; FLOOR
(A) 		8-98248-128-0 01 1 1307- ●
330 REINFORCEMENT; FLOOR
(B) 		8-98248-129-0 01 1 1307- ●
374 NUT; FLOOR
M6 		1-09984-110-0 03 1 1307- ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-554-4 01 1 1307-1312 ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-554-4 01 1 1401-1403 ● ●
376 CLOSING; PILLAR,LWR
(A) 		8-98199-228-0 01 1 1404- ● ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-556-5 01 1 1307-1312 ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-556-5 01 1 1401- ● ●
376 CLOSING; PILLAR,LWR
(B) 		8-97612-016-5 01 1 1307- ●
376 CLOSING; PILLAR,LWR
(B) 		8-98088-029-3 01 1 1307- ●
441 PANEL; EXTENSION,FLOOR SIDE 8-97410-911-2 01 1 1307- ●
441 PANEL; EXTENSION,FLOOR SIDE 8-98050-317-2 01 1 1307- ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 1307-1312 ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 1401- ● ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 1307-1312 ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 1401- ● ●
448 CLOSING; ROCKER
(C) 		8-97610-658-1 01 1 1307- ●
448 CLOSING; ROCKER
(C) 		8-97610-659-1 01 1 1307- ●
448 CLOSING; ROCKER
(B) 		8-97611-856-0 01 1 1307- ●
448 CLOSING; ROCKER
(B) 		8-97611-857-0 01 1 1307- ●
465 NUT; REINFORCEMENT
M6 FLANGE 		0-91180-106-0 04 1 1307- ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1307-1312 ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1401- ● ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1307-1312 ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1401- ● ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1307-1312 ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1401- ● ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1307-1312 ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1401- ● ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1307-1312 ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1401- ● ● ●
551 PANEL; FLOOR SIDE,CTR 8-98010-049-2 01 1 1307- ●
551 PANEL; FLOOR SIDE,CTR 8-98010-050-2 01 1 1307- ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1307-1312 ● ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1401- ● ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 1307- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 1307- ●
564 PANEL; ENG HOOD EXT FRT 8-97610-271-1 01 1 1307- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
