◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#123742) — 52 parça

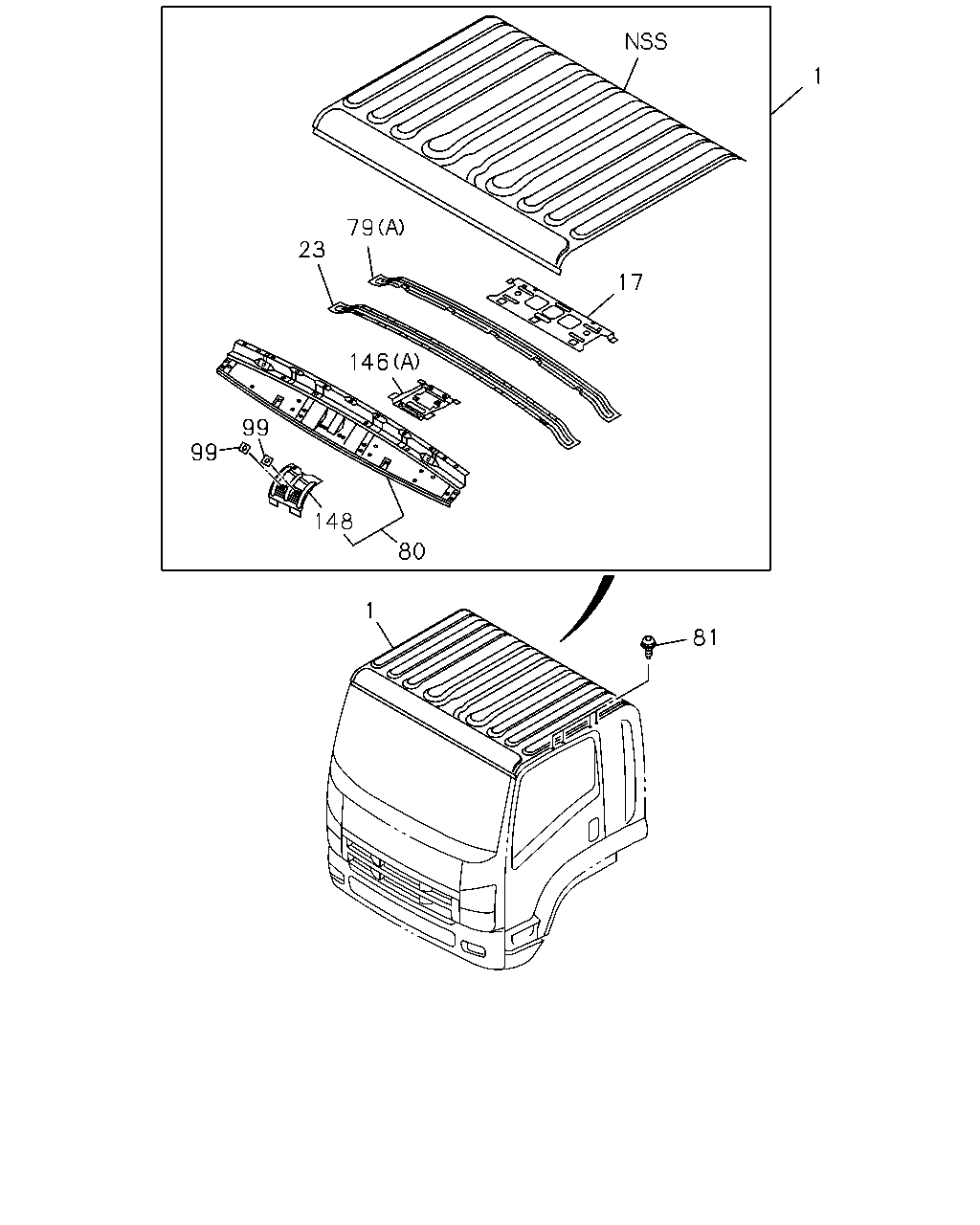

çizim 363406
1 17 79 23 146 99 99 148 80 1 81
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-170-7 01 1 1307-1312 ●
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-170-7 01 1 1401- ● ●
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98017-276-6 01 1 1307-1312 ●
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98017-276-6 01 1 1401- ● ●
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97587-641-7 01 1 1307- ●
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98065-284-6 01 1 1307- ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 1307-1312 ● ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 1401- ● ● ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-310-0 01 1 1307-1312 ● ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-310-0 01 1 1401- ● ● ●
79 REINFORCEMENT; ROOF PANEL,RR
(A) 		8-97584-199-1 01 1 1307-1312 ● ●
79 REINFORCEMENT; ROOF PANEL,RR
(A) 		8-97584-199-1 01 1 1401- ● ● ●
79 REINFORCEMENT; ROOF PANEL,RR
(B) 		8-98008-023-0 04 1 1307- ●
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-191-4 01 1 1307-1312 ● ●
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-191-4 01 1 1401- ● ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1307-1312 ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1401- ● ● ●
99 SEAL; BODY,METAL
MIRROR O/S UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1307-1312 ● ●
99 SEAL; BODY,METAL
MIRROR O/S UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1401- ● ● ●
146 REINFORCEMENT; ROOM LAMP
(A) 		8-98075-827-0 01 1 1307-1312 ●
146 REINFORCEMENT; ROOM LAMP
(A) 		8-98075-827-0 01 1 1401- ● ●
146 REINFORCEMENT; ROOM LAMP
(B) 		8-98010-736-1 02 1 1307- ●
146 REINFORCEMENT; ROOM LAMP
(A) 		8-98075-827-0 02 1 1307- ●
148 REINFORCEMENT; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-97411-015-1 01 1 1307-1312 ● ●
148 REINFORCEMENT; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-97411-015-1 01 1 1401- ● ● ●

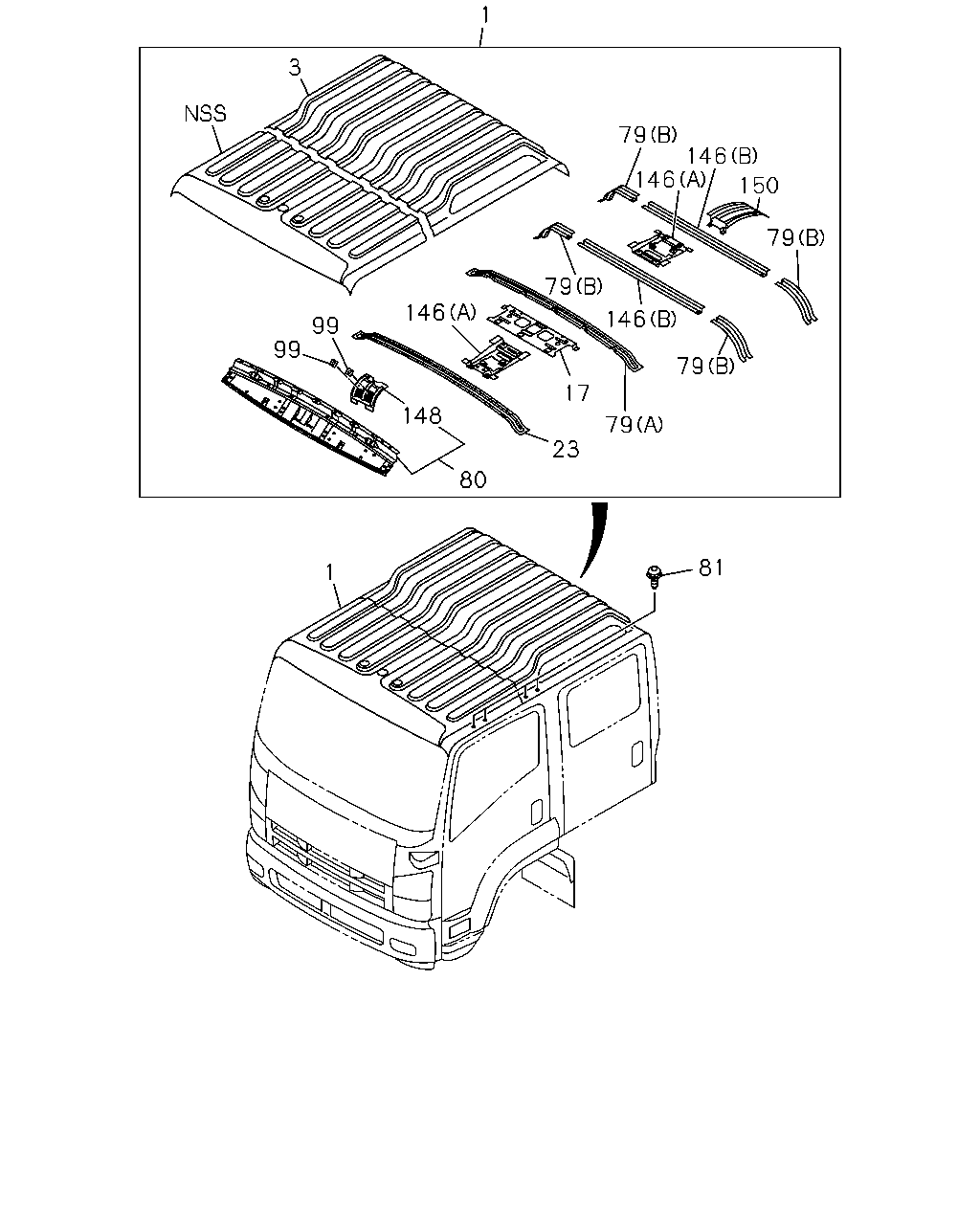

çizim 365082
1 3 99 99 148 80 23 17 146 79 81 1 146 79 79 79 150 146 146 79
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-170-7 01 1 1307-1312 ●
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-170-7 01 1 1401- ● ●
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98017-276-6 01 1 1307-1312 ●
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98017-276-6 01 1 1401- ● ●
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97587-641-7 01 1 1307- ●
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98065-284-6 01 1 1307- ●
3 PANEL; ROOF,RR 8-97411-040-1 01 1 1307- ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 1307-1312 ● ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 1401- ● ● ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-310-0 01 1 1307-1312 ● ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-310-0 01 1 1401- ● ● ●
79 REINFORCEMENT; ROOF PANEL,RR
(A) 		8-97584-199-1 01 1 1307-1312 ● ●
79 REINFORCEMENT; ROOF PANEL,RR
(A) 		8-97584-199-1 01 1 1401- ● ● ●
79 REINFORCEMENT; ROOF PANEL,RR
(B) 		8-98008-023-0 04 1 1307- ●
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-191-4 01 1 1307-1312 ● ●
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-191-4 01 1 1401- ● ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1307-1312 ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1401- ● ● ●
99 SEAL; BODY,METAL
MIRROR O/S UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1307-1312 ● ●
99 SEAL; BODY,METAL
MIRROR O/S UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1401- ● ● ●
146 REINFORCEMENT; ROOM LAMP
(A) 		8-98075-827-0 01 1 1307-1312 ●
146 REINFORCEMENT; ROOM LAMP
(A) 		8-98075-827-0 01 1 1401- ● ●
146 REINFORCEMENT; ROOM LAMP
(B) 		8-98010-736-1 02 1 1307- ●
146 REINFORCEMENT; ROOM LAMP
(A) 		8-98075-827-0 02 1 1307- ●
148 REINFORCEMENT; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-97411-015-1 01 1 1307-1312 ● ●
148 REINFORCEMENT; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-97411-015-1 01 1 1401- ● ● ●
150 REINFORCEMENT; ROOF BACK 8-98085-374-0 01 1 1307- ●
