11548 - FRR AUST/NZ EURO5 EXC.SPACECAB
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶
6-47 — MUD GUARD AND INSULATOR
(#123737) — 128 parça
Tümü
A - FCR5MS
B - FCD5MS
C - FCR5WS
◀

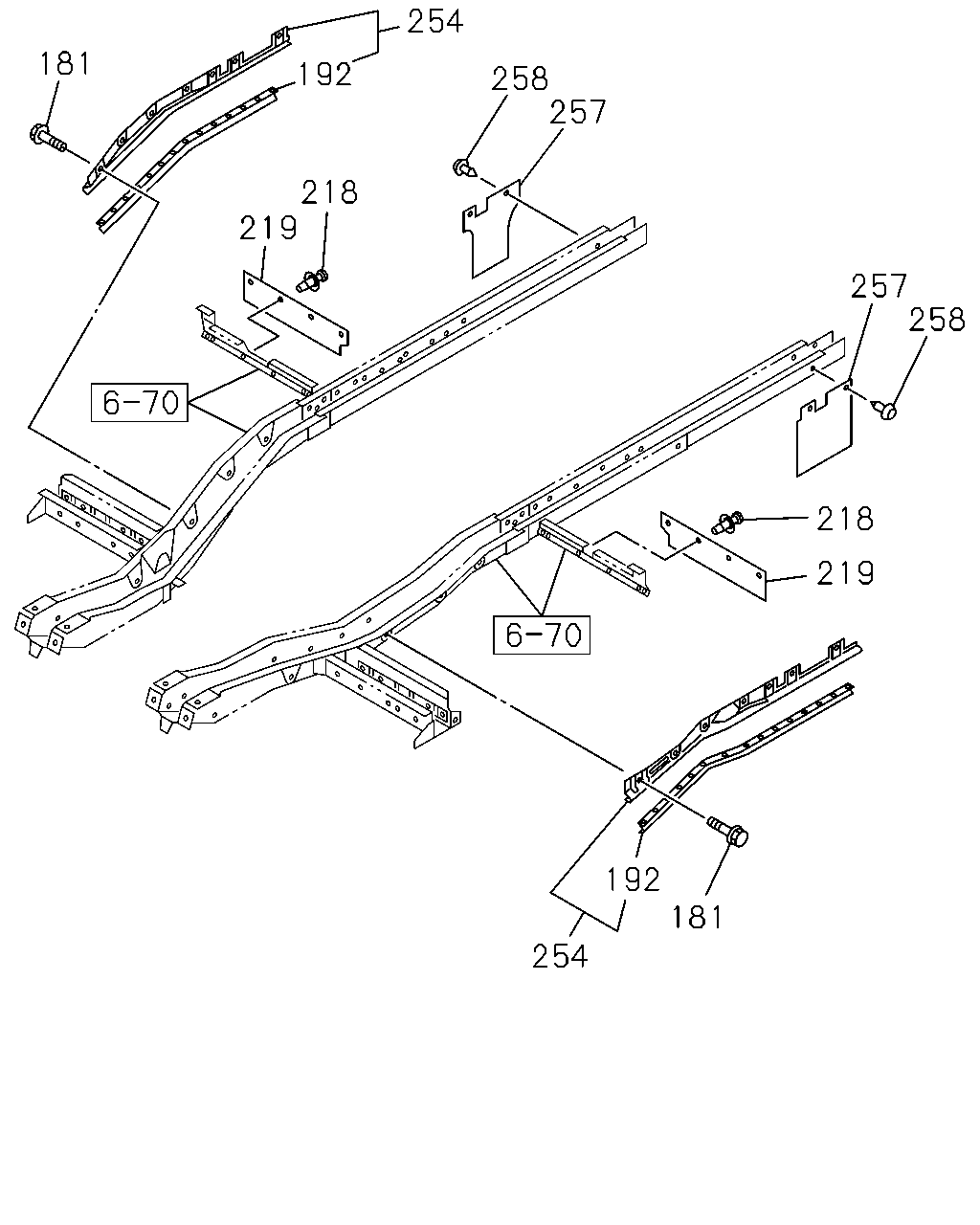

[647A] MUD COVER AND RUBBER SHUTTER;DBL CAB (23 parça)

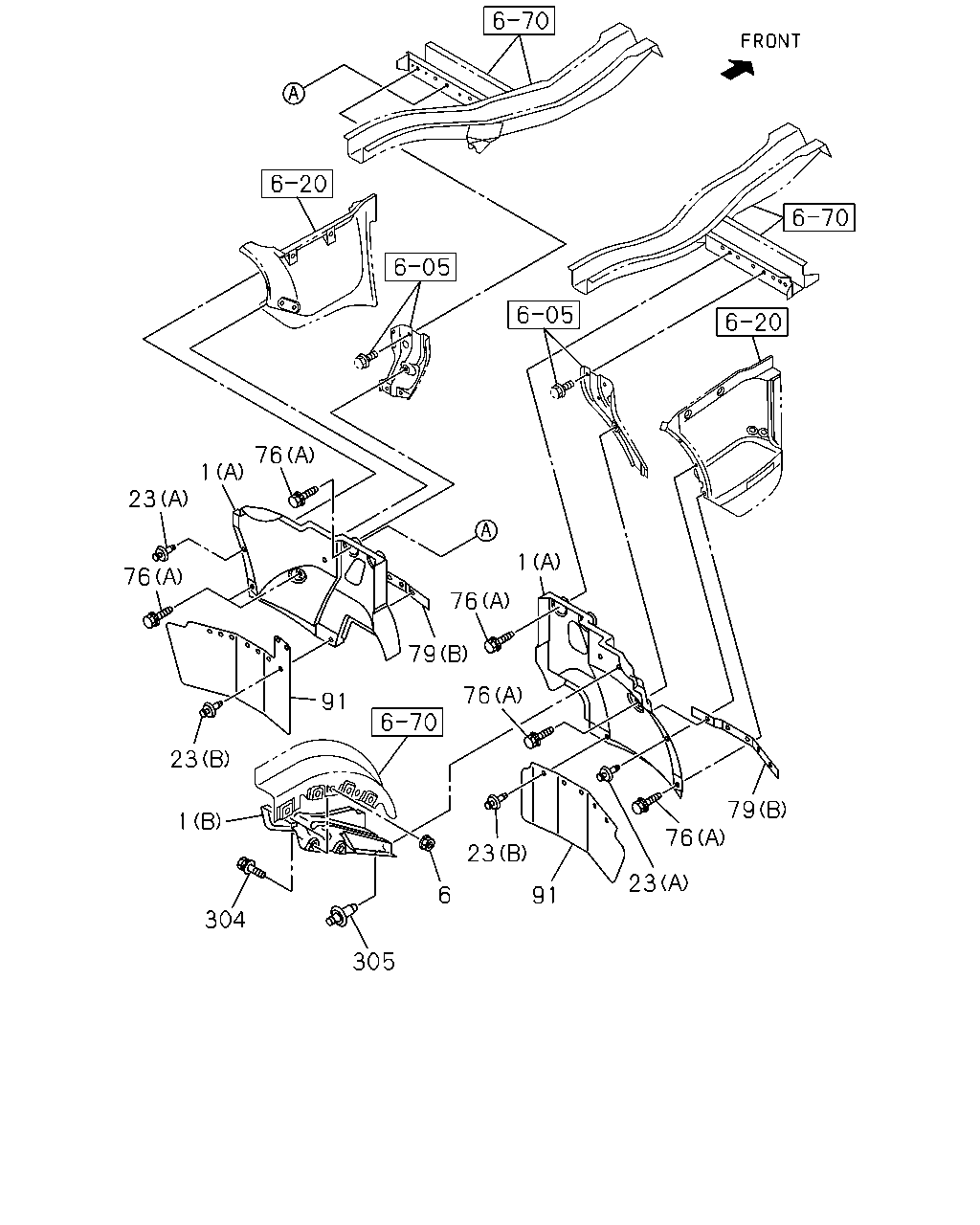

[647A] MUD GUARD;FRONT AND SPLASH GUARD (30 parça)

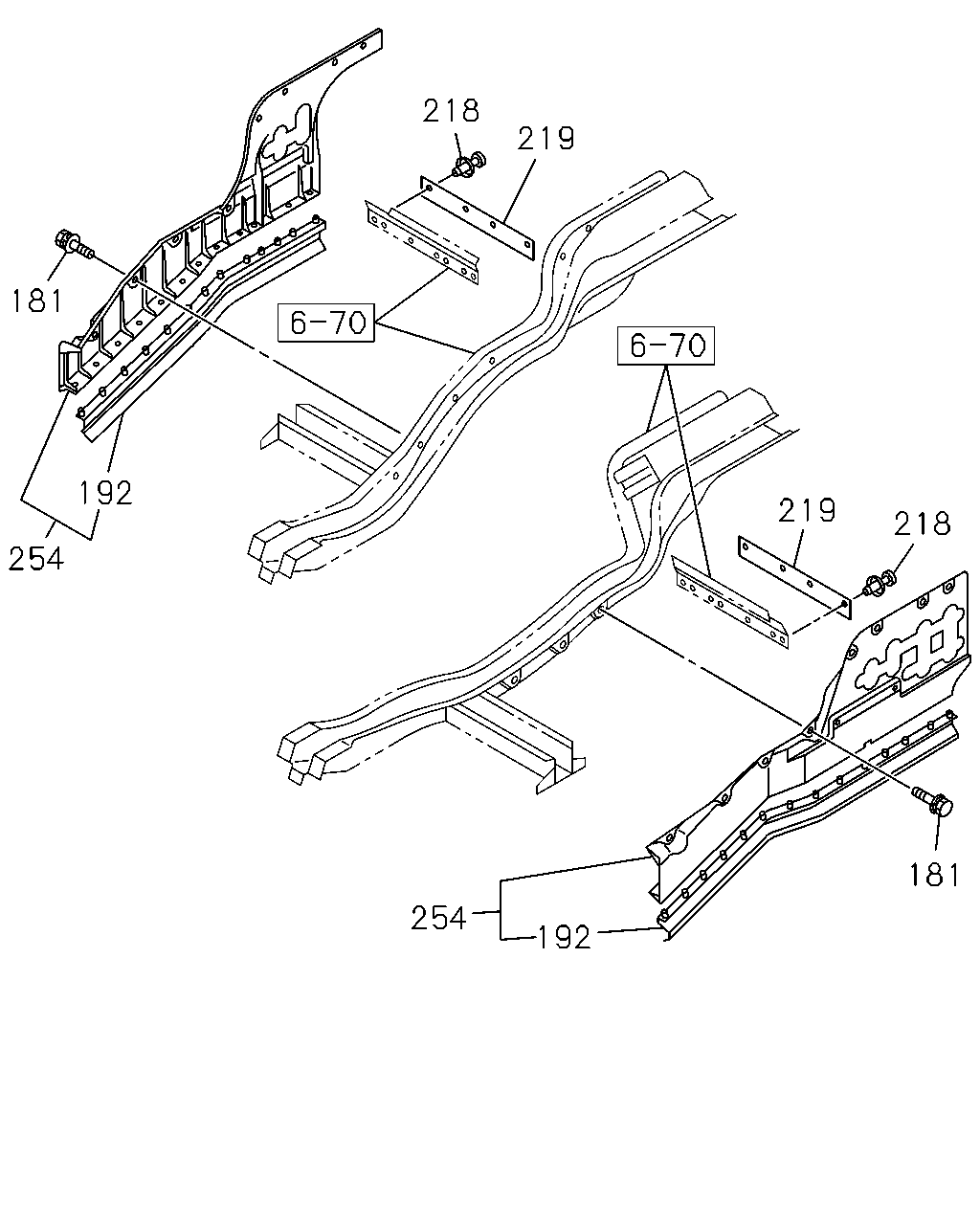

[647A] MUD COVER AND SEAL;SGL CAB (20 parça)

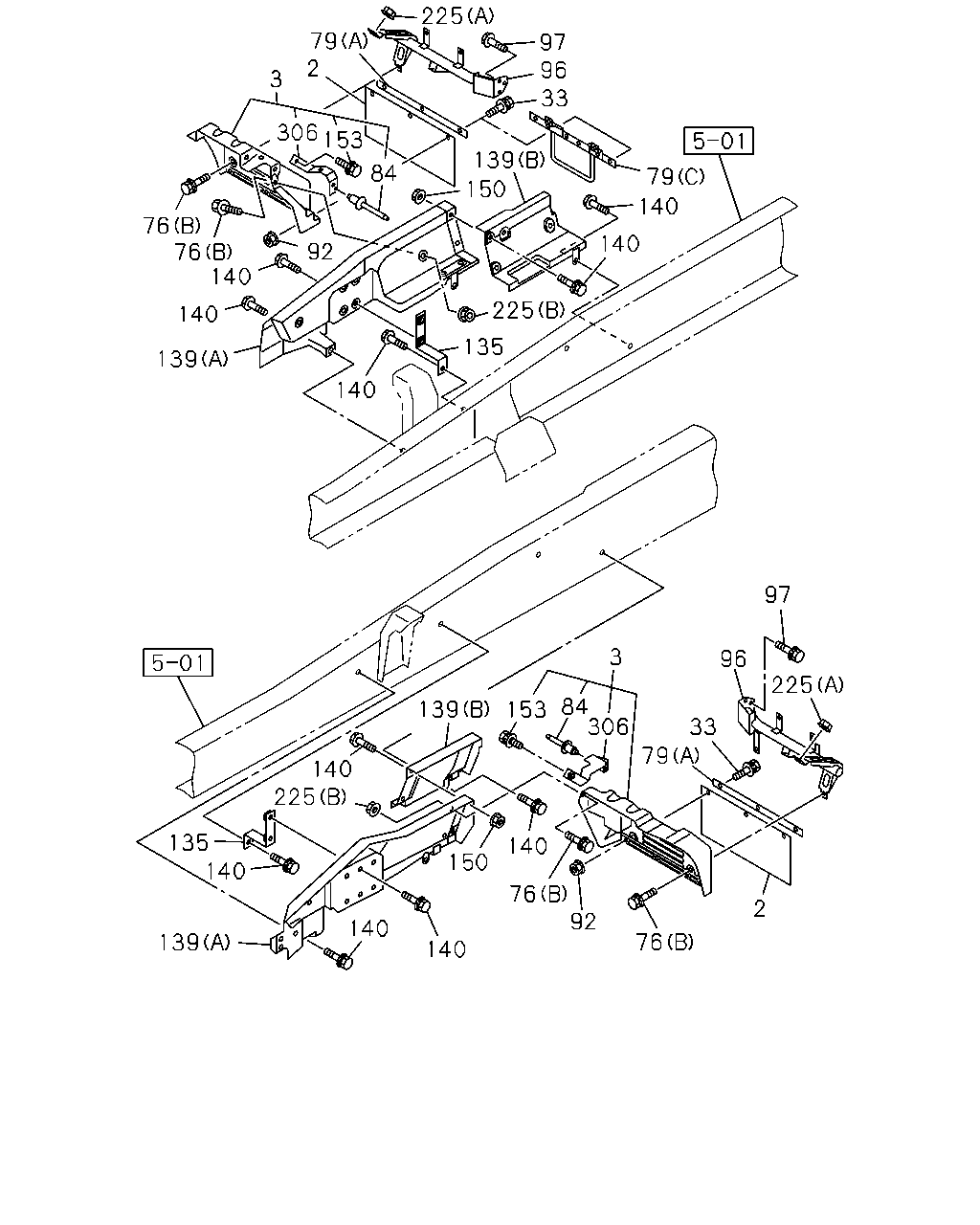

[647A] MUD GUARD;REAR AND SIDE PANEL (55 parça)
▶
181
254
192
218
219
258
257
257
258
218
219
192
181
254
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
181
BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
16
1
1307-1312
●
181
BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
16
1
1401-
●
●
181
BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
12
1
1307-
●
192
SEAL; MUD COVER
8-98041-159-2
01
1
1307-1312
●
192
SEAL; MUD COVER
8-98041-159-2
01
1
1401-
●
●
192
SEAL; MUD COVER
8-98041-158-1
01
1
1307-1312
●
192
SEAL; MUD COVER
8-98041-158-1
01
1
1401-
●
●
192
SEAL; MUD COVER
8-98061-555-1
01
1
1307-
●
192
SEAL; MUD COVER
8-98061-554-1
01
1
1307-
●
218
FASTENER; RUBBER
D8X13.5
1-09987-248-1
08
1
1307-1312
●
●
218
FASTENER; RUBBER
D8X13.5
1-09987-248-1
08
1
1401-
●
●
●
219
FLAP; MUD GUARD
8-98041-150-1
02
1
1307-1312
●
●
219
FLAP; MUD GUARD
8-98041-150-1
02
1
1401-
●
●
219
FLAP; MUD GUARD
8-98063-654-0
02
1
1307-
●
254
COVER; MUD,VALANCE
8-98039-926-1
01
1
1307-1312
●
254
COVER; MUD,VALANCE
8-98039-926-1
01
1
1401-
●
●
254
COVER; MUD,VALANCE
8-98039-925-2
01
1
1307-1312
●
254
COVER; MUD,VALANCE
8-98039-925-2
01
1
1401-
●
●
254
COVER; MUD,VALANCE
8-98058-186-1
01
1
1307-
●
254
COVER; MUD,VALANCE
8-98058-185-1
01
1
1307-
●
257
SHUTTER; RUBBER,SIDE COVER REAR
8-98064-286-1
01
1
1307-
●
257
SHUTTER; RUBBER,SIDE COVER REAR
8-98064-285-2
01
1
1307-
●
258
RIVET; SCREW,SHUTTER
D6X16 PUSH RIVET
1-09983-105-0
04
1
1307-
●
76
1
23
76
23
1
304
305
6
23
91
23
76
79
76
91
79
76
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
GUARD; MUD,FRT
(A)
8-98152-647-0
01
1
1307-1312
●
●
1
GUARD; MUD,FRT
(A)
8-98152-647-0
01
1
1401-
●
●
●
1
GUARD; MUD,FRT
(A)
8-98152-646-0
01
1
1307-1312
●
●
1
GUARD; MUD,FRT
(A)
8-98152-646-0
01
1
1401-
●
●
●
1
GUARD; MUD,FRT
DUMP CONTROL LEVER<RC4> (B)
8-98075-188-0
01
1
1307-1312
●
●
1
GUARD; MUD,FRT
DUMP CONTROL LEVER<RC4> (B)
8-98075-188-0
01
1
1401-
●
●
●
6
NUT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6 FLANGE
8-94197-199-0
02
1
1307-1312
●
●
6
NUT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6 FLANGE
8-94197-199-0
02
1
1401-
●
●
●
23
FASTENER; MUD COVER
(B)
1-09470-001-0
08
1
1307-1312
●
●
23
FASTENER; MUD COVER
(B)
1-09470-001-0
08
1
1401-
●
●
●
23
FASTENER; MUD COVER
(A) D8X13.5
1-09987-248-1
04
1
1307-1312
●
●
23
FASTENER; MUD COVER
(A) D8X13.5
1-09987-248-1
04
1
1401-
●
●
●
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
08
1
1307-1312
●
●
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
08
1
1401-
●
●
●
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
1307-1312
●
●
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
1401-
●
●
●
79
RETAINER; MUD COVER
(A)
1-79931-484-0
02
1
1307-1312
●
●
79
RETAINER; MUD COVER
(A)
1-79931-484-0
02
1
1401-
●
●
79
RETAINER; MUD COVER
(B)
8-98041-217-1
02
1
1307-1312
●
●
79
RETAINER; MUD COVER
(B)
8-98041-217-1
02
1
1401-
●
●
●
79
RETAINER; MUD COVER
(A)
1-79931-484-0
01
1
1307-
●
79
RETAINER; MUD COVER
(C)
8-98105-000-0
01
1
1307-
●
91
COVER; MUD,FRT
8-98092-836-0
01
1
1307-1312
●
●
91
COVER; MUD,FRT
8-98092-836-0
01
1
1401-
●
●
●
91
COVER; MUD,FRT
8-98092-834-0
01
1
1307-1312
●
●
91
COVER; MUD,FRT
8-98092-834-0
01
1
1401-
●
●
●
304
BOLT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER
1-09980-495-0
02
1
1307-1312
●
●
304
BOLT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER
1-09980-495-0
02
1
1401-
●
●
●
305
FASTENER; SPLASH GUARD
DUMP CONTROL LEVER<RC4> D8X13.5
1-09987-248-1
02
1
1307-1312
●
●
305
FASTENER; SPLASH GUARD
DUMP CONTROL LEVER<RC4> D8X13.5
1-09987-248-1
02
1
1401-
●
●
●
181
192
254
218
219
219
218
181
192
254
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
181
BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
16
1
1307-1312
●
181
BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
16
1
1401-
●
●
181
BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
12
1
1307-
●
192
SEAL; MUD COVER
8-98041-159-2
01
1
1307-1312
●
192
SEAL; MUD COVER
8-98041-159-2
01
1
1401-
●
●
192
SEAL; MUD COVER
8-98041-158-1
01
1
1307-1312
●
192
SEAL; MUD COVER
8-98041-158-1
01
1
1401-
●
●
192
SEAL; MUD COVER
8-98061-555-1
01
1
1307-
●
192
SEAL; MUD COVER
8-98061-554-1
01
1
1307-
●
218
FASTENER; RUBBER
D8X13.5
1-09987-248-1
08
1
1307-1312
●
●
218
FASTENER; RUBBER
D8X13.5
1-09987-248-1
08
1
1401-
●
●
●
219
FLAP; MUD GUARD
8-98041-150-1
02
1
1307-1312
●
●
219
FLAP; MUD GUARD
8-98041-150-1
02
1
1401-
●
●
219
FLAP; MUD GUARD
8-98063-654-0
02
1
1307-
●
254
COVER; MUD,VALANCE
8-98039-926-1
01
1
1307-1312
●
254
COVER; MUD,VALANCE
8-98039-926-1
01
1
1401-
●
●
254
COVER; MUD,VALANCE
8-98039-925-2
01
1
1307-1312
●
254
COVER; MUD,VALANCE
8-98039-925-2
01
1
1401-
●
●
254
COVER; MUD,VALANCE
8-98058-186-1
01
1
1307-
●
254
COVER; MUD,VALANCE
8-98058-185-1
01
1
1307-
●
225
79
2
3
306
153
33
96
97
139
150
92
84
76
76
140
140
139
140
135
225
140
140
79
97
96
225
33
2
76
79
3
306
92
76
140
153
139
140
225
135
140
139
140
140
150
84
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
COVER; MUD,TIRE RR
1-79931-482-0
02
1
1307-1312
●
●
2
COVER; MUD,TIRE RR
1-79931-482-0
02
1
1401-
●
●
●
3
GUARD; MUD,RR
8-98196-103-0
01
1
1307-1312
●
●
3
GUARD; MUD,RR
8-98196-103-0
01
1
1401-
●
●
●
3
GUARD; MUD,RR
8-98196-111-0
01
1
1307-1312
●
●
3
GUARD; MUD,RR
8-98196-111-0
01
1
1401-
●
●
●
33
BOLT; MUD COVER
M6X20 W/LK&PL WASHER
1-09980-495-0
06
1
1307-1312
●
●
33
BOLT; MUD COVER
M6X20 W/LK&PL WASHER
1-09980-495-0
06
1
1401-
●
●
●
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
08
1
1307-1312
●
●
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
08
1
1401-
●
●
●
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
1307-1312
●
●
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
1401-
●
●
●
79
RETAINER; MUD COVER
(A)
1-79931-484-0
02
1
1307-1312
●
●
79
RETAINER; MUD COVER
(A)
1-79931-484-0
02
1
1401-
●
●
79
RETAINER; MUD COVER
(B)
8-98041-217-1
02
1
1307-1312
●
●
79
RETAINER; MUD COVER
(B)
8-98041-217-1
02
1
1401-
●
●
●
79
RETAINER; MUD COVER
(A)
1-79931-484-0
01
1
1307-
●
79
RETAINER; MUD COVER
(C)
8-98105-000-0
01
1
1307-
●
84
RIVET; MUD GUARD
5-09734-006-1
04
1
1307-1312
●
●
84
RIVET; MUD GUARD
5-09734-006-1
04
1
1401-
●
●
●
92
NUT; MUD COVER
M6 FLANGE
0-91180-106-0
06
1
1307-1312
●
●
92
NUT; MUD COVER
M6 FLANGE
0-91180-106-0
06
1
1401-
●
●
●
96
STAY; MUD GUARD
8-98066-745-2
01
1
1307-1312
●
●
96
STAY; MUD GUARD
8-98066-745-2
01
1
1401-
●
●
96
STAY; MUD GUARD
1-79931-479-3
01
1
1307-1312
●
●
96
STAY; MUD GUARD
1-79931-479-3
01
1
1401-
●
●
●
96
STAY; MUD GUARD
1-79931-480-3
01
1
1307-
●
97
BOLT; STAY TO FRAME
M10X30 FLANGE
0-28651-030-0
07
1
1307-1312
●
●
97
BOLT; STAY TO FRAME
M10X30 FLANGE
0-28651-030-0
07
1
1401-
●
●
●
135
BRACKET; SIDE PANEL
1-53457-191-0
02
1
1307-1312
●
●
135
BRACKET; SIDE PANEL
1-53457-191-0
02
1
1401-
●
●
●
139
PANEL; SIDE
(B)
1-53194-591-0
01
1
1307-1312
●
●
139
PANEL; SIDE
(B)
1-53194-591-0
01
1
1401-
●
●
●
139
PANEL; SIDE
(A)
8-98090-078-0
01
1
1307-1312
●
●
139
PANEL; SIDE
(A)
8-98090-078-0
01
1
1401-
●
●
●
139
PANEL; SIDE
(B)
1-53194-590-1
01
1
1307-1312
●
●
139
PANEL; SIDE
(B)
1-53194-590-1
01
1
1401-
●
●
●
139
PANEL; SIDE
(A)
8-98090-077-0
01
1
1307-1312
●
●
139
PANEL; SIDE
(A)
8-98090-077-0
01
1
1401-
●
●
●
140
BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER
1-09030-095-0
06
1
1307-1312
●
●
140
BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER
1-09030-095-0
06
1
1401-
●
●
●
140
BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER
1-09030-095-0
10
1
1307-1312
●
●
140
BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER
1-09030-095-0
10
1
1401-
●
●
●
150
NUT; SIDE PANEL
M8 W/DISHED WASHER
8-97329-625-0
04
1
1307-1312
●
●
150
NUT; SIDE PANEL
M8 W/DISHED WASHER
8-97329-625-0
04
1
1401-
●
●
●
153
BOLT; BRKT
M8X25 W/LK&PL WASHER
1-09030-093-0
02
1
1307-1312
●
●
153
BOLT; BRKT
M8X25 W/LK&PL WASHER
1-09030-093-0
02
1
1401-
●
●
●
225
NUT; MUD GUARD
(A) M8 FLANGE
0-91180-108-0
02
1
1307-1312
●
●
225
NUT; MUD GUARD
(A) M8 FLANGE
0-91180-108-0
02
1
1401-
●
●
●
225
NUT; MUD GUARD
(B) M8 W/DISHED WASHER
8-97329-625-0
02
1
1307-1312
●
●
225
NUT; MUD GUARD
(B) M8 W/DISHED WASHER
8-97329-625-0
02
1
1401-
●
●
●
306
BRACKET; MUD GUARD
8-98196-125-0
01
1
1307-1312
●
●
306
BRACKET; MUD GUARD
8-98196-125-0
01
1
1401-
●
●
●
306
BRACKET; MUD GUARD
8-98196-126-0
01
1
1307-1312
●
●
306
BRACKET; MUD GUARD
8-98196-126-0
01
1
1401-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
