◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#123736) — 56 parça

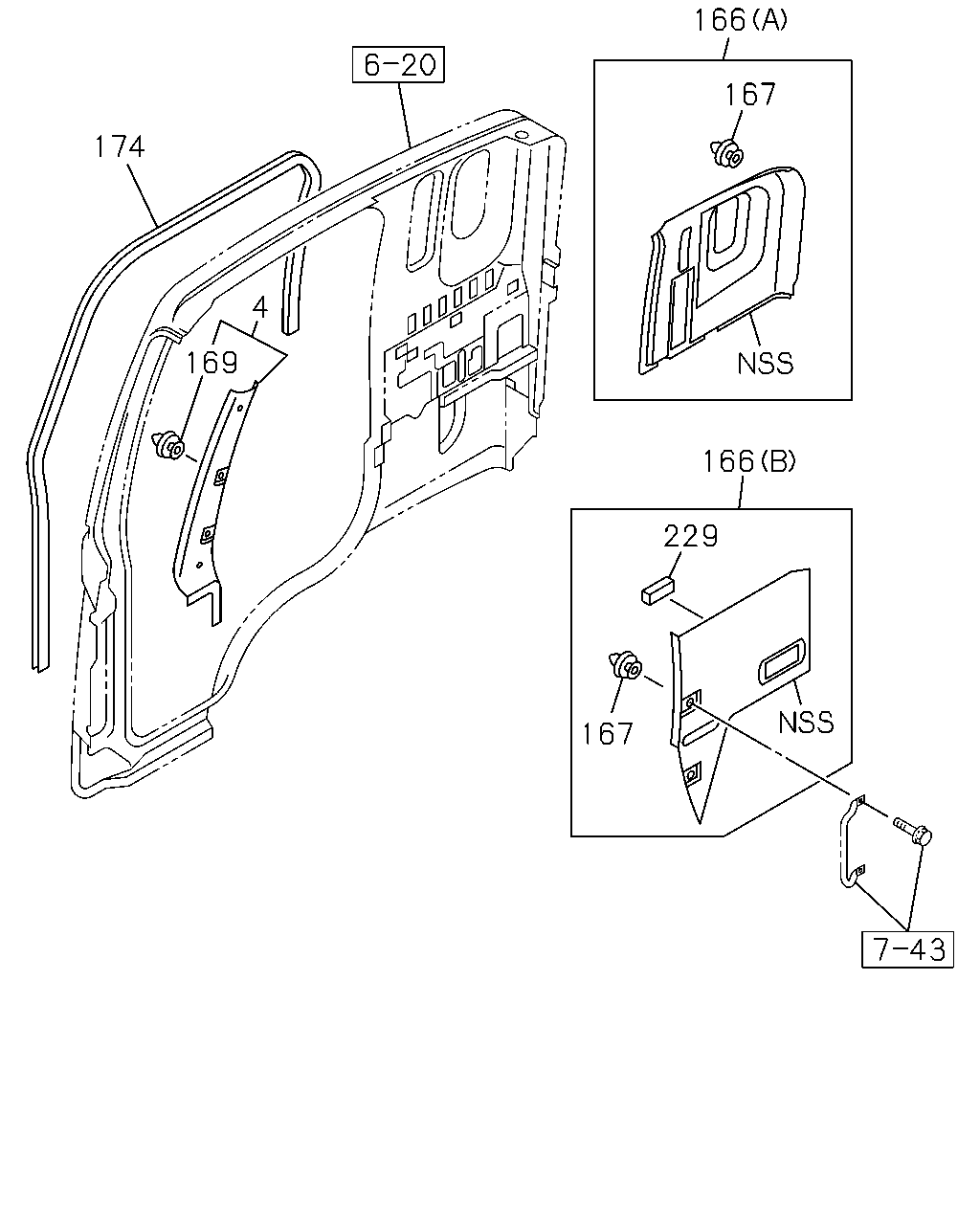

çizim 363499
174 166 229 167 169 4 166 167
BalonParca AdiParca NoAdetTipApplied Date A B C
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 1307-1312 ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 1401- ● ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 1307-1312 ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 1401- ● ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-460-1 01 1 1307-1312 ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-460-1 01 1 1401- ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-651-0 01 1 1307-1312 ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-651-0 01 1 1401- ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-652-0 01 1 1307-1312 ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-652-0 01 1 1401- ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97414-300-0 01 1 1307-1312 ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97414-300-0 01 1 1401- ● ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 08 1 1307-1312 ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 08 1 1401- ● ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 04 1 1307-1312 ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 04 1 1307-1312 ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 04 1 1401- ● ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 04 1 1401- ● ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 1307-1312 ● ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 1401- ● ● ●
174 FINISHER; BODY SIDE 8-98155-184-0 01 1 1307-1312 ●
174 FINISHER; BODY SIDE 8-98155-184-0 01 1 1401-1509 ● ●
174 FINISHER; BODY SIDE 8-98249-514-0 01 1 1510- ● ●
174 FINISHER; BODY SIDE 8-98155-183-0 01 1 1307-1312 ●
174 FINISHER; BODY SIDE 8-98155-183-0 01 1 1401-1509 ● ●
174 FINISHER; BODY SIDE 8-98249-513-0 01 1 1510- ● ●
174 FINISHER; BODY SIDE
L=3159 		8-98154-668-0 01 1 1307-1509 ●
174 FINISHER; BODY SIDE 8-98245-049-1 01 1 1510- ●
174 FINISHER; BODY SIDE
L=3159 		8-98154-667-0 01 1 1307-1509 ●
174 FINISHER; BODY SIDE 8-98245-048-1 01 1 1510- ●
229 SEAL 8-98080-972-0 02 1 1307-1312 ●
229 SEAL 8-98080-972-0 02 1 1401- ● ●
229 SEAL 8-98092-662-0 01 1 1307-1312 ●
229 SEAL 8-98092-662-0 01 1 1401- ● ●

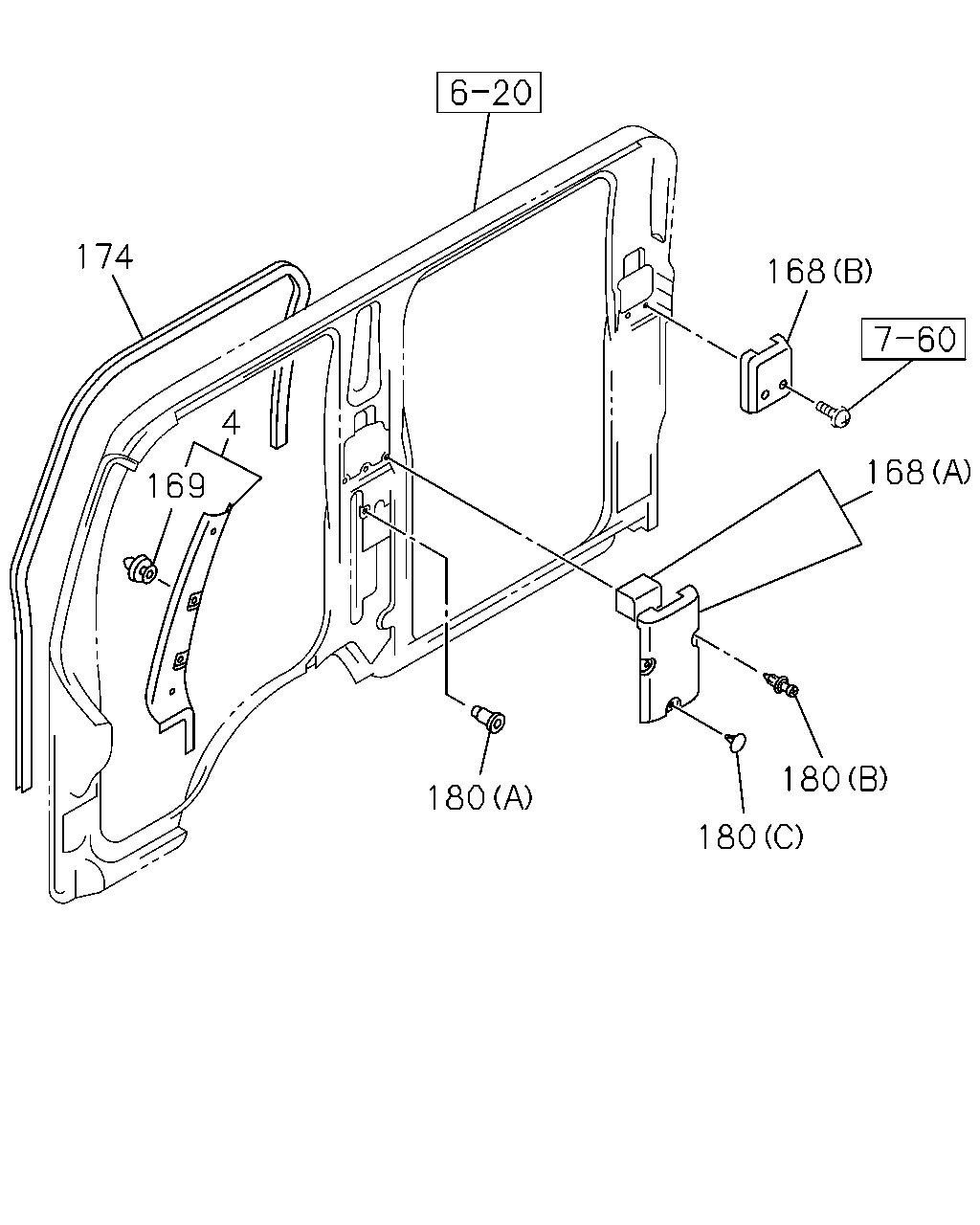

çizim 363561
180 180 180 168 168 174 169 4
BalonParca AdiParca NoAdetTipApplied Date A B C
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 1307-1312 ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 1401- ● ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 1307-1312 ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 1401- ● ● ●
168 COVER; SEAT BELT RETRACTOR
(B) GRAY 		8-97405-192-3 02 1 1307- ●
168 COVER; SEAT BELT RETRACTOR
(A) GRAY 		8-97405-191-2 01 1 1307- ●
168 COVER; SEAT BELT RETRACTOR
(A) W/SEAL GRAY 		8-97413-008-1 01 1 1307- ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 1307-1312 ● ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 1401- ● ● ●
174 FINISHER; BODY SIDE 8-98155-184-0 01 1 1307-1312 ●
174 FINISHER; BODY SIDE 8-98155-184-0 01 1 1401-1509 ● ●
174 FINISHER; BODY SIDE 8-98249-514-0 01 1 1510- ● ●
174 FINISHER; BODY SIDE 8-98155-183-0 01 1 1307-1312 ●
174 FINISHER; BODY SIDE 8-98155-183-0 01 1 1401-1509 ● ●
174 FINISHER; BODY SIDE 8-98249-513-0 01 1 1510- ● ●
174 FINISHER; BODY SIDE
L=3159 		8-98154-668-0 01 1 1307-1509 ●
174 FINISHER; BODY SIDE 8-98245-049-1 01 1 1510- ●
174 FINISHER; BODY SIDE
L=3159 		8-98154-667-0 01 1 1307-1509 ●
174 FINISHER; BODY SIDE 8-98245-048-1 01 1 1510- ●
180 FASTENER; COVER
(A) 		8-97319-495-0 02 1 1307- ●
180 FASTENER; COVER
(B) GRAY 		8-97405-246-0 04 1 1307- ●
180 FASTENER; COVER
(C) GRAY 		8-97405-247-0 02 1 1307- ●
