◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#123735) — 40 parça

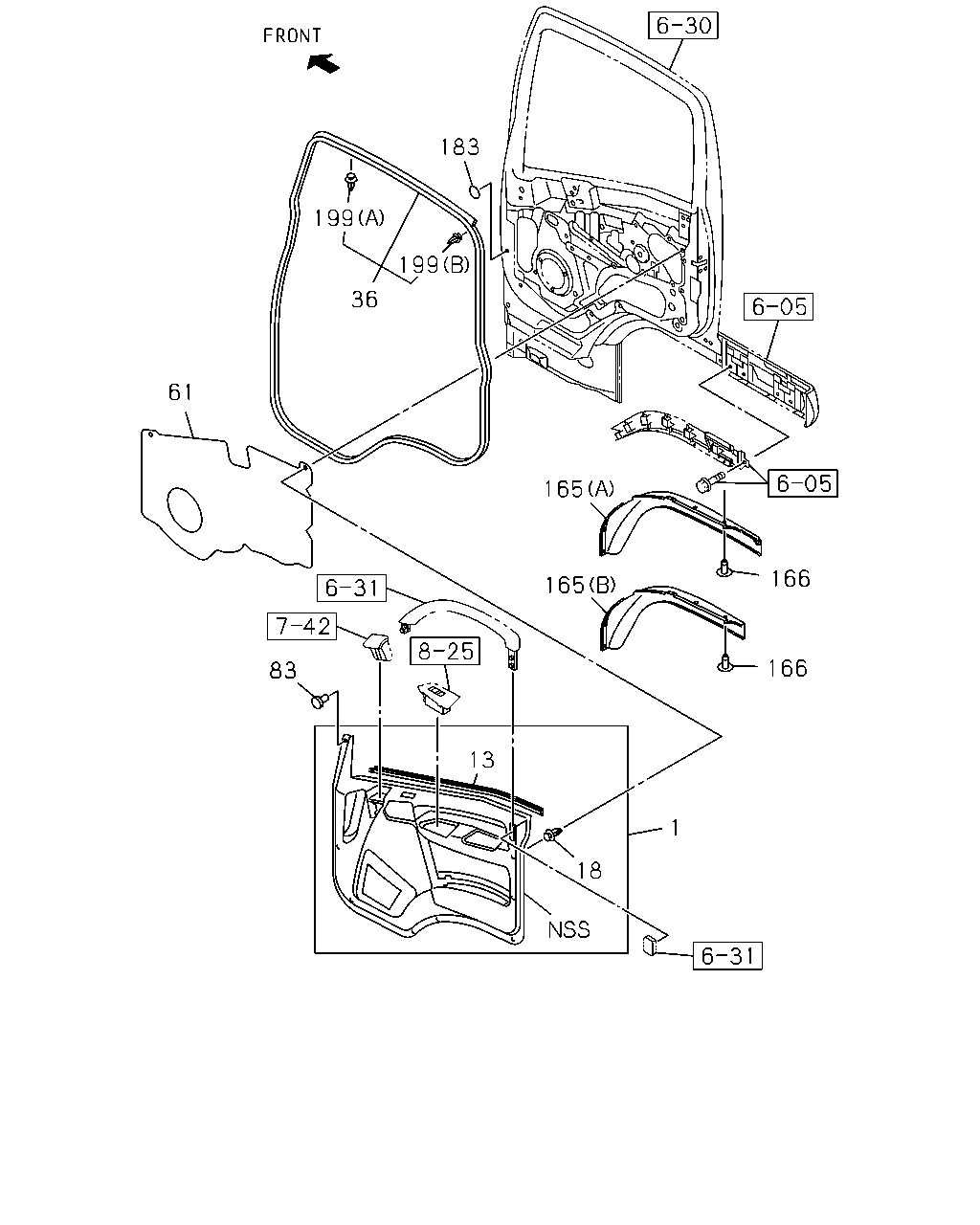

çizim 365037
61 199 183 36 199 165 83 13 1 18 166 166 165
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-306-6 01 1 1307-1312 ● ●
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-306-6 01 1 1401- ● ● ●
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-304-6 01 1 1307-1312 ● ●
1 PAD; TRIM,FRT DOOR
GRAY 		8-97405-304-6 01 1 1401- ● ● ●
13 SEAL; DOOR TRIM 8-98029-202-1 01 1 1307-1312 ● ●
13 SEAL; DOOR TRIM 8-98029-202-1 01 1 1401- ● ● ●
13 SEAL; DOOR TRIM 8-98029-201-1 01 1 1307-1312 ● ●
13 SEAL; DOOR TRIM 8-98029-201-1 01 1 1401- ● ● ●
18 CLIP; DOOR PAD 8-98004-025-0 14 1 1307-1312 ● ●
18 CLIP; DOOR PAD 8-98004-025-0 14 1 1401- ● ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-199-3 01 1 1307-1312 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-199-3 01 1 1401- ● ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98077-429-0 01 1 1307-1312 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98077-429-0 01 1 1401- ● ● ●
61 SEAL; WATER,DOOR PAD
3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> 		8-98029-395-2 01 1 1307-1308 ● ●
61 SEAL; WATER,DOOR PAD 8-98029-395-2 01 1 1309-1312 ● ●
61 SEAL; WATER,DOOR PAD 8-98029-395-2 01 1 1401- ● ● ●
61 SEAL; WATER,DOOR PAD
3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> 		8-98029-394-2 01 1 1307-1308 ● ●
61 SEAL; WATER,DOOR PAD 8-98029-394-2 01 1 1309-1312 ● ●
61 SEAL; WATER,DOOR PAD 8-98029-394-2 01 1 1401- ● ● ●
61 SEAL; WATER,DOOR PAD
EXC. 3-SPEAKER SYSTEM FRT<NNR>,2-SPEAKER SYSTEM BASE<U95> 		8-98029-396-0 02 1 1307-1308 ● ●
83 CLIP; DOOR TRIM
GRAY 		8-97405-308-0 02 1 1307-1312 ● ●
83 CLIP; DOOR TRIM
GRAY 		8-97405-308-0 02 1 1401- ● ● ●
165 LINER; DOOR LWR
(A) 		8-98038-286-1 01 1 1307-1312 ●
165 LINER; DOOR LWR
(A) 		8-98038-286-1 01 1 1401-1412 ● ●
165 LINER; DOOR LWR
(A) 		8-98299-436-0 01 1 1501- ● ●
165 LINER; DOOR LWR
(A) 		8-98038-285-1 01 1 1307-1312 ●
165 LINER; DOOR LWR
(A) 		8-98038-285-1 01 1 1401-1412 ● ●
165 LINER; DOOR LWR
(A) 		8-98299-434-0 01 1 1501- ● ●
165 LINER; DOOR LWR
(B) 		8-97584-591-0 01 1 1307- ●
165 LINER; DOOR LWR
(B) 		8-97584-590-0 01 1 1307- ●
166 PLUG; HOLE
D8X13.5 		1-09987-248-1 10 1 1307-1312 ●
166 PLUG; HOLE
D8X13.5 		1-09987-248-1 10 1 1401- ● ●
166 PLUG; HOLE
D8X13.5 		1-09987-248-1 08 1 1307- ●
183 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 1307-1312 ● ●
183 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 1401- ● ● ●
199 CLIP; SEAL
(A) NATURAL 		8-98062-270-0 80 1 1307-1312 ● ●
199 CLIP; SEAL
(A) NATURAL 		8-98062-270-0 80 1 1401- ● ● ●
199 CLIP; SEAL
(B) RED 		8-98062-271-0 02 1 1307-1312 ● ●
199 CLIP; SEAL
(B) RED 		8-98062-271-0 02 1 1401- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
