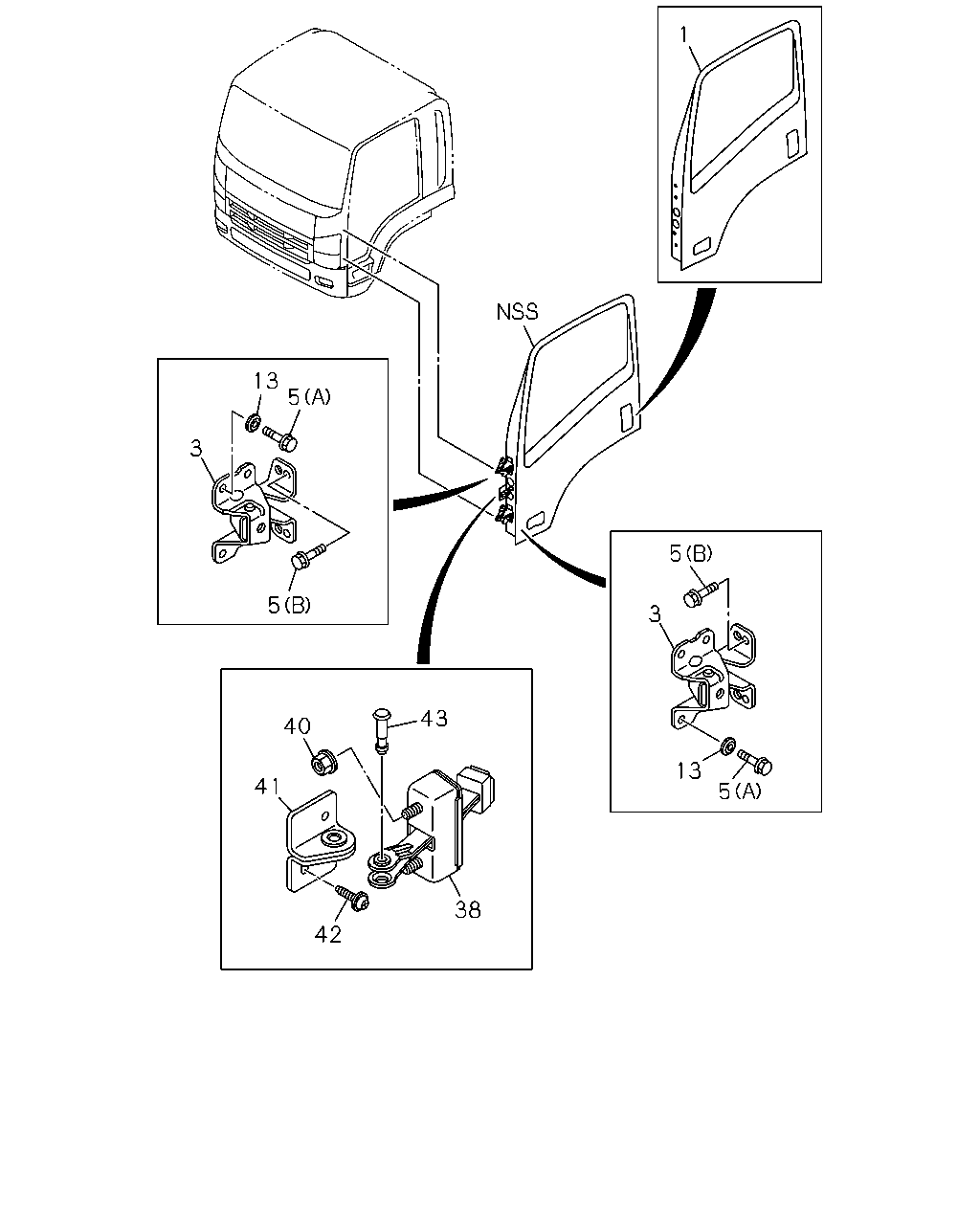

6-30 — FRONT DOOR AND HINGE (#123732) — 26 parça

5 3 13 5 43 40 41 42 38 5 5 13 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DOOR ASM; FRT,WO/TRIM	8-98171-231-0	01	1	1307-1312	●	●
1	DOOR ASM; FRT,WO/TRIM	8-98171-231-0	01	1	1401-1411	●	●	●
1	DOOR ASM; FRT,WO/TRIM	8-98260-598-0	01	1	1412-	●	●	●
1	DOOR ASM; FRT,WO/TRIM	8-98171-223-0	01	1	1307-1312	●	●
1	DOOR ASM; FRT,WO/TRIM	8-98171-223-0	01	1	1401-1411	●	●	●
1	DOOR ASM; FRT,WO/TRIM	8-98260-597-0	01	1	1412-	●	●	●
3	HINGE; DOOR FRT	8-98191-302-0	04	1	1307-1312	●	●
3	HINGE; DOOR FRT	8-98191-302-0	04	1	1401-	●	●	●
5	BOLT; HINGE (B) M8X23 FLANGE	8-98029-440-0	08	1	1307-1312	●	●
5	BOLT; HINGE (B) M8X23 FLANGE	8-98029-440-0	08	1	1401-	●	●	●
5	BOLT; HINGE (A) M8X20 FLANGE	8-98049-756-0	12	1	1307-1312	●	●
5	BOLT; HINGE (A) M8X20 FLANGE	8-98049-756-0	12	1	1401-	●	●	●
13	WASHER; HINGE ID=8.1 W/SEAL	8-97890-584-1	04	1	1307-1312	●	●
13	WASHER; HINGE ID=8.1 W/SEAL	8-97890-584-1	04	1	1401-	●	●	●
38	CHECKER ASM; DOOR	8-98031-730-6	02	1	1307-1312	●	●
38	CHECKER ASM; DOOR	8-98031-730-6	02	1	1401-1508	●	●	●
38	CHECKER ASM; DOOR	8-98296-602-0	02	1	1509-	●	●	●
40	NUT; CHECKER M8 W/DISHED WASHER	8-97329-625-0	04	1	1307-1312	●	●
40	NUT; CHECKER M8 W/DISHED WASHER	8-97329-625-0	04	1	1401-1508	●	●	●
40	NUT; CHECKER M8 W/DISHED WASHER	8-98302-918-0	04	1	1509-	●	●	●
41	BRACKET; CHECKER	8-98029-290-3	02	1	1307-1312	●	●
41	BRACKET; CHECKER	8-98029-290-3	02	1	1401-	●	●	●
42	BOLT; BRKT M6X20 W/PL WASHER	8-98032-159-2	04	1	1307-1312	●	●
42	BOLT; BRKT M6X20 W/PL WASHER	8-98032-159-2	04	1	1401-	●	●	●
43	PIN	8-98037-152-2	02	1	1307-1312	●	●
43	PIN	8-98037-152-2	02	1	1401-	●	●	●
