◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#123729) — 765 parça

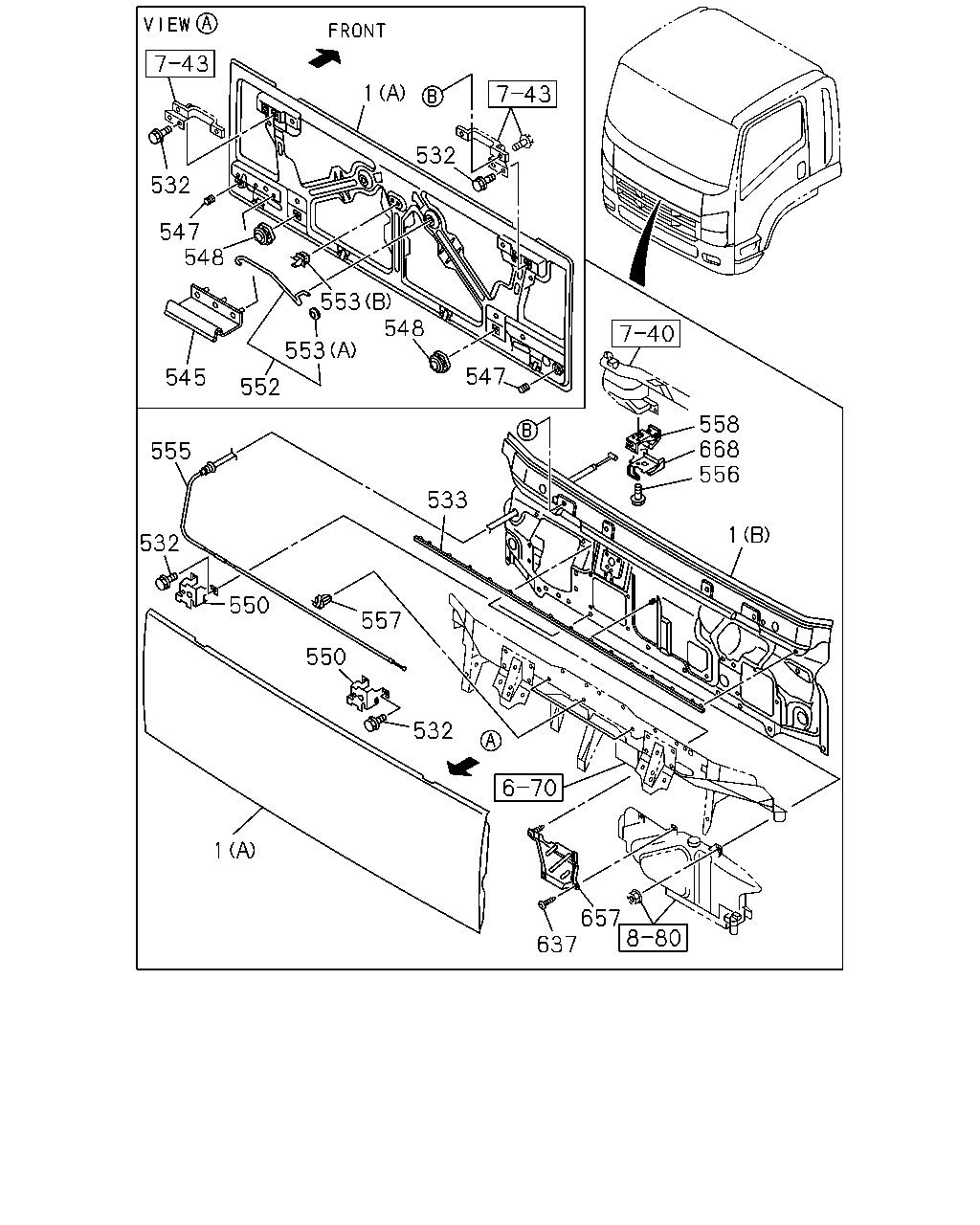

çizim 364858
532 1 547 558 556 668 1 657 637 532 550 533 548 553 552 545 555 532 550 1 557 553 548 547 532
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1307-1312 ● ●
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1401- ● ● ●
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1307-1312 ● ●
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1401- ● ● ●
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 1307-1312 ● ●
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 1401- ● ● ●
533 SEAL; FRT PANEL 8-98096-288-0 01 1 1307-1312 ● ●
533 SEAL; FRT PANEL 8-98096-288-0 01 1 1401- ● ● ●
545 SEAL; FRT LID 8-98123-264-0 01 1 1307-1312 ● ●
545 SEAL; FRT LID 8-98123-264-0 01 1 1401- ● ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1307-1312 ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1401- ● ● ●
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1307-1312 ● ●
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1401- ● ● ●
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 1307-1312 ● ●
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 1401- ● ● ●
552 STAY; FRT LID 8-98089-836-0 01 1 1307-1312 ● ●
552 STAY; FRT LID 8-98089-836-0 01 1 1401- ● ● ●
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1307-1312 ● ●
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1401- ● ● ●
553 CLIP; STAY
(A) 		8-98059-320-0 01 1 1307-1312 ● ●
553 CLIP; STAY
(A) 		8-98059-320-0 01 1 1401- ● ● ●
555 CABLE; FRT LID 8-98036-573-1 01 1 1307-1312 ● ●
555 CABLE; FRT LID 8-98036-573-1 01 1 1401- ● ● ●
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1307-1312 ● ●
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1401- ● ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1307-1312 ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1401- ● ● ●
558 LEVER; FRT LID 1-79338-007-1 01 1 1307-1312 ● ●
558 LEVER; FRT LID 1-79338-007-1 01 1 1401- ● ● ●
637 CLIP; COVER
OD=16 L=11 		1-76378-155-0 02 1 1307-1312 ● ●
637 CLIP; COVER
OD=16 L=11 		1-76378-155-0 02 1 1401- ● ● ●
657 COVER; WIPER IDLER 8-98060-908-0 01 1 1307-1312 ● ●
657 COVER; WIPER IDLER 8-98060-908-0 01 1 1401- ● ● ●
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 1307-1312 ● ●
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 1401- ● ● ●

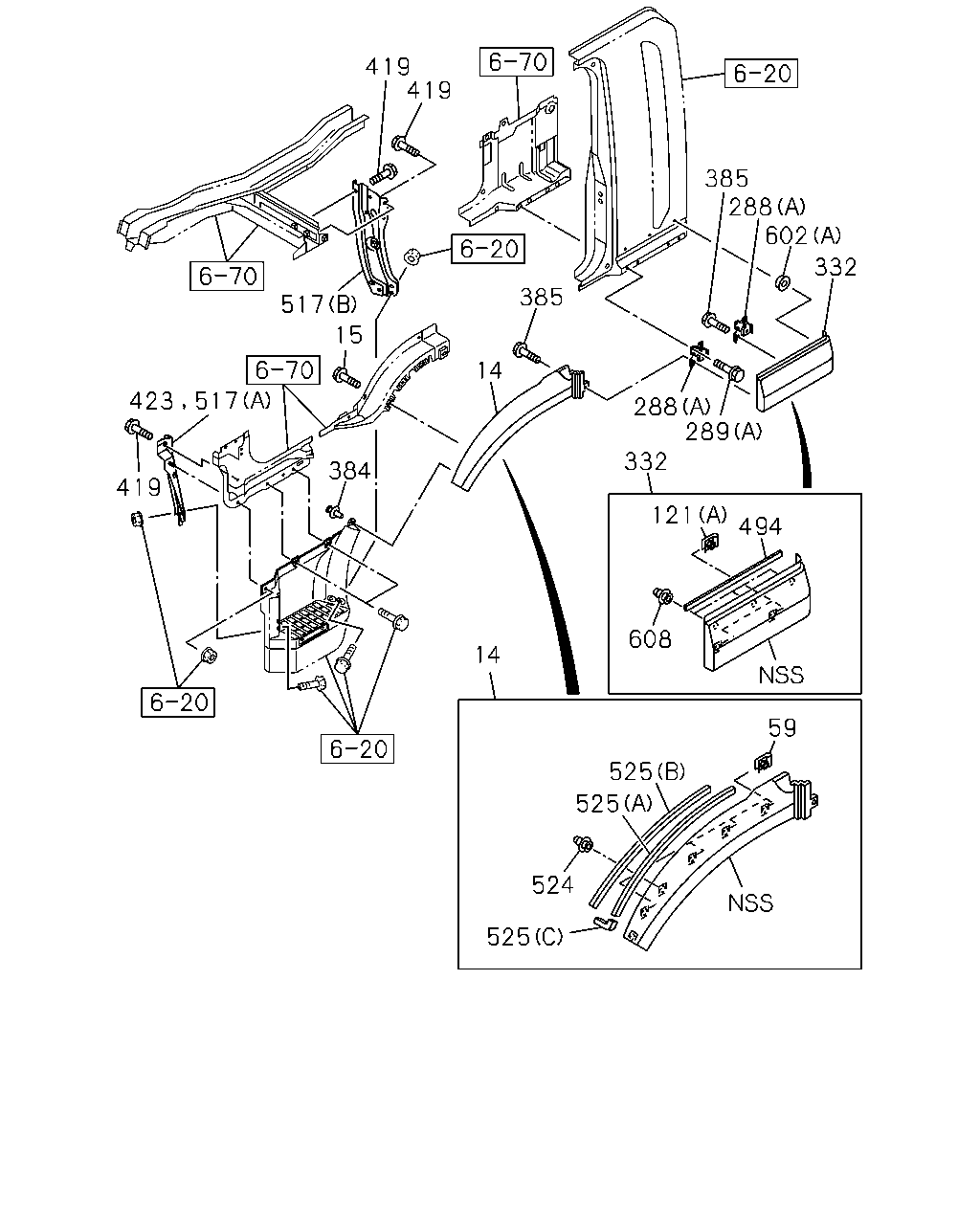

çizim 364867
419 385 14 14 525 524 525 59 525 608 494 121 332 289 288 332 602 288 385 15 517 419 384 517 423 419
BalonParca AdiParca NoAdetTipApplied Date A B C
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 1307-1312 ● ●
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 1401- ● ● ●
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 1307-1312 ● ●
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 1401- ● ● ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1307-1312 ● ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1401- ● ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1307-1312 ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1307-1312 ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1401- ● ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1401- ● ● ●
59 GROMMET; SCREW 8-94279-723-0 08 1 1307-1312 ● ●
59 GROMMET; SCREW 8-94279-723-0 08 1 1401- ● ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1307-1312 ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1401- ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1307-1312 ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1401- ● ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 1307-1312 ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 1401- ● ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1307-1312 ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1401- ● ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1307-1312 ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1401- ● ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1307-1312 ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1401- ● ● ●
288 BRACKET; FENDER SKIRT
(A) 		8-98041-162-1 04 1 1307-1312 ●
288 BRACKET; FENDER SKIRT
(A) 		8-98041-162-1 04 1 1401- ● ●
288 BRACKET; FENDER SKIRT
(B) 		8-98019-871-3 01 1 1307- ●
288 BRACKET; FENDER SKIRT
(B) 		8-98019-870-3 01 1 1307- ●
289 BOLT; FENDER SKIRT BRKT
(A) M6X16 FLANGE 		0-28650-616-0 08 1 1307-1312 ●
289 BOLT; FENDER SKIRT BRKT
(A) M6X16 FLANGE 		0-28650-616-0 08 1 1401- ● ●
289 BOLT; FENDER SKIRT BRKT
(B) M6X20 W/PL WASHER 		8-98059-504-0 02 1 1307- ●
332 FENDER; RR
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> 		8-97427-947-2 01 1 1405- ● ●
332 FENDER; RR
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> 		8-97427-948-2 01 1 1405- ● ●
332 FENDER; RR
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> ORANGE 		8-97427-957-2 01 1 1405- ● ●
332 FENDER; RR
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> ORANGE 		8-97427-958-2 01 1 1405- ● ●
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-606-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-606-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-596-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-596-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-507-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-507-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-506-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-506-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> YELLOW 		8-97417-755-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> YELLOW 		8-97417-755-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> YELLOW 		8-97417-754-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> YELLOW 		8-97417-754-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-310-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-310-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-304-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-304-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-609-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-609-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-599-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-599-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-313-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-313-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-307-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-307-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97411-819-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97411-819-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97411-818-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97411-818-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-608-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-608-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-598-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-598-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-314-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-314-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-308-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-308-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-615-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-615-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-605-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-605-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-613-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-613-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-603-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-603-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-612-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-612-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-602-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-602-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-675-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-675-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-674-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-674-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-607-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-607-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-597-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-597-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-311-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-311-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-305-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-305-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-769-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-769-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-768-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-768-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-315-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-315-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-309-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-309-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-611-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-611-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-601-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-601-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-610-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-610-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-600-2 01 1 1307-1312 ●
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-600-2 01 1 1401- ● ●
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-435-2 01 1 1307-1312 ●
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-435-2 01 1 1401- ● ●
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-434-2 01 1 1307-1312 ●
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-434-2 01 1 1401- ● ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1307-1312 ● ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1401- ● ● ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1307-1312 ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1401- ● ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 02 1 1307- ●
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 1307-1312 ● ●
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 1401- ● ● ●
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1310-1312 ● ●
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1401- ● ● ●
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1310-1312 ● ●
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1401- ● ● ●
494 FINISHER; FENDER 8-98072-723-0 01 1 1307-1312 ●
494 FINISHER; FENDER 8-98072-723-0 01 1 1401- ● ●
494 FINISHER; FENDER 8-98041-172-1 01 1 1307-1312 ●
494 FINISHER; FENDER 8-98041-172-1 01 1 1401- ● ●
517 SUPPORT; STEP PANEL
(A) 		8-98037-336-1 01 1 1307-1309 ● ●
517 SUPPORT; STEP PANEL
(B) 		8-98037-339-2 01 1 1307-1312 ● ●
517 SUPPORT; STEP PANEL
(B) 		8-98037-339-2 01 1 1401- ● ● ●
517 SUPPORT; STEP PANEL
(A) 		8-98037-335-1 01 1 1307-1309 ● ●
517 SUPPORT; STEP PANEL
(B) 		8-98037-338-2 01 1 1307-1312 ● ●
517 SUPPORT; STEP PANEL
(B) 		8-98037-338-2 01 1 1401- ● ● ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1307-1312 ● ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1401- ● ● ●
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 1307-1312 ● ●
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 1401- ● ● ●
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 1307-1312 ● ●
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 1401- ● ● ●
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1307-1312 ● ●
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1401- ● ● ●
602 RETAINER; COVER
(A) ID=5.4 OD=6.8 		8-98241-984-0 06 1 1307-1312 ●
602 RETAINER; COVER
(A) ID=5.4 OD=6.8 		8-98241-984-0 06 1 1401- ● ●
602 RETAINER; COVER
(B) D=10X10 L=8 M6 		1-09983-119-0 02 1 1307- ●
608 CLIP
D5.4X8 		1-09983-154-0 06 1 1307-1312 ●
608 CLIP
D5.4X8 		1-09983-154-0 06 1 1401- ● ●

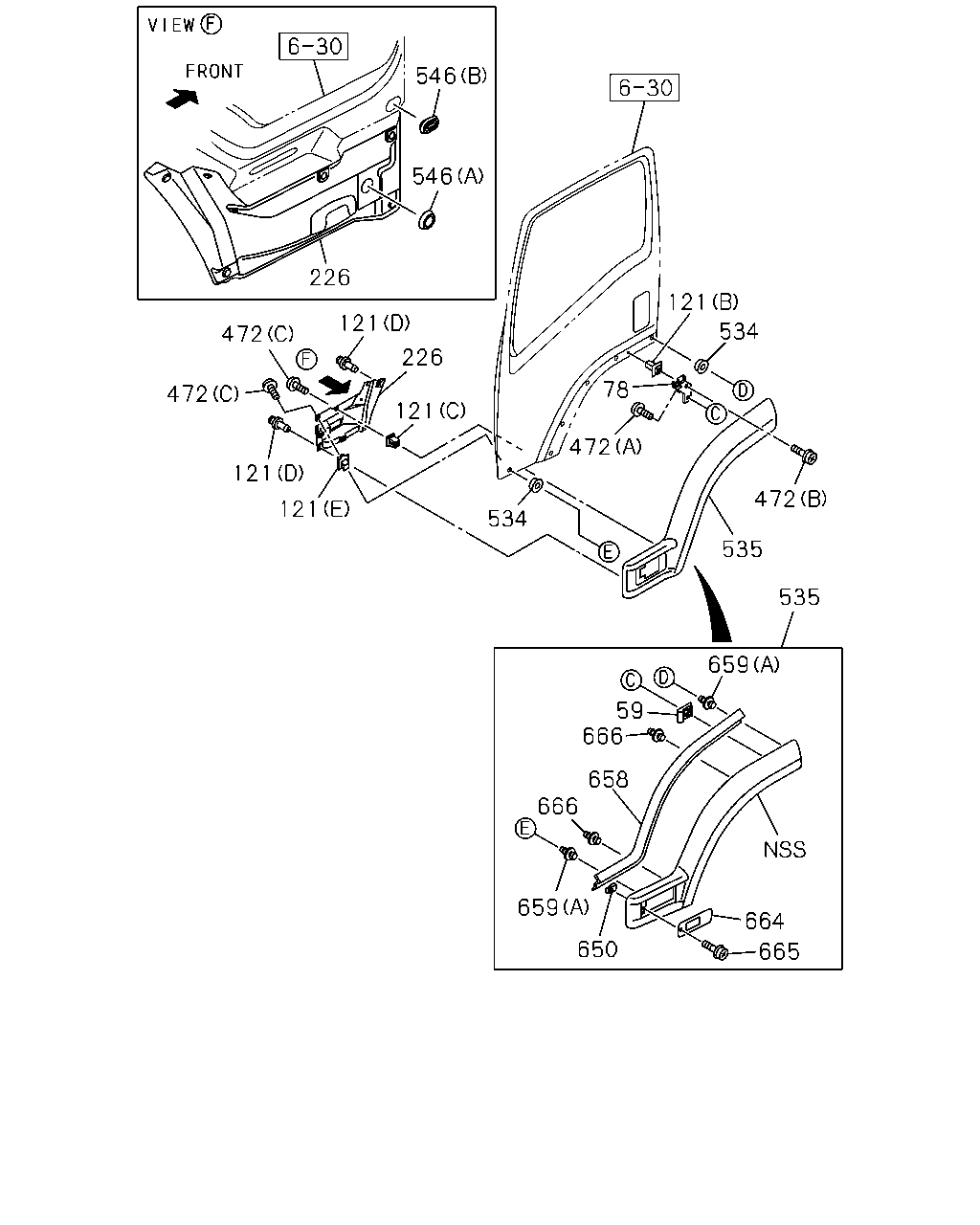

çizim 364869
226 546 546 472 472 121 121 121 121 534 472 78 121 535 535 472 534 659 59 666 658 666 659 650 664 665 226
BalonParca AdiParca NoAdetTipApplied Date A B C
59 GROMMET; SCREW 8-94279-723-0 02 1 1307-1312 ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1307-1312 ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1401- ● ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1401- ● ● ●
59 GROMMET; SCREW 8-94279-723-0 08 1 1307-1312 ● ●
59 GROMMET; SCREW 8-94279-723-0 08 1 1401- ● ● ●
78 BRACKET; FENDER 8-98041-166-1 01 1 1307-1312 ● ●
78 BRACKET; FENDER 8-98041-166-1 01 1 1401- ● ● ●
78 BRACKET; FENDER 8-98041-165-1 01 1 1307-1312 ● ●
78 BRACKET; FENDER 8-98041-165-1 01 1 1401- ● ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1307-1312 ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1401- ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1307-1312 ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1401- ● ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 1307-1312 ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 1401- ● ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1307-1312 ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1401- ● ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1307-1312 ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1401- ● ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1307-1312 ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1401- ● ● ●
226 PROTECTOR; FRT 8-98037-713-2 01 1 1307-1312 ● ●
226 PROTECTOR; FRT 8-98037-713-2 01 1 1401- ● ● ●
226 PROTECTOR; FRT 8-98037-712-2 01 1 1307-1312 ● ●
226 PROTECTOR; FRT 8-98037-712-2 01 1 1401- ● ● ●
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1307-1312 ● ●
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1401- ● ● ●
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1307-1312 ● ●
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1401- ● ● ●
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1307-1312 ● ●
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1401- ● ● ●
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1307-1312 ● ●
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1401- ● ● ●
535 FENDER; BLISTER
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> 		8-97427-949-0 01 1 1405- ●
535 FENDER; BLISTER
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> 		8-97427-949-0 01 1 1405- ●
535 FENDER; BLISTER
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> 		8-97427-950-0 01 1 1405- ●
535 FENDER; BLISTER
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> 		8-97427-950-0 01 1 1405- ●
535 FENDER; BLISTER
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> 		8-97427-959-0 01 1 1405- ●
535 FENDER; BLISTER
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> 		8-97427-959-0 01 1 1405- ●
535 FENDER; BLISTER
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> 		8-97427-960-0 01 1 1405- ●
535 FENDER; BLISTER
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> 		8-97427-960-0 01 1 1405- ●
535 FENDER; BLISTER
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> 		8-97427-951-1 01 1 1405- ●
535 FENDER; BLISTER
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> 		8-97427-952-1 01 1 1405- ●
535 FENDER; BLISTER
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> ORANGE 		8-97427-961-1 01 1 1405- ●
535 FENDER; BLISTER
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> ORANGE 		8-97427-962-1 01 1 1405- ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> GRAY 		8-97415-296-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) GRAY 		8-97415-296-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> GRAY 		8-97415-296-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) GRAY 		8-97415-296-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97415-296-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> GRAY 		8-97415-271-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) GRAY 		8-97415-271-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> GRAY 		8-97415-271-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) GRAY 		8-97415-271-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97415-271-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GRAY 		8-97415-340-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GRAY 		8-97415-320-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> WHITE 		8-97415-303-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) WHITE 		8-97415-303-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> WHITE 		8-97415-303-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) WHITE 		8-97415-303-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97415-303-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> WHITE 		8-97415-278-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) WHITE 		8-97415-278-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> WHITE 		8-97415-278-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) WHITE 		8-97415-278-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97415-278-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97415-345-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97415-325-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> YELLOW 		8-97417-780-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> YELLOW 		8-97417-780-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> YELLOW 		8-97417-780-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> YELLOW 		8-97417-778-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> YELLOW 		8-97417-778-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> YELLOW 		8-97417-778-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97417-771-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97417-770-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> RED 		8-97415-298-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) RED 		8-97415-298-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> RED 		8-97415-298-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) RED 		8-97415-298-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97415-298-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> RED 		8-97415-273-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) RED 		8-97415-273-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> RED 		8-97415-273-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) RED 		8-97415-273-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97415-273-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97415-342-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97415-322-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BLUE 		8-97415-289-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) BLUE 		8-97415-289-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BLUE 		8-97415-289-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) BLUE 		8-97415-289-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97415-289-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BLUE 		8-97415-264-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) BLUE 		8-97415-264-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BLUE 		8-97415-264-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) BLUE 		8-97415-264-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97415-264-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97415-334-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97415-314-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> RED 		8-97415-299-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) RED 		8-97415-299-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> RED 		8-97415-299-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) RED 		8-97415-299-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97415-299-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> RED 		8-97415-274-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) RED 		8-97415-274-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> RED 		8-97415-274-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) RED 		8-97415-274-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97415-274-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97415-343-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97415-323-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BEIGE 		8-97424-806-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) BEIGE 		8-97424-806-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BEIGE 		8-97424-806-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) BEIGE 		8-97424-806-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97424-806-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BEIGE 		8-97424-805-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) BEIGE 		8-97424-805-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BEIGE 		8-97424-805-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) BEIGE 		8-97424-805-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97424-805-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BEIGE 		8-97415-344-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BEIGE 		8-97415-324-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> RED 		8-97415-297-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) RED 		8-97415-297-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> RED 		8-97415-297-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) RED 		8-97415-297-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97415-297-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> RED 		8-97415-272-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) RED 		8-97415-272-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> RED 		8-97415-272-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) RED 		8-97415-272-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97415-272-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97415-341-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97415-321-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> YELLOW 		8-97415-307-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97415-307-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> YELLOW 		8-97415-307-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97415-307-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97415-307-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> YELLOW 		8-97415-282-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97415-282-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> YELLOW 		8-97415-282-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97415-282-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97415-282-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97415-348-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97415-328-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> GREEN 		8-97415-292-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) GREEN 		8-97415-292-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> GREEN 		8-97415-292-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) GREEN 		8-97415-292-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97415-292-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> GREEN 		8-97415-267-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) GREEN 		8-97415-267-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> GREEN 		8-97415-267-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) GREEN 		8-97415-267-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97415-267-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97415-337-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97415-317-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> ORANGE 		8-97415-309-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97415-309-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> ORANGE 		8-97415-309-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97415-309-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97415-309-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> ORANGE 		8-97415-284-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97415-284-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> ORANGE 		8-97415-284-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97415-284-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97415-284-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> ORANGE 		8-97415-349-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> ORANGE 		8-97415-329-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BLUE 		8-97415-312-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-312-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BLUE 		8-97415-312-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-312-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97415-312-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BLUE 		8-97415-287-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-287-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BLUE 		8-97415-287-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-287-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97415-287-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97415-352-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97415-332-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> WHITE 		8-97417-781-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-781-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> WHITE 		8-97417-781-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-781-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-781-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> WHITE 		8-97417-779-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-779-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> WHITE 		8-97417-779-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-779-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-779-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97417-743-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97417-742-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BLUE 		8-97415-288-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97415-288-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BLUE 		8-97415-288-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97415-288-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97415-288-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BLUE 		8-97415-263-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97415-263-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BLUE 		8-97415-263-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97415-263-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97415-263-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97415-333-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97415-313-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BEIGE 		8-97415-311-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97415-311-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BEIGE 		8-97415-311-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97415-311-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97415-311-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BEIGE 		8-97415-286-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97415-286-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BEIGE 		8-97415-286-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97415-286-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97415-286-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BEIGE 		8-97415-351-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BEIGE 		8-97415-331-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> GREEN 		8-97423-833-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> GREEN 		8-97423-833-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-833-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> GREEN 		8-97423-832-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> GREEN 		8-97423-832-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-832-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97423-804-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97423-803-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BLUE 		8-97415-290-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) BLUE 		8-97415-290-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BLUE 		8-97415-290-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) BLUE 		8-97415-290-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97415-290-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BLUE 		8-97415-265-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) BLUE 		8-97415-265-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> BLUE 		8-97415-265-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) BLUE 		8-97415-265-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97415-265-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97415-335-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97415-315-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> YELLOW 		8-97415-310-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97415-310-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> YELLOW 		8-97415-310-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97415-310-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97415-310-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> YELLOW 		8-97415-285-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97415-285-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> YELLOW 		8-97415-285-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97415-285-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97415-285-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97415-350-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97415-330-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> DARK GREEN 		8-97415-295-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97415-295-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> DARK GREEN 		8-97415-295-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97415-295-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97415-295-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> DARK GREEN 		8-97415-270-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97415-270-0 01 1 1307-1312 ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> DARK GREEN 		8-97415-270-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97415-270-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97415-270-0 01 1 1401- ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> DARK GREEN 		8-97415-339-1 01 1 1307- ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> DARK GREEN 		8-97415-319-1 01 1 1307- ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD>,CORNERING LAMP<T87> BLACK 		8-98106-499-0 01 1 1307- ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD>,CORNERING LAMP<T87> BLACK 		8-98106-498-0 01 1 1307- ●
535 FENDER; BLISTER
CORNERING LAMP<T87> EXC. CAB ALL PAINTING<TFD> BLACK 		8-98106-495-0 01 1 1307-1312 ●
535 FENDER; BLISTER
CORNERING LAMP<T87> EXC. CAB ALL PAINTING<TFD> BLACK 		8-98106-495-0 01 1 1401- ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98106-495-0 01 1 1401- ●
535 FENDER; BLISTER
CORNERING LAMP<T87> EXC. CAB ALL PAINTING<TFD> BLACK 		8-98106-494-0 01 1 1307-1312 ●
535 FENDER; BLISTER
CORNERING LAMP<T87> EXC. CAB ALL PAINTING<TFD> BLACK 		8-98106-494-0 01 1 1401- ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98106-494-0 01 1 1401- ●
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1307-1312 ● ●
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1401- ● ● ●
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 1307-1312 ● ●
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 1401- ● ● ●
650 NUT; SPIRE
EXC. CORNERING LAMP<T87> 		8-94279-501-0 02 1 1307- ●
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 1307-1312 ● ●
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 1401- ● ● ●
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 1307-1312 ● ●
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 1401- ● ● ●
659 CLIP; FENDER
(A) D5.4X8 		1-09983-154-0 08 1 1307-1312 ● ●
659 CLIP; FENDER
(A) D5.4X8 		1-09983-154-0 08 1 1401- ● ● ●
659 CLIP; FENDER
(B) OD=8.5 GRAY 		8-97893-482-0 04 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> 		8-97428-022-0 01 1 1405- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> 		8-97428-025-0 01 1 1405- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> ORANGE 		8-97428-023-0 01 1 1405- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> ORANGE 		8-97428-026-0 01 1 1405- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GRAY 		8-97421-549-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GRAY 		8-97421-521-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97421-497-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97421-485-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97421-633-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97421-631-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97421-499-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97421-487-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-539-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-511-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97421-503-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97421-491-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BEIGE 		8-97421-553-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BEIGE 		8-97421-525-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97421-551-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97421-523-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97421-505-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97421-493-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97421-543-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97421-515-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> ORANGE 		8-97421-559-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> ORANGE 		8-97421-531-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-563-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-535-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97421-607-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97421-605-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-537-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-509-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BEIGE 		8-97421-501-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BEIGE 		8-97421-489-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97423-846-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97423-845-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-507-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-495-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97421-596-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97421-533-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> DARK GREEN 		8-97421-547-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> DARK GREEN 		8-97421-519-0 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD>,CORNERING LAMP<T87> 		8-98053-146-1 01 1 1307- ●
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD>,CORNERING LAMP<T87> 		8-98053-145-1 01 1 1307- ●
665 SCREW; FENDER
EXC. CORNERING LAMP<T87> M6X20 W/PL WASHER 		0-36210-620-0 02 1 1307- ●
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 1307-1312 ● ●
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 1401- ● ● ●

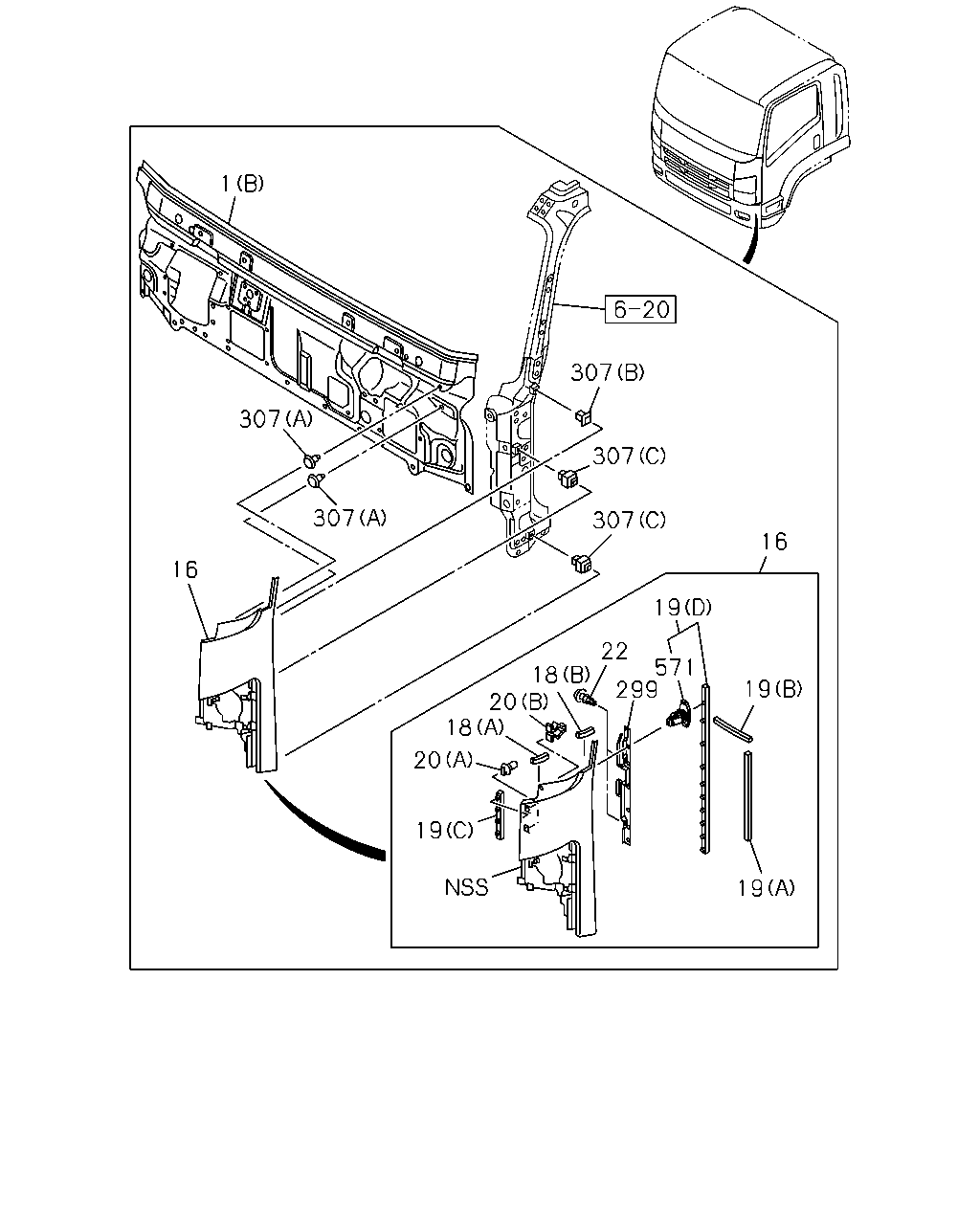

çizim 364880
1 307 307 307 307 307 19 16 22 299 19 571 19 19 20 20 18 18 16
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1307-1312 ● ●
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1401- ● ● ●
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1307-1312 ● ●
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR A P RED(549) 		8-97427-945-4 01 1 1405- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR A P RED(549) 		8-97427-946-4 01 1 1405- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR RMS ORANGE(550) ORANGE 		8-97427-955-4 01 1 1405- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR RMS ORANGE(550) ORANGE 		8-97427-956-4 01 1 1405- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR BRIGHT YELLOW(538) YELLOW 		8-97417-749-4 01 1 1307-1312 ●
16 PANEL; FRONT,SIDE
BODY COLOR BRIGHT YELLOW(538) YELLOW 		8-97417-749-4 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR BRIGHT YELLOW(538) YELLOW 		8-97417-748-4 01 1 1307-1312 ●
16 PANEL; FRONT,SIDE
BODY COLOR BRIGHT YELLOW(538) YELLOW 		8-97417-748-4 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-798-4 01 1 1307-1312 ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-798-4 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-797-4 01 1 1307-1312 ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-797-4 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97417-654-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97417-654-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97413-576-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97413-576-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97409-901-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97409-901-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97407-509-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97407-509-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-298-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-298-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-292-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-292-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97415-030-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97415-030-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97413-579-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97413-579-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-301-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-301-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-295-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-295-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) BEIGE 		8-97411-300-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) BEIGE 		8-97411-300-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) BEIGE 		8-97411-294-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) BEIGE 		8-97411-294-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97417-656-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97417-656-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97413-578-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97413-578-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-302-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-302-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-296-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-296-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97417-660-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97417-660-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97413-585-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97413-585-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97417-658-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97417-658-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-583-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-583-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97417-657-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97417-657-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-582-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-582-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-659-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-659-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-653-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-653-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97417-655-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97417-655-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-577-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-577-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-299-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-299-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-293-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-293-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-303-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-303-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-297-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-297-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97415-032-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97415-032-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-581-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-581-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97415-031-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97415-031-4 01 1 1401- ● ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-580-4 01 1 1307-1312 ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-580-4 01 1 1401- ● ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1307-1312 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1307-1312 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1401- ● ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1401- ● ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1307-1312 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1307-1312 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1401- ● ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1401- ● ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98035-268-0 01 1 1307-1312 ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98035-268-0 01 1 1307-1312 ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98035-268-0 01 1 1401- ● ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98035-268-0 01 1 1401- ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98062-215-0 01 1 1307-1312 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98062-215-0 01 1 1307-1312 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98062-215-0 01 1 1401- ● ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98062-215-0 01 1 1401- ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-581-0 01 1 1307-1312 ● ●
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-581-0 01 1 1401- ● ● ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-359-2 01 1 1307-1312 ● ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-359-2 01 1 1401- ● ● ●
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-580-0 01 1 1307-1312 ● ●
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-580-0 01 1 1401- ● ● ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-358-2 01 1 1307-1312 ● ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-358-2 01 1 1401- ● ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1307-1312 ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1307-1312 ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1401- ● ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1401- ● ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1307-1312 ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1307-1312 ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1401- ● ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1401- ● ● ●
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1307-1312 ● ●
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1307-1312 ● ●
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1401- ● ● ●
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1401- ● ● ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1307-1312 ● ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1401- ● ● ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1307-1312 ● ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1401- ● ● ●
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1307-1312 ● ●
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1401- ● ● ●
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1307-1312 ● ●
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1401- ● ● ●
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1307-1312 ● ●
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1401- ● ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1307-1312 ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1307-1312 ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1401- ● ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1401- ● ● ●
çizim 364894
419 258 523 602 288 385 289 659 59 659 525 524 525 59 525 14 14 384 15 517 419 419 517 423
BalonParca AdiParca NoAdetTipApplied Date A B C
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 1307-1312 ● ●
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 1401- ● ● ●
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 1307-1312 ● ●
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 1401- ● ● ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1307-1312 ● ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1401- ● ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1307-1312 ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1307-1312 ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1401- ● ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1401- ● ● ●
59 GROMMET; SCREW 8-94279-723-0 08 1 1307-1312 ● ●
59 GROMMET; SCREW 8-94279-723-0 08 1 1401- ● ● ●
258 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 1307- ●
288 BRACKET; FENDER SKIRT
(A) 		8-98041-162-1 04 1 1307-1312 ●
288 BRACKET; FENDER SKIRT
(A) 		8-98041-162-1 04 1 1401- ● ●
288 BRACKET; FENDER SKIRT
(B) 		8-98019-871-3 01 1 1307- ●
288 BRACKET; FENDER SKIRT
(B) 		8-98019-870-3 01 1 1307- ●
289 BOLT; FENDER SKIRT BRKT
(A) M6X16 FLANGE 		0-28650-616-0 08 1 1307-1312 ●
289 BOLT; FENDER SKIRT BRKT
(A) M6X16 FLANGE 		0-28650-616-0 08 1 1401- ● ●
289 BOLT; FENDER SKIRT BRKT
(B) M6X20 W/PL WASHER 		8-98059-504-0 02 1 1307- ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1307-1312 ● ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1401- ● ● ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1307-1312 ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1401- ● ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 02 1 1307- ●
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 1307-1312 ● ●
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 1401- ● ● ●
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1310-1312 ● ●
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1401- ● ● ●
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1310-1312 ● ●
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1401- ● ● ●
517 SUPPORT; STEP PANEL
(A) 		8-98037-336-1 01 1 1307-1309 ● ●
517 SUPPORT; STEP PANEL
(B) 		8-98037-339-2 01 1 1307-1312 ● ●
517 SUPPORT; STEP PANEL
(B) 		8-98037-339-2 01 1 1401- ● ● ●
517 SUPPORT; STEP PANEL
(A) 		8-98037-335-1 01 1 1307-1309 ● ●
517 SUPPORT; STEP PANEL
(B) 		8-98037-338-2 01 1 1307-1312 ● ●
517 SUPPORT; STEP PANEL
(B) 		8-98037-338-2 01 1 1401- ● ● ●
523 COVER; FENDER RR
BODY COLOR AL GRAY(517) GRAY 		8-97413-447-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR AL GRAY(517) GRAY 		8-97413-679-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR ARC WHITE(729) WHITE 		8-97413-124-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR ARC WHITE(729) WHITE 		8-97413-117-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR CARDINAL RED(736) RED 		8-97413-121-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR CARDINAL RED(736) RED 		8-97413-114-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR DARK BLUE(695) BLUE 		8-97413-450-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR DARK BLUE(695) BLUE 		8-97413-682-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR FIRE RED(915) RED 		8-97413-122-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR FIRE RED(915) RED 		8-97413-115-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR FT ORANGE(609) BEIGE 		8-97413-123-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR FT ORANGE(609) BEIGE 		8-97413-116-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR GERANIUM RED(681) RED 		8-97413-449-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR GERANIUM RED(681) RED 		8-97413-681-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97413-125-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97413-118-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR GREEN(989) GREEN 		8-97413-456-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR GREEN(989) GREEN 		8-97413-688-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-454-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-686-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-453-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-685-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-739-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-738-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-448-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-680-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97413-126-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97413-119-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR TRANS BLUE(999) BLUE 		8-97413-120-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR TRANS BLUE(999) BLUE 		8-97413-113-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-452-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-684-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-451-1 01 1 1307- ●
523 COVER; FENDER RR
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-683-1 01 1 1307- ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1307-1312 ● ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1401- ● ● ●
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 1307-1312 ● ●
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 1401- ● ● ●
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 1307-1312 ● ●
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 1401- ● ● ●
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1307-1312 ● ●
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1401- ● ● ●
602 RETAINER; COVER
(A) ID=5.4 OD=6.8 		8-98241-984-0 06 1 1307-1312 ●
602 RETAINER; COVER
(A) ID=5.4 OD=6.8 		8-98241-984-0 06 1 1401- ● ●
602 RETAINER; COVER
(B) D=10X10 L=8 M6 		1-09983-119-0 02 1 1307- ●
659 CLIP; FENDER
(A) D5.4X8 		1-09983-154-0 08 1 1307-1312 ● ●
659 CLIP; FENDER
(A) D5.4X8 		1-09983-154-0 08 1 1401- ● ● ●
659 CLIP; FENDER
(B) OD=8.5 GRAY 		8-97893-482-0 04 1 1307- ●
çizim 364900
1 655 656 655 656 293 198 577 573 543 540 578 293 293 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1307-1312 ● ●
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1401- ● ● ●
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1307-1312 ● ●
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1401- ● ● ●
198 NUT; PANEL
M6 		9-09114-086-0 02 1 1307-1312 ● ●
198 NUT; PANEL
M6 		9-09114-086-0 02 1 1401- ● ● ●
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 1307-1312 ● ●
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 1401- ● ● ●
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1307-1312 ● ●
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1401- ● ● ●
293 BRACKET; PANEL
(C) 		8-98008-126-1 01 1 1307-1312 ● ●
293 BRACKET; PANEL
(C) 		8-98008-126-1 01 1 1401- ● ● ●
540 PANEL; FRONT,OUTER 8-97585-965-2 01 1 1307-1312 ● ●
540 PANEL; FRONT,OUTER 8-97585-965-2 01 1 1401- ● ● ●
543 CLOSING; FRT MTG RAIL 8-97585-989-4 01 1 1307-1312 ● ●
543 CLOSING; FRT MTG RAIL 8-97585-989-4 01 1 1401- ● ● ●
573 BRACKET; SUPPORT 8-98008-127-2 01 1 1307-1312 ● ●
573 BRACKET; SUPPORT 8-98008-127-2 01 1 1401- ● ● ●
577 BRACKET; IDLER 8-97586-019-1 01 1 1307-1312 ● ●
577 BRACKET; IDLER 8-97586-019-1 01 1 1401- ● ● ●
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 1307-1312 ● ●
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 1401- ● ● ●
655 PATCH; HINGE 8-98031-263-0 01 1 1307-1312 ● ●
655 PATCH; HINGE 8-98031-263-0 01 1 1401- ● ● ●
655 PATCH; HINGE 8-98031-264-0 01 1 1307-1312 ● ●
655 PATCH; HINGE 8-98031-264-0 01 1 1401- ● ● ●
656 PATCH; STRIKER 8-98031-265-0 02 1 1307-1312 ● ●
656 PATCH; STRIKER 8-98031-265-0 02 1 1401- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
