◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-04 - CAB ASM ▶
6-04 — CAB ASM (#123728) — 5 parça

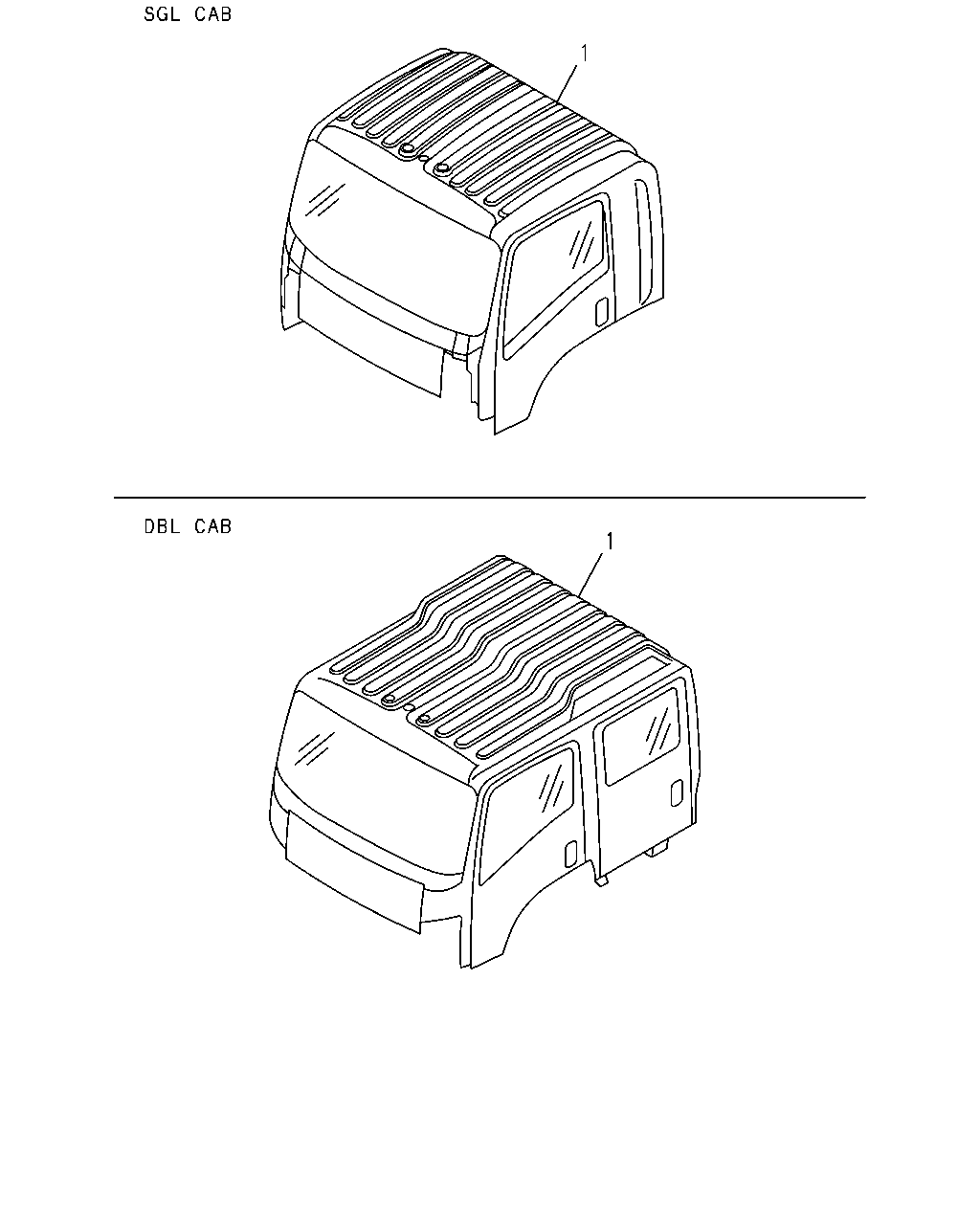

çizim 363585
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) MZW6P M/T(RSZ) LAMPS TWO ROOF MARKER<TEC> CUSTOM PACKAGE(YM8) 2-SPEAKER SYSTEM BASE<U95> IMMOBILIZER SYSTEM<7KC> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> FUEL TANK 200L FRAME SIDE<N20> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGER DOOR<8LX> 		1-61860-205-0 01 1 1307- ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) MZW6P M/T(RSZ) LAMPS TWO ROOF MARKER<TEC> CUSTOM PACKAGE(YM8) 2-SPEAKER SYSTEM BASE<U95> IMMOBILIZER SYSTEM<7KC> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> FUEL TANK 200L FRAME SIDE<N20> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. COUNTRY NEW ZEALAND(CX6),ROUND CURTAIN RAIL<EDH>,MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGER DOOR<8LX> 		1-61860-203-0 01 1 1307-1312 ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) A/T<X9D> LCT2500 A/T ALLISON(Y5W) LAMPS TWO ROOF MARKER<TEC> CUSTOM PACKAGE(YM8) 2-SPEAKER SYSTEM BASE<U95> IMMOBILIZER SYSTEM<7KC> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> FUEL TANK 200L FRAME SIDE<N20> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. ROUND CURTAIN RAIL<EDH>,MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGER DOOR<8LX> 		1-61860-204-0 01 1 1307-1312 ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) MZW6P M/T(RSZ) LAMPS TWO ROOF MARKER<TEC> CUSTOM PACKAGE(YM8) 2-SPEAKER SYSTEM BASE<U95> IMMOBILIZER SYSTEM<7KC> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> FUEL TANK 200L FRAME SIDE<N20> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. COUNTRY NEW ZEALAND(CX6),ROUND CURTAIN RAIL<EDH>,MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGER DOOR<8LX> 		1-61860-203-0 01 1 1401- ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) A/T<X9D> LCT2500 A/T ALLISON(Y5W) LAMPS TWO ROOF MARKER<TEC> CUSTOM PACKAGE(YM8) 2-SPEAKER SYSTEM BASE<U95> IMMOBILIZER SYSTEM<7KC> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> FUEL TANK 200L FRAME SIDE<N20> DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. ROUND CURTAIN RAIL<EDH>,MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGER DOOR<8LX> 		1-61860-204-0 01 1 1401- ● ●
