Sayfa 5-15 - Isuzu EPC

5-15 — CAB MOUNTING; CAB SIDE (#123721) — 221 parça

1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LEVER; TORSION BAR (A)	8-98010-752-7	01	1	1307-1312	●
1	LEVER; TORSION BAR (A)	8-98010-752-7	01	1	1401-	●	●
1	LEVER; TORSION BAR (B)	8-98010-764-1	01	1	1307-			●
3	BOLT; LEVER M12X42 FLANGE	8-98090-287-1	08	1	1307-1312	●		●
3	BOLT; LEVER M12X42 FLANGE	8-98090-287-1	08	1	1401-	●	●	●

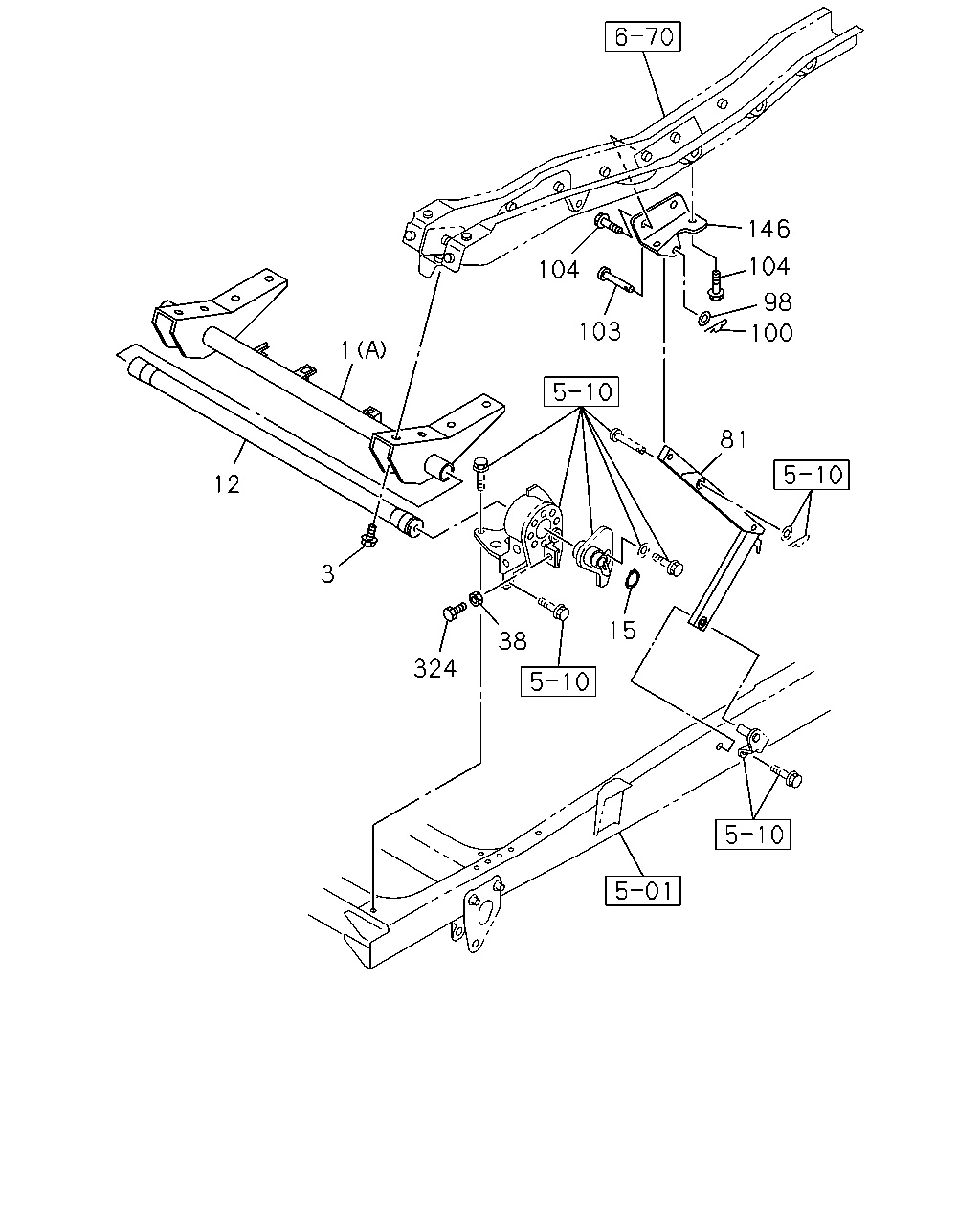

15 324 3 12 1 104 146 100 103 104 81 38 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LEVER; TORSION BAR (A)	8-98010-752-7	01	1	1307-1312	●
1	LEVER; TORSION BAR (A)	8-98010-752-7	01	1	1401-	●	●
1	LEVER; TORSION BAR (B)	8-98010-764-1	01	1	1307-			●
3	BOLT; LEVER M12X42 FLANGE	8-98090-287-1	08	1	1307-1312	●		●
3	BOLT; LEVER M12X42 FLANGE	8-98090-287-1	08	1	1401-	●	●	●
12	BAR; TORSION,UPR	8-98010-947-1	01	1	1307-1312	●
12	BAR; TORSION,UPR	8-98010-947-1	01	1	1401-	●	●
15	RING; SNAP,TORSION BAR T=1.90 BLUE	8-97129-615-0	01	1	1307-1312	●
15	RING; SNAP,TORSION BAR T=1.90 BLUE	8-97129-615-0	01	1	1401-	●	●
38	NUT; LK M14	0-91110-514-0	01	1	1307-1312	●
38	NUT; LK M14	0-91110-514-0	01	1	1401-	●	●
81	STAY ASM; CAB TILT	1-62500-755-0	01	1	1307-1312	●
81	STAY ASM; CAB TILT	1-62500-755-0	01	1	1401-1406	●	●
81	STAY ASM; CAB TILT	8-98278-111-0	01	1	1407-	●	●
98	WASHER; CAB STAY ID=10.5 T=2.0	1-09985-183-0	01	1	1307-1312	●
98	WASHER; CAB STAY ID=10.5 T=2.0	1-09985-183-0	01	1	1401-	●	●
100	PIN; SNAP,CAB STAY TO CAB L=34	8-98039-426-1	01	1	1307-1312	●
100	PIN; SNAP,CAB STAY TO CAB L=34	8-98039-426-1	01	1	1401-	●	●
103	PIN; JOINT,CAB STAY	1-09744-108-1	01	1	1307-1312	●
103	PIN; JOINT,CAB STAY	1-09744-108-1	01	1	1401-	●	●
104	BOLT; CAB STAY BRKT M10X30 FLANGE	0-28661-030-0	04	1	1307-1312	●
104	BOLT; CAB STAY BRKT M10X30 FLANGE	0-28661-030-0	04	1	1401-	●	●
146	BRACKET ASM; CAB STAY UPR	8-98019-506-0	01	1	1307-1312	●
146	BRACKET ASM; CAB STAY UPR	8-98019-506-0	01	1	1401-	●	●
324	BOLT; ADJUST M14X55	8-98004-319-1	01	1	1307-1312	●
324	BOLT; ADJUST M14X55	8-98004-319-1	01	1	1401-1510	●	●
324	BOLT; ADJUST M14X59	8-98330-402-0	01	1	1511-	●	●

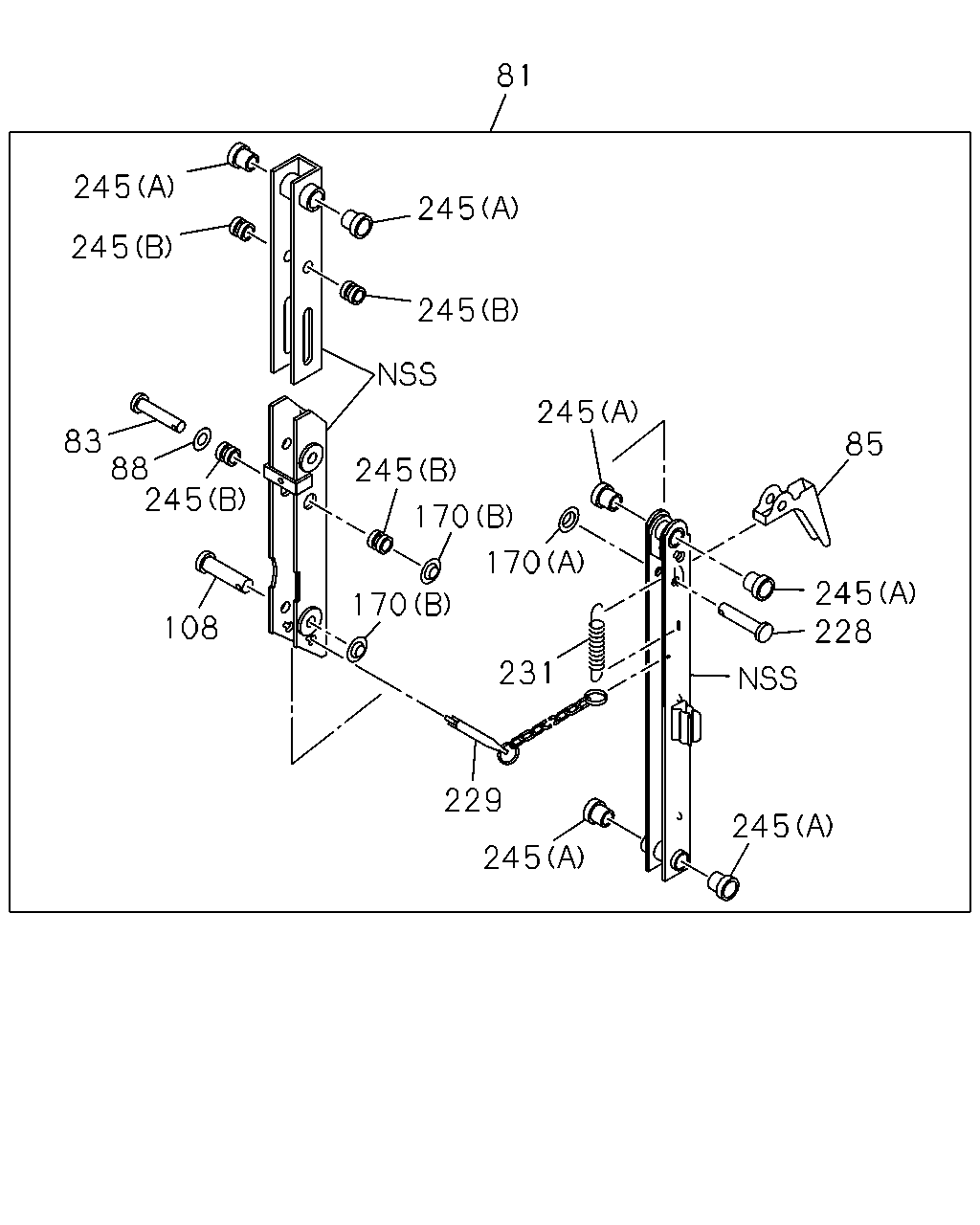

81 245 245 83 88 245 108 229 245 245 228 85 245 231 170 170 170 245 245 245 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	STAY ASM; CAB TILT	1-62500-755-0	01	1	1307-1312	●
81	STAY ASM; CAB TILT	1-62500-755-0	01	1	1401-1406	●	●
81	STAY ASM; CAB TILT	8-98278-111-0	01	1	1407-	●	●
83	PIN; JOINT,CAB STAY OD=10 L=42	1-09744-106-0	01	1	1307-1312	●
83	PIN; JOINT,CAB STAY OD=10 L=42	1-09744-106-0	01	1	1401-	●	●
85	LEVER; LOCK,CAB STAY	1-62500-503-0	01	1	1307-1312	●
85	LEVER; LOCK,CAB STAY	1-62500-503-0	01	1	1401-	●	●
88	WASHER; PL,CAB STAY PIN ID=10.5 T=2.0	1-09985-183-0	01	1	1307-1312	●
88	WASHER; PL,CAB STAY PIN ID=10.5 T=2.0	1-09985-183-0	01	1	1401-	●	●
108	PIN; ADJ,CAB STAY OD=10 L=42	1-09744-106-0	01	1	1307-1312	●
108	PIN; ADJ,CAB STAY OD=10 L=42	1-09744-106-0	01	1	1401-	●	●
170	NUT (A) ID=7.9 PUSH NUT	8-97022-565-0	01	1	1307-1312	●
170	NUT (A) ID=7.9 PUSH NUT	8-97022-565-0	01	1	1401-	●	●
170	NUT (B) ID=9.9 PUSH NUT	8-97022-566-0	02	1	1307-1312	●
170	NUT (B) ID=9.9 PUSH NUT	8-97022-566-0	02	1	1401-	●	●
228	PIN; SAFETY LOCK SPRING,CAB STAY OD=8 L=27	1-09744-086-2	01	1	1307-1312	●
228	PIN; SAFETY LOCK SPRING,CAB STAY OD=8 L=27	1-09744-086-2	01	1	1401-	●	●
229	PIN ASM; SAFETY	1-62500-517-1	01	1	1307-1312	●
229	PIN ASM; SAFETY	1-62500-517-1	01	1	1401-	●	●
231	SPRING; RETURN,LOCK LEVER,CAB STAY	1-09583-244-0	01	1	1307-1312	●
231	SPRING; RETURN,LOCK LEVER,CAB STAY	1-09583-244-0	01	1	1401-	●	●
245	BUSHING; CAB STAY (A)	1-62500-587-0	06	1	1307-1312	●
245	BUSHING; CAB STAY (A)	1-62500-587-0	06	1	1401-	●	●
245	BUSHING; CAB STAY (B)	1-62500-588-0	04	1	1307-1312	●
245	BUSHING; CAB STAY (B)	1-62500-588-0	04	1	1401-	●	●

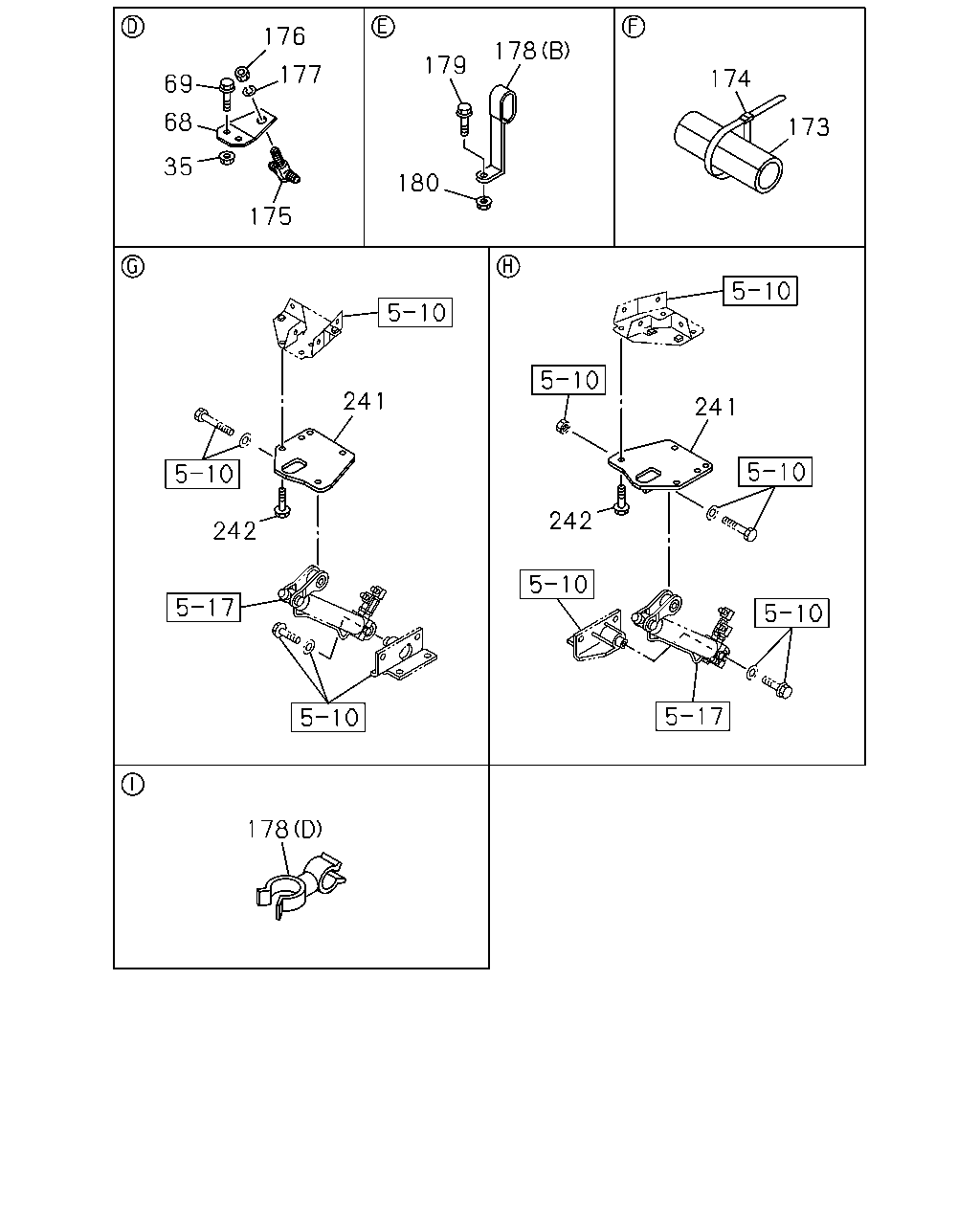

69 68 35 175 177 176 179 180 178 174 173 241 242 178 242 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C
35	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1307-	●
68	BRACKET; UNION	8-98044-029-1	01	1	1307-	●
69	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1307-	●
173	SLEEVE; RUBBER,FLEX HOSE 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) ID=17 OD=21 L=40	1-09337-012-0	06	1	1307-	●
173	SLEEVE; RUBBER,FLEX HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41) ID=17 OD=21 L=40	1-09337-012-0	04	1	1307-	●
173	SLEEVE; RUBBER,FLEX HOSE 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) ID=17 OD=21 L=40	1-09337-012-0	03	1	1307-	●
173	SLEEVE; RUBBER,FLEX HOSE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41) ID=17 OD=21 L=40	1-09337-012-0	01	1	1307-	●
174	CLIP; BAND,FLEX HOSE L=250	5-09707-030-1	02	1	1307-	●
174	CLIP; BAND,FLEX HOSE 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-031-1	10	1	1307-	●
174	CLIP; BAND,FLEX HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41) L=140	5-09707-031-1	08	1	1307-	●
174	CLIP; BAND,FLEX HOSE 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-031-1	06	1	1307-	●
174	CLIP; BAND,FLEX HOSE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41) L=140	5-09707-031-1	04	1	1307-	●
175	UNION; FLEX HOSE M12 L=69	0-92138-506-0	01	1	1307-	●
176	NUT; UNION M12	9-09840-280-0	01	1	1307-	●
177	WASHER; LK,UNION	1-09985-189-0	01	1	1307-	●
178	CLIP; FLEX HOSE (B) M13X2 H=20 L=60	1-09701-280-0	03	1	1307-	●
178	CLIP; FLEX HOSE (D) ID=8.3 & 10	8-94176-792-0	02	1	1307-	●
178	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) (A) ID=9X2 L=20	0-95324-835-0	04	1	1307-	●
178	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) (C) ID=19 L=28	0-95235-856-0	01	1	1307-	●
178	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) (A) ID=9X2 L=20	0-95324-835-0	03	1	1307-	●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	07	1	1307-	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1307-	●
241	BRACKET; POWER CYL UPR,CAB TILT	8-98095-154-0	01	1	1307-	●
241	BRACKET; POWER CYL UPR,CAB TILT	8-98095-153-0	01	1	1307-	●
242	BOLT; POWER CYL BRKT,CAB TILT M10X30 FLANGE	0-28661-030-0	08	1	1307-	●

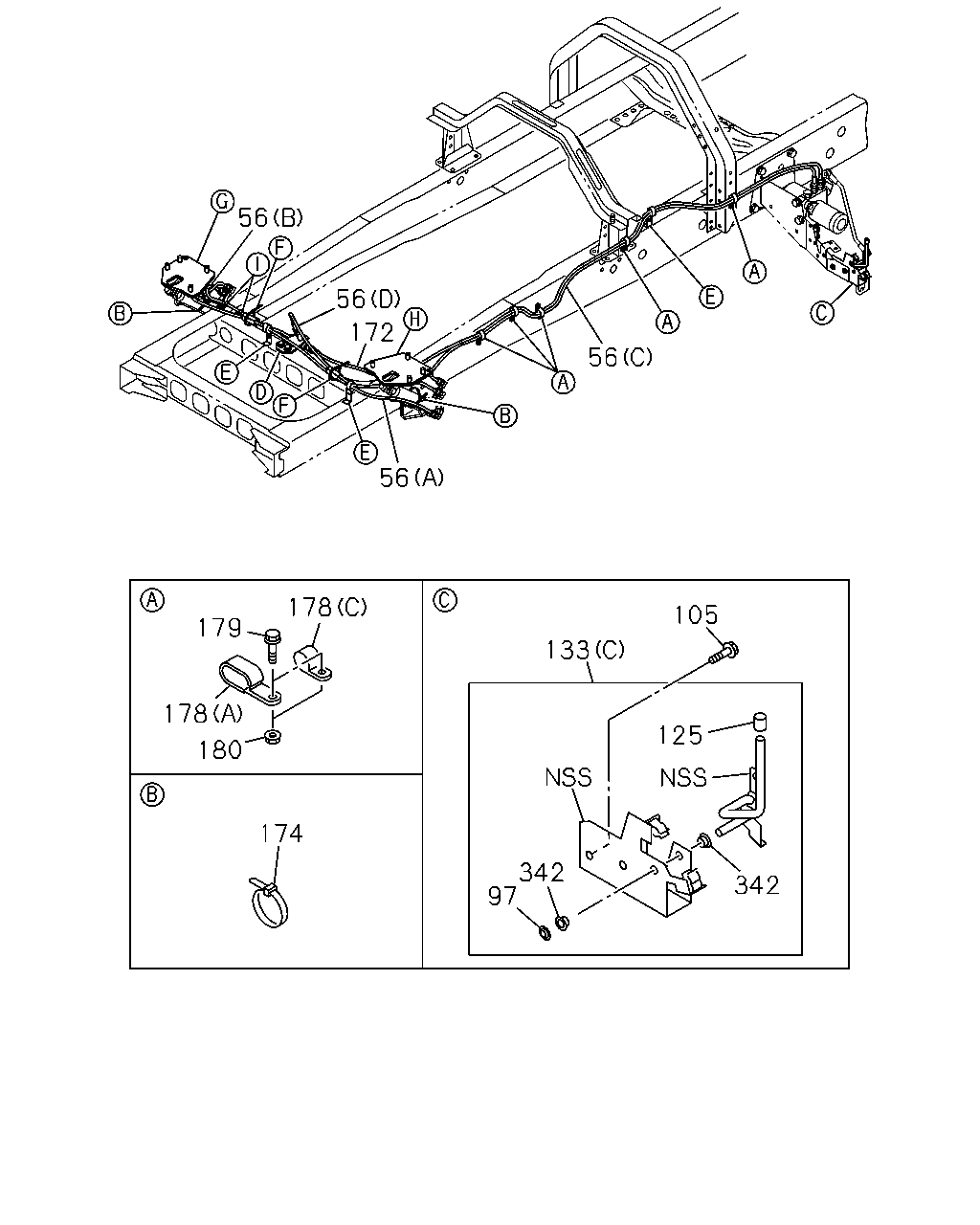

56 56 172 56 56 178 179 178 180 174 133 105 125 97 342 342

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
56	HOSE; FLEX,OIL PIPE (A) L=1500	8-98044-009-2	01	1	1307-			●
56	HOSE; FLEX,OIL PIPE (D) L=935	8-98044-010-2	01	1	1307-			●
56	HOSE; FLEX,OIL PIPE (B) L=670	8-98044-011-2	01	1	1307-			●
56	HOSE; FLEX,OIL PIPE 4HK1-TCS ENG(RJS) (C) L=2810	8-98186-974-1	01	1	1307-			●
56	HOSE; FLEX,OIL PIPE 6HK1-TCN ENG(82L) (C) L=2810	8-98044-008-2	01	1	1307-			●
97	NUT; CAB STAY PIN ID=9.9 PUSH NUT	8-97022-566-0	01	1	1307-			●
105	BOLT; CAB STAY M8X16 FLANGE	0-28050-816-0	02	1	1307-			●
125	GRIP; HAND LEVER,CAB LOCK ID=9.0	8-94207-303-0	01	1	1307-			●
133	LOCK ASM; CAB (A)	8-98094-285-2	01	1	1307-1312	●		●
133	LOCK ASM; CAB (A)	8-98094-285-2	01	1	1401-	●	●	●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	1307-1312	●		●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	1401-	●	●	●
133	LOCK ASM; CAB (C)	8-97608-198-0	01	1	1307-			●
172	HOSE; FLEX,OIL TILT L=3010	8-98044-012-2	01	1	1307-			●
174	CLIP; BAND,FLEX HOSE L=250	5-09707-030-1	02	1	1307-			●
174	CLIP; BAND,FLEX HOSE 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-031-1	10	1	1307-			●
174	CLIP; BAND,FLEX HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41) L=140	5-09707-031-1	08	1	1307-			●
174	CLIP; BAND,FLEX HOSE 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-031-1	06	1	1307-			●
174	CLIP; BAND,FLEX HOSE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41) L=140	5-09707-031-1	04	1	1307-			●
178	CLIP; FLEX HOSE (B) M13X2 H=20 L=60	1-09701-280-0	03	1	1307-			●
178	CLIP; FLEX HOSE (D) ID=8.3 & 10	8-94176-792-0	02	1	1307-			●
178	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) (A) ID=9X2 L=20	0-95324-835-0	04	1	1307-			●
178	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) (C) ID=19 L=28	0-95235-856-0	01	1	1307-			●
178	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) (A) ID=9X2 L=20	0-95324-835-0	03	1	1307-			●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	07	1	1307-			●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1307-			●
342	BUSHING; LEVER,CAB LOCK T=6 OD=17.5	9-33659-249-0	02	1	1307-			●

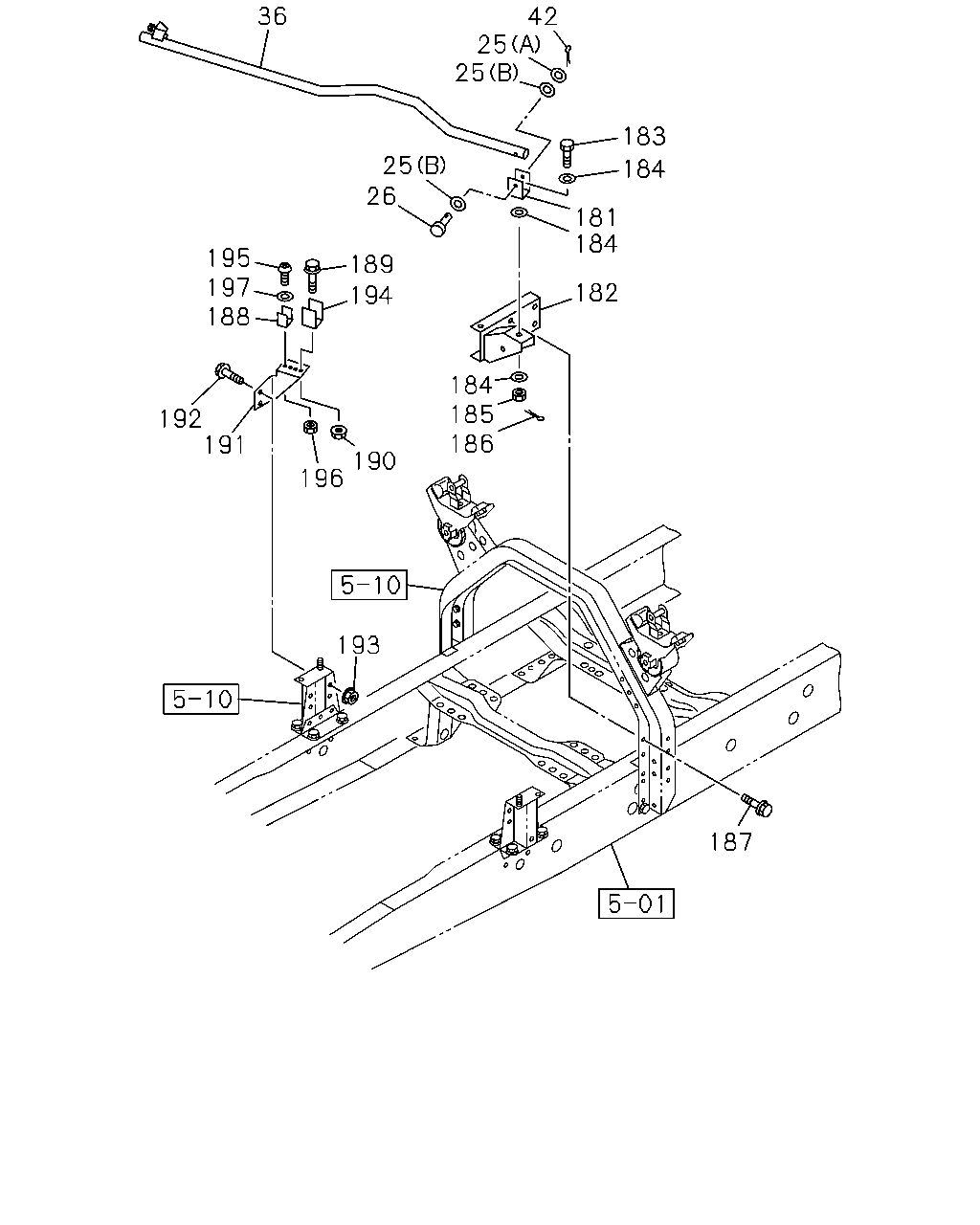

36 42 25 25 183 184 25 26 195 197 188 192 189 194 196 190 193 187 186 185 184 182 184 181 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C
25	WASHER; PL,STAY (A) ID=15	0-91610-514-0	01	1	1307-	●
25	WASHER; PL,STAY (B) ID=15	0-91614-614-0	02	1	1307-	●
26	PIN; STAY OD=14 L=62	0-82354-462-0	01	1	1307-	●
36	STAY; OIL TILT	8-98057-730-1	01	1	1307-	●
42	PIN; SPLIT,STAY OD=3.7 L=25	0-81124-025-0	01	1	1307-	●
181	BRACKET; STAY,OIL TILT	1-53719-018-1	01	1	1307-	●
182	BRACKET; STAY BRKT,OIL TILT	8-98100-303-1	01	1	1307-	●
183	BOLT; BRKT M16X40 W/PIN HOLE	1-09042-043-0	01	1	1307-	●
184	WASHER; PL,BRKT ID=17 OD=30	0-91610-516-0	03	1	1307-	●
185	NUT; BRKT M16 SLOTTED	8-98049-689-0	01	1	1307-	●
186	PIN; BRKT OD=3.7 L=25	0-81124-025-0	01	1	1307-	●
187	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	04	1	1307-	●
188	CLIP; STAY,OIL TILT	1-09709-114-0	01	1	1307-	●
189	BOLT; CLIP M6X12 FLANGE	0-28050-612-0	02	1	1307-	●
190	NUT; CLIP M6 FLANGE	0-91180-106-0	02	1	1307-	●
191	BRACKET; CLIP,STAY	8-98050-969-1	01	1	1307-	●
192	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1307-	●
193	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1307-	●
194	GUIDE; STAY	1-53719-020-0	01	1	1307-	●
195	SCREW; GUIDE M4X12	0-34218-412-0	02	1	1307-	●
196	NUT; GUIDE M4	9-99110-404-0	02	1	1307-	●
197	WASHER; LK,GUIDE ID=4.1	0-91510-504-0	02	1	1307-	●

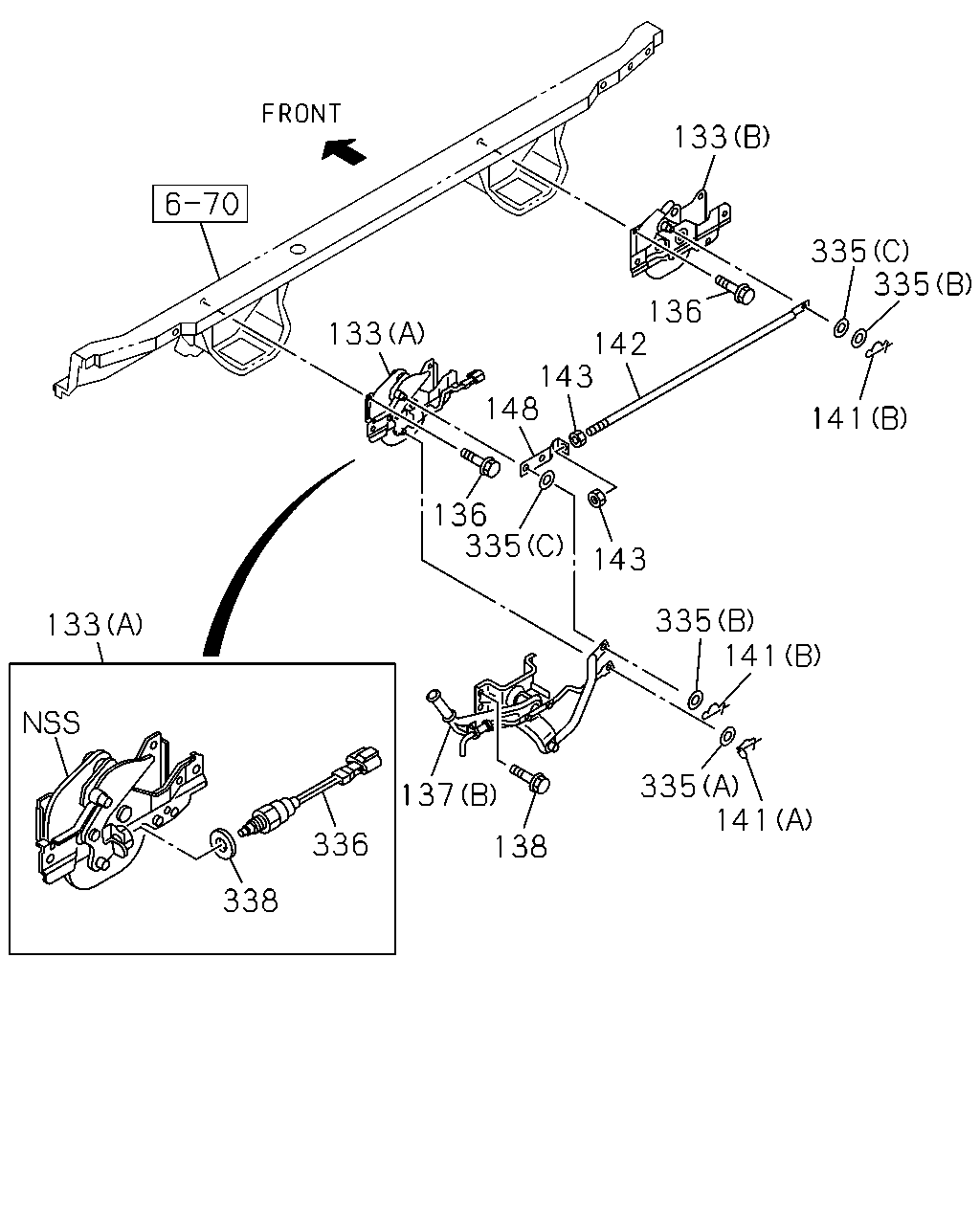

133 338 336 138 335 141 141 335 143 335 136 148 141 335 335 133 136 142 143 133 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
133	LOCK ASM; CAB (A)	8-98094-285-2	01	1	1307-1312	●		●
133	LOCK ASM; CAB (A)	8-98094-285-2	01	1	1401-	●	●	●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	1307-1312	●		●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	1401-	●	●	●
133	LOCK ASM; CAB (C)	8-97608-198-0	01	1	1307-			●
136	BOLT; CAB LK M8X20 FLANGE	0-28650-820-0	08	1	1307-1312	●		●
136	BOLT; CAB LK M8X20 FLANGE	0-28650-820-0	08	1	1401-	●	●	●
137	CONTROL UNIT; CAB LOCK (A)	8-97584-470-5	01	1	1307-1312	●
137	CONTROL UNIT; CAB LOCK (A)	8-97584-470-5	01	1	1401-	●	●
137	CONTROL UNIT; CAB LOCK (B)	8-98057-300-3	01	1	1307-			●
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE	0-28650-820-0	04	1	1307-1312	●		●
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE	0-28650-820-0	04	1	1401-	●	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	1307-1312	●		●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	1307-1312	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	1401-	●	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	1401-	●	●
141	PIN; SNAP,CAB LOCK ROD (B) L=32.6	8-98062-280-0	02	1	1307-1312	●		●
141	PIN; SNAP,CAB LOCK ROD (B) L=32.6	8-98062-280-0	02	1	1401-	●	●	●
142	ROD; HOOK TO HOOK	8-97587-990-0	01	1	1307-1312	●		●
142	ROD; HOOK TO HOOK	8-97587-990-0	01	1	1401-	●	●	●
143	NUT; JAW JOINT,HOOK TO HOOK M10	0-91110-510-0	02	1	1307-1312	●		●
143	NUT; JAW JOINT,HOOK TO HOOK M10	0-91110-510-0	02	1	1401-	●	●	●
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	1307-1312	●		●
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	1401-	●	●	●
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=16	0-91610-508-0	01	1	1307-1312	●		●
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=16	0-91610-508-0	01	1	1401-	●	●	●
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=26	0-91610-612-0	02	1	1307-1312	●		●
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=26	0-91610-612-0	02	1	1401-	●	●	●
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	02	1	1307-1312	●		●
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	02	1	1401-	●	●	●
336	SWITCH; CAB LOCK	8-98091-155-1	01	1	1307-1312	●		●
336	SWITCH; CAB LOCK	8-98091-155-1	01	1	1401-	●	●	●
338	WASHER; CAB LOCK ID=17 OD=30	0-91610-516-0	01	1	1307-1312	●		●
338	WASHER; CAB LOCK ID=17 OD=30	0-91610-516-0	01	1	1401-	●	●	●

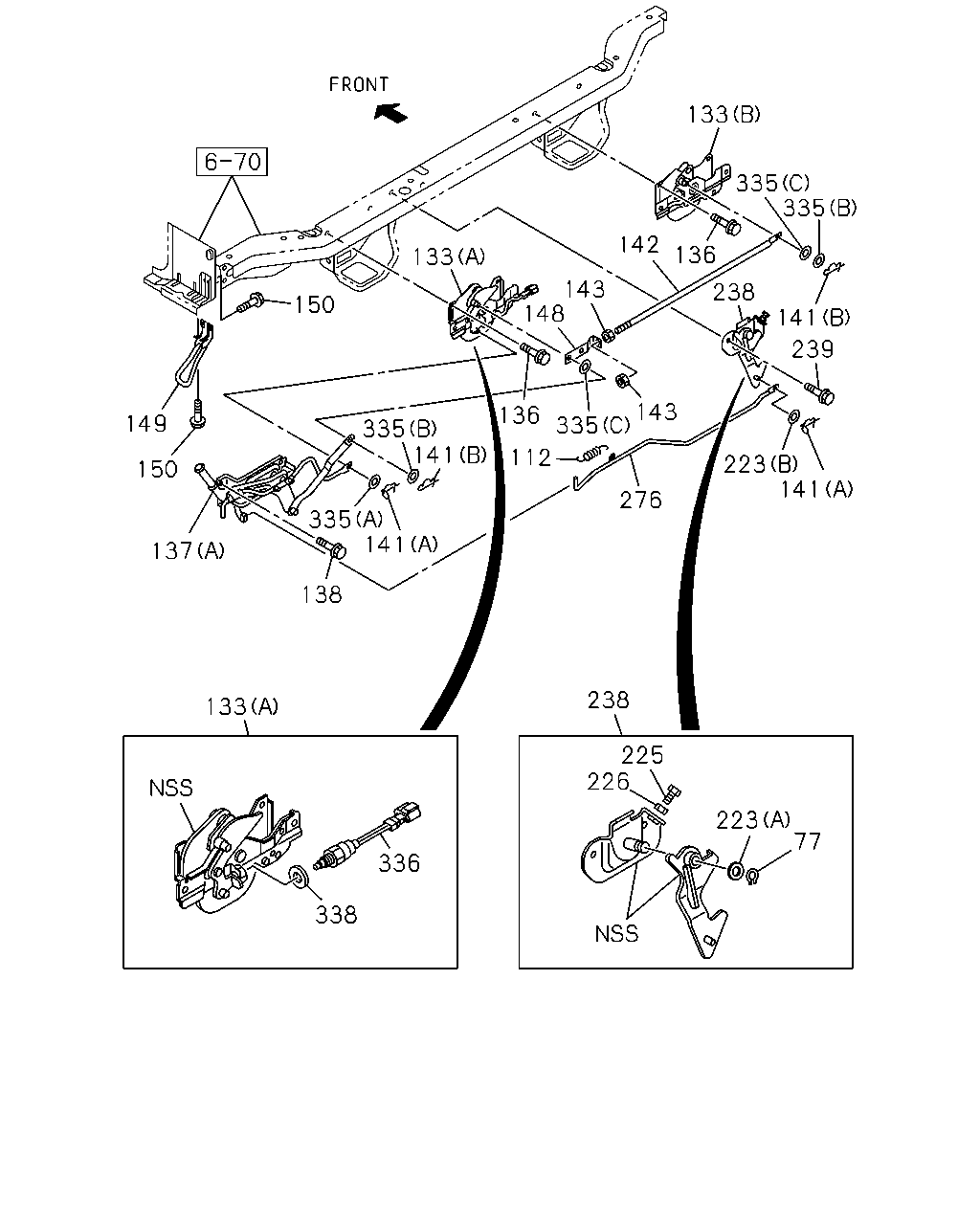

133 335 335 136 142 238 239 143 148 133 150 149 150 137 138 335 141 141 335 136 112 276 335 143 223 141 338 336 226 238 225 223 77 133 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
77	RING; SNAP ID=14.7	0-91800-616-0	01	1	1307-1312	●
77	RING; SNAP ID=14.7	0-91800-616-0	01	1	1401-	●	●
112	SPRING; RETURN,SAFETY ROD	1-79718-655-0	01	1	1307-1312	●
112	SPRING; RETURN,SAFETY ROD	1-79718-655-0	01	1	1401-	●	●
133	LOCK ASM; CAB (A)	8-98094-285-2	01	1	1307-1312	●		●
133	LOCK ASM; CAB (A)	8-98094-285-2	01	1	1401-	●	●	●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	1307-1312	●		●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	1401-	●	●	●
133	LOCK ASM; CAB (C)	8-97608-198-0	01	1	1307-			●
136	BOLT; CAB LK M8X20 FLANGE	0-28650-820-0	08	1	1307-1312	●		●
136	BOLT; CAB LK M8X20 FLANGE	0-28650-820-0	08	1	1401-	●	●	●
137	CONTROL UNIT; CAB LOCK (A)	8-97584-470-5	01	1	1307-1312	●
137	CONTROL UNIT; CAB LOCK (A)	8-97584-470-5	01	1	1401-	●	●
137	CONTROL UNIT; CAB LOCK (B)	8-98057-300-3	01	1	1307-			●
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE	0-28650-820-0	04	1	1307-1312	●		●
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE	0-28650-820-0	04	1	1401-	●	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	1307-1312	●		●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	1307-1312	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	1401-	●	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	1401-	●	●
141	PIN; SNAP,CAB LOCK ROD (B) L=32.6	8-98062-280-0	02	1	1307-1312	●		●
141	PIN; SNAP,CAB LOCK ROD (B) L=32.6	8-98062-280-0	02	1	1401-	●	●	●
142	ROD; HOOK TO HOOK	8-97587-990-0	01	1	1307-1312	●		●
142	ROD; HOOK TO HOOK	8-97587-990-0	01	1	1401-	●	●	●
143	NUT; JAW JOINT,HOOK TO HOOK M10	0-91110-510-0	02	1	1307-1312	●		●
143	NUT; JAW JOINT,HOOK TO HOOK M10	0-91110-510-0	02	1	1401-	●	●	●
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	1307-1312	●		●
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	1401-	●	●	●
149	HANDLE; TILT	8-98025-706-0	01	1	1307-1312	●
149	HANDLE; TILT	8-98025-706-0	01	1	1401-	●	●
150	BOLT; TILT HANDLE M8X20 FLANGE	0-28650-820-0	04	1	1307-1312	●
150	BOLT; TILT HANDLE M8X20 FLANGE	0-28650-820-0	04	1	1401-	●	●
223	WASHER; PL,SAFETY LK (B) ID=8.4 OD=16	0-91610-508-0	01	1	1307-1312	●
223	WASHER; PL,SAFETY LK (B) ID=8.4 OD=16	0-91610-508-0	01	1	1401-	●	●
223	WASHER; PL,SAFETY LK (A) ID=17 OD=30	0-91610-516-0	01	1	1307-1312	●
223	WASHER; PL,SAFETY LK (A) ID=17 OD=30	0-91610-516-0	01	1	1401-	●	●
225	BOLT; SAFETY LK M8X30 FLANGE	0-28050-830-0	01	1	1307-1312	●
225	BOLT; SAFETY LK M8X30 FLANGE	0-28050-830-0	01	1	1401-	●	●
226	NUT; SAFETY LK M8	0-91110-508-0	01	1	1307-1312	●
226	NUT; SAFETY LK M8	0-91110-508-0	01	1	1401-	●	●
238	LOCK ASM; SAFETY,CAB TILT	8-98048-899-1	01	1	1307-1312	●
238	LOCK ASM; SAFETY,CAB TILT	8-98048-899-1	01	1	1401-	●	●
239	BOLT; SAFETY LK M8X20 FLANGE	0-28650-820-0	02	1	1307-1312	●
239	BOLT; SAFETY LK M8X20 FLANGE	0-28650-820-0	02	1	1401-	●	●
276	ROD ASM; CAB LOCK,HOOK TO HOOK	8-98048-830-1	01	1	1307-1312	●
276	ROD ASM; CAB LOCK,HOOK TO HOOK	8-98048-830-1	01	1	1401-	●	●
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=16	0-91610-508-0	01	1	1307-1312	●		●
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=16	0-91610-508-0	01	1	1401-	●	●	●
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=26	0-91610-612-0	02	1	1307-1312	●		●
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=26	0-91610-612-0	02	1	1401-	●	●	●
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	02	1	1307-1312	●		●
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	02	1	1401-	●	●	●
336	SWITCH; CAB LOCK	8-98091-155-1	01	1	1307-1312	●		●
336	SWITCH; CAB LOCK	8-98091-155-1	01	1	1401-	●	●	●
338	WASHER; CAB LOCK ID=17 OD=30	0-91610-516-0	01	1	1307-1312	●		●
338	WASHER; CAB LOCK ID=17 OD=30	0-91610-516-0	01	1	1401-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
