◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#123719) — 200 parça

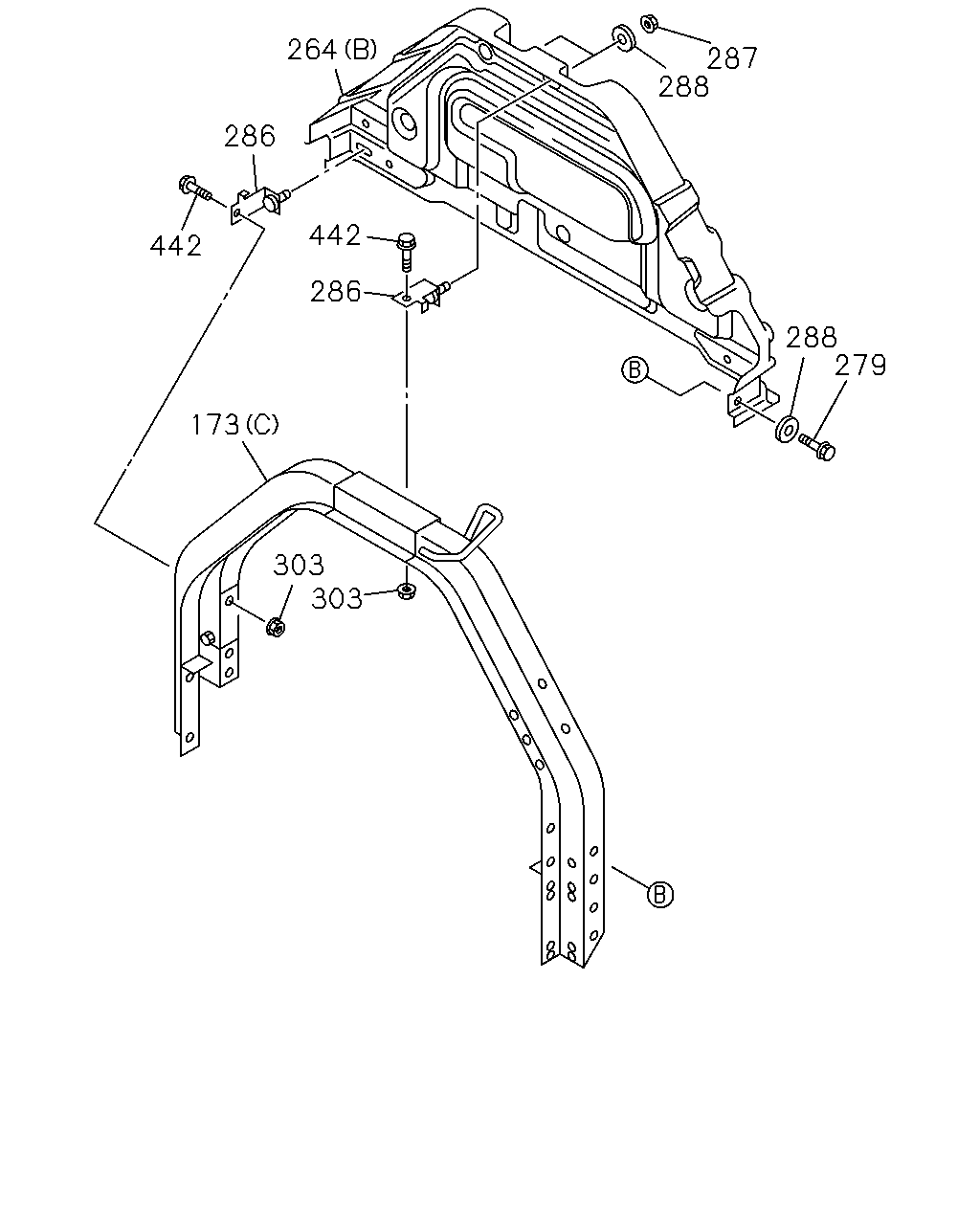

çizim 364667
303 303 173 442 442 286 264 286 288 288 287 279
BalonParca AdiParca NoAdetTipApplied Date A B C
173 MEMBER; CAB MTG RR
(A) 		8-98150-944-0 01 1 1307-1312 ●
173 MEMBER; CAB MTG RR
(A) 		8-98150-944-0 01 1 1401- ● ●
173 MEMBER; CAB MTG RR
(B) 		1-53454-568-1 01 1 1307- ●
173 MEMBER; CAB MTG RR
(C) 		8-98182-192-1 01 1 1307- ●
264 PANEL; BACK
LCT2500 A/T ALLISON(Y5W) (A) 		8-98092-711-3 01 1 1307-1312 ●
264 PANEL; BACK
LCT2500 A/T ALLISON(Y5W) (A) 		8-98092-711-3 01 1 1401- ● ●
264 PANEL; BACK
MZW6P M/T(RSZ) (A) 		1-53194-609-2 01 1 1307-1312 ●
264 PANEL; BACK
MZW6P M/T(RSZ) (A) 		1-53194-609-2 01 1 1401- ● ●
264 PANEL; BACK
6HK1-TCN ENG(82L) (B) 		8-98055-597-1 01 1 1307- ●
279 BOLT
M8X25 FLANGE 		0-28650-825-0 01 1 1307-1312 ●
279 BOLT
6HK1-TCN ENG(82L) M8X25 FLANGE 		0-28650-825-0 01 1 1307-1312 ●
279 BOLT
M8X25 FLANGE 		0-28650-825-0 01 1 1401- ● ●
279 BOLT
6HK1-TCN ENG(82L) M8X25 FLANGE 		0-28650-825-0 01 1 1401- ●
286 BRACKET; LOW 1-53457-187-0 02 1 1307-1312 ●
286 BRACKET; LOW
6HK1-TCN ENG(82L) 		1-53457-187-0 02 1 1307-1312 ●
286 BRACKET; LOW 1-53457-187-0 02 1 1401- ● ●
286 BRACKET; LOW
6HK1-TCN ENG(82L) 		1-53457-187-0 02 1 1401- ●
287 NUT
M8 FLANGE 		0-91180-108-0 03 1 1307-1312 ●
287 NUT
M8 FLANGE 		0-91180-108-0 03 1 1401- ● ●
287 NUT
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 02 1 1307- ●
288 WASHER; PL
ID=8.4 OD=26 		0-91614-808-0 03 1 1307-1312 ●
288 WASHER; PL
6HK1-TCN ENG(82L) ID=8.4 OD=26 		0-91614-808-0 03 1 1307-1312 ●
288 WASHER; PL
ID=8.4 OD=26 		0-91614-808-0 03 1 1401- ● ●
288 WASHER; PL
6HK1-TCN ENG(82L) ID=8.4 OD=26 		0-91614-808-0 03 1 1401- ●
303 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
303 NUT; BRKT
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
303 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
303 NUT; BRKT
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 02 1 1401- ●
442 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ●
442 BOLT; BRKT
6HK1-TCN ENG(82L) M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ●
442 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ●
442 BOLT; BRKT
6HK1-TCN ENG(82L) M8X20 FLANGE 		0-28650-820-0 02 1 1401- ●

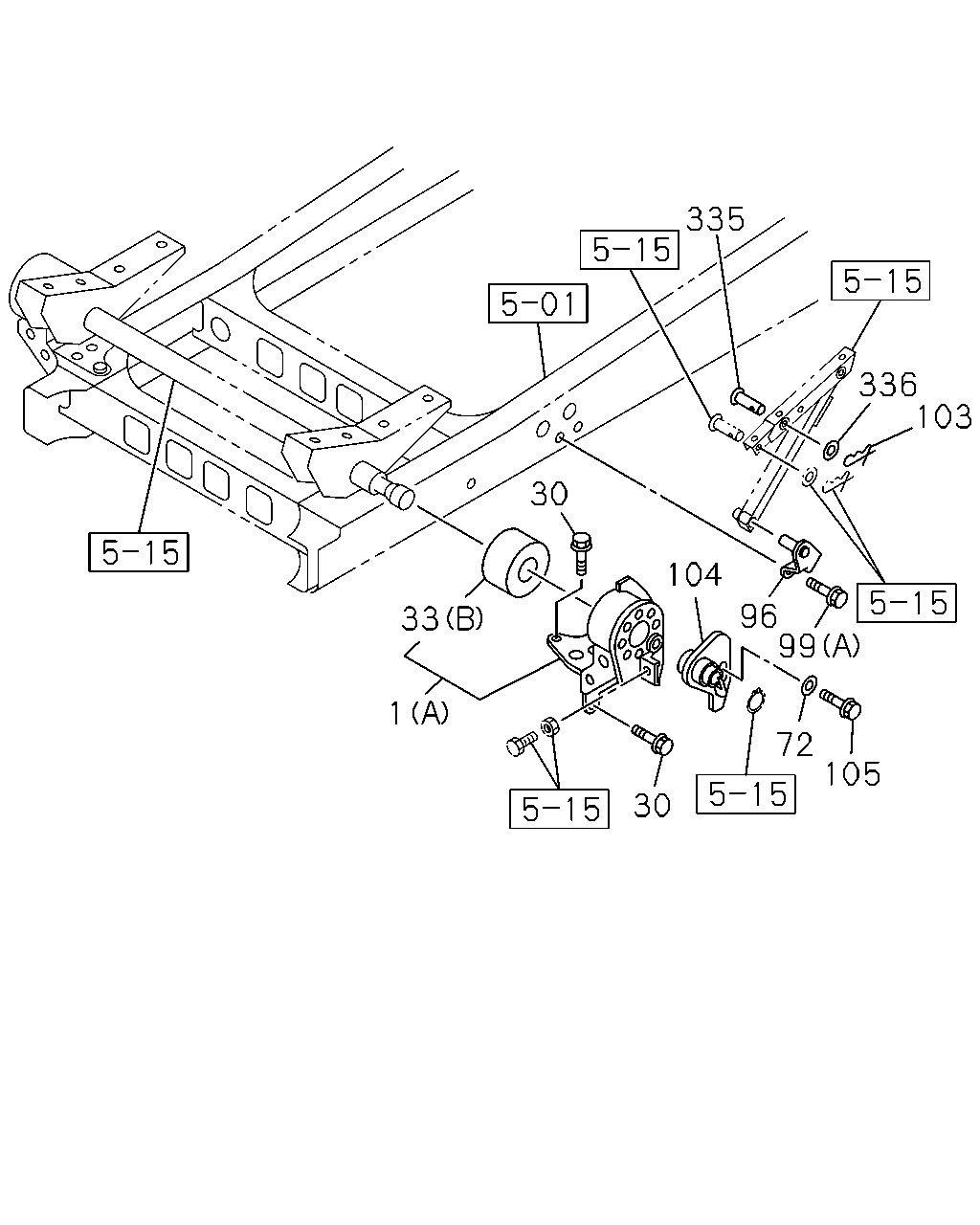

çizim 364707
30 33 1 335 104 336 103 96 99 72 105 30
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BRACKET; CAB MTG
(A) 		8-98010-749-3 01 1 1307-1312 ●
1 BRACKET; CAB MTG
(A) 		8-98010-749-3 01 1 1401- ● ●
1 BRACKET; CAB MTG
(A) 		8-98010-748-2 01 1 1307-1312 ●
1 BRACKET; CAB MTG
(A) 		8-98010-748-2 01 1 1401- ● ●
1 BRACKET; CAB MTG
(D) 		8-98094-593-0 02 1 1307- ●
1 BRACKET; CAB MTG
(C) 		8-98182-180-1 02 1 1307- ●
1 BRACKET; CAB MTG
(B) 		8-98017-666-2 01 1 1307- ●
1 BRACKET; CAB MTG
(B) 		8-98017-665-2 01 1 1307- ●
30 BOLT; CAB FRT FOOT
M14X45 FLANGE 		0-28861-445-0 10 1 1307-1312 ● ●
30 BOLT; CAB FRT FOOT
M14X45 FLANGE 		0-28861-445-0 10 1 1401- ● ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		8-98010-759-2 02 1 1307-1312 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		8-98010-759-2 02 1 1401- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) 		8-98013-932-2 02 1 1307-1312 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) 		8-98013-932-2 02 1 1401- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(C) 		8-98013-933-1 02 1 1307- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(D) 		8-98013-934-1 02 1 1307- ●
72 WASHER; PL,BRKT TO FRAME
ID=15 OD=36 		0-91614-714-0 01 1 1307-1312 ●
72 WASHER; PL,BRKT TO FRAME
ID=15 OD=36 		0-91614-714-0 01 1 1401- ● ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 1307-1312 ●
96 BRACKET; CAB STAY 1-62500-628-0 01 1 1401- ● ●
99 BOLT; BRKT
(A) M10X30 FLANGE 		0-28661-030-0 02 1 1307-1312 ●
99 BOLT; BRKT
(A) M10X30 FLANGE 		0-28661-030-0 02 1 1401- ● ●
99 BOLT; BRKT
(B) M12X25 FLANGE 		0-28051-225-0 02 1 1307- ●
99 BOLT; BRKT
(C) M12X35 FLANGE 		0-28061-235-0 12 1 1307- ●
103 PIN; SPLIT,CAB STAY
L=32.6 		8-98062-280-0 01 1 1307-1312 ●
103 PIN; SPLIT,CAB STAY
L=32.6 		8-98062-280-0 01 1 1401- ● ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98010-753-3 01 1 1307-1312 ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98010-753-3 01 1 1401-1510 ● ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98330-224-0 01 1 1511- ● ●
105 BOLT; BRKT TO CAB FRAME
M14X35 FLANGE 		0-28661-435-0 01 1 1307-1312 ●
105 BOLT; BRKT TO CAB FRAME
M14X35 FLANGE 		0-28661-435-0 01 1 1401- ● ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 1307-1312 ●
335 PIN; ADJ,STAY LOCK
OD=10 L=48 		1-09744-107-0 01 1 1401- ● ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 1307-1312 ●
336 WASHER; PL,STAY LOCK
ID=10.5 T=2.0 		1-09985-183-0 01 1 1401- ● ●

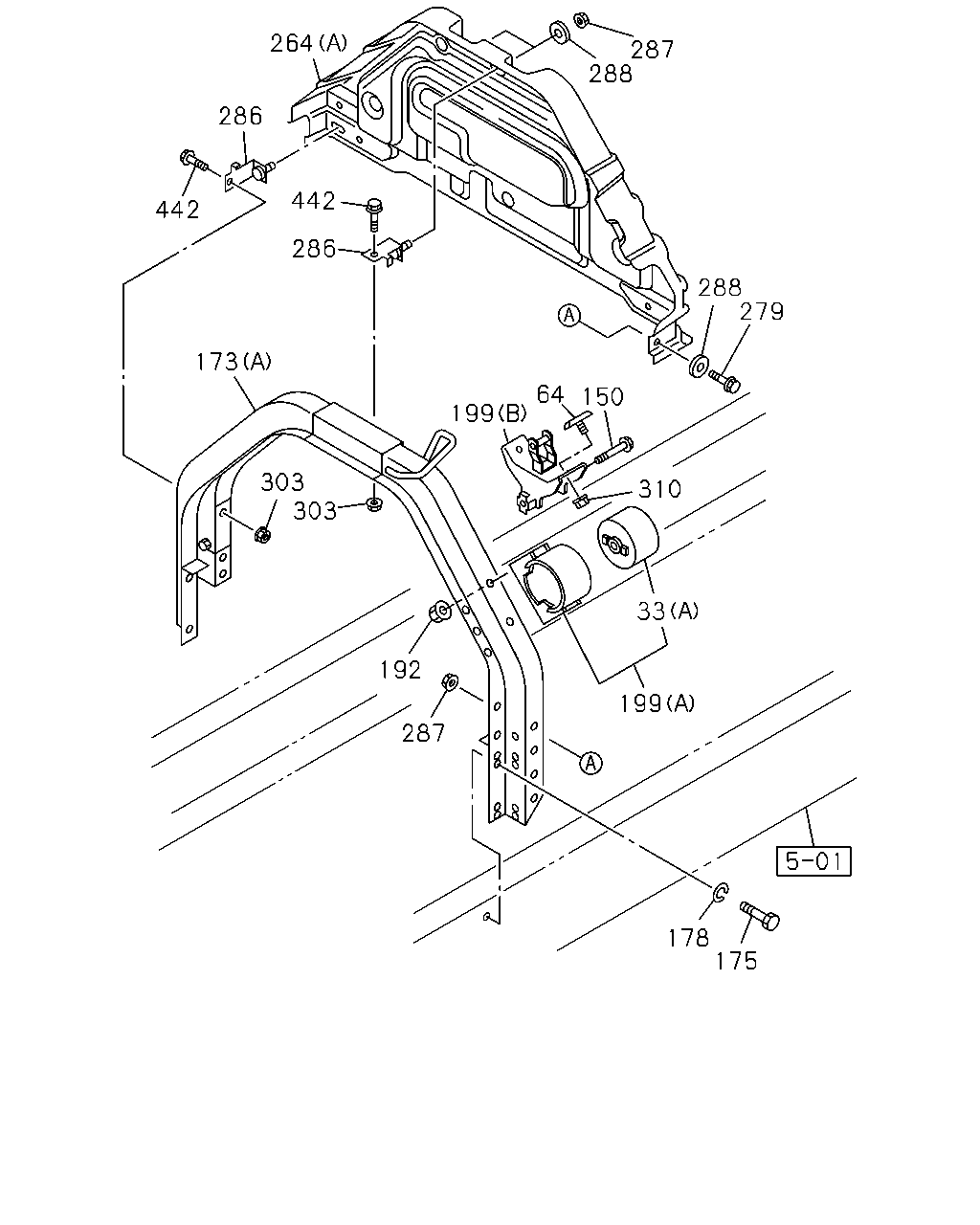

çizim 364708
287 192 178 175 303 303 286 442 173 199 199 33 310 150 64 288 279 286 442 264 288 287
BalonParca AdiParca NoAdetTipApplied Date A B C
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		8-98010-759-2 02 1 1307-1312 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		8-98010-759-2 02 1 1401- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) 		8-98013-932-2 02 1 1307-1312 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) 		8-98013-932-2 02 1 1401- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(C) 		8-98013-933-1 02 1 1307- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(D) 		8-98013-934-1 02 1 1307- ●
64 RUBBER; CUSHION 8-97113-340-0 04 1 1307-1312 ● ●
64 RUBBER; CUSHION 8-97113-340-0 04 1 1401- ● ● ●
150 BOLT; CAB MTG RR
M14X100 		0-10956-400-0 02 1 1307-1312 ● ●
150 BOLT; CAB MTG RR
M14X100 		0-10956-400-0 02 1 1401- ● ● ●
173 MEMBER; CAB MTG RR
(A) 		8-98150-944-0 01 1 1307-1312 ●
173 MEMBER; CAB MTG RR
(A) 		8-98150-944-0 01 1 1401- ● ●
173 MEMBER; CAB MTG RR
(B) 		1-53454-568-1 01 1 1307- ●
173 MEMBER; CAB MTG RR
(C) 		8-98182-192-1 01 1 1307- ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 1307-1312 ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 1401- ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 1307-1312 ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 1401- ● ● ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 04 1 1307-1312 ● ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 04 1 1401- ● ● ●
199 BRACKET; CAB RR MTG
(A) 		8-98010-769-2 02 1 1307-1312 ●
199 BRACKET; CAB RR MTG
(A) 		8-98010-769-2 02 1 1401- ● ●
199 BRACKET; CAB RR MTG
(B) 		8-98023-692-0 02 1 1307-1312 ●
199 BRACKET; CAB RR MTG
(B) 		8-98023-692-0 02 1 1401- ● ●
199 BRACKET; CAB RR MTG
(C) 		8-98044-033-1 02 1 1307- ●
199 BRACKET; CAB RR MTG
(D) 		8-98095-166-0 02 1 1307- ●
264 PANEL; BACK
LCT2500 A/T ALLISON(Y5W) (A) 		8-98092-711-3 01 1 1307-1312 ●
264 PANEL; BACK
LCT2500 A/T ALLISON(Y5W) (A) 		8-98092-711-3 01 1 1401- ● ●
264 PANEL; BACK
MZW6P M/T(RSZ) (A) 		1-53194-609-2 01 1 1307-1312 ●
264 PANEL; BACK
MZW6P M/T(RSZ) (A) 		1-53194-609-2 01 1 1401- ● ●
264 PANEL; BACK
6HK1-TCN ENG(82L) (B) 		8-98055-597-1 01 1 1307- ●
279 BOLT
M8X25 FLANGE 		0-28650-825-0 01 1 1307-1312 ●
279 BOLT
6HK1-TCN ENG(82L) M8X25 FLANGE 		0-28650-825-0 01 1 1307-1312 ●
279 BOLT
M8X25 FLANGE 		0-28650-825-0 01 1 1401- ● ●
279 BOLT
6HK1-TCN ENG(82L) M8X25 FLANGE 		0-28650-825-0 01 1 1401- ●
286 BRACKET; LOW 1-53457-187-0 02 1 1307-1312 ●
286 BRACKET; LOW
6HK1-TCN ENG(82L) 		1-53457-187-0 02 1 1307-1312 ●
286 BRACKET; LOW 1-53457-187-0 02 1 1401- ● ●
286 BRACKET; LOW
6HK1-TCN ENG(82L) 		1-53457-187-0 02 1 1401- ●
287 NUT
M8 FLANGE 		0-91180-108-0 03 1 1307-1312 ●
287 NUT
M8 FLANGE 		0-91180-108-0 03 1 1401- ● ●
287 NUT
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 02 1 1307- ●
288 WASHER; PL
ID=8.4 OD=26 		0-91614-808-0 03 1 1307-1312 ●
288 WASHER; PL
6HK1-TCN ENG(82L) ID=8.4 OD=26 		0-91614-808-0 03 1 1307-1312 ●
288 WASHER; PL
ID=8.4 OD=26 		0-91614-808-0 03 1 1401- ● ●
288 WASHER; PL
6HK1-TCN ENG(82L) ID=8.4 OD=26 		0-91614-808-0 03 1 1401- ●
303 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
303 NUT; BRKT
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
303 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
303 NUT; BRKT
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 02 1 1401- ●
310 NUT; CUSHION
M8 FLANGE 		0-91180-108-0 04 1 1307-1312 ● ●
310 NUT; CUSHION
M8 FLANGE 		0-91180-108-0 04 1 1401- ● ● ●
442 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ●
442 BOLT; BRKT
6HK1-TCN ENG(82L) M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ●
442 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ●
442 BOLT; BRKT
6HK1-TCN ENG(82L) M8X20 FLANGE 		0-28650-820-0 02 1 1401- ●

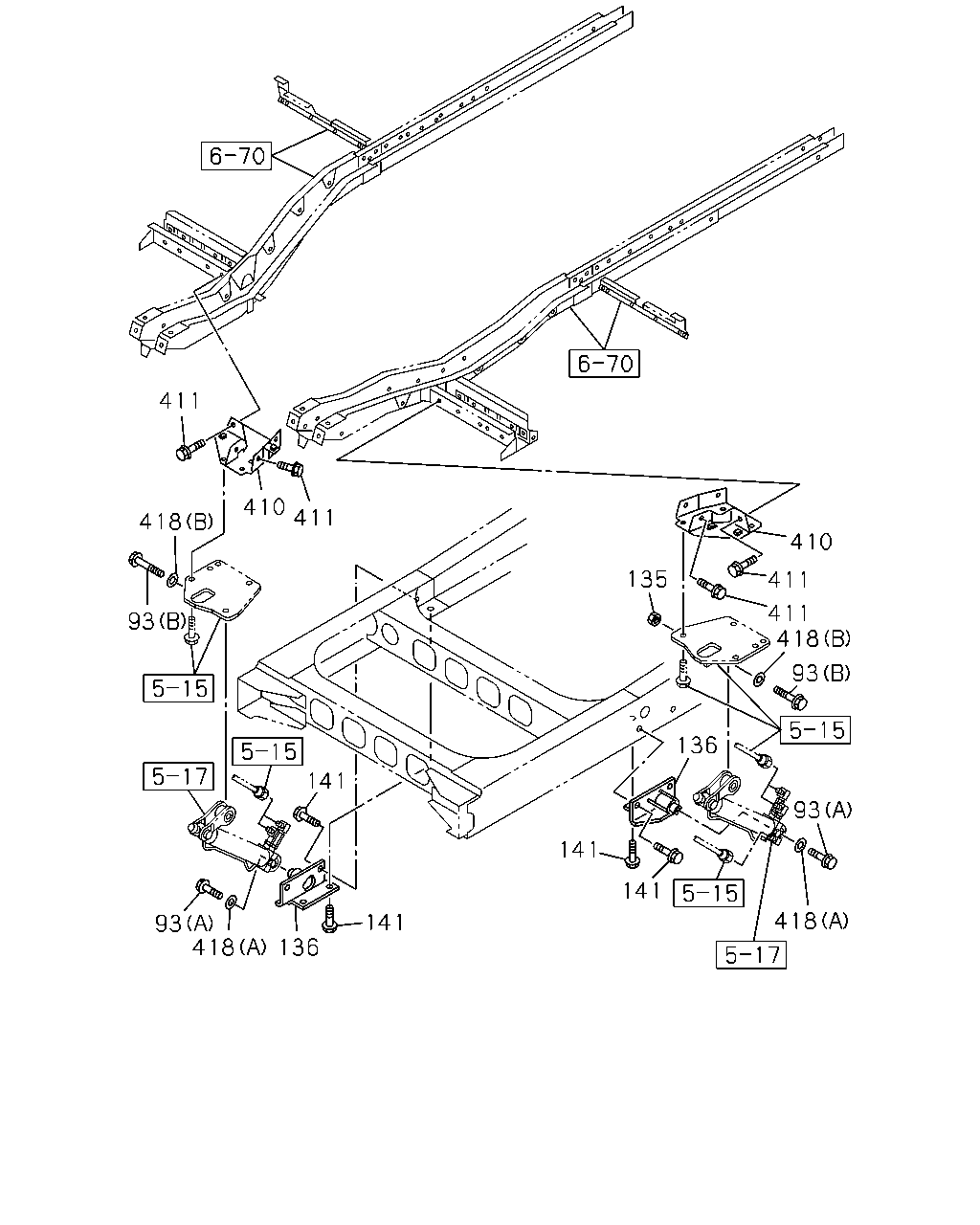

çizim 364725
411 411 410 418 93 141 141 141 141 418 411 410 418 135 136 93 93 136 418 93 411
BalonParca AdiParca NoAdetTipApplied Date A B C
93 BOLT; PIN
(A) M10X20 FLANGE 		0-28651-020-0 02 1 1307- ●
93 BOLT; PIN
(B) M14X70 FLANGE 		0-29261-470-0 02 1 1307- ●
135 NUT; PIN
M14 		0-91110-514-0 01 1 1307- ●
136 BRACKET; OIL CYL 8-98096-334-1 01 1 1307-1502 ●
136 BRACKET; OIL CYL 8-98299-320-0 01 1 1503- ●
136 BRACKET; OIL CYL 8-98096-333-1 01 1 1307-1502 ●
136 BRACKET; OIL CYL 8-98299-319-0 01 1 1503- ●
141 BOLT; BRKT
M14X40 FLANGE 		0-28661-440-0 08 1 1307- ●
410 REINFORCEMENT; CAB TILT 8-97588-837-5 01 1 1307- ●
410 REINFORCEMENT; CAB TILT 8-97614-237-4 01 1 1307- ●
411 BOLT; REINFORCEMENT
M8X20 FLANGE 		0-28650-820-0 08 1 1307- ●
418 WASHER; PL,PIN
(B) ID=15 		0-91610-514-0 02 1 1307- ●
418 WASHER; PL,PIN
(A) ID=10.5 OD=32 		0-91614-810-0 02 1 1307- ●

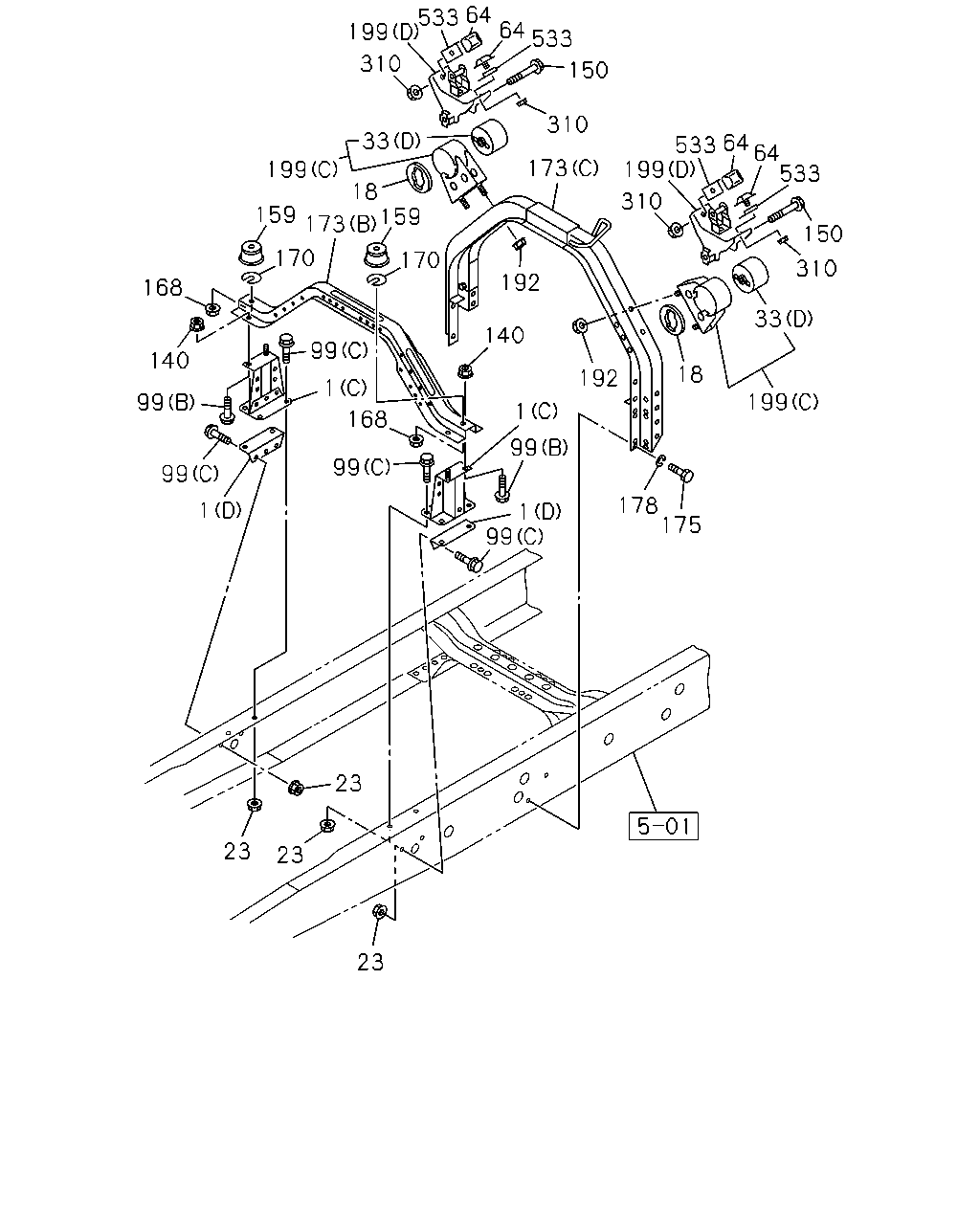

çizim 365560
99 99 140 168 1 1 168 23 23 23 23 1 1 99 99 170 173 159 199 159 18 99 175 178 199 192 33 18 310 150 533 64 64 533 199 310 310 173 192 140 170 33 310 199 533 533 64 64 150 99
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BRACKET; CAB MTG
(A) 		8-98010-749-3 01 1 1307-1312 ●
1 BRACKET; CAB MTG
(A) 		8-98010-749-3 01 1 1401- ● ●
1 BRACKET; CAB MTG
(A) 		8-98010-748-2 01 1 1307-1312 ●
1 BRACKET; CAB MTG
(A) 		8-98010-748-2 01 1 1401- ● ●
1 BRACKET; CAB MTG
(D) 		8-98094-593-0 02 1 1307- ●
1 BRACKET; CAB MTG
(C) 		8-98182-180-1 02 1 1307- ●
1 BRACKET; CAB MTG
(B) 		8-98017-666-2 01 1 1307- ●
1 BRACKET; CAB MTG
(B) 		8-98017-665-2 01 1 1307- ●
18 PLATE; MTG BRKT FIX 8-98096-159-0 02 1 1307- ●
23 NUT; MTG BRKT
M12 FLANGE 		0-91180-212-0 04 1 1307- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		8-98010-759-2 02 1 1307-1312 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		8-98010-759-2 02 1 1401- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) 		8-98013-932-2 02 1 1307-1312 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) 		8-98013-932-2 02 1 1401- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(C) 		8-98013-933-1 02 1 1307- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(D) 		8-98013-934-1 02 1 1307- ●
64 RUBBER; CUSHION 8-97113-340-0 04 1 1307-1312 ● ●
64 RUBBER; CUSHION 8-97113-340-0 04 1 1401- ● ● ●
99 BOLT; BRKT
(A) M10X30 FLANGE 		0-28661-030-0 02 1 1307-1312 ●
99 BOLT; BRKT
(A) M10X30 FLANGE 		0-28661-030-0 02 1 1401- ● ●
99 BOLT; BRKT
(B) M12X25 FLANGE 		0-28051-225-0 02 1 1307- ●
99 BOLT; BRKT
(C) M12X35 FLANGE 		0-28061-235-0 12 1 1307- ●
140 NUT; BRKT
M12 FLANGE 		0-91180-212-0 04 1 1307- ●
150 BOLT; CAB MTG RR
M14X100 		0-10956-400-0 02 1 1307-1312 ● ●
150 BOLT; CAB MTG RR
M14X100 		0-10956-400-0 02 1 1401- ● ● ●
159 RUBBER; CUSHION,CAB MTG 9-54347-160-1 02 1 1307- ●
168 NUT; CUSHION RUBBER,BODY MTG
M12 FLANGE 		0-91180-212-0 02 1 1307- ●
170 SHIM; CUSHION RUBBER
T=1.6 		9-54347-136-1 AR 1 1307- ●
173 MEMBER; CAB MTG RR
(A) 		8-98150-944-0 01 1 1307-1312 ●
173 MEMBER; CAB MTG RR
(A) 		8-98150-944-0 01 1 1401- ● ●
173 MEMBER; CAB MTG RR
(B) 		1-53454-568-1 01 1 1307- ●
173 MEMBER; CAB MTG RR
(C) 		8-98182-192-1 01 1 1307- ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 1307-1312 ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 1401- ● ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 1307-1312 ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 1401- ● ● ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 04 1 1307-1312 ● ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 04 1 1401- ● ● ●
199 BRACKET; CAB RR MTG
(A) 		8-98010-769-2 02 1 1307-1312 ●
199 BRACKET; CAB RR MTG
(A) 		8-98010-769-2 02 1 1401- ● ●
199 BRACKET; CAB RR MTG
(B) 		8-98023-692-0 02 1 1307-1312 ●
199 BRACKET; CAB RR MTG
(B) 		8-98023-692-0 02 1 1401- ● ●
199 BRACKET; CAB RR MTG
(C) 		8-98044-033-1 02 1 1307- ●
199 BRACKET; CAB RR MTG
(D) 		8-98095-166-0 02 1 1307- ●
310 NUT; CUSHION
M8 FLANGE 		0-91180-108-0 04 1 1307-1312 ● ●
310 NUT; CUSHION
M8 FLANGE 		0-91180-108-0 04 1 1401- ● ● ●
533 SPACER; MTG RUBBER 8-98077-323-0 04 1 1307- ●

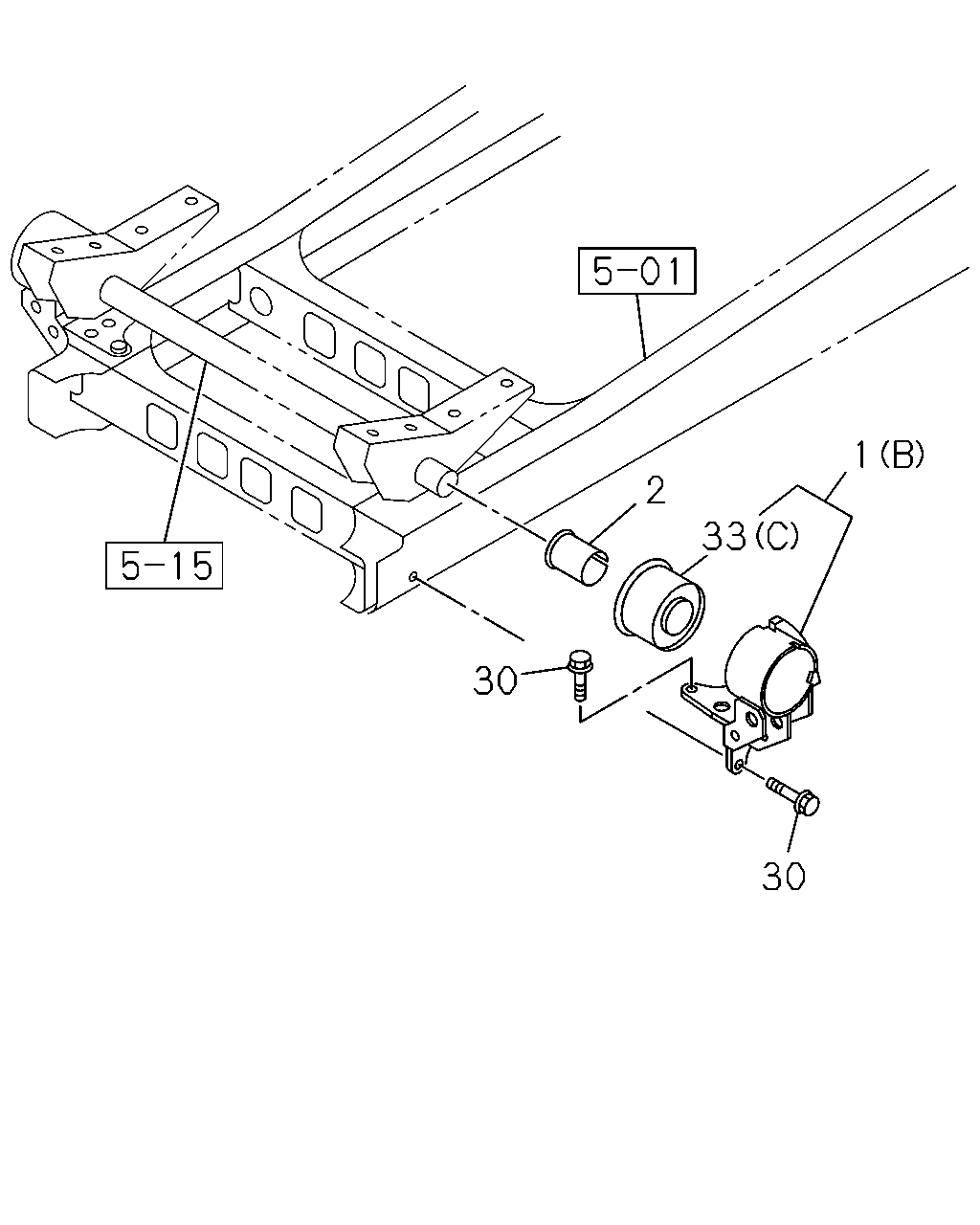

çizim 366493
2 30 30 33 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BRACKET; CAB MTG
(A) 		8-98010-749-3 01 1 1307-1312 ●
1 BRACKET; CAB MTG
(A) 		8-98010-749-3 01 1 1401- ● ●
1 BRACKET; CAB MTG
(A) 		8-98010-748-2 01 1 1307-1312 ●
1 BRACKET; CAB MTG
(A) 		8-98010-748-2 01 1 1401- ● ●
1 BRACKET; CAB MTG
(D) 		8-98094-593-0 02 1 1307- ●
1 BRACKET; CAB MTG
(C) 		8-98182-180-1 02 1 1307- ●
1 BRACKET; CAB MTG
(B) 		8-98017-666-2 01 1 1307- ●
1 BRACKET; CAB MTG
(B) 		8-98017-665-2 01 1 1307- ●
2 BUSHING; TORSION BAR 8-98010-767-0 02 1 1307- ●
30 BOLT; CAB FRT FOOT
M14X45 FLANGE 		0-28861-445-0 10 1 1307-1312 ● ●
30 BOLT; CAB FRT FOOT
M14X45 FLANGE 		0-28861-445-0 10 1 1401- ● ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		8-98010-759-2 02 1 1307-1312 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) 		8-98010-759-2 02 1 1401- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) 		8-98013-932-2 02 1 1307-1312 ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) 		8-98013-932-2 02 1 1401- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(C) 		8-98013-933-1 02 1 1307- ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT
(D) 		8-98013-934-1 02 1 1307- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
