◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#123718) — 134 parça

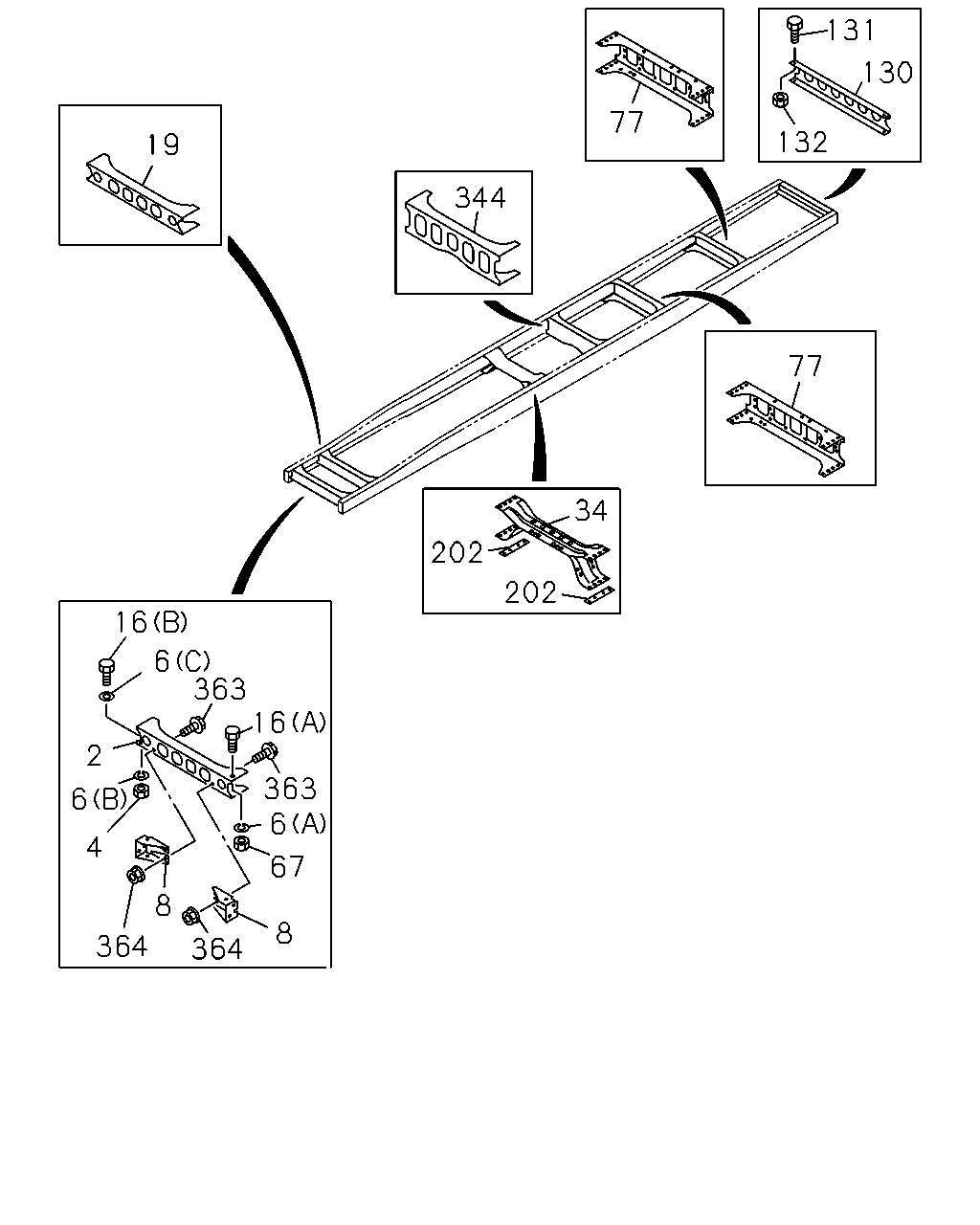

çizim 364690
19 344 77 132 131 130 77 34 202 202 16 363 2 6 4 16 6 363 6 67 8 364 364 8
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1307- ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1307- ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1307- ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1307- ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1307- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-759-2 01 1 1307- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-760-3 01 1 1307- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1307- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1307- ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-4 01 1 1307- ● ● ●
34 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) 		8-97609-501-2 01 1 1307- ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 1307-1312 ● ●
34 MEMBER; CROSS,3RD
6HK1-TCN ENG(82L) 		8-97609-755-0 01 1 1307-1312 ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 1401- ● ●
34 MEMBER; CROSS,3RD
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-755-0 01 1 1401- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1307- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
AIR SUS(FCD***) 		8-97609-481-4 02 1 1401- ● ●
77 MEMBER; CROSS,TRUNNION RR 8-97610-935-1 02 1 1307-1312 ● ● ●
77 MEMBER; CROSS,TRUNNION RR
LEAF SUS(FCR***) 		8-97610-935-1 02 1 1401- ● ●
77 MEMBER; CROSS,TRUNNION RR 8-97610-935-1 02 1 1401- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1307- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1307- ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1307- ● ● ●
202 SPACER; 3RD C/MBR
4HK1-TCS ENG(RJS) 		8-97609-756-1 02 1 1307- ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 1307-1312 ● ●
202 SPACER; 3RD C/MBR
6HK1-TCN ENG(82L) 		8-97609-757-0 02 1 1307-1312 ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 1401- ● ●
202 SPACER; 3RD C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-757-0 02 1 1401- ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1307- ● ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1307- ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1307- ● ● ●

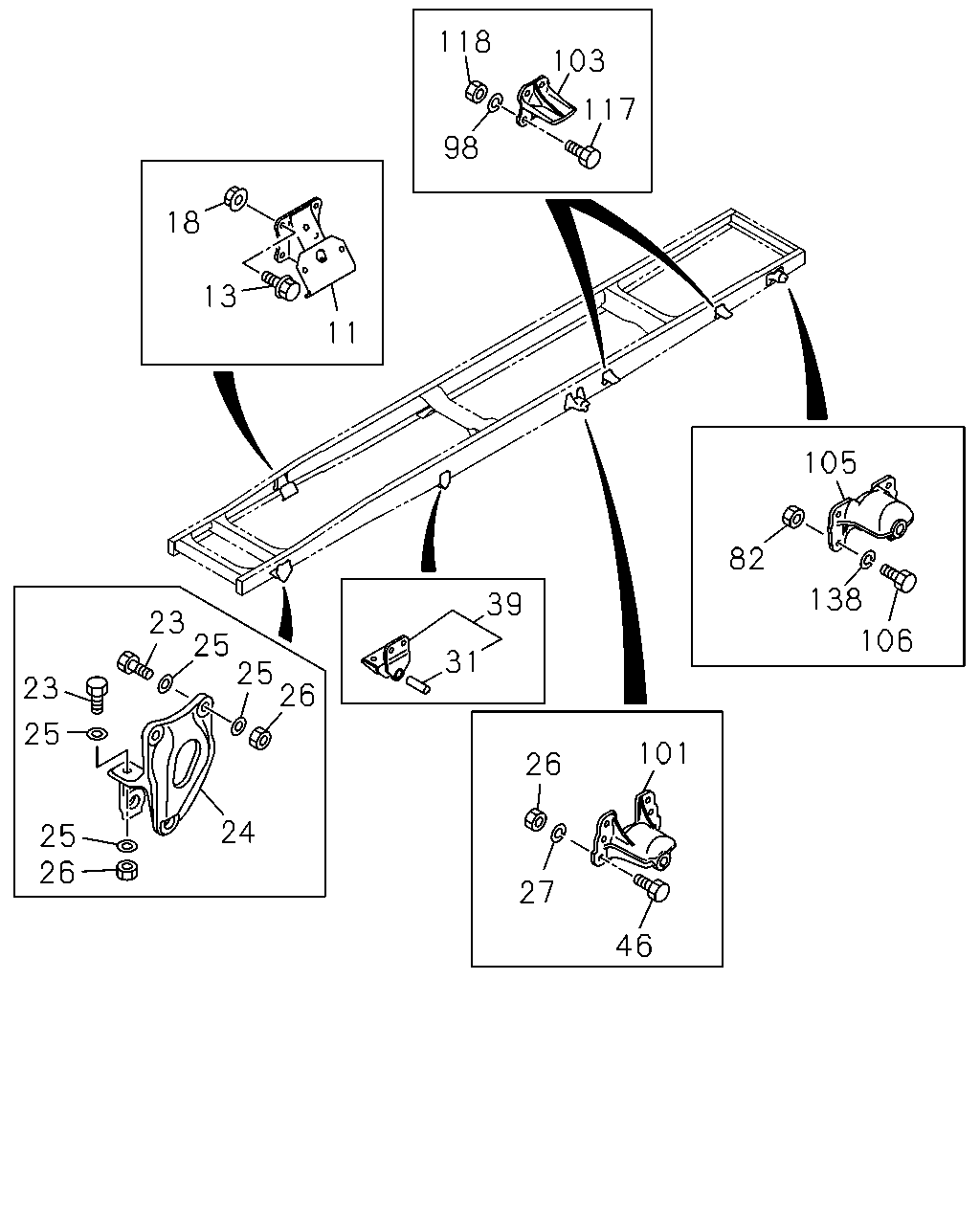

çizim 364691
18 13 11 98 117 103 118 82 105 138 106 101 26 27 46 31 39 26 25 25 23 23 25 25 26 24
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97604-129-0 02 1 1307- ●
11 BRACKET; ENG MTG 8-97609-502-0 02 1 1307-1312 ● ●
11 BRACKET; ENG MTG
6HK1-TCN ENG(82L) 		8-97609-502-0 02 1 1307-1312 ●
11 BRACKET; ENG MTG 8-97609-502-0 02 1 1401- ● ●
11 BRACKET; ENG MTG
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-502-0 02 1 1401- ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1307- ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1307- ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1307- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 1307- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 1307- ● ● ●
25 WASHER; PL,BRKT
AIR SUS(FCD***) ID=20 		1-09503-315-0 08 1 1401- ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1307- ● ● ●
26 NUT; BRKT,SPR
AIR SUS(FCD***) M14 		0-91110-514-0 08 1 1401- ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1307-1312 ● ● ●
26 NUT; BRKT,SPR
LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 1401- ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1401- ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 1307-1312 ● ● ●
27 WASHER; LK,BRKT,FRT SPR
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 12 1 1401- ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 1401- ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1307- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 1307- ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 1307-1312 ● ● ●
46 BOLT; BRKT FIX
LEAF SUS(FCR***) M14X50 		0-20951-450-0 12 1 1401- ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 1401- ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 1307-1312 ● ● ●
82 NUT; BRKT
LEAF SUS(FCR***) M14 		0-91110-514-0 10 1 1401- ● ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 1401- ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1307-1312 ● ● ●
98 WASHER; LK,STOPPER
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 16 1 1401- ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1401- ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1307-1312 ● ● ●
101 BRACKET; RR SPR,FRT
LEAF SUS(FCR***) 		1-53353-090-4 02 1 1401- ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1401- ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1307-1312 ● ● ●
103 STOPPER; SUB SPR
LEAF SUS(FCR***) 		1-53356-059-1 04 1 1401- ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1401- ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 1307-1312 ● ● ●
105 BRACKET; RR SPR,RR
LEAF SUS(FCR***) 		1-53354-074-0 02 1 1401- ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 1401- ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 1307-1312 ● ● ●
106 BOLT; BRKT
LEAF SUS(FCR***) M14X50 		0-20951-450-0 10 1 1401- ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 1401- ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1307-1312 ● ● ●
117 BOLT; STOPPER
LEAF SUS(FCR***) M14X50 		0-20951-450-0 16 1 1401- ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1401- ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1307-1312 ● ● ●
118 NUT; STOPPER
LEAF SUS(FCR***) M14 		0-91110-514-0 16 1 1401- ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1401- ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 1307-1312 ● ● ●
138 WASHER; LK,BRKT
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 10 1 1401- ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 1401- ●

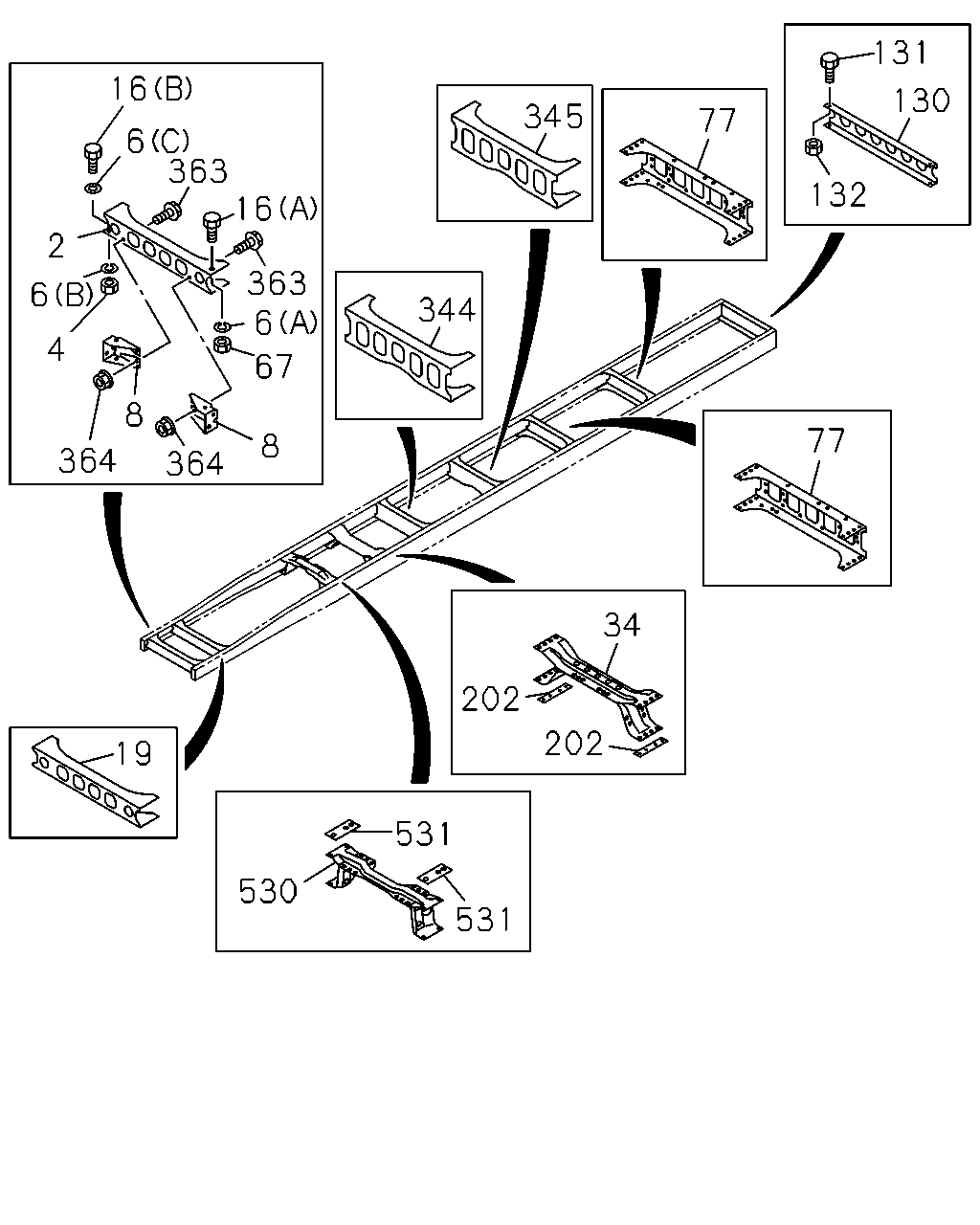

çizim 364741
16 6 363 363 16 6 67 8 364 364 8 4 6 2 344 345 77 132 130 131 77 34 202 202 531 531 530 19
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1307- ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1307- ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1307- ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1307- ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1307- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-759-2 01 1 1307- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-760-3 01 1 1307- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1307- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1307- ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-4 01 1 1307- ● ● ●
34 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) 		8-97609-501-2 01 1 1307- ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 1307-1312 ● ●
34 MEMBER; CROSS,3RD
6HK1-TCN ENG(82L) 		8-97609-755-0 01 1 1307-1312 ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 1401- ● ●
34 MEMBER; CROSS,3RD
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-755-0 01 1 1401- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1307- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
AIR SUS(FCD***) 		8-97609-481-4 02 1 1401- ● ●
77 MEMBER; CROSS,TRUNNION RR 8-97610-935-1 02 1 1307-1312 ● ● ●
77 MEMBER; CROSS,TRUNNION RR
LEAF SUS(FCR***) 		8-97610-935-1 02 1 1401- ● ●
77 MEMBER; CROSS,TRUNNION RR 8-97610-935-1 02 1 1401- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1307- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1307- ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1307- ● ● ●
202 SPACER; 3RD C/MBR
4HK1-TCS ENG(RJS) 		8-97609-756-1 02 1 1307- ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 1307-1312 ● ●
202 SPACER; 3RD C/MBR
6HK1-TCN ENG(82L) 		8-97609-757-0 02 1 1307-1312 ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 1401- ● ●
202 SPACER; 3RD C/MBR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-757-0 02 1 1401- ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1307- ● ● ●
345 MEMBER; CROSS,5TH 8-97609-472-2 01 1 1307- ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1307- ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1307- ● ● ●
530 MEMBER; CROSS,T/M
4HK1-TCS ENG(RJS) 		8-97609-809-3 01 1 1307- ●
531 SPACER; C/MBR,T/M
4HK1-TCS ENG(RJS) 		8-97616-461-1 02 1 1307- ●

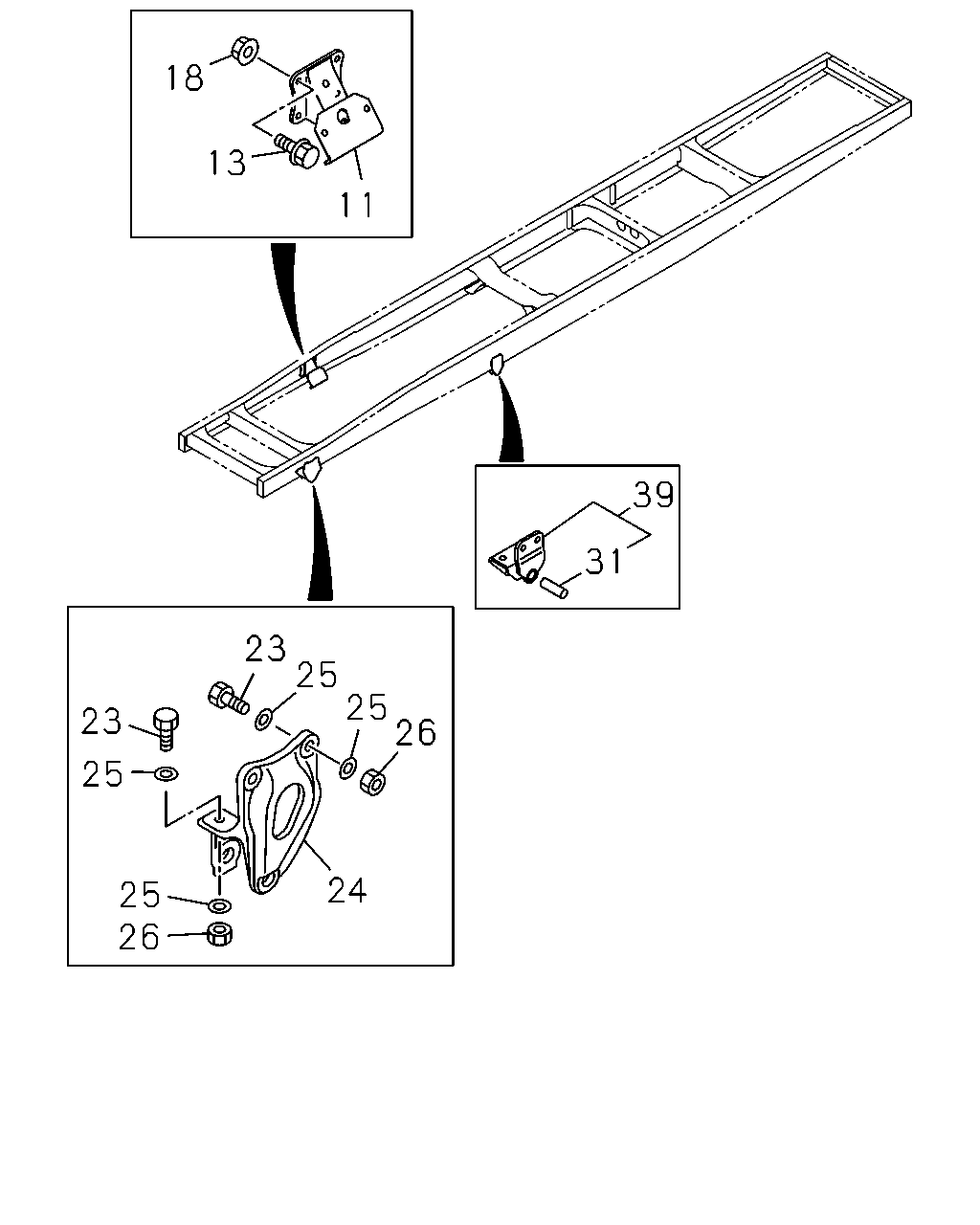

çizim 402184
18 13 11 39 31 23 25 25 26 23 25 25 26 24
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97604-129-0 02 1 1307- ●
11 BRACKET; ENG MTG 8-97609-502-0 02 1 1307-1312 ● ●
11 BRACKET; ENG MTG
6HK1-TCN ENG(82L) 		8-97609-502-0 02 1 1307-1312 ●
11 BRACKET; ENG MTG 8-97609-502-0 02 1 1401- ● ●
11 BRACKET; ENG MTG
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		8-97609-502-0 02 1 1401- ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1307- ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1307- ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1307- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 1307- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 1307- ● ● ●
25 WASHER; PL,BRKT
AIR SUS(FCD***) ID=20 		1-09503-315-0 08 1 1401- ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1307- ● ● ●
26 NUT; BRKT,SPR
AIR SUS(FCD***) M14 		0-91110-514-0 08 1 1401- ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1307-1312 ● ● ●
26 NUT; BRKT,SPR
LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 1401- ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1401- ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1307- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 1307- ● ● ●
