◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#123713) — 72 parça

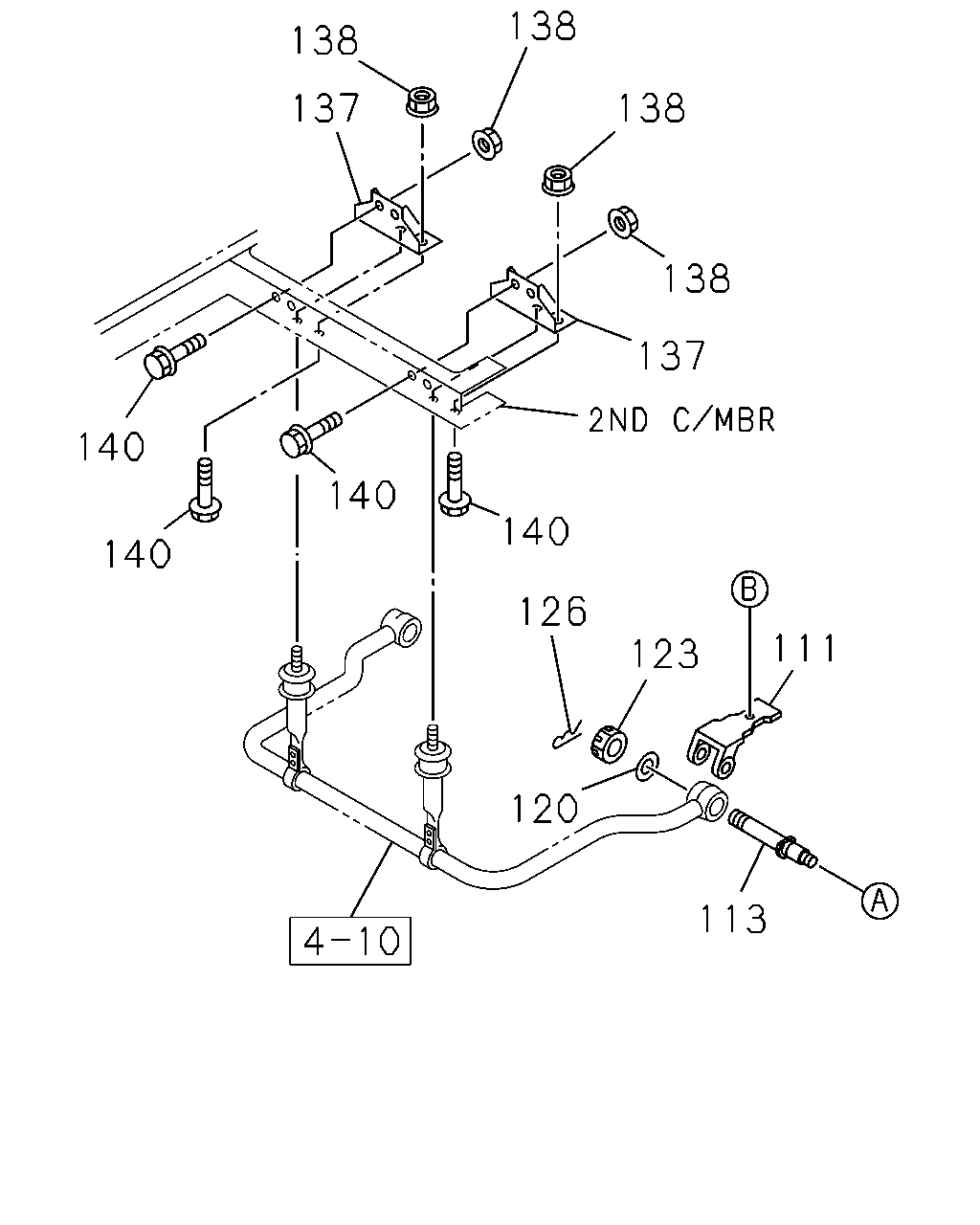

çizim 364628
138 137 140 140 140 140 126 120 113 111 123 137 138 138 138
BalonParca AdiParca NoAdetTipApplied Date A B C
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-591-1 01 1 1307-1312 ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-591-1 01 1 1401- ● ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-590-1 01 1 1307-1312 ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-590-1 01 1 1401- ● ● ●
113 PIN; SUPPORTER 8-98010-654-0 02 1 1307-1312 ● ●
113 PIN; SUPPORTER 8-98010-654-0 02 1 1401- ● ● ●
120 WASHER; PL,SUPPORT BRKT TO BODY
ID=23 		0-91614-522-0 02 1 1307-1312 ● ●
120 WASHER; PL,SUPPORT BRKT TO BODY
ID=23 		0-91614-522-0 02 1 1401- ● ● ●
123 NUT; PIN TO SUPPORTER
M22 		0-91116-522-0 02 1 1307-1312 ● ●
123 NUT; PIN TO SUPPORTER
M22 		0-91116-522-0 02 1 1401- ● ● ●
126 PIN; SPLIT,STAB
OD=4.6 L=45 		0-81125-045-0 02 1 1307-1312 ● ●
126 PIN; SPLIT,STAB
OD=4.6 L=45 		0-81125-045-0 02 1 1401- ● ● ●
137 BRACKET; STAB BAR TO FRAME 1-51781-060-2 02 1 1307-1312 ● ●
137 BRACKET; STAB BAR TO FRAME 1-51781-060-2 02 1 1401- ● ● ●
138 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1307-1312 ● ●
138 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1401- ● ● ●
140 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 08 1 1307-1312 ● ●
140 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 08 1 1401- ● ● ●

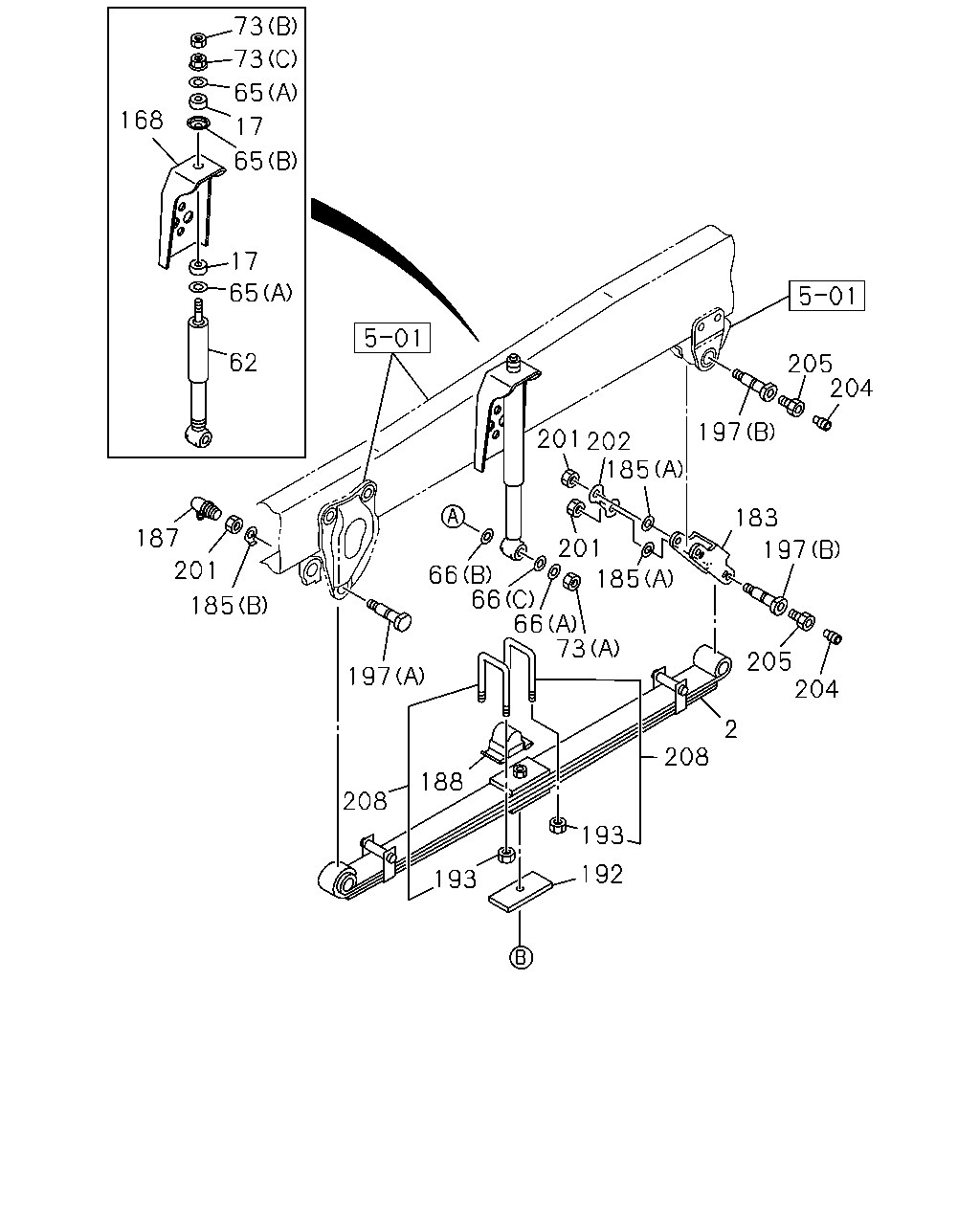

çizim 367370
168 17 65 73 73 65 17 62 65 187 185 201 197 208 193 192 193 208 2 66 66 66 201 185 201 202 197 205 183 205 204 73 185 204 188 197
BalonParca AdiParca NoAdetTipApplied Date A B C
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98111-360-0 01 1 1307-1312 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98111-360-0 01 1 1401- ● ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98111-361-0 01 1 1307-1312 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98111-361-0 01 1 1401- ● ● ●
17 BUSHING; RUBBER,S/ABS 1-51631-004-0 04 1 1307-1312 ● ●
17 BUSHING; RUBBER,S/ABS 1-51631-004-0 04 1 1401- ● ● ●
62 ABSORBER ASM; SHOCK,FRT 8-98060-332-0 02 1 1307-1312 ● ●
62 ABSORBER ASM; SHOCK,FRT 8-98060-332-0 02 1 1401- ● ● ●
65 WASHER; S/ABS
(B) 		1-51631-023-0 02 1 1307-1312 ● ●
65 WASHER; S/ABS
(B) 		1-51631-023-0 02 1 1401- ● ● ●
65 WASHER; S/ABS
(A) ID=10.5 OD=40 T=3.2 		8-98010-405-0 04 1 1307-1312 ● ●
65 WASHER; S/ABS
(A) ID=10.5 OD=40 T=3.2 		8-98010-405-0 04 1 1401- ● ● ●
66 WASHER; LK,S/ABS SETTING
(A) ID=12.2 		0-91510-812-0 02 1 1307-1312 ● ●
66 WASHER; LK,S/ABS SETTING
(A) ID=12.2 		0-91510-812-0 02 1 1401- ● ● ●
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 1307-1312 ● ●
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 1401- ● ● ●
66 WASHER; LK,S/ABS SETTING
(C) ID=12.5 		1-09503-171-0 02 1 1307-1312 ● ●
66 WASHER; LK,S/ABS SETTING
(C) ID=12.5 		1-09503-171-0 02 1 1401- ● ● ●
73 NUT; BRKT,SHOCK
(A) M12 		0-91110-512-0 02 1 1307-1312 ● ●
73 NUT; BRKT,SHOCK
(A) M12 		0-91110-512-0 02 1 1401- ● ● ●
73 NUT; BRKT,SHOCK
(B) M10 		0-91111-510-0 02 1 1307-1312 ● ●
73 NUT; BRKT,SHOCK
(B) M10 		0-91111-510-0 02 1 1401- ● ● ●
73 NUT; BRKT,SHOCK
(C) M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ● ●
73 NUT; BRKT,SHOCK
(C) M10 FLANGE 		0-91180-210-0 02 1 1401- ● ● ●
168 BRACKET; S/ABS,FRT SUSP 8-98060-258-0 02 1 1307-1312 ● ●
168 BRACKET; S/ABS,FRT SUSP 8-98060-258-0 02 1 1401- ● ● ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 1307-1312 ● ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 1401- ● ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 1307-1312 ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 1401- ● ● ●
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 1307-1312 ● ●
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 1401- ● ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1307-1312 ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1401- ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-112-0 02 1 1307-1312 ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-112-0 02 1 1401- ● ● ●
192 PIECE; DIST
T=4.5 		1-51177-149-0 AR 1 1307-1312 ● ●
192 PIECE; DIST
T=4.5 		1-51177-149-0 AR 1 1401- ● ● ●
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 1307-1312 ● ●
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 1401- ● ● ●
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 1307-1312 ● ●
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 1401- ● ● ●
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 1307-1312 ● ●
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 1401- ● ● ●
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 1307-1312 ● ●
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 1401- ● ● ●
202 PLATE; LK,SPR PIN 8-98010-648-0 02 1 1307-1312 ● ●
202 PLATE; LK,SPR PIN 8-98010-648-0 02 1 1401- ● ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 1307-1312 ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 1401- ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 1307-1312 ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 1401- ● ● ●
208 U-BOLT SET; FRT SPRING
L=150 		1-87870-466-0 04 1 1307-1312 ● ●
208 U-BOLT SET; FRT SPRING
L=150 		1-87870-466-0 04 1 1401- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
