Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#123709) — 637 parça

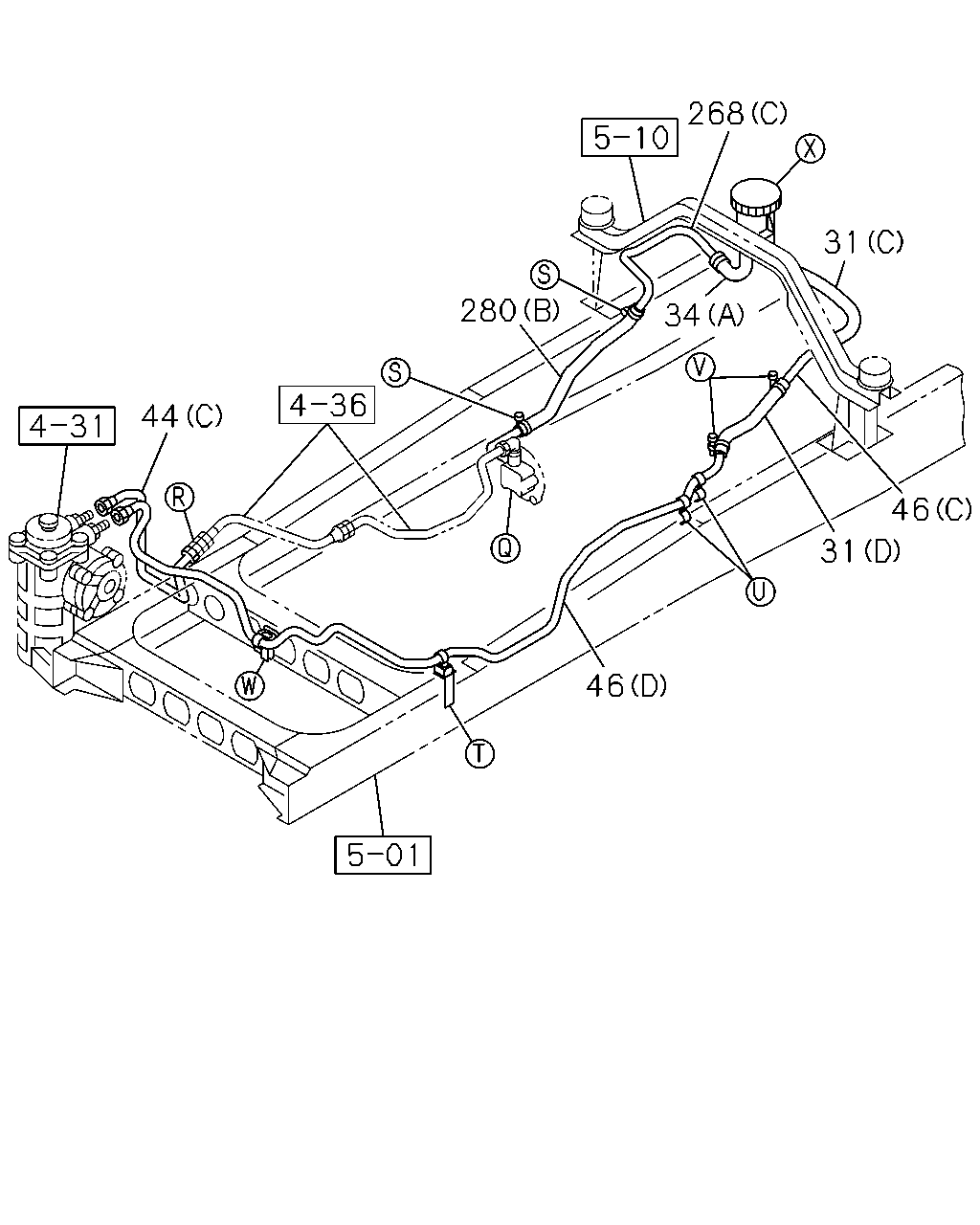

268 31 46 31 46 280 44 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1307-1312	●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1401-	●	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (D) L=260 SERVICED BY L=400	0-09814-400-0	01	1	1307-			●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (C) L=400	0-09814-400-0	01	1	1307-			●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (B)	8-98101-814-0	01	1	1307-			●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1307-1312	●
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98021-827-0	01	1	1307-1312			●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1401-	●	●
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98021-827-0	01	1	1401-			●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG(82L) (B)	8-98101-815-0	01	1	1307-			●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98099-150-0	01	1	1307-1312	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98099-150-0	01	1	1401-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C)	8-98077-661-0	01	1	1307-			●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C)	8-98079-094-0	01	1	1307-			●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) (B)	8-98114-406-0	01	1	1307-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2726	8-98099-151-0	01	1	1307-1312	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2726	8-98099-151-0	01	1	1401-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (D) L=2460	8-98175-715-0	01	1	1307-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (C) L=366	8-98183-766-0	01	1	1307-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (B) L=2786	8-98114-407-0	01	1	1307-			●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-041-0	01	1	1307-1312	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-041-0	01	1	1401-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (C)	8-98183-765-0	01	1	1307-			●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (B)	8-98154-046-0	01	1	1307-			●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	1307-1312	●
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG(82L) (A)	8-98094-167-0	01	1	1307-1312			●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	1401-	●	●
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG(82L) (A)	8-98094-167-0	01	1	1401-			●
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) (B)	8-98086-764-1	01	1	1307-			●

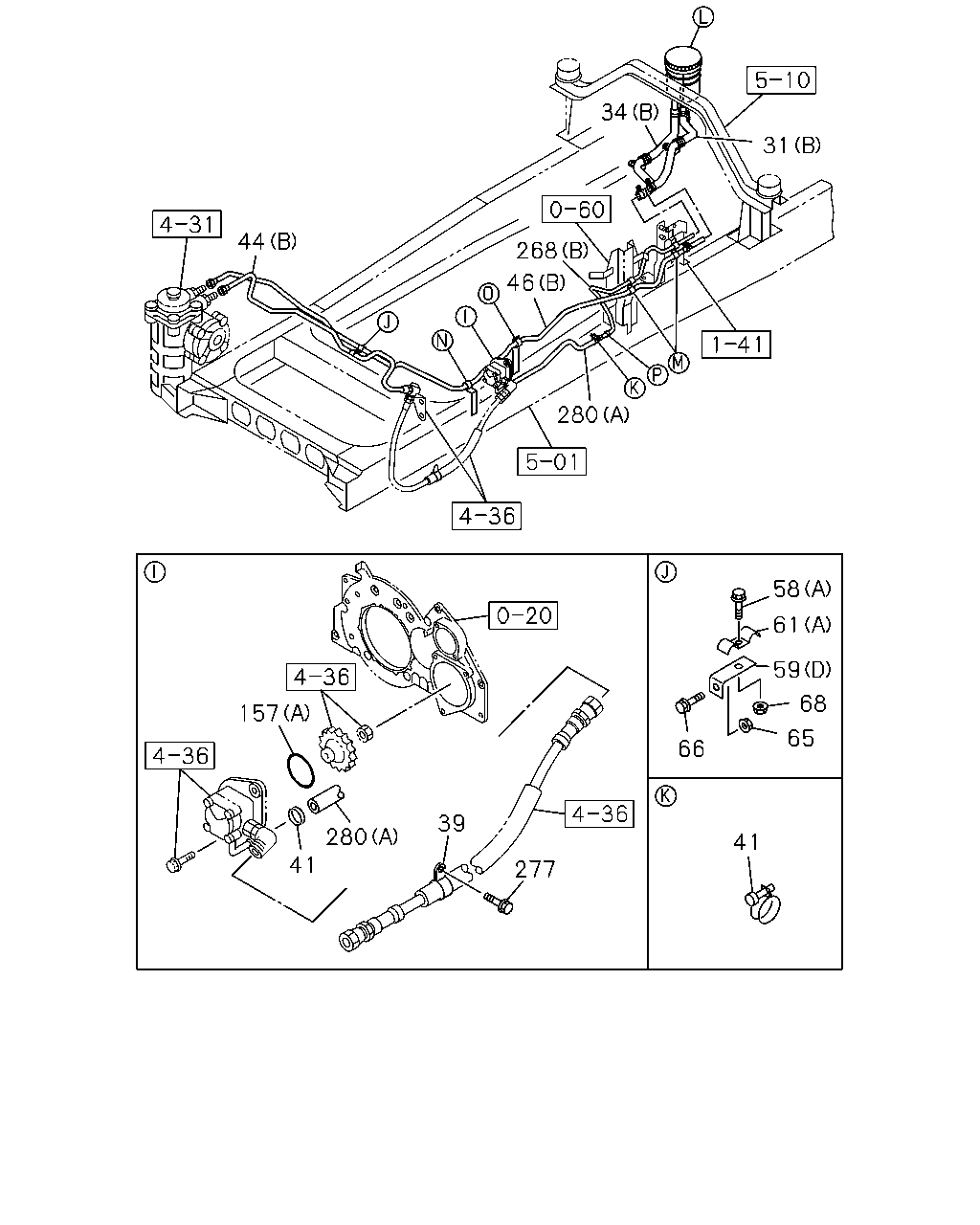

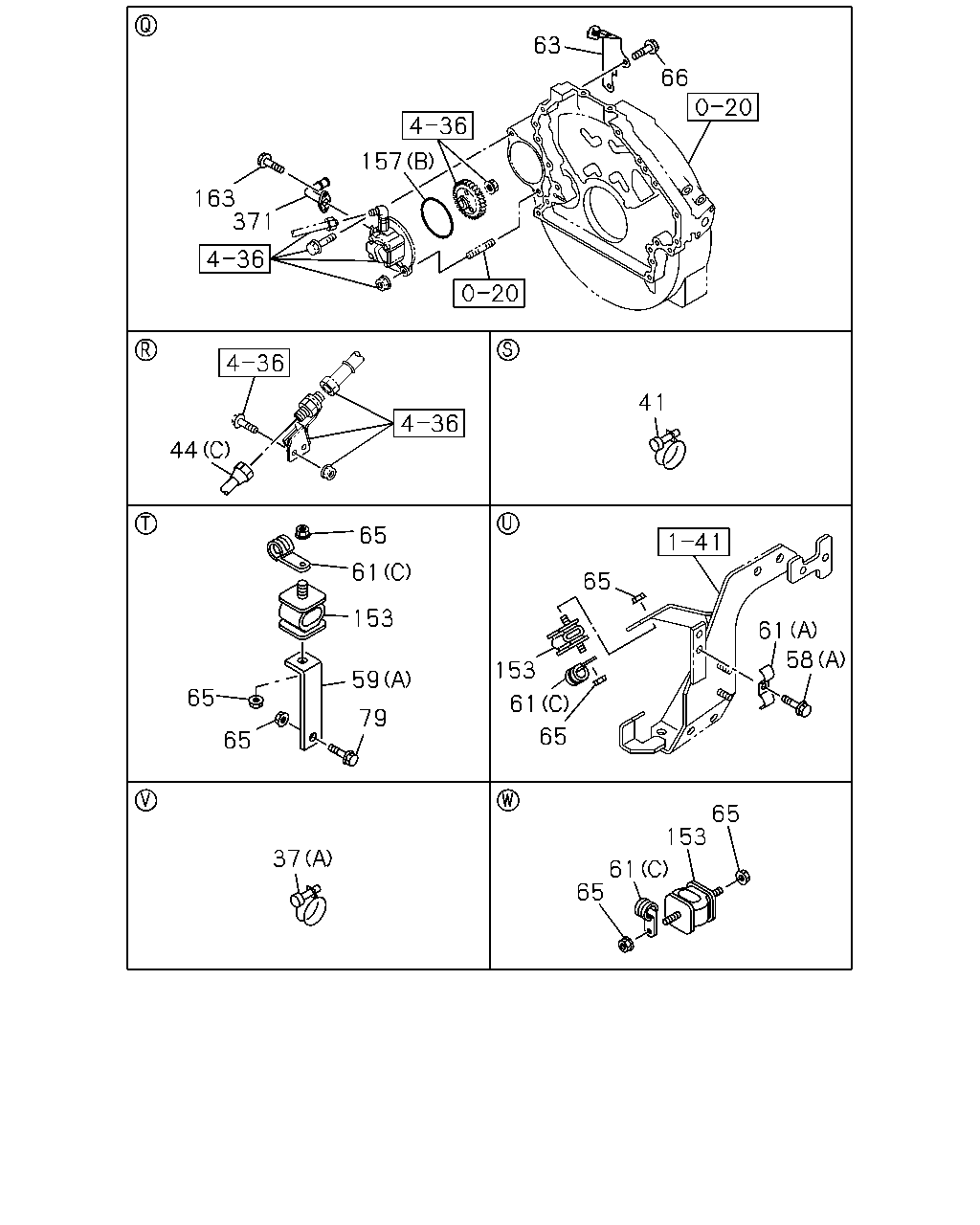

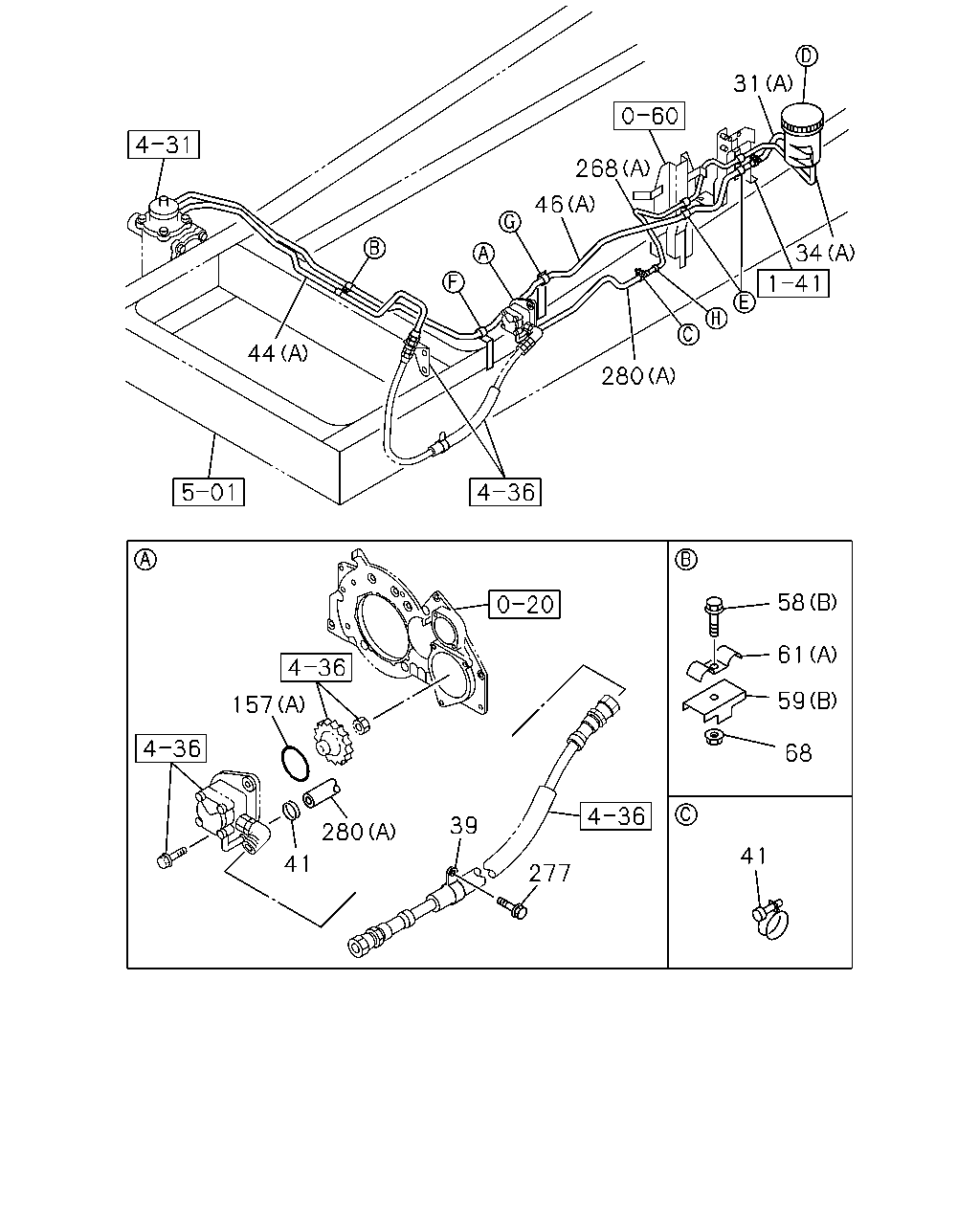

31 34 268 46 280 44 39 277 280 41 157 58 61 66 65 59 68 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1307-1312	●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1401-	●	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (D) L=260 SERVICED BY L=400	0-09814-400-0	01	1	1307-			●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (C) L=400	0-09814-400-0	01	1	1307-			●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (B)	8-98101-814-0	01	1	1307-			●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1307-1312	●
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98021-827-0	01	1	1307-1312			●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1401-	●	●
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98021-827-0	01	1	1401-			●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG(82L) (B)	8-98101-815-0	01	1	1307-			●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	1307-1312	●
39	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) ID=40	8-94226-553-0	01	1	1307-1312			●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	1401-	●	●
39	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) ID=40	8-94226-553-0	01	1	1401-			●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1307-1312	●		●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1401-	●	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98099-150-0	01	1	1307-1312	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98099-150-0	01	1	1401-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C)	8-98077-661-0	01	1	1307-			●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C)	8-98079-094-0	01	1	1307-			●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) (B)	8-98114-406-0	01	1	1307-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2726	8-98099-151-0	01	1	1307-1312	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2726	8-98099-151-0	01	1	1401-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (D) L=2460	8-98175-715-0	01	1	1307-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (C) L=366	8-98183-766-0	01	1	1307-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (B) L=2786	8-98114-407-0	01	1	1307-			●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1307-1312	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1401-	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1307-1312	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1307-1312			●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1401-	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1401-			●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1307-1312	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1307-1312			●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1401-	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1401-			●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X16 FLANGE	0-28050-816-0	01	1	1307-			●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	03	1	1307-			●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-			●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-			●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-			●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1307-1312	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1401-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1307-1312	●		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1401-	●	●	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1307-1312	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1307-1312			●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1401-	●	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1401-			●
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (E)	8-98183-767-0	01	1	1307-			●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (D)	1-47471-051-0	01	1	1307-			●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1307-1312	●		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1401-	●	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1307-1312	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1307-1312			●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1401-	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1401-			●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1307-1312	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1307-1312			●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1401-	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1401-			●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	03	1	1307-			●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=15 H=24 L=20	1-09700-606-0	03	1	1307-			●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1307-1312	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1307-1312			●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1401-	●	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1401-			●
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	09	1	1307-			●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1307-			●
66	BOLT; BRKT,OIL PIPE 4HK1-TCS ENG(RJS) M8X16 FLANGE	0-28050-816-0	02	1	1307-			●
66	BOLT; BRKT,OIL PIPE 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	01	1	1307-			●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
68	NUT; CLIP,OIL PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1307-1312			●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
68	NUT; CLIP,OIL PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1401-			●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-467-0	01	1	1307-1312	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	1307-1312			●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-467-0	01	1	1401-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	1401-			●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B) ID=105.6	8-97386-295-0	01	1	1307-			●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-041-0	01	1	1307-1312	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-041-0	01	1	1401-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (C)	8-98183-765-0	01	1	1307-			●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (B)	8-98154-046-0	01	1	1307-			●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	1307-1312	●
277	BOLT; HOSE CLIP 6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	01	1	1307-1312			●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	1401-	●	●
277	BOLT; HOSE CLIP 6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	01	1	1401-			●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	1307-1312	●
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG(82L) (A)	8-98094-167-0	01	1	1307-1312			●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	1401-	●	●
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG(82L) (A)	8-98094-167-0	01	1	1401-			●
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) (B)	8-98086-764-1	01	1	1307-			●

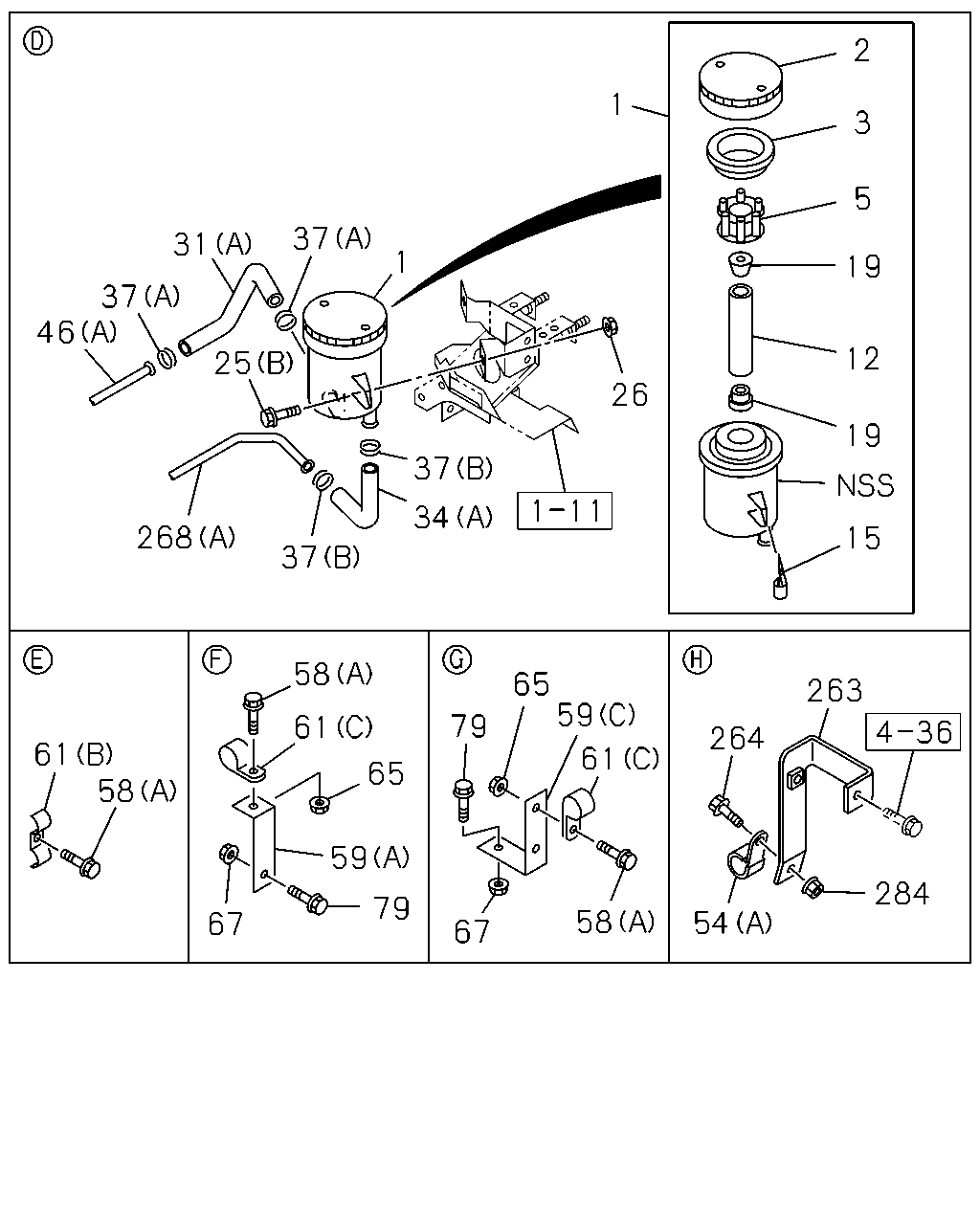

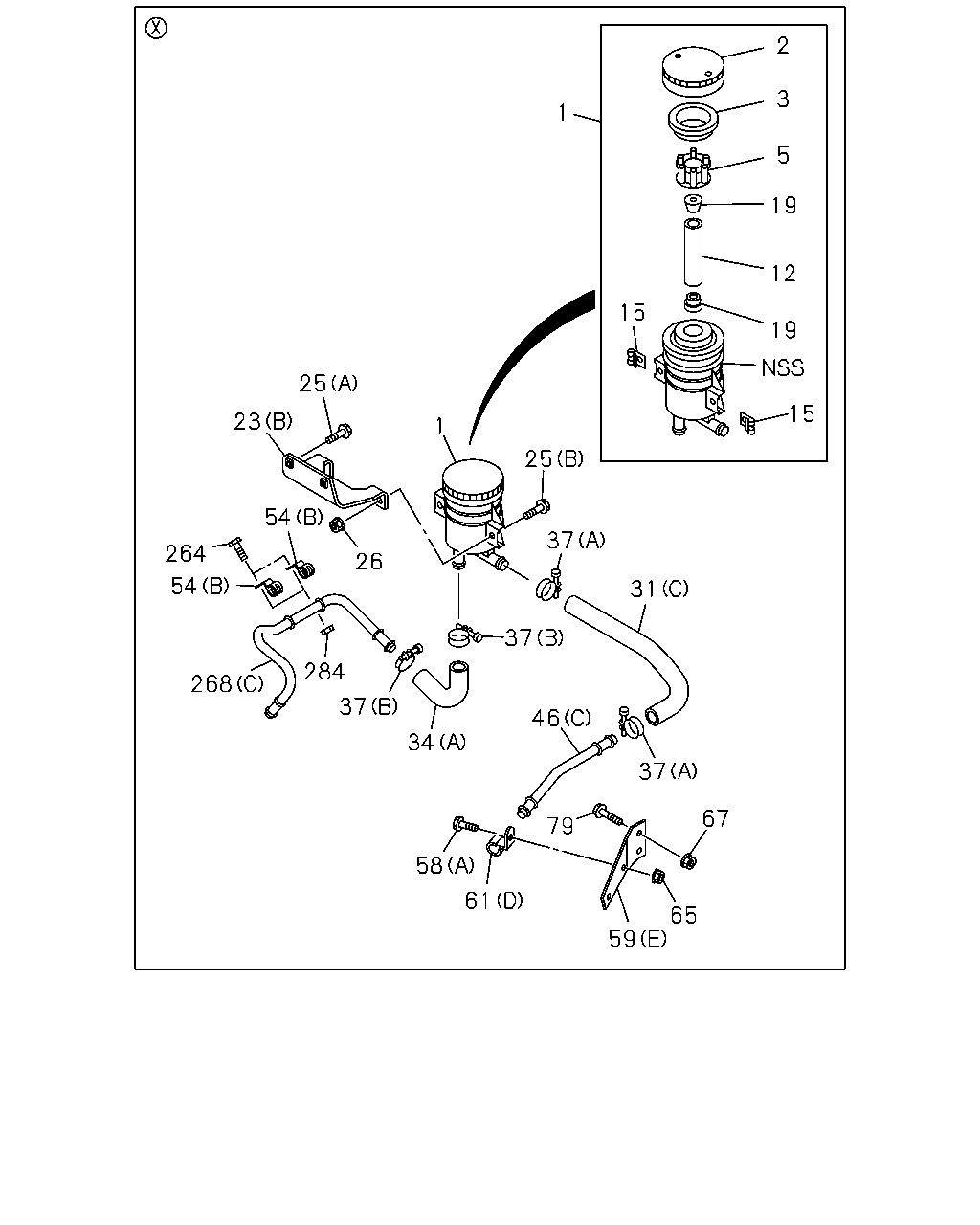

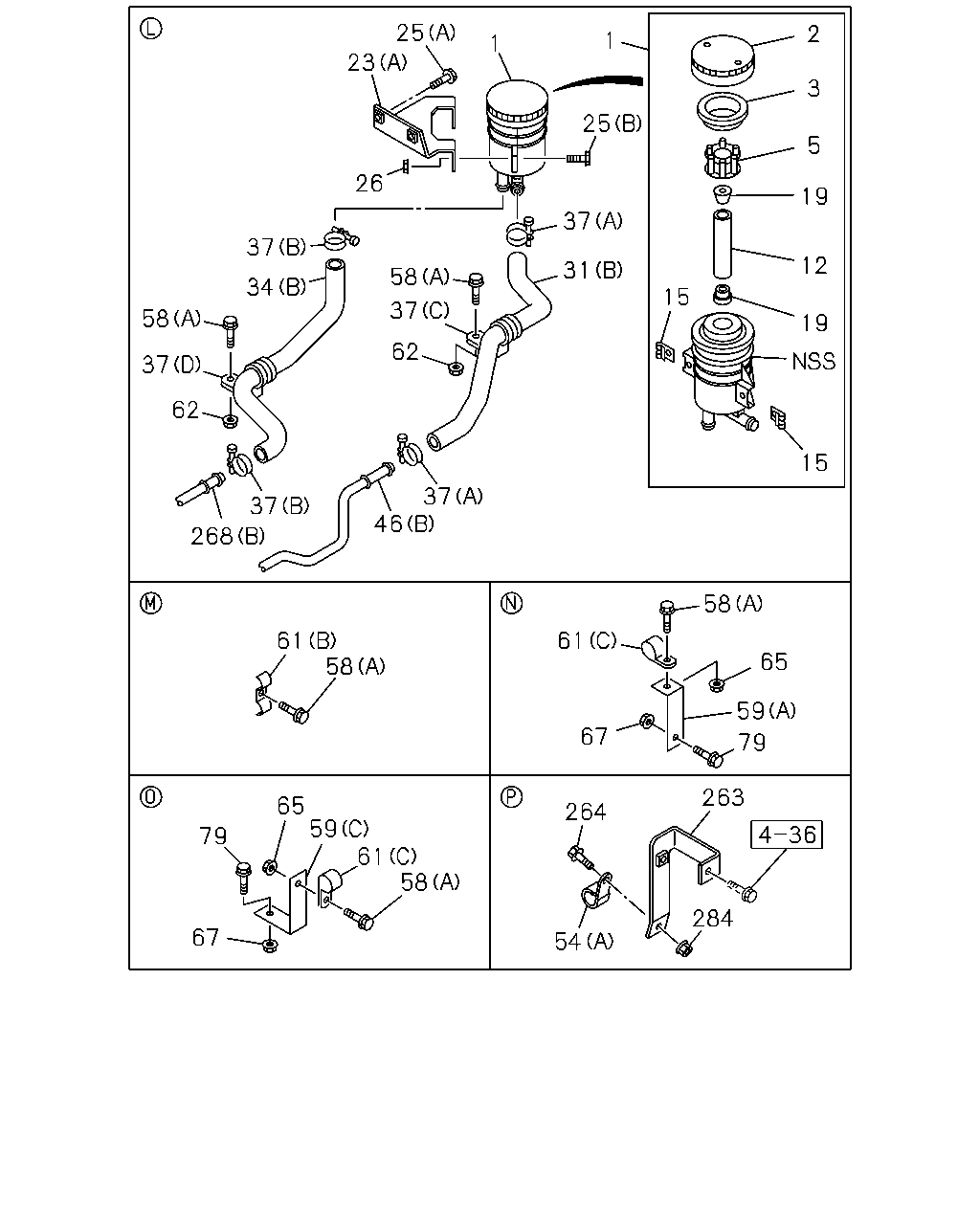

25 1 25 23 264 54 54 268 26 284 37 34 58 46 37 37 37 31 67 65 59 61 79 15 19 15 12 19 5 3 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1307-1312	●		●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1401-	●	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1307-1312	●		●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1401-	●	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1307-1312	●		●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1401-	●	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1307-1312	●		●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1401-	●	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1307-1312	●		●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1401-	●	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1307-1312	●		●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1401-	●	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1307-1312	●		●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1401-	●	●	●
23	BRACKET; OIL TANK,P/S 4HK1-TCS ENG(RJS) (B)	8-98060-024-0	01	1	1307-			●
23	BRACKET; OIL TANK,P/S 6HK1-TCN ENG(82L) (A)	8-98125-268-0	01	1	1307-			●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1307-1312	●		●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1401-	●	●	●
25	BOLT; OIL TANK BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1307-			●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1307-1312	●		●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1401-	●	●	●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1307-1312	●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1401-	●	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (D) L=260 SERVICED BY L=400	0-09814-400-0	01	1	1307-			●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (C) L=400	0-09814-400-0	01	1	1307-			●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (B)	8-98101-814-0	01	1	1307-			●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1307-1312	●
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98021-827-0	01	1	1307-1312			●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1401-	●	●
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98021-827-0	01	1	1401-			●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG(82L) (B)	8-98101-815-0	01	1	1307-			●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1307-1312	●		●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1401-	●	●	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1307-1312	●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (A) ID=26	1-09704-082-0	02	1	1307-1312			●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1401-	●	●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (A) ID=26	1-09704-082-0	02	1	1401-			●
37	CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) (A) ID=26	1-09704-082-0	04	1	1307-			●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1307-			●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1307-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2726	8-98099-151-0	01	1	1307-1312	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2726	8-98099-151-0	01	1	1401-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (D) L=2460	8-98175-715-0	01	1	1307-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (C) L=366	8-98183-766-0	01	1	1307-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (B) L=2786	8-98114-407-0	01	1	1307-			●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1307-1312	●
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1307-1312			●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1401-	●	●
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1401-			●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=19 L=39 H=21	1-09700-972-1	02	1	1307-			●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1307-1312	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1401-	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1307-1312	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1307-1312			●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1401-	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1401-			●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1307-1312	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1307-1312			●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1401-	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1401-			●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X16 FLANGE	0-28050-816-0	01	1	1307-			●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	03	1	1307-			●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-			●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-			●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-			●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1307-1312	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1401-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1307-1312	●		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1401-	●	●	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1307-1312	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1307-1312			●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1401-	●	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1401-			●
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (E)	8-98183-767-0	01	1	1307-			●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (D)	1-47471-051-0	01	1	1307-			●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1307-1312	●		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1401-	●	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1307-1312	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1307-1312			●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1401-	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1401-			●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1307-1312	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1307-1312			●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1401-	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1401-			●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	03	1	1307-			●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=15 H=24 L=20	1-09700-606-0	03	1	1307-			●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1307-1312	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1307-1312			●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1401-	●	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1401-			●
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	09	1	1307-			●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1307-			●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
67	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1307-1312			●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
67	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1401-			●
67	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	03	1	1307-			●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1307-1312	●
79	BOLT; BRKT 6HK1-TCN ENG(82L) M8X25 FLANGE	0-28650-825-0	02	1	1307-1312			●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1401-	●	●
79	BOLT; BRKT 6HK1-TCN ENG(82L) M8X25 FLANGE	0-28650-825-0	02	1	1401-			●
79	BOLT; BRKT 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	03	1	1307-			●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1307-1312	●
264	BOLT; PIPE BRKT 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	01	1	1307-1312			●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1401-	●	●
264	BOLT; PIPE BRKT 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	01	1	1401-			●
264	BOLT; PIPE BRKT 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	02	1	1307-			●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-041-0	01	1	1307-1312	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-041-0	01	1	1401-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (C)	8-98183-765-0	01	1	1307-			●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (B)	8-98154-046-0	01	1	1307-			●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
284	NUT; PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1307-1312			●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
284	NUT; PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1401-			●
284	NUT; PIPE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1307-			●

44 46 268 31 34 280 58 61 59 68 41 277 33 280 41 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1307-1312	●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1401-	●	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (D) L=260 SERVICED BY L=400	0-09814-400-0	01	1	1307-			●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (C) L=400	0-09814-400-0	01	1	1307-			●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (B)	8-98101-814-0	01	1	1307-			●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1307-1312	●
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98021-827-0	01	1	1307-1312			●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1401-	●	●
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98021-827-0	01	1	1401-			●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG(82L) (B)	8-98101-815-0	01	1	1307-			●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1307-1312	●		●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1401-	●	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98099-150-0	01	1	1307-1312	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98099-150-0	01	1	1401-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C)	8-98077-661-0	01	1	1307-			●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C)	8-98079-094-0	01	1	1307-			●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) (B)	8-98114-406-0	01	1	1307-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2726	8-98099-151-0	01	1	1307-1312	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2726	8-98099-151-0	01	1	1401-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (D) L=2460	8-98175-715-0	01	1	1307-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (C) L=366	8-98183-766-0	01	1	1307-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (B) L=2786	8-98114-407-0	01	1	1307-			●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1307-1312	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1401-	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1307-1312	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1307-1312			●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1401-	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1401-			●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1307-1312	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1307-1312			●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1401-	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1401-			●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X16 FLANGE	0-28050-816-0	01	1	1307-			●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	03	1	1307-			●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-			●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-			●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-			●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1307-1312	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1401-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1307-1312	●		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1401-	●	●	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1307-1312	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1307-1312			●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1401-	●	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1401-			●
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (E)	8-98183-767-0	01	1	1307-			●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (D)	1-47471-051-0	01	1	1307-			●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1307-1312	●		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1401-	●	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1307-1312	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1307-1312			●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1401-	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1401-			●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1307-1312	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1307-1312			●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1401-	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1401-			●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	03	1	1307-			●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=15 H=24 L=20	1-09700-606-0	03	1	1307-			●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
68	NUT; CLIP,OIL PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1307-1312			●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
68	NUT; CLIP,OIL PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1401-			●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-467-0	01	1	1307-1312	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	1307-1312			●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-467-0	01	1	1401-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	1401-			●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B) ID=105.6	8-97386-295-0	01	1	1307-			●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-041-0	01	1	1307-1312	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-041-0	01	1	1401-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (C)	8-98183-765-0	01	1	1307-			●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (B)	8-98154-046-0	01	1	1307-			●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	1307-1312	●
277	BOLT; HOSE CLIP 6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	01	1	1307-1312			●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	1401-	●	●
277	BOLT; HOSE CLIP 6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	01	1	1401-			●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	1307-1312	●
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG(82L) (A)	8-98094-167-0	01	1	1307-1312			●
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	1401-	●	●
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG(82L) (A)	8-98094-167-0	01	1	1401-			●
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) (B)	8-98086-764-1	01	1	1307-			●

44 371 163 157 63 65 153 61 65 153 61 65 61 65 65 153 37 65 65 59 79 41 61 58 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1307-1312	●		●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1401-	●	●	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1307-1312	●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (A) ID=26	1-09704-082-0	02	1	1307-1312			●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1401-	●	●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (A) ID=26	1-09704-082-0	02	1	1401-			●
37	CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) (A) ID=26	1-09704-082-0	04	1	1307-			●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1307-			●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1307-			●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1307-1312	●		●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1401-	●	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98099-150-0	01	1	1307-1312	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-98099-150-0	01	1	1401-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C)	8-98077-661-0	01	1	1307-			●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C)	8-98079-094-0	01	1	1307-			●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) (B)	8-98114-406-0	01	1	1307-			●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1307-1312	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1401-	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1307-1312	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1307-1312			●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1401-	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1401-			●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1307-1312	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1307-1312			●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1401-	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1401-			●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X16 FLANGE	0-28050-816-0	01	1	1307-			●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	03	1	1307-			●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-			●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-			●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-			●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1307-1312	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1401-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1307-1312	●		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1401-	●	●	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1307-1312	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1307-1312			●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1401-	●	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1401-			●
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (E)	8-98183-767-0	01	1	1307-			●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (D)	1-47471-051-0	01	1	1307-			●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1307-1312	●		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1401-	●	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1307-1312	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1307-1312			●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1401-	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1401-			●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1307-1312	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1307-1312			●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1401-	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1401-			●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	03	1	1307-			●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=15 H=24 L=20	1-09700-606-0	03	1	1307-			●
63	BRACKET; CLIP,P/S 4HK1-TCS ENG(RJS)	8-98075-954-0	01	1	1307-			●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1307-1312	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1307-1312			●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1401-	●	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1401-			●
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	09	1	1307-			●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1307-			●
66	BOLT; BRKT,OIL PIPE 4HK1-TCS ENG(RJS) M8X16 FLANGE	0-28050-816-0	02	1	1307-			●
66	BOLT; BRKT,OIL PIPE 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	01	1	1307-			●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1307-1312	●
79	BOLT; BRKT 6HK1-TCN ENG(82L) M8X25 FLANGE	0-28650-825-0	02	1	1307-1312			●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1401-	●	●
79	BOLT; BRKT 6HK1-TCN ENG(82L) M8X25 FLANGE	0-28650-825-0	02	1	1401-			●
79	BOLT; BRKT 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	03	1	1307-			●
153	RUBBER; CUSHION,POWER STRG PIPE 4HK1-TCS ENG(RJS)	8-94158-156-1	03	1	1307-			●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-467-0	01	1	1307-1312	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	1307-1312			●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-467-0	01	1	1401-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	1401-			●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B) ID=105.6	8-97386-295-0	01	1	1307-			●
163	BOLT; OIL PIPE 4HK1-TCS ENG(RJS) M8X16 FLANGE	0-28050-816-0	02	1	1307-			●
371	PIPE; OIL,INLET 4HK1-TCS ENG(RJS)	8-98072-089-1	01	1	1307-			●

2 3 5 19 12 19 15 26 37 37 34 268 1 1 37 25 31 37 46 263 284 54 58 67 61 35 79 58 65 59 61 61 264 79 58 59 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1307-1312	●		●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1401-	●	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1307-1312	●		●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1401-	●	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1307-1312	●		●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1401-	●	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1307-1312	●		●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1401-	●	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1307-1312	●		●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1401-	●	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1307-1312	●		●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1401-	●	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1307-1312	●		●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1401-	●	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1307-1312	●		●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1401-	●	●	●
25	BOLT; OIL TANK BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1307-			●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1307-1312	●		●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1401-	●	●	●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1307-1312	●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1401-	●	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (D) L=260 SERVICED BY L=400	0-09814-400-0	01	1	1307-			●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (C) L=400	0-09814-400-0	01	1	1307-			●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (B)	8-98101-814-0	01	1	1307-			●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1307-1312	●
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98021-827-0	01	1	1307-1312			●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1401-	●	●
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98021-827-0	01	1	1401-			●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG(82L) (B)	8-98101-815-0	01	1	1307-			●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1307-1312	●		●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1401-	●	●	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1307-1312	●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (A) ID=26	1-09704-082-0	02	1	1307-1312			●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1401-	●	●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (A) ID=26	1-09704-082-0	02	1	1401-			●
37	CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) (A) ID=26	1-09704-082-0	04	1	1307-			●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1307-			●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1307-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2726	8-98099-151-0	01	1	1307-1312	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2726	8-98099-151-0	01	1	1401-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (D) L=2460	8-98175-715-0	01	1	1307-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (C) L=366	8-98183-766-0	01	1	1307-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (B) L=2786	8-98114-407-0	01	1	1307-			●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1307-1312	●
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1307-1312			●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1401-	●	●
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1401-			●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=19 L=39 H=21	1-09700-972-1	02	1	1307-			●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1307-1312	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1401-	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1307-1312	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1307-1312			●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1401-	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1401-			●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1307-1312	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1307-1312			●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1401-	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1401-			●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X16 FLANGE	0-28050-816-0	01	1	1307-			●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	03	1	1307-			●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-			●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-			●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-			●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1307-1312	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1401-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1307-1312	●		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1401-	●	●	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1307-1312	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1307-1312			●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1401-	●	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1401-			●
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (E)	8-98183-767-0	01	1	1307-			●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (D)	1-47471-051-0	01	1	1307-			●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1307-1312	●		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1401-	●	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1307-1312	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1307-1312			●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1401-	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1401-			●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1307-1312	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1307-1312			●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1401-	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1401-			●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	03	1	1307-			●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=15 H=24 L=20	1-09700-606-0	03	1	1307-			●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1307-1312	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1307-1312			●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1401-	●	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1401-			●
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	09	1	1307-			●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1307-			●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
67	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1307-1312			●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
67	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1401-			●
67	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	03	1	1307-			●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1307-1312	●
79	BOLT; BRKT 6HK1-TCN ENG(82L) M8X25 FLANGE	0-28650-825-0	02	1	1307-1312			●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1401-	●	●
79	BOLT; BRKT 6HK1-TCN ENG(82L) M8X25 FLANGE	0-28650-825-0	02	1	1401-			●
79	BOLT; BRKT 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	03	1	1307-			●
263	BRACKET; P/S PIPE	8-98079-444-0	01	1	1307-1312	●
263	BRACKET; P/S PIPE 6HK1-TCN ENG(82L)	8-98079-444-0	01	1	1307-1312			●
263	BRACKET; P/S PIPE	8-98079-444-0	01	1	1401-	●	●
263	BRACKET; P/S PIPE 6HK1-TCN ENG(82L)	8-98079-444-0	01	1	1401-			●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1307-1312	●
264	BOLT; PIPE BRKT 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	01	1	1307-1312			●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1401-	●	●
264	BOLT; PIPE BRKT 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	01	1	1401-			●
264	BOLT; PIPE BRKT 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	02	1	1307-			●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-041-0	01	1	1307-1312	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-041-0	01	1	1401-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (C)	8-98183-765-0	01	1	1307-			●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (B)	8-98154-046-0	01	1	1307-			●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
284	NUT; PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1307-1312			●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
284	NUT; PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1401-			●
284	NUT; PIPE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1307-			●

58 59 79 65 67 61 58 61 59 65 61 58 67 79 268 37 37 46 62 37 58 34 37 58 62 31 37 25 1 25 23 26 1 2 5 3 19 12 19 15 15 37 264 54 284 263

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1307-1312	●		●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1401-	●	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1307-1312	●		●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1401-	●	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1307-1312	●		●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1401-	●	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1307-1312	●		●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1401-	●	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1307-1312	●		●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1401-	●	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1307-1312	●		●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1401-	●	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1307-1312	●		●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1401-	●	●	●
23	BRACKET; OIL TANK,P/S 4HK1-TCS ENG(RJS) (B)	8-98060-024-0	01	1	1307-			●
23	BRACKET; OIL TANK,P/S 6HK1-TCN ENG(82L) (A)	8-98125-268-0	01	1	1307-			●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1307-1312	●		●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1401-	●	●	●
25	BOLT; OIL TANK BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1307-			●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1307-1312	●		●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1401-	●	●	●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1307-1312	●
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	1401-	●	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (D) L=260 SERVICED BY L=400	0-09814-400-0	01	1	1307-			●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (C) L=400	0-09814-400-0	01	1	1307-			●
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (B)	8-98101-814-0	01	1	1307-			●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1307-1312	●
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98021-827-0	01	1	1307-1312			●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1401-	●	●
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (A)	8-98021-827-0	01	1	1401-			●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG(82L) (B)	8-98101-815-0	01	1	1307-			●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1307-1312	●		●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1401-	●	●	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1307-1312	●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (A) ID=26	1-09704-082-0	02	1	1307-1312			●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1401-	●	●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (A) ID=26	1-09704-082-0	02	1	1401-			●
37	CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) (A) ID=26	1-09704-082-0	04	1	1307-			●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1307-			●
37	CLIP; HOSE,P/S 6HK1-TCN ENG(82L) (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1307-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2726	8-98099-151-0	01	1	1307-1312	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2726	8-98099-151-0	01	1	1401-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (D) L=2460	8-98175-715-0	01	1	1307-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (C) L=366	8-98183-766-0	01	1	1307-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) (B) L=2786	8-98114-407-0	01	1	1307-			●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1307-1312	●
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1307-1312			●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1401-	●	●
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1401-			●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=19 L=39 H=21	1-09700-972-1	02	1	1307-			●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1307-1312	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1401-	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1307-1312	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1307-1312			●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1401-	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1401-			●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1307-1312	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1307-1312			●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1401-	●	●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1401-			●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X16 FLANGE	0-28050-816-0	01	1	1307-			●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	03	1	1307-			●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-			●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-			●
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-			●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1307-1312	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1401-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1307-1312	●		●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1401-	●	●	●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1307-1312	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1307-1312			●
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1401-	●	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (C)	1-21464-481-0	01	1	1401-			●
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (E)	8-98183-767-0	01	1	1307-			●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (D)	1-47471-051-0	01	1	1307-			●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1307-1312	●		●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1401-	●	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1307-1312	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1307-1312			●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1401-	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (C) ID=16 L=20	0-95235-536-0	02	1	1401-			●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1307-1312	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1307-1312			●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1401-	●	●
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1401-			●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=16 L=20	0-95235-536-0	03	1	1307-			●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=15 H=24 L=20	1-09700-606-0	03	1	1307-			●
62	NUT; CLIP FIX 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1307-			●
62	NUT; CLIP FIX 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1307-			●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1307-1312	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1307-1312			●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1401-	●	●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1401-			●
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	09	1	1307-			●
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1307-			●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
67	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1307-1312			●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
67	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1401-			●
67	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	03	1	1307-			●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1307-1312	●
79	BOLT; BRKT 6HK1-TCN ENG(82L) M8X25 FLANGE	0-28650-825-0	02	1	1307-1312			●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1401-	●	●
79	BOLT; BRKT 6HK1-TCN ENG(82L) M8X25 FLANGE	0-28650-825-0	02	1	1401-			●
79	BOLT; BRKT 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	03	1	1307-			●
263	BRACKET; P/S PIPE	8-98079-444-0	01	1	1307-1312	●
263	BRACKET; P/S PIPE 6HK1-TCN ENG(82L)	8-98079-444-0	01	1	1307-1312			●
263	BRACKET; P/S PIPE	8-98079-444-0	01	1	1401-	●	●
263	BRACKET; P/S PIPE 6HK1-TCN ENG(82L)	8-98079-444-0	01	1	1401-			●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1307-1312	●
264	BOLT; PIPE BRKT 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	01	1	1307-1312			●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1401-	●	●
264	BOLT; PIPE BRKT 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	01	1	1401-			●
264	BOLT; PIPE BRKT 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	02	1	1307-			●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-041-0	01	1	1307-1312	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-041-0	01	1	1401-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (C)	8-98183-765-0	01	1	1307-			●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (B)	8-98154-046-0	01	1	1307-			●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
284	NUT; PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1307-1312			●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
284	NUT; PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1401-			●
284	NUT; PIPE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1307-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
