◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#123706) — 42 parça
çizim 363434
30 44 106 26 20 81 5 6 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 WHEEL; STRG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97423-998-0 01 1 1307-1312 ● ●
1 WHEEL; STRG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97423-998-0 01 1 1401- ● ● ●
1 WHEEL; STRG
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97412-555-1 01 1 1307-1312 ● ●
1 WHEEL; STRG
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97412-555-1 01 1 1401- ● ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 1307-1312 ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 1401- ● ● ●
6 SCREW; HORN SPR CONTACT
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M4X12 		8-97167-588-0 04 1 1307-1312 ● ●
6 SCREW; HORN SPR CONTACT
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M4X12 		8-97167-588-0 04 1 1401- ● ● ●
20 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY 		8-97405-985-1 01 1 1307-1312 ● ●
20 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY 		8-97405-985-1 01 1 1401- ● ● ●
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97421-978-0 01 1 1307-1312 ● ●
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97421-978-0 01 1 1401- ● ● ●
26 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97409-275-2 01 1 1307-1312 ● ●
26 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97409-275-2 01 1 1401- ● ● ●
30 COWL; STEERING
DARK GRAY 		8-97411-503-1 01 1 1307-1312 ● ●
30 COWL; STEERING
DARK GRAY 		8-97411-503-1 01 1 1401- ● ● ●
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 1307-1312 ● ●
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 1401- ● ● ●
81 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY 		8-97405-986-0 01 1 1307-1312 ● ●
81 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY 		8-97405-986-0 01 1 1401- ● ● ●
106 BOLT; TORX 8-98231-397-0 02 1 1307-1312 ● ●
106 BOLT; TORX 8-98231-397-0 02 1 1401- ● ● ●

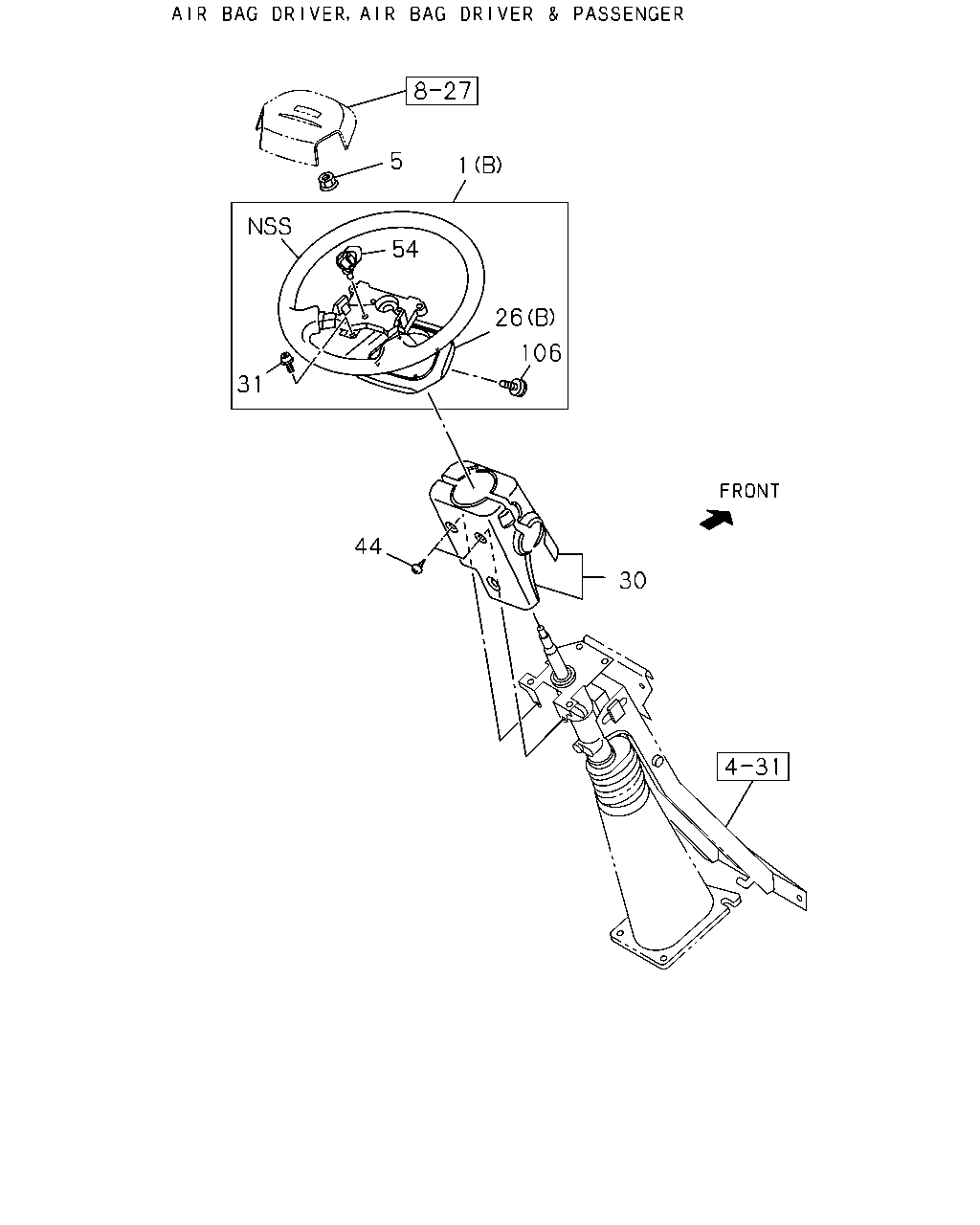

çizim 363458
30 44 31 54 5 26 106 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 WHEEL; STRG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97423-998-0 01 1 1307-1312 ● ●
1 WHEEL; STRG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97423-998-0 01 1 1401- ● ● ●
1 WHEEL; STRG
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97412-555-1 01 1 1307-1312 ● ●
1 WHEEL; STRG
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97412-555-1 01 1 1401- ● ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 1307-1312 ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 1401- ● ● ●
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97421-978-0 01 1 1307-1312 ● ●
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97421-978-0 01 1 1401- ● ● ●
26 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97409-275-2 01 1 1307-1312 ● ●
26 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97409-275-2 01 1 1401- ● ● ●
30 COWL; STEERING
DARK GRAY 		8-97411-503-1 01 1 1307-1312 ● ●
30 COWL; STEERING
DARK GRAY 		8-97411-503-1 01 1 1401- ● ● ●
31 SCREW; BOSS TO COVER
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M4X12 		8-97167-588-0 04 1 1307-1312 ● ●
31 SCREW; BOSS TO COVER
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M4X12 		8-97167-588-0 04 1 1401- ● ● ●
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 1307-1312 ● ●
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 1401- ● ● ●
54 CLIP; HARNESS
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98165-703-0 01 1 1307-1312 ● ●
54 CLIP; HARNESS
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98165-703-0 01 1 1401- ● ● ●
106 BOLT; TORX 8-98231-397-0 02 1 1307-1312 ● ●
106 BOLT; TORX 8-98231-397-0 02 1 1401- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
