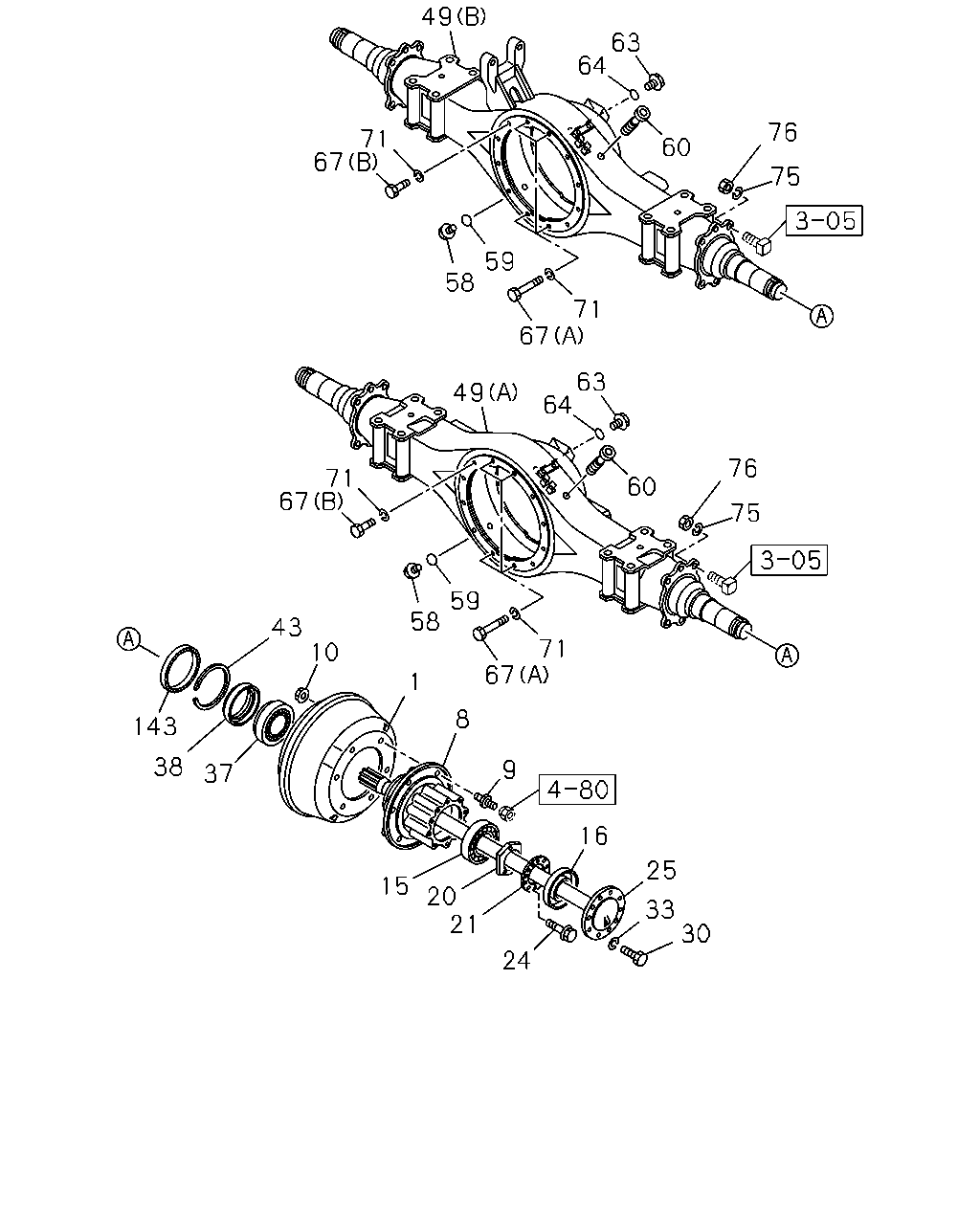

4-20 — REAR AXLE CASE AND SHAFT (#123704) — 68 parça

49 63 64 71 67 58 76 60 75 59 67 71 49 63 64 71 67 59 58 71 67 76 75 43 10 143 38 37 1 8 9 25 33 30 16 24 21 20 15 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRUM; BRK,RR	1-42315-361-0	02	1	1307-1312	●	●
1	DRUM; BRK,RR	1-42315-361-0	02	1	1401-	●	●	●
8	HUB; RR AXLE	1-42311-071-1	02	1	1307-1312	●	●
8	HUB; RR AXLE	1-42311-071-1	02	1	1401-	●	●	●
9	PIN; WHEEL,RR AXLE WHEEL 6STUD 17.5X6.75 137-18 AL(FJG) M20X48.5,M22X43.5 RH THREAD	1-42331-130-2	06	1	1401-			●
9	PIN; WHEEL,RR AXLE WHEEL 6STUD 17.5X6.75 137-18 AL(FJG) M20X48.5 LH THREAD,M22X43.5 RH THREAD	1-42332-130-2	06	1	1401-			●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X43.5 RH THREAD	1-42331-106-2	06	1	1307-1312	●	●
9	PIN; WHEEL,RR AXLE M20X34.5,M22X43.5 RH THREAD	1-42331-106-2	06	1	1401-	●	●
9	PIN; WHEEL,RR AXLE WHEEL 6STUD 6.00X17.5 135-9(SBG),DISC WHEEL 6STUD6.75X17.5 137-10(SFC) M20X34.5,M22X43.5 RH THREAD	1-42331-106-2	06	1	1401-			●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X43.5 RH THREAD	1-42332-106-2	06	1	1307-1312	●	●
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X43.5 RH THREAD	1-42332-106-2	06	1	1401-	●	●
9	PIN; WHEEL,RR AXLE WHEEL 6STUD 6.00X17.5 135-9(SBG),DISC WHEEL 6STUD6.75X17.5 137-10(SFC) M20X34.5 LH THREAD,M22X43.5 RH THREAD	1-42332-106-2	06	1	1401-			●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	12	1	1307-1312	●	●
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	12	1	1401-	●	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	8-98156-814-0	02	1	1307-1312	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	8-98156-814-0	02	1	1401-	●	●	●
15	BEARING; HUB OUTER,RR AXLE NSK	9-00093-159-0	02	1	1307-1312	●	●
15	BEARING; HUB OUTER,RR AXLE NSK	9-00093-159-0	02	1	1401-	●	●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-160-0	02	1	1307-1312	●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-160-0	02	1	1401-	●	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-331-1	02	1	1307-1312	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-331-1	02	1	1401-	●	●	●
20	NUT; BRG,RR HUB M64	9-09843-721-2	02	1	1307-1312	●	●
20	NUT; BRG,RR HUB M64	9-09843-721-2	02	1	1401-	●	●	●
21	WASHER; LK,BRG NUT ID=64	9-09854-122-0	02	1	1307-1312	●	●
21	WASHER; LK,BRG NUT ID=64	9-09854-122-0	02	1	1401-	●	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	1307-1312	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	1401-	●	●	●
25	SHAFT; AXLE,RR L=925	8-97380-682-0	02	1	1307-1312	●	●
25	SHAFT; AXLE,RR L=925	8-97380-682-0	02	1	1401-	●	●	●
30	BOLT; HUB TO AXLE SHAFT M12X45	9-09804-239-1	20	1	1307-1312	●	●
30	BOLT; HUB TO AXLE SHAFT M12X45	9-09804-239-1	20	1	1401-	●	●	●
33	WASHER; AXLE SHAFT ID=12.2	0-91510-812-0	20	1	1307-1312	●	●
33	WASHER; AXLE SHAFT ID=12.2	0-91510-812-0	20	1	1401-	●	●	●
37	BEARING; HUB INNER,RR AXLE NSK	1-09812-153-0	02	1	1307-1312	●	●
37	BEARING; HUB INNER,RR AXLE NSK	1-09812-153-0	02	1	1401-	●	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-154-0	02	1	1307-1312	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-154-0	02	1	1401-	●	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-569-0	02	1	1307-1312	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-569-0	02	1	1401-	●	●	●
43	RING; SNAP,HUB SEAL,RR AXLE	9-09950-201-0	02	1	1307-1312	●	●
43	RING; SNAP,HUB SEAL,RR AXLE	9-09950-201-0	02	1	1401-	●	●	●
49	CASE; RR AXLE (B)	8-98241-964-1	01	1	1401-1409	●	●	●
49	CASE; RR AXLE (B)	8-98259-526-0	01	1	1410-	●	●	●
49	CASE; RR AXLE (A)	8-98012-440-3	01	1	1307-1409	●	●
49	CASE; RR AXLE (A)	8-98259-516-0	01	1	1410-	●	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1307-1312	●	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1401-	●	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1307-1312	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1401-	●	●	●
60	BREATHER; RR AXLE CASE	1-09893-003-0	01	1	1307-1312	●	●
60	BREATHER; RR AXLE CASE	1-09893-003-0	01	1	1401-	●	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	1307-1312	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	1401-	●	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	1307-1312	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	1401-	●	●	●
67	BOLT; FINAL DRIVE SETTING (A) M12X60	0-10956-260-0	04	1	1307-1312	●	●
67	BOLT; FINAL DRIVE SETTING (A) M12X60	0-10956-260-0	04	1	1401-	●	●	●
67	BOLT; FINAL DRIVE SETTING (B) M12X35	0-20951-235-0	08	1	1307-1312	●	●
67	BOLT; FINAL DRIVE SETTING (B) M12X35	0-20951-235-0	08	1	1401-	●	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	0-91510-812-0	12	1	1307-1312	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	0-91510-812-0	12	1	1401-	●	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	12	1	1307-1312	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	12	1	1401-	●	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	12	1	1307-1312	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	12	1	1401-	●	●	●
143	RING; EXCITER	1-42319-169-1	02	1	1307-1312	●	●
143	RING; EXCITER	1-42319-169-1	02	1	1401-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
