Sayfa 4-01 - Isuzu EPC

4-01 — PROPELLER SHAFT (#123701) — 206 parça

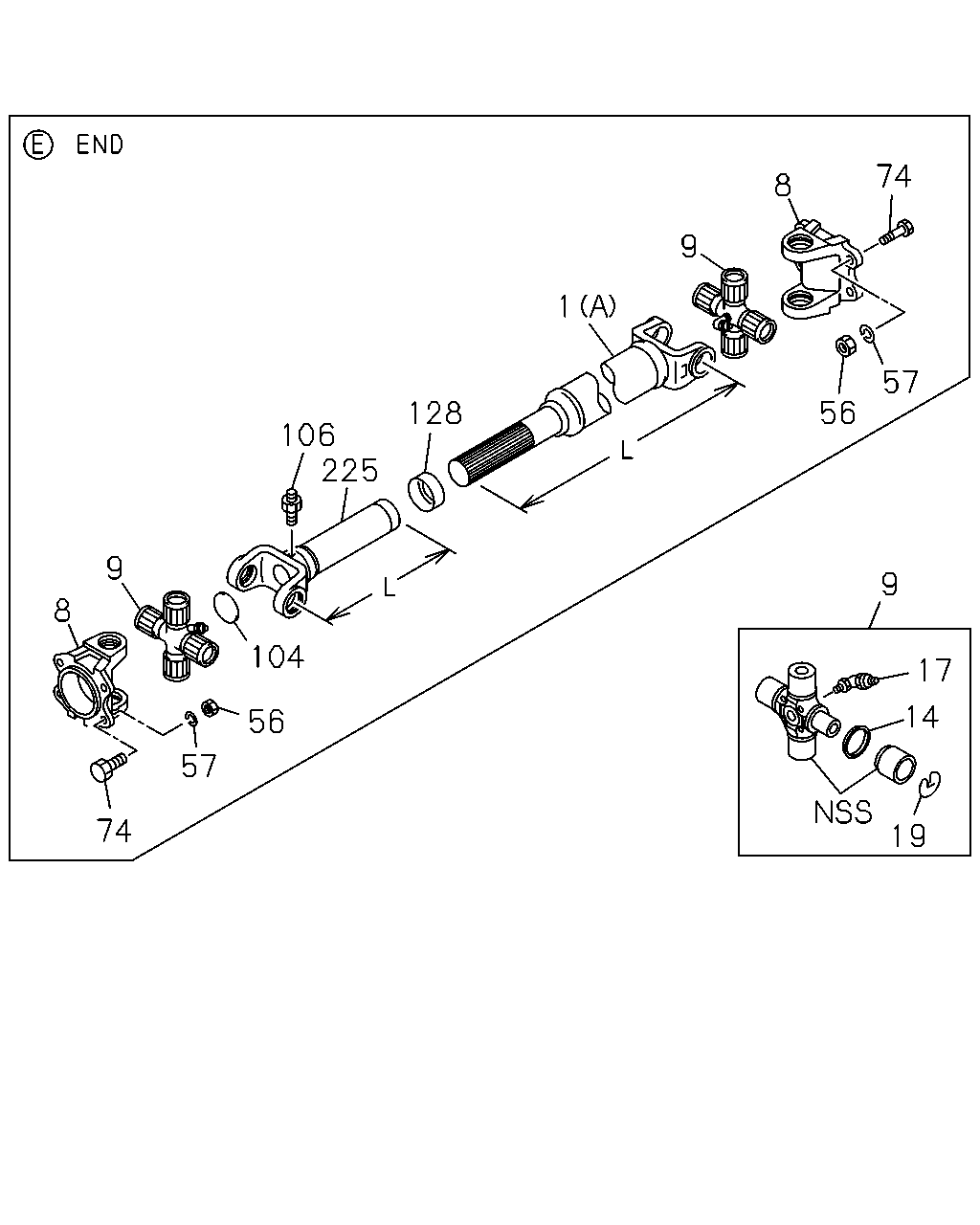

9 17 14 19 8 9 74 104 56 57 106 128 225 1 9 8 74 57 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP AIR SUS(FCD***) (A) L=1184	8-98091-123-0	01	1	1401-	●
1	SHAFT; PROP (A) L=1116	8-98091-130-0	01	1	1307-		●
1	SHAFT; PROP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839	8-98091-095-0	01	1	1307-		●
1	SHAFT; PROP 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839	8-98091-095-0	01	1	1307-	●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839	8-98091-095-0	01	1	1307-			●
1	SHAFT; PROP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759	8-98091-094-0	01	1	1307-		●
1	SHAFT; PROP 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759	8-98091-094-0	01	1	1307-	●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759	8-98091-094-0	01	1	1307-			●
1	SHAFT; PROP LCT2500 A/T ALLISON(Y5W) (B) L=876	1-37153-263-0	01	1	1307-	●	●
1	SHAFT; PROP (C) L=574	8-98091-092-0	01	1	1307-	●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1179	8-98091-083-0	01	1	1307-	●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1079	8-98091-099-0	01	1	1307-	●
1	SHAFT; PROP LEAF SUS(FCR***) (A) L=1199	8-98091-121-0	01	1	1307-	●
1	SHAFT; PROP (A) L=1199	8-98091-121-0	01	1	1307-			●
1	SHAFT; PROP (C) L=974	8-98091-098-0	01	1	1307-			●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1307-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1307-	●		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	1307-	●	●	●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND	1-37300-102-1	AR	1	1307-1505	●	●	●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND	1-37300-102-1	AR	1	1307-1505	●		●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	AR	1	1506-	●	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	AR	1	1506-	●		●
9	JOURNAL ASM; PROP SHAFT END	8-98048-925-1	02	1	1307-	●	●	●
14	COVER; DUST,SPIDER 1ST,2ND	1-37319-012-0	04	1	1307-1505	●	●	●
14	COVER; DUST,SPIDER 1ST,2ND	1-37319-012-0	04	1	1307-1505	●		●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-	●		●
14	COVER; DUST,SPIDER END	8-98020-800-0	08	1	1307-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1307-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1307-	●		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1307-	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1307-	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1307-	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1307-	●	●	●
56	NUT; YOKE M14	0-91110-514-0	08	1	1307-	●	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	1307-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1307-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1307-	●		●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	1307-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	01	1	1307-	●	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	1307-	●	●	●
225	YOKE; SLEEVE,PROP SHAFT L=254	8-98020-885-0	01	1	1307-	●	●	●

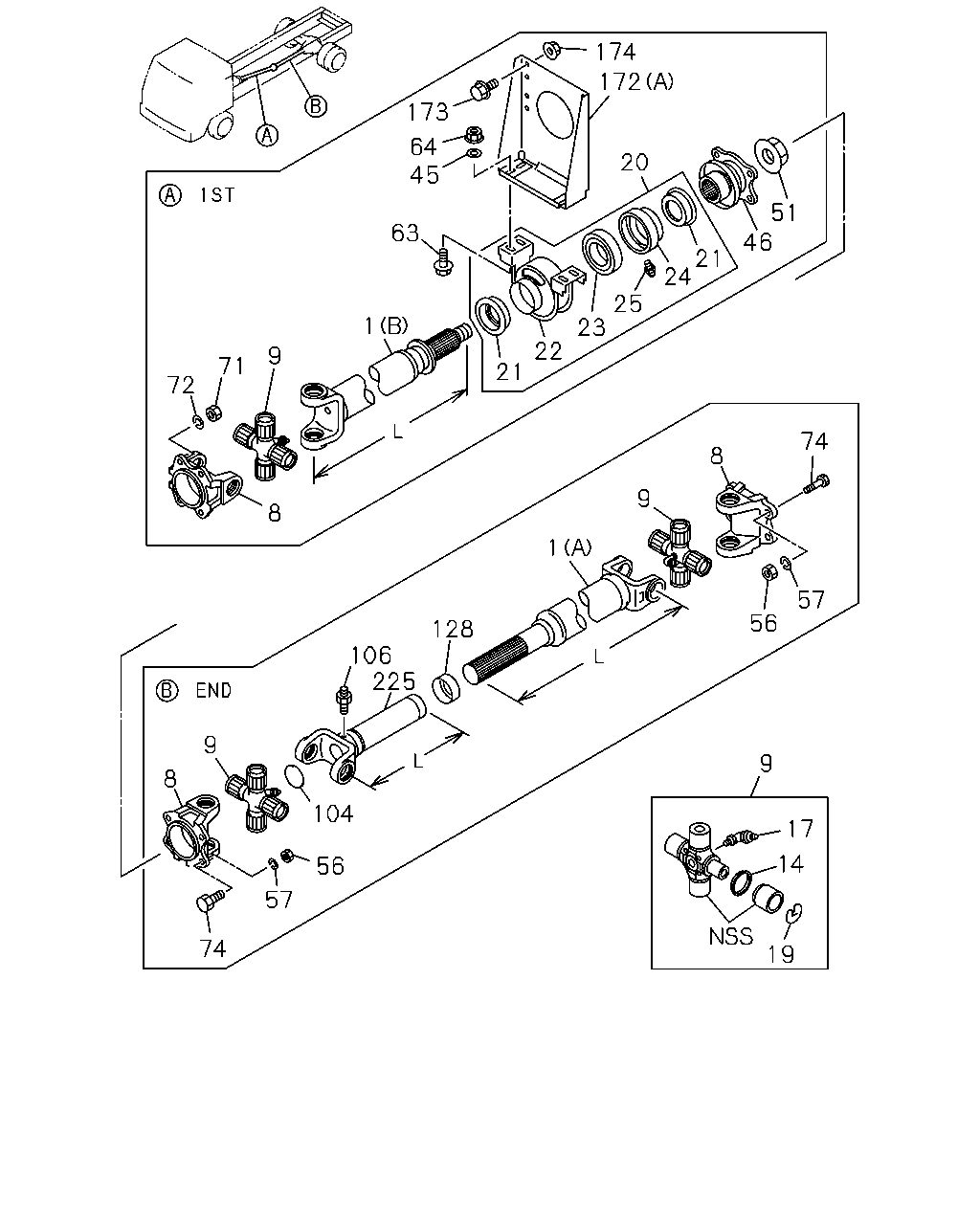

174 172 173 64 45 20 63 1 9 71 72 8 21 22 23 25 24 21 46 51 8 9 106 225 128 1 9 8 74 57 56 104 56 57 74 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP AIR SUS(FCD***) (A) L=1184	8-98091-123-0	01	1	1401-	●
1	SHAFT; PROP (A) L=1116	8-98091-130-0	01	1	1307-		●
1	SHAFT; PROP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839	8-98091-095-0	01	1	1307-		●
1	SHAFT; PROP 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839	8-98091-095-0	01	1	1307-	●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839	8-98091-095-0	01	1	1307-			●
1	SHAFT; PROP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759	8-98091-094-0	01	1	1307-		●
1	SHAFT; PROP 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759	8-98091-094-0	01	1	1307-	●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759	8-98091-094-0	01	1	1307-			●
1	SHAFT; PROP LCT2500 A/T ALLISON(Y5W) (B) L=876	1-37153-263-0	01	1	1307-	●	●
1	SHAFT; PROP (C) L=574	8-98091-092-0	01	1	1307-	●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1179	8-98091-083-0	01	1	1307-	●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1079	8-98091-099-0	01	1	1307-	●
1	SHAFT; PROP LEAF SUS(FCR***) (A) L=1199	8-98091-121-0	01	1	1307-	●
1	SHAFT; PROP (A) L=1199	8-98091-121-0	01	1	1307-			●
1	SHAFT; PROP (C) L=974	8-98091-098-0	01	1	1307-			●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1307-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1307-	●		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	1307-	●	●	●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND	1-37300-102-1	AR	1	1307-1505	●	●	●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND	1-37300-102-1	AR	1	1307-1505	●		●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	AR	1	1506-	●	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	AR	1	1506-	●		●
9	JOURNAL ASM; PROP SHAFT END	8-98048-925-1	02	1	1307-	●	●	●
14	COVER; DUST,SPIDER 1ST,2ND	1-37319-012-0	04	1	1307-1505	●	●	●
14	COVER; DUST,SPIDER 1ST,2ND	1-37319-012-0	04	1	1307-1505	●		●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-	●		●
14	COVER; DUST,SPIDER END	8-98020-800-0	08	1	1307-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1307-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1307-	●		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1307-	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1307-	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1307-	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1307-	●	●	●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-105-0	01	1	1307-	●	●	●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-105-0	01	1	1307-	●		●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1307-	●	●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1307-	●		●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1307-	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1307-	●		●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1307-	●	●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1307-	●		●
24	RETAINER; CENTER BRG,1ST	1-37529-068-0	01	1	1307-	●	●	●
24	RETAINER; CENTER BRG,1ST	1-37529-068-0	01	1	1307-	●		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1307-	●	●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1307-	●		●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1307-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-071-0	01	1	1307-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-071-0	01	1	1307-	●		●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1307-	●	●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1307-	●		●
56	NUT; YOKE M14	0-91110-514-0	08	1	1307-	●	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	1307-	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1307-	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1307-	●		●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1307-	●	●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1307-	●		●
71	NUT; YOKE M14	0-91110-514-0	04	1	1307-	●	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1307-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1307-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1307-	●		●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	1307-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	01	1	1307-	●	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	1307-	●	●	●
172	BRACKET; CENTER BRG 6HK1-TCC ENG(81L) (A)	8-98044-078-0	01	1	1401-		●
172	BRACKET; CENTER BRG 6HK1-TCN ENG(82L) (A)	8-98044-076-0	01	1	1307-		●
172	BRACKET; CENTER BRG (A)	8-98044-076-0	01	1	1307-	●
172	BRACKET; CENTER BRG (B)	1-37515-120-0	01	1	1307-	●
172	BRACKET; CENTER BRG (B)	1-37515-121-0	01	1	1307-			●
172	BRACKET; CENTER BRG (A)	1-37515-122-0	01	1	1307-			●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1307-	●	●	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1307-	●		●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1307-	●	●	●
225	YOKE; SLEEVE,PROP SHAFT L=254	8-98020-885-0	01	1	1307-	●	●	●

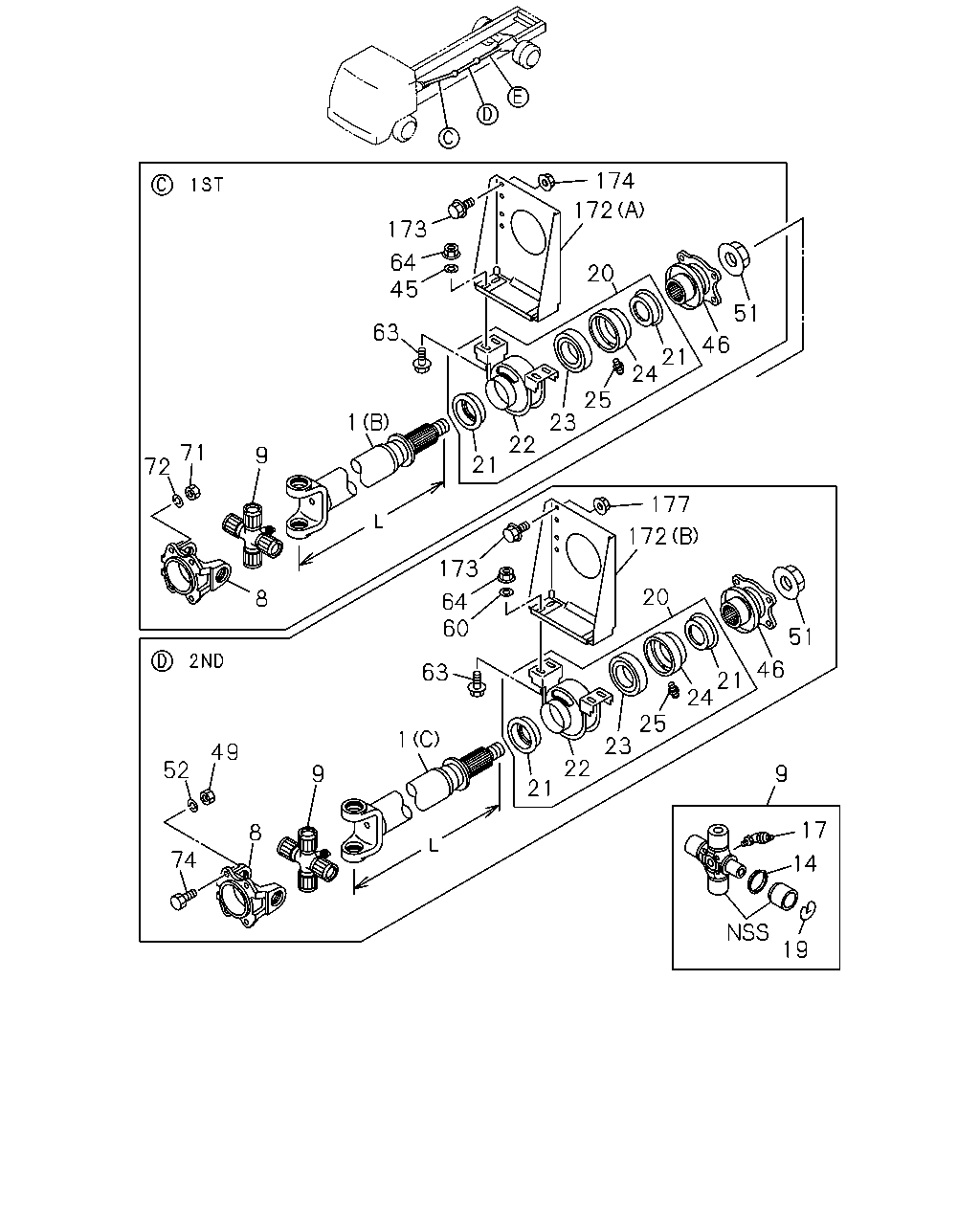

72 71 8 9 1 52 74 49 8 9 9 14 19 1 63 60 173 64 177 172 20 21 51 46 21 24 25 23 22 174 173 172 64 63 45 20 51 46 21 24 25 23 22 21 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP AIR SUS(FCD***) (A) L=1184	8-98091-123-0	01	1	1401-	●
1	SHAFT; PROP (A) L=1116	8-98091-130-0	01	1	1307-		●
1	SHAFT; PROP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839	8-98091-095-0	01	1	1307-		●
1	SHAFT; PROP 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839	8-98091-095-0	01	1	1307-	●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=839	8-98091-095-0	01	1	1307-			●
1	SHAFT; PROP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759	8-98091-094-0	01	1	1307-		●
1	SHAFT; PROP 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759	8-98091-094-0	01	1	1307-	●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=759	8-98091-094-0	01	1	1307-			●
1	SHAFT; PROP LCT2500 A/T ALLISON(Y5W) (B) L=876	1-37153-263-0	01	1	1307-	●	●
1	SHAFT; PROP (C) L=574	8-98091-092-0	01	1	1307-	●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1179	8-98091-083-0	01	1	1307-	●
1	SHAFT; PROP 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1079	8-98091-099-0	01	1	1307-	●
1	SHAFT; PROP LEAF SUS(FCR***) (A) L=1199	8-98091-121-0	01	1	1307-	●
1	SHAFT; PROP (A) L=1199	8-98091-121-0	01	1	1307-			●
1	SHAFT; PROP (C) L=974	8-98091-098-0	01	1	1307-			●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1307-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1307-	●		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	1307-	●	●	●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND	1-37300-102-1	AR	1	1307-1505	●	●	●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND	1-37300-102-1	AR	1	1307-1505	●		●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	AR	1	1506-	●	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	AR	1	1506-	●		●
9	JOURNAL ASM; PROP SHAFT END	8-98048-925-1	02	1	1307-	●	●	●
14	COVER; DUST,SPIDER 1ST,2ND	1-37319-012-0	04	1	1307-1505	●	●	●
14	COVER; DUST,SPIDER 1ST,2ND	1-37319-012-0	04	1	1307-1505	●		●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-	●		●
14	COVER; DUST,SPIDER END	8-98020-800-0	08	1	1307-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1307-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1307-	●		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1307-	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1307-	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1307-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1307-	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1307-	●	●	●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-105-0	01	1	1307-	●	●	●
20	BEARING ASM; CTR,PROP SHAFT	1-37510-105-0	01	1	1307-	●		●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1307-	●	●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1307-	●		●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1307-	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1307-	●		●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1307-	●	●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1307-	●		●
24	RETAINER; CENTER BRG,1ST	1-37529-068-0	01	1	1307-	●	●	●
24	RETAINER; CENTER BRG,1ST	1-37529-068-0	01	1	1307-	●		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1307-	●	●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1307-	●		●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1307-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-071-0	01	1	1307-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-071-0	01	1	1307-	●		●
49	NUT; YOKE M14	0-91110-514-0	04	1	1307-	●		●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1307-	●	●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1307-	●		●
52	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1307-	●		●
60	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1307-	●		●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1307-	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1307-	●		●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1307-	●	●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1307-	●		●
71	NUT; YOKE M14	0-91110-514-0	04	1	1307-	●	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1307-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1307-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1307-	●		●
172	BRACKET; CENTER BRG 6HK1-TCC ENG(81L) (A)	8-98044-078-0	01	1	1401-		●
172	BRACKET; CENTER BRG 6HK1-TCN ENG(82L) (A)	8-98044-076-0	01	1	1307-		●
172	BRACKET; CENTER BRG (A)	8-98044-076-0	01	1	1307-	●
172	BRACKET; CENTER BRG (B)	1-37515-120-0	01	1	1307-	●
172	BRACKET; CENTER BRG (B)	1-37515-121-0	01	1	1307-			●
172	BRACKET; CENTER BRG (A)	1-37515-122-0	01	1	1307-			●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1307-	●	●	●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1307-	●		●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1307-	●	●	●
177	NUT M10 FLANGE	0-91180-210-0	04	1	1307-	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
