Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#123700) — 186 parça

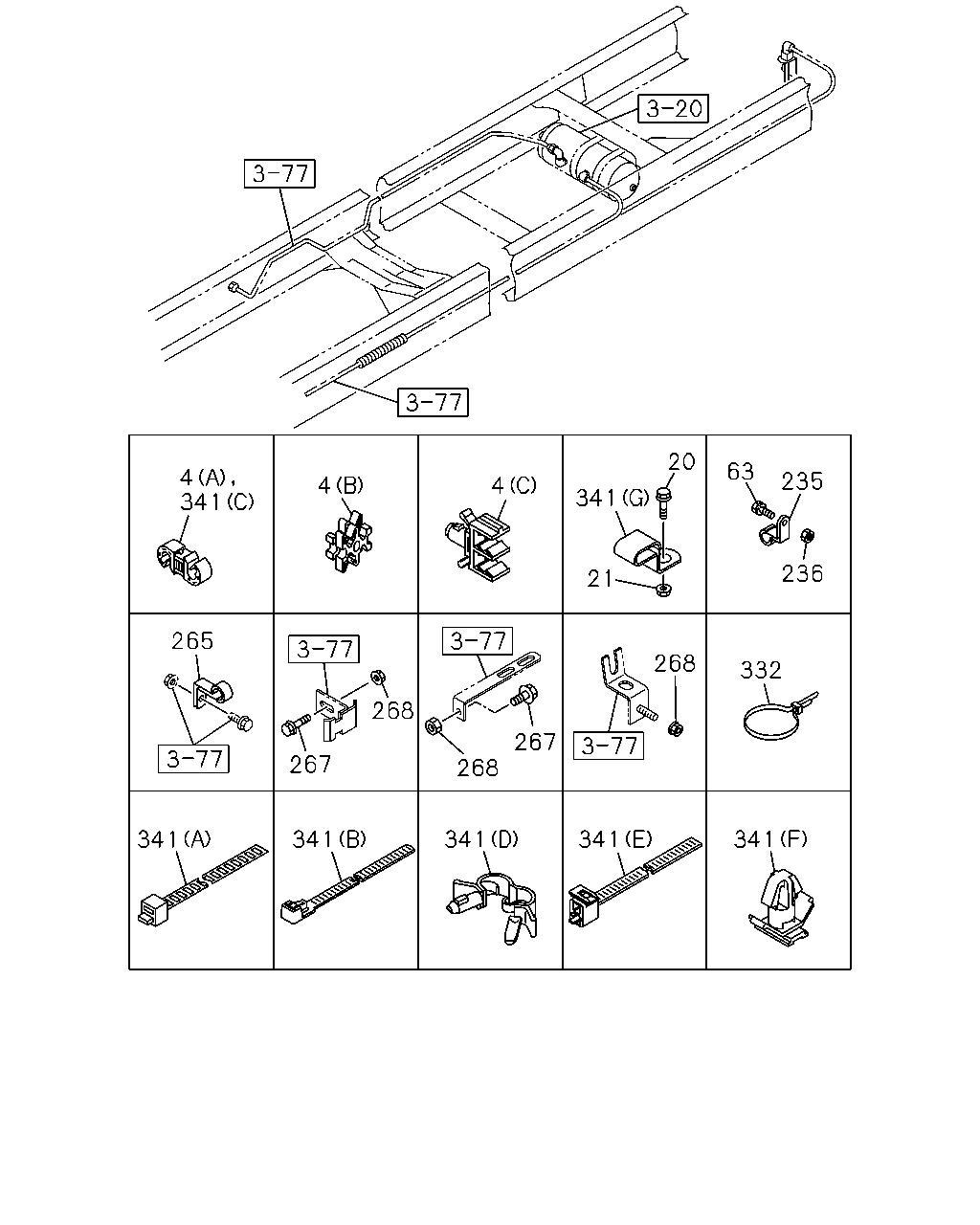

4 341 265 341 4 268 267 341 4 267 268 341 341 20 21 268 341 63 235 236 332 341

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	06	1	1307-1312	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	06	1	1401-	●	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) ID=4.7X4	1-09701-304-0	03	1	1307-1312	●
4	CLIP; AIR PIPE EXC. THROTTLE CONTROL SYSTEM(6XH) (B) ID=4.7X4	1-09701-304-0	03	1	1307-1312	●
4	CLIP; AIR PIPE (B) ID=4.7X4	1-09701-304-0	03	1	1307-1312			●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) ID=4.7X4	1-09701-304-0	03	1	1401-	●	●
4	CLIP; AIR PIPE EXC. THROTTLE CONTROL SYSTEM(6XH) (B) ID=4.7X4	1-09701-304-0	03	1	1401-	●	●
4	CLIP; AIR PIPE (B) ID=4.7X4	1-09701-304-0	03	1	1401-			●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	08	1	1307-1312	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	08	1	1401-	●	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 6.35	1-09709-304-0	02	1	1307-1312	●
4	CLIP; AIR PIPE EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 6.35	1-09709-304-0	02	1	1307-1312	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 6.35	1-09709-304-0	02	1	1401-	●	●
4	CLIP; AIR PIPE EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 6.35	1-09709-304-0	02	1	1401-	●	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0	1-09709-305-0	03	1	1307-1312	●
4	CLIP; AIR PIPE (A) ID=4.76 & 10.0	1-09709-305-0	03	1	1307-1312			●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0	1-09709-305-0	03	1	1401-	●	●
4	CLIP; AIR PIPE (A) ID=4.76 & 10.0	1-09709-305-0	03	1	1401-			●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (C) ID=4.8X2	8-94316-410-0	01	1	1307-1312	●
4	CLIP; AIR PIPE EXC. THROTTLE CONTROL SYSTEM(6XH) (C) ID=4.8X2	8-94316-410-0	01	1	1307-1312	●
4	CLIP; AIR PIPE (C) ID=4.8X2	8-94316-410-0	01	1	1307-1312			●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (C) ID=4.8X2	8-94316-410-0	01	1	1401-	●	●
4	CLIP; AIR PIPE EXC. THROTTLE CONTROL SYSTEM(6XH) (C) ID=4.8X2	8-94316-410-0	01	1	1401-	●	●
4	CLIP; AIR PIPE (C) ID=4.8X2	8-94316-410-0	01	1	1401-			●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	04	1	1307-1312	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> (A) ID=6.35 & 10.0	1-09709-274-1	04	1	1307-1312			●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	04	1	1401-	●	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> (A) ID=6.35 & 10.0	1-09709-274-1	04	1	1401-			●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	05	1	1307-1312	●
4	CLIP; AIR PIPE EXC. H.S.A SYSTEM<6EP> (A) ID=10 & 10	1-09709-277-1	05	1	1307-1312			●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	05	1	1401-	●	●
4	CLIP; AIR PIPE EXC. H.S.A SYSTEM<6EP> (A) ID=10 & 10	1-09709-277-1	05	1	1401-			●
4	CLIP; AIR PIPE EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	03	1	1307-1312	●
4	CLIP; AIR PIPE EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	03	1	1401-	●	●
4	CLIP; AIR PIPE EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	04	1	1307-1312	●
4	CLIP; AIR PIPE EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	04	1	1401-	●	●
4	CLIP; AIR PIPE EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0	1-09709-305-0	02	1	1307-1312	●
4	CLIP; AIR PIPE EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0	1-09709-305-0	02	1	1401-	●	●
4	CLIP; AIR PIPE (A) ID=6.35 & 12	1-09709-275-1	01	1	1307-			●
4	CLIP; AIR PIPE (A) ID=10 & 12	1-09709-278-1	02	1	1307-			●
4	CLIP; AIR PIPE (A) ID=4.76 & 6.35	1-09709-304-0	03	1	1307-			●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> (A) ID=10 & 10	1-09709-277-1	06	1	1307-			●
4	CLIP; AIR PIPE EXC. H.S.A SYSTEM<6EP> (A) ID=6.35 & 10.0	1-09709-274-1	02	1	1307-			●
20	BOLT; CLIP M10X30 FLANGE	0-28651-030-0	01	1	1307-1312	●		●
20	BOLT; CLIP M10X30 FLANGE	0-28651-030-0	01	1	1401-	●	●	●
21	NUT; CLIP M10 FLANGE	0-91180-210-0	01	1	1307-1312	●		●
21	NUT; CLIP M10 FLANGE	0-91180-210-0	01	1	1401-	●	●	●
63	BOLT; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) M8X25 FLANGE	0-28650-825-0	04	1	1307-1312	●
63	BOLT; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) M8X25 FLANGE	0-28650-825-0	04	1	1401-	●
63	BOLT; CLIP 6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 4300MM(43W) M8X25 FLANGE	0-28650-825-0	04	1	1401-		●
63	BOLT; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8X25 FLANGE	0-28650-825-0	06	1	1307-1312	●
63	BOLT; CLIP 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) M8X25 FLANGE	0-28650-825-0	06	1	1307-1312			●
63	BOLT; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8X25 FLANGE	0-28650-825-0	06	1	1401-	●
63	BOLT; CLIP 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) M8X25 FLANGE	0-28650-825-0	06	1	1401-			●
63	BOLT; CLIP 6HK1-TCC ENG(81L) WHEEL BASE 5100MM(51W) M8X25 FLANGE	0-28650-825-0	06	1	1401-		●
235	CLIP; AIR PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) ID=11 H=20 L=20	8-98033-780-0	04	1	1307-1312	●
235	CLIP; AIR PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) ID=11 H=20 L=20	8-98033-780-0	04	1	1401-	●
235	CLIP; AIR PIPE 6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 4300MM(43W) ID=11 H=20 L=20	8-98033-780-0	04	1	1401-		●
235	CLIP; AIR PIPE 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) ID=11 H=20 L=20	8-98033-780-0	06	1	1307-1312	●
235	CLIP; AIR PIPE 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) ID=11 H=20 L=20	8-98033-780-0	06	1	1307-1312			●
235	CLIP; AIR PIPE 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) ID=11 H=20 L=20	8-98033-780-0	06	1	1401-	●
235	CLIP; AIR PIPE 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) ID=11 H=20 L=20	8-98033-780-0	06	1	1401-			●
235	CLIP; AIR PIPE 6HK1-TCC ENG(81L) WHEEL BASE 5100MM(51W) ID=11 H=20 L=20	8-98033-780-0	06	1	1401-		●
236	NUT; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) M8 FLANGE	0-91180-108-0	04	1	1307-1312	●
236	NUT; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) M8 FLANGE	0-91180-108-0	04	1	1401-	●
236	NUT; CLIP 6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 4300MM(43W) M8 FLANGE	0-91180-108-0	04	1	1401-		●
236	NUT; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	06	1	1307-1312	●
236	NUT; CLIP 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) M8 FLANGE	0-91180-108-0	06	1	1307-1312			●
236	NUT; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M8 FLANGE	0-91180-108-0	06	1	1401-	●
236	NUT; CLIP 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) M8 FLANGE	0-91180-108-0	06	1	1401-			●
236	NUT; CLIP 6HK1-TCC ENG(81L) WHEEL BASE 5100MM(51W) M8 FLANGE	0-91180-108-0	06	1	1401-		●
265	CLIP; NYLON TUBE ID=21 H=25.5 L=26	8-94176-806-0	01	1	1307-1312	●		●
265	CLIP; NYLON TUBE ID=21 H=25.5 L=26	8-94176-806-0	01	1	1401-	●	●	●
267	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1401-		●
268	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	1401-		●
268	NUT; CLIP BRKT WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M10 FLANGE	0-91180-210-0	01	1	1307-1312	●
268	NUT; CLIP BRKT WHEEL BASE 5100MM(51W) M10 FLANGE	0-91180-210-0	01	1	1307-1312			●
268	NUT; CLIP BRKT WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) M10 FLANGE	0-91180-210-0	01	1	1401-	●
268	NUT; CLIP BRKT WHEEL BASE 5100MM(51W) M10 FLANGE	0-91180-210-0	01	1	1401-		●	●
332	CLIP; BAND L=250	1-09707-126-0	05	1	1307-1312	●		●
332	CLIP; BAND L=250	1-09707-126-0	05	1	1401-	●	●	●
341	CLIP; HARNESS 4HK1-TCS ENG(RJS) (A) L=600	1-09707-107-1	02	1	1307-			●
341	CLIP; HARNESS 4HK1-TCS ENG(RJS) (B) L=140	5-09707-031-1	01	1	1307-			●
341	CLIP; HARNESS (C) ID=10 & 10	1-09709-277-1	01	1	1307-			●
341	CLIP; HARNESS (C) ID=10 & 15	1-09709-279-1	01	1	1307-			●
341	CLIP; HARNESS (D) ID=5-12 L=14.5	1-09987-221-0	04	1	1307-1312	●
341	CLIP; HARNESS (D) ID=5-12 L=14.5	1-09987-221-0	04	1	1401-	●	●
341	CLIP; HARNESS (E) L=180	1-09707-162-1	01	1	1307-1312	●		●
341	CLIP; HARNESS (E) L=180	1-09707-162-1	01	1	1401-	●	●	●
341	CLIP; HARNESS (F) OD=9 H=6	1-09709-178-0	02	1	1307-1312	●		●
341	CLIP; HARNESS (F) OD=9 H=6	1-09709-178-0	02	1	1401-	●	●	●
341	CLIP; HARNESS (G) ID=17.5X2 L=25	5-09700-358-0	01	1	1307-1312	●		●
341	CLIP; HARNESS (G) ID=17.5X2 L=25	5-09700-358-0	01	1	1401-	●	●	●

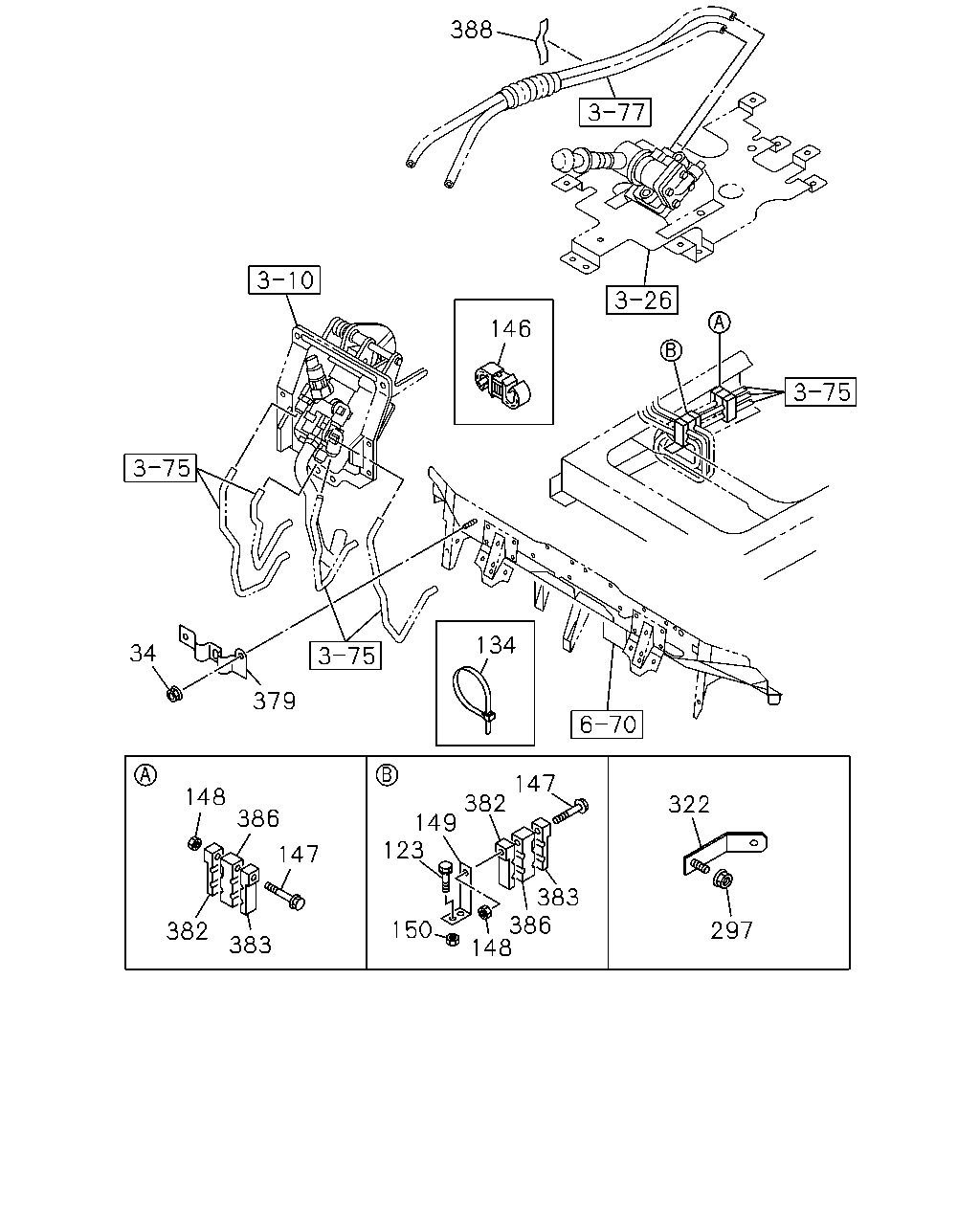

388 146 134 379 34 148 386 382 147 383 123 149 382 147 383 386 148 150 322 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
34	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	1307-1312	●		●
34	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	1401-	●	●	●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1307-1312	●		●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1401-	●	●	●
134	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	1307-1312	●		●
134	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	1401-	●	●	●
146	CLIP; AIR PIPE 6HK1-TCN ENG(82L) ID=10 & 10	1-09709-277-1	04	1	1307-1312	●
146	CLIP; AIR PIPE 6HK1-TCN ENG(82L) ID=10 & 10	1-09709-277-1	04	1	1401-	●
146	CLIP; AIR PIPE 6HK1-TCC ENG(81L) ID=10 & 10	1-09709-277-1	04	1	1401-		●
146	CLIP; AIR PIPE 4HK1-TCS ENG(RJS) ID=10 & 10	1-09709-277-1	03	1	1307-			●
146	CLIP; AIR PIPE 6HK1-TCN ENG(82L) ID=10 & 10	1-09709-277-1	02	1	1307-			●
147	BOLT; PIPE CLIP 6HK1-TCN ENG(82L) M8X70 FLANGE	0-28050-870-0	04	1	1307-1312	●		●
147	BOLT; PIPE CLIP 6HK1-TCN ENG(82L) M8X70 FLANGE	0-28050-870-0	04	1	1401-	●		●
147	BOLT; PIPE CLIP 6HK1-TCC ENG(81L) M8X70 FLANGE	0-28050-870-0	04	1	1401-		●
147	BOLT; PIPE CLIP 4HK1-TCS ENG(RJS) M8X70 FLANGE	0-28050-870-0	03	1	1307-			●
148	NUT; PIPE CLIP 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	04	1	1307-1312	●		●
148	NUT; PIPE CLIP 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	04	1	1401-	●		●
148	NUT; PIPE CLIP 6HK1-TCC ENG(81L) M8 FLANGE	0-91180-108-0	04	1	1401-		●
148	NUT; PIPE CLIP 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	03	1	1307-			●
149	BRACKET; PIPE CLIP	1-47476-792-0	01	1	1307-1312	●		●
149	BRACKET; PIPE CLIP	1-47476-792-0	01	1	1401-1409	●	●	●
149	BRACKET; PIPE CLIP	8-98296-534-0	01	1	1410-	●	●	●
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	1307-1312	●		●
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	1401-	●	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
297	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1307-1312			●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
297	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1401-			●
297	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1307-			●
322	BRACKET; CLIP	1-47479-936-1	01	1	1307-1312	●
322	BRACKET; CLIP 6HK1-TCN ENG(82L)	1-47479-936-1	01	1	1307-1312			●
322	BRACKET; CLIP	1-47479-936-1	01	1	1401-	●	●
322	BRACKET; CLIP 6HK1-TCN ENG(82L)	1-47479-936-1	01	1	1401-			●
322	BRACKET; CLIP 4HK1-TCS ENG(RJS)	1-47479-936-1	02	1	1307-			●
379	BRACKET; NYLON TUBE	8-98044-013-0	01	1	1307-1312	●		●
379	BRACKET; NYLON TUBE	8-98044-013-0	01	1	1401-	●	●	●
382	CLIP; UPR 6HK1-TCN ENG(82L) ID=10 & 10	1-09709-241-0	04	1	1307-1312	●		●
382	CLIP; UPR 6HK1-TCN ENG(82L) ID=10 & 10	1-09709-241-0	04	1	1401-	●		●
382	CLIP; UPR 6HK1-TCC ENG(81L) ID=10 & 10	1-09709-241-0	04	1	1401-		●
382	CLIP; UPR 4HK1-TCS ENG(RJS) ID=10 & 10	1-09709-241-0	03	1	1307-			●
383	CLIP; LWR 6HK1-TCN ENG(82L) ID=10 & 10	1-09709-241-0	04	1	1307-1312	●		●
383	CLIP; LWR 6HK1-TCN ENG(82L) ID=10 & 10	1-09709-241-0	04	1	1401-	●		●
383	CLIP; LWR 6HK1-TCC ENG(81L) ID=10 & 10	1-09709-241-0	04	1	1401-		●
383	CLIP; LWR 4HK1-TCS ENG(RJS) ID=10 & 10	1-09709-241-0	03	1	1307-			●
386	CLIP; CENTER 6HK1-TCN ENG(82L) ID=10	1-09709-242-0	04	1	1307-1312	●		●
386	CLIP; CENTER 6HK1-TCN ENG(82L) ID=10	1-09709-242-0	04	1	1401-	●		●
386	CLIP; CENTER 6HK1-TCC ENG(81L) ID=10	1-09709-242-0	04	1	1401-		●
386	CLIP; CENTER 4HK1-TCS ENG(RJS) ID=10	1-09709-242-0	03	1	1307-			●
388	SEAL 100X40	1-72498-022-1	03	1	1307-1312	●		●
388	SEAL 100X40	1-72498-022-1	03	1	1401-	●	●	●

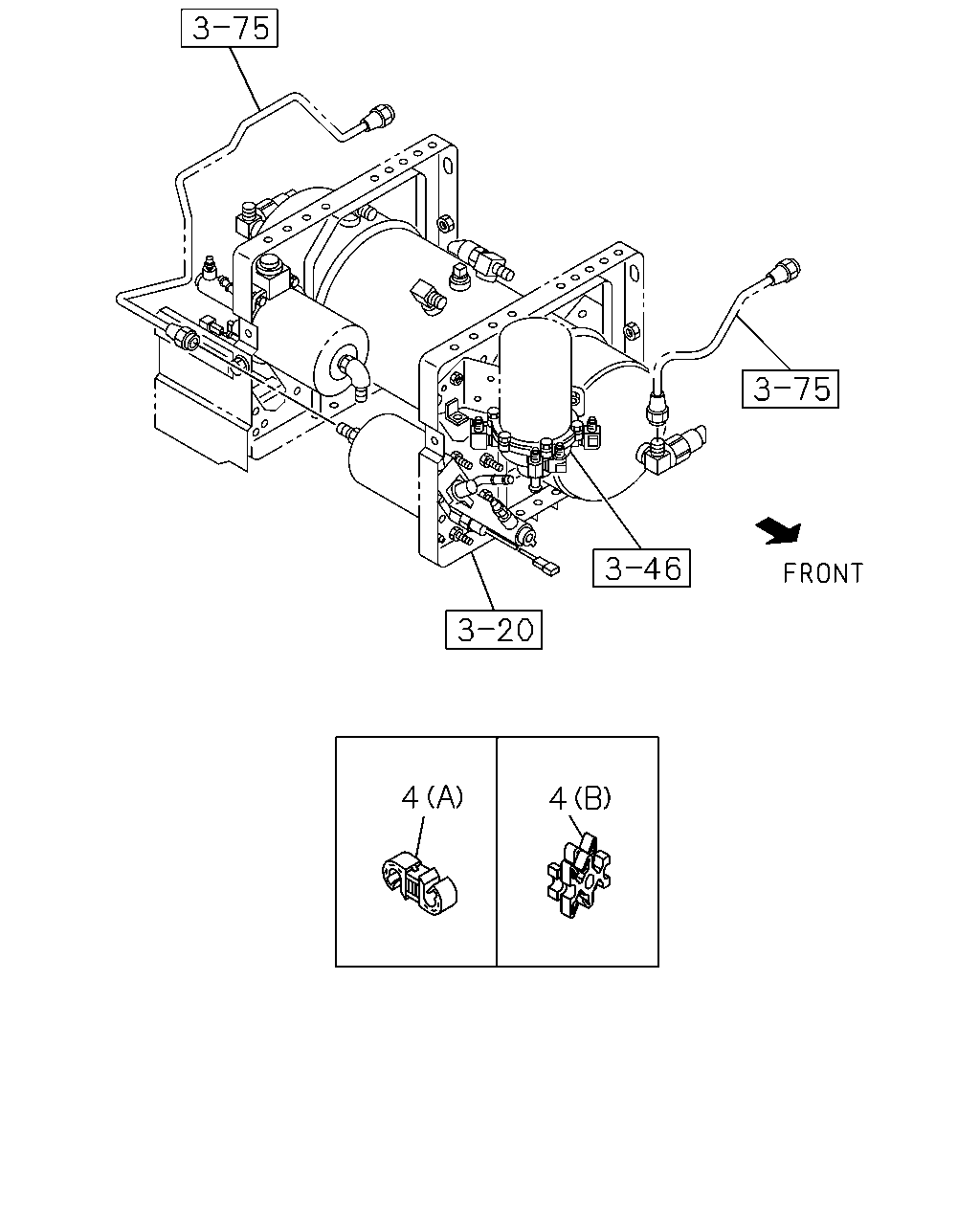

4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	06	1	1307-1312	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	06	1	1401-	●	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) ID=4.7X4	1-09701-304-0	03	1	1307-1312	●
4	CLIP; AIR PIPE EXC. THROTTLE CONTROL SYSTEM(6XH) (B) ID=4.7X4	1-09701-304-0	03	1	1307-1312	●
4	CLIP; AIR PIPE (B) ID=4.7X4	1-09701-304-0	03	1	1307-1312			●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) ID=4.7X4	1-09701-304-0	03	1	1401-	●	●
4	CLIP; AIR PIPE EXC. THROTTLE CONTROL SYSTEM(6XH) (B) ID=4.7X4	1-09701-304-0	03	1	1401-	●	●
4	CLIP; AIR PIPE (B) ID=4.7X4	1-09701-304-0	03	1	1401-			●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	08	1	1307-1312	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	08	1	1401-	●	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 6.35	1-09709-304-0	02	1	1307-1312	●
4	CLIP; AIR PIPE EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 6.35	1-09709-304-0	02	1	1307-1312	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 6.35	1-09709-304-0	02	1	1401-	●	●
4	CLIP; AIR PIPE EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 6.35	1-09709-304-0	02	1	1401-	●	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0	1-09709-305-0	03	1	1307-1312	●
4	CLIP; AIR PIPE (A) ID=4.76 & 10.0	1-09709-305-0	03	1	1307-1312			●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0	1-09709-305-0	03	1	1401-	●	●
4	CLIP; AIR PIPE (A) ID=4.76 & 10.0	1-09709-305-0	03	1	1401-			●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (C) ID=4.8X2	8-94316-410-0	01	1	1307-1312	●
4	CLIP; AIR PIPE EXC. THROTTLE CONTROL SYSTEM(6XH) (C) ID=4.8X2	8-94316-410-0	01	1	1307-1312	●
4	CLIP; AIR PIPE (C) ID=4.8X2	8-94316-410-0	01	1	1307-1312			●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (C) ID=4.8X2	8-94316-410-0	01	1	1401-	●	●
4	CLIP; AIR PIPE EXC. THROTTLE CONTROL SYSTEM(6XH) (C) ID=4.8X2	8-94316-410-0	01	1	1401-	●	●
4	CLIP; AIR PIPE (C) ID=4.8X2	8-94316-410-0	01	1	1401-			●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	04	1	1307-1312	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> (A) ID=6.35 & 10.0	1-09709-274-1	04	1	1307-1312			●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	04	1	1401-	●	●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> (A) ID=6.35 & 10.0	1-09709-274-1	04	1	1401-			●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	05	1	1307-1312	●
4	CLIP; AIR PIPE EXC. H.S.A SYSTEM<6EP> (A) ID=10 & 10	1-09709-277-1	05	1	1307-1312			●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	05	1	1401-	●	●
4	CLIP; AIR PIPE EXC. H.S.A SYSTEM<6EP> (A) ID=10 & 10	1-09709-277-1	05	1	1401-			●
4	CLIP; AIR PIPE EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	03	1	1307-1312	●
4	CLIP; AIR PIPE EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) ID=6.35 & 10.0	1-09709-274-1	03	1	1401-	●	●
4	CLIP; AIR PIPE EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	04	1	1307-1312	●
4	CLIP; AIR PIPE EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) ID=10 & 10	1-09709-277-1	04	1	1401-	●	●
4	CLIP; AIR PIPE EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0	1-09709-305-0	02	1	1307-1312	●
4	CLIP; AIR PIPE EXC. THROTTLE CONTROL SYSTEM(6XH) (A) ID=4.76 & 10.0	1-09709-305-0	02	1	1401-	●	●
4	CLIP; AIR PIPE (A) ID=6.35 & 12	1-09709-275-1	01	1	1307-			●
4	CLIP; AIR PIPE (A) ID=10 & 12	1-09709-278-1	02	1	1307-			●
4	CLIP; AIR PIPE (A) ID=4.76 & 6.35	1-09709-304-0	03	1	1307-			●
4	CLIP; AIR PIPE H.S.A SYSTEM<6EP> (A) ID=10 & 10	1-09709-277-1	06	1	1307-			●
4	CLIP; AIR PIPE EXC. H.S.A SYSTEM<6EP> (A) ID=6.35 & 10.0	1-09709-274-1	02	1	1307-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
