◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 10869 - CXY(51) RHD AUSTRALIA ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#12370) — 16 parça

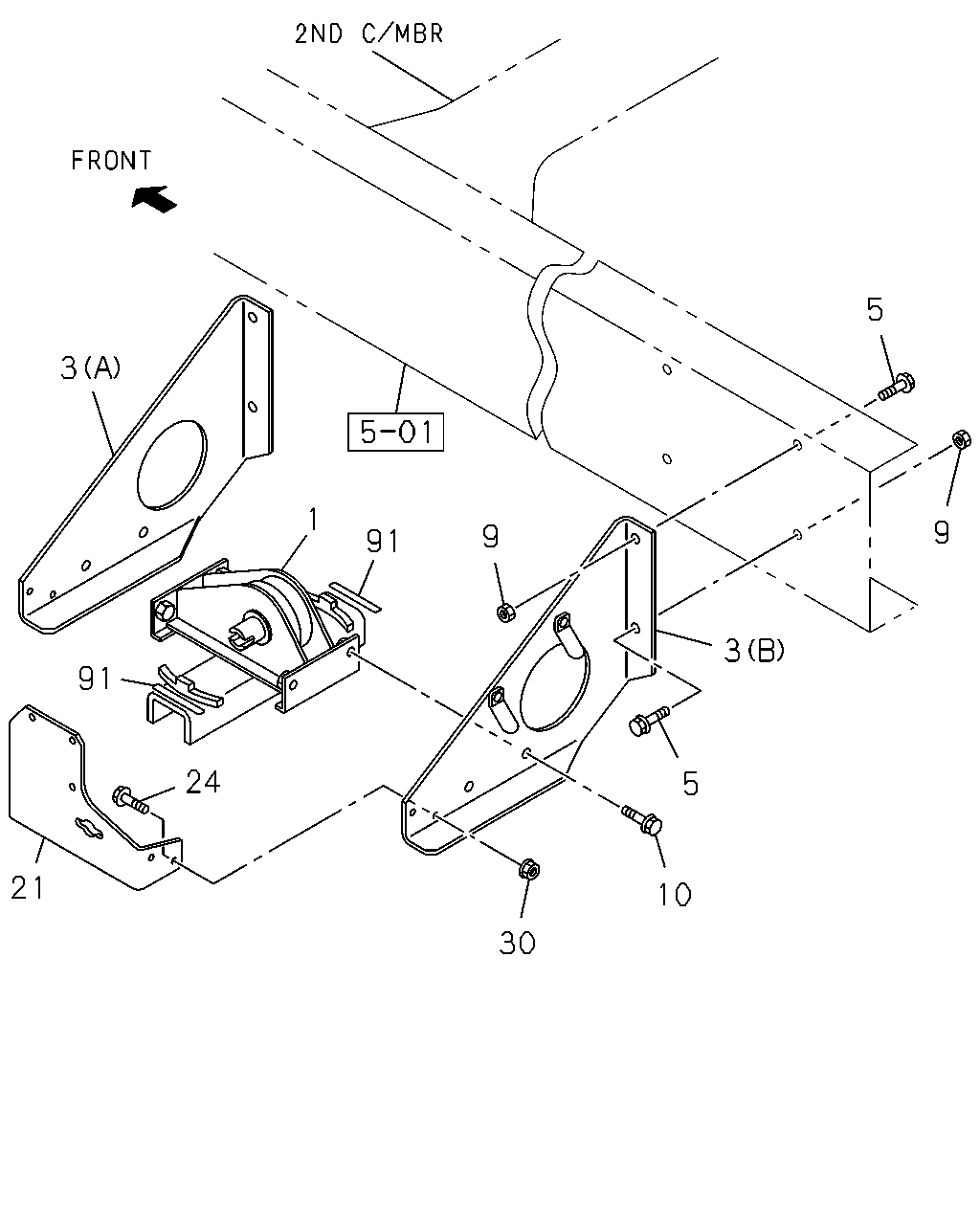

çizim 79059
5 9 3 5 10 30 21 24 91 9 91 1 3
BalonParca AdiParca NoAdetTipApplied Date
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53630-210-1 01 1 0105-
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (B) 		1-53631-325-2 01 1 0105-
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (A) 		1-53631-326-0 01 1 0105-
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (B) 		1-53631-323-2 01 1 0105-
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (A) 		1-53631-324-0 01 1 0105-
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28681-235-0 04 1 0105-0512
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28651-235-0 04 1 0601-
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 02 1 0105-0512
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 02 1 0601-
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 04 1 0105-0512
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 04 1 0601-
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-428-0 01 1 0105-
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X25 FLANGE 		0-28680-825-0 04 1 0105-0512
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X25 FLANGE 		0-28650-825-0 04 1 0601-
30 NUT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE 		0-91150-108-0 04 1 0105-
91 PAD; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> 		1-53639-042-0 02 1 0105-
