2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#1237) — 124 parça

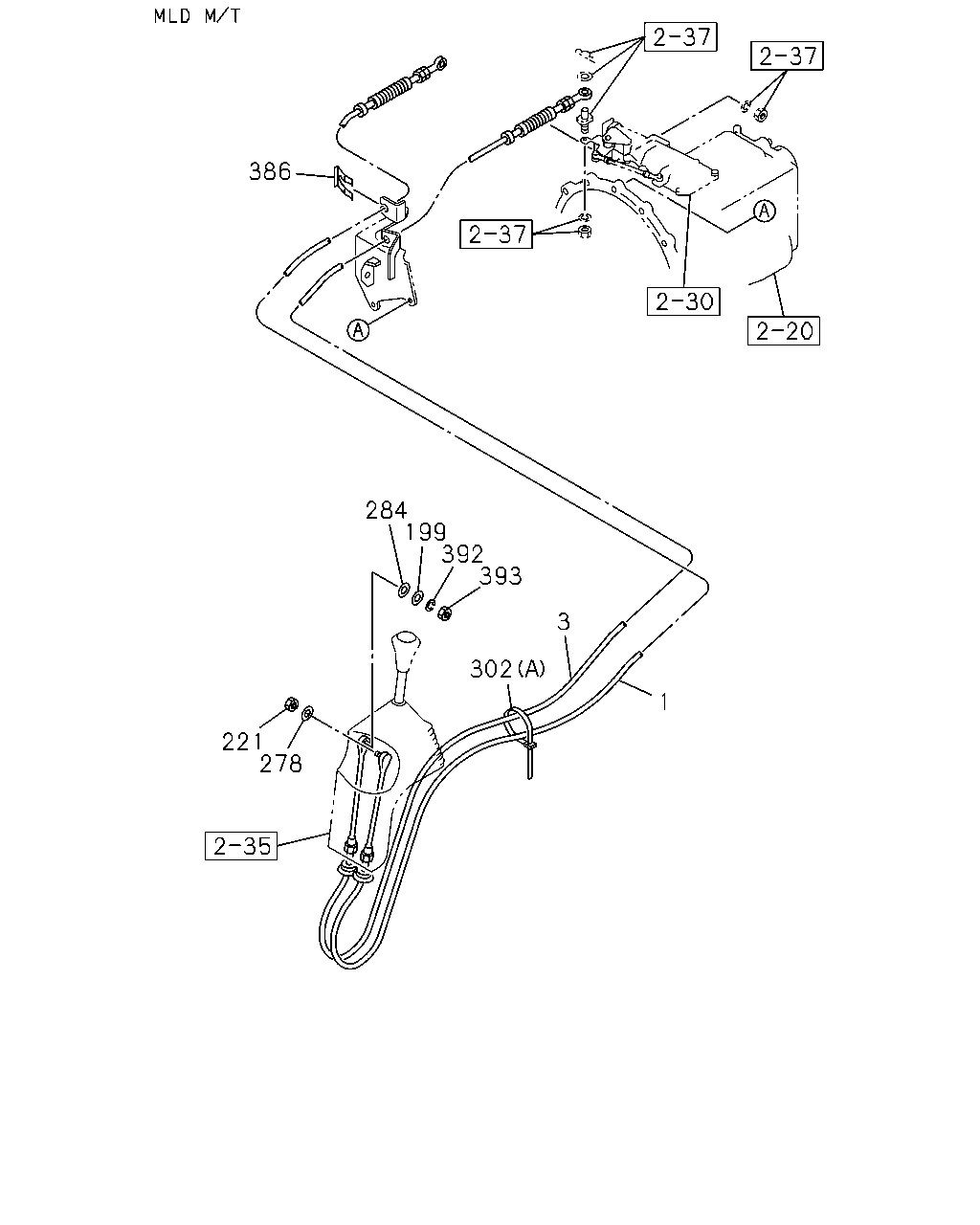

386 284 199 392 393 3 302 1 221 278

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CABLE; SHIFT,TRANS CONT 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> L=2900	1-33670-309-0	01	1	9202-	●	●
1	CABLE; SHIFT,TRANS CONT 6HE1 STD ENG(46L) EXC. ASSISTER SHIFT CONTROL<WX8> L=2980	1-33670-306-0	01	1	9202-	●	●
1	CABLE; SHIFT,TRANS CONT 6SA1 STD ENG(06L) ASSISTER SHIFT CONTROL<WX8> L=2870	1-33660-665-1	01	1	9202-	●		●
1	CABLE; SHIFT,TRANS CONT 6SA1 STD ENG(06L) EXC. ASSISTER SHIFT CONTROL<WX8> L=3030	1-33660-458-2	01	1	9202-	●		●
1	CABLE; SHIFT,TRANS CONT L=2956	1-33670-547-0	01	1	9306-9409				●
1	CABLE; SHIFT,TRANS CONT L=2950	1-33670-759-0	01	1	9410-				●
3	CABLE; SELECT,TRANS CONT 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> L=3020	1-33670-333-0	01	1	9202-	●	●
3	CABLE; SELECT,TRANS CONT 6HE1 STD ENG(46L) EXC. ASSISTER SHIFT CONTROL<WX8> L=3020	1-33670-331-0	01	1	9202-	●	●
3	CABLE; SELECT,TRANS CONT 6SA1 STD ENG(06L) L=2950	1-33660-438-3	01	1	9202-	●		●
3	CABLE; SELECT,TRANS CONT L=2930	1-33670-548-0	01	1	9306-				●
199	WASHER; PL,SELECT ID=6.4 OD=14	9-09164-606-0	01	1	9202-	●	●	●
221	NUT; SHIFT WIRE TO LEVER M10	9-09110-410-0	01	1	9202-	●	●	●
221	NUT; SHIFT WIRE TO LEVER M8	9-09110-408-0	01	1	9306-				●
278	WASHER; LK,SHIFT WIRE ID=10.2	9-09150-510-0	01	1	9202-	●	●	●
278	WASHER; LK,SHIFT WIRE ID=8.2	9-09150-508-0	01	1	9306-				●
284	WASHER; WAVE,SELECT CABLE,CAB	8-94242-854-0	01	1	9202-	●	●	●
302	CLIP; BAND (A) L=140	5-09707-031-0	04	1	9202-	●	●	●	●
302	CLIP; BAND 6HE1 STD ENG(46L) (A) L=250	5-09707-030-0	01	1	9202-	●	●
302	CLIP; BAND 6HE1 STD ENG(46L) (A) L=140	5-09707-031-0	01	1	9202-	●	●
302	CLIP; BAND 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9202-	●	●
302	CLIP; BAND 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> (C) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9202-	●	●
302	CLIP; BAND 6SA1 STD ENG(06L) (A) L=100	5-09707-036-0	01	1	9202-	●		●
386	CLIP; CONT CABLE & TUBE	1-09700-966-0	02	1	9202-	●	●	●	●
392	WASHER; LK,SELECT CABLE,CAB ID=6.1	9-09150-506-0	01	1	9202-	●	●	●
392	WASHER; LK,SELECT CABLE,CAB ID=8.2	9-09150-508-0	01	1	9306-				●
393	NUT; SELECT CABLE,CAB M6	9-09111-406-0	01	1	9202-	●	●	●
393	NUT; SELECT CABLE,CAB M8	9-09110-408-0	01	1	9306-				●

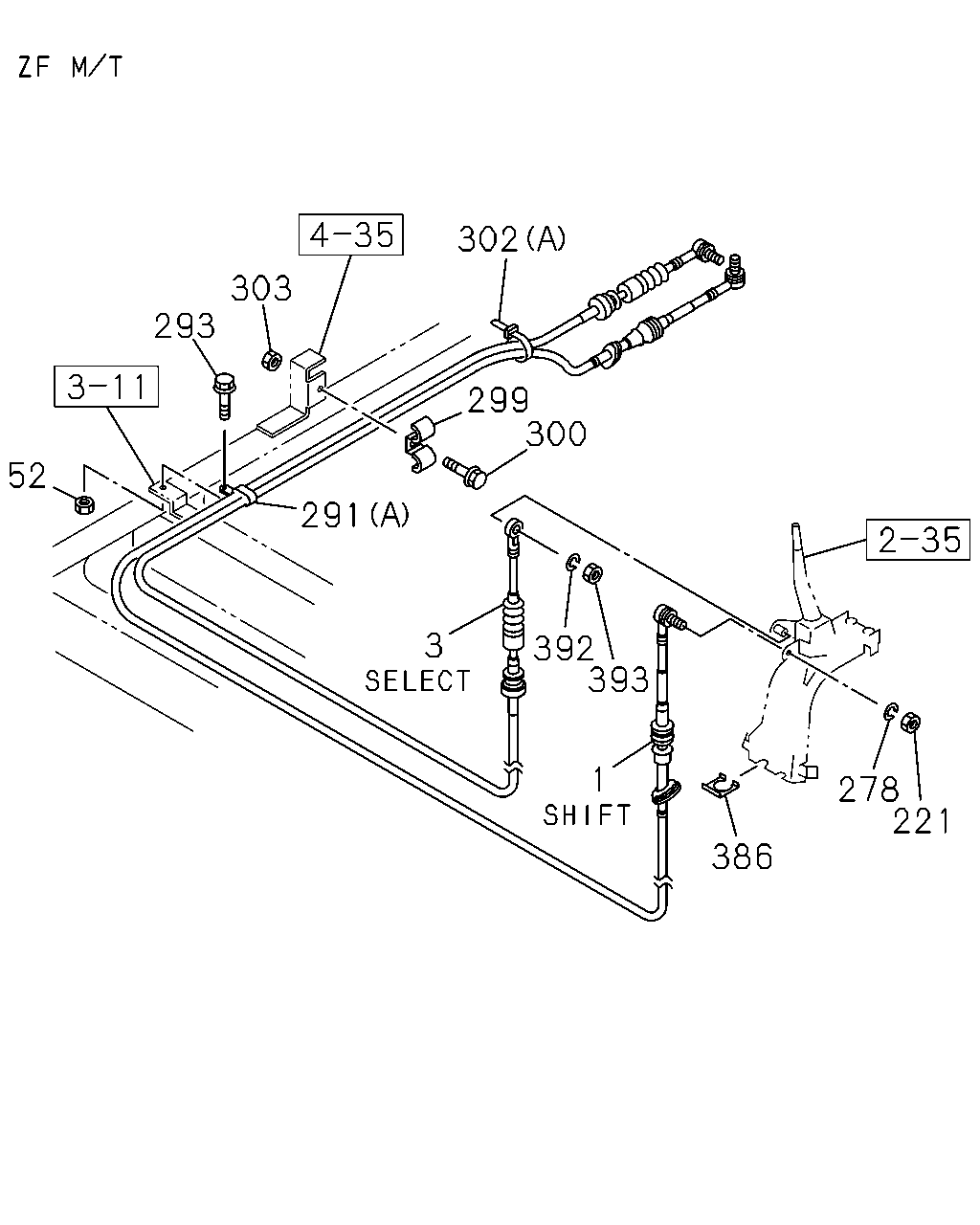

302 303 293 299 300 52 291 3 392 393 1 278 221 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CABLE; SHIFT,TRANS CONT 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> L=2900	1-33670-309-0	01	1	9202-	●	●
1	CABLE; SHIFT,TRANS CONT 6HE1 STD ENG(46L) EXC. ASSISTER SHIFT CONTROL<WX8> L=2980	1-33670-306-0	01	1	9202-	●	●
1	CABLE; SHIFT,TRANS CONT 6SA1 STD ENG(06L) ASSISTER SHIFT CONTROL<WX8> L=2870	1-33660-665-1	01	1	9202-	●		●
1	CABLE; SHIFT,TRANS CONT 6SA1 STD ENG(06L) EXC. ASSISTER SHIFT CONTROL<WX8> L=3030	1-33660-458-2	01	1	9202-	●		●
1	CABLE; SHIFT,TRANS CONT L=2956	1-33670-547-0	01	1	9306-9409				●
1	CABLE; SHIFT,TRANS CONT L=2950	1-33670-759-0	01	1	9410-				●
3	CABLE; SELECT,TRANS CONT 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> L=3020	1-33670-333-0	01	1	9202-	●	●
3	CABLE; SELECT,TRANS CONT 6HE1 STD ENG(46L) EXC. ASSISTER SHIFT CONTROL<WX8> L=3020	1-33670-331-0	01	1	9202-	●	●
3	CABLE; SELECT,TRANS CONT 6SA1 STD ENG(06L) L=2950	1-33660-438-3	01	1	9202-	●		●
3	CABLE; SELECT,TRANS CONT L=2930	1-33670-548-0	01	1	9306-				●
52	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	9309-				●
221	NUT; SHIFT WIRE TO LEVER M10	9-09110-410-0	01	1	9202-	●	●	●
221	NUT; SHIFT WIRE TO LEVER M8	9-09110-408-0	01	1	9306-				●
278	WASHER; LK,SHIFT WIRE ID=10.2	9-09150-510-0	01	1	9202-	●	●	●
278	WASHER; LK,SHIFT WIRE ID=8.2	9-09150-508-0	01	1	9306-				●
291	CLIP; SHIFT TO SELECT,FRAME 6HE1 STD ENG(46L) (B)	1-09701-100-3	01	1	9202-	●	●
291	CLIP; SHIFT TO SELECT,FRAME 6HE1 STD ENG(46L) (A) ID=11X2 L=16	9-09535-026-0	01	1	9202-	●	●
291	CLIP; SHIFT TO SELECT,FRAME 6SA1 STD ENG(06L) (A) ID=11X2 L=16	9-09535-026-0	02	1	9202-	●		●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	9-09535-026-0	02	1	9202-				●
293	BOLT; CLIP,SHIFT TO SELECT 6HE1 STD ENG(46L) M8X18	0-28010-818-0	01	1	9202-9204	●	●
293	BOLT; CLIP,SHIFT TO SELECT 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●
293	BOLT; CLIP,SHIFT TO SELECT 6SA1 STD ENG(06L) M8X18	0-28010-818-0	02	1	9202-9204	●		●
293	BOLT; CLIP,SHIFT TO SELECT 6SA1 STD ENG(06L) M8X20 FLANGE	0-28080-820-0	02	1	9205-	●		●
293	BOLT; CLIP,SHIFT TO SELECT M8X20 FLANGE	0-28080-820-0	02	1	9205-				●
299	CLIP; WIRE,POWER ASSISTOR BRKT 6SA1 STD ENG(06L) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-	●		●
299	CLIP; WIRE,POWER ASSISTOR BRKT ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-				●
300	BOLT; CLIP 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●
300	BOLT; CLIP 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●
300	BOLT; CLIP 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> M8X16 FLANGE	0-28080-816-0	01	1	9202-9204	●	●
300	BOLT; CLIP 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> M8X35 FLANGE	0-28080-835-0	01	1	9205-	●	●
300	BOLT; CLIP 6SA1 STD ENG(06L) M8X18	0-28010-818-0	01	1	9202-9204	●		●
300	BOLT; CLIP 6SA1 STD ENG(06L) M8X20 FLANGE	0-28080-820-0	01	1	9205-	●		●
300	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9205-				●
302	CLIP; BAND (A) L=140	5-09707-031-0	04	1	9202-	●	●	●	●
302	CLIP; BAND 6HE1 STD ENG(46L) (A) L=250	5-09707-030-0	01	1	9202-	●	●
302	CLIP; BAND 6HE1 STD ENG(46L) (A) L=140	5-09707-031-0	01	1	9202-	●	●
302	CLIP; BAND 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9202-	●	●
302	CLIP; BAND 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> (C) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9202-	●	●
302	CLIP; BAND 6SA1 STD ENG(06L) (A) L=100	5-09707-036-0	01	1	9202-	●		●
303	NUT; CLIP 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> M8	9-09110-408-0	02	1	9202-	●	●
303	NUT; CLIP 6SA1 STD ENG(06L) M8	9-09110-408-0	01	1	9202-	●		●
303	NUT; CLIP M8	9-09110-408-0	01	1	9202-				●
386	CLIP; CONT CABLE & TUBE	1-09700-966-0	02	1	9202-	●	●	●	●
392	WASHER; LK,SELECT CABLE,CAB ID=6.1	9-09150-506-0	01	1	9202-	●	●	●
392	WASHER; LK,SELECT CABLE,CAB ID=8.2	9-09150-508-0	01	1	9306-				●
393	NUT; SELECT CABLE,CAB M6	9-09111-406-0	01	1	9202-	●	●	●
393	NUT; SELECT CABLE,CAB M8	9-09110-408-0	01	1	9306-				●

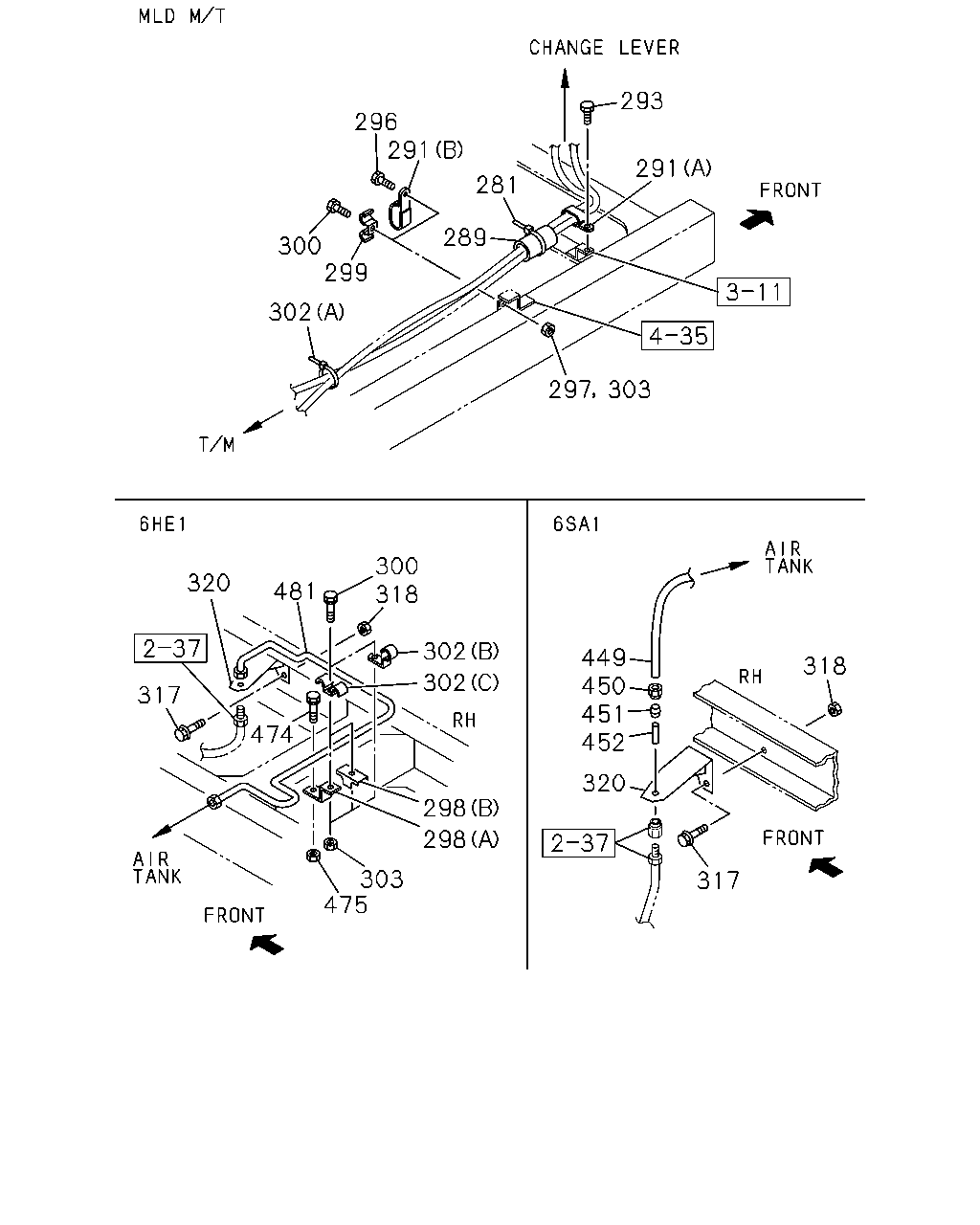

293 296 291 291 281 289 300 299 302 297 303 300 318 320 481 302 449 450 451 452 318 302 317 474 320 298 298 303 475 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
281	CLIP; BAND 6HE1 STD ENG(46L) L=250	5-09707-030-0	01	1	9202-	●	●
289	SLEEVE; RUBBER 6HE1 STD ENG(46L) ID=23 OD=27 L=40	1-09337-015-0	01	1	9202-	●	●
291	CLIP; SHIFT TO SELECT,FRAME 6HE1 STD ENG(46L) (B)	1-09701-100-3	01	1	9202-	●	●
291	CLIP; SHIFT TO SELECT,FRAME 6HE1 STD ENG(46L) (A) ID=11X2 L=16	9-09535-026-0	01	1	9202-	●	●
291	CLIP; SHIFT TO SELECT,FRAME 6SA1 STD ENG(06L) (A) ID=11X2 L=16	9-09535-026-0	02	1	9202-	●		●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	9-09535-026-0	02	1	9202-				●
293	BOLT; CLIP,SHIFT TO SELECT 6HE1 STD ENG(46L) M8X18	0-28010-818-0	01	1	9202-9204	●	●
293	BOLT; CLIP,SHIFT TO SELECT 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●
293	BOLT; CLIP,SHIFT TO SELECT 6SA1 STD ENG(06L) M8X18	0-28010-818-0	02	1	9202-9204	●		●
293	BOLT; CLIP,SHIFT TO SELECT 6SA1 STD ENG(06L) M8X20 FLANGE	0-28080-820-0	02	1	9205-	●		●
293	BOLT; CLIP,SHIFT TO SELECT M8X20 FLANGE	0-28080-820-0	02	1	9205-				●
296	BOLT; CLIP,SHIFT & SELECT 6HE1 STD ENG(46L) M8X18	0-28010-818-0	01	1	9202-9204	●	●
296	BOLT; CLIP,SHIFT & SELECT 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●
297	NUT; CLIP 6HE1 STD ENG(46L) M8	9-09110-408-0	01	1	9202-	●	●
298	BRACKET 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> (A)	1-47475-601-0	01	1	9202-9204	●	●
298	BRACKET 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> (B)	1-47475-427-1	01	1	9205-	●	●
299	CLIP; WIRE,POWER ASSISTOR BRKT 6SA1 STD ENG(06L) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-	●		●
299	CLIP; WIRE,POWER ASSISTOR BRKT ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-				●
300	BOLT; CLIP 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●
300	BOLT; CLIP 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●
300	BOLT; CLIP 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> M8X16 FLANGE	0-28080-816-0	01	1	9202-9204	●	●
300	BOLT; CLIP 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> M8X35 FLANGE	0-28080-835-0	01	1	9205-	●	●
300	BOLT; CLIP 6SA1 STD ENG(06L) M8X18	0-28010-818-0	01	1	9202-9204	●		●
300	BOLT; CLIP 6SA1 STD ENG(06L) M8X20 FLANGE	0-28080-820-0	01	1	9205-	●		●
300	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9205-				●
302	CLIP; BAND (A) L=140	5-09707-031-0	04	1	9202-	●	●	●	●
302	CLIP; BAND 6HE1 STD ENG(46L) (A) L=250	5-09707-030-0	01	1	9202-	●	●
302	CLIP; BAND 6HE1 STD ENG(46L) (A) L=140	5-09707-031-0	01	1	9202-	●	●
302	CLIP; BAND 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9202-	●	●
302	CLIP; BAND 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> (C) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9202-	●	●
302	CLIP; BAND 6SA1 STD ENG(06L) (A) L=100	5-09707-036-0	01	1	9202-	●		●
303	NUT; CLIP 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> M8	9-09110-408-0	02	1	9202-	●	●
303	NUT; CLIP 6SA1 STD ENG(06L) M8	9-09110-408-0	01	1	9202-	●		●
303	NUT; CLIP M8	9-09110-408-0	01	1	9202-				●
317	BOLT; BRKT,SIDE MBR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTER SHIFT CONTROL<WX8> M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●	●	●
317	BOLT; BRKT,SIDE MBR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTER SHIFT CONTROL<WX8> M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●	●
318	NUT; BRKT,SIDE MBR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTER SHIFT CONTROL<WX8> M8	9-09110-408-0	02	1	9202-	●	●	●
320	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTER SHIFT CONTROL<WX8>	1-47476-671-0	01	1	9202-	●	●	●
449	TUBE; NYLON 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTER SHIFT CONTROL<WX8> EXC. ASSEMBLY LINE SPEC NYLON TUBE FIXING<SMZ> SERVICED BY L=30000 OD=3/8"	1-09368-250-0	01	1	9202-	●		●
449	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ASSEMBLY LINE SPEC NYLON TUBE FIXING<SMZ>, PTO CONTROL<SV6> SERVICED BY L=30000 OD=3/8"	1-09368-250-0	01	1	9202-				●
450	NUT; SLEEVE 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTER SHIFT CONTROL<WX8> EXC. ASSEMBLY LINE SPEC NYLON TUBE FIXING<SMZ> OD=3/8"	1-09660-557-0	02	1	9202-	●		●
450	NUT; SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ASSEMBLY LINE SPEC NYLON TUBE FIXING<SMZ>, PTO CONTROL<SV6> OD=3/8"	1-09660-557-0	02	1	9202-				●
451	SLEEVE; TUBE 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTER SHIFT CONTROL<WX8> EXC. ASSEMBLY LINE SPEC NYLON TUBE FIXING<SMZ> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	02	1	9202-	●		●
451	SLEEVE; TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ASSEMBLY LINE SPEC NYLON TUBE FIXING<SMZ>, PTO CONTROL<SV6> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	02	1	9202-				●
452	RING; INSERT 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTER SHIFT CONTROL<WX8> EXC. ASSEMBLY LINE SPEC NYLON TUBE FIXING<SMZ> OD=3/8"	1-09669-108-0	02	1	9202-	●		●
452	RING; INSERT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ASSEMBLY LINE SPEC NYLON TUBE FIXING<SMZ>, PTO CONTROL<SV6> OD=3/8"	1-09669-108-0	02	1	9202-				●
474	BOLT; BRKT 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> M8X25 FLANGE	0-28080-825-0	01	1	9202-9204	●	●
475	NUT; BRKT 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> M8	9-09110-408-0	01	1	9202-9204	●	●
481	PIPE; AIR,AIR TANK 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8>	1-47493-253-0	01	1	9202-9204	●	●
481	PIPE; AIR,AIR TANK 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8>	1-47495-233-0	01	1	9205-	●	●
