Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#123699) — 180 parça

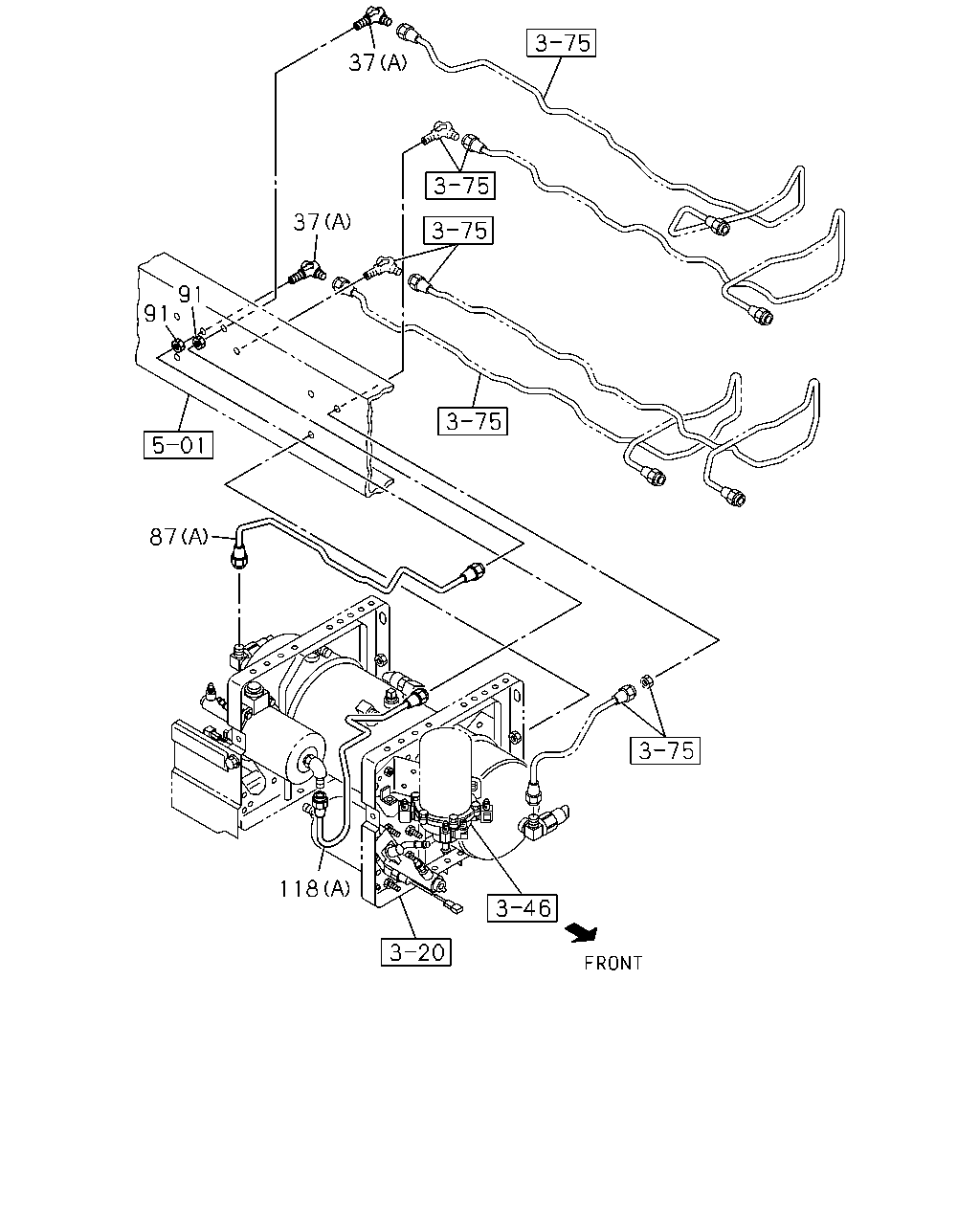

37 37 91 91 87 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1307-1312	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1401-	●	●	●
37	UNION; AIR PIPE MZW6P M/T(RSZ) (B) M16 L=74	0-92123-310-0	01	1	1307-1312	●	●
37	UNION; AIR PIPE MZW6P M/T(RSZ) (B) M16 L=74	0-92123-310-0	01	1	1401-	●	●	●
87	PIPE; AIR,AIR TANK TO UNION H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1307-1312	●
87	PIPE; AIR,AIR TANK TO UNION EXC. THROTTLE CONTROL SYSTEM(6XH) (A) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1307-1312	●
87	PIPE; AIR,AIR TANK TO UNION H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1401-	●		●
87	PIPE; AIR,AIR TANK TO UNION EXC. THROTTLE CONTROL SYSTEM(6XH) (A) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1401-	●		●
87	PIPE; AIR,AIR TANK TO UNION (B) L=861 SERVICED BY L=900	1-47428-873-0	01	1	1307-		●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	1307-1312	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	1401-	●	●	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) L=745 SERVICED BY L=800	1-47428-872-0	01	1	1307-1312	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) L=745 SERVICED BY L=800	1-47428-872-0	01	1	1401-	●		●
118	PIPE; AIR,UNION TO AIR MASTER EXC. H.S.A SYSTEM<6EP> (B) L=510 SERVICED BY L=550	1-47428-867-0	01	1	1307-		●

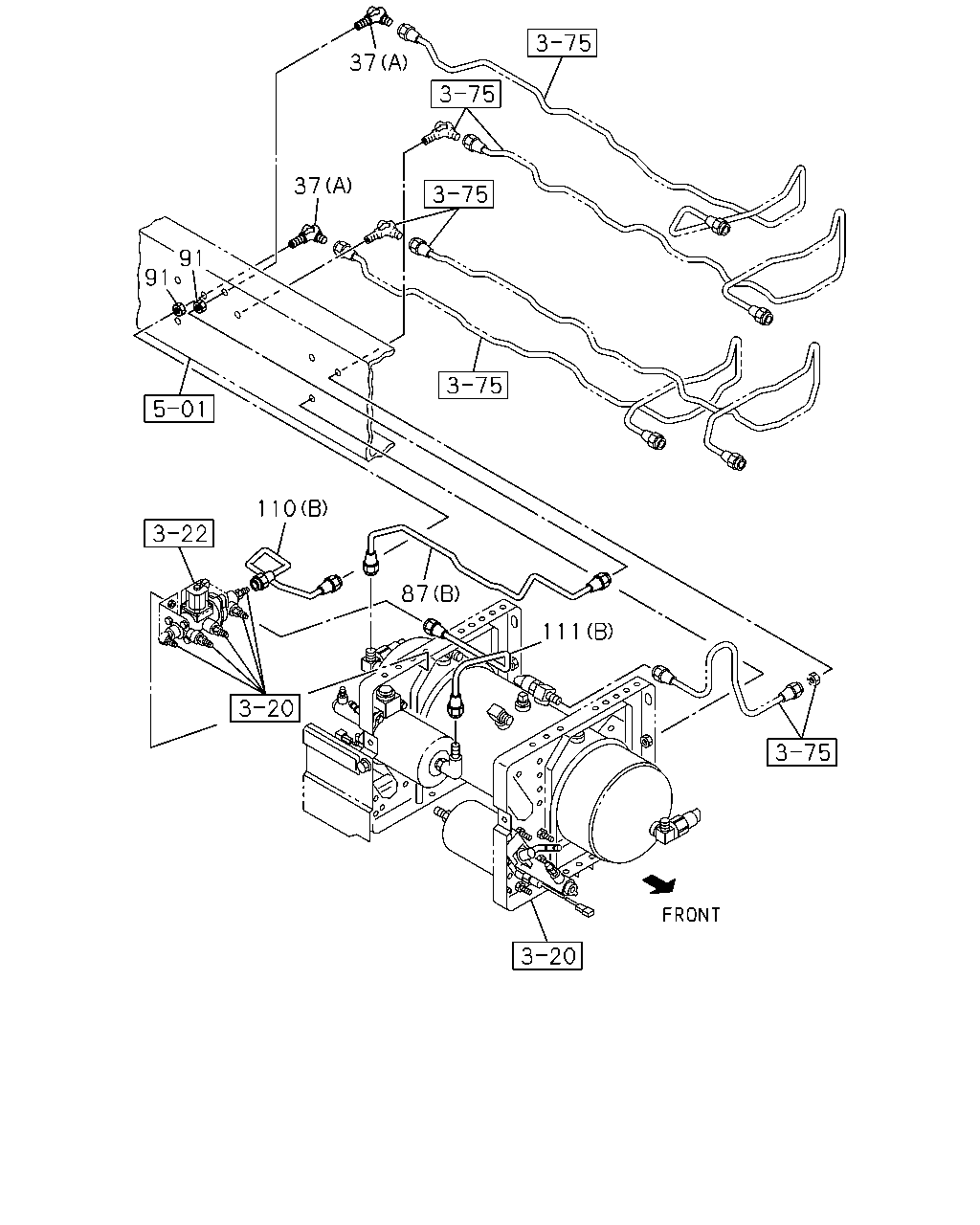

37 37 91 91 110 87 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1307-1312	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1401-	●	●	●
37	UNION; AIR PIPE MZW6P M/T(RSZ) (B) M16 L=74	0-92123-310-0	01	1	1307-1312	●	●
37	UNION; AIR PIPE MZW6P M/T(RSZ) (B) M16 L=74	0-92123-310-0	01	1	1401-	●	●	●
87	PIPE; AIR,AIR TANK TO UNION H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1307-1312	●
87	PIPE; AIR,AIR TANK TO UNION EXC. THROTTLE CONTROL SYSTEM(6XH) (A) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1307-1312	●
87	PIPE; AIR,AIR TANK TO UNION H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1401-	●		●
87	PIPE; AIR,AIR TANK TO UNION EXC. THROTTLE CONTROL SYSTEM(6XH) (A) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1401-	●		●
87	PIPE; AIR,AIR TANK TO UNION (B) L=861 SERVICED BY L=900	1-47428-873-0	01	1	1307-		●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	1307-1312	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	1401-	●	●	●
110	PIPE; AIR,UNION TO VLV H.S.A SYSTEM<6EP> (A) L=473	8-98067-756-0	01	1	1307-1312	●
110	PIPE; AIR,UNION TO VLV H.S.A SYSTEM<6EP> (A) L=473	8-98067-756-0	01	1	1401-	●		●
110	PIPE; AIR,UNION TO VLV H.S.A SYSTEM<6EP> (B) L=474	8-98087-354-0	01	1	1307-		●
111	PIPE; AIR,VLV TO AIR MASTER H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (A) L=586 SERVICED BY L=600	1-47428-868-0	01	1	1307-1312	●
111	PIPE; AIR,VLV TO AIR MASTER H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (A) L=586 SERVICED BY L=600	1-47428-868-0	01	1	1401-	●		●
111	PIPE; AIR,VLV TO AIR MASTER H.S.A SYSTEM<6EP> (B) L=374	8-98098-449-0	01	1	1307-		●

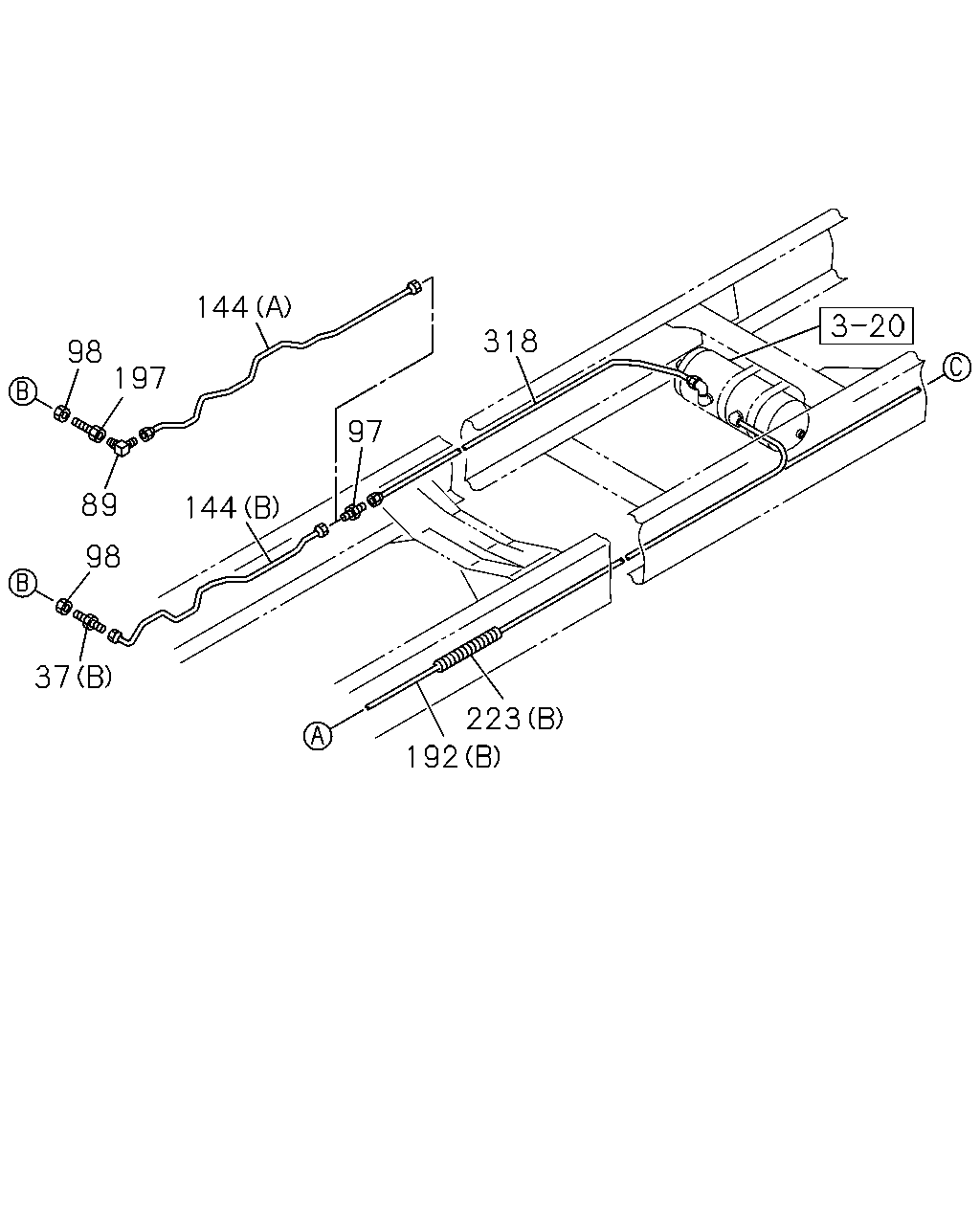

144 318 97 98 197 89 144 98 37 223 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1307-1312	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1401-	●	●	●
37	UNION; AIR PIPE MZW6P M/T(RSZ) (B) M16 L=74	0-92123-310-0	01	1	1307-1312	●	●
37	UNION; AIR PIPE MZW6P M/T(RSZ) (B) M16 L=74	0-92123-310-0	01	1	1401-	●	●	●
89	CONNECTOR; NYLON TUBE 6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1307-1312	●
89	CONNECTOR; NYLON TUBE 6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1401-	●
89	CONNECTOR; NYLON TUBE 6HK1-TCC ENG(81L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 5100MM(51W) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1401-			●
97	UNION; AIR PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	1307-1312	●
97	UNION; AIR PIPE MZW6P M/T(RSZ) M16 STRAIGHT L=42	0-92123-010-0	01	1	1307-1312		●
97	UNION; AIR PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	1401-	●		●
97	UNION; AIR PIPE MZW6P M/T(RSZ) M16 STRAIGHT L=42	0-92123-010-0	01	1	1401-		●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	1307-1312	●
98	NUT; PIPE UNION MZW6P M/T(RSZ) M16	0-91111-516-0	01	1	1307-1312		●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	1401-	●		●
98	NUT; PIPE UNION MZW6P M/T(RSZ) M16	0-91111-516-0	01	1	1401-		●
144	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 4300MM(43W) (A) L=824 SERVICED BY L=900	1-47428-873-0	01	1	1307-	●
144	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) L=1323 SERVICED BY L=1400	1-47428-878-0	01	1	1307-1312	●
144	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A) L=1323 SERVICED BY L=1400	1-47428-878-0	01	1	1401-	●
144	PIPE; AIR,UNION TO UNION 6HK1-TCC ENG(81L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 5100MM(51W) (A) L=1323 SERVICED BY L=1400	1-47428-878-0	01	1	1401-			●
144	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 4300MM(43W) (B) L=909 SERVICED BY L=1000	1-47428-874-0	01	1	1307-1312	●
144	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 4300MM(43W) (B) L=909 SERVICED BY L=1000	1-47428-874-0	01	1	1401-	●
144	PIPE; AIR,UNION TO UNION 6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 4300MM(43W) (B) L=909 SERVICED BY L=1000	1-47428-874-0	01	1	1401-			●
144	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (B) L=1408 SERVICED BY L=1550	1-47428-879-0	01	1	1307-1312	●
144	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (B) L=1408 SERVICED BY L=1550	1-47428-879-0	01	1	1401-	●
144	PIPE; AIR,UNION TO UNION 6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) (B) L=1408 SERVICED BY L=1550	1-47428-879-0	01	1	1401-			●
144	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) (B) L=1419 SERVICED BY L=1550	1-47428-879-0	01	1	1307-		●
144	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) (B) L=1416 SERVICED BY L=1550	1-47428-879-0	01	1	1307-		●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1307-	●	●	●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1307-	●	●	●
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1307-	●	●	●
192	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1307-	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1307-	●	●	●
197	UNION ASM; NYLON TUBE 6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) PT3/8 & M16 STRAIGHT	8-98202-001-0	01	1	1307-1312	●
197	UNION ASM; NYLON TUBE 6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) PT3/8 & M16 STRAIGHT	8-98202-001-0	01	1	1401-	●
197	UNION ASM; NYLON TUBE 6HK1-TCC ENG(81L) LCT2500 A/T ALLISON(Y5W) WHEEL BASE 5100MM(51W) PT3/8 & M16 STRAIGHT	8-98202-001-0	01	1	1401-			●
223	TUBE; CORRUGATE (B) SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1307-	●	●	●
223	TUBE; CORRUGATE (B) SERVICED BY L=6000 ID=15	1-87411-037-0	AR	1	1307-	●	●	●
223	TUBE; CORRUGATE (A) SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1307-	●	●	●
318	PIPE; AIR,UNION TO AIR TANK 6HK1-TCC ENG(81L) MZW6P M/T(RSZ) WHEEL BASE 4300MM(43W) L=1250 SERVICED BY L=1250	1-47428-876-0	01	1	1401-			●
318	PIPE; AIR,UNION TO AIR TANK 6HK1-TCC ENG(81L) WHEEL BASE 5100MM(51W) L=1551 SERVICED BY L=1700	1-47428-880-0	01	1	1401-			●
318	PIPE; AIR,UNION TO AIR TANK 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) L=1158 SERVICED BY L=1250	1-47428-876-0	01	1	1307-	●
318	PIPE; AIR,UNION TO AIR TANK 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) L=1458 SERVICED BY L=1550	1-47428-879-0	01	1	1307-	●
318	PIPE; AIR,UNION TO AIR TANK 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) WHEEL BASE 5100MM(51W) L=1458 SERVICED BY L=1550	1-47428-879-0	01	1	1307-		●
318	PIPE; AIR,UNION TO AIR TANK 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) L=1856 SERVICED BY L=1900	1-47428-881-0	01	1	1307-	●

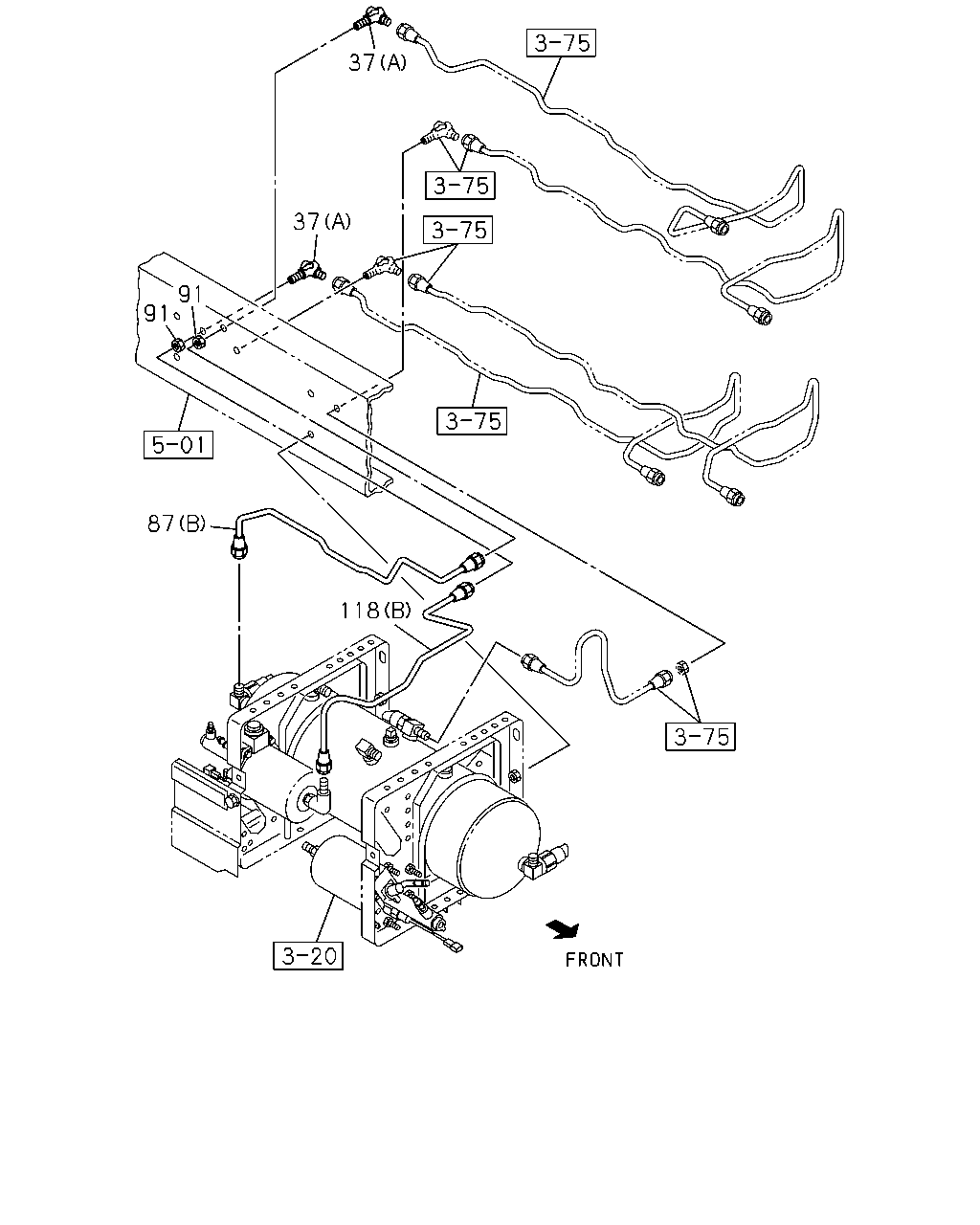

37 37 91 91 87 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1307-1312	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1401-	●	●	●
37	UNION; AIR PIPE MZW6P M/T(RSZ) (B) M16 L=74	0-92123-310-0	01	1	1307-1312	●	●
37	UNION; AIR PIPE MZW6P M/T(RSZ) (B) M16 L=74	0-92123-310-0	01	1	1401-	●	●	●
87	PIPE; AIR,AIR TANK TO UNION H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1307-1312	●
87	PIPE; AIR,AIR TANK TO UNION EXC. THROTTLE CONTROL SYSTEM(6XH) (A) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1307-1312	●
87	PIPE; AIR,AIR TANK TO UNION H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1401-	●		●
87	PIPE; AIR,AIR TANK TO UNION EXC. THROTTLE CONTROL SYSTEM(6XH) (A) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1401-	●		●
87	PIPE; AIR,AIR TANK TO UNION (B) L=861 SERVICED BY L=900	1-47428-873-0	01	1	1307-		●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	1307-1312	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	1401-	●	●	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) L=745 SERVICED BY L=800	1-47428-872-0	01	1	1307-1312	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) L=745 SERVICED BY L=800	1-47428-872-0	01	1	1401-	●		●
118	PIPE; AIR,UNION TO AIR MASTER EXC. H.S.A SYSTEM<6EP> (B) L=510 SERVICED BY L=550	1-47428-867-0	01	1	1307-		●

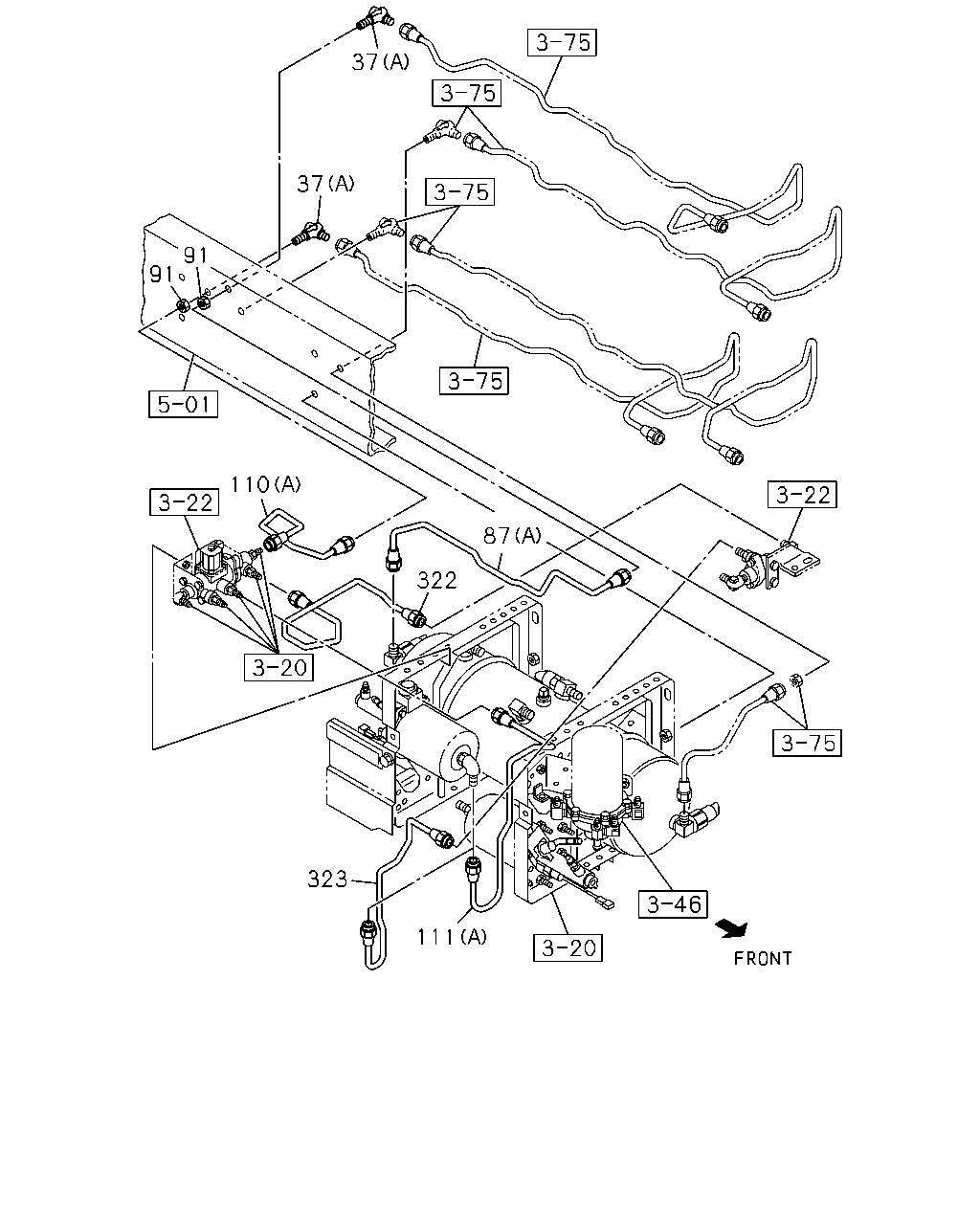

37 37 91 91 110 322 87 111 323

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1307-1312	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1401-	●	●	●
37	UNION; AIR PIPE MZW6P M/T(RSZ) (B) M16 L=74	0-92123-310-0	01	1	1307-1312	●	●
37	UNION; AIR PIPE MZW6P M/T(RSZ) (B) M16 L=74	0-92123-310-0	01	1	1401-	●	●	●
87	PIPE; AIR,AIR TANK TO UNION H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1307-1312	●
87	PIPE; AIR,AIR TANK TO UNION EXC. THROTTLE CONTROL SYSTEM(6XH) (A) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1307-1312	●
87	PIPE; AIR,AIR TANK TO UNION H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1401-	●		●
87	PIPE; AIR,AIR TANK TO UNION EXC. THROTTLE CONTROL SYSTEM(6XH) (A) L=670 SERVICED BY L=700	1-47428-870-0	01	1	1401-	●		●
87	PIPE; AIR,AIR TANK TO UNION (B) L=861 SERVICED BY L=900	1-47428-873-0	01	1	1307-		●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	1307-1312	●	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	1401-	●	●	●
110	PIPE; AIR,UNION TO VLV H.S.A SYSTEM<6EP> (A) L=473	8-98067-756-0	01	1	1307-1312	●
110	PIPE; AIR,UNION TO VLV H.S.A SYSTEM<6EP> (A) L=473	8-98067-756-0	01	1	1401-	●		●
110	PIPE; AIR,UNION TO VLV H.S.A SYSTEM<6EP> (B) L=474	8-98087-354-0	01	1	1307-		●
111	PIPE; AIR,VLV TO AIR MASTER H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (A) L=586 SERVICED BY L=600	1-47428-868-0	01	1	1307-1312	●
111	PIPE; AIR,VLV TO AIR MASTER H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (A) L=586 SERVICED BY L=600	1-47428-868-0	01	1	1401-	●		●
111	PIPE; AIR,VLV TO AIR MASTER H.S.A SYSTEM<6EP> (B) L=374	8-98098-449-0	01	1	1307-		●
322	PIPE; AIR,HSA VLV TO DBL CHK VLV H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=673 SERVICED BY L=700	1-47428-870-0	01	1	1307-1312	●
322	PIPE; AIR,HSA VLV TO DBL CHK VLV H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=673 SERVICED BY L=700	1-47428-870-0	01	1	1401-	●		●
323	PIPE; AIR,DBL CHK VLV H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=614 SERVICED BY L=660	1-47428-869-0	01	1	1307-1312	●
323	PIPE; AIR,DBL CHK VLV H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=614 SERVICED BY L=660	1-47428-869-0	01	1	1401-	●		●

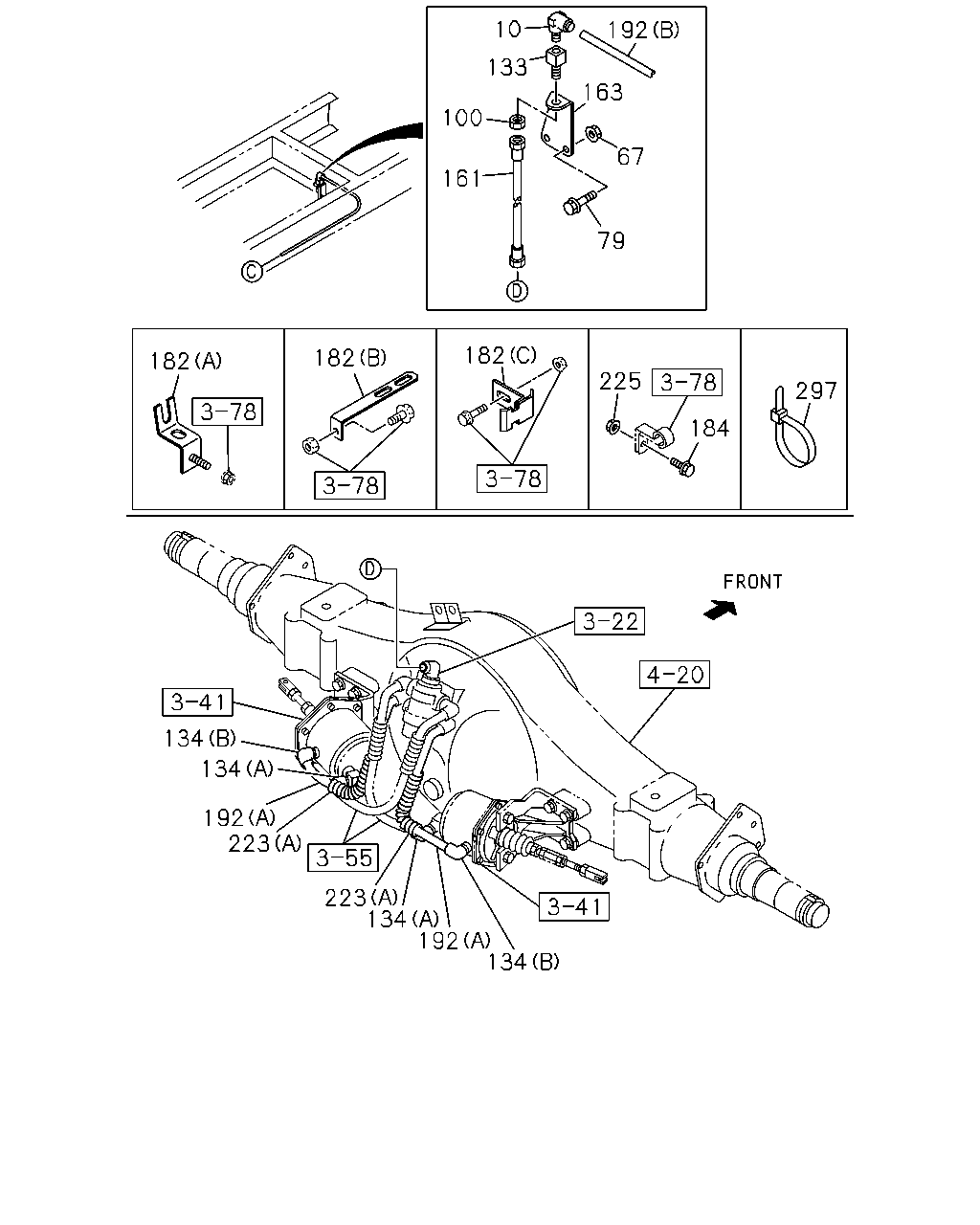

192 163 67 79 10 133 100 161 182 182 182 225 184 297 134 192 134 223 223 192 134 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
10	CONNECTOR; FLEX HOSE DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1307-1312	●	●
10	CONNECTOR; FLEX HOSE DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1401-	●	●	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	1307-1312	●	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	1401-	●	●	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	1307-1312	●	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	1401-	●	●	●
100	NUT; UNION M16	0-91111-516-0	01	1	1307-1312	●	●
100	NUT; UNION M16	0-91111-516-0	01	1	1401-	●	●	●
133	UNION; NIPPLE PT3/8 & M16 STRAIGHT	8-98202-001-0	01	1	1307-1312	●	●
133	UNION; NIPPLE PT3/8 & M16 STRAIGHT	8-98202-001-0	01	1	1401-	●	●	●
134	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1307-1312	●	●
134	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1401-	●	●	●
134	CONNECTOR (B) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1307-1312	●	●
134	CONNECTOR (B) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1401-	●	●	●
161	HOSE; FLEX,QUICK RELEASE VLV L=420	1-09363-805-0	01	1	1401-			●
161	HOSE; FLEX,QUICK RELEASE VLV L=460	1-09363-963-0	01	1	1307-	●	●
163	BRACKET; FLEX HOSE	8-98241-571-0	01	1	1401-			●
163	BRACKET; FLEX HOSE	8-98044-842-0	01	1	1307-	●	●
182	BRACKET; TUBE CLIP (B) L=150 H=30	1-47477-629-2	01	1	1401-			●
182	BRACKET; TUBE CLIP (C)	1-47479-693-0	01	1	1401-			●
182	BRACKET; TUBE CLIP WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A)	8-98096-272-0	01	1	1307-1312	●
182	BRACKET; TUBE CLIP WHEEL BASE 5100MM(51W) (A)	8-98096-272-0	01	1	1307-1312		●
182	BRACKET; TUBE CLIP WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (A)	8-98096-272-0	01	1	1401-	●
182	BRACKET; TUBE CLIP WHEEL BASE 5100MM(51W) (A)	8-98096-272-0	01	1	1401-		●	●
184	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1307-1312	●	●
184	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1401-	●	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1307-	●	●	●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1307-	●	●	●
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1307-	●	●	●
192	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1307-	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1307-	●	●	●
223	TUBE; CORRUGATE (B) SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1307-	●	●	●
223	TUBE; CORRUGATE (B) SERVICED BY L=6000 ID=15	1-87411-037-0	AR	1	1307-	●	●	●
223	TUBE; CORRUGATE (A) SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1307-	●	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	1307-1312	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	1401-	●	●	●
297	CLIP; BAND WHEEL BASE 4300MM(43W) L=350	1-09707-183-0	07	1	1401-			●
297	CLIP; BAND WHEEL BASE 4300MM(43W) L=350	1-09707-183-0	06	1	1307-	●
297	CLIP; BAND WHEEL BASE 5500MM(55W) L=350	1-09707-183-0	09	1	1307-1312	●
297	CLIP; BAND WHEEL BASE 5500MM(55W) L=350	1-09707-183-0	09	1	1401-	●
297	CLIP; BAND WHEEL BASE 5100MM(51W) L=350	1-09707-183-0	09	1	1401-			●
297	CLIP; BAND L=350	1-09707-183-0	05	1	1307-1312	●	●
297	CLIP; BAND L=350	1-09707-183-0	05	1	1401-	●	●	●
297	CLIP; BAND WHEEL BASE 5100MM(51W) L=350	1-09707-183-0	08	1	1307-	●	●

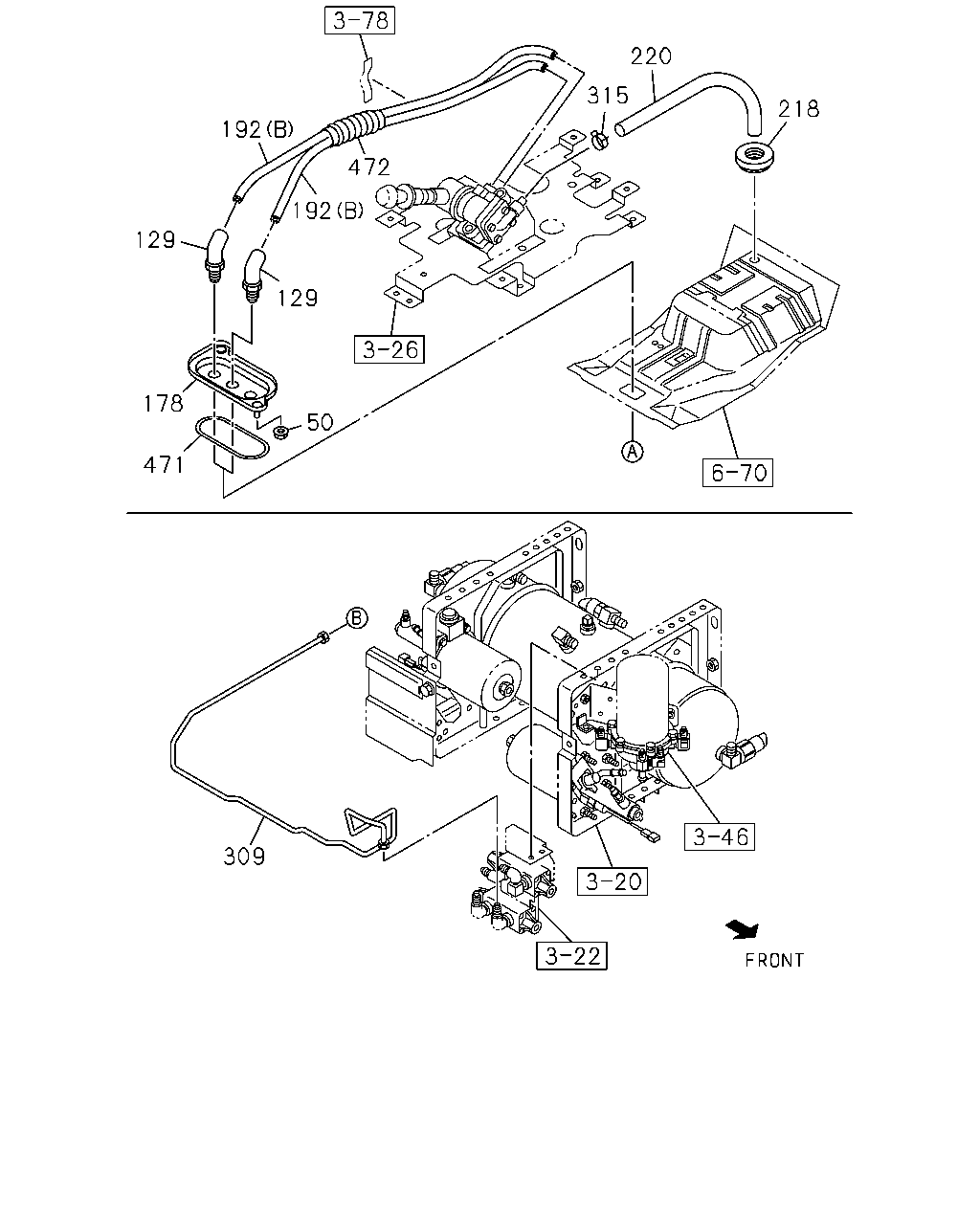

220 218 315 192 472 192 129 129 178 50 471 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
50	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	02	1	1307-1312	●	●
50	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	02	1	1401-	●	●	●
129	CONNECTOR; NYLON TUBE DIN13 & M18 ELBOW	8-97611-963-1	02	1	1307-1312	●	●
129	CONNECTOR; NYLON TUBE DIN13 & M18 ELBOW	8-97611-963-1	02	1	1401-	●	●	●
178	BRACKET; UNION	8-98017-054-1	01	1	1307-1312	●	●
178	BRACKET; UNION	8-98017-054-1	01	1	1401-	●	●	●
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1307-	●	●	●
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1307-	●	●	●
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1307-	●	●	●
192	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1307-	●	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1307-	●	●	●
218	GROMMET; VINYL HOSE OD=24	9-61166-007-0	01	1	1307-1312	●	●
218	GROMMET; VINYL HOSE OD=24	9-61166-007-0	01	1	1401-	●	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	1307-1312	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	1401-	●	●	●
309	PIPE; AIR,MPV TO UNION LCT2500 A/T ALLISON(Y5W) L=1345 SERVICED BY L=1400	1-47428-878-0	01	1	1307-1312	●
309	PIPE; AIR,MPV TO UNION LCT2500 A/T ALLISON(Y5W) L=1345 SERVICED BY L=1400	1-47428-878-0	01	1	1401-	●		●
309	PIPE; AIR,MPV TO UNION MZW6P M/T(RSZ) L=1336 SERVICED BY L=1400	1-47428-878-0	01	1	1307-1312	●
309	PIPE; AIR,MPV TO UNION MZW6P M/T(RSZ) L=1336 SERVICED BY L=1400	1-47428-878-0	01	1	1401-	●		●
309	PIPE; AIR,MPV TO UNION MZW6P M/T(RSZ) L=1743 SERVICED BY L=1900	1-47428-881-0	01	1	1307-		●
315	CLIP ID=14	8-94238-572-0	01	1	1307-1312	●	●
315	CLIP ID=14	8-94238-572-0	01	1	1401-	●	●	●
471	SEAL; BRKT	1-79738-832-0	01	1	1307-1312	●	●
471	SEAL; BRKT	1-79738-832-0	01	1	1401-	●	●	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	1307-1312	●	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	1401-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
