◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#123698) — 107 parça

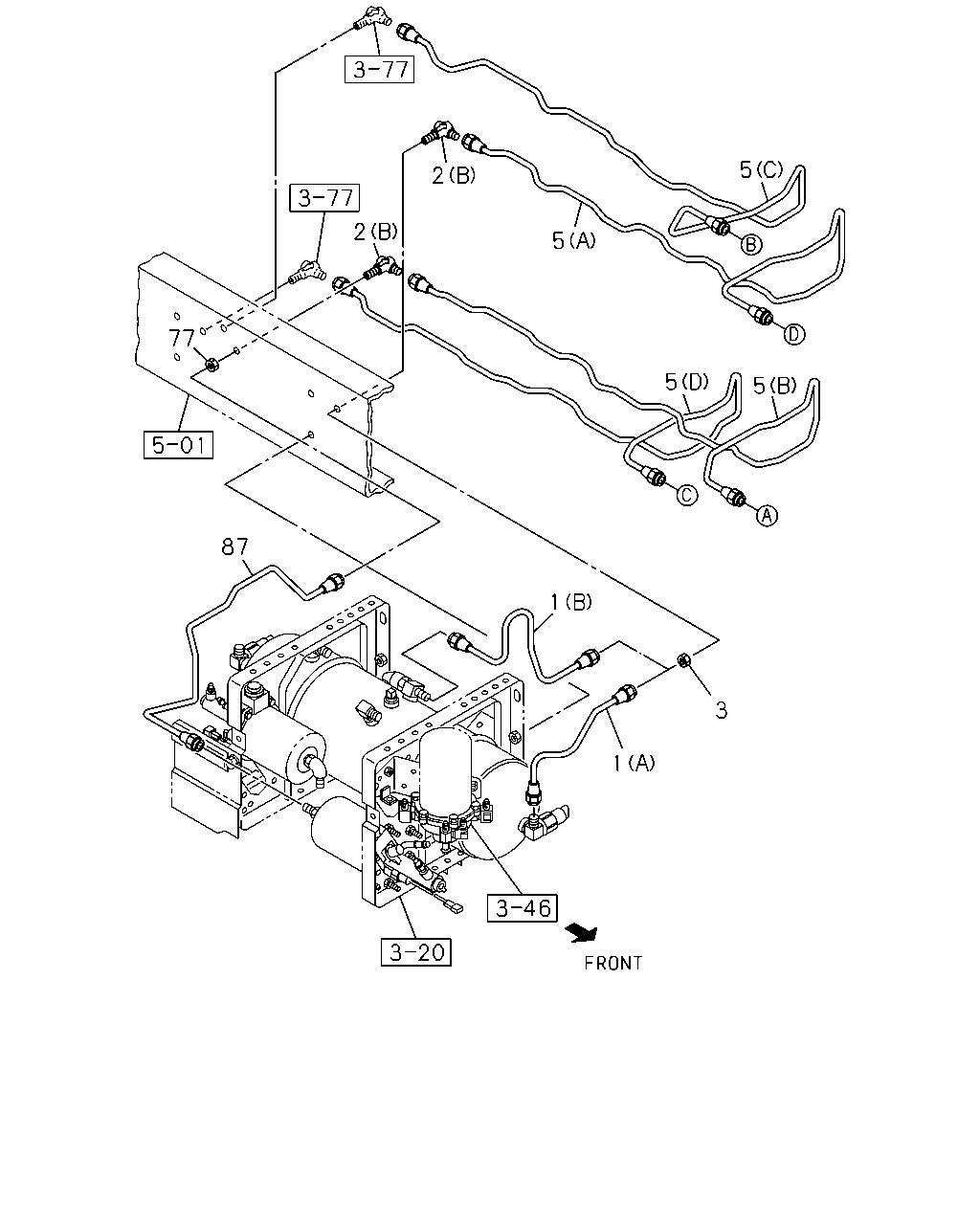

çizim 363640
2 2 5 5 5 5 3 1 1 87 77
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PIPE; AIR,AIR TANK TO UNION
(A) L=279 		8-98213-359-0 01 1 1307-1312 ●
1 PIPE; AIR,AIR TANK TO UNION
(A) L=279 		8-98213-359-0 01 1 1401- ● ●
1 PIPE; AIR,AIR TANK TO UNION
(B) L=332 		8-98087-334-0 01 1 1307- ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1307-1312 ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1401- ● ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1307-1312 ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1401- ● ● ●
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1307-1312 ● ●
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1401- ● ● ●
3 NUT; PIPE UNION
M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ● ●
3 NUT; PIPE UNION
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ● ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (A) L=2209 SERVICED BY L=2500 		1-47428-883-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (B) L=2449 SERVICED BY L=2500 		1-47428-883-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (C) L=2588 SERVICED BY L=2600 		1-47428-884-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (D) L=2599 SERVICED BY L=2600 		1-47428-884-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (A) L=2486 SERVICED BY L=2500 		1-47428-883-0 01 1 1307-1312 ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (A) L=2486 SERVICED BY L=2500 		1-47428-883-0 01 1 1401- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCC ENG(81L) (A) L=2486 SERVICED BY L=2500 		1-47428-883-0 01 1 1401- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (C) L=2788 SERVICED BY L=2900 		1-47428-885-0 01 1 1307-1312 ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (C) L=2788 SERVICED BY L=2900 		1-47428-885-0 01 1 1401- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCC ENG(81L) (C) L=2788 SERVICED BY L=2900 		1-47428-885-0 01 1 1401- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (B) L=2946 SERVICED BY L=3300 		1-47428-886-0 01 1 1307-1312 ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (B) L=2946 SERVICED BY L=3300 		1-47428-886-0 01 1 1401- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCC ENG(81L) (B) L=2946 SERVICED BY L=3300 		1-47428-886-0 01 1 1401- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (D) L=2910 SERVICED BY L=3300 		1-47428-886-0 01 1 1307-1312 ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (D) L=2910 SERVICED BY L=3300 		1-47428-886-0 01 1 1401- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCC ENG(81L) (D) L=2910 SERVICED BY L=3300 		1-47428-886-0 01 1 1401- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (A) L=2157 SERVICED BY L=2500 		1-47428-883-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (B) L=2360 SERVICED BY L=2500 		1-47428-883-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (D) L=2509 		8-98210-099-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (C) L=2510 		8-98210-103-0 01 1 1307- ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1307-1312 ● ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1401- ● ● ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP> L=783 SERVICED BY L=800 		1-47428-872-0 01 1 1307-1312 ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP> L=783 SERVICED BY L=800 		1-47428-872-0 01 1 1401- ● ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP> L=1123 SERVICED BY L=1250 		1-47428-876-0 01 1 1307- ●

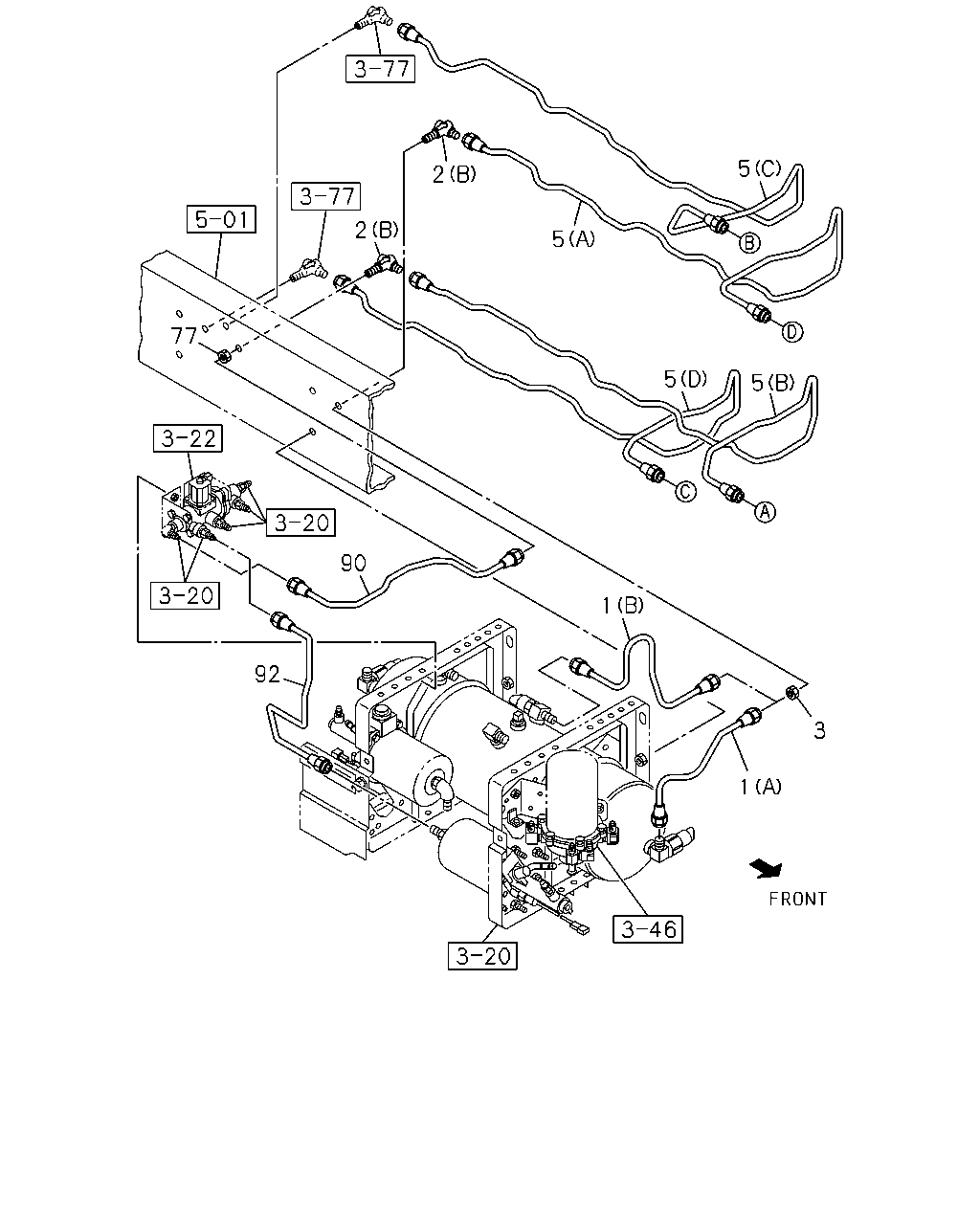

çizim 364380
2 2 5 5 5 5 3 1 1 92 90 77
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PIPE; AIR,AIR TANK TO UNION
(A) L=279 		8-98213-359-0 01 1 1307-1312 ●
1 PIPE; AIR,AIR TANK TO UNION
(A) L=279 		8-98213-359-0 01 1 1401- ● ●
1 PIPE; AIR,AIR TANK TO UNION
(B) L=332 		8-98087-334-0 01 1 1307- ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1307-1312 ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1401- ● ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1307-1312 ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1401- ● ● ●
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1307-1312 ● ●
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1401- ● ● ●
3 NUT; PIPE UNION
M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ● ●
3 NUT; PIPE UNION
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ● ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (A) L=2209 SERVICED BY L=2500 		1-47428-883-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (B) L=2449 SERVICED BY L=2500 		1-47428-883-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (C) L=2588 SERVICED BY L=2600 		1-47428-884-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) (D) L=2599 SERVICED BY L=2600 		1-47428-884-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (A) L=2486 SERVICED BY L=2500 		1-47428-883-0 01 1 1307-1312 ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (A) L=2486 SERVICED BY L=2500 		1-47428-883-0 01 1 1401- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCC ENG(81L) (A) L=2486 SERVICED BY L=2500 		1-47428-883-0 01 1 1401- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (C) L=2788 SERVICED BY L=2900 		1-47428-885-0 01 1 1307-1312 ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (C) L=2788 SERVICED BY L=2900 		1-47428-885-0 01 1 1401- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCC ENG(81L) (C) L=2788 SERVICED BY L=2900 		1-47428-885-0 01 1 1401- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (B) L=2946 SERVICED BY L=3300 		1-47428-886-0 01 1 1307-1312 ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (B) L=2946 SERVICED BY L=3300 		1-47428-886-0 01 1 1401- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCC ENG(81L) (B) L=2946 SERVICED BY L=3300 		1-47428-886-0 01 1 1401- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (D) L=2910 SERVICED BY L=3300 		1-47428-886-0 01 1 1307-1312 ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (D) L=2910 SERVICED BY L=3300 		1-47428-886-0 01 1 1401- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCC ENG(81L) (D) L=2910 SERVICED BY L=3300 		1-47428-886-0 01 1 1401- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (A) L=2157 SERVICED BY L=2500 		1-47428-883-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (B) L=2360 SERVICED BY L=2500 		1-47428-883-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (D) L=2509 		8-98210-099-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) (C) L=2510 		8-98210-103-0 01 1 1307- ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1307-1312 ● ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1401- ● ● ●
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> L=493 		8-98077-878-0 01 1 1307-1312 ●
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> L=493 		8-98077-878-0 01 1 1401- ● ●
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> L=791 SERVICED BY L=800 		1-47428-872-0 01 1 1307- ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> L=476 		8-98212-632-0 01 1 1307-1312 ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> L=476 		8-98212-632-0 01 1 1401- ● ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> L=511 SERVICED BY L=550 		1-47428-867-0 01 1 1307- ●

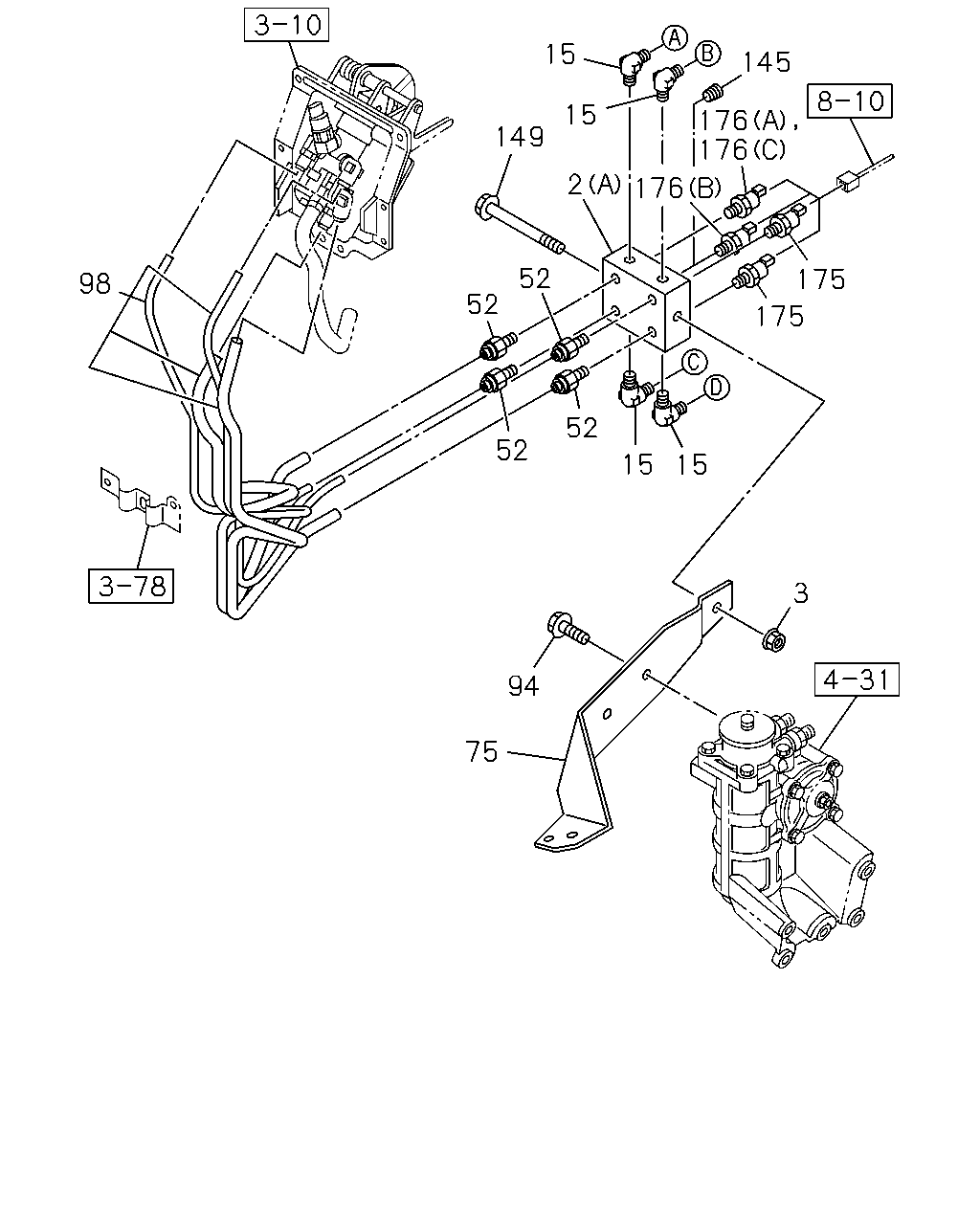

çizim 364443
98 52 15 15 149 2 145 176 176 176 175 175 15 15 52 52 52 94 75 3
BalonParca AdiParca NoAdetTipApplied Date A B C
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1307-1312 ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1401- ● ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1307-1312 ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1401- ● ● ●
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1307-1312 ● ●
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1401- ● ● ●
3 NUT; PIPE UNION
M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ● ●
3 NUT; PIPE UNION
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ● ●
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 1307-1312 ● ●
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 1401- ● ● ●
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1307-1312 ● ●
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1401- ● ● ●
75 BRACKET; UNION 8-98066-785-0 01 1 1307-1312 ● ●
75 BRACKET; UNION 8-98066-785-0 01 1 1401- ● ● ●
94 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 02 1 1307-1312 ● ●
94 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 02 1 1401- ● ● ●
98 TUBE; NYLON 8-98079-179-0 01 1 1307-1312 ● ●
98 TUBE; NYLON 8-98079-179-0 01 1 1401- ● ● ●
145 PLUG
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PT1/4 		9-99204-513-0 01 1 1307- ● ● ●
145 PLUG
LCT2500 A/T ALLISON(Y5W) PT1/4 		9-99204-513-0 01 1 1307- ● ●
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 1307-1312 ● ●
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 1401- ● ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1307-1312 ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1401- ● ● ●
176 SWITCH; AIR PRESS
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) STAMP 2.2 		8-98010-858-0 01 1 1307-1312 ● ●
176 SWITCH; AIR PRESS
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) STAMP 2.2 		8-98010-858-0 01 1 1401- ● ● ●
176 SWITCH; AIR PRESS
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) STAMP 0.7 		8-97622-710-0 01 1 1307-1312 ● ●
176 SWITCH; AIR PRESS
MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) STAMP 0.7 		8-97622-710-0 01 1 1401- ● ● ●
176 SWITCH; AIR PRESS
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) STAMP 0.3 		8-98010-857-0 01 1 1307-1312 ● ●
176 SWITCH; AIR PRESS
LCT2500 A/T ALLISON(Y5W) (C) STAMP 0.3 		8-98010-857-0 01 1 1307-1312 ●
176 SWITCH; AIR PRESS
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) STAMP 0.3 		8-98010-857-0 01 1 1401- ● ● ●
176 SWITCH; AIR PRESS
LCT2500 A/T ALLISON(Y5W) (C) STAMP 0.3 		8-98010-857-0 01 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
