◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#123697) — 310 parça

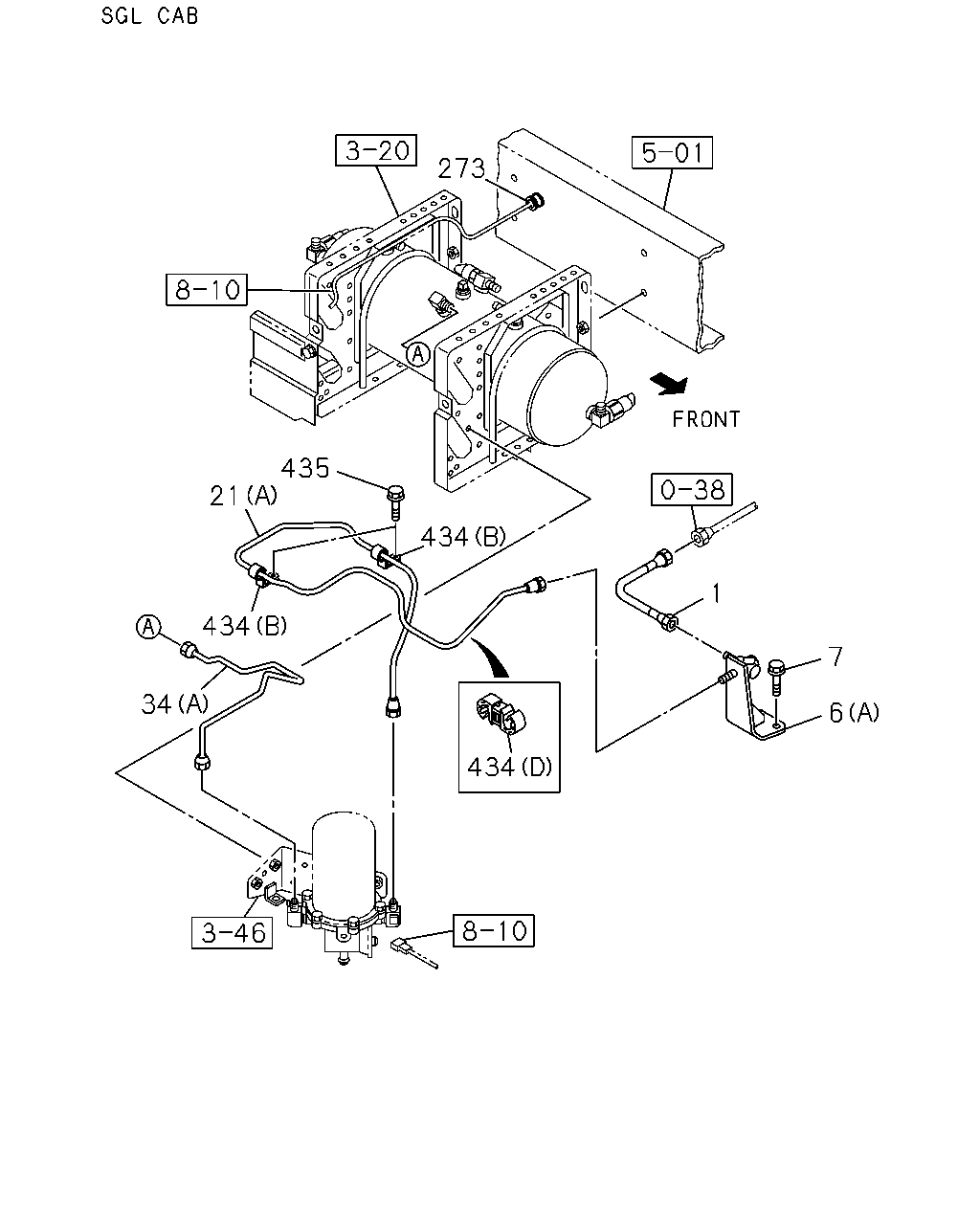

çizim 363513
273 435 21 434 434 6 34 434 7 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,AIR TANK 1-09363-958-0 01 1 1307-1312 ●
1 HOSE; FLEX,AIR TANK 1-09363-958-0 01 1 1401- ● ●
1 HOSE; FLEX,AIR TANK
4HK1-TCS ENG(RJS) 		8-98087-669-0 01 1 1307- ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) 		8-98079-973-0 01 1 1307- ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) (A) 		8-98079-987-1 01 1 1307-1312 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) (A) 		8-98079-987-1 01 1 1401- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCC ENG(81L) (A) 		8-98079-987-1 01 1 1401- ●
6 BRACKET; FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) (B) 		8-98087-689-0 01 1 1307- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) M8X30 FLANGE 		0-28650-830-0 02 1 1307-1312 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) M8X30 FLANGE 		0-28650-830-0 02 1 1401- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HK1-TCC ENG(81L) M8X30 FLANGE 		0-28650-830-0 02 1 1401- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) M8X25 FLANGE 		0-28650-825-0 02 1 1307- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) (A) L=1816 		8-98083-100-0 01 1 1307-1312 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) (A) L=1816 		8-98083-100-0 01 1 1401- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCC ENG(81L) (A) L=1816 		8-98083-100-0 01 1 1401- ●
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) (B) L=1222 		8-98084-698-0 01 1 1307- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) (B) L=1701 		8-98101-764-0 01 1 1307- ●
34 PIPE; AIR
(A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 1307-1312 ●
34 PIPE; AIR
(A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 1401- ● ●
34 PIPE; AIR
(B) L=869 SERVICED BY L=900 		1-49115-484-0 01 1 1307- ●
273 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1307-1312 ● ●
273 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1401- ● ● ●
434 CLIP
(D) ID=10 & 15 		1-09709-279-1 01 1 1307-1312 ●
434 CLIP
6HK1-TCN ENG(82L) (D) ID=10 & 15 		1-09709-279-1 01 1 1307-1312 ●
434 CLIP
(D) ID=10 & 15 		1-09709-279-1 01 1 1401- ● ●
434 CLIP
6HK1-TCN ENG(82L) (D) ID=10 & 15 		1-09709-279-1 01 1 1401- ●
434 CLIP
(A) L=350 		1-09707-183-0 13 1 1307-1312 ●
434 CLIP
(A) L=350 		1-09707-183-0 13 1 1401- ● ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1307-1312 ● ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1401- ● ● ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 1307-1312 ● ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 02 1 1307-1312 ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 1401- ● ● ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 1401- ● ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 02 1 1401- ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1307-1312 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1401- ● ● ●
434 CLIP
6HK1-TCN ENG(82L) (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1307-1312 ● ●
434 CLIP
6HK1-TCN ENG(82L) (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1401- ● ●
434 CLIP
6HK1-TCC ENG(81L) (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1401- ●
434 CLIP
4HK1-TCS ENG(RJS) (F) ID=16 L=20 		0-95235-536-0 01 1 1307- ●
434 CLIP
4HK1-TCS ENG(RJS) (E) ID=35 H=45 L=33 		1-09700-947-0 01 1 1307- ●
434 CLIP
4HK1-TCS ENG(RJS) (A) L=350 		1-09707-183-0 09 1 1307- ●
434 CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 05 1 1307- ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 12 1 1307- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1307-1312 ● ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X20 FLANGE 		0-28650-820-0 01 1 1307-1312 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1401- ● ● ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X20 FLANGE 		0-28650-820-0 01 1 1401- ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) M8X25 FLANGE 		0-28650-825-0 02 1 1307-1312 ● ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) M8X25 FLANGE 		0-28650-825-0 02 1 1401- ● ●
435 BOLT; CLIP
6HK1-TCC ENG(81L) M8X25 FLANGE 		0-28650-825-0 02 1 1401- ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X25 FLANGE 		0-28650-825-0 01 1 1307- ●

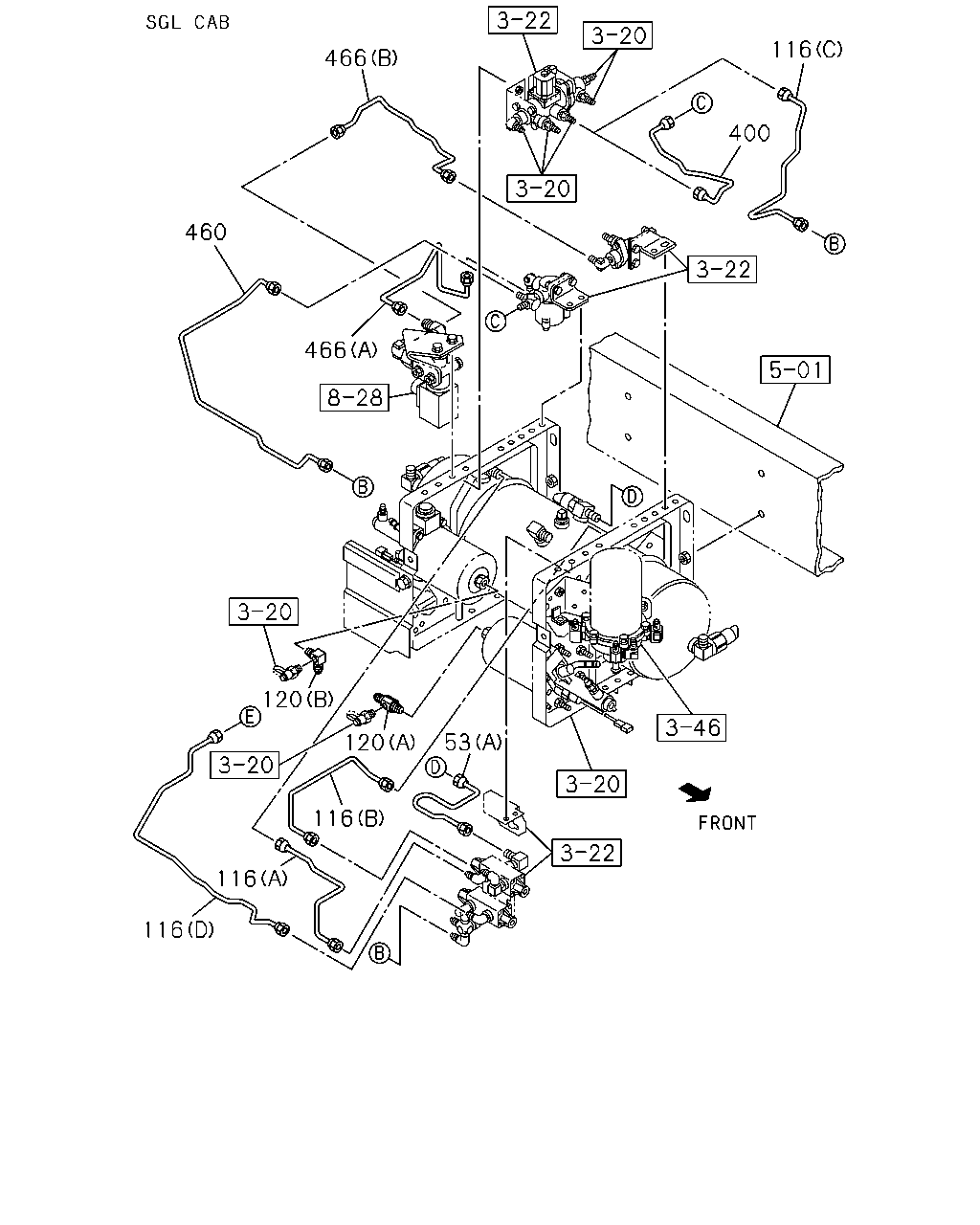

çizim 363546
466 116 460 466 400 120 120 53 116 116 116
BalonParca AdiParca NoAdetTipApplied Date A B C
53 PIPE; AIR,AIR TANK TO VALVE
(A) 		8-98213-331-0 01 1 1307-1312 ●
53 PIPE; AIR,AIR TANK TO VALVE
(A) 		8-98213-331-0 01 1 1401- ● ●
53 PIPE; AIR,AIR TANK TO VALVE
(B) 		8-98087-332-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(A) L=480 		8-98213-332-0 01 1 1307-1312 ●
116 PIPE; AIR,PROTECTION VLV
(A) L=480 		8-98213-332-0 01 1 1401- ● ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (D) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 1307-1312 ●
116 PIPE; AIR,PROTECTION VLV
EXC. THROTTLE CONTROL SYSTEM(6XH) (D) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 1307-1312 ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (D) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 1401- ● ●
116 PIPE; AIR,PROTECTION VLV
EXC. THROTTLE CONTROL SYSTEM(6XH) (D) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 1401- ● ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=585 SERVICED BY L=600 		1-47428-809-0 01 1 1307-1312 ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=585 SERVICED BY L=600 		1-47428-809-0 01 1 1401- ● ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 1307-1312 ● ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 1401- ● ● ●
116 PIPE; AIR,PROTECTION VLV
(D) L=1291 SERVICED BY L=1370 		1-47428-818-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(E) 		8-98087-333-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> (C) L=533 SERVICED BY L=550 		1-47428-808-0 01 1 1307- ●
120 CONNECTOR; AIR PIPE
(A) M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 1307-1312 ● ●
120 CONNECTOR; AIR PIPE
(A) M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 1401- ● ● ●
120 CONNECTOR; AIR PIPE
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 1307-1312 ●
120 CONNECTOR; AIR PIPE
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 1401- ● ●
120 CONNECTOR; AIR PIPE
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 1307- ●
400 PIPE; AIR,HSA VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467 		8-98066-848-0 01 1 1307-1312 ●
400 PIPE; AIR,HSA VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467 		8-98066-848-0 01 1 1401- ● ●
460 PIPE; AIR,PROTECTION VALVE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=1036 		8-98225-793-0 01 1 1307-1312 ●
460 PIPE; AIR,PROTECTION VALVE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=1036 		8-98225-793-0 01 1 1401- ● ●
466 PIPE; AIR,ASR
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) L=682 SERVICED BY L=700 		1-47428-870-0 01 1 1307-1312 ●
466 PIPE; AIR,ASR
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) L=682 SERVICED BY L=700 		1-47428-870-0 01 1 1401- ● ●
466 PIPE; AIR,ASR
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) L=492 		8-98077-879-0 01 1 1307-1312 ●
466 PIPE; AIR,ASR
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) L=492 		8-98077-879-0 01 1 1401- ● ●

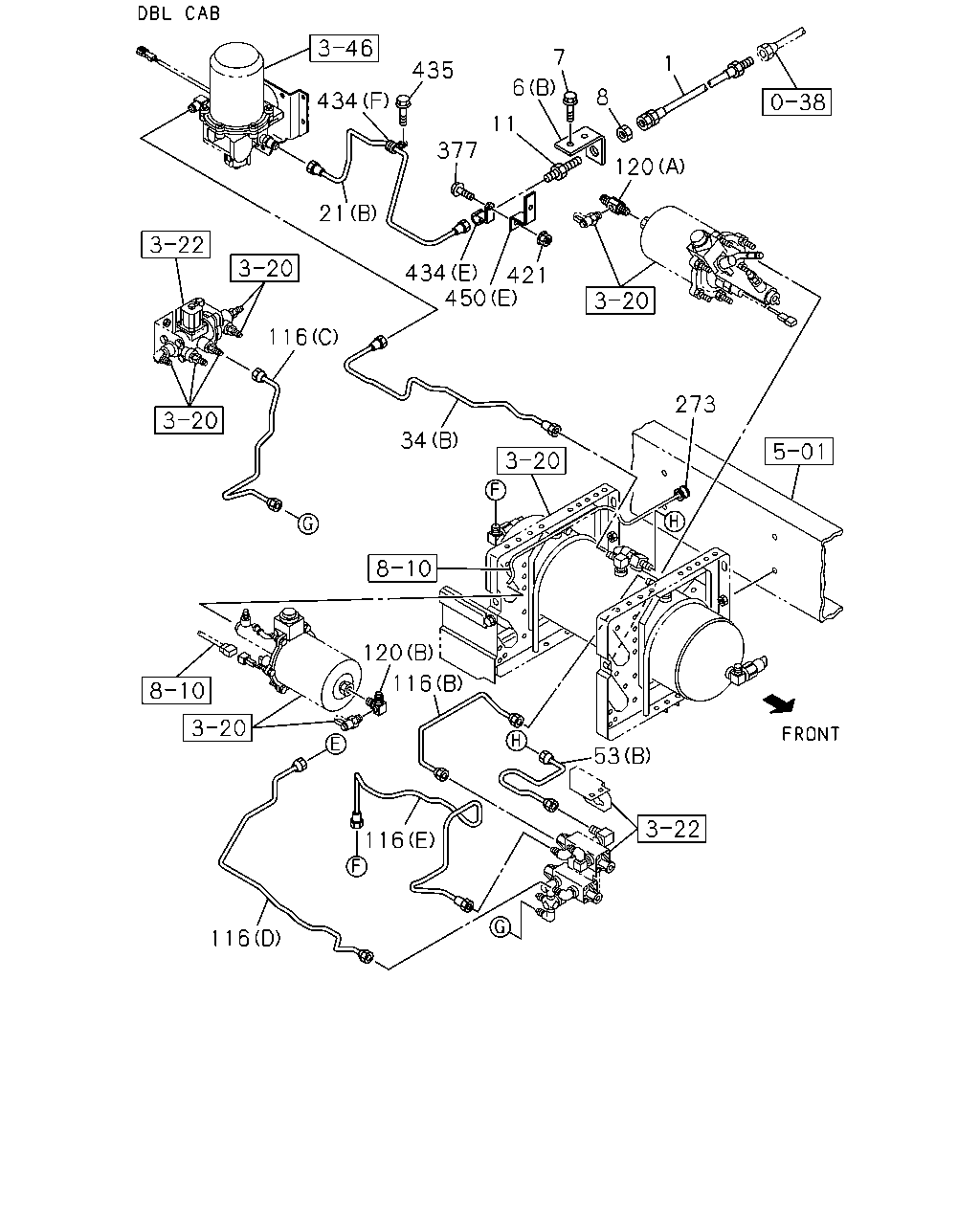

çizim 364442
434 435 21 377 6 11 7 1 8 120 434 421 450 116 34 273 120 116 53 116 116
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,AIR TANK 1-09363-958-0 01 1 1307-1312 ●
1 HOSE; FLEX,AIR TANK 1-09363-958-0 01 1 1401- ● ●
1 HOSE; FLEX,AIR TANK
4HK1-TCS ENG(RJS) 		8-98087-669-0 01 1 1307- ●
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) 		8-98079-973-0 01 1 1307- ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) (A) 		8-98079-987-1 01 1 1307-1312 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) (A) 		8-98079-987-1 01 1 1401- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCC ENG(81L) (A) 		8-98079-987-1 01 1 1401- ●
6 BRACKET; FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) (B) 		8-98087-689-0 01 1 1307- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) M8X30 FLANGE 		0-28650-830-0 02 1 1307-1312 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) M8X30 FLANGE 		0-28650-830-0 02 1 1401- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HK1-TCC ENG(81L) M8X30 FLANGE 		0-28650-830-0 02 1 1401- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) M8X25 FLANGE 		0-28650-825-0 02 1 1307- ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) M22 		0-91111-522-0 01 1 1307- ●
11 UNION; AIR PIPE
4HK1-TCS ENG(RJS) M22 L=77 STRAIGHT 		0-92123-115-0 01 1 1307- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) (A) L=1816 		8-98083-100-0 01 1 1307-1312 ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) (A) L=1816 		8-98083-100-0 01 1 1401- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCC ENG(81L) (A) L=1816 		8-98083-100-0 01 1 1401- ●
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) (B) L=1222 		8-98084-698-0 01 1 1307- ●
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) (B) L=1701 		8-98101-764-0 01 1 1307- ●
34 PIPE; AIR
(A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 1307-1312 ●
34 PIPE; AIR
(A) L=676 SERVICED BY L=700 		1-49115-481-0 01 1 1401- ● ●
34 PIPE; AIR
(B) L=869 SERVICED BY L=900 		1-49115-484-0 01 1 1307- ●
53 PIPE; AIR,AIR TANK TO VALVE
(A) 		8-98213-331-0 01 1 1307-1312 ●
53 PIPE; AIR,AIR TANK TO VALVE
(A) 		8-98213-331-0 01 1 1401- ● ●
53 PIPE; AIR,AIR TANK TO VALVE
(B) 		8-98087-332-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(A) L=480 		8-98213-332-0 01 1 1307-1312 ●
116 PIPE; AIR,PROTECTION VLV
(A) L=480 		8-98213-332-0 01 1 1401- ● ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (D) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 1307-1312 ●
116 PIPE; AIR,PROTECTION VLV
EXC. THROTTLE CONTROL SYSTEM(6XH) (D) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 1307-1312 ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (D) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 1401- ● ●
116 PIPE; AIR,PROTECTION VLV
EXC. THROTTLE CONTROL SYSTEM(6XH) (D) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 1401- ● ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=585 SERVICED BY L=600 		1-47428-809-0 01 1 1307-1312 ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=585 SERVICED BY L=600 		1-47428-809-0 01 1 1401- ● ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 1307-1312 ● ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 1401- ● ● ●
116 PIPE; AIR,PROTECTION VLV
(D) L=1291 SERVICED BY L=1370 		1-47428-818-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(E) 		8-98087-333-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> (C) L=533 SERVICED BY L=550 		1-47428-808-0 01 1 1307- ●
120 CONNECTOR; AIR PIPE
(A) M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 1307-1312 ● ●
120 CONNECTOR; AIR PIPE
(A) M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 1401- ● ● ●
120 CONNECTOR; AIR PIPE
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 1307-1312 ●
120 CONNECTOR; AIR PIPE
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 1401- ● ●
120 CONNECTOR; AIR PIPE
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 1307- ●
273 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1307-1312 ● ●
273 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1401- ● ● ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 01 1 1307-1312 ●
377 BOLT; BRKT FIX
6HK1-TCN ENG(82L) M10X30 FLANGE 		0-28651-030-0 01 1 1307-1312 ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 01 1 1401- ● ●
377 BOLT; BRKT FIX
6HK1-TCN ENG(82L) M10X30 FLANGE 		0-28651-030-0 01 1 1401- ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 03 1 1307-1312 ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 03 1 1401- ● ● ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 03 1 1307-1312 ● ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 03 1 1401- ● ● ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) M8X30 FLANGE 		0-28650-830-0 01 1 1307- ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) M10X30 FLANGE 		0-28651-030-0 04 1 1307- ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) M8X25 FLANGE 		0-28650-825-0 01 1 1307- ●
421 NUT; BRKT
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 01 1 1307- ●
434 CLIP
(D) ID=10 & 15 		1-09709-279-1 01 1 1307-1312 ●
434 CLIP
6HK1-TCN ENG(82L) (D) ID=10 & 15 		1-09709-279-1 01 1 1307-1312 ●
434 CLIP
(D) ID=10 & 15 		1-09709-279-1 01 1 1401- ● ●
434 CLIP
6HK1-TCN ENG(82L) (D) ID=10 & 15 		1-09709-279-1 01 1 1401- ●
434 CLIP
(A) L=350 		1-09707-183-0 13 1 1307-1312 ●
434 CLIP
(A) L=350 		1-09707-183-0 13 1 1401- ● ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1307-1312 ● ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1401- ● ● ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 1307-1312 ● ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 02 1 1307-1312 ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 1401- ● ● ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 1401- ● ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 02 1 1401- ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1307-1312 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1401- ● ● ●
434 CLIP
6HK1-TCN ENG(82L) (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1307-1312 ● ●
434 CLIP
6HK1-TCN ENG(82L) (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1401- ● ●
434 CLIP
6HK1-TCC ENG(81L) (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1401- ●
434 CLIP
4HK1-TCS ENG(RJS) (F) ID=16 L=20 		0-95235-536-0 01 1 1307- ●
434 CLIP
4HK1-TCS ENG(RJS) (E) ID=35 H=45 L=33 		1-09700-947-0 01 1 1307- ●
434 CLIP
4HK1-TCS ENG(RJS) (A) L=350 		1-09707-183-0 09 1 1307- ●
434 CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 05 1 1307- ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 12 1 1307- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1307-1312 ● ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X20 FLANGE 		0-28650-820-0 01 1 1307-1312 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1401- ● ● ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X20 FLANGE 		0-28650-820-0 01 1 1401- ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) M8X25 FLANGE 		0-28650-825-0 02 1 1307-1312 ● ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) M8X25 FLANGE 		0-28650-825-0 02 1 1401- ● ●
435 BOLT; CLIP
6HK1-TCC ENG(81L) M8X25 FLANGE 		0-28650-825-0 02 1 1401- ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X25 FLANGE 		0-28650-825-0 01 1 1307- ●
450 BRACKET; CLIP
(G) 		8-98077-895-1 01 1 1307-1312 ●
450 BRACKET; CLIP
(G) 		8-98077-895-1 01 1 1401- ● ●
450 BRACKET; CLIP
(A) 		8-98100-216-1 01 1 1307-1312 ●
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (A) 		8-98100-216-1 01 1 1307-1312 ●
450 BRACKET; CLIP
(A) 		8-98100-216-1 01 1 1401- ● ●
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (A) 		8-98100-216-1 01 1 1401- ●
450 BRACKET; CLIP
(D) 		1-47477-694-0 01 1 1307-1312 ● ●
450 BRACKET; CLIP
(D) 		1-47477-694-0 01 1 1401- ● ● ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 1307-1312 ● ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 1401- ● ● ●
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (C) 		8-98117-686-0 03 1 1307-1312 ● ●
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (C) 		8-98117-686-0 03 1 1401- ● ●
450 BRACKET; CLIP
6HK1-TCC ENG(81L) (C) 		8-98117-686-0 03 1 1401- ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) (E) 		8-98087-848-0 01 1 1307- ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) (C) 		8-98117-686-0 04 1 1307- ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (F) 		1-47479-693-0 01 1 1307- ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) 		8-98100-216-1 03 1 1307- ●
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (A) 		8-98105-216-1 01 1 1307- ●

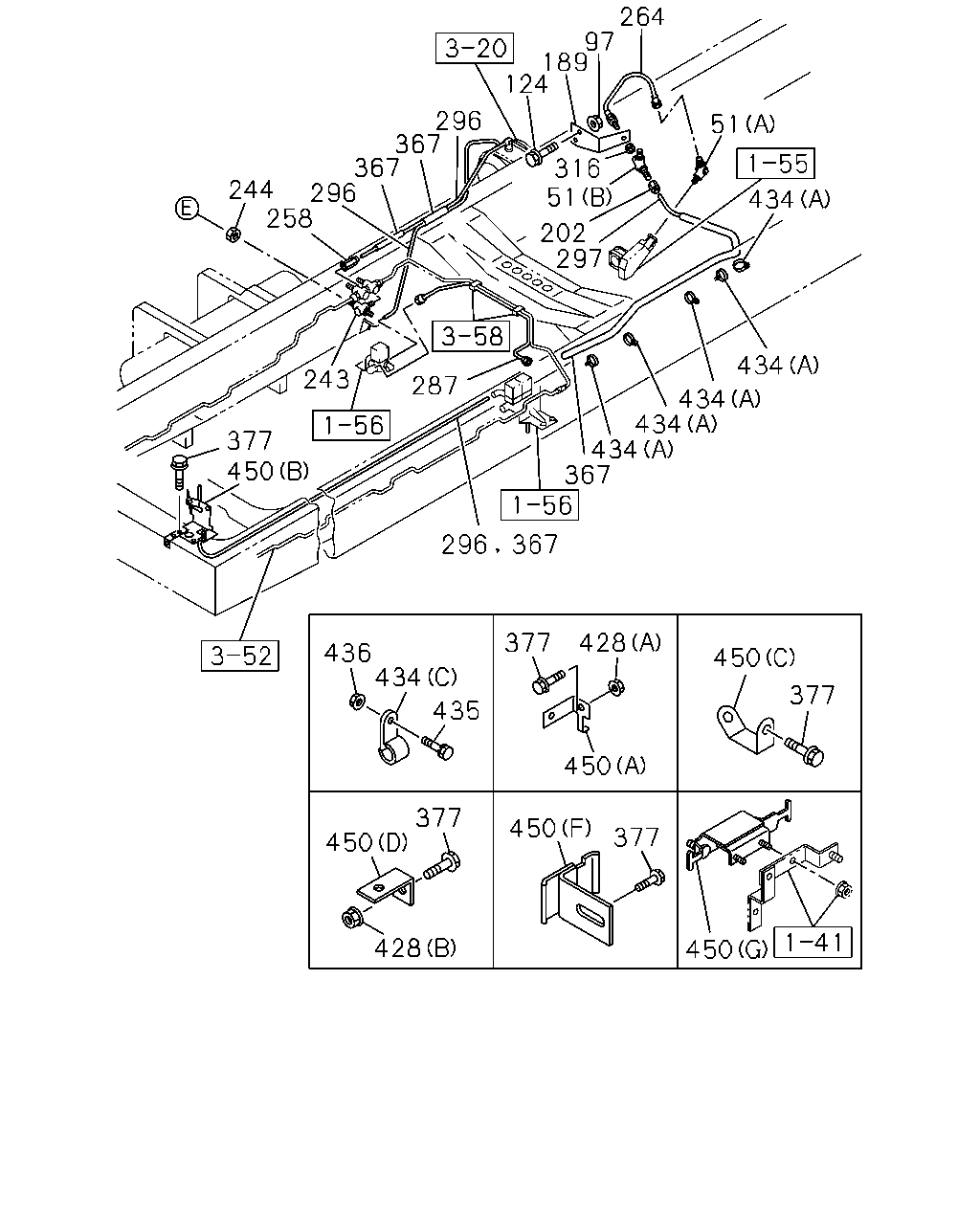

çizim 366370
244 258 296 367 367 296 124 189 97 264 316 51 202 297 51 434 287 243 377 450 296 367 367 434 434 434 434 436 434 435 377 428 450 377 450 450 377 377 450 428 450
BalonParca AdiParca NoAdetTipApplied Date A B C
51 UNION
(A) M12 ELBOW 		0-92125-006-0 01 1 1307-1312 ●
51 UNION
6HK1-TCN ENG(82L) (A) M12 ELBOW 		0-92125-006-0 01 1 1307-1312 ●
51 UNION
(A) M12 ELBOW 		0-92125-006-0 01 1 1401- ● ●
51 UNION
6HK1-TCN ENG(82L) (A) M12 ELBOW 		0-92125-006-0 01 1 1401- ●
51 UNION
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1307-1312 ●
51 UNION
6HK1-TCN ENG(82L) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1307-1312 ●
51 UNION
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1401- ● ●
51 UNION
6HK1-TCN ENG(82L) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1401- ●
51 UNION
4HK1-TCS ENG(RJS) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1307- ●
97 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
97 NUT; BRKT
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
97 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
97 NUT; BRKT
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 02 1 1401- ●
97 NUT; BRKT
4HK1-TCS ENG(RJS) M10 FLANGE 		0-91180-210-0 02 1 1307- ●
124 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1307-1312 ●
124 BOLT; BRKT
6HK1-TCN ENG(82L) M8X25 FLANGE 		0-28650-825-0 02 1 1307-1312 ●
124 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1401- ● ●
124 BOLT; BRKT
6HK1-TCN ENG(82L) M8X25 FLANGE 		0-28650-825-0 02 1 1401- ●
124 BOLT; BRKT
4HK1-TCS ENG(RJS) M10X30 FLANGE 		0-28651-030-0 02 1 1307- ●
189 BRACKET; FLEX HOSE 1-47479-914-0 01 1 1307-1312 ●
189 BRACKET; FLEX HOSE
6HK1-TCN ENG(82L) 		1-47479-914-0 01 1 1307-1312 ●
189 BRACKET; FLEX HOSE 1-47479-914-0 01 1 1401- ● ●
189 BRACKET; FLEX HOSE
6HK1-TCN ENG(82L) 		1-47479-914-0 01 1 1401- ●
189 BRACKET; FLEX HOSE
4HK1-TCS ENG(RJS) 		8-98054-640-0 01 1 1307- ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1307-1312 ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1401- ● ● ●
243 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1307-1312 ● ●
243 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1401- ● ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1307-1312 ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1401- ● ● ●
258 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1307- ● ● ●
264 HOSE; FLEX
L=240 		1-09363-671-0 01 1 1307-1312 ●
264 HOSE; FLEX
6HK1-TCN ENG(82L) L=240 		1-09363-671-0 01 1 1307-1312 ●
264 HOSE; FLEX
L=240 		1-09363-671-0 01 1 1401- ● ●
264 HOSE; FLEX
6HK1-TCN ENG(82L) L=240 		1-09363-671-0 01 1 1401- ●
264 HOSE; FLEX
4HK1-TCS ENG(RJS) L=220 		1-09363-627-0 01 1 1307- ●
287 PIPE; AIR,MAG VLV
6HK1-TCN ENG(82L) L=862 SERVICED BY L=900 		1-47428-813-0 01 1 1307-1312 ● ●
287 PIPE; AIR,MAG VLV
6HK1-TCN ENG(82L) L=862 SERVICED BY L=900 		1-47428-813-0 01 1 1401- ● ●
287 PIPE; AIR,MAG VLV
6HK1-TCC ENG(81L) L=862 SERVICED BY L=900 		1-47428-813-0 01 1 1401- ●
287 PIPE; AIR,MAG VLV
4HK1-TCS ENG(RJS) L=912 SERVICED BY L=1000 		1-47428-814-0 01 1 1307- ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1307- ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1307- ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1307- ● ● ●
316 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 1307-1312 ● ●
316 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 1401- ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=7 		1-87411-017-0 AR 1 1307- ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1307- ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1307- ● ● ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 01 1 1307-1312 ●
377 BOLT; BRKT FIX
6HK1-TCN ENG(82L) M10X30 FLANGE 		0-28651-030-0 01 1 1307-1312 ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 01 1 1401- ● ●
377 BOLT; BRKT FIX
6HK1-TCN ENG(82L) M10X30 FLANGE 		0-28651-030-0 01 1 1401- ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 03 1 1307-1312 ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 03 1 1401- ● ● ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 03 1 1307-1312 ● ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 03 1 1401- ● ● ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) M8X30 FLANGE 		0-28650-830-0 01 1 1307- ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) M10X30 FLANGE 		0-28651-030-0 04 1 1307- ●
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) M8X25 FLANGE 		0-28650-825-0 01 1 1307- ●
428 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 1307-1312 ●
428 NUT; BRKT
6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 01 1 1307-1312 ●
428 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 1401- ● ●
428 NUT; BRKT
6HK1-TCN ENG(82L) (A) M10 FLANGE 		0-91180-210-0 01 1 1401- ●
428 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 1307- ● ● ●
428 NUT; BRKT
4HK1-TCS ENG(RJS) (B) M8 FLANGE 		0-91180-108-0 01 1 1307- ●
428 NUT; BRKT
6HK1-TCN ENG(82L) (B) M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ● ●
428 NUT; BRKT
6HK1-TCN ENG(82L) (B) M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
428 NUT; BRKT
6HK1-TCC ENG(81L) (B) M8 FLANGE 		0-91180-108-0 02 1 1401- ●
428 NUT; BRKT
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) M10 FLANGE 		0-91180-210-0 03 1 1307- ●
434 CLIP
(D) ID=10 & 15 		1-09709-279-1 01 1 1307-1312 ●
434 CLIP
6HK1-TCN ENG(82L) (D) ID=10 & 15 		1-09709-279-1 01 1 1307-1312 ●
434 CLIP
(D) ID=10 & 15 		1-09709-279-1 01 1 1401- ● ●
434 CLIP
6HK1-TCN ENG(82L) (D) ID=10 & 15 		1-09709-279-1 01 1 1401- ●
434 CLIP
(A) L=350 		1-09707-183-0 13 1 1307-1312 ●
434 CLIP
(A) L=350 		1-09707-183-0 13 1 1401- ● ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1307-1312 ● ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1401- ● ● ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 1307-1312 ● ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 02 1 1307-1312 ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 1401- ● ● ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 1401- ● ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 02 1 1401- ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1307-1312 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1401- ● ● ●
434 CLIP
6HK1-TCN ENG(82L) (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1307-1312 ● ●
434 CLIP
6HK1-TCN ENG(82L) (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1401- ● ●
434 CLIP
6HK1-TCC ENG(81L) (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1401- ●
434 CLIP
4HK1-TCS ENG(RJS) (F) ID=16 L=20 		0-95235-536-0 01 1 1307- ●
434 CLIP
4HK1-TCS ENG(RJS) (E) ID=35 H=45 L=33 		1-09700-947-0 01 1 1307- ●
434 CLIP
4HK1-TCS ENG(RJS) (A) L=350 		1-09707-183-0 09 1 1307- ●
434 CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) L=350 		1-09707-183-0 05 1 1307- ●
434 CLIP
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 12 1 1307- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1307-1312 ● ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X20 FLANGE 		0-28650-820-0 01 1 1307-1312 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1401- ● ● ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X20 FLANGE 		0-28650-820-0 01 1 1401- ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) M8X25 FLANGE 		0-28650-825-0 02 1 1307-1312 ● ●
435 BOLT; CLIP
6HK1-TCN ENG(82L) M8X25 FLANGE 		0-28650-825-0 02 1 1401- ● ●
435 BOLT; CLIP
6HK1-TCC ENG(81L) M8X25 FLANGE 		0-28650-825-0 02 1 1401- ●
435 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X25 FLANGE 		0-28650-825-0 01 1 1307- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ● ●
436 NUT; CLIP
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ● ●
436 NUT; CLIP
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 01 1 1401- ●
450 BRACKET; CLIP
(G) 		8-98077-895-1 01 1 1307-1312 ●
450 BRACKET; CLIP
(G) 		8-98077-895-1 01 1 1401- ● ●
450 BRACKET; CLIP
(A) 		8-98100-216-1 01 1 1307-1312 ●
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (A) 		8-98100-216-1 01 1 1307-1312 ●
450 BRACKET; CLIP
(A) 		8-98100-216-1 01 1 1401- ● ●
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (A) 		8-98100-216-1 01 1 1401- ●
450 BRACKET; CLIP
(D) 		1-47477-694-0 01 1 1307-1312 ● ●
450 BRACKET; CLIP
(D) 		1-47477-694-0 01 1 1401- ● ● ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 1307-1312 ● ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 1401- ● ● ●
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (C) 		8-98117-686-0 03 1 1307-1312 ● ●
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (C) 		8-98117-686-0 03 1 1401- ● ●
450 BRACKET; CLIP
6HK1-TCC ENG(81L) (C) 		8-98117-686-0 03 1 1401- ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) (E) 		8-98087-848-0 01 1 1307- ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) (C) 		8-98117-686-0 04 1 1307- ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (F) 		1-47479-693-0 01 1 1307- ●
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) 		8-98100-216-1 03 1 1307- ●
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (A) 		8-98105-216-1 01 1 1307- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
