3-58 — FIXING PARTS; OIL PIPING (#123696) — 45 parça

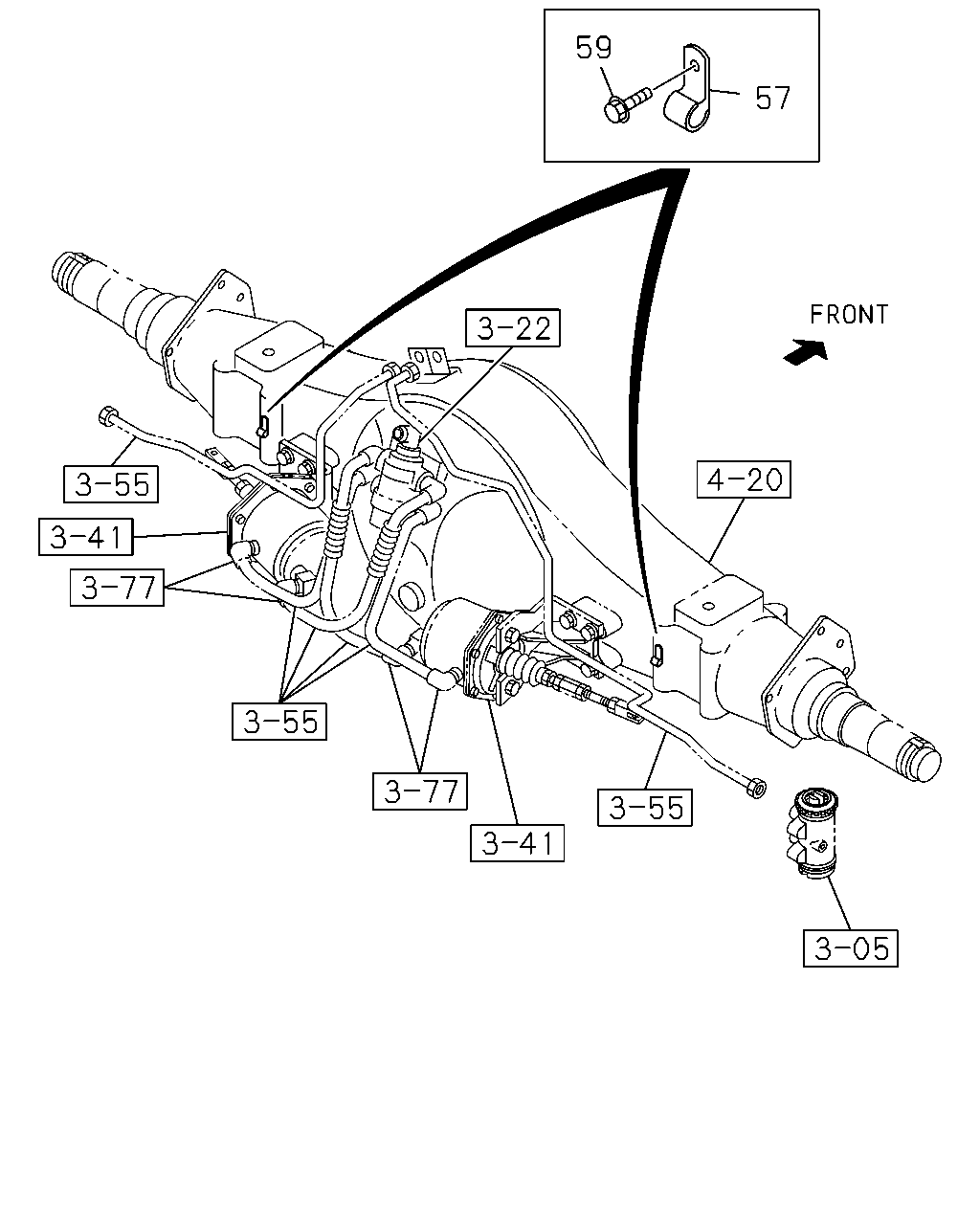

59 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	0-95234-635-0	02	1	1307-1312	●	●
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	0-95234-635-0	02	1	1401-	●	●	●
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28050-810-0	02	1	1307-1312	●	●
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28050-810-0	02	1	1401-	●	●	●

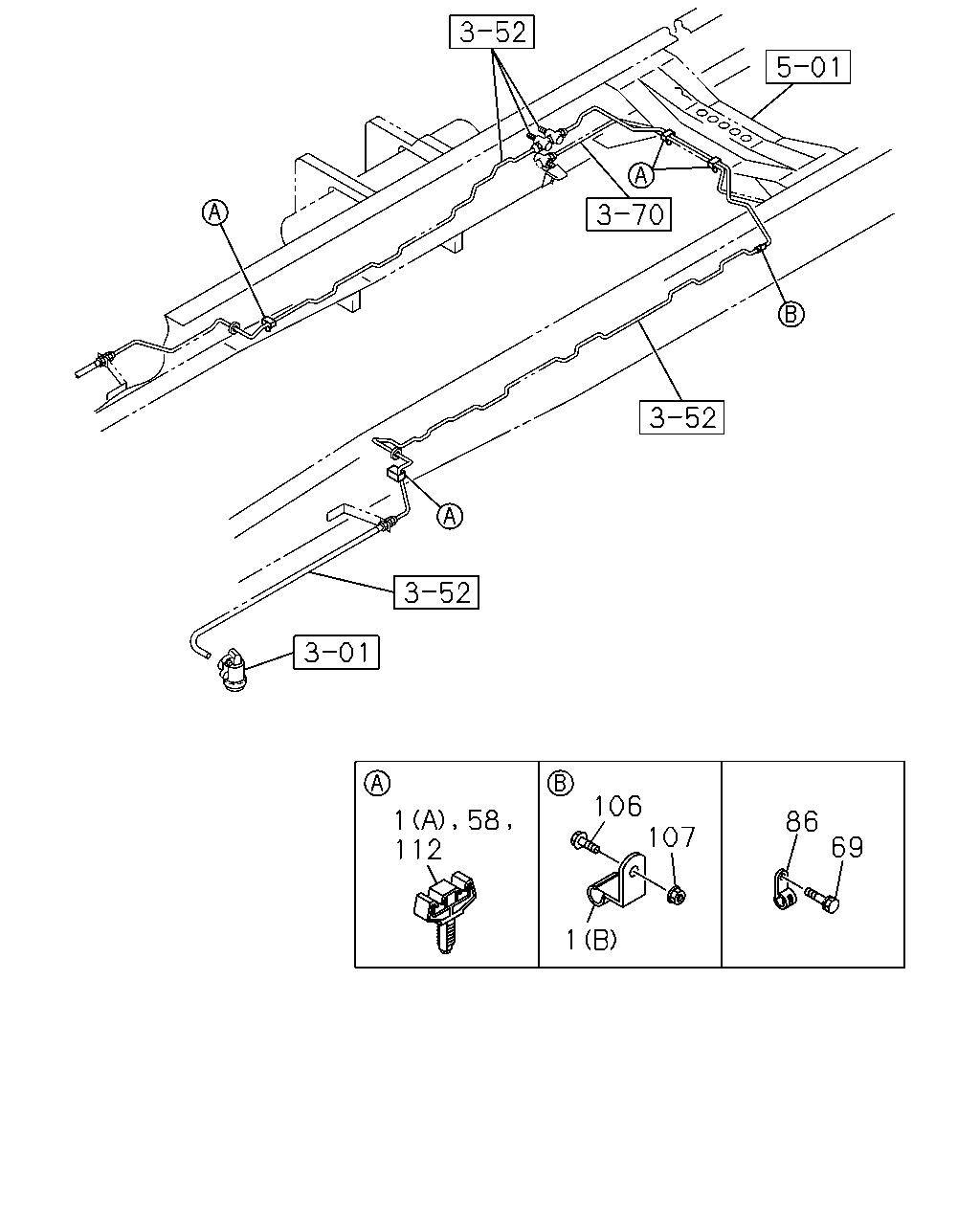

1 58 112 106 107 86 69 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CLIP; OIL PIPE TO BODY 6HK1-TCN ENG(82L) (A)	8-98012-254-1	07	1	1307-1312	●
1	CLIP; OIL PIPE TO BODY 6HK1-TCN ENG(82L) (A)	8-98012-254-1	07	1	1401-	●
1	CLIP; OIL PIPE TO BODY 6HK1-TCC ENG(81L) (A)	8-98012-254-1	07	1	1401-			●
1	CLIP; OIL PIPE TO BODY 6HK1-TCN ENG(82L) (B) ID=6 H=20 L=20	8-98040-714-0	05	1	1307-1312	●
1	CLIP; OIL PIPE TO BODY 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (B) ID=6 H=20 L=20	8-98040-714-0	05	1	1307-1312		●
1	CLIP; OIL PIPE TO BODY 6HK1-TCN ENG(82L) (B) ID=6 H=20 L=20	8-98040-714-0	05	1	1401-	●
1	CLIP; OIL PIPE TO BODY 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (B) ID=6 H=20 L=20	8-98040-714-0	05	1	1401-		●
1	CLIP; OIL PIPE TO BODY 6HK1-TCC ENG(81L) (B) ID=6 H=20 L=20	8-98040-714-0	05	1	1401-			●
1	CLIP; OIL PIPE TO BODY 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (A)	8-98012-254-1	08	1	1307-		●
1	CLIP; OIL PIPE TO BODY 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A)	8-98012-254-1	09	1	1307-		●
1	CLIP; OIL PIPE TO BODY 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) ID=6 H=20 L=20	8-98040-714-0	04	1	1307-		●
58	CLIP; OIL PIPE	8-98012-254-1	04	1	1401-			●
58	CLIP; OIL PIPE	8-98012-254-1	05	1	1307-	●	●
69	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	1307-1312	●
69	BOLT; CLIP 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) M8X16 FLANGE	0-28050-816-0	02	1	1307-1312		●
69	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	1401-	●		●
69	BOLT; CLIP MZW6P M/T(RSZ) M8X16 FLANGE	0-28050-816-0	02	1	1401-		●
86	CLIP; OIL PIPE	8-98085-372-0	02	1	1307-1312	●
86	CLIP; OIL PIPE 6HK1-TCN ENG(82L) MZW6P M/T(RSZ)	8-98085-372-0	02	1	1307-1312		●
86	CLIP; OIL PIPE	8-98085-372-0	02	1	1401-	●		●
86	CLIP; OIL PIPE MZW6P M/T(RSZ)	8-98085-372-0	02	1	1401-		●
106	BOLT; CLIP,OIL PIPE 6HK1-TCN ENG(82L) M8X25 FLANGE	0-28650-825-0	05	1	1307-1312	●
106	BOLT; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) M8X25 FLANGE	0-28650-825-0	05	1	1307-1312		●
106	BOLT; CLIP,OIL PIPE 6HK1-TCN ENG(82L) M8X25 FLANGE	0-28650-825-0	05	1	1401-	●
106	BOLT; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) M8X25 FLANGE	0-28650-825-0	05	1	1401-		●
106	BOLT; CLIP,OIL PIPE 6HK1-TCC ENG(81L) M8X25 FLANGE	0-28650-825-0	05	1	1401-			●
106	BOLT; CLIP,OIL PIPE 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) M8X25 FLANGE	0-28650-825-0	04	1	1307-		●
107	NUT; CLIP,OIL PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	05	1	1307-1312	●
107	NUT; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) M8 FLANGE	0-91180-108-0	05	1	1307-1312		●
107	NUT; CLIP,OIL PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	05	1	1401-	●
107	NUT; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) M8 FLANGE	0-91180-108-0	05	1	1401-		●
107	NUT; CLIP,OIL PIPE 6HK1-TCC ENG(81L) M8 FLANGE	0-91180-108-0	05	1	1401-			●
107	NUT; CLIP,OIL PIPE 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) M8 FLANGE	0-91180-108-0	04	1	1307-		●
112	CLIP; OIL PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W)	8-98012-254-1	04	1	1307-1312	●
112	CLIP; OIL PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W)	8-98012-254-1	04	1	1401-	●
112	CLIP; OIL PIPE 6HK1-TCC ENG(81L) WHEEL BASE 4300MM(43W)	8-98012-254-1	04	1	1401-			●
112	CLIP; OIL PIPE 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W)	8-98012-254-1	06	1	1307-1312	●
112	CLIP; OIL PIPE 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W)	8-98012-254-1	06	1	1401-	●
112	CLIP; OIL PIPE 6HK1-TCC ENG(81L) WHEEL BASE 5100MM(51W)	8-98012-254-1	06	1	1401-			●
112	CLIP; OIL PIPE 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W)	8-98012-254-1	07	1	1307-	●
112	CLIP; OIL PIPE 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W)	8-98012-254-1	07	1	1307-		●
