◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#123695) — 80 parça
çizim 363425
138 138 138 46 46 33 75 33 75
BalonParca AdiParca NoAdetTipApplied Date A B C
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (A) LH LINE L=1624 		8-98232-795-0 01 1 1307-1312 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (A) LH LINE L=1624 		8-98232-795-0 01 1 1401- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCC ENG(81L) WHEEL BASE 4300MM(43W) (A) LH LINE L=1624 		8-98232-795-0 01 1 1401- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (B) RH LINE L=1579 		8-98232-796-0 01 1 1307-1312 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (B) RH LINE L=1579 		8-98232-796-0 01 1 1401- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCC ENG(81L) WHEEL BASE 4300MM(43W) (B) RH LINE L=1579 		8-98232-796-0 01 1 1401- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) LH LINE L=2424 		8-98232-799-0 01 1 1307-1312 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) LH LINE L=2424 		8-98232-799-0 01 1 1401- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCC ENG(81L) WHEEL BASE 5100MM(51W) (A) LH LINE L=2424 		8-98232-799-0 01 1 1401- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (B) RH LINE L=2379 		8-98232-800-0 01 1 1307-1312 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (B) RH LINE L=2379 		8-98232-800-0 01 1 1401- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCC ENG(81L) WHEEL BASE 5100MM(51W) (B) RH LINE L=2379 		8-98232-800-0 01 1 1401- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (A) LH LINE L=2824 		8-98232-801-0 01 1 1307- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (B) RH LINE L=2779 		8-98232-802-0 01 1 1307- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) (B) RH LINE L=2819 		8-98232-806-0 01 1 1307- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) (A) LH LINE L=2906 		8-98099-899-0 01 1 1307- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) (A) LH LINE L=2912 		8-98113-349-0 01 1 1307- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) (B) RH LINE L=2802 		8-98113-348-0 01 1 1307- ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 1307-1312 ● ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 1401- ● ● ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 1307-1312 ● ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 1401- ● ● ●
138 PIPE; HYDRAULIC UNIT
(A) LH LINE L=657 		8-98012-129-0 01 1 1307-1312 ●
138 PIPE; HYDRAULIC UNIT
(A) LH LINE L=657 		8-98012-129-0 01 1 1401- ● ●
138 PIPE; HYDRAULIC UNIT
(B) RH LINE L=703 		8-98012-146-0 01 1 1307-1312 ●
138 PIPE; HYDRAULIC UNIT
(B) RH LINE L=703 		8-98012-146-0 01 1 1401- ● ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 1307-1312 ● ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 1401- ● ● ●
138 PIPE; HYDRAULIC UNIT
(A) LH LINE L=615 		8-98086-405-0 01 1 1307- ●
138 PIPE; HYDRAULIC UNIT
(B) RH LINE L=679 		8-98086-406-0 01 1 1307- ●

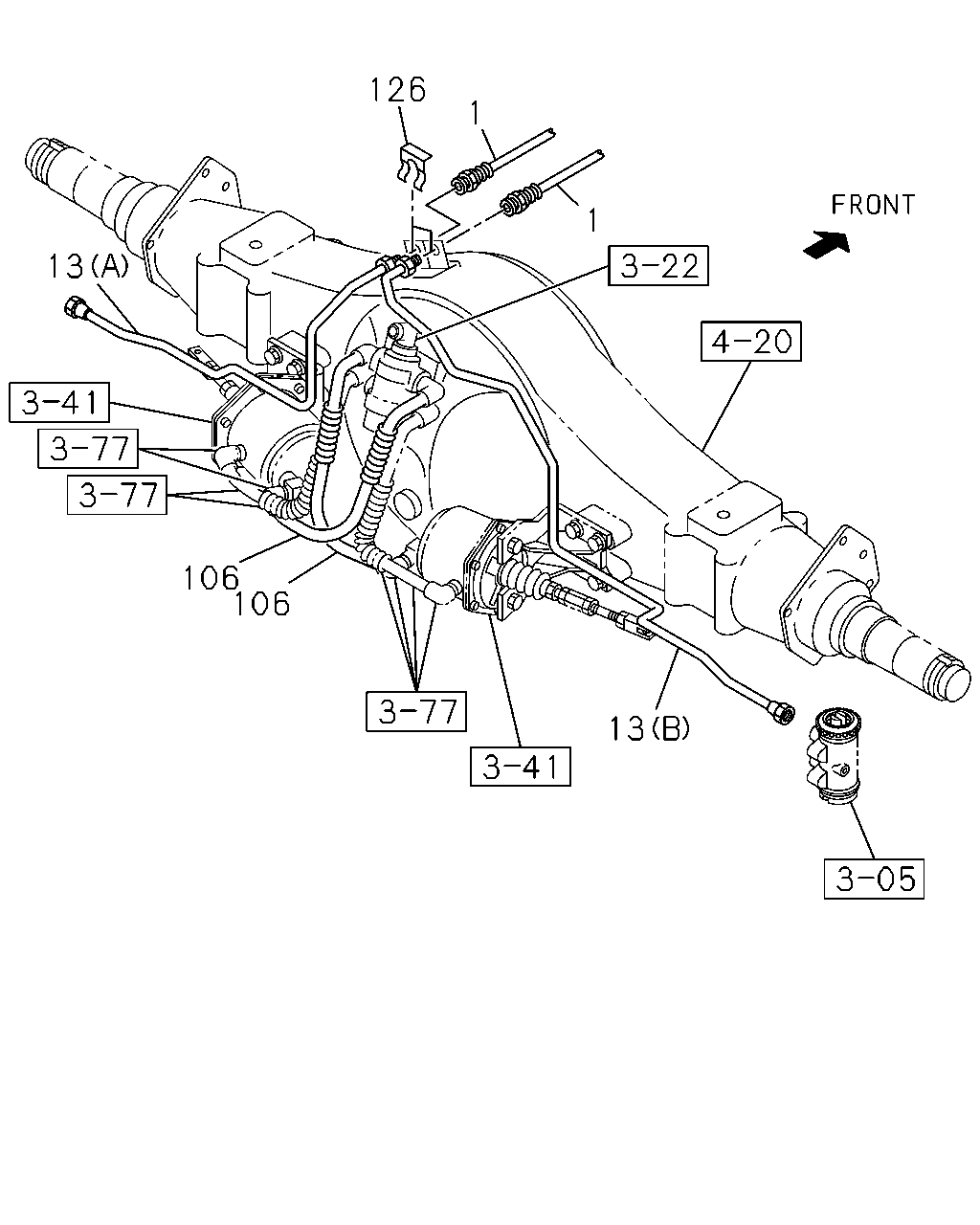

çizim 364350
126 1 1 13 106 106 13
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,RR BRK
L=310 		8-98023-168-0 02 1 1401- ●
1 HOSE; FLEX,RR BRK
L=350 		8-97138-885-0 02 1 1307- ● ●
13 PIPE; BRK,RR AXLE
(B) 		8-98107-928-0 01 1 1307-1312 ● ●
13 PIPE; BRK,RR AXLE
(B) 		8-98107-928-0 01 1 1401-1409 ● ● ●
13 PIPE; BRK,RR AXLE
(B) 		8-98281-557-0 01 1 1410- ● ● ●
13 PIPE; BRK,RR AXLE
(A) 		8-98107-929-0 01 1 1307-1312 ● ●
13 PIPE; BRK,RR AXLE
(A) 		8-98107-929-0 01 1 1401-1409 ● ● ●
13 PIPE; BRK,RR AXLE
(A) 		8-98281-558-0 01 1 1410- ● ● ●
106 TUBE; NYLON 8-98061-971-0 02 1 1307-1312 ● ●
106 TUBE; NYLON 8-98061-971-0 02 1 1401- ● ● ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 1307-1312 ● ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 1401- ● ● ●

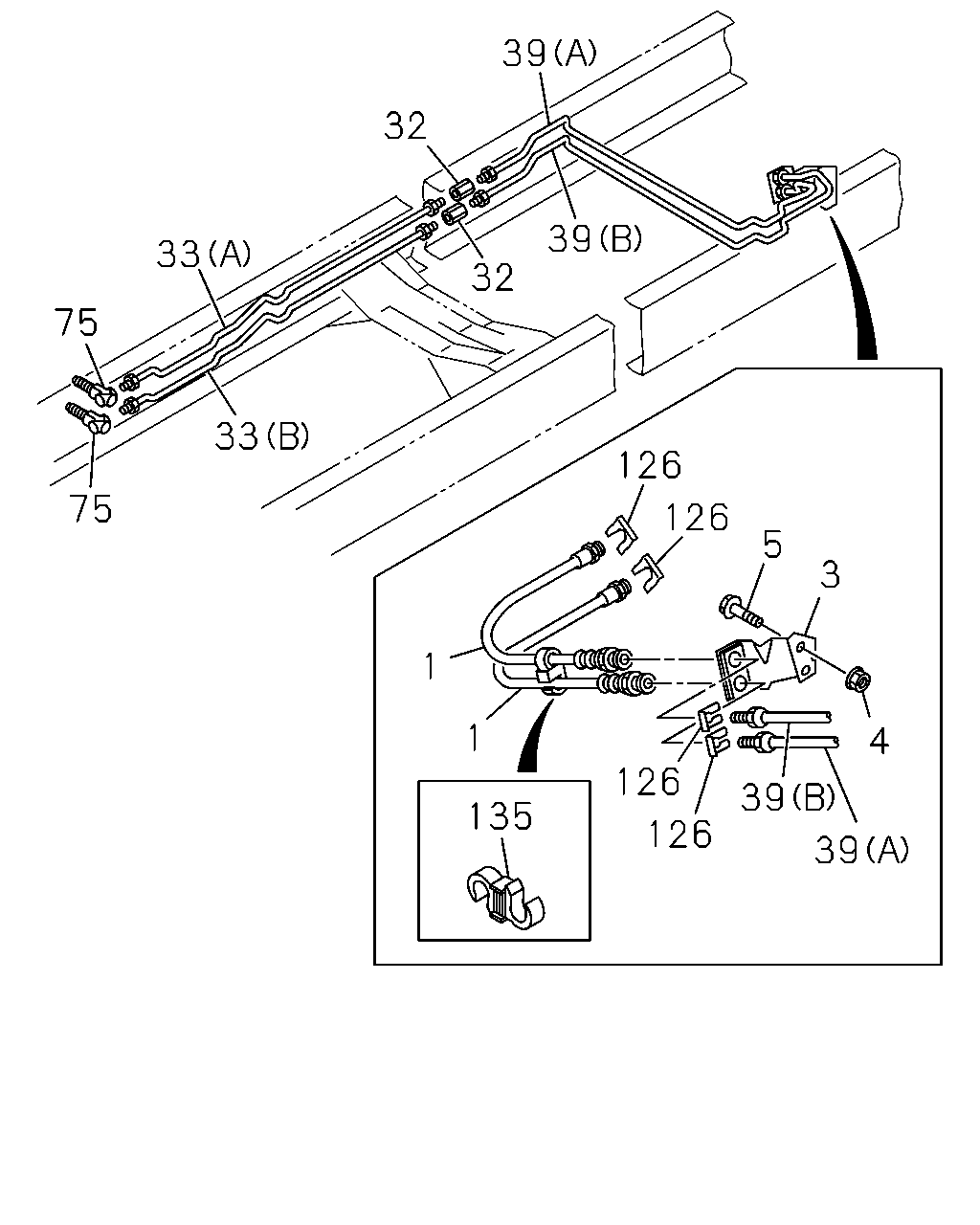

çizim 367395
39 32 32 39 33 33 75 75 126 126 5 3 4 39 39 126 126 135 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,RR BRK
L=310 		8-98023-168-0 02 1 1401- ●
1 HOSE; FLEX,RR BRK
L=350 		8-97138-885-0 02 1 1307- ● ●
3 BRACKET; FLEX HOSE,RR BRK 8-98065-999-2 01 1 1307-1312 ● ●
3 BRACKET; FLEX HOSE,RR BRK 8-98065-999-2 01 1 1401- ● ● ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ● ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 1307-1312 ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 1401- ● ● ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 1307-1312 ● ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 1401- ● ● ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (A) LH LINE L=1624 		8-98232-795-0 01 1 1307-1312 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (A) LH LINE L=1624 		8-98232-795-0 01 1 1401- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCC ENG(81L) WHEEL BASE 4300MM(43W) (A) LH LINE L=1624 		8-98232-795-0 01 1 1401- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (B) RH LINE L=1579 		8-98232-796-0 01 1 1307-1312 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (B) RH LINE L=1579 		8-98232-796-0 01 1 1401- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCC ENG(81L) WHEEL BASE 4300MM(43W) (B) RH LINE L=1579 		8-98232-796-0 01 1 1401- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) LH LINE L=2424 		8-98232-799-0 01 1 1307-1312 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) LH LINE L=2424 		8-98232-799-0 01 1 1401- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCC ENG(81L) WHEEL BASE 5100MM(51W) (A) LH LINE L=2424 		8-98232-799-0 01 1 1401- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (B) RH LINE L=2379 		8-98232-800-0 01 1 1307-1312 ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (B) RH LINE L=2379 		8-98232-800-0 01 1 1401- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCC ENG(81L) WHEEL BASE 5100MM(51W) (B) RH LINE L=2379 		8-98232-800-0 01 1 1401- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (A) LH LINE L=2824 		8-98232-801-0 01 1 1307- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (B) RH LINE L=2779 		8-98232-802-0 01 1 1307- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) (B) RH LINE L=2819 		8-98232-806-0 01 1 1307- ●
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) (A) LH LINE L=2906 		8-98099-899-0 01 1 1307- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) (A) LH LINE L=2912 		8-98113-349-0 01 1 1307- ●
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) (B) RH LINE L=2802 		8-98113-348-0 01 1 1307- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1612 		8-98241-576-0 01 1 1401- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1676 		8-98241-577-0 01 1 1401- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1710 		8-98106-485-0 01 1 1307- ● ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1772 		8-98106-486-0 01 1 1307- ● ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 1307-1312 ● ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 1401- ● ● ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 1307-1312 ● ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 1401- ● ● ●
135 CLIP; FLEX HOSE
ID=10 & 10 		1-09709-277-1 01 1 1307-1312 ● ●
135 CLIP; FLEX HOSE
ID=10 & 10 		1-09709-277-1 01 1 1401- ● ● ●
