◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#123694) — 124 parça

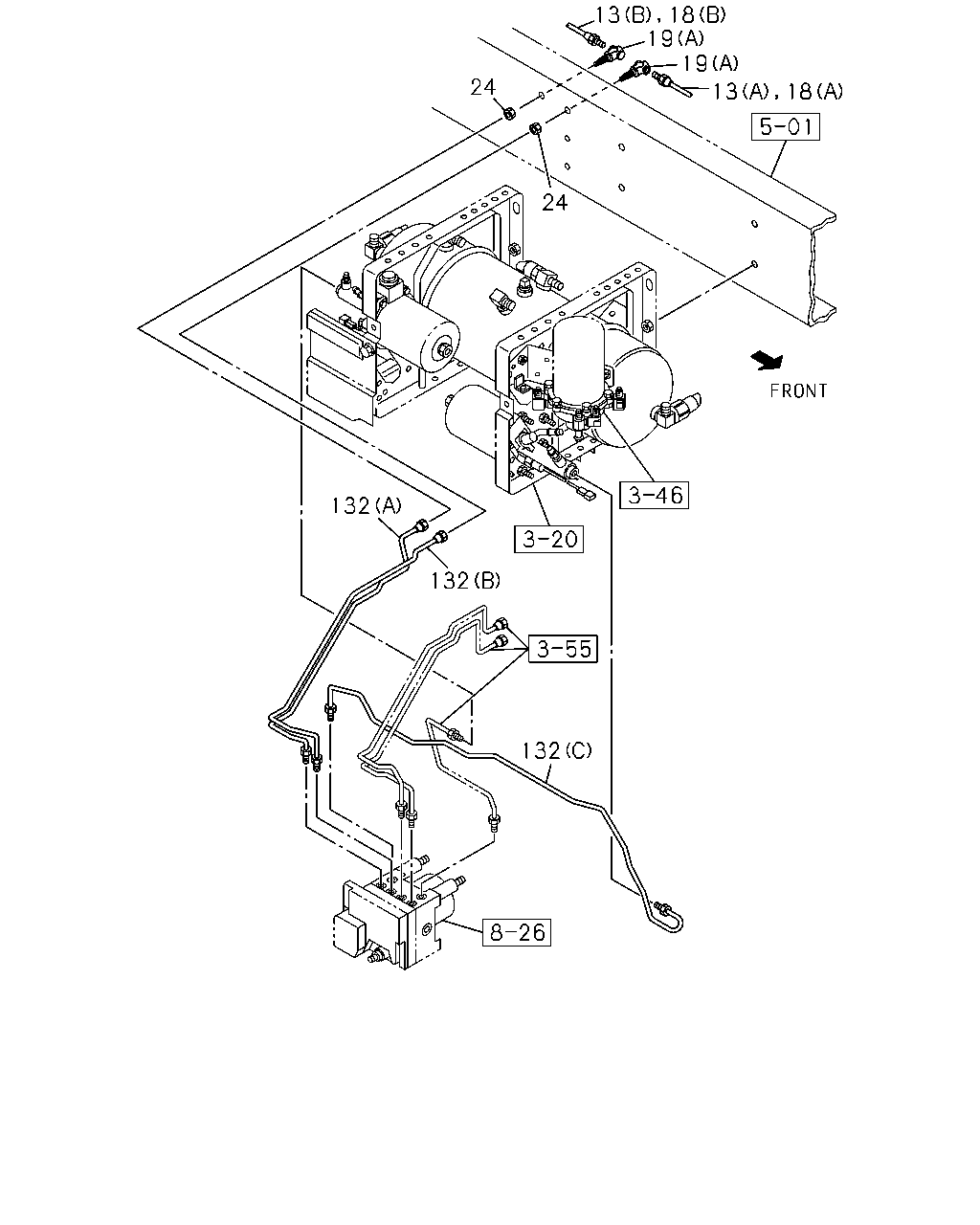

çizim 363361
13 18 19 19 13 18 24 24 132 132 132
BalonParca AdiParca NoAdetTipApplied Date A B C
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (B) L=1932 		8-98232-720-0 01 1 1307- ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (A) L=994 		8-98095-531-0 01 1 1307- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) (B) L=3122 		8-98078-160-0 01 1 1307-1312 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) (B) L=3122 		8-98078-160-0 01 1 1401- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCC ENG(81L) (B) L=3122 		8-98078-160-0 01 1 1401- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) (A) L=1885 		8-98242-375-0 01 1 1307-1312 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) (A) L=1885 		8-98242-375-0 01 1 1401- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCC ENG(81L) LCT2500 A/T ALLISON(Y5W) (A) L=1885 		8-98242-375-0 01 1 1401- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) L=1821 		8-98067-419-0 01 1 1307-1312 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) L=1821 		8-98067-419-0 01 1 1401- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) (A) L=1821 		8-98067-419-0 01 1 1401- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (D) L=1016 		8-98065-376-0 01 1 1307- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (C) L=532 		8-98084-177-0 01 1 1307- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=3760 		8-98221-585-0 01 1 1307-1310 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=3545 		8-98253-322-1 01 1 1311- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) L=1454 		8-98112-848-0 01 1 1307- ●
19 UNION; OIL PIPE
6HK1-TCN ENG(82L) (A) M10X2 ELBOW 		8-98018-438-0 02 1 1307-1312 ●
19 UNION; OIL PIPE
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) M10X2 ELBOW 		8-98018-438-0 02 1 1307-1312 ●
19 UNION; OIL PIPE
6HK1-TCN ENG(82L) (A) M10X2 ELBOW 		8-98018-438-0 02 1 1401- ●
19 UNION; OIL PIPE
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) M10X2 ELBOW 		8-98018-438-0 02 1 1401- ●
19 UNION; OIL PIPE
6HK1-TCC ENG(81L) (A) M10X2 ELBOW 		8-98018-438-0 02 1 1401- ●
19 UNION; OIL PIPE
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (B) M10 STRAIGHT 		0-92107-005-0 02 1 1307- ●
24 NUT; UNION,OIL PIPE
6HK1-TCN ENG(82L) M10 H=8 		1-09400-029-0 02 1 1307-1312 ●
24 NUT; UNION,OIL PIPE
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) M10 H=8 		1-09400-029-0 02 1 1307-1312 ●
24 NUT; UNION,OIL PIPE
6HK1-TCN ENG(82L) M10 H=8 		1-09400-029-0 02 1 1401- ●
24 NUT; UNION,OIL PIPE
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) M10 H=8 		1-09400-029-0 02 1 1401- ●
24 NUT; UNION,OIL PIPE
6HK1-TCC ENG(81L) M10 H=8 		1-09400-029-0 02 1 1401- ●
132 PIPE; OIL,BRK,HYD UNIT
(C) L=948 		8-98213-849-0 01 1 1307-1312 ●
132 PIPE; OIL,BRK,HYD UNIT
(C) L=948 		8-98213-849-0 01 1 1401- ● ●
132 PIPE; OIL,BRK,HYD UNIT
(A) L=625 		8-98116-095-0 01 1 1307-1312 ●
132 PIPE; OIL,BRK,HYD UNIT
(A) L=625 		8-98116-095-0 01 1 1401- ● ●
132 PIPE; OIL,BRK,HYD UNIT
(B) L=661 		8-98213-363-0 01 1 1307-1312 ●
132 PIPE; OIL,BRK,HYD UNIT
(B) L=661 		8-98213-363-0 01 1 1401- ● ●
132 PIPE; OIL,BRK,HYD UNIT
(C) L=1039 		8-98086-402-0 01 1 1307- ●
132 PIPE; OIL,BRK,HYD UNIT
(A) L=619 		8-98086-403-0 01 1 1307- ●
132 PIPE; OIL,BRK,HYD UNIT
(B) L=648 		8-98086-404-0 01 1 1307- ●

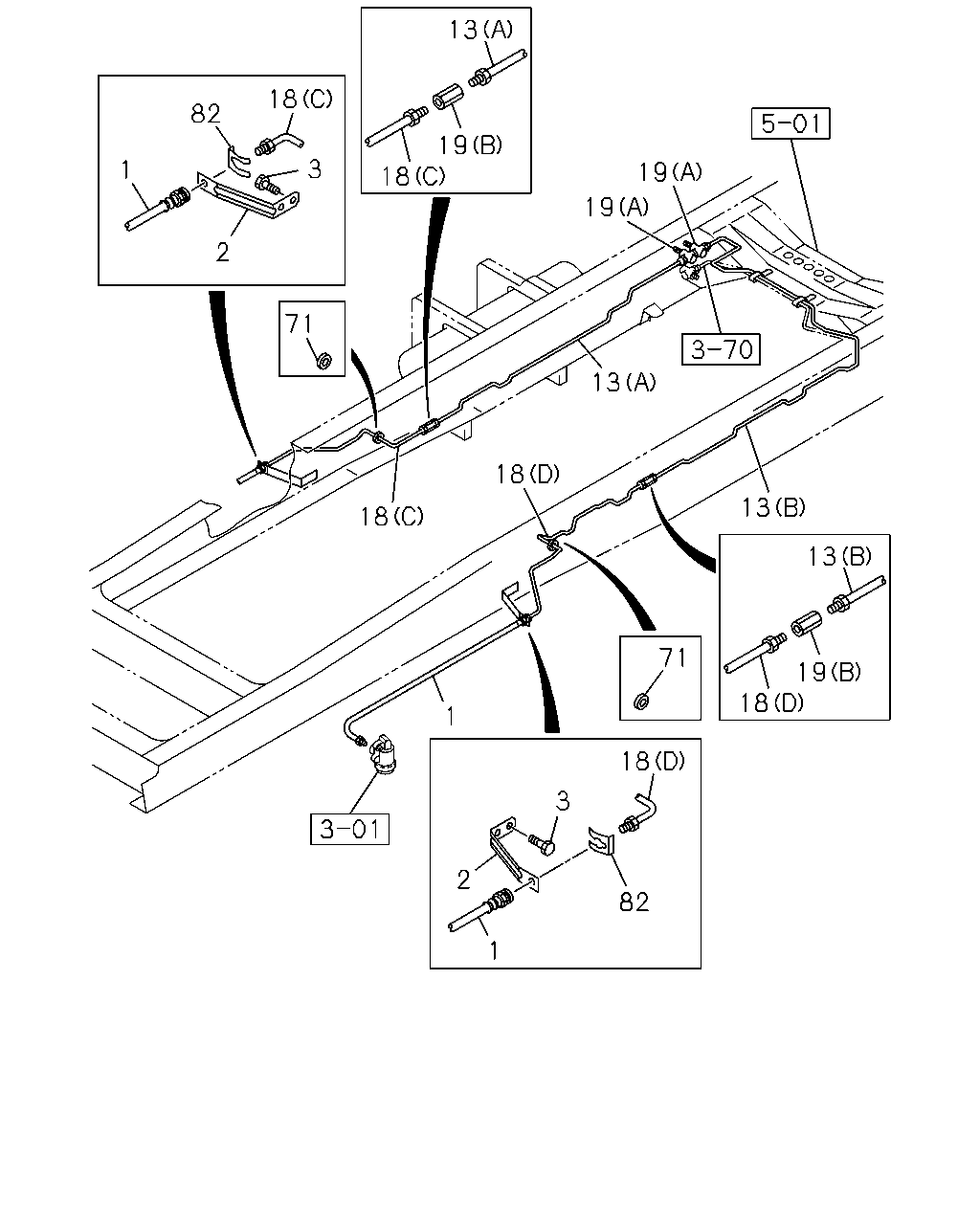

çizim 364285
1 82 18 3 2 18 19 13 71 18 18 13 19 19 13 71 18 3 2 1 82 18 19 13 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,FRT BRK
L=660 		8-98232-626-0 02 1 1307-1312 ●
1 HOSE; FLEX,FRT BRK
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) L=660 		8-98232-626-0 02 1 1307-1312 ●
1 HOSE; FLEX,FRT BRK
L=660 		8-98232-626-0 02 1 1401- ● ●
1 HOSE; FLEX,FRT BRK
MZW6P M/T(RSZ) L=660 		8-98232-626-0 02 1 1401- ●
2 BRACKET; FLEX HOSE,FRT BRK 8-98011-947-1 02 1 1307-1312 ●
2 BRACKET; FLEX HOSE,FRT BRK
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) 		8-98011-947-1 02 1 1307-1312 ●
2 BRACKET; FLEX HOSE,FRT BRK 8-98011-947-1 02 1 1401- ● ●
2 BRACKET; FLEX HOSE,FRT BRK
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) 		8-98011-947-1 02 1 1401- ●
2 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) 		8-98011-946-1 02 1 1307- ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 1307-1312 ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
MZW6P M/T(RSZ) M8X25 FLANGE 		0-28650-825-0 04 1 1307-1312 ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 1401- ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
MZW6P M/T(RSZ) M8X25 FLANGE 		0-28650-825-0 04 1 1401- ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (B) L=1932 		8-98232-720-0 01 1 1307- ●
13 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (A) L=994 		8-98095-531-0 01 1 1307- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) (B) L=3122 		8-98078-160-0 01 1 1307-1312 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) (B) L=3122 		8-98078-160-0 01 1 1401- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCC ENG(81L) (B) L=3122 		8-98078-160-0 01 1 1401- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) (A) L=1885 		8-98242-375-0 01 1 1307-1312 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) (A) L=1885 		8-98242-375-0 01 1 1401- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCC ENG(81L) LCT2500 A/T ALLISON(Y5W) (A) L=1885 		8-98242-375-0 01 1 1401- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) L=1821 		8-98067-419-0 01 1 1307-1312 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) L=1821 		8-98067-419-0 01 1 1401- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) (A) L=1821 		8-98067-419-0 01 1 1401- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (D) L=1016 		8-98065-376-0 01 1 1307- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (C) L=532 		8-98084-177-0 01 1 1307- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=3760 		8-98221-585-0 01 1 1307-1310 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=3545 		8-98253-322-1 01 1 1311- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) L=1454 		8-98112-848-0 01 1 1307- ●
19 UNION; OIL PIPE
6HK1-TCN ENG(82L) (A) M10X2 ELBOW 		8-98018-438-0 02 1 1307-1312 ●
19 UNION; OIL PIPE
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) M10X2 ELBOW 		8-98018-438-0 02 1 1307-1312 ●
19 UNION; OIL PIPE
6HK1-TCN ENG(82L) (A) M10X2 ELBOW 		8-98018-438-0 02 1 1401- ●
19 UNION; OIL PIPE
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) M10X2 ELBOW 		8-98018-438-0 02 1 1401- ●
19 UNION; OIL PIPE
6HK1-TCC ENG(81L) (A) M10X2 ELBOW 		8-98018-438-0 02 1 1401- ●
19 UNION; OIL PIPE
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (B) M10 STRAIGHT 		0-92107-005-0 02 1 1307- ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 1307-1312 ●
71 GROMMET; OIL PIPE
MZW6P M/T(RSZ) ID=24 OD=30 T=17 		9-09956-092-1 02 1 1307-1312 ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 1401- ● ●
71 GROMMET; OIL PIPE
MZW6P M/T(RSZ) ID=24 OD=30 T=17 		9-09956-092-1 02 1 1401- ●
82 PLATE; FLEX HOSE 8-97360-054-0 02 1 1307-1312 ●
82 PLATE; FLEX HOSE
MZW6P M/T(RSZ) 		8-97360-054-0 02 1 1307-1312 ●
82 PLATE; FLEX HOSE 8-97360-054-0 02 1 1401- ● ●
82 PLATE; FLEX HOSE
MZW6P M/T(RSZ) 		8-97360-054-0 02 1 1401- ●

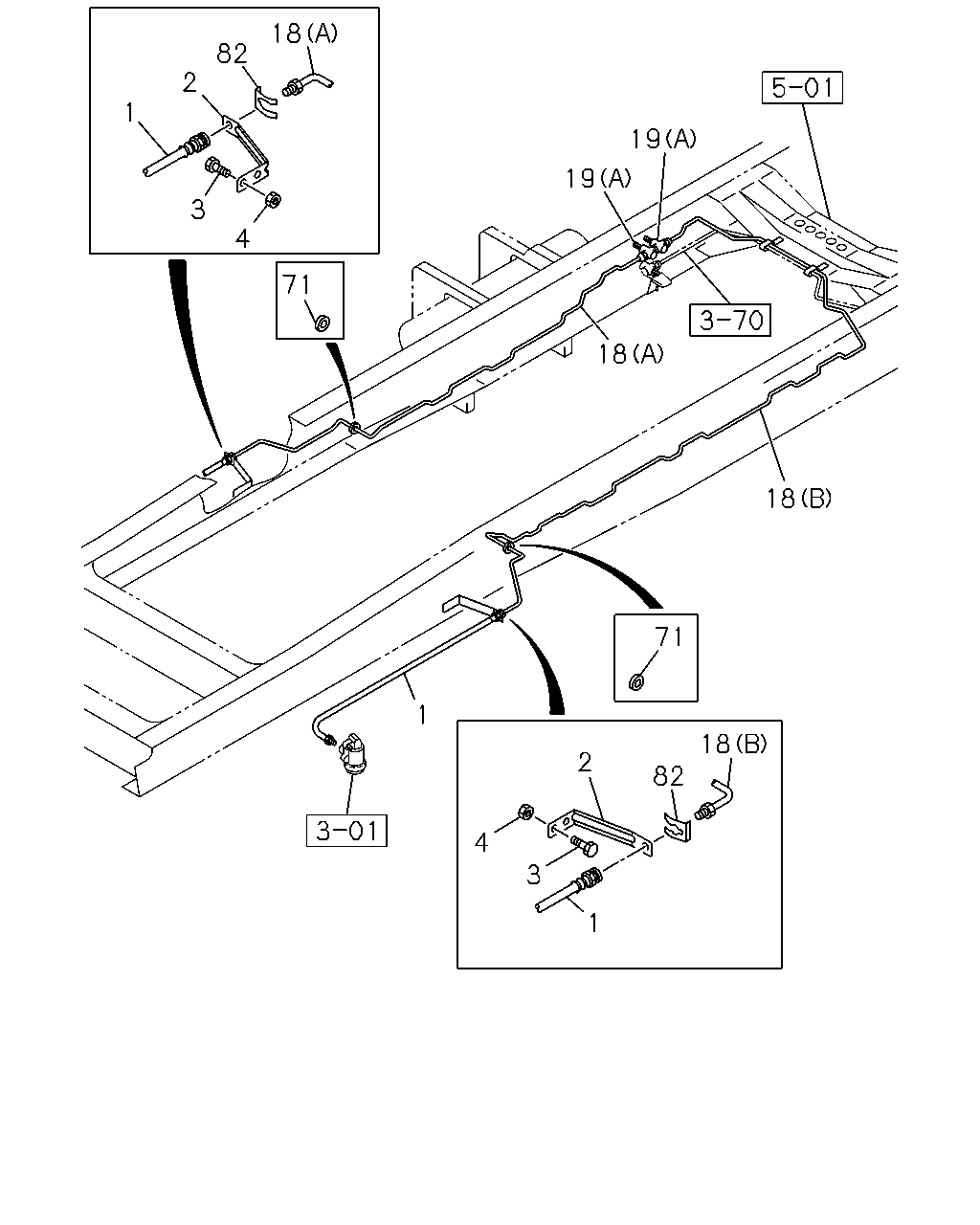

çizim 364335
1 2 82 18 3 4 18 19 19 18 71 18 82 4 3 2 1 71 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,FRT BRK
L=660 		8-98232-626-0 02 1 1307-1312 ●
1 HOSE; FLEX,FRT BRK
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) L=660 		8-98232-626-0 02 1 1307-1312 ●
1 HOSE; FLEX,FRT BRK
L=660 		8-98232-626-0 02 1 1401- ● ●
1 HOSE; FLEX,FRT BRK
MZW6P M/T(RSZ) L=660 		8-98232-626-0 02 1 1401- ●
2 BRACKET; FLEX HOSE,FRT BRK 8-98011-947-1 02 1 1307-1312 ●
2 BRACKET; FLEX HOSE,FRT BRK
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) 		8-98011-947-1 02 1 1307-1312 ●
2 BRACKET; FLEX HOSE,FRT BRK 8-98011-947-1 02 1 1401- ● ●
2 BRACKET; FLEX HOSE,FRT BRK
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) 		8-98011-947-1 02 1 1401- ●
2 BRACKET; FLEX HOSE,FRT BRK
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) 		8-98011-946-1 02 1 1307- ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 1307-1312 ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
MZW6P M/T(RSZ) M8X25 FLANGE 		0-28650-825-0 04 1 1307-1312 ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 1401- ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
MZW6P M/T(RSZ) M8X25 FLANGE 		0-28650-825-0 04 1 1401- ●
4 NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE 		0-91180-108-0 04 1 1307-1312 ●
4 NUT; FLEX HOSE BRKT,FRT BRK
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) M8 FLANGE 		0-91180-108-0 04 1 1307-1312 ●
4 NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE 		0-91180-108-0 04 1 1401- ● ●
4 NUT; FLEX HOSE BRKT,FRT BRK
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) M8 FLANGE 		0-91180-108-0 04 1 1401- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) (B) L=3122 		8-98078-160-0 01 1 1307-1312 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) (B) L=3122 		8-98078-160-0 01 1 1401- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCC ENG(81L) (B) L=3122 		8-98078-160-0 01 1 1401- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) (A) L=1885 		8-98242-375-0 01 1 1307-1312 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) LCT2500 A/T ALLISON(Y5W) (A) L=1885 		8-98242-375-0 01 1 1401- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCC ENG(81L) LCT2500 A/T ALLISON(Y5W) (A) L=1885 		8-98242-375-0 01 1 1401- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) L=1821 		8-98067-419-0 01 1 1307-1312 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) L=1821 		8-98067-419-0 01 1 1401- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) (A) L=1821 		8-98067-419-0 01 1 1401- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (D) L=1016 		8-98065-376-0 01 1 1307- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (C) L=532 		8-98084-177-0 01 1 1307- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=3760 		8-98221-585-0 01 1 1307-1310 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (B) L=3545 		8-98253-322-1 01 1 1311- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) L=1454 		8-98112-848-0 01 1 1307- ●
19 UNION; OIL PIPE
6HK1-TCN ENG(82L) (A) M10X2 ELBOW 		8-98018-438-0 02 1 1307-1312 ●
19 UNION; OIL PIPE
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) M10X2 ELBOW 		8-98018-438-0 02 1 1307-1312 ●
19 UNION; OIL PIPE
6HK1-TCN ENG(82L) (A) M10X2 ELBOW 		8-98018-438-0 02 1 1401- ●
19 UNION; OIL PIPE
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) (A) M10X2 ELBOW 		8-98018-438-0 02 1 1401- ●
19 UNION; OIL PIPE
6HK1-TCC ENG(81L) (A) M10X2 ELBOW 		8-98018-438-0 02 1 1401- ●
19 UNION; OIL PIPE
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) (B) M10 STRAIGHT 		0-92107-005-0 02 1 1307- ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 1307-1312 ●
71 GROMMET; OIL PIPE
MZW6P M/T(RSZ) ID=24 OD=30 T=17 		9-09956-092-1 02 1 1307-1312 ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 1401- ● ●
71 GROMMET; OIL PIPE
MZW6P M/T(RSZ) ID=24 OD=30 T=17 		9-09956-092-1 02 1 1401- ●
82 PLATE; FLEX HOSE 8-97360-054-0 02 1 1307-1312 ●
82 PLATE; FLEX HOSE
MZW6P M/T(RSZ) 		8-97360-054-0 02 1 1307-1312 ●
82 PLATE; FLEX HOSE 8-97360-054-0 02 1 1401- ● ●
82 PLATE; FLEX HOSE
MZW6P M/T(RSZ) 		8-97360-054-0 02 1 1401- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
