Isuzu WW
▶
TRUCKS
▶
FRR
▶
11548 - FRR AUST/NZ EURO5 EXC.SPACECAB
▶
3 - Brakes, Brake System
▶
3-26 - TRAILER CONTROL
▶
3-26 — TRAILER CONTROL
(#123689) — 66 parça
Tümü
A - FCR5MS
B - FCR5WS
C - FCD5MS
◀

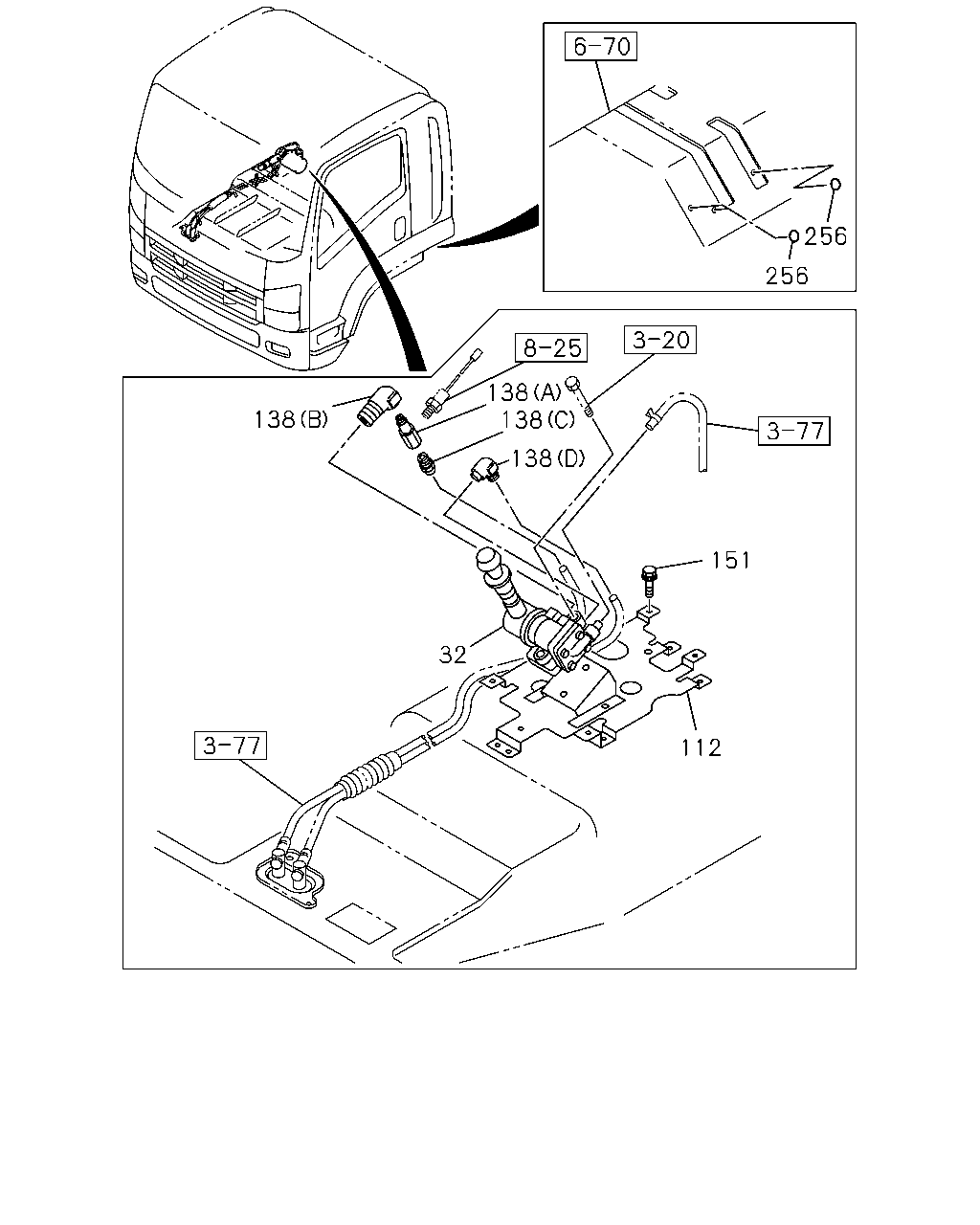

[326A] FIXING (16 parça)

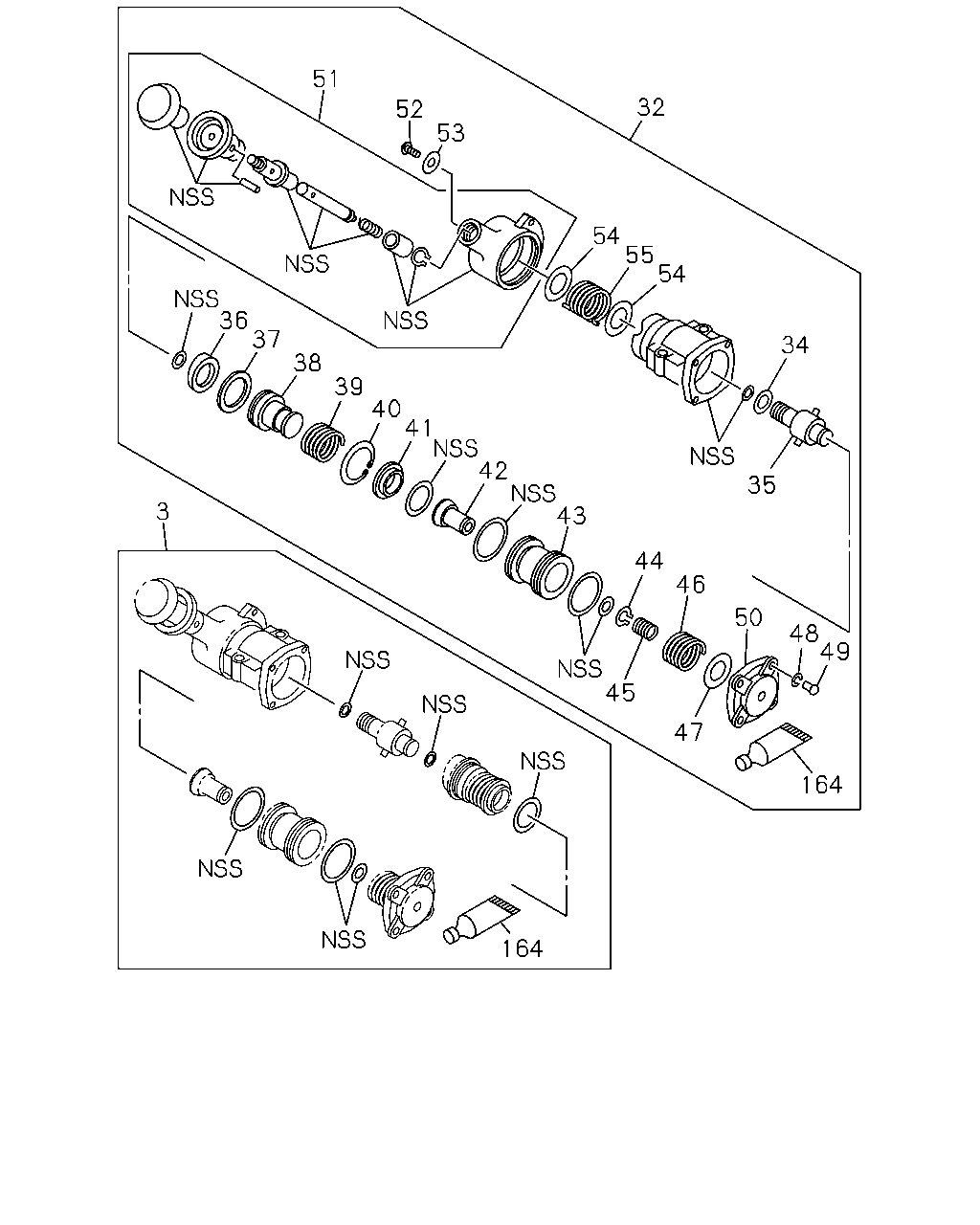

[326A] COMPONENT AND REPAIR KIT (50 parça)
▶
138
138
138
138
256
256
151
112
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
32
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
1307-1312
●
●
32
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
1401-
●
●
●
112
BRACKET; CONT VLV
1-73908-054-7
01
1
1307-1312
●
●
112
BRACKET; CONT VLV
1-73908-054-7
01
1
1401-
●
●
●
138
CONNECTOR; DELIVERY
(A) PT1/4X3 3WAY
1-09660-335-1
01
1
1307-1312
●
●
138
CONNECTOR; DELIVERY
(A) PT1/4X3 3WAY
1-09660-335-1
01
1
1401-
●
●
●
138
CONNECTOR; DELIVERY
(B) PT1/4 2WAY
1-09660-693-0
01
1
1307-1312
●
●
138
CONNECTOR; DELIVERY
(B) PT1/4 2WAY
1-09660-693-0
01
1
1401-
●
●
●
138
CONNECTOR; DELIVERY
(D) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1307-1312
●
●
138
CONNECTOR; DELIVERY
(D) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1401-
●
●
●
138
CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
1307-1312
●
●
138
CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
1401-
●
●
●
151
BOLT; VLV BRKT
M6X16
0-52000-616-0
04
1
1307-1312
●
●
151
BOLT; VLV BRKT
M6X16
0-52000-616-0
04
1
1401-
●
●
●
256
SEAL
OD=25 BLACK
1-76798-019-0
08
1
1307-1312
●
●
256
SEAL
OD=25 BLACK
1-76798-019-0
08
1
1401-
●
●
●
51
52
53
32
54
55
54
34
35
36
37
38
39
40
41
42
43
44
46
50
48
49
164
47
45
3
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
3
REPAIR KIT; HAND BRK VLV
1-48469-096-0
01
1
1307-1312
●
●
3
REPAIR KIT; HAND BRK VLV
1-48469-096-0
01
1
1401-
●
●
●
32
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
1307-1312
●
●
32
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
1401-
●
●
●
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
1307-1312
●
●
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
1401-
●
●
●
35
HOLDER; CAM
1-48469-054-0
01
1
1307-1312
●
●
35
HOLDER; CAM
1-48469-054-0
01
1
1401-
●
●
●
36
RING; CAM
1-48469-056-0
01
1
1307-1312
●
●
36
RING; CAM
1-48469-056-0
01
1
1401-
●
●
●
37
GUIDE; CAM RING
1-48469-058-0
01
1
1307-1312
●
●
37
GUIDE; CAM RING
1-48469-058-0
01
1
1401-
●
●
●
38
SEAT; EXH VLV
1-48469-057-0
01
1
1307-1312
●
●
38
SEAT; EXH VLV
1-48469-057-0
01
1
1401-
●
●
●
39
SPRING; RETURN,CAM RING
1-48469-063-0
01
1
1307-1312
●
●
39
SPRING; RETURN,CAM RING
1-48469-063-0
01
1
1401-
●
●
●
40
RING; SNAP
1-48469-067-0
01
1
1307-1312
●
●
40
RING; SNAP
1-48469-067-0
01
1
1401-
●
●
●
41
SEAT; FEED VLV
1-48469-066-0
01
1
1307-1312
●
●
41
SEAT; FEED VLV
1-48469-066-0
01
1
1401-
●
●
●
42
VALVE; FEED
1-48469-065-0
01
1
1307-1312
●
●
42
VALVE; FEED
1-48469-065-0
01
1
1401-
●
●
●
43
PISTON; HAND BRK VLV
1-48469-064-0
01
1
1307-1312
●
●
43
PISTON; HAND BRK VLV
1-48469-064-0
01
1
1401-
●
●
●
44
RING; SNAP,FEED VLV
1-48469-068-0
02
1
1307-1312
●
●
44
RING; SNAP,FEED VLV
1-48469-068-0
02
1
1401-
●
●
●
45
SPRING; FEED VLV
1-48469-070-0
01
1
1307-1312
●
●
45
SPRING; FEED VLV
1-48469-070-0
01
1
1401-
●
●
●
46
SPRING; MAIN,PISTON
1-48469-089-0
01
1
1307-1312
●
●
46
SPRING; MAIN,PISTON
1-48469-089-0
01
1
1401-
●
●
●
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
1307-1312
●
●
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
1401-
●
●
●
48
WASHER; COVER
1-48469-091-0
04
1
1307-1312
●
●
48
WASHER; COVER
1-48469-091-0
04
1
1401-
●
●
●
49
SCREW; COVER
1-48469-092-0
04
1
1307-1312
●
●
49
SCREW; COVER
1-48469-092-0
04
1
1401-
●
●
●
50
COVER; HAND BRK VLV
1-48469-090-0
01
1
1307-1312
●
●
50
COVER; HAND BRK VLV
1-48469-090-0
01
1
1401-
●
●
●
51
HANDLE ASM; HAND BRK VLV
1-48469-122-0
01
1
1307-1312
●
●
51
HANDLE ASM; HAND BRK VLV
1-48469-122-0
01
1
1401-
●
●
●
52
SCREW; HANDLE
1-48469-062-0
01
1
1307-1312
●
●
52
SCREW; HANDLE
1-48469-062-0
01
1
1401-
●
●
●
53
WASHER; HANDLE
1-48469-061-0
01
1
1307-1312
●
●
53
WASHER; HANDLE
1-48469-061-0
01
1
1401-
●
●
●
54
SEAT; SPRING
1-48469-082-0
02
1
1307-1312
●
●
54
SEAT; SPRING
1-48469-082-0
02
1
1401-
●
●
●
55
SPRING; RETURN,HANDLE
1-48469-059-0
01
1
1307-1312
●
●
55
SPRING; RETURN,HANDLE
1-48469-059-0
01
1
1401-
●
●
●
164
GREASE; HAND BRK VLV
1-48469-084-0
01
1
1307-1312
●
●
164
GREASE; HAND BRK VLV
1-48469-084-0
01
1
1401-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
