◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#123687) — 212 parça

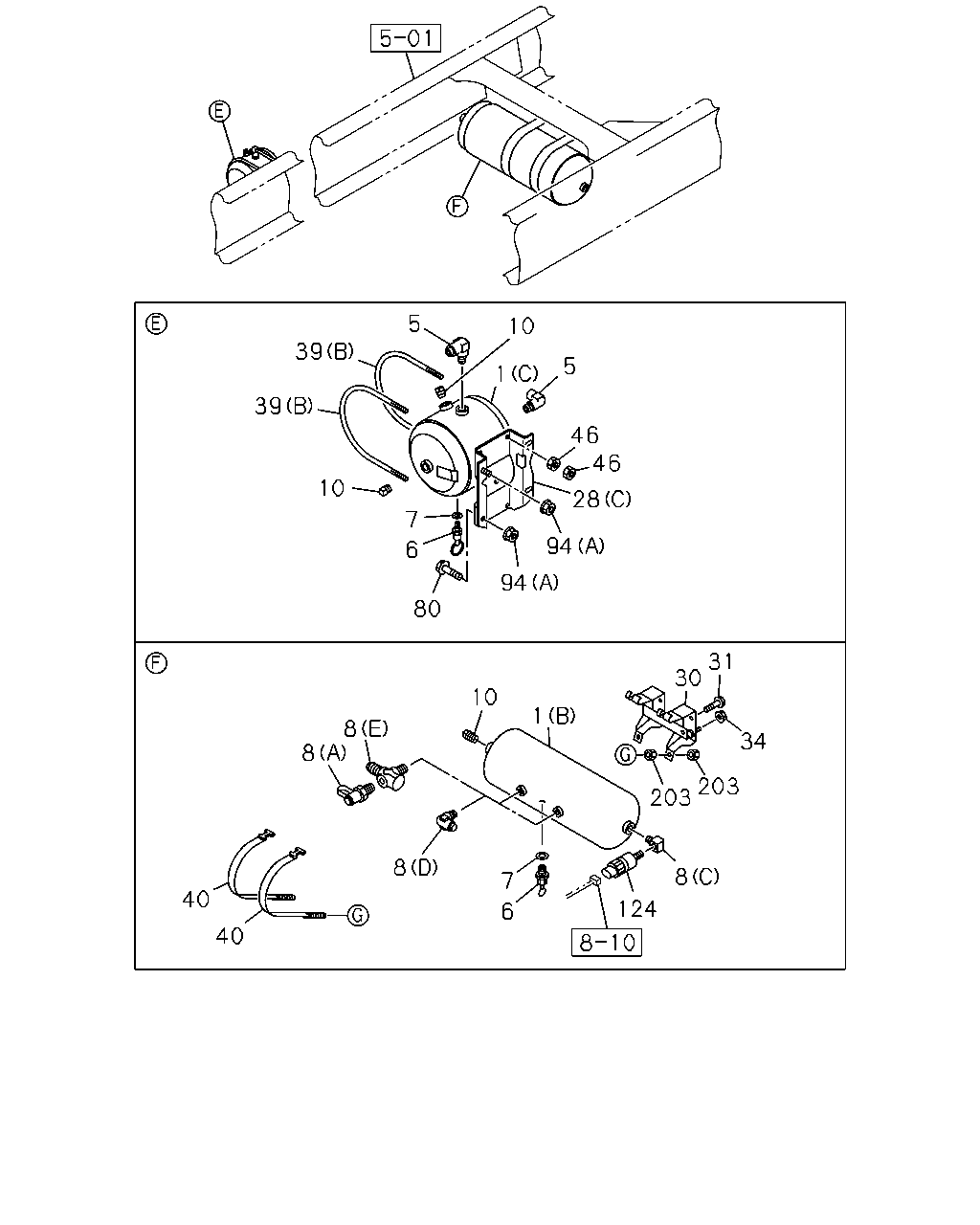

çizim 364091
5 39 39 10 7 6 80 94 94 28 46 46 5 1 10 8 8 10 1 31 30 34 203 203 8 124 6 7 8 40 40
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TANK ASM; AIR
(A) 		8-98018-795-2 01 1 1307-1312 ● ●
1 TANK ASM; AIR
(A) 		8-98018-795-2 01 1 1401- ● ● ●
1 TANK ASM; AIR
(C) 		8-98081-870-1 01 1 1307-1312 ● ●
1 TANK ASM; AIR
(C) 		8-98081-870-1 01 1 1401- ● ● ●
1 TANK ASM; AIR
(B) 		8-98166-972-0 01 1 1307-1312 ● ●
1 TANK ASM; AIR
(B) 		8-98166-972-0 01 1 1401- ● ● ●
5 UNION; AIR TANK
DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1307-1312 ● ●
5 UNION; AIR TANK
DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1401- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1307-1312 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1307-1312 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1401- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1401- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1307-1312 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1401- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1307-1312 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1307-1312 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1401- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1401- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1307-1312 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1401- ● ● ●
8 CONNECTOR; AIR TANK
(B) DIN8X2 & PT1/4 3WAY 		1-09656-759-0 01 1 1307-1312 ●
8 CONNECTOR; AIR TANK
(B) DIN8X2 & PT1/4 3WAY 		1-09656-759-0 01 1 1401- ● ●
8 CONNECTOR; AIR TANK
(E) DIN1/8 & M16X2 3WAY 		1-09656-462-1 01 1 1307-1312 ● ●
8 CONNECTOR; AIR TANK
(E) DIN1/8 & M16X2 3WAY 		1-09656-462-1 01 1 1401- ● ● ●
8 CONNECTOR; AIR TANK
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1307-1312 ● ●
8 CONNECTOR; AIR TANK
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ● ● ●
8 CONNECTOR; AIR TANK
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1307-1312 ● ●
8 CONNECTOR; AIR TANK
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1401- ● ● ●
8 CONNECTOR; AIR TANK
(A) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1307-1312 ● ●
8 CONNECTOR; AIR TANK
(A) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1401- ● ● ●
8 CONNECTOR; AIR TANK
(A) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1307-1312 ● ●
8 CONNECTOR; AIR TANK
(A) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1401- ● ● ●
8 CONNECTOR; AIR TANK
(F) M16X2 & PT3/8 3WAY 		8-98098-590-0 01 1 1307- ●
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 02 1 1307-1312 ● ●
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 02 1 1401- ● ● ●
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 01 1 1307-1312 ● ●
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 01 1 1307-1312 ● ●
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 01 1 1401- ● ● ●
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 01 1 1401- ● ● ●
28 BRACKET; AIR TANK
(A) 		8-98021-918-5 01 1 1307-1312 ● ●
28 BRACKET; AIR TANK
(A) 		8-98021-918-5 01 1 1401- ● ● ●
28 BRACKET; AIR TANK
(B) 		8-98044-509-5 01 1 1307-1312 ● ●
28 BRACKET; AIR TANK
(B) 		8-98044-509-5 01 1 1401- ● ● ●
28 BRACKET; AIR TANK
(C) 		8-98100-165-3 01 1 1307-1312 ● ●
28 BRACKET; AIR TANK
(C) 		8-98100-165-3 01 1 1401- ● ● ●
30 BRACKET; AIR TANK,SUB 1-48317-894-1 01 1 1307-1312 ● ●
30 BRACKET; AIR TANK,SUB 1-48317-894-1 01 1 1401- ● ● ●
31 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 02 1 1307-1312 ● ●
31 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 02 1 1401- ● ● ●
34 NUT; BRKT,AIR TANK
M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ● ●
34 NUT; BRKT,AIR TANK
M10 FLANGE 		0-91180-210-0 02 1 1401- ● ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1307-1312 ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1401- ● ● ●
39 U-BOLT; AIR TANK
(A) 		8-98022-041-0 02 1 1307-1312 ● ●
39 U-BOLT; AIR TANK
(A) 		8-98022-041-0 02 1 1401- ● ● ●
40 BAND ASM; AIR TANK 1-48317-893-1 02 1 1307-1312 ● ●
40 BAND ASM; AIR TANK 1-48317-893-1 02 1 1401- ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1307-1312 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1307-1312 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1401- ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1401- ● ● ●
80 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 03 1 1307-1312 ● ●
80 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 03 1 1401- ● ● ●
94 NUT; BRKT FIX
(A) M10 FLANGE 		0-91180-210-0 04 1 1307-1312 ● ●
94 NUT; BRKT FIX
(A) M10 FLANGE 		0-91180-210-0 04 1 1401- ● ● ●
94 NUT; BRKT FIX
(B) M8 FLANGE 		0-91180-108-0 04 1 1307- ●
124 SWITCH; AIR PRESSURE 8-97615-622-0 01 1 1307-1312 ● ●
124 SWITCH; AIR PRESSURE 8-97615-622-0 01 1 1401- ● ● ●
203 NUT
M8 		0-91110-508-0 04 1 1307-1312 ● ●
203 NUT
M8 		0-91110-508-0 04 1 1401- ● ● ●

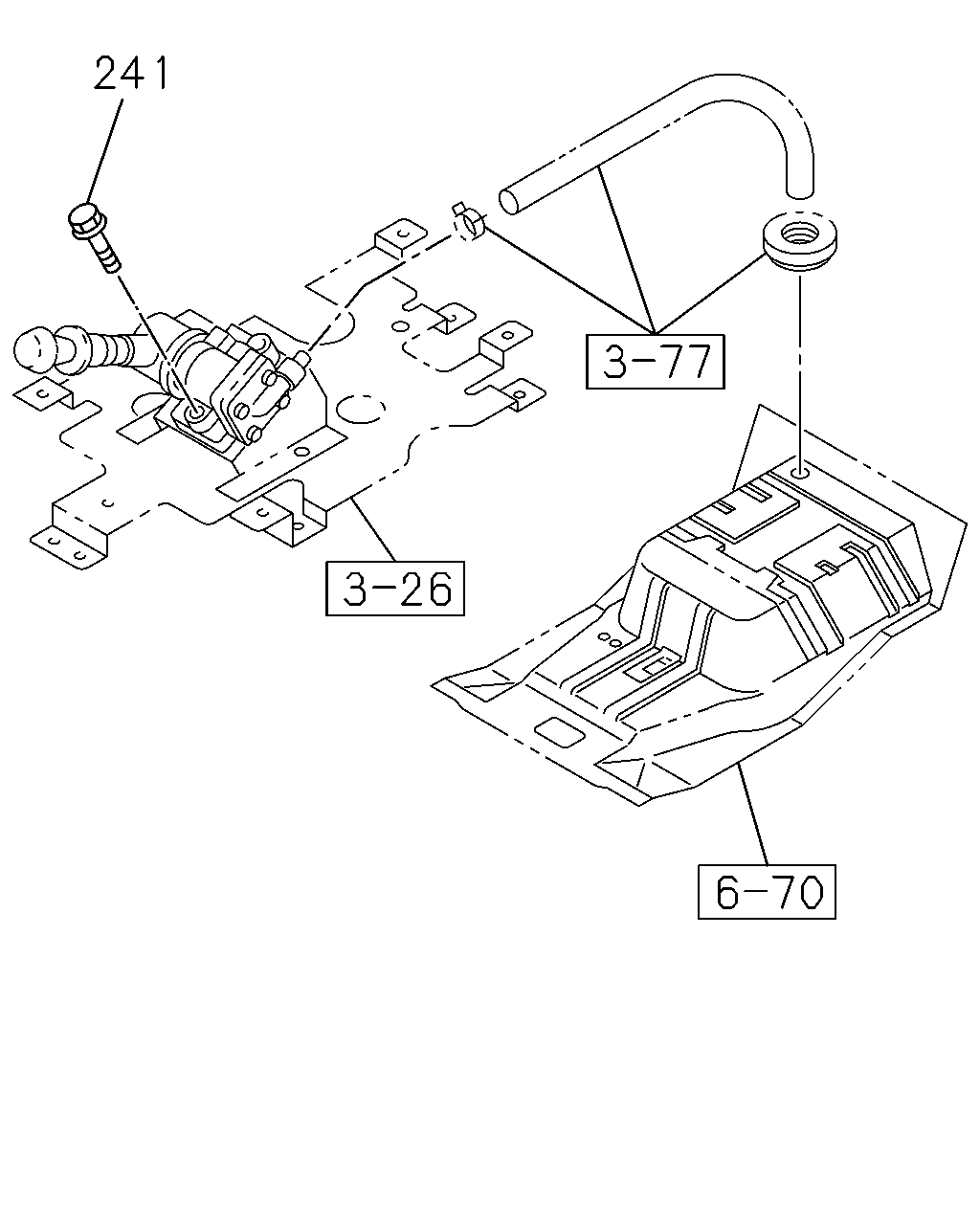

çizim 365599
241
BalonParca AdiParca NoAdetTipApplied Date A B C
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 1307-1312 ● ●
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 1401- ● ● ●

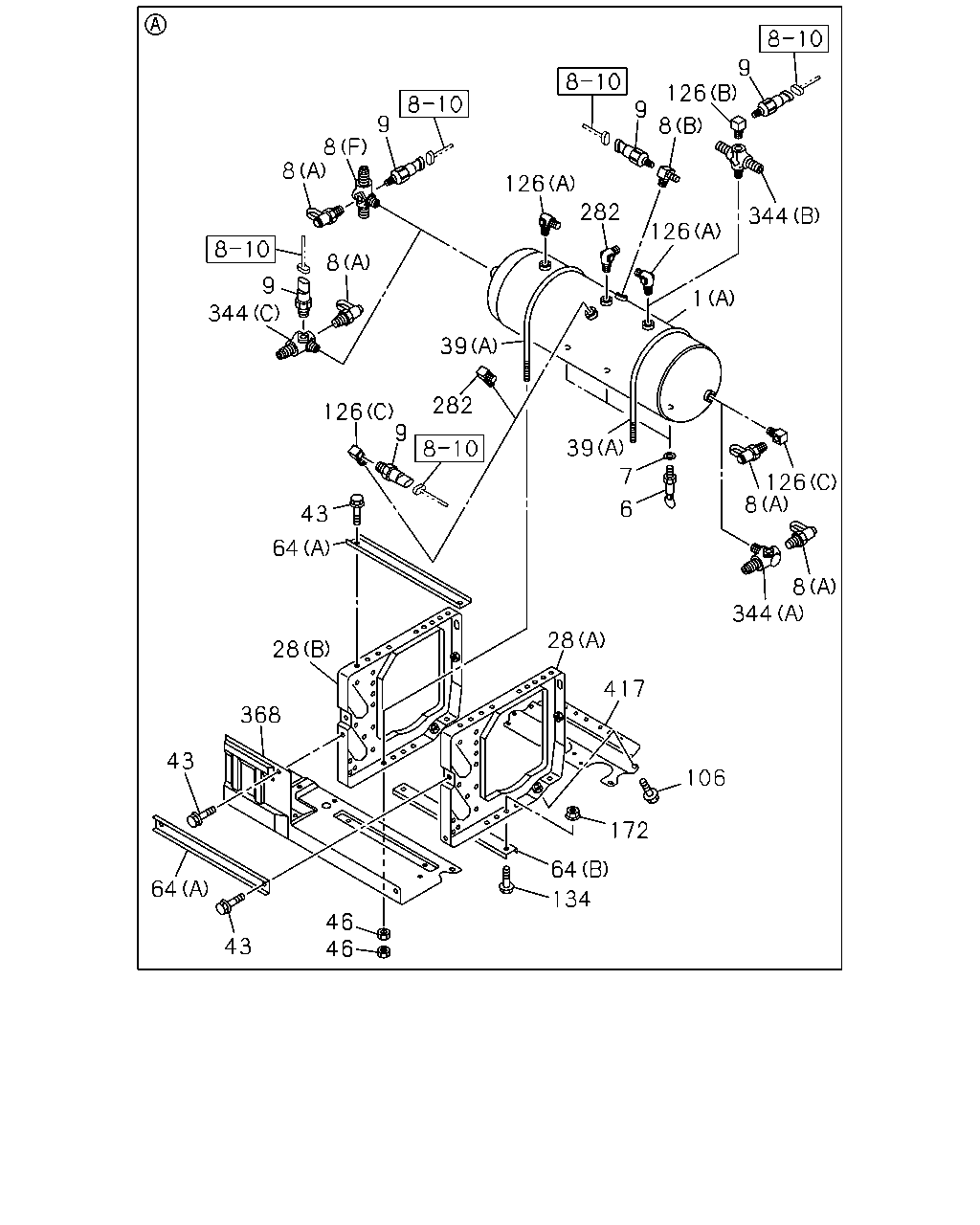

çizim 365943
9 126 9 8 344 126 282 126 9 8 8 8 9 344 126 282 9 39 43 64 28 368 43 64 43 46 46 134 64 106 417 28 39 7 6 344 8 8 126 1 172
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TANK ASM; AIR
(A) 		8-98018-795-2 01 1 1307-1312 ● ●
1 TANK ASM; AIR
(A) 		8-98018-795-2 01 1 1401- ● ● ●
1 TANK ASM; AIR
(C) 		8-98081-870-1 01 1 1307-1312 ● ●
1 TANK ASM; AIR
(C) 		8-98081-870-1 01 1 1401- ● ● ●
1 TANK ASM; AIR
(B) 		8-98166-972-0 01 1 1307-1312 ● ●
1 TANK ASM; AIR
(B) 		8-98166-972-0 01 1 1401- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1307-1312 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1307-1312 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1401- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1401- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1307-1312 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1401- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1307-1312 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1307-1312 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1401- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1401- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1307-1312 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1401- ● ● ●
8 CONNECTOR; AIR TANK
(B) DIN8X2 & PT1/4 3WAY 		1-09656-759-0 01 1 1307-1312 ●
8 CONNECTOR; AIR TANK
(B) DIN8X2 & PT1/4 3WAY 		1-09656-759-0 01 1 1401- ● ●
8 CONNECTOR; AIR TANK
(E) DIN1/8 & M16X2 3WAY 		1-09656-462-1 01 1 1307-1312 ● ●
8 CONNECTOR; AIR TANK
(E) DIN1/8 & M16X2 3WAY 		1-09656-462-1 01 1 1401- ● ● ●
8 CONNECTOR; AIR TANK
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1307-1312 ● ●
8 CONNECTOR; AIR TANK
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1401- ● ● ●
8 CONNECTOR; AIR TANK
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1307-1312 ● ●
8 CONNECTOR; AIR TANK
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1401- ● ● ●
8 CONNECTOR; AIR TANK
(A) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1307-1312 ● ●
8 CONNECTOR; AIR TANK
(A) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1401- ● ● ●
8 CONNECTOR; AIR TANK
(A) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1307-1312 ● ●
8 CONNECTOR; AIR TANK
(A) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1401- ● ● ●
8 CONNECTOR; AIR TANK
(F) M16X2 & PT3/8 3WAY 		8-98098-590-0 01 1 1307- ●
9 SWITCH; LOW PRESSURE GAGE,AIR TANK 8-97615-622-0 03 1 1307-1312 ● ●
9 SWITCH; LOW PRESSURE GAGE,AIR TANK 8-97615-622-0 03 1 1401- ● ● ●
28 BRACKET; AIR TANK
(A) 		8-98021-918-5 01 1 1307-1312 ● ●
28 BRACKET; AIR TANK
(A) 		8-98021-918-5 01 1 1401- ● ● ●
28 BRACKET; AIR TANK
(B) 		8-98044-509-5 01 1 1307-1312 ● ●
28 BRACKET; AIR TANK
(B) 		8-98044-509-5 01 1 1401- ● ● ●
28 BRACKET; AIR TANK
(C) 		8-98100-165-3 01 1 1307-1312 ● ●
28 BRACKET; AIR TANK
(C) 		8-98100-165-3 01 1 1401- ● ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1307-1312 ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1401- ● ● ●
39 U-BOLT; AIR TANK
(A) 		8-98022-041-0 02 1 1307-1312 ● ●
39 U-BOLT; AIR TANK
(A) 		8-98022-041-0 02 1 1401- ● ● ●
43 BOLT; STAY,AIR TANK,MAIN
M8X16 FLANGE 		0-28050-816-0 06 1 1307-1312 ● ●
43 BOLT; STAY,AIR TANK,MAIN
M8X16 FLANGE 		0-28050-816-0 06 1 1401- ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1307-1312 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1307-1312 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1401- ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1401- ● ● ●
64 STAY; AIR TANK,MAIN
(A) 		8-98044-510-3 02 1 1307-1312 ● ●
64 STAY; AIR TANK,MAIN
(A) 		8-98044-510-3 02 1 1401- ● ● ●
64 STAY; AIR TANK,MAIN
(B) 		8-98044-511-2 01 1 1307-1312 ● ●
64 STAY; AIR TANK,MAIN
(B) 		8-98044-511-2 01 1 1401- ● ● ●
106 BOLT; COVER
M8X16 FLANGE 		0-28050-816-0 04 1 1307-1312 ● ●
106 BOLT; COVER
M8X16 FLANGE 		0-28050-816-0 04 1 1401- ● ● ●
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 1307-1312 ●
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 1401- ● ●
126 CONNECTOR; ELBOW
(B) PT1/4 2WAY 		1-09660-693-0 01 1 1307- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1307- ●
134 BOLT; COVER FIX
M8X16 FLANGE 		0-28050-816-0 04 1 1307-1312 ● ●
134 BOLT; COVER FIX
M8X16 FLANGE 		0-28050-816-0 04 1 1401- ● ● ●
172 NUT; STAY,AIR TANK,MAIN
M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ● ●
172 NUT; STAY,AIR TANK,MAIN
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ● ●
282 UNION; 2 WAY
M20 & PT3/8 ELBOW 		0-92134-312-0 01 1 1307-1312 ●
282 UNION; 2 WAY
M20 & PT3/8 ELBOW 		0-92134-312-0 01 1 1401- ● ●
282 UNION; 2 WAY
M20 & PT3/8 ELBOW 		0-92134-312-0 02 1 1307- ●
344 CONNECTOR; 4WAY
(A) 		1-09656-726-0 01 1 1307-1312 ●
344 CONNECTOR; 4WAY
(A) 		1-09656-726-0 01 1 1401- ● ●
344 CONNECTOR; 4WAY
(C) 		1-09656-767-0 01 1 1307-1312 ●
344 CONNECTOR; 4WAY
(C) 		1-09656-767-0 01 1 1401- ● ●
344 CONNECTOR; 4WAY
(B) M16X2 & R3/8 & RC1/4 4WAY ELBOW 		8-98061-136-0 01 1 1307- ●
368 COVER; AIR TANK 8-98061-625-3 01 1 1307-1312 ● ●
368 COVER; AIR TANK 8-98061-625-3 01 1 1401- ● ● ●
417 COVER; HARNESS 8-98111-401-0 01 1 1307-1312 ● ●
417 COVER; HARNESS 8-98111-401-0 01 1 1401- ● ● ●

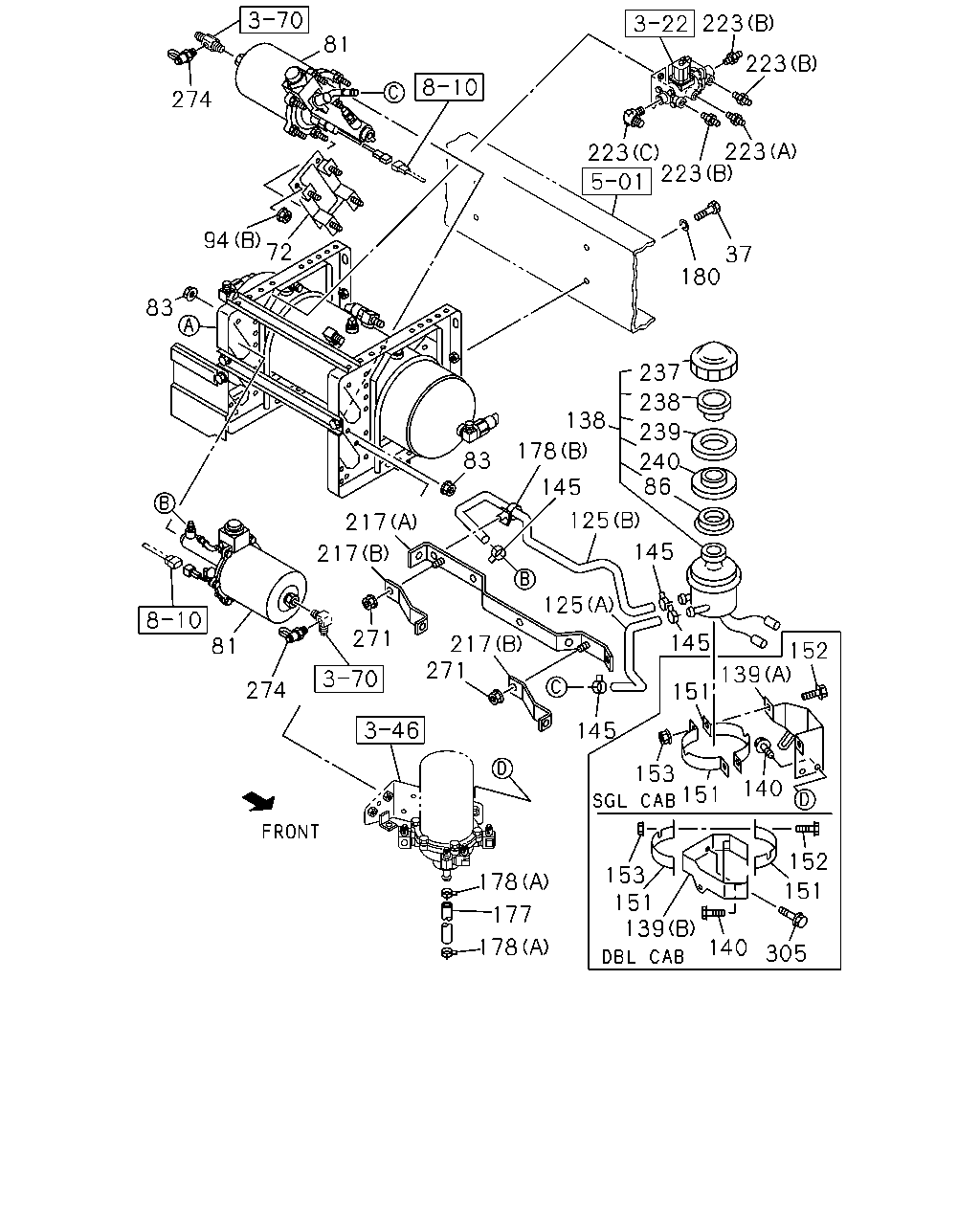

çizim 366415
153 151 139 140 305 151 152 140 151 153 151 139 152 145 145 125 145 178 138 237 238 239 240 86 83 217 217 125 217 271 145 271 81 274 178 177 178 83 94 274 72 81 180 37 223 223 223 223 223
BalonParca AdiParca NoAdetTipApplied Date A B C
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 04 1 1307-1312 ● ●
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 04 1 1401- ● ● ●
72 BRACKET; AIR MASTER 8-98092-021-0 01 1 1307- ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-826-0 02 1 1307-1312 ● ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-826-0 02 1 1401- ● ● ●
83 NUT; AIR MASTER
M8 FLANGE 		0-91180-108-0 09 1 1307-1312 ● ●
83 NUT; AIR MASTER
M8 FLANGE 		0-91180-108-0 09 1 1401- ● ● ●
86 SEAL; DUST 1-47529-019-0 01 1 1307-1312 ● ●
86 SEAL; DUST 1-47529-019-0 01 1 1401- ● ● ●
94 NUT; BRKT FIX
(A) M10 FLANGE 		0-91180-210-0 04 1 1307-1312 ● ●
94 NUT; BRKT FIX
(A) M10 FLANGE 		0-91180-210-0 04 1 1401- ● ● ●
94 NUT; BRKT FIX
(B) M8 FLANGE 		0-91180-108-0 04 1 1307- ●
125 HOSE; OIL TANK TO AIR MASTER
(A) 		8-98051-217-0 01 1 1307-1312 ●
125 HOSE; OIL TANK TO AIR MASTER
(A) 		8-98051-217-0 01 1 1401- ● ●
125 HOSE; OIL TANK TO AIR MASTER
(B) 		8-98051-218-1 01 1 1307-1312 ● ●
125 HOSE; OIL TANK TO AIR MASTER
(B) 		8-98051-218-1 01 1 1401- ● ● ●
125 HOSE; OIL TANK TO AIR MASTER
(A) 		8-98060-232-0 01 1 1307- ●
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 1307-1312 ● ●
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 1401- ● ● ●
139 BRACKET; OIL TANK
(A) 		8-98051-105-0 01 1 1307-1312 ●
139 BRACKET; OIL TANK
(A) 		8-98051-105-0 01 1 1401- ● ●
139 BRACKET; OIL TANK
(B) 		8-98087-847-0 01 1 1307- ●
140 BOLT; OIL TANK TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ●
140 BOLT; OIL TANK TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ●
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 04 1 1307-1312 ● ●
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 04 1 1401- ● ● ●
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 1307-1312 ●
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 1401- ● ●
151 BAND; OIL TANK,AIR MASTER 8-97620-570-0 02 1 1307- ●
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ● ●
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ● ●
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ● ●
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ● ●
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 		0-03566-300-0 01 1 1307-1312 ● ●
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 		0-03566-300-0 01 1 1401- ● ● ●
178 CLIP; HOSE
(B) ID=13-18 L=14.5 		1-09709-290-0 08 1 1307-1312 ● ●
178 CLIP; HOSE
(B) ID=13-18 L=14.5 		1-09709-290-0 08 1 1401- ● ● ●
178 CLIP; HOSE
(A) ID=21 		8-94242-034-0 02 1 1307-1312 ● ●
178 CLIP; HOSE
(A) ID=21 		8-94242-034-0 02 1 1401- ● ● ●
180 WASHER; LK
ID=12.5 OD=32 		0-91614-712-0 04 1 1307-1312 ● ●
180 WASHER; LK
ID=12.5 OD=32 		0-91614-712-0 04 1 1401- ● ● ●
217 BRACKET; RUBBER HOSE
(A) 		8-98082-871-0 01 1 1307-1312 ● ●
217 BRACKET; RUBBER HOSE
(A) 		8-98082-871-0 01 1 1401- ● ● ●
217 BRACKET; RUBBER HOSE
(B) 		8-98085-273-1 02 1 1307-1312 ● ●
217 BRACKET; RUBBER HOSE
(B) 		8-98085-273-1 02 1 1401- ● ● ●
223 UNION
H.S.A SYSTEM<6EP> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1307-1312 ● ●
223 UNION
H.S.A SYSTEM<6EP> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1401- ● ● ●
223 UNION
H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT 		1-09650-179-1 03 1 1307-1312 ● ●
223 UNION
H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT 		1-09650-179-1 03 1 1401- ● ● ●
223 UNION
H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1307-1312 ● ●
223 UNION
H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1401- ● ● ●
237 CAP; OIL TANK 1-47525-030-0 01 1 1307-1312 ● ●
237 CAP; OIL TANK 1-47525-030-0 01 1 1401- ● ● ●
238 PLATE; BAFFLE 1-47529-022-0 01 1 1307-1312 ● ●
238 PLATE; BAFFLE 1-47529-022-0 01 1 1401- ● ● ●
239 FILTER; DUST 1-47529-017-0 01 1 1307-1312 ● ●
239 FILTER; DUST 1-47529-017-0 01 1 1401- ● ● ●
240 HOLDER; FILTER 1-47529-018-0 01 1 1307-1312 ● ●
240 HOLDER; FILTER 1-47529-018-0 01 1 1401- ● ● ●
271 NUT; BRKT,HOSE
M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
271 NUT; BRKT,HOSE
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
271 NUT; BRKT,HOSE
M8 FLANGE 		0-91180-108-0 05 1 1307- ●
274 CONNECTOR; VLV
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1307-1312 ● ●
274 CONNECTOR; VLV
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1401- ● ● ●
305 BOLT; BRKT,HOSE
M8X16 FLANGE 		0-28050-816-0 01 1 1307- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
