3-05 — REAR WHEEL BRAKE (#123683) — 163 parça

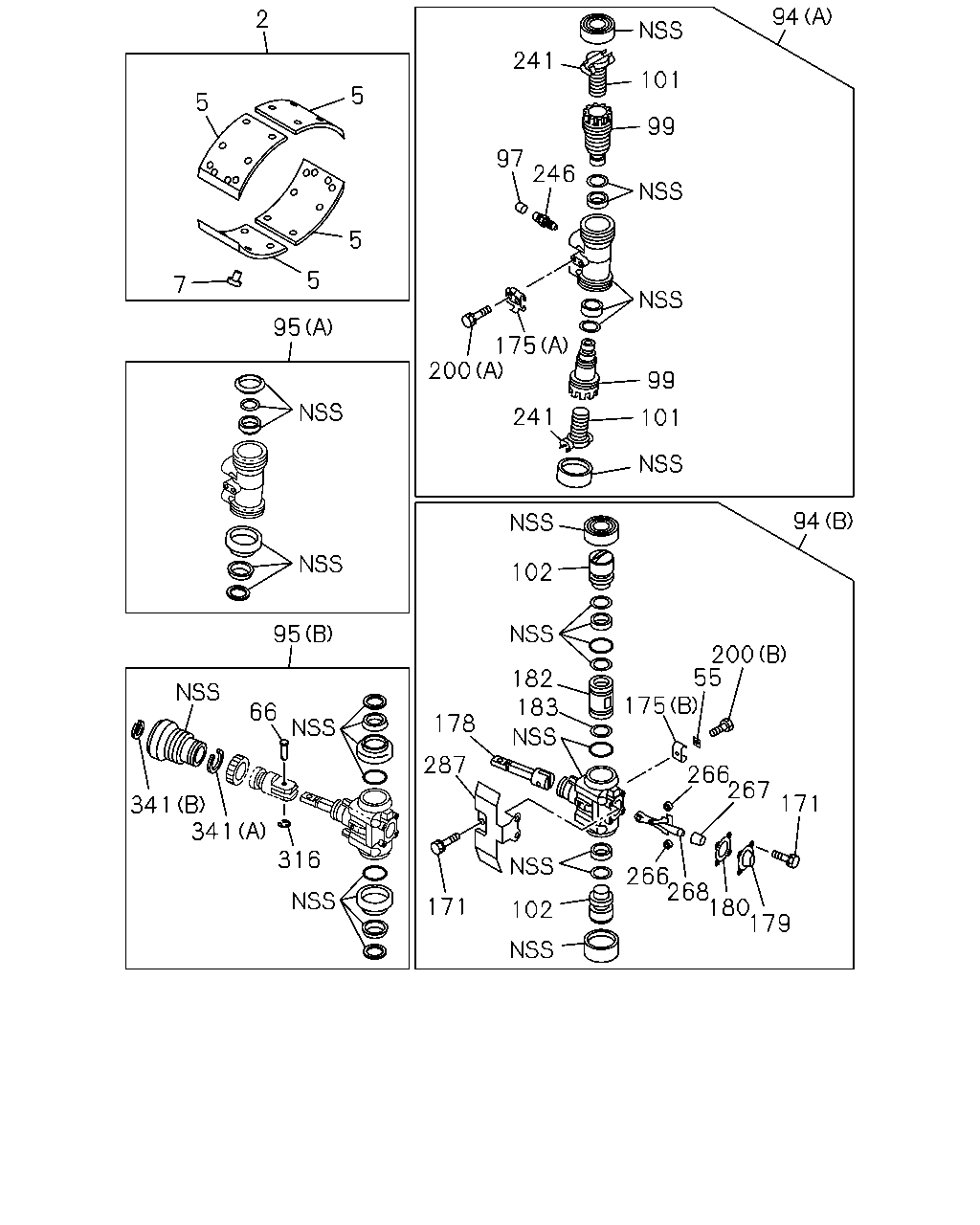

çizim 365794
102 171 179 180 268 266 171 267 266 175 200 55 94 287 178 183 182 102 316 341 341 66 95 95 7 5 5 5 5 2 101 99 246 97 241 94 175 200 241 99 101
BalonParca AdiParca NoAdetTipApplied Date A B C
2 LINING SET; RR BRK,STANDARD 1-88311-387-0 02 1 1307-1312 ● ●
2 LINING SET; RR BRK,STANDARD 1-88311-387-0 02 1 1401- ● ● ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-802-0 08 1 1307-1312 ● ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-802-0 08 1 1401- ● ● ●
7 RIVET; LINING,RR BRK
D6X11.5 		1-09732-019-0 96 1 1307-1312 ● ●
7 RIVET; LINING,RR BRK
D6X11.5 		1-09732-019-0 96 1 1401- ● ● ●
55 PLATE; LK,RR WHEEL CYL 1-47622-073-0 02 1 1307-1312 ● ●
55 PLATE; LK,RR WHEEL CYL 1-47622-073-0 02 1 1401- ● ● ●
66 PIN; JAW JOINT 1-09744-129-0 02 1 1307-1312 ● ●
66 PIN; JAW JOINT 1-09744-129-0 02 1 1401- ● ● ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-166-0 02 1 1307-1312 ● ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-166-1 02 1 1401- ● ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-218-0 01 1 1307-1312 ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-218-0 01 1 1401- ● ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-219-0 01 1 1307-1312 ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-219-0 01 1 1401- ● ● ●
95 CUP SET; RR WHEEL CYL
(A) FORWARD 		1-87831-324-0 02 1 1307-1312 ● ●
95 CUP SET; RR WHEEL CYL
(A) FORWARD 		1-87831-324-0 02 1 1401- ● ● ●
95 CUP SET; RR WHEEL CYL
(B) BACKWARD 		1-87831-325-0 02 1 1307-1312 ● ●
95 CUP SET; RR WHEEL CYL
(B) BACKWARD 		1-87831-325-0 02 1 1401- ● ● ●
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 1307-1312 ● ●
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 1401- ● ● ●
99 PISTON; RR WHEEL CYL 1-47620-240-0 04 1 1307-1312 ● ●
99 PISTON; RR WHEEL CYL 1-47620-240-0 04 1 1401- ● ● ●
101 SCREW; ADJ,RR WHEEL CYL 1-47622-070-0 04 1 1307-1312 ● ●
101 SCREW; ADJ,RR WHEEL CYL 1-47622-070-0 04 1 1401- ● ● ●
102 PISTON; REAR WHEEL CYL 1-47620-241-0 02 1 1307-1312 ● ●
102 PISTON; REAR WHEEL CYL 1-47620-241-0 02 1 1401- ● ● ●
171 BOLT; RR WHEEL CYL 1-47622-071-0 10 1 1307-1312 ● ●
171 BOLT; RR WHEEL CYL 1-47622-071-0 10 1 1401- ● ● ●
175 HANGER; RR WHEEL BRK
(A) 		1-47619-187-0 02 1 1307-1312 ● ●
175 HANGER; RR WHEEL BRK
(A) 		1-47619-187-0 02 1 1401- ● ● ●
175 HANGER; RR WHEEL BRK
(B) 		1-47619-188-0 02 1 1307-1312 ● ●
175 HANGER; RR WHEEL BRK
(B) 		1-47619-188-0 02 1 1401- ● ● ●
178 WEDGE; RR WHEEL CYL 1-47640-013-0 02 1 1307-1312 ● ●
178 WEDGE; RR WHEEL CYL 1-47640-013-0 02 1 1401- ● ● ●
179 COVER; WEDGE,RR WHEEL CYL 1-47649-045-0 02 1 1307-1312 ● ●
179 COVER; WEDGE,RR WHEEL CYL 1-47649-045-0 02 1 1401- ● ● ●
180 GASKET; COVER,RR WHEEL CYL 1-47619-013-0 02 1 1307-1312 ● ●
180 GASKET; COVER,RR WHEEL CYL 1-47619-013-0 02 1 1401- ● ● ●
182 TAPPET; RR WHEEL CYL 1-47629-280-0 04 1 1307-1312 ● ●
182 TAPPET; RR WHEEL CYL 1-47629-280-0 04 1 1401- ● ● ●
183 GASKET; TAPPET,WHEEL CYL 1-09623-690-0 02 1 1307-1312 ● ●
183 GASKET; TAPPET,WHEEL CYL 1-09623-690-0 02 1 1401- ● ● ●
200 BOLT
(C) 		1-47159-240-0 02 1 1307-1312 ● ●
200 BOLT
(C) 		1-47159-240-0 02 1 1401- ● ● ●
200 BOLT
(D) 		1-47159-241-0 02 1 1307-1312 ● ●
200 BOLT
(D) 		1-47159-241-0 02 1 1401- ● ● ●
200 BOLT
(A) 		1-47622-071-0 04 1 1307-1312 ● ●
200 BOLT
(A) 		1-47622-071-0 04 1 1401- ● ● ●
200 BOLT
(B) 		1-47622-072-0 02 1 1307-1312 ● ●
200 BOLT
(B) 		1-47622-072-0 02 1 1401- ● ● ●
241 HOLDER 1-47619-097-0 04 1 1307-1312 ● ●
241 HOLDER 1-47619-097-0 04 1 1401- ● ● ●
246 BLEEDER 1-47615-018-1 02 1 1307-1312 ● ●
246 BLEEDER 1-47615-018-1 02 1 1401-1406 ● ● ●
246 BLEEDER 1-47615-009-0 02 1 1407- ● ● ●
266 ROLLER; WEDGE 1-47643-003-0 04 1 1307-1312 ● ●
266 ROLLER; WEDGE 1-47643-003-0 04 1 1401- ● ● ●
267 CAGE; WEDGE 1-47649-004-0 02 1 1307-1312 ● ●
267 CAGE; WEDGE 1-47649-004-0 02 1 1401- ● ● ●
268 RETAINER; WEDGE 1-47649-003-0 02 1 1307-1312 ● ●
268 RETAINER; WEDGE 1-47649-003-0 02 1 1401- ● ● ●
287 COVER 1-47619-186-0 02 1 1307-1312 ● ●
287 COVER 1-47619-186-0 02 1 1401- ● ● ●
316 RING; SNAP
ID=9 		0-91805-509-0 02 1 1307-1312 ● ●
316 RING; SNAP
ID=9 		0-91805-509-0 02 1 1401- ● ● ●
341 SPRING; ASSIST,BOOT
(A) 		1-47616-110-0 02 1 1307-1312 ● ●
341 SPRING; ASSIST,BOOT
(A) 		1-47616-110-0 02 1 1401- ● ● ●
341 SPRING; ASSIST,BOOT
(B) 		1-47619-184-0 02 1 1307-1312 ● ●
341 SPRING; ASSIST,BOOT
(B) 		1-47619-184-0 02 1 1401- ● ● ●

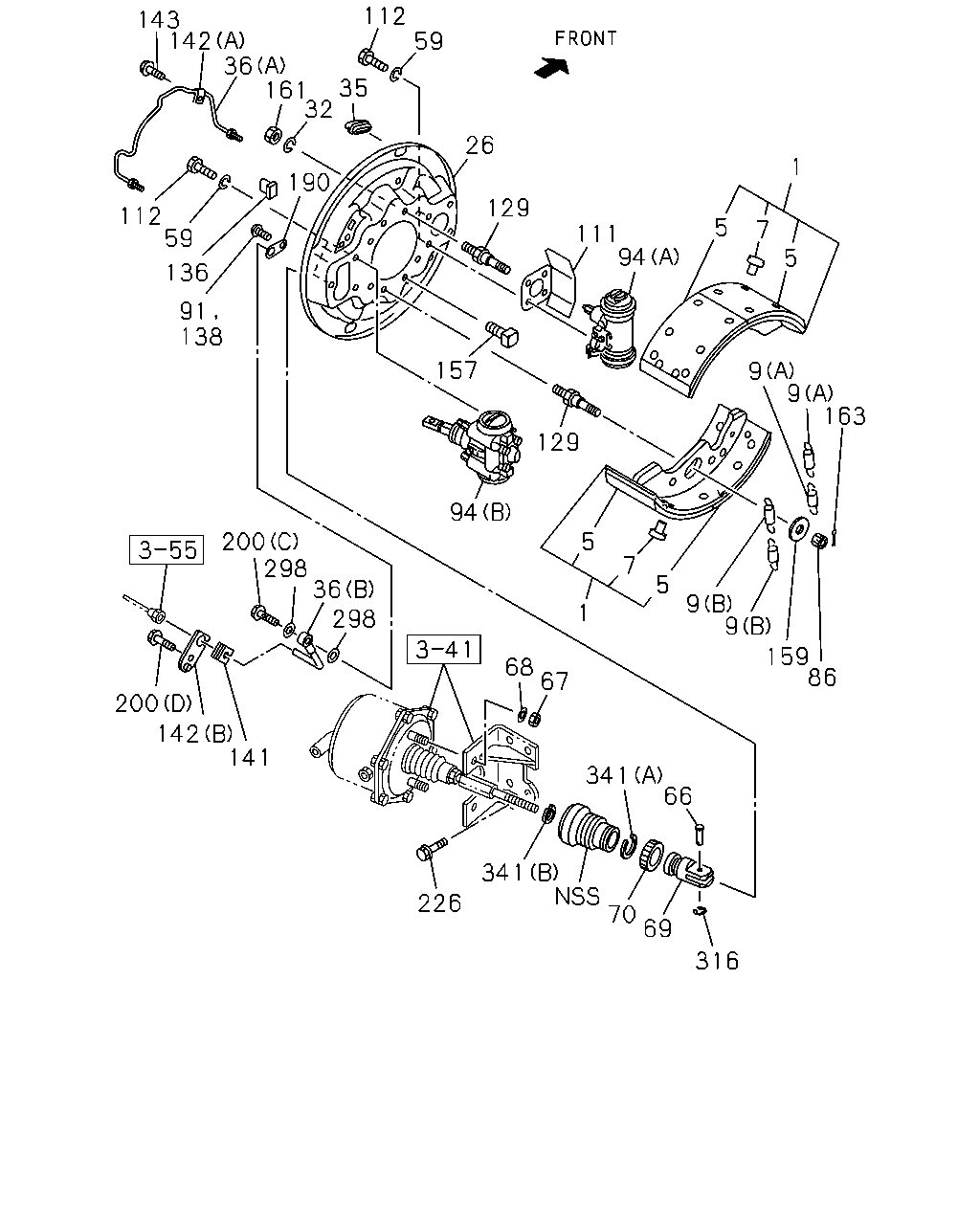

çizim 366335
143 142 36 161 32 35 112 59 26 129 190 112 59 136 91 138 157 129 111 94 5 7 1 5 9 9 163 86 159 9 9 5 7 5 1 94 200 298 36 298 200 142 141 226 341 70 69 316 66 341 67 68
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHOE; BRK,RR 1-47170-485-1 04 1 1307-1312 ● ●
1 SHOE; BRK,RR 1-47170-485-1 04 1 1401- ● ● ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-802-0 08 1 1307-1312 ● ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-802-0 08 1 1401- ● ● ●
7 RIVET; LINING,RR BRK
D6X11.5 		1-09732-019-0 96 1 1307-1312 ● ●
7 RIVET; LINING,RR BRK
D6X11.5 		1-09732-019-0 96 1 1401- ● ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-381-0 04 1 1307-1312 ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-381-1 04 1 1401- ● ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-382-0 04 1 1307-1312 ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-382-0 04 1 1401- ● ● ●
26 PLATE; BACK,RR BRK 1-47150-712-2 01 1 1307-1312 ● ●
26 PLATE; BACK,RR BRK 1-47150-712-2 01 1 1401- ● ● ●
26 PLATE; BACK,RR BRK 1-47150-713-2 01 1 1307-1312 ● ●
26 PLATE; BACK,RR BRK 1-47150-713-2 01 1 1401- ● ● ●
32 WASHER; LK 1-47159-110-0 04 1 1307-1312 ● ●
32 WASHER; LK 1-47159-110-0 04 1 1401- ● ● ●
35 GROMMET; CHECK HOLE 1-09333-139-0 04 1 1307-1312 ● ●
35 GROMMET; CHECK HOLE 1-09333-139-0 04 1 1401- ● ● ●
36 PIPE; OIL,RR BRK
(A) 		1-49167-857-0 01 1 1307-1312 ● ●
36 PIPE; OIL,RR BRK
(A) 		1-49167-857-0 01 1 1401- ● ● ●
36 PIPE; OIL,RR BRK
(A) 		1-49167-858-0 01 1 1307-1312 ● ●
36 PIPE; OIL,RR BRK
(A) 		1-49167-858-0 01 1 1401- ● ● ●
36 PIPE; OIL,RR BRK
(B) 		1-49167-905-0 02 1 1307-1312 ● ●
36 PIPE; OIL,RR BRK
(B) 		1-49167-905-0 02 1 1401- ● ● ●
59 WASHER; LK,RR WHEEL CYL
ID=12.2 		0-91510-612-0 14 1 1307-1312 ● ●
59 WASHER; LK,RR WHEEL CYL
ID=12.2 		0-91510-612-0 14 1 1401- ● ● ●
66 PIN; JAW JOINT 1-09744-129-0 02 1 1307-1312 ● ●
66 PIN; JAW JOINT 1-09744-129-0 02 1 1401- ● ● ●
67 NUT; POWER CHAMBER FIX
M16 		0-91110-516-0 04 1 1307-1312 ● ●
67 NUT; POWER CHAMBER FIX
M16 		0-91110-516-0 04 1 1401- ● ● ●
68 WASHER; LK,CHAMBER
ID=16.2 		0-91510-816-0 04 1 1307-1312 ● ●
68 WASHER; LK,CHAMBER
ID=16.2 		0-91510-816-0 04 1 1401- ● ● ●
69 JOINT; JAW 1-09768-106-1 02 1 1307-1312 ● ●
69 JOINT; JAW 1-09768-106-1 02 1 1401- ● ● ●
70 NUT; LK,JAW JOINT
M18 		0-91111-518-0 02 1 1307-1312 ● ●
70 NUT; LK,JAW JOINT
M18 		0-91111-518-0 02 1 1401- ● ● ●
86 NUT; FLANGE 1-09440-101-0 04 1 1307-1312 ● ●
86 NUT; FLANGE 1-09440-101-0 04 1 1401- ● ● ●
91 BOLT; CHAMBER
M5X10 W/LK WASHER 		0-36220-510-0 02 1 1307-1312 ● ●
91 BOLT; CHAMBER
M5X10 W/LK WASHER 		0-36220-510-0 02 1 1401- ● ● ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-166-0 02 1 1307-1312 ● ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-166-1 02 1 1401- ● ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-218-0 01 1 1307-1312 ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-218-0 01 1 1401- ● ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-219-0 01 1 1307-1312 ● ●
94 CYLINDER; WHEEL,RR BRK
(B) BACKWARD 		1-47601-219-0 01 1 1401- ● ● ●
111 COVER; WHEEL CYL 1-47159-230-0 02 1 1307-1312 ● ●
111 COVER; WHEEL CYL 1-47159-230-0 02 1 1401- ● ● ●
112 BOLT; WHEEL CYL SETTING 1-47159-112-0 14 1 1307-1312 ● ●
112 BOLT; WHEEL CYL SETTING 1-47159-112-0 14 1 1401- ● ● ●
129 PIN; SHOE HOLD 1-47162-044-0 04 1 1307-1312 ● ●
129 PIN; SHOE HOLD 1-47162-044-0 04 1 1401- ● ● ●
136 GROMMET 1-09333-138-0 04 1 1307-1312 ● ●
136 GROMMET 1-09333-138-0 04 1 1401- ● ● ●
138 SCREW; LOCK PLATE
M5X10 W/LK WASHER 		0-36220-510-0 02 1 1307-1312 ● ●
138 SCREW; LOCK PLATE
M5X10 W/LK WASHER 		0-36220-510-0 02 1 1401- ● ● ●
141 PROTECTOR; RR BRK PIPE 1-09332-133-0 02 1 1307-1312 ● ●
141 PROTECTOR; RR BRK PIPE 1-09332-133-0 02 1 1401- ● ● ●
142 CLAMP; OIL PIPE
(A) 		1-09701-322-0 02 1 1307-1312 ● ●
142 CLAMP; OIL PIPE
(A) 		1-09701-322-0 02 1 1401- ● ● ●
142 CLAMP; OIL PIPE
(B) 		1-47619-189-0 02 1 1307-1312 ● ●
142 CLAMP; OIL PIPE
(B) 		1-47619-189-0 02 1 1401- ● ● ●
143 BOLT; CLAMP,OIL PIPE
M6X10 		9-01900-610-0 02 1 1307-1312 ● ●
143 BOLT; CLAMP,OIL PIPE
M6X10 		9-01900-610-0 02 1 1401- ● ● ●
157 BOLT; RR BRK SET
M14X43 		1-09060-003-0 12 1 1307-1312 ● ●
157 BOLT; RR BRK SET
M14X43 		1-09060-003-0 12 1 1401- ● ● ●
159 WASHER; SHOE HOLD 1-47169-037-0 04 1 1307-1312 ● ●
159 WASHER; SHOE HOLD 1-47169-037-0 04 1 1401- ● ● ●
161 NUT; SHOE HOLD LOCK 1-47159-111-0 04 1 1307-1312 ● ●
161 NUT; SHOE HOLD LOCK 1-47159-111-0 04 1 1401- ● ● ●
163 PIN; SPLIT,SHOE HOLD
OD=1.8 L=20 		0-81122-020-0 04 1 1307-1312 ● ●
163 PIN; SPLIT,SHOE HOLD
OD=1.8 L=20 		0-81122-020-0 04 1 1401- ● ● ●
190 PLATE; LK,CONNECTOR 1-47619-032-0 04 1 1307-1312 ● ●
190 PLATE; LK,CONNECTOR 1-47619-032-0 04 1 1401- ● ● ●
200 BOLT
(C) 		1-47159-240-0 02 1 1307-1312 ● ●
200 BOLT
(C) 		1-47159-240-0 02 1 1401- ● ● ●
200 BOLT
(D) 		1-47159-241-0 02 1 1307-1312 ● ●
200 BOLT
(D) 		1-47159-241-0 02 1 1401- ● ● ●
200 BOLT
(A) 		1-47622-071-0 04 1 1307-1312 ● ●
200 BOLT
(A) 		1-47622-071-0 04 1 1401- ● ● ●
200 BOLT
(B) 		1-47622-072-0 02 1 1307-1312 ● ●
200 BOLT
(B) 		1-47622-072-0 02 1 1401- ● ● ●
226 BOLT; BRKT
M14X35 FLANGE 		0-28651-435-0 08 1 1307-1312 ● ●
226 BOLT; BRKT
M14X35 FLANGE 		0-28651-435-0 08 1 1401- ● ● ●
298 GASKET 1-47616-115-0 04 1 1307-1312 ● ●
298 GASKET 1-47616-115-0 04 1 1401- ● ● ●
316 RING; SNAP
ID=9 		0-91805-509-0 02 1 1307-1312 ● ●
316 RING; SNAP
ID=9 		0-91805-509-0 02 1 1401- ● ● ●
341 SPRING; ASSIST,BOOT
(A) 		1-47616-110-0 02 1 1307-1312 ● ●
341 SPRING; ASSIST,BOOT
(A) 		1-47616-110-0 02 1 1401- ● ● ●
341 SPRING; ASSIST,BOOT
(B) 		1-47619-184-0 02 1 1307-1312 ● ●
341 SPRING; ASSIST,BOOT
(B) 		1-47619-184-0 02 1 1401- ● ● ●
