Isuzu WW
▶
TRUCKS
▶
FRR
▶
11548 - FRR AUST/NZ EURO5 EXC.SPACECAB
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85 - POWER TAKE OFF CONTROL
▶
2-85 — POWER TAKE OFF CONTROL
(#123681) — 24 parça
Tümü
A - FCR5MS
B - FCR5WS
C - FCD5MS
◀

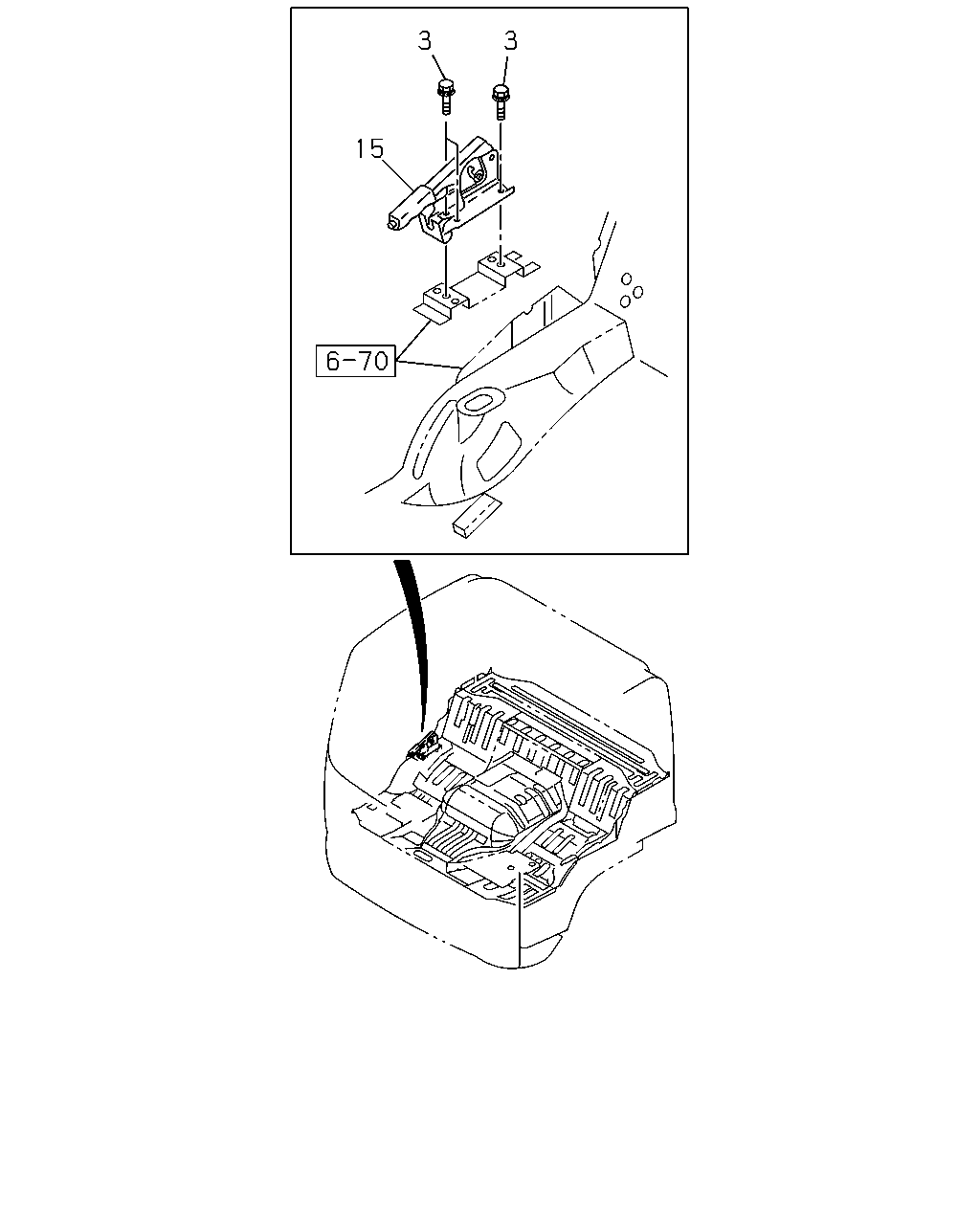

[285A] M/T NO.1 (4 parça)

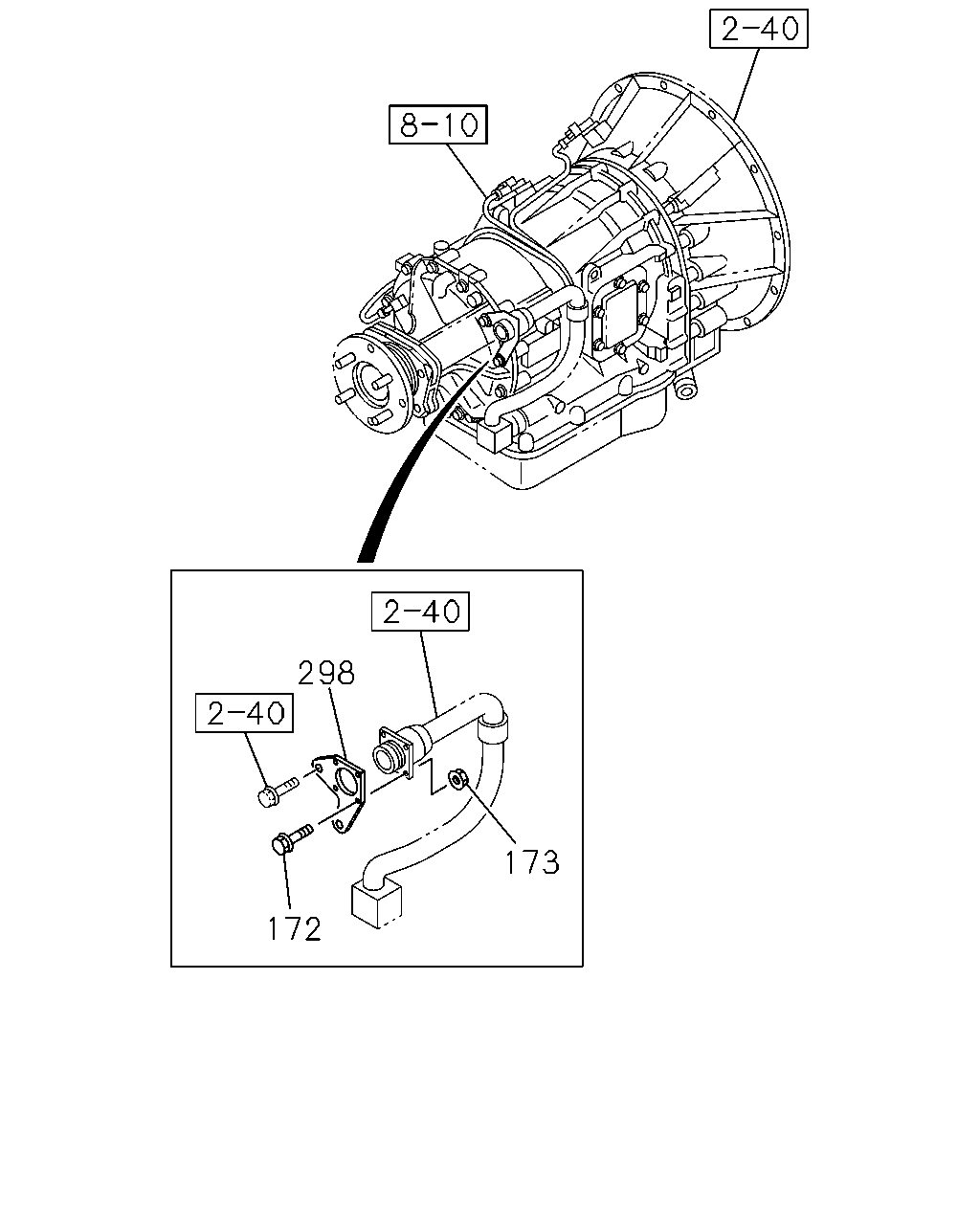

[285A] A/T (12 parça)

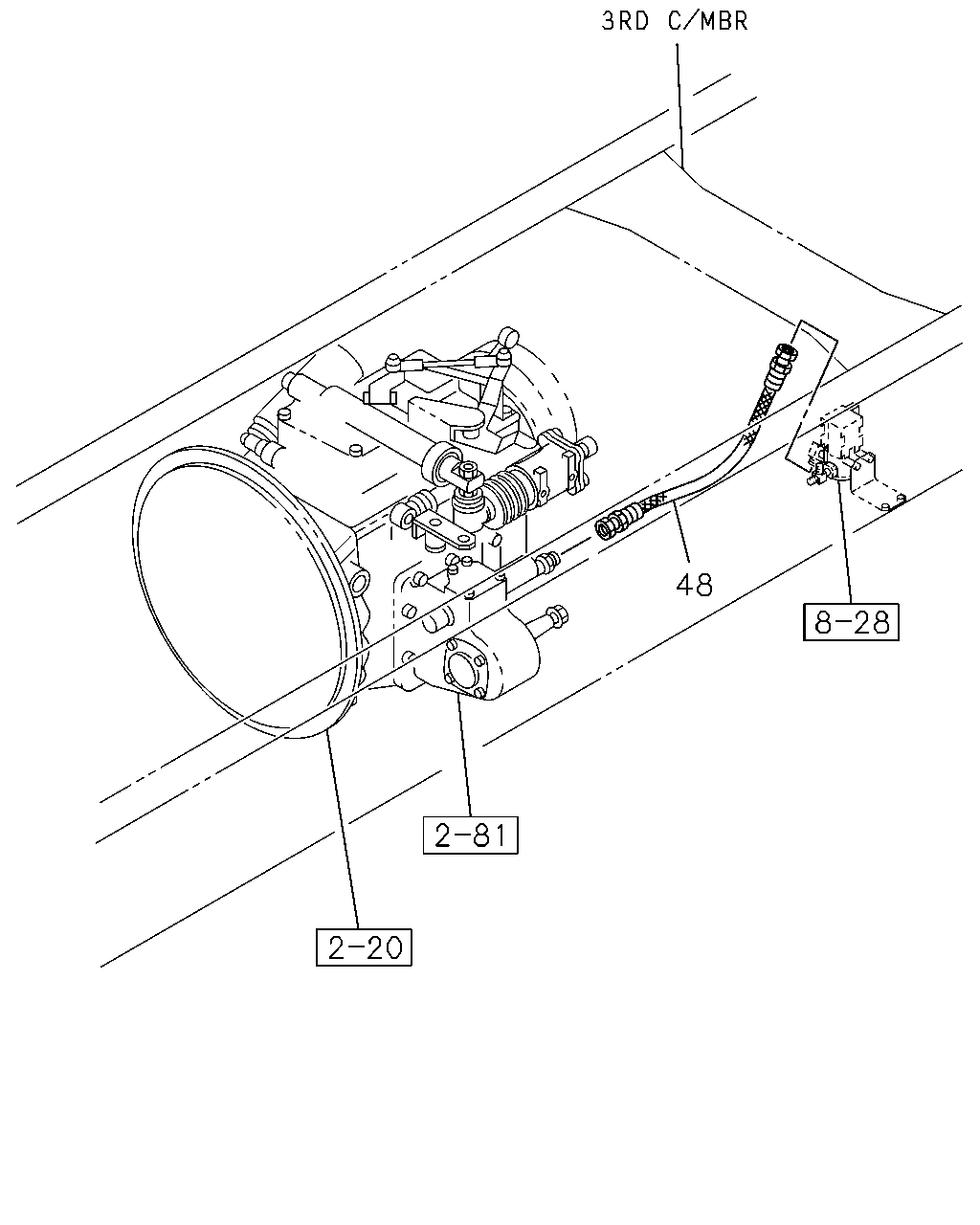

[285A] M/T NO.2 (8 parça)
▶
3
3
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
3
BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
1307-1312
●
●
3
BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
1401-
●
●
●
15
LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4>
1-79996-092-0
01
1
1307-1312
●
●
15
LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4>
1-79996-092-0
01
1
1401-
●
●
●
298
172
173
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
172
BOLT; BRKT
LCT2500 A/T ALLISON(Y5W) M4X16
9-03494-416-0
04
1
1307-1312
●
172
BOLT; BRKT
LCT2500 A/T ALLISON(Y5W) M4X16
9-03494-416-0
04
1
1401-1501
●
●
172
BOLT; BRKT
LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> M4X16
9-03494-416-0
04
1
1502-1503
●
●
172
BOLT; BRKT
LCT2500 A/T ALLISON(Y5W) M4X16
9-03494-416-0
04
1
1504-
●
●
173
NUT; BRKT
LCT2500 A/T ALLISON(Y5W) M4 FLANGE
8-97368-853-0
04
1
1307-1312
●
173
NUT; BRKT
LCT2500 A/T ALLISON(Y5W) M4 FLANGE
8-97368-853-0
04
1
1401-1501
●
●
173
NUT; BRKT
LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> M4 FLANGE
8-97368-853-0
04
1
1502-1503
●
●
173
NUT; BRKT
LCT2500 A/T ALLISON(Y5W) M4 FLANGE
8-97368-853-0
04
1
1504-
●
●
298
BRACKET; HARNESS
LCT2500 A/T ALLISON(Y5W)
8-98081-822-0
01
1
1307-1312
●
298
BRACKET; HARNESS
LCT2500 A/T ALLISON(Y5W)
8-98081-822-0
01
1
1401-1501
●
●
298
BRACKET; HARNESS
LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF>
8-98081-822-0
01
1
1502-1503
●
●
298
BRACKET; HARNESS
LCT2500 A/T ALLISON(Y5W)
8-98081-822-0
01
1
1504-
●
●
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
48
HOSE; FLEX,PTO
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=330
1-09363-636-0
01
1
1307-1312
●
●
48
HOSE; FLEX,PTO
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=330
1-09363-636-0
01
1
1401-
●
●
48
HOSE; FLEX,PTO
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=330
1-09363-636-0
01
1
1401-
●
48
HOSE; FLEX,PTO
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=410
1-09363-895-0
01
1
1307-1312
●
●
48
HOSE; FLEX,PTO
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=410
1-09363-895-0
01
1
1401-
●
●
48
HOSE; FLEX,PTO
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=410
1-09363-895-0
01
1
1401-
●
48
HOSE; FLEX,PTO
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=340
1-09363-617-0
01
1
1307-
●
48
HOSE; FLEX,PTO
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=430
1-09363-677-0
01
1
1307-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
