◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-56B - AUTO TRANS CONTROL LINK ▶
2-56B — AUTO TRANS CONTROL LINK (#123679) — 17 parça

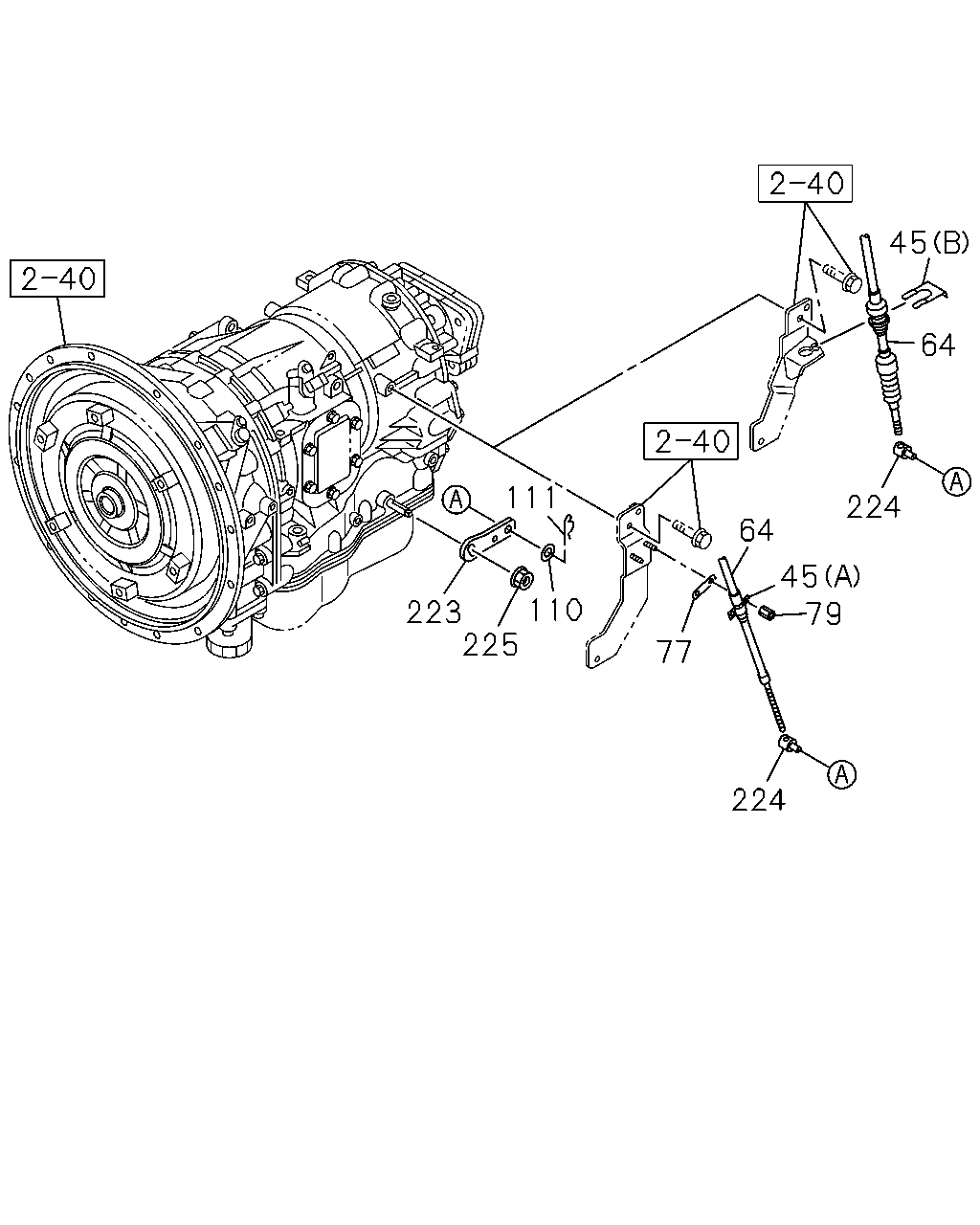

çizim 363087
223 225 110 111 77 224 45 64 79 224 64 45
BalonParca AdiParca NoAdetTipApplied Date
45 CLIP; CONT CABLE
(A) 		1-09709-308-0 01 1 1307-1402
45 CLIP; CONT CABLE
(B) ID=19.2 		8-97211-011-0 01 1 1403-
45 CLIP; CONT CABLE
SGL CAB(FC**M*) (B) ID=19.2 		8-97211-011-0 01 1 1403-
64 CABLE; A/T CONT 8-98249-176-1 01 1 1307-1402
64 CABLE; A/T CONT 8-98254-587-1 01 1 1403-
77 SHIM; A/T CONT CABLE 1-34659-018-0 01 1 1307-1402
79 NUT; CONT CABLE 1-09400-158-0 02 1 1307-1402
110 WASHER; PL,CONT CABLE
ID=8.4 OD=16 		0-91610-508-0 01 1 1307-
111 PIN; SNAP,CONT CABLE
L=27.7 		1-09747-005-0 01 1 1307-
223 LEVER; SELECT 8-98225-663-1 01 1 1307-1501
223 LEVER; SELECT
EXC. VIN MODEL YEAR 2015<VZF> 		8-98225-663-1 01 1 1502-1503
223 LEVER; SELECT 8-98225-663-1 01 1 1504-
224 PIVOT; A/T CONT 1-34659-019-0 01 1 1307-
224 PIVOT; A/T CONT 1-34659-019-0 01 1 1403-
225 NUT; SELECT LEVER 1-09464-034-0 01 1 1307-1501
225 NUT; SELECT LEVER
EXC. VIN MODEL YEAR 2015<VZF> 		1-09464-034-0 01 1 1502-1503
225 NUT; SELECT LEVER 1-09464-034-0 01 1 1504-
