Sayfa 2-53 - Isuzu EPC

2-53 — TRANSMISSION OIL COOLER SYSTEM (#123677) — 501 parça

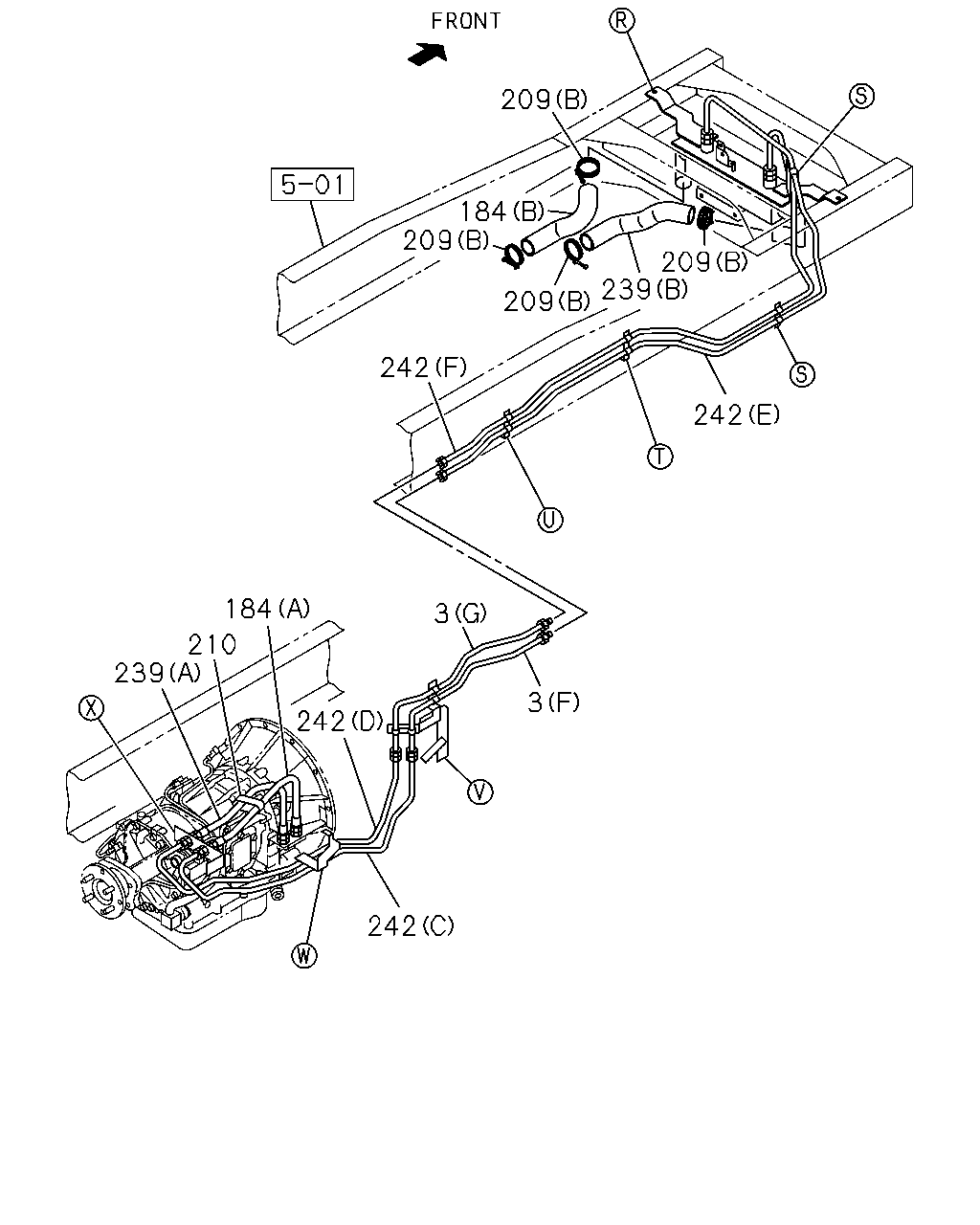

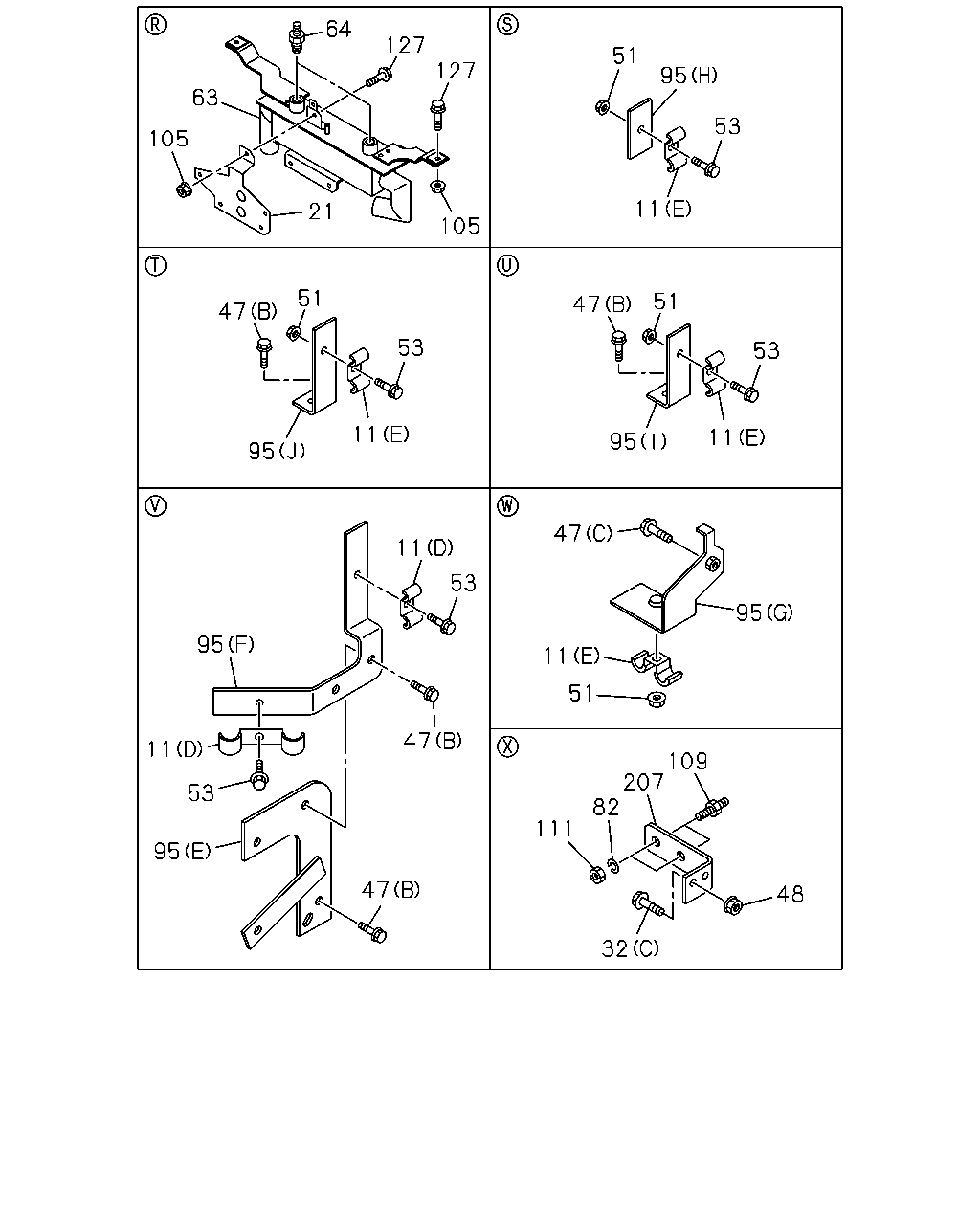

64 127 127 63 105 21 105 51 53 11 95 47 11 53 47 47 95 11 53 95 51 95 53 11 47 51 53 11 95 47 95 11 51 109 207 82 111 48 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	CLIP; PIPE LCT2500 A/T ALLISON(Y5W) (D) ID=19 & 19 L=32.5 & 32.5	1-09701-034-1	02	1	1307-1312	●
11	CLIP; PIPE LCT2500 A/T ALLISON(Y5W) (D) ID=19 & 19 L=32.5 & 32.5	1-09701-034-1	02	1	1401-	●	●
11	CLIP; PIPE LCT2500 A/T ALLISON(Y5W) (E) ID=19 & 19	1-09701-324-0	05	1	1307-1312	●
11	CLIP; PIPE LCT2500 A/T ALLISON(Y5W) (E) ID=19 & 19	1-09701-324-0	05	1	1401-	●	●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	1307-1312	●		●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	1401-	●		●
11	CLIP; PIPE 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	1401-		●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1307-1312	●		●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1401-	●		●
11	CLIP; PIPE 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1401-		●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	1307-1312	●		●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	1401-	●		●
11	CLIP; PIPE 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	1401-		●
11	CLIP; PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	1307-			●
21	BRACKET; COOLER A/T<X9D>	8-98087-647-1	01	1	1307-1312	●
21	BRACKET; COOLER A/T<X9D>	8-98087-647-1	01	1	1401-	●	●
32	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) (C) M10X35 FLANGE	0-28651-035-0	02	1	1307-1312	●
32	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) (C) M10X35 FLANGE	0-28651-035-0	02	1	1401-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1307-1312	●		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1401-	●	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1307-1312	●		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1401-	●	●	●
47	BOLT; BRKT TO FRAME LCT2500 A/T ALLISON(Y5W) (B) M8X25 FLANGE	0-28650-825-0	06	1	1307-1312	●
47	BOLT; BRKT TO FRAME LCT2500 A/T ALLISON(Y5W) (B) M8X25 FLANGE	0-28650-825-0	06	1	1401-	●	●
47	BOLT; BRKT TO FRAME LCT2500 A/T ALLISON(Y5W) (C) M10X30 FLANGE	0-28651-030-0	01	1	1307-1312	●
47	BOLT; BRKT TO FRAME LCT2500 A/T ALLISON(Y5W) (C) M10X30 FLANGE	0-28651-030-0	01	1	1401-	●	●
47	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	03	1	1307-1312	●		●
47	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	03	1	1401-	●		●
47	BOLT; BRKT TO FRAME 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	03	1	1401-		●
47	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	02	1	1307-			●
48	NUT; BRKT LCT2500 A/T ALLISON(Y5W) M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
48	NUT; BRKT LCT2500 A/T ALLISON(Y5W) M10 FLANGE	0-91180-210-0	02	1	1401-	●	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	1307-1312	●		●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	1401-	●	●	●
51	NUT; CLIP TO BRKT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	1307-1312	●		●
51	NUT; CLIP TO BRKT LCT2500 A/T ALLISON(Y5W) M8 FLANGE	0-91180-108-0	05	1	1307-1312	●
51	NUT; CLIP TO BRKT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	1401-	●	●	●
51	NUT; CLIP TO BRKT LCT2500 A/T ALLISON(Y5W) M8 FLANGE	0-91180-108-0	05	1	1401-	●	●
51	NUT; CLIP TO BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	03	1	1307-			●
53	BOLT; CLIP,FLEX HOSE,A/T LCT2500 A/T ALLISON(Y5W) M8X20 FLANGE	0-28650-820-0	06	1	1307-1312	●
53	BOLT; CLIP,FLEX HOSE,A/T LCT2500 A/T ALLISON(Y5W) M8X20 FLANGE	0-28650-820-0	06	1	1401-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	04	1	1307-	●	●	●
53	BOLT; CLIP,FLEX HOSE,A/T 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1307-			●
63	COOLER; OIL A/T<X9D>	8-98233-275-0	01	1	1307-1312	●
63	COOLER; OIL A/T<X9D>	8-98233-275-0	01	1	1401-	●	●
64	CONNECTOR; OIL COOLER LCT2500 A/T ALLISON(Y5W)	1-09660-210-0	02	1	1307-1312	●
64	CONNECTOR; OIL COOLER LCT2500 A/T ALLISON(Y5W)	1-09660-210-0	02	1	1401-	●	●
82	WASHER; LK,UNION LCT2500 A/T ALLISON(Y5W) ID=30.5	9-09150-530-0	02	1	1307-1312	●
82	WASHER; LK,UNION LCT2500 A/T ALLISON(Y5W) ID=30.5	9-09150-530-0	02	1	1401-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (E)	8-98245-750-0	01	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (E)	8-98245-750-0	01	1	1401-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (F)	8-98245-751-0	01	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (F)	8-98245-751-0	01	1	1401-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (G)	8-98245-752-0	01	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (G)	8-98245-752-0	01	1	1401-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (H) L=50	1-47475-299-2	02	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (H) L=50	1-47475-299-2	02	1	1401-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (I) L=68.5	1-47475-591-0	01	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (I) L=68.5	1-47475-591-0	01	1	1401-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (J) L=115 B=25	1-47476-758-0	01	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (J) L=115 B=25	1-47476-758-0	01	1	1401-	●	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1307-1312	●		●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1401-	●		●
95	BRACKET; CLIP 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1401-		●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1307-1312	●		●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1401-	●		●
95	BRACKET; CLIP 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1401-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98045-564-0	01	1	1307-			●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98065-885-0	01	1	1307-			●
105	NUT; OIL COOLER A/T<X9D> M8 FLANGE	0-91180-108-0	07	1	1307-1312	●
105	NUT; OIL COOLER A/T<X9D> M8 FLANGE	0-91180-108-0	07	1	1401-	●	●
109	UNION LCT2500 A/T ALLISON(Y5W) M30 & M30 STRAIGHT	1-09664-191-0	02	1	1307-1312	●
109	UNION LCT2500 A/T ALLISON(Y5W) M30 & M30 STRAIGHT	1-09664-191-0	02	1	1401-	●	●
111	NUT; UNION LCT2500 A/T ALLISON(Y5W) M30	9-09840-252-1	02	1	1307-1312	●
111	NUT; UNION LCT2500 A/T ALLISON(Y5W) M30	9-09840-252-1	02	1	1401-	●	●
127	BOLT; COOLER A/T<X9D> M8X30 FLANGE	0-28650-830-0	07	1	1307-1312	●
127	BOLT; COOLER A/T<X9D> M8X30 FLANGE	0-28650-830-0	07	1	1401-	●	●
207	BRACKET; UNION LCT2500 A/T ALLISON(Y5W)	8-98240-233-0	01	1	1307-1312	●
207	BRACKET; UNION LCT2500 A/T ALLISON(Y5W)	8-98240-233-0	01	1	1401-	●	●

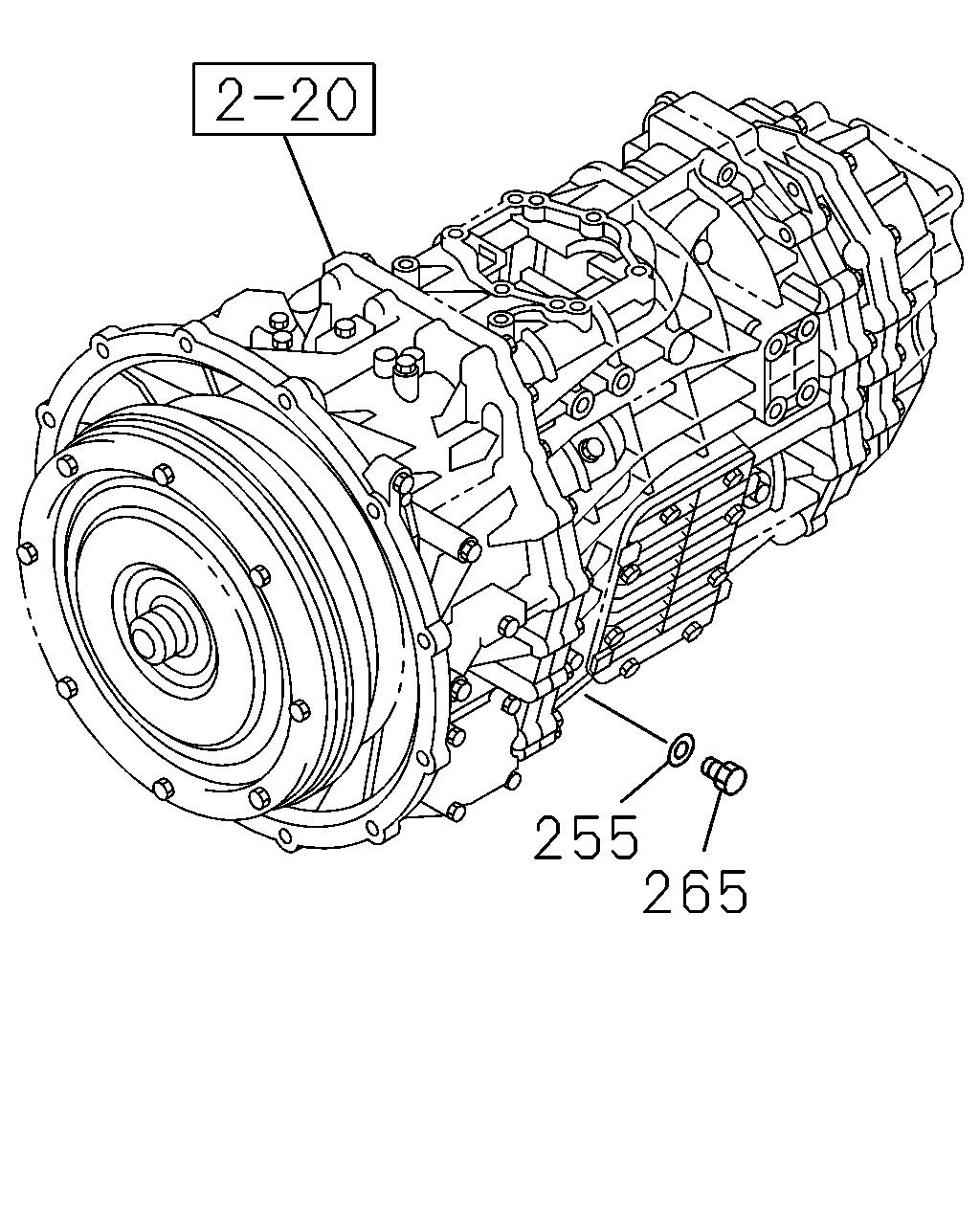

255 265

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	255	GASKET; SENSOR MZW6P M/T(RSZ) ID=12.2	9-09571-412-0	01	1	1405-	●	●	●
	265	PLUG; HOLE MZW6P M/T(RSZ) M12X9	0-92002-412-0	01	1	1405-	●	●	●

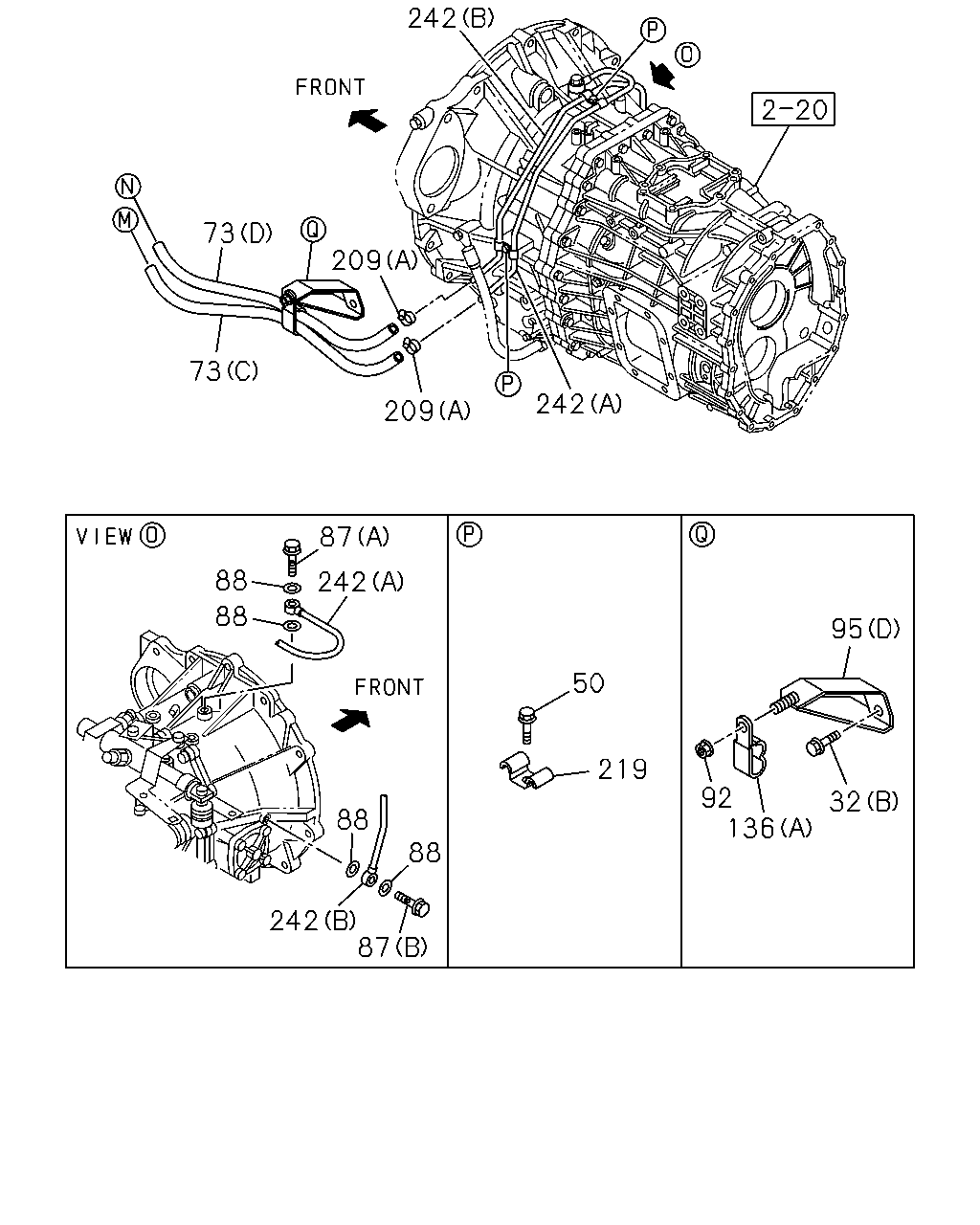

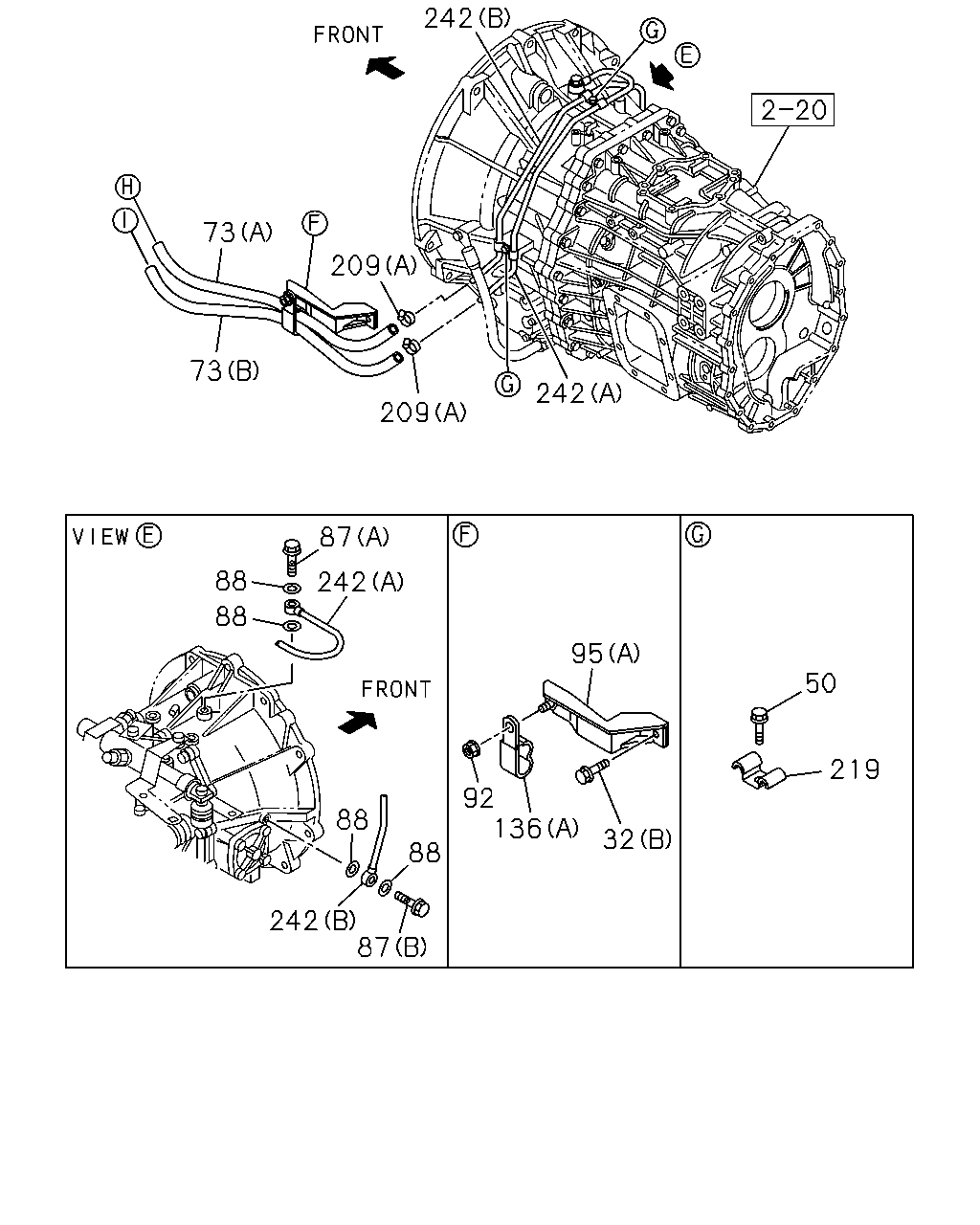

242 73 209 242 209 73 88 87 88 242 88 88 87 242 92 136 95 32 50 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) (C) M10X35 FLANGE	0-28651-035-0	02	1	1307-1312	●
32	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) (C) M10X35 FLANGE	0-28651-035-0	02	1	1401-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1307-1312	●		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1401-	●	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1307-1312	●		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1401-	●	●	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1307-1312	●		●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1401-	●	●	●
50	BOLT; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1307-			●
73	HOSE; FLEX,TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=480	8-98081-845-0	01	1	1307-1312	●		●
73	HOSE; FLEX,TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=480	8-98081-845-0	01	1	1401-	●		●
73	HOSE; FLEX,TRANS 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=480	8-98081-845-0	01	1	1401-		●
73	HOSE; FLEX,TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=500	8-98081-853-0	01	1	1307-1312	●		●
73	HOSE; FLEX,TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=500	8-98081-853-0	01	1	1401-	●		●
73	HOSE; FLEX,TRANS 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=500	8-98081-853-0	01	1	1401-		●
73	HOSE; FLEX,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=380	8-98081-840-0	01	1	1307-			●
73	HOSE; FLEX,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=440	8-98081-849-0	01	1	1307-			●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	1307-1312	●		●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	1401-	●	●	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE	8-98060-612-0	01	1	1307-1312	●		●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE	8-98060-612-0	01	1	1401-	●	●	●
88	GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	1307-1312	●		●
88	GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	1401-	●	●	●
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1307-1312	●		●
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1401-	●	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (E)	8-98245-750-0	01	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (E)	8-98245-750-0	01	1	1401-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (F)	8-98245-751-0	01	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (F)	8-98245-751-0	01	1	1401-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (G)	8-98245-752-0	01	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (G)	8-98245-752-0	01	1	1401-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (H) L=50	1-47475-299-2	02	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (H) L=50	1-47475-299-2	02	1	1401-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (I) L=68.5	1-47475-591-0	01	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (I) L=68.5	1-47475-591-0	01	1	1401-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (J) L=115 B=25	1-47476-758-0	01	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (J) L=115 B=25	1-47476-758-0	01	1	1401-	●	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1307-1312	●		●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1401-	●		●
95	BRACKET; CLIP 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1401-		●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1307-1312	●		●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1401-	●		●
95	BRACKET; CLIP 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1401-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98045-564-0	01	1	1307-			●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98065-885-0	01	1	1307-			●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	1307-1312	●		●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	1401-	●	●	●
136	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98009-406-0	01	1	1307-			●
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	1307-1312	●
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	1401-	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1307-1312	●		●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1401-	●	●	●
219	CLIP; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1307-1312	●		●
219	CLIP; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1401-	●	●	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (C)	8-98240-229-0	01	1	1307-1312	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (C)	8-98240-229-0	01	1	1401-	●	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (D)	8-98240-230-0	01	1	1307-1312	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (D)	8-98240-230-0	01	1	1401-	●	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (E)	8-98242-325-0	01	1	1307-1312	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (E)	8-98242-325-0	01	1	1401-	●	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (F)	8-98242-326-0	01	1	1307-1312	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (F)	8-98242-326-0	01	1	1401-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	1307-1312	●		●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	1401-1507	●	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98303-637-0	01	1	1508-	●	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	1307-1312	●		●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	1401-1507	●	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98303-638-0	01	1	1508-	●	●	●

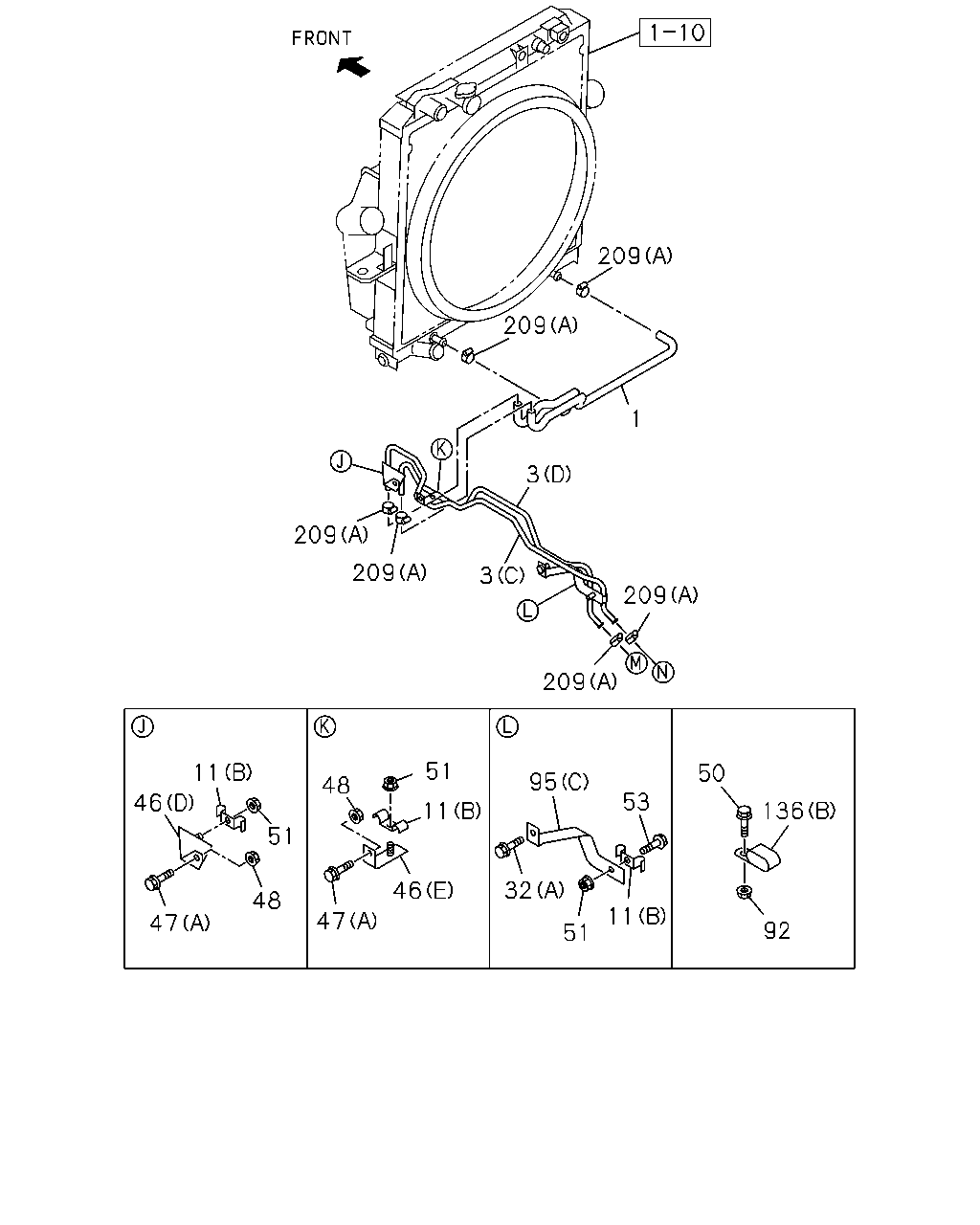

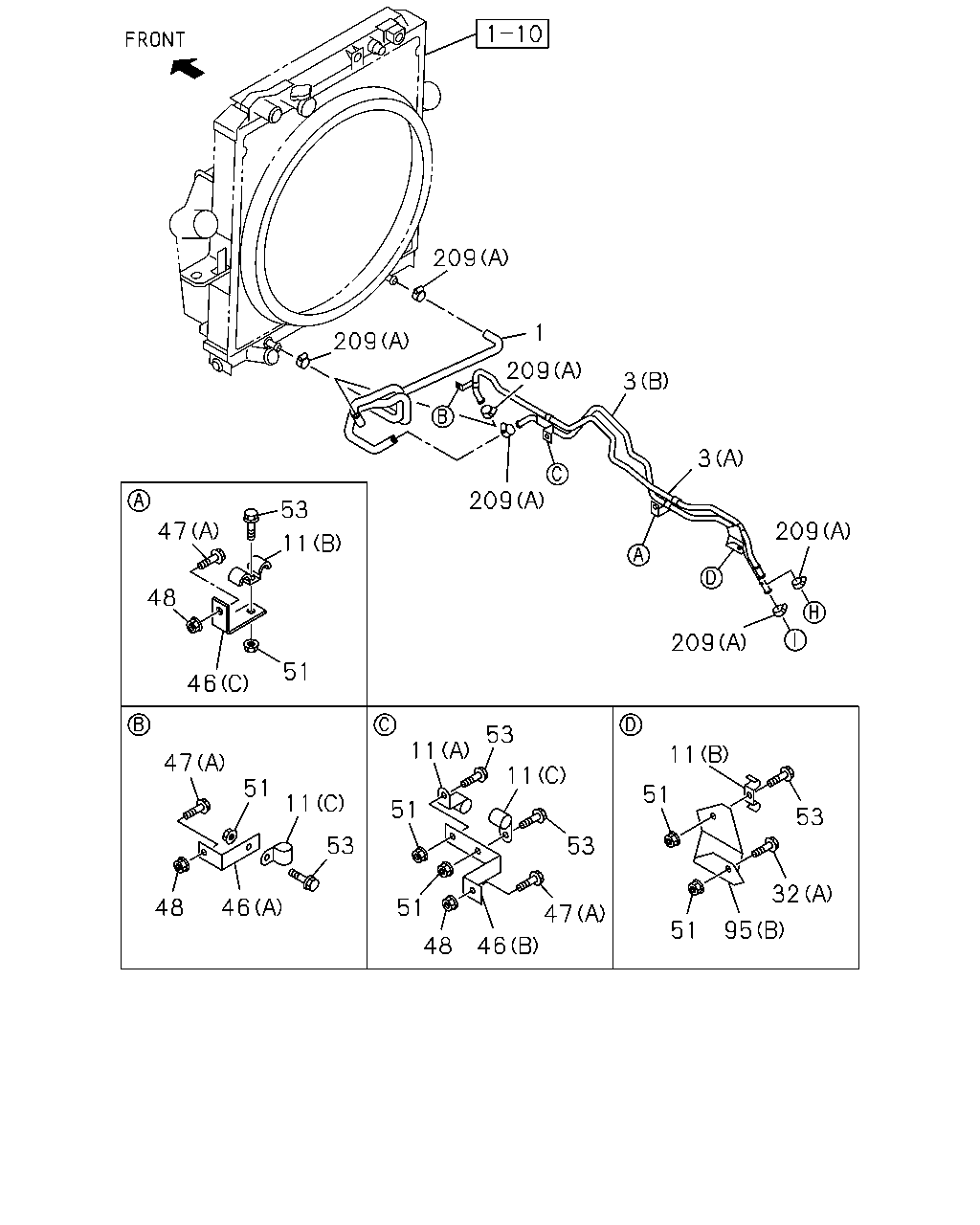

209 209 209 209 3 3 209 209 11 46 47 48 51 48 47 11 46 51 95 32 51 53 50 92 136 11 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; ATF 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98079-911-1	01	1	1307-1312	●		●
1	HOSE; ATF 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98079-911-1	01	1	1401-	●		●
1	HOSE; ATF 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98079-911-1	01	1	1401-		●
1	HOSE; ATF 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98045-681-0	01	1	1307-			●

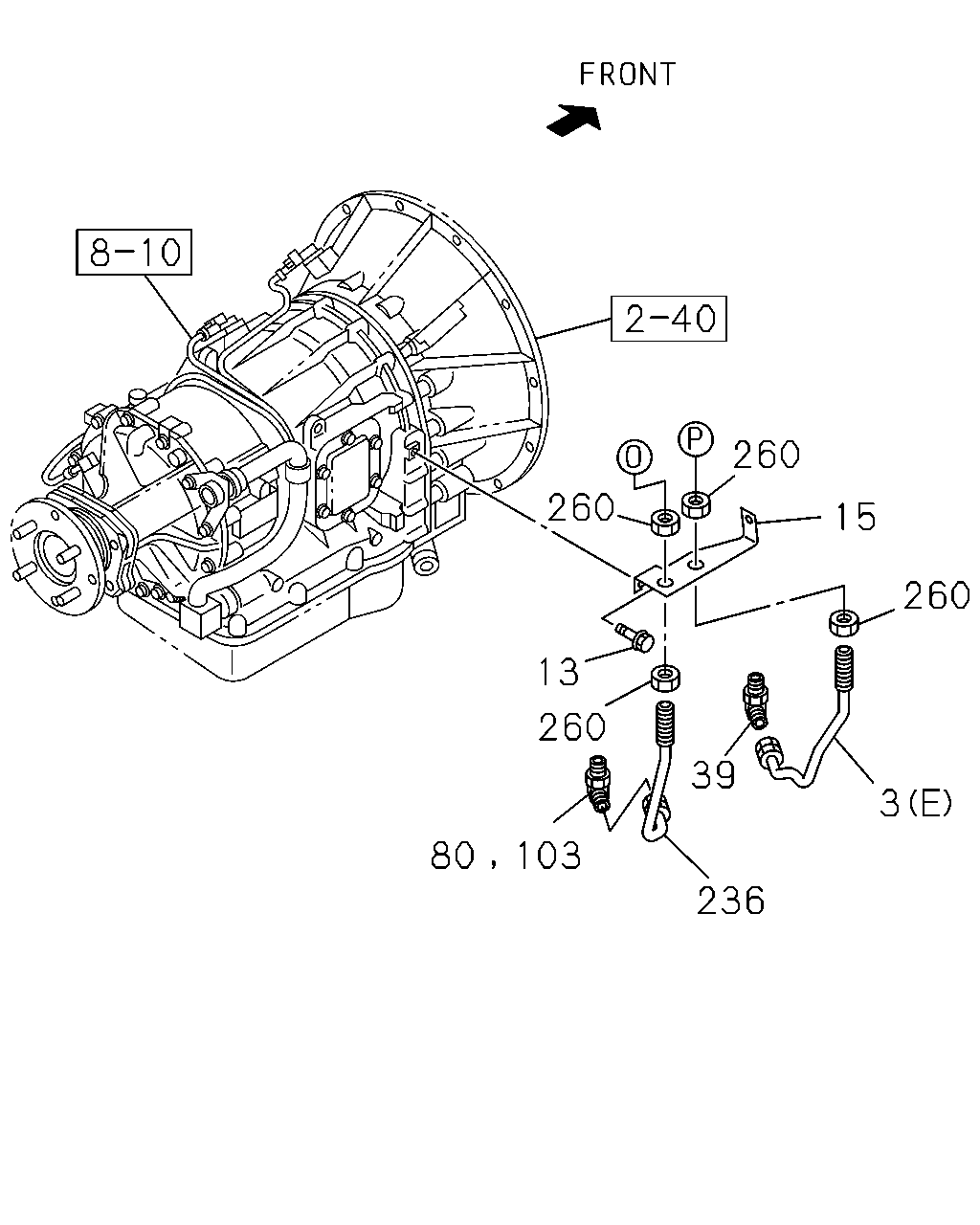

3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (E)	8-98158-383-1	01	1	1307-1312	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (E)	8-98158-383-1	01	1	1401-1501	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> (E)	8-98158-383-1	01	1	1502-1503	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (E)	8-98158-383-1	01	1	1504-	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (F)	8-98240-227-0	01	1	1307-1312	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (F)	8-98240-227-0	01	1	1401-	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (G)	8-98240-228-0	01	1	1307-1312	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (G)	8-98240-228-0	01	1	1401-	●	●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1307-1312	●		●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1401-	●		●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1401-		●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1307-1312	●		●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1401-	●		●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1401-		●
3	PIPE; OIL,A/T TO OIL COOLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=987	8-98235-094-0	01	1	1307-			●
3	PIPE; OIL,A/T TO OIL COOLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=881	8-98235-095-0	01	1	1307-			●
11	CLIP; PIPE LCT2500 A/T ALLISON(Y5W) (D) ID=19 & 19 L=32.5 & 32.5	1-09701-034-1	02	1	1307-1312	●
11	CLIP; PIPE LCT2500 A/T ALLISON(Y5W) (D) ID=19 & 19 L=32.5 & 32.5	1-09701-034-1	02	1	1401-	●	●
11	CLIP; PIPE LCT2500 A/T ALLISON(Y5W) (E) ID=19 & 19	1-09701-324-0	05	1	1307-1312	●
11	CLIP; PIPE LCT2500 A/T ALLISON(Y5W) (E) ID=19 & 19	1-09701-324-0	05	1	1401-	●	●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	1307-1312	●		●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	1401-	●		●
11	CLIP; PIPE 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	1401-		●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1307-1312	●		●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1401-	●		●
11	CLIP; PIPE 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1401-		●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	1307-1312	●		●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	1401-	●		●
11	CLIP; PIPE 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	1401-		●
11	CLIP; PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	1307-			●
32	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) (C) M10X35 FLANGE	0-28651-035-0	02	1	1307-1312	●
32	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) (C) M10X35 FLANGE	0-28651-035-0	02	1	1401-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1307-1312	●		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1401-	●	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1307-1312	●		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1401-	●	●	●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	1307-1312	●		●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	1401-	●		●
46	BRACKET; OIL PIPE 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	1401-		●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98050-824-0	01	1	1307-1312	●		●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98050-824-0	01	1	1401-	●		●
46	BRACKET; OIL PIPE 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98050-824-0	01	1	1401-		●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-171-0	01	1	1307-1312	●		●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-171-0	01	1	1401-	●		●
46	BRACKET; OIL PIPE 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-171-0	01	1	1401-		●
46	BRACKET; OIL PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98045-565-0	01	1	1307-			●
46	BRACKET; OIL PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98081-044-0	01	1	1307-			●
47	BOLT; BRKT TO FRAME LCT2500 A/T ALLISON(Y5W) (B) M8X25 FLANGE	0-28650-825-0	06	1	1307-1312	●
47	BOLT; BRKT TO FRAME LCT2500 A/T ALLISON(Y5W) (B) M8X25 FLANGE	0-28650-825-0	06	1	1401-	●	●
47	BOLT; BRKT TO FRAME LCT2500 A/T ALLISON(Y5W) (C) M10X30 FLANGE	0-28651-030-0	01	1	1307-1312	●
47	BOLT; BRKT TO FRAME LCT2500 A/T ALLISON(Y5W) (C) M10X30 FLANGE	0-28651-030-0	01	1	1401-	●	●
47	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	03	1	1307-1312	●		●
47	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	03	1	1401-	●		●
47	BOLT; BRKT TO FRAME 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	03	1	1401-		●
47	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	02	1	1307-			●
48	NUT; BRKT LCT2500 A/T ALLISON(Y5W) M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
48	NUT; BRKT LCT2500 A/T ALLISON(Y5W) M10 FLANGE	0-91180-210-0	02	1	1401-	●	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	1307-1312	●		●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	1401-	●	●	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1307-1312	●		●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1401-	●	●	●
50	BOLT; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1307-			●
51	NUT; CLIP TO BRKT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	1307-1312	●		●
51	NUT; CLIP TO BRKT LCT2500 A/T ALLISON(Y5W) M8 FLANGE	0-91180-108-0	05	1	1307-1312	●
51	NUT; CLIP TO BRKT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	1401-	●	●	●
51	NUT; CLIP TO BRKT LCT2500 A/T ALLISON(Y5W) M8 FLANGE	0-91180-108-0	05	1	1401-	●	●
51	NUT; CLIP TO BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	03	1	1307-			●
53	BOLT; CLIP,FLEX HOSE,A/T LCT2500 A/T ALLISON(Y5W) M8X20 FLANGE	0-28650-820-0	06	1	1307-1312	●
53	BOLT; CLIP,FLEX HOSE,A/T LCT2500 A/T ALLISON(Y5W) M8X20 FLANGE	0-28650-820-0	06	1	1401-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	04	1	1307-	●	●	●
53	BOLT; CLIP,FLEX HOSE,A/T 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1307-			●
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1307-1312	●		●
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1401-	●	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (E)	8-98245-750-0	01	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (E)	8-98245-750-0	01	1	1401-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (F)	8-98245-751-0	01	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (F)	8-98245-751-0	01	1	1401-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (G)	8-98245-752-0	01	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (G)	8-98245-752-0	01	1	1401-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (H) L=50	1-47475-299-2	02	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (H) L=50	1-47475-299-2	02	1	1401-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (I) L=68.5	1-47475-591-0	01	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (I) L=68.5	1-47475-591-0	01	1	1401-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (J) L=115 B=25	1-47476-758-0	01	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (J) L=115 B=25	1-47476-758-0	01	1	1401-	●	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1307-1312	●		●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1401-	●		●
95	BRACKET; CLIP 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1401-		●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1307-1312	●		●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1401-	●		●
95	BRACKET; CLIP 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1401-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98045-564-0	01	1	1307-			●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98065-885-0	01	1	1307-			●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	1307-1312	●		●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	1401-	●	●	●
136	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98009-406-0	01	1	1307-			●
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	1307-1312	●
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	1401-	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1307-1312	●		●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1401-	●	●	●

73 73 209 209 242 242 88 88 87 242 88 88 242 87 50 219 92 136 95 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) (C) M10X35 FLANGE	0-28651-035-0	02	1	1307-1312	●
32	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) (C) M10X35 FLANGE	0-28651-035-0	02	1	1401-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1307-1312	●		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1401-	●	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1307-1312	●		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1401-	●	●	●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1307-1312	●		●
50	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1401-	●	●	●
50	BOLT; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1307-			●
73	HOSE; FLEX,TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=480	8-98081-845-0	01	1	1307-1312	●		●
73	HOSE; FLEX,TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=480	8-98081-845-0	01	1	1401-	●		●
73	HOSE; FLEX,TRANS 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=480	8-98081-845-0	01	1	1401-		●
73	HOSE; FLEX,TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=500	8-98081-853-0	01	1	1307-1312	●		●
73	HOSE; FLEX,TRANS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=500	8-98081-853-0	01	1	1401-	●		●
73	HOSE; FLEX,TRANS 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=500	8-98081-853-0	01	1	1401-		●
73	HOSE; FLEX,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=380	8-98081-840-0	01	1	1307-			●
73	HOSE; FLEX,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=440	8-98081-849-0	01	1	1307-			●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	1307-1312	●		●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	1401-	●	●	●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE	8-98060-612-0	01	1	1307-1312	●		●
87	BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE	8-98060-612-0	01	1	1401-	●	●	●
88	GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	1307-1312	●		●
88	GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	1401-	●	●	●
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1307-1312	●		●
92	NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1401-	●	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (E)	8-98245-750-0	01	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (E)	8-98245-750-0	01	1	1401-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (F)	8-98245-751-0	01	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (F)	8-98245-751-0	01	1	1401-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (G)	8-98245-752-0	01	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (G)	8-98245-752-0	01	1	1401-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (H) L=50	1-47475-299-2	02	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (H) L=50	1-47475-299-2	02	1	1401-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (I) L=68.5	1-47475-591-0	01	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (I) L=68.5	1-47475-591-0	01	1	1401-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (J) L=115 B=25	1-47476-758-0	01	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (J) L=115 B=25	1-47476-758-0	01	1	1401-	●	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1307-1312	●		●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1401-	●		●
95	BRACKET; CLIP 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1401-		●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1307-1312	●		●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1401-	●		●
95	BRACKET; CLIP 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1401-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98045-564-0	01	1	1307-			●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98065-885-0	01	1	1307-			●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	1307-1312	●		●
136	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98084-148-0	01	1	1401-	●	●	●
136	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98009-406-0	01	1	1307-			●
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	1307-1312	●
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	1401-	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1307-1312	●		●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1401-	●	●	●
219	CLIP; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1307-1312	●		●
219	CLIP; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1401-	●	●	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (C)	8-98240-229-0	01	1	1307-1312	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (C)	8-98240-229-0	01	1	1401-	●	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (D)	8-98240-230-0	01	1	1307-1312	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (D)	8-98240-230-0	01	1	1401-	●	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (E)	8-98242-325-0	01	1	1307-1312	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (E)	8-98242-325-0	01	1	1401-	●	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (F)	8-98242-326-0	01	1	1307-1312	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (F)	8-98242-326-0	01	1	1401-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	1307-1312	●		●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	1401-1507	●	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98303-637-0	01	1	1508-	●	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	1307-1312	●		●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	1401-1507	●	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98303-638-0	01	1	1508-	●	●	●

209 209 1 3 3 209 209 209 47 53 11 51 46 48 47 51 11 53 46 48 11 11 53 51 51 48 46 53 47 11 51 53 32 95 51 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; ATF 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98079-911-1	01	1	1307-1312	●		●
1	HOSE; ATF 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98079-911-1	01	1	1401-	●		●
1	HOSE; ATF 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98079-911-1	01	1	1401-		●
1	HOSE; ATF 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98045-681-0	01	1	1307-			●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (E)	8-98158-383-1	01	1	1307-1312	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (E)	8-98158-383-1	01	1	1401-1501	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> (E)	8-98158-383-1	01	1	1502-1503	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (E)	8-98158-383-1	01	1	1504-	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (F)	8-98240-227-0	01	1	1307-1312	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (F)	8-98240-227-0	01	1	1401-	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (G)	8-98240-228-0	01	1	1307-1312	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (G)	8-98240-228-0	01	1	1401-	●	●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1307-1312	●		●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1401-	●		●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1401-		●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1307-1312	●		●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1401-	●		●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1401-		●
3	PIPE; OIL,A/T TO OIL COOLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=987	8-98235-094-0	01	1	1307-			●
3	PIPE; OIL,A/T TO OIL COOLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=881	8-98235-095-0	01	1	1307-			●
11	CLIP; PIPE LCT2500 A/T ALLISON(Y5W) (D) ID=19 & 19 L=32.5 & 32.5	1-09701-034-1	02	1	1307-1312	●
11	CLIP; PIPE LCT2500 A/T ALLISON(Y5W) (D) ID=19 & 19 L=32.5 & 32.5	1-09701-034-1	02	1	1401-	●	●
11	CLIP; PIPE LCT2500 A/T ALLISON(Y5W) (E) ID=19 & 19	1-09701-324-0	05	1	1307-1312	●
11	CLIP; PIPE LCT2500 A/T ALLISON(Y5W) (E) ID=19 & 19	1-09701-324-0	05	1	1401-	●	●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	1307-1312	●		●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	1401-	●		●
11	CLIP; PIPE 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28	0-95235-055-0	02	1	1401-		●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1307-1312	●		●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1401-	●		●
11	CLIP; PIPE 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1401-		●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	1307-1312	●		●
11	CLIP; PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	1401-	●		●
11	CLIP; PIPE 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 H=20 L=20	8-98033-780-0	01	1	1401-		●
11	CLIP; PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	1307-			●
32	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) (C) M10X35 FLANGE	0-28651-035-0	02	1	1307-1312	●
32	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) (C) M10X35 FLANGE	0-28651-035-0	02	1	1401-	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1307-1312	●		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1401-	●	●	●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1307-1312	●		●
32	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	01	1	1401-	●	●	●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	1307-1312	●		●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	1401-	●		●
46	BRACKET; OIL PIPE 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	1-47471-051-0	01	1	1401-		●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98050-824-0	01	1	1307-1312	●		●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98050-824-0	01	1	1401-	●		●
46	BRACKET; OIL PIPE 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98050-824-0	01	1	1401-		●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-171-0	01	1	1307-1312	●		●
46	BRACKET; OIL PIPE 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-171-0	01	1	1401-	●		●
46	BRACKET; OIL PIPE 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98080-171-0	01	1	1401-		●
46	BRACKET; OIL PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98045-565-0	01	1	1307-			●
46	BRACKET; OIL PIPE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98081-044-0	01	1	1307-			●
47	BOLT; BRKT TO FRAME LCT2500 A/T ALLISON(Y5W) (B) M8X25 FLANGE	0-28650-825-0	06	1	1307-1312	●
47	BOLT; BRKT TO FRAME LCT2500 A/T ALLISON(Y5W) (B) M8X25 FLANGE	0-28650-825-0	06	1	1401-	●	●
47	BOLT; BRKT TO FRAME LCT2500 A/T ALLISON(Y5W) (C) M10X30 FLANGE	0-28651-030-0	01	1	1307-1312	●
47	BOLT; BRKT TO FRAME LCT2500 A/T ALLISON(Y5W) (C) M10X30 FLANGE	0-28651-030-0	01	1	1401-	●	●
47	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	03	1	1307-1312	●		●
47	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	03	1	1401-	●		●
47	BOLT; BRKT TO FRAME 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	03	1	1401-		●
47	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	02	1	1307-			●
48	NUT; BRKT LCT2500 A/T ALLISON(Y5W) M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
48	NUT; BRKT LCT2500 A/T ALLISON(Y5W) M10 FLANGE	0-91180-210-0	02	1	1401-	●	●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	1307-1312	●		●
48	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	1401-	●	●	●
51	NUT; CLIP TO BRKT 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	1307-1312	●		●
51	NUT; CLIP TO BRKT LCT2500 A/T ALLISON(Y5W) M8 FLANGE	0-91180-108-0	05	1	1307-1312	●
51	NUT; CLIP TO BRKT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	05	1	1401-	●	●	●
51	NUT; CLIP TO BRKT LCT2500 A/T ALLISON(Y5W) M8 FLANGE	0-91180-108-0	05	1	1401-	●	●
51	NUT; CLIP TO BRKT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	03	1	1307-			●
53	BOLT; CLIP,FLEX HOSE,A/T LCT2500 A/T ALLISON(Y5W) M8X20 FLANGE	0-28650-820-0	06	1	1307-1312	●
53	BOLT; CLIP,FLEX HOSE,A/T LCT2500 A/T ALLISON(Y5W) M8X20 FLANGE	0-28650-820-0	06	1	1401-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	04	1	1307-	●	●	●
53	BOLT; CLIP,FLEX HOSE,A/T 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1307-			●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (E)	8-98245-750-0	01	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (E)	8-98245-750-0	01	1	1401-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (F)	8-98245-751-0	01	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (F)	8-98245-751-0	01	1	1401-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (G)	8-98245-752-0	01	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (G)	8-98245-752-0	01	1	1401-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (H) L=50	1-47475-299-2	02	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (H) L=50	1-47475-299-2	02	1	1401-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (I) L=68.5	1-47475-591-0	01	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (I) L=68.5	1-47475-591-0	01	1	1401-	●	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (J) L=115 B=25	1-47476-758-0	01	1	1307-1312	●
95	BRACKET; CLIP LCT2500 A/T ALLISON(Y5W) (J) L=115 B=25	1-47476-758-0	01	1	1401-	●	●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1307-1312	●		●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1401-	●		●
95	BRACKET; CLIP 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98072-008-0	01	1	1401-		●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1307-1312	●		●
95	BRACKET; CLIP 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1401-	●		●
95	BRACKET; CLIP 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98072-016-0	01	1	1401-		●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98045-564-0	01	1	1307-			●
95	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98065-885-0	01	1	1307-			●
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	1307-1312	●
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	1401-	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1307-1312	●		●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1401-	●	●	●

209 184 209 209 239 209 242 242 3 3 242 242 184 210 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (E)	8-98158-383-1	01	1	1307-1312	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (E)	8-98158-383-1	01	1	1401-1501	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> (E)	8-98158-383-1	01	1	1502-1503	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (E)	8-98158-383-1	01	1	1504-	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (F)	8-98240-227-0	01	1	1307-1312	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (F)	8-98240-227-0	01	1	1401-	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (G)	8-98240-228-0	01	1	1307-1312	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (G)	8-98240-228-0	01	1	1401-	●	●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1307-1312	●		●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1401-	●		●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1401-		●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1307-1312	●		●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1401-	●		●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1401-		●
3	PIPE; OIL,A/T TO OIL COOLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=987	8-98235-094-0	01	1	1307-			●
3	PIPE; OIL,A/T TO OIL COOLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=881	8-98235-095-0	01	1	1307-			●
184	HOSE; FLEX,PIPE TO COOLER LCT2500 A/T ALLISON(Y5W) (A)	8-98080-165-0	01	1	1307-1312	●
184	HOSE; FLEX,PIPE TO COOLER LCT2500 A/T ALLISON(Y5W) (A)	8-98080-165-0	01	1	1401-	●	●
184	HOSE; FLEX,PIPE TO COOLER A/T<X9D> (B)	8-98010-583-2	01	1	1307-1312	●
184	HOSE; FLEX,PIPE TO COOLER A/T<X9D> (B)	8-98010-583-2	01	1	1401-	●	●
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	1307-1312	●
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	1401-	●	●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1307-1312	●		●
209	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98192-447-0	08	1	1401-	●	●	●
210	BAND; FLEX HOSE LCT2500 A/T ALLISON(Y5W) L=175	1-09707-178-0	01	1	1307-1312	●
210	BAND; FLEX HOSE LCT2500 A/T ALLISON(Y5W) L=175	1-09707-178-0	01	1	1401-	●	●
239	HOSE; FLEX,COOLER TO PIPE LCT2500 A/T ALLISON(Y5W) (A)	8-98097-594-0	01	1	1307-1312	●
239	HOSE; FLEX,COOLER TO PIPE LCT2500 A/T ALLISON(Y5W) (A)	8-98097-594-0	01	1	1401-	●	●
239	HOSE; FLEX,COOLER TO PIPE A/T<X9D> (B)	8-98010-582-2	01	1	1307-1312	●
239	HOSE; FLEX,COOLER TO PIPE A/T<X9D> (B)	8-98010-582-2	01	1	1401-	●	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (C)	8-98240-229-0	01	1	1307-1312	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (C)	8-98240-229-0	01	1	1401-	●	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (D)	8-98240-230-0	01	1	1307-1312	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (D)	8-98240-230-0	01	1	1401-	●	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (E)	8-98242-325-0	01	1	1307-1312	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (E)	8-98242-325-0	01	1	1401-	●	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (F)	8-98242-326-0	01	1	1307-1312	●
242	PIPE; COOLER LCT2500 A/T ALLISON(Y5W) (F)	8-98242-326-0	01	1	1401-	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	1307-1312	●		●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-674-0	01	1	1401-1507	●	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98303-637-0	01	1	1508-	●	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	1307-1312	●		●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-675-0	01	1	1401-1507	●	●	●
242	PIPE; COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98303-638-0	01	1	1508-	●	●	●

260 13 260 80 103 236 39 15 260 260 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (E)	8-98158-383-1	01	1	1307-1312	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (E)	8-98158-383-1	01	1	1401-1501	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> (E)	8-98158-383-1	01	1	1502-1503	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (E)	8-98158-383-1	01	1	1504-	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (F)	8-98240-227-0	01	1	1307-1312	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (F)	8-98240-227-0	01	1	1401-	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (G)	8-98240-228-0	01	1	1307-1312	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) (G)	8-98240-228-0	01	1	1401-	●	●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1307-1312	●		●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1401-	●		●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1144	8-98072-012-0	01	1	1401-		●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1307-1312	●		●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1401-	●		●
3	PIPE; OIL,A/T TO OIL COOLER 6HK1-TCC ENG(81L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=1009	8-98079-824-0	01	1	1401-		●
3	PIPE; OIL,A/T TO OIL COOLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=987	8-98235-094-0	01	1	1307-			●
3	PIPE; OIL,A/T TO OIL COOLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=881	8-98235-095-0	01	1	1307-			●
13	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) M8X20 FLANGE	8-98105-048-0	01	1	1307-1312	●
13	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) M8X20 FLANGE	8-98105-048-0	01	1	1401-1501	●	●
13	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> M8X20 FLANGE	8-98105-048-0	01	1	1502-1503	●	●
13	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) M8X20 FLANGE	8-98105-048-0	01	1	1504-	●	●
15	BRACKET; ATF PIPE LCT2500 A/T ALLISON(Y5W)	8-98075-836-0	01	1	1307-1312	●
15	BRACKET; ATF PIPE LCT2500 A/T ALLISON(Y5W)	8-98075-836-0	01	1	1401-1501	●	●
15	BRACKET; ATF PIPE LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF>	8-98075-836-0	01	1	1502-1503	●	●
15	BRACKET; ATF PIPE LCT2500 A/T ALLISON(Y5W)	8-98075-836-0	01	1	1504-	●	●
39	CONNECTOR; FLEX HOSE,A/T LCT2500 A/T ALLISON(Y5W)	1-09661-766-1	01	1	1307-1312	●
39	CONNECTOR; FLEX HOSE,A/T LCT2500 A/T ALLISON(Y5W)	1-09661-766-1	01	1	1401-1501	●	●
39	CONNECTOR; FLEX HOSE,A/T LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF>	1-09661-766-1	01	1	1502-1503	●	●
39	CONNECTOR; FLEX HOSE,A/T LCT2500 A/T ALLISON(Y5W)	1-09661-766-1	01	1	1504-	●	●
80	UNION; FLEX HOSE LCT2500 A/T ALLISON(Y5W) VIN MODEL YEAR 2015<VZF>	1-09661-766-1	01	1	1504-	●	●
103	CONNECTOR; OIL PIPE LCT2500 A/T ALLISON(Y5W)	1-09661-766-1	01	1	1307-1312	●
103	CONNECTOR; OIL PIPE LCT2500 A/T ALLISON(Y5W)	1-09661-766-1	01	1	1401-1501	●	●
103	CONNECTOR; OIL PIPE LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF>	1-09661-766-1	01	1	1502-	●	●
236	PIPE; OIL,OIL COOLER TO A/T LCT2500 A/T ALLISON(Y5W)	8-98158-384-1	01	1	1307-1312	●
236	PIPE; OIL,OIL COOLER TO A/T LCT2500 A/T ALLISON(Y5W)	8-98158-384-1	01	1	1401-1501	●	●
236	PIPE; OIL,OIL COOLER TO A/T LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF>	8-98158-384-1	01	1	1502-1503	●	●
236	PIPE; OIL,OIL COOLER TO A/T LCT2500 A/T ALLISON(Y5W)	8-98158-384-1	01	1	1504-	●	●
260	NUT LCT2500 A/T ALLISON(Y5W) M30	1-09400-166-0	04	1	1307-1312	●
260	NUT LCT2500 A/T ALLISON(Y5W) M30	1-09400-166-0	04	1	1401-1501	●	●
260	NUT LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> M30	1-09400-166-0	04	1	1502-1503	●	●
260	NUT LCT2500 A/T ALLISON(Y5W) M30	1-09400-166-0	04	1	1504-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
