◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-42B - AUTO TRANS OIL PAN AND OIL CONTROL ▶
2-42B — AUTO TRANS OIL PAN AND OIL CONTROL (#123676) — 27 parça

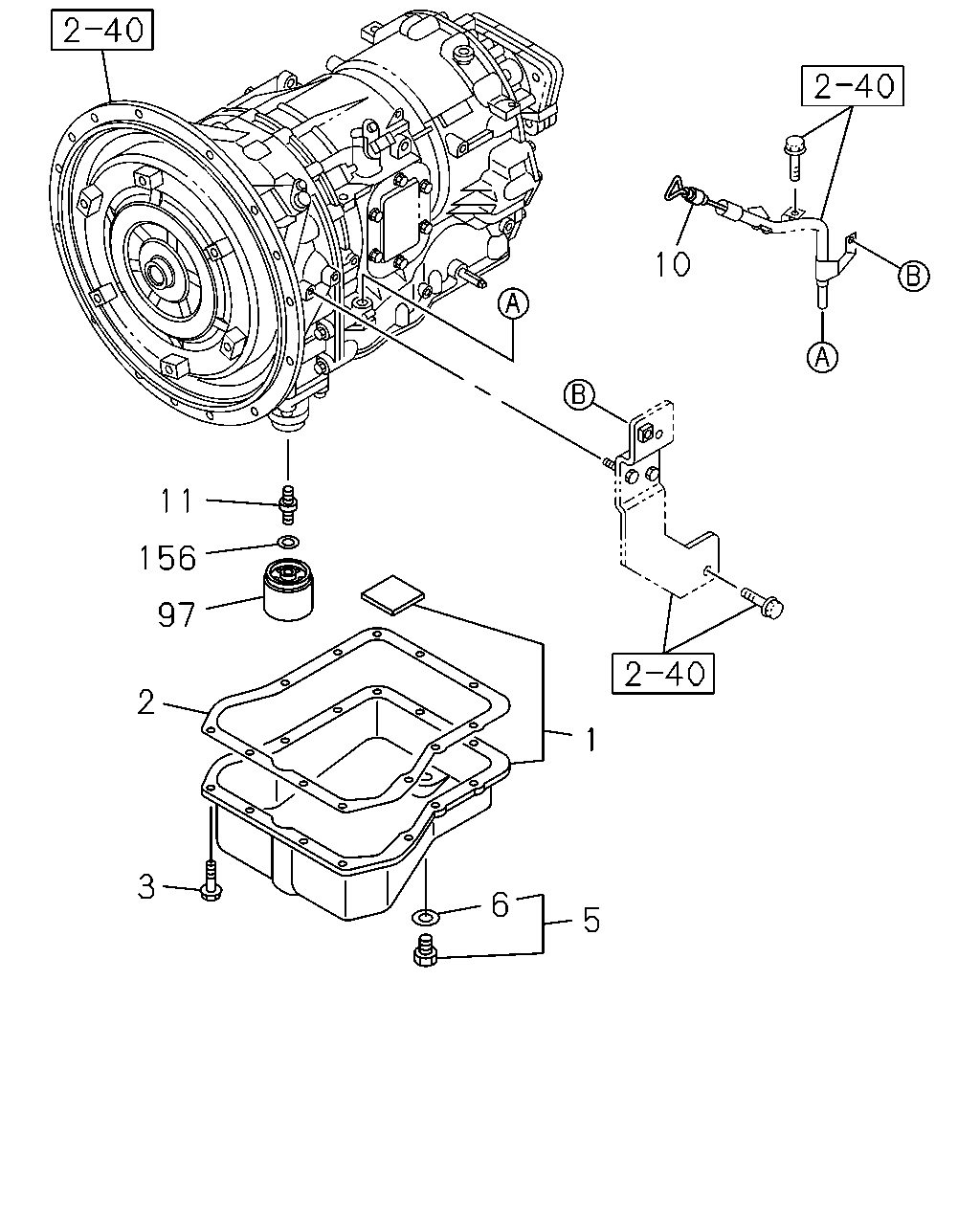

çizim 363088
10 11 156 2 3 6 1 97 5
BalonParca AdiParca NoAdetTipApplied Date
1 PAN ASM; OIL,A/T 8-29536-522-0 01 1 1307-1501
1 PAN ASM; OIL,A/T
EXC. VIN MODEL YEAR 2015<VZF> 		8-29536-522-0 01 1 1502-1503
1 PAN ASM; OIL,A/T 8-29536-522-0 01 1 1504-
2 GASKET; OIL PAN,A/T 1-34132-013-0 01 1 1307-1501
2 GASKET; OIL PAN,A/T
EXC. VIN MODEL YEAR 2015<VZF> 		1-34132-013-0 01 1 1502-1503
2 GASKET; OIL PAN,A/T 1-34132-013-0 01 1 1504-
3 BOLT; OIL PAN TO CASE 1-34119-111-0 12 1 1307-1501
3 BOLT; OIL PAN TO CASE
EXC. VIN MODEL YEAR 2015<VZF> 		1-34119-111-0 12 1 1502-1503
3 BOLT; OIL PAN TO CASE 1-34119-111-0 12 1 1504-
5 PLUG; OIL PAN 1-34139-062-0 01 1 1307-1501
5 PLUG; OIL PAN
EXC. VIN MODEL YEAR 2015<VZF> 		1-34139-062-0 01 1 1502-1503
5 PLUG; OIL PAN 1-34139-062-0 01 1 1504-
6 GASKET; OIL PAN TO PLUG 1-34139-063-0 01 1 1307-1501
6 GASKET; OIL PAN TO PLUG
EXC. VIN MODEL YEAR 2015<VZF> 		1-34139-063-0 01 1 1502-1503
6 GASKET; OIL PAN TO PLUG 1-34139-063-0 01 1 1504-
10 GAUGE; OIL LEVEL 8-98172-823-0 01 1 1307-1501
10 GAUGE; OIL LEVEL
EXC. VIN MODEL YEAR 2015<VZF> 		8-98172-823-0 01 1 1502-1503
10 GAUGE; OIL LEVEL 8-98172-823-0 01 1 1504-
11 TUBE; OIL FILLER 1-34139-059-0 01 1 1307-1501
11 TUBE; OIL FILLER
EXC. VIN MODEL YEAR 2015<VZF> 		1-34139-059-0 01 1 1502-1503
11 TUBE; OIL FILLER 1-34139-059-0 01 1 1504-
97 FILTER; OIL 8-29539-579-0 01 1 1307-1501
97 FILTER; OIL
EXC. VIN MODEL YEAR 2015<VZF> 		8-29539-579-0 01 1 1502-1503
97 FILTER; OIL 8-29539-579-0 01 1 1504-
156 MAGNET; OIL FILTER 1-34139-060-0 01 1 1307-1501
156 MAGNET; OIL FILTER
EXC. VIN MODEL YEAR 2015<VZF> 		1-34139-060-0 01 1 1502-1503
156 MAGNET; OIL FILTER 1-34139-060-0 01 1 1504-
