◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-41B - AUTO TRANS CASE,CONVERTER AND OIL PUMP ▶
2-41B — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#123675) — 36 parça

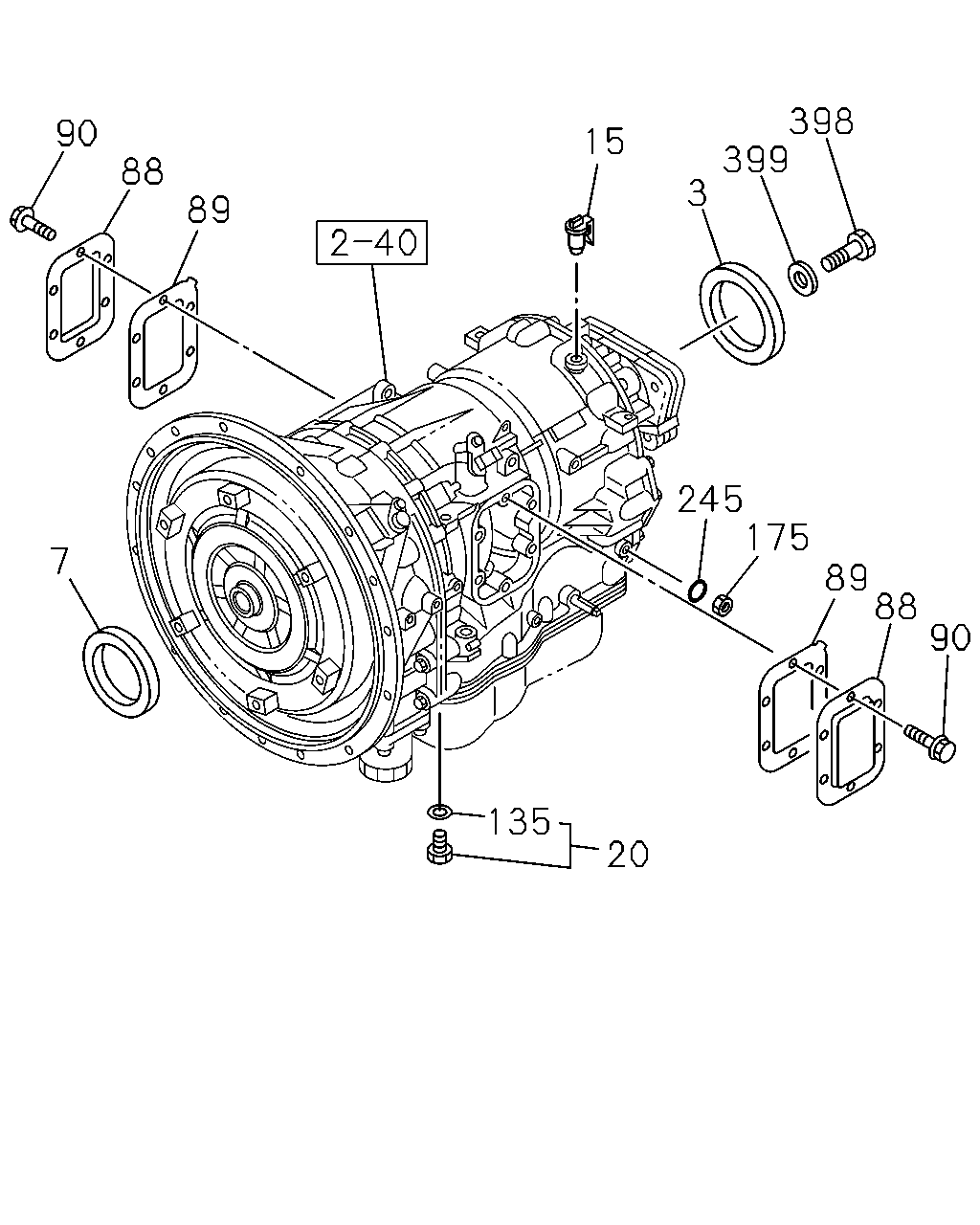

çizim 364045
90 89 88 7 15 398 399 3 245 89 88 90 175 20 135
BalonParca AdiParca NoAdetTipApplied Date
3 SEAL; OIL,RR COVER,A/T 1-34119-106-0 01 1 1307-1501
3 SEAL; OIL,RR COVER,A/T
EXC. VIN MODEL YEAR 2015<VZF> 		1-34119-106-0 01 1 1502-1503
3 SEAL; OIL,RR COVER,A/T 1-34119-106-0 01 1 1504-
7 SEAL; OIL,LIP,A/T 8-29546-682-0 01 1 1307-1501
7 SEAL; OIL,LIP,A/T
EXC. VIN MODEL YEAR 2015<VZF> 		8-29546-682-0 01 1 1502-1503
7 SEAL; OIL,LIP,A/T 8-29546-682-0 01 1 1504-
15 BREATHER; A/T CASE 1-34119-109-0 01 1 1307-1501
15 BREATHER; A/T CASE
EXC. VIN MODEL YEAR 2015<VZF> 		1-34119-109-0 01 1 1502-1503
15 BREATHER; A/T CASE 1-34119-109-0 01 1 1504-
20 PLUG; TAPER,A/T CASE 1-34119-104-0 01 1 1307-1501
20 PLUG; TAPER,A/T CASE
EXC. VIN MODEL YEAR 2015<VZF> 		1-34119-104-0 01 1 1502-1503
20 PLUG; TAPER,A/T CASE 1-34119-104-0 01 1 1504-
88 COVER; SIDE,A/T 1-38131-007-0 02 1 1307-1501
88 COVER; SIDE,A/T
EXC. VIN MODEL YEAR 2015<VZF> 		1-38131-007-0 02 1 1502-1503
88 COVER; SIDE,A/T 1-38131-007-0 02 1 1504-
89 GASKET; SIDE COVER 8-29531-325-0 02 1 1307-1501
89 GASKET; SIDE COVER
EXC. VIN MODEL YEAR 2015<VZF> 		8-29531-325-0 02 1 1502-1503
89 GASKET; SIDE COVER 8-29531-325-0 02 1 1504-
90 BOLT; SIDE COVER 8-29537-510-0 12 1 1307-1501
90 BOLT; SIDE COVER
EXC. VIN MODEL YEAR 2015<VZF> 		8-29537-510-0 12 1 1502-1503
90 BOLT; SIDE COVER 8-29537-510-0 12 1 1504-
135 GASKET; PLUG,A/T CASE 1-34119-105-0 01 1 1307-1501
135 GASKET; PLUG,A/T CASE
EXC. VIN MODEL YEAR 2015<VZF> 		1-34119-105-0 01 1 1502-1503
135 GASKET; PLUG,A/T CASE 1-34119-105-0 01 1 1504-
175 NUT; SELECT SHAFT 1-09464-034-0 01 1 1307-1501
175 NUT; SELECT SHAFT
EXC. VIN MODEL YEAR 2015<VZF> 		1-09464-034-0 01 1 1502-1503
175 NUT; SELECT SHAFT 1-09464-034-0 01 1 1504-
245 SEAL; OIL 1-34119-137-0 01 1 1307-1501
245 SEAL; OIL
EXC. VIN MODEL YEAR 2015<VZF> 		1-34119-137-0 01 1 1502-1503
245 SEAL; OIL 1-34119-137-0 01 1 1504-
398 BOLT; OUTPUT SHAFT 1-09087-048-0 01 1 1307-1501
398 BOLT; OUTPUT SHAFT
EXC. VIN MODEL YEAR 2015<VZF> 		1-09087-048-0 01 1 1502-1503
398 BOLT; OUTPUT SHAFT 1-09087-048-0 01 1 1504-
399 WASHER; OUTPUT SHAFT 1-37249-200-0 01 1 1307-1501
399 WASHER; OUTPUT SHAFT
EXC. VIN MODEL YEAR 2015<VZF> 		1-37249-200-0 01 1 1502-1503
399 WASHER; OUTPUT SHAFT 1-37249-200-0 01 1 1504-
