Sayfa 2-39A - Isuzu EPC

2-39A — POWER ASSISTOR (#123672) — 66 parça

2 56 4 4 34 4 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; POWER SHIFTER 14" CLUTCH(WF6)	8-97388-035-0	01	1	1307-
2	REPAIR KIT; POWER SHIFTER 15" CLUTCH(RE9)	1-33738-028-0	01	1	1307-
4	BOOT; POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-33739-843-0	01	1	1307-
4	BOOT; POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-33739-844-0	01	1	1307-
4	BOOT; POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	1-33739-847-0	01	1	1307-
34	PIN; STRAIGHT,POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-33739-885-0	01	1	1307-
34	PIN; STRAIGHT,POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-33739-974-0	01	1	1307-
56	HOSE; POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33739-848-0	01	1	1307-

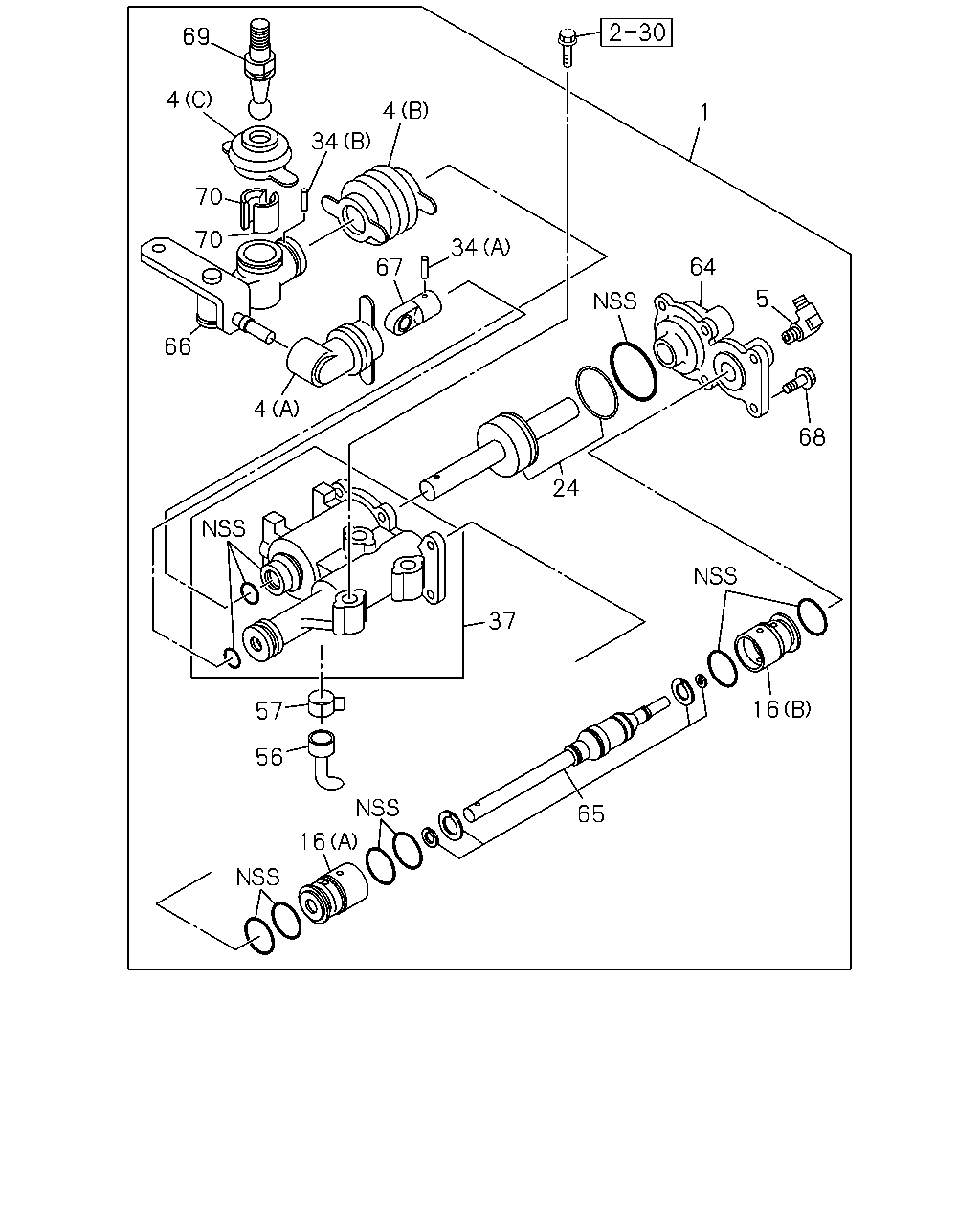

37 24 64 5 65 1 34 4 66 70 70 4 56 57 69 67 34 4 16 68 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ASSISTOR ASM; POWER,SHIFT 14" CLUTCH(WF6)	8-98022-853-1	01	1	1307-
1	ASSISTOR ASM; POWER,SHIFT 15" CLUTCH(RE9)	8-98022-843-0	01	1	1307-
4	BOOT; POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-33739-843-0	01	1	1307-
4	BOOT; POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-33739-844-0	01	1	1307-
4	BOOT; POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	1-33739-847-0	01	1	1307-
5	CONNECTOR; CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 & PT1/8	0-92124-306-0	01	1	1307-
16	SEAT; VALVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97388-032-0	01	1	1307-
16	SEAT; VALVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97388-033-0	01	1	1307-
24	PISTON 14" CLUTCH(WF6)	8-98065-242-0	01	1	1307-
24	PISTON 15" CLUTCH(RE9)	1-33739-836-1	01	1	1307-
34	PIN; STRAIGHT,POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-33739-885-0	01	1	1307-
34	PIN; STRAIGHT,POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-33739-974-0	01	1	1307-
37	HOUSING; POWER SHIFTER 14" CLUTCH(WF6)	8-97388-027-0	01	1	1307-
37	HOUSING; POWER SHIFTER 15" CLUTCH(RE9)	1-33739-969-0	01	1	1307-
56	HOSE; POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33739-848-0	01	1	1307-
57	CLAMP; HOSE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33739-849-0	01	1	1307-
64	COVER; HOUSING 14" CLUTCH(WF6)	8-98025-483-0	01	1	1307-
64	COVER; HOUSING 15" CLUTCH(RE9)	1-33739-970-0	01	1	1307-
65	VALVE; POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97388-029-0	01	1	1307-
66	JOINT ASM; POWER SHIFTER 14" CLUTCH(WF6)	8-97388-137-0	01	1	1307-
66	JOINT ASM; POWER SHIFTER 15" CLUTCH(RE9)	1-33739-972-0	01	1	1307-
67	JOINT; BALL,POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33739-973-0	01	1	1307-
68	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X12 FLANGE	1-33739-842-0	06	1	1307-
69	STUD; BALL,POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33739-846-0	01	1	1307-
70	SEAT; BALL STUD TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33659-118-0	02	1	1307-

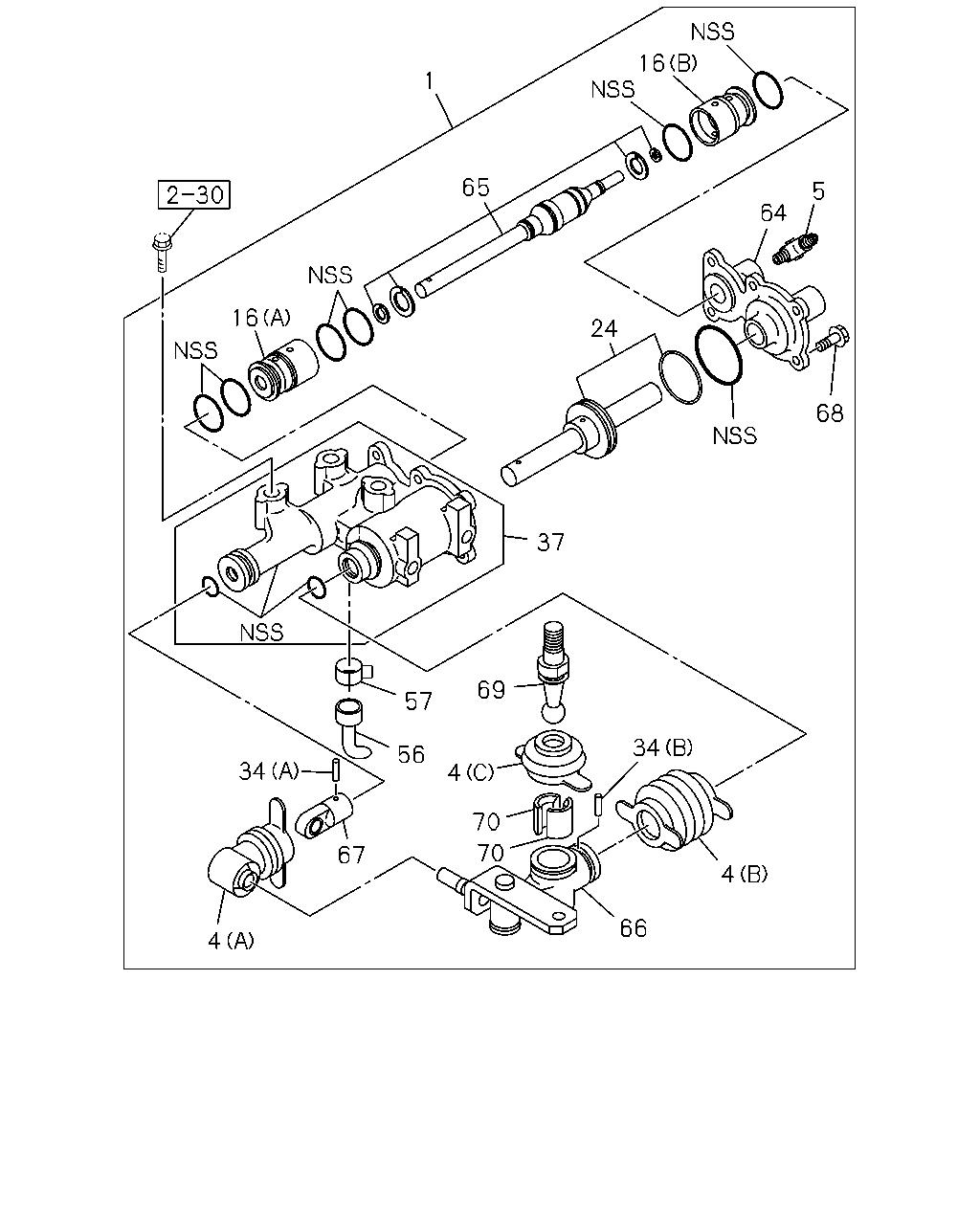

1 64 68 5 16 65 37 24 34 4 69 4 70 66 70 4 34 67 57 56 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ASSISTOR ASM; POWER,SHIFT 14" CLUTCH(WF6)	8-98022-853-1	01	1	1307-
1	ASSISTOR ASM; POWER,SHIFT 15" CLUTCH(RE9)	8-98022-843-0	01	1	1307-
4	BOOT; POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-33739-843-0	01	1	1307-
4	BOOT; POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-33739-844-0	01	1	1307-
4	BOOT; POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	1-33739-847-0	01	1	1307-
5	CONNECTOR; CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 & PT1/8	0-92124-306-0	01	1	1307-
16	SEAT; VALVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97388-032-0	01	1	1307-
16	SEAT; VALVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97388-033-0	01	1	1307-
24	PISTON 14" CLUTCH(WF6)	8-98065-242-0	01	1	1307-
24	PISTON 15" CLUTCH(RE9)	1-33739-836-1	01	1	1307-
34	PIN; STRAIGHT,POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-33739-885-0	01	1	1307-
34	PIN; STRAIGHT,POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-33739-974-0	01	1	1307-
37	HOUSING; POWER SHIFTER 14" CLUTCH(WF6)	8-97388-027-0	01	1	1307-
37	HOUSING; POWER SHIFTER 15" CLUTCH(RE9)	1-33739-969-0	01	1	1307-
56	HOSE; POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33739-848-0	01	1	1307-
57	CLAMP; HOSE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33739-849-0	01	1	1307-
64	COVER; HOUSING 14" CLUTCH(WF6)	8-98025-483-0	01	1	1307-
64	COVER; HOUSING 15" CLUTCH(RE9)	1-33739-970-0	01	1	1307-
65	VALVE; POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97388-029-0	01	1	1307-
66	JOINT ASM; POWER SHIFTER 14" CLUTCH(WF6)	8-97388-137-0	01	1	1307-
66	JOINT ASM; POWER SHIFTER 15" CLUTCH(RE9)	1-33739-972-0	01	1	1307-
67	JOINT; BALL,POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33739-973-0	01	1	1307-
68	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X12 FLANGE	1-33739-842-0	06	1	1307-
69	STUD; BALL,POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33739-846-0	01	1	1307-
70	SEAT; BALL STUD TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33659-118-0	02	1	1307-

2 56 4 34 4 4 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; POWER SHIFTER 14" CLUTCH(WF6)	8-97388-035-0	01	1	1307-
2	REPAIR KIT; POWER SHIFTER 15" CLUTCH(RE9)	1-33738-028-0	01	1	1307-
4	BOOT; POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-33739-843-0	01	1	1307-
4	BOOT; POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-33739-844-0	01	1	1307-
4	BOOT; POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	1-33739-847-0	01	1	1307-
34	PIN; STRAIGHT,POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-33739-885-0	01	1	1307-
34	PIN; STRAIGHT,POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-33739-974-0	01	1	1307-
56	HOSE; POWER SHIFTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33739-848-0	01	1	1307-
