2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#123671) — 55 parça

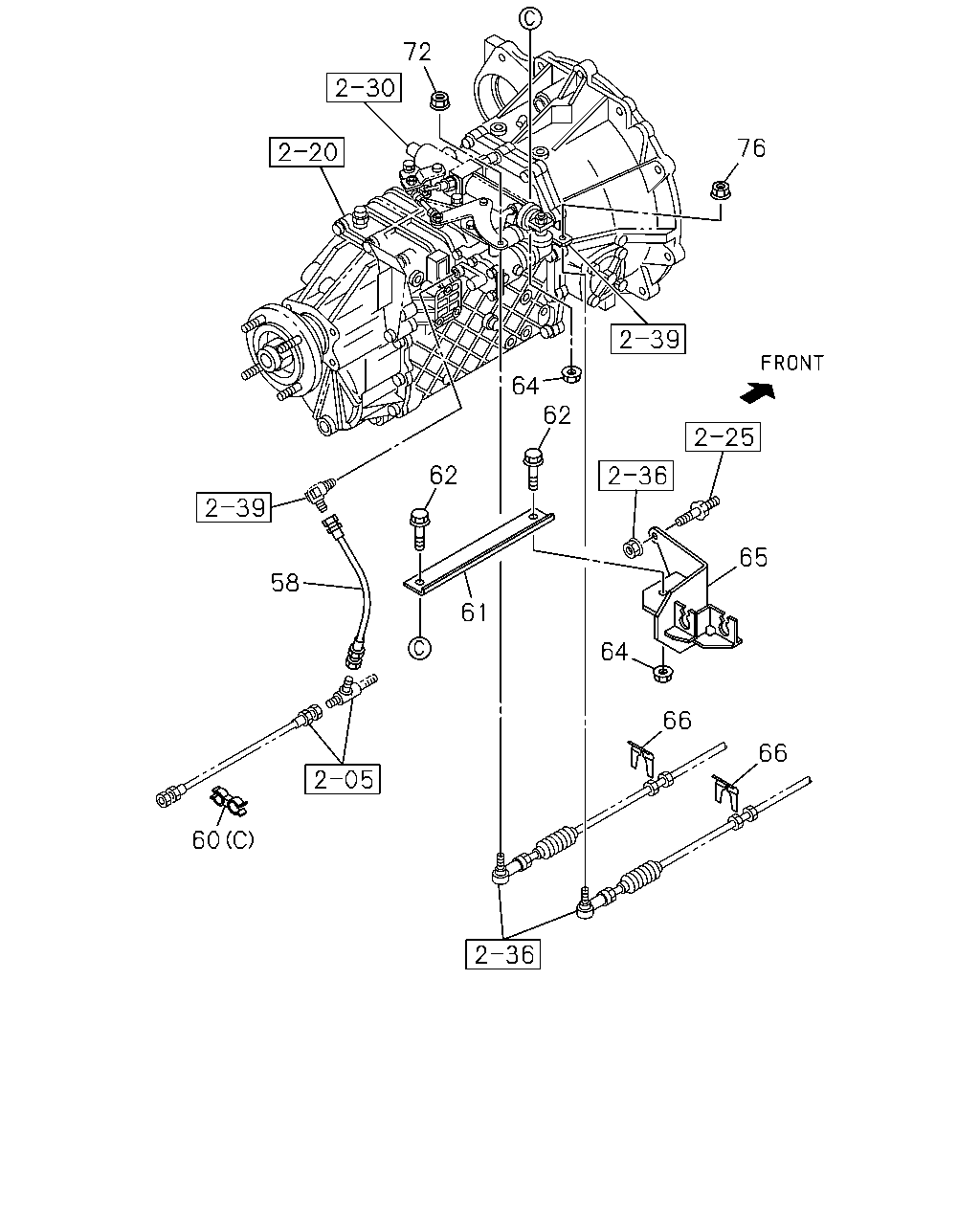

72 76 64 62 58 61 60 64 66 66 65 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
58	HOSE; FLEX,POWER ASSISTOR 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=640	1-09363-626-1	01	1	1307-1312	●	●
58	HOSE; FLEX,POWER ASSISTOR 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=640	1-09363-626-1	01	1	1401-	●	●
58	HOSE; FLEX,POWER ASSISTOR 6HK1-TCC ENG(81L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=640	1-09363-626-1	01	1	1401-			●
58	HOSE; FLEX,POWER ASSISTOR 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=290	1-09363-875-0	01	1	1307-		●
60	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=13 L=20	0-95235-235-0	02	1	1307-1312	●	●
60	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=13 L=20	0-95235-235-0	02	1	1401-	●	●
60	CLIP; FLEX HOSE 6HK1-TCC ENG(81L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=13 L=20	0-95235-235-0	02	1	1401-			●
60	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=10 & 10	1-09709-277-1	01	1	1307-1312	●	●
60	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=10 & 10	1-09709-277-1	01	1	1401-	●	●
60	CLIP; FLEX HOSE 6HK1-TCC ENG(81L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=10 & 10	1-09709-277-1	01	1	1401-			●
60	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	1307-		●
61	STAY; BRKT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	1307-1312	●	●
61	STAY; BRKT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	1401-	●	●	●
62	BOLT; STAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	02	1	1307-1312	●	●
62	BOLT; STAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	02	1	1401-	●	●	●
64	NUT; STAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-210-0	02	1	1307-1312	●	●
64	NUT; STAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-210-0	02	1	1401-	●	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98010-159-0	01	1	1307-1312	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98010-159-0	01	1	1401-	●	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98090-822-0	01	1	1307-		●
66	CLIP; SELECT BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> ID=22.2	1-09701-209-1	02	1	1307-1312	●	●
66	CLIP; SELECT BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> ID=22.2	1-09701-209-1	02	1	1401-	●	●	●
72	NUT; TRANS CONT,SELECT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	1307-1312	●	●
72	NUT; TRANS CONT,SELECT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	1401-	●	●	●
76	NUT; BALL JOINT,SELECT WIRE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	1307-1312	●	●
76	NUT; BALL JOINT,SELECT WIRE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	1401-	●	●	●

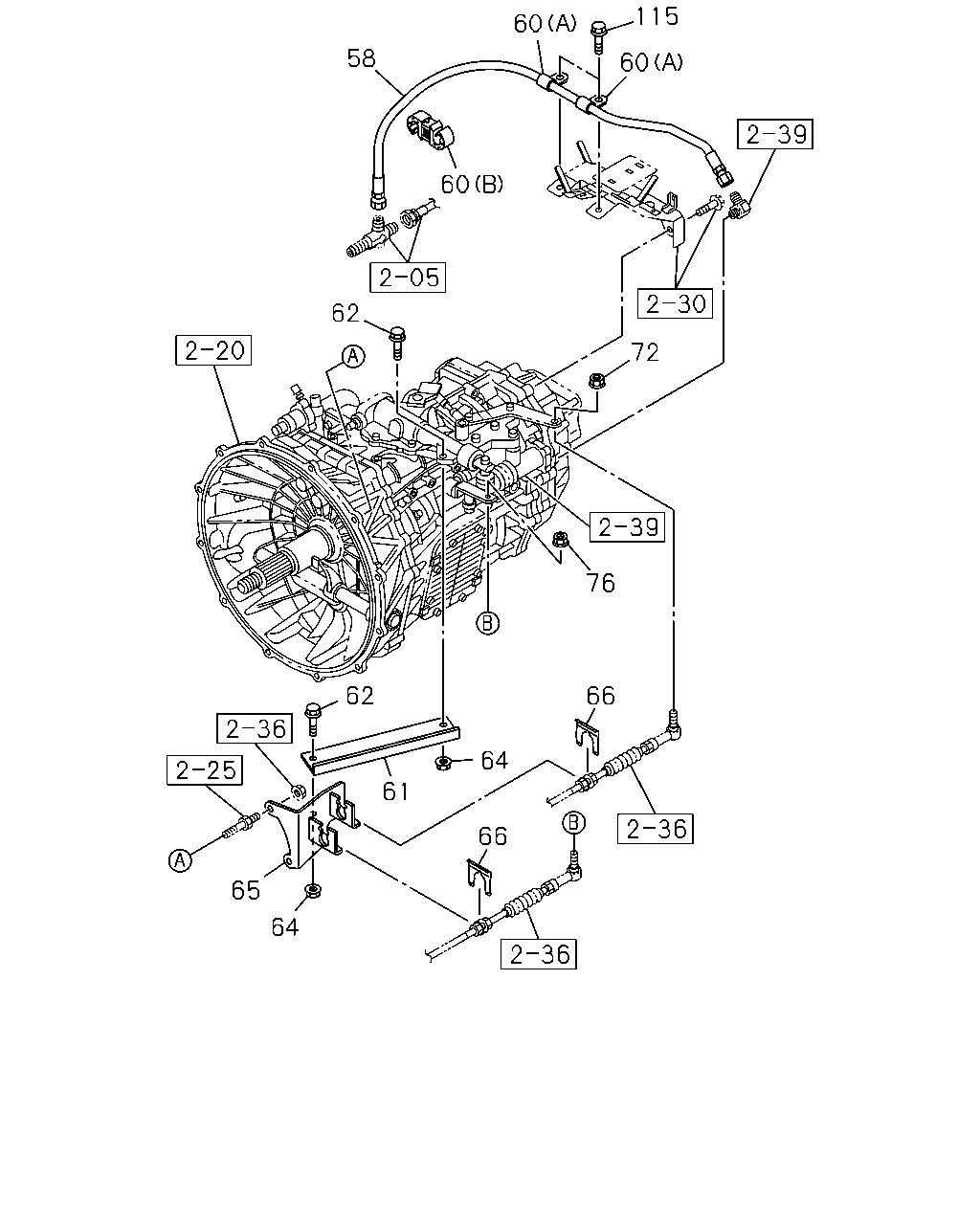

62 58 60 60 115 60 72 76 66 64 61 62 66 64 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
58	HOSE; FLEX,POWER ASSISTOR 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=640	1-09363-626-1	01	1	1307-1312	●	●
58	HOSE; FLEX,POWER ASSISTOR 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=640	1-09363-626-1	01	1	1401-	●	●
58	HOSE; FLEX,POWER ASSISTOR 6HK1-TCC ENG(81L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=640	1-09363-626-1	01	1	1401-			●
58	HOSE; FLEX,POWER ASSISTOR 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=290	1-09363-875-0	01	1	1307-		●
60	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=13 L=20	0-95235-235-0	02	1	1307-1312	●	●
60	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=13 L=20	0-95235-235-0	02	1	1401-	●	●
60	CLIP; FLEX HOSE 6HK1-TCC ENG(81L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=13 L=20	0-95235-235-0	02	1	1401-			●
60	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=10 & 10	1-09709-277-1	01	1	1307-1312	●	●
60	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=10 & 10	1-09709-277-1	01	1	1401-	●	●
60	CLIP; FLEX HOSE 6HK1-TCC ENG(81L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=10 & 10	1-09709-277-1	01	1	1401-			●
60	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	1307-		●
61	STAY; BRKT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	1307-1312	●	●
61	STAY; BRKT,TRANS CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	1401-	●	●	●
62	BOLT; STAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	02	1	1307-1312	●	●
62	BOLT; STAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	02	1	1401-	●	●	●
64	NUT; STAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-210-0	02	1	1307-1312	●	●
64	NUT; STAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-210-0	02	1	1401-	●	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98010-159-0	01	1	1307-1312	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98010-159-0	01	1	1401-	●	●	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98090-822-0	01	1	1307-		●
66	CLIP; SELECT BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> ID=22.2	1-09701-209-1	02	1	1307-1312	●	●
66	CLIP; SELECT BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> ID=22.2	1-09701-209-1	02	1	1401-	●	●	●
72	NUT; TRANS CONT,SELECT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	1307-1312	●	●
72	NUT; TRANS CONT,SELECT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	1401-	●	●	●
76	NUT; BALL JOINT,SELECT WIRE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	1307-1312	●	●
76	NUT; BALL JOINT,SELECT WIRE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	1401-	●	●	●
115	BOLT; CLIP 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE	0-28050-816-0	02	1	1307-1312	●	●
115	BOLT; CLIP 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE	0-28050-816-0	02	1	1401-	●	●
115	BOLT; CLIP 6HK1-TCC ENG(81L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE	0-28050-816-0	02	1	1401-			●
