◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#123670) — 238 parça

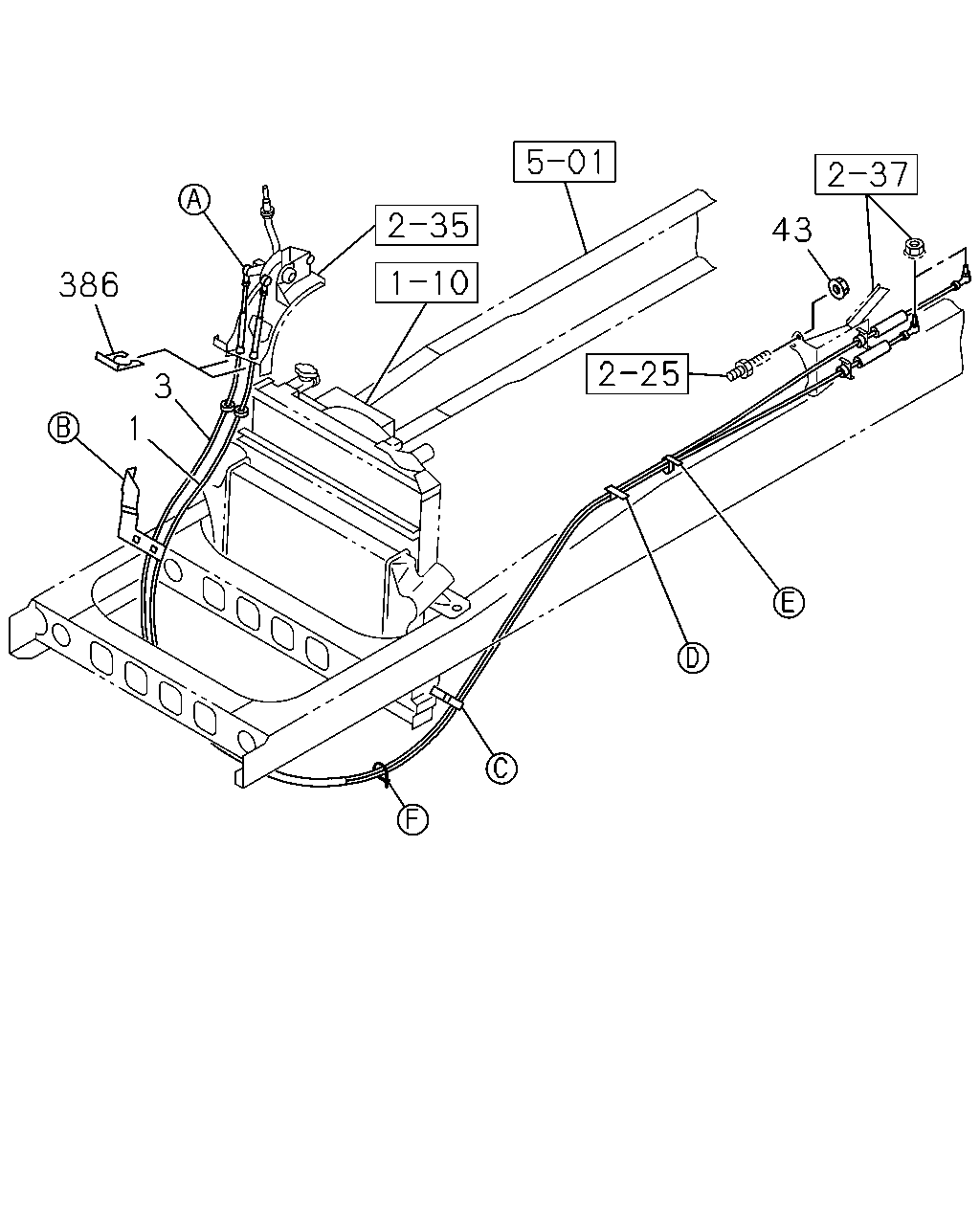

çizim 363038
386 3 1 43
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> L=3500 		8-98071-386-3 01 1 1307-1312 ● ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> L=3500 		8-98071-386-3 01 1 1401- ● ● ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3020 		8-98177-697-1 01 1 1307- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3090 		8-98177-669-1 01 1 1307- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98071-388-2 01 1 1307-1312 ● ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98071-388-2 01 1 1401- ● ● ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3105 		8-98177-701-1 01 1 1307- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3215 		8-98177-671-1 01 1 1307- ●
43 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ● ●
43 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-210-0 02 1 1401- ● ● ●
386 CLIP; CONT CABLE & TUBE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		1-09700-966-1 02 1 1307-1312 ● ●
386 CLIP; CONT CABLE & TUBE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		1-09700-966-1 02 1 1401- ● ● ●

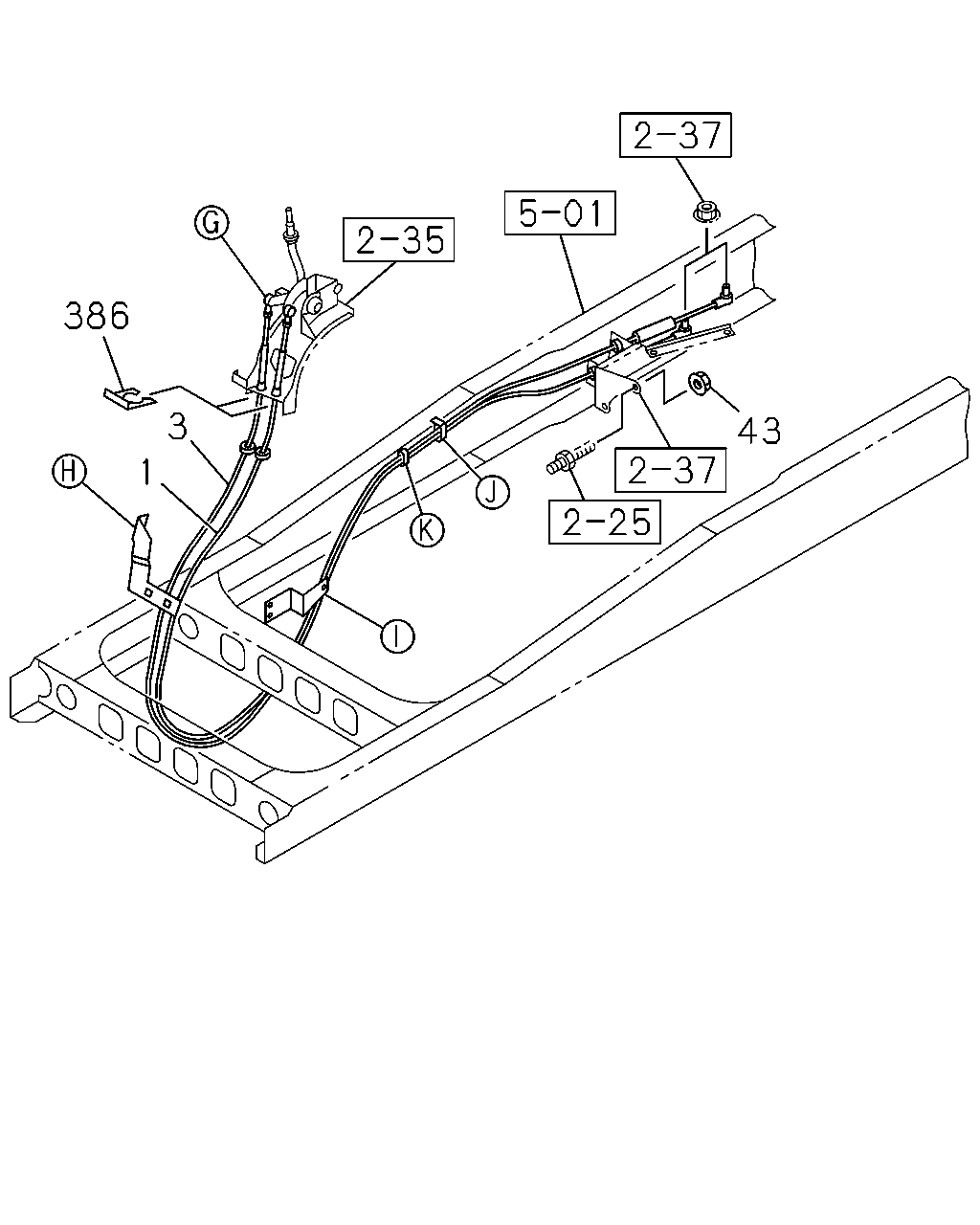

çizim 363050
386 3 1 43
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> L=3500 		8-98071-386-3 01 1 1307-1312 ● ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> L=3500 		8-98071-386-3 01 1 1401- ● ● ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3020 		8-98177-697-1 01 1 1307- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3090 		8-98177-669-1 01 1 1307- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98071-388-2 01 1 1307-1312 ● ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98071-388-2 01 1 1401- ● ● ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3105 		8-98177-701-1 01 1 1307- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3215 		8-98177-671-1 01 1 1307- ●
43 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-210-0 02 1 1307-1312 ● ●
43 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-210-0 02 1 1401- ● ● ●
386 CLIP; CONT CABLE & TUBE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		1-09700-966-1 02 1 1307-1312 ● ●
386 CLIP; CONT CABLE & TUBE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		1-09700-966-1 02 1 1401- ● ● ●

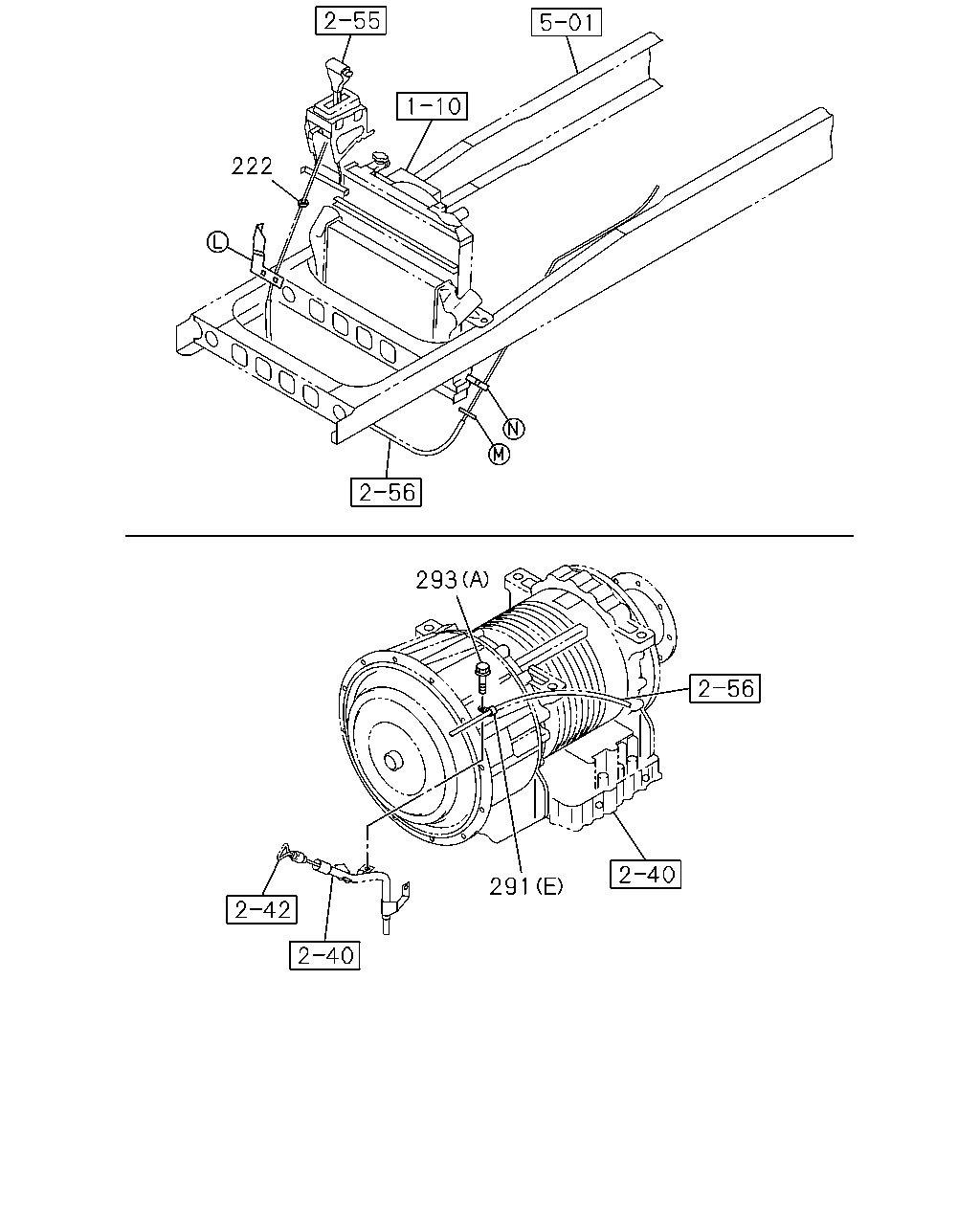

çizim 363080
222 293 291
BalonParca AdiParca NoAdetTipApplied Date A B C
222 GROMMET; CABLE
LCT2500 A/T ALLISON(Y5W) 		8-98043-470-0 01 1 1307-1312 ●
222 GROMMET; CABLE
LCT2500 A/T ALLISON(Y5W) 		8-98043-470-0 01 1 1401-1502 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=13 & 10 & 10 L=43.5 		8-98292-921-0 01 1 1505- ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1307-1312 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1401-1504 ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1505- ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16 		0-95325-026-0 02 1 1307-1312 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16 		0-95325-026-0 02 1 1401- ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16 		0-95325-026-0 01 1 1307- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 13 L=32 		8-97389-264-0 01 1 1307- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 13 L=32 		8-97389-264-0 02 1 1307- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98080-966-0 01 1 1307- ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2500 A/T ALLISON(Y5W) (F) ID=13 L=24 		0-95235-245-0 02 1 1307- ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2500 A/T ALLISON(Y5W) (E) ID=13 L=28 		0-95235-255-0 01 1 1307- ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2500 A/T ALLISON(Y5W) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1307- ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1307-1312 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2500 A/T ALLISON(Y5W) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1307-1312 ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1307-1312 ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1401- ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2500 A/T ALLISON(Y5W) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1401- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1401- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1307-1312 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1401- ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28650-820-0 01 1 1307-1312 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28650-820-0 01 1 1401- ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) M8X25 FLANGE 		0-28650-825-0 02 1 1307- ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) M8X25 FLANGE 		0-28650-825-0 03 1 1307- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2500 A/T ALLISON(Y5W) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1307- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2500 A/T ALLISON(Y5W) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1307- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2500 A/T ALLISON(Y5W) (C) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ●
çizim 363081
281 487 474 275 6 488 282 293 291 293
BalonParca AdiParca NoAdetTipApplied Date A B C
6 CLIP; CABLE
LCT2500 A/T ALLISON(Y5W) (B) ID=13 L=20 		0-95235-236-0 01 1 1307-1312 ●
6 CLIP; CABLE
LCT2500 A/T ALLISON(Y5W) (B) ID=13 L=20 		0-95235-236-0 01 1 1401- ● ●
6 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1307-1312 ● ●
6 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1401- ● ● ●
275 BOLT; CONT CABLE CLIP
LCT2500 A/T ALLISON(Y5W) M8X25 W/WASHER 		0-51640-825-0 01 1 1307-1312 ●
275 BOLT; CONT CABLE CLIP
LCT2500 A/T ALLISON(Y5W) M8X25 W/WASHER 		0-51640-825-0 01 1 1401- ● ●
281 CLIP; BAND
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 1307-1312 ● ●
281 CLIP; BAND
LCT2500 A/T ALLISON(Y5W) L=300 		1-09707-001-1 01 1 1307-1312 ●
281 CLIP; BAND
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 1401- ● ● ●
281 CLIP; BAND
LCT2500 A/T ALLISON(Y5W) L=300 		1-09707-001-1 01 1 1401- ● ●
282 BRACKET; TRANS SIDE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98010-418-0 01 1 1307-1312 ● ●
282 BRACKET; TRANS SIDE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98010-418-0 01 1 1401- ● ● ●
282 BRACKET; TRANS SIDE
LCT2500 A/T ALLISON(Y5W) 		8-98010-418-0 01 1 1307- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=13 & 10 & 10 L=43.5 		8-98292-921-0 01 1 1505- ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1307-1312 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1401-1504 ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1505- ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16 		0-95325-026-0 02 1 1307-1312 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16 		0-95325-026-0 02 1 1401- ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16 		0-95325-026-0 01 1 1307- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 13 L=32 		8-97389-264-0 01 1 1307- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 13 L=32 		8-97389-264-0 02 1 1307- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98080-966-0 01 1 1307- ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2500 A/T ALLISON(Y5W) (F) ID=13 L=24 		0-95235-245-0 02 1 1307- ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2500 A/T ALLISON(Y5W) (E) ID=13 L=28 		0-95235-255-0 01 1 1307- ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2500 A/T ALLISON(Y5W) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1307- ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1307-1312 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2500 A/T ALLISON(Y5W) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1307-1312 ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1307-1312 ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1401- ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2500 A/T ALLISON(Y5W) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1401- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1401- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1307-1312 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1401- ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28650-820-0 01 1 1307-1312 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28650-820-0 01 1 1401- ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) M8X25 FLANGE 		0-28650-825-0 02 1 1307- ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) M8X25 FLANGE 		0-28650-825-0 03 1 1307- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2500 A/T ALLISON(Y5W) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1307- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2500 A/T ALLISON(Y5W) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1307- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2500 A/T ALLISON(Y5W) (C) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ●
474 BOLT; BRKT
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 02 1 1307-1312 ● ●
474 BOLT; BRKT
LCT2500 A/T ALLISON(Y5W) M8X25 W/WASHER 		0-51640-825-0 02 1 1307-1312 ●
474 BOLT; BRKT
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 02 1 1401- ● ● ●
474 BOLT; BRKT
LCT2500 A/T ALLISON(Y5W) M8X25 W/WASHER 		0-51640-825-0 02 1 1401- ● ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M8X25 W/WASHER 		0-51640-825-0 01 1 1307-1312 ● ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M8X25 W/WASHER 		0-51640-825-0 01 1 1401- ● ● ●
487 BRACKET; CONT CABLE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98183-009-0 01 1 1307-1312 ● ●
487 BRACKET; CONT CABLE
LCT2500 A/T ALLISON(Y5W) 		8-98183-009-0 01 1 1307-1312 ●
487 BRACKET; CONT CABLE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98183-009-0 01 1 1401- ● ● ●
487 BRACKET; CONT CABLE
LCT2500 A/T ALLISON(Y5W) 		8-98183-009-0 01 1 1401- ● ●
488 NUT; CABLE
LCT2500 A/T ALLISON(Y5W) 		5-09400-048-0 02 1 1307-1312 ●
488 NUT; CABLE
LCT2500 A/T ALLISON(Y5W) 		5-09400-048-0 02 1 1401- ● ●

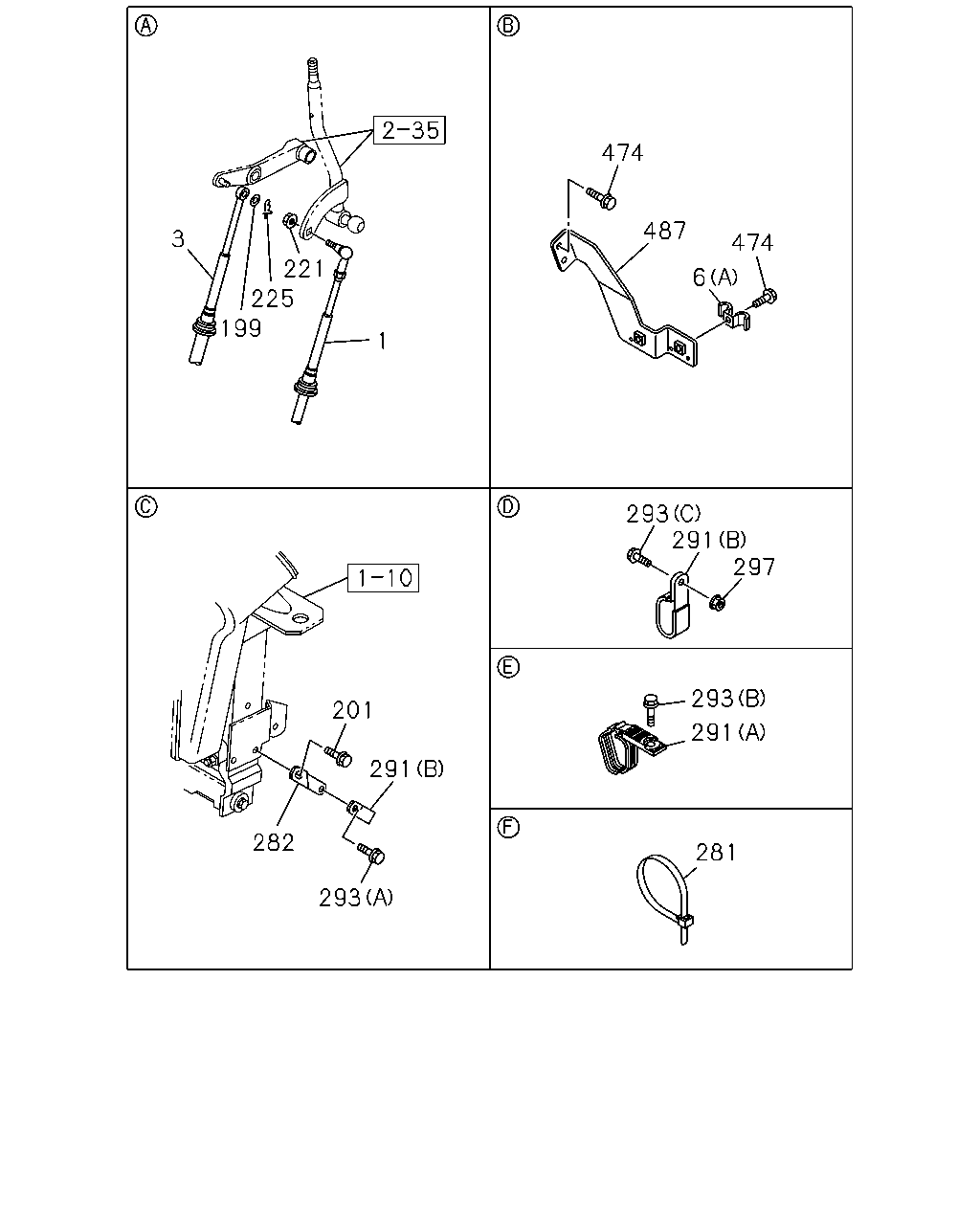

çizim 363188
3 199 225 221 1 201 291 282 293 281 291 293 297 291 293 6 474 487 474
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> L=3500 		8-98071-386-3 01 1 1307-1312 ● ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> L=3500 		8-98071-386-3 01 1 1401- ● ● ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3020 		8-98177-697-1 01 1 1307- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3090 		8-98177-669-1 01 1 1307- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98071-388-2 01 1 1307-1312 ● ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98071-388-2 01 1 1401- ● ● ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3105 		8-98177-701-1 01 1 1307- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3215 		8-98177-671-1 01 1 1307- ●
6 CLIP; CABLE
LCT2500 A/T ALLISON(Y5W) (B) ID=13 L=20 		0-95235-236-0 01 1 1307-1312 ●
6 CLIP; CABLE
LCT2500 A/T ALLISON(Y5W) (B) ID=13 L=20 		0-95235-236-0 01 1 1401- ● ●
6 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1307-1312 ● ●
6 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1401- ● ● ●
199 WASHER; PL,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=16 		0-91614-508-0 01 1 1307-1312 ● ●
199 WASHER; PL,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=16 		0-91614-508-0 01 1 1401- ● ● ●
201 BOLT; BRKT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 1307-1312 ● ●
201 BOLT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 1401- ● ● ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-062-1 01 1 1307-1312 ● ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-062-1 01 1 1401- ● ● ●
225 PIN; SELECT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> L=27.7 		8-94111-137-0 01 1 1307-1312 ● ●
225 PIN; SELECT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> L=27.7 		8-94111-137-0 01 1 1401- ● ● ●
281 CLIP; BAND
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 1307-1312 ● ●
281 CLIP; BAND
LCT2500 A/T ALLISON(Y5W) L=300 		1-09707-001-1 01 1 1307-1312 ●
281 CLIP; BAND
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 1401- ● ● ●
281 CLIP; BAND
LCT2500 A/T ALLISON(Y5W) L=300 		1-09707-001-1 01 1 1401- ● ●
282 BRACKET; TRANS SIDE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98010-418-0 01 1 1307-1312 ● ●
282 BRACKET; TRANS SIDE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98010-418-0 01 1 1401- ● ● ●
282 BRACKET; TRANS SIDE
LCT2500 A/T ALLISON(Y5W) 		8-98010-418-0 01 1 1307- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=13 & 10 & 10 L=43.5 		8-98292-921-0 01 1 1505- ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1307-1312 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1401-1504 ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1505- ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16 		0-95325-026-0 02 1 1307-1312 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16 		0-95325-026-0 02 1 1401- ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16 		0-95325-026-0 01 1 1307- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 13 L=32 		8-97389-264-0 01 1 1307- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 13 L=32 		8-97389-264-0 02 1 1307- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98080-966-0 01 1 1307- ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2500 A/T ALLISON(Y5W) (F) ID=13 L=24 		0-95235-245-0 02 1 1307- ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2500 A/T ALLISON(Y5W) (E) ID=13 L=28 		0-95235-255-0 01 1 1307- ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2500 A/T ALLISON(Y5W) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1307- ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1307-1312 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2500 A/T ALLISON(Y5W) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1307-1312 ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1307-1312 ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1401- ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2500 A/T ALLISON(Y5W) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1401- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1401- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1307-1312 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1401- ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28650-820-0 01 1 1307-1312 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28650-820-0 01 1 1401- ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) M8X25 FLANGE 		0-28650-825-0 02 1 1307- ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) M8X25 FLANGE 		0-28650-825-0 03 1 1307- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2500 A/T ALLISON(Y5W) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1307- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2500 A/T ALLISON(Y5W) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1307- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2500 A/T ALLISON(Y5W) (C) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ●
297 NUT; CLIP
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ● ●
297 NUT; CLIP
LCT2500 A/T ALLISON(Y5W) M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ●
297 NUT; CLIP
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 1401- ● ● ●
297 NUT; CLIP
LCT2500 A/T ALLISON(Y5W) M8 FLANGE 		0-91180-108-0 01 1 1401- ● ●
297 NUT; CLIP
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 02 1 1307- ●
474 BOLT; BRKT
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 02 1 1307-1312 ● ●
474 BOLT; BRKT
LCT2500 A/T ALLISON(Y5W) M8X25 W/WASHER 		0-51640-825-0 02 1 1307-1312 ●
474 BOLT; BRKT
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 02 1 1401- ● ● ●
474 BOLT; BRKT
LCT2500 A/T ALLISON(Y5W) M8X25 W/WASHER 		0-51640-825-0 02 1 1401- ● ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M8X25 W/WASHER 		0-51640-825-0 01 1 1307-1312 ● ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M8X25 W/WASHER 		0-51640-825-0 01 1 1401- ● ● ●
487 BRACKET; CONT CABLE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98183-009-0 01 1 1307-1312 ● ●
487 BRACKET; CONT CABLE
LCT2500 A/T ALLISON(Y5W) 		8-98183-009-0 01 1 1307-1312 ●
487 BRACKET; CONT CABLE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98183-009-0 01 1 1401- ● ● ●
487 BRACKET; CONT CABLE
LCT2500 A/T ALLISON(Y5W) 		8-98183-009-0 01 1 1401- ● ●

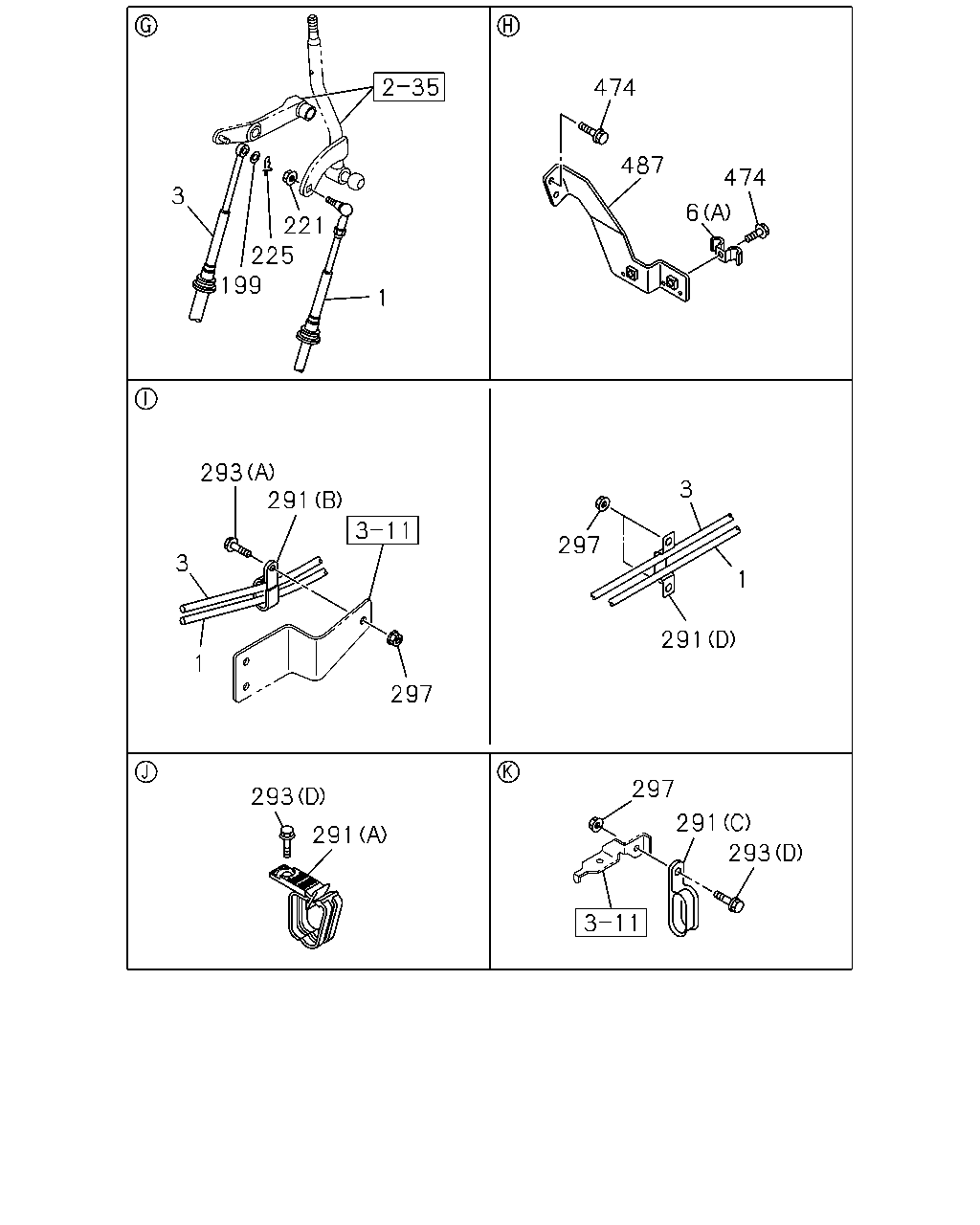

çizim 363215
1 199 225 221 3 474 487 474 6 3 1 297 291 297 1 3 291 293 293 291 297 291 293
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> L=3500 		8-98071-386-3 01 1 1307-1312 ● ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> L=3500 		8-98071-386-3 01 1 1401- ● ● ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3020 		8-98177-697-1 01 1 1307- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3090 		8-98177-669-1 01 1 1307- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98071-388-2 01 1 1307-1312 ● ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98071-388-2 01 1 1401- ● ● ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3105 		8-98177-701-1 01 1 1307- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3215 		8-98177-671-1 01 1 1307- ●
6 CLIP; CABLE
LCT2500 A/T ALLISON(Y5W) (B) ID=13 L=20 		0-95235-236-0 01 1 1307-1312 ●
6 CLIP; CABLE
LCT2500 A/T ALLISON(Y5W) (B) ID=13 L=20 		0-95235-236-0 01 1 1401- ● ●
6 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1307-1312 ● ●
6 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1401- ● ● ●
199 WASHER; PL,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=16 		0-91614-508-0 01 1 1307-1312 ● ●
199 WASHER; PL,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=16 		0-91614-508-0 01 1 1401- ● ● ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-062-1 01 1 1307-1312 ● ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-062-1 01 1 1401- ● ● ●
225 PIN; SELECT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> L=27.7 		8-94111-137-0 01 1 1307-1312 ● ●
225 PIN; SELECT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> L=27.7 		8-94111-137-0 01 1 1401- ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=13 & 10 & 10 L=43.5 		8-98292-921-0 01 1 1505- ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1307-1312 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1401-1504 ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1505- ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16 		0-95325-026-0 02 1 1307-1312 ● ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16 		0-95325-026-0 02 1 1401- ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16 		0-95325-026-0 01 1 1307- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 13 L=32 		8-97389-264-0 01 1 1307- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 13 L=32 		8-97389-264-0 02 1 1307- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98080-966-0 01 1 1307- ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2500 A/T ALLISON(Y5W) (F) ID=13 L=24 		0-95235-245-0 02 1 1307- ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2500 A/T ALLISON(Y5W) (E) ID=13 L=28 		0-95235-255-0 01 1 1307- ●
291 CLIP; SHIFT TO SELECT,FRAME
LCT2500 A/T ALLISON(Y5W) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1307- ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1307-1312 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2500 A/T ALLISON(Y5W) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1307-1312 ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1307-1312 ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1401- ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2500 A/T ALLISON(Y5W) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1401- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1401- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1307-1312 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1401- ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28650-820-0 01 1 1307-1312 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X20 FLANGE 		0-28650-820-0 01 1 1401- ● ● ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) M8X25 FLANGE 		0-28650-825-0 02 1 1307- ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) M8X25 FLANGE 		0-28650-825-0 03 1 1307- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2500 A/T ALLISON(Y5W) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1307- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2500 A/T ALLISON(Y5W) (B) M8X20 FLANGE 		0-28050-820-0 01 1 1307- ●
293 BOLT; CLIP,SHIFT TO SELECT
LCT2500 A/T ALLISON(Y5W) (C) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ●
297 NUT; CLIP
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ● ●
297 NUT; CLIP
LCT2500 A/T ALLISON(Y5W) M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ●
297 NUT; CLIP
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 1401- ● ● ●
297 NUT; CLIP
LCT2500 A/T ALLISON(Y5W) M8 FLANGE 		0-91180-108-0 01 1 1401- ● ●
297 NUT; CLIP
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 02 1 1307- ●
474 BOLT; BRKT
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 02 1 1307-1312 ● ●
474 BOLT; BRKT
LCT2500 A/T ALLISON(Y5W) M8X25 W/WASHER 		0-51640-825-0 02 1 1307-1312 ●
474 BOLT; BRKT
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 02 1 1401- ● ● ●
474 BOLT; BRKT
LCT2500 A/T ALLISON(Y5W) M8X25 W/WASHER 		0-51640-825-0 02 1 1401- ● ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M8X25 W/WASHER 		0-51640-825-0 01 1 1307-1312 ● ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M8X25 W/WASHER 		0-51640-825-0 01 1 1401- ● ● ●
487 BRACKET; CONT CABLE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98183-009-0 01 1 1307-1312 ● ●
487 BRACKET; CONT CABLE
LCT2500 A/T ALLISON(Y5W) 		8-98183-009-0 01 1 1307-1312 ●
487 BRACKET; CONT CABLE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98183-009-0 01 1 1401- ● ● ●
487 BRACKET; CONT CABLE
LCT2500 A/T ALLISON(Y5W) 		8-98183-009-0 01 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
