Sayfa 2-30A - Isuzu EPC

2-30A — GEAR SHIFTER AND QUADRANT BOX (#123668) — 312 parça

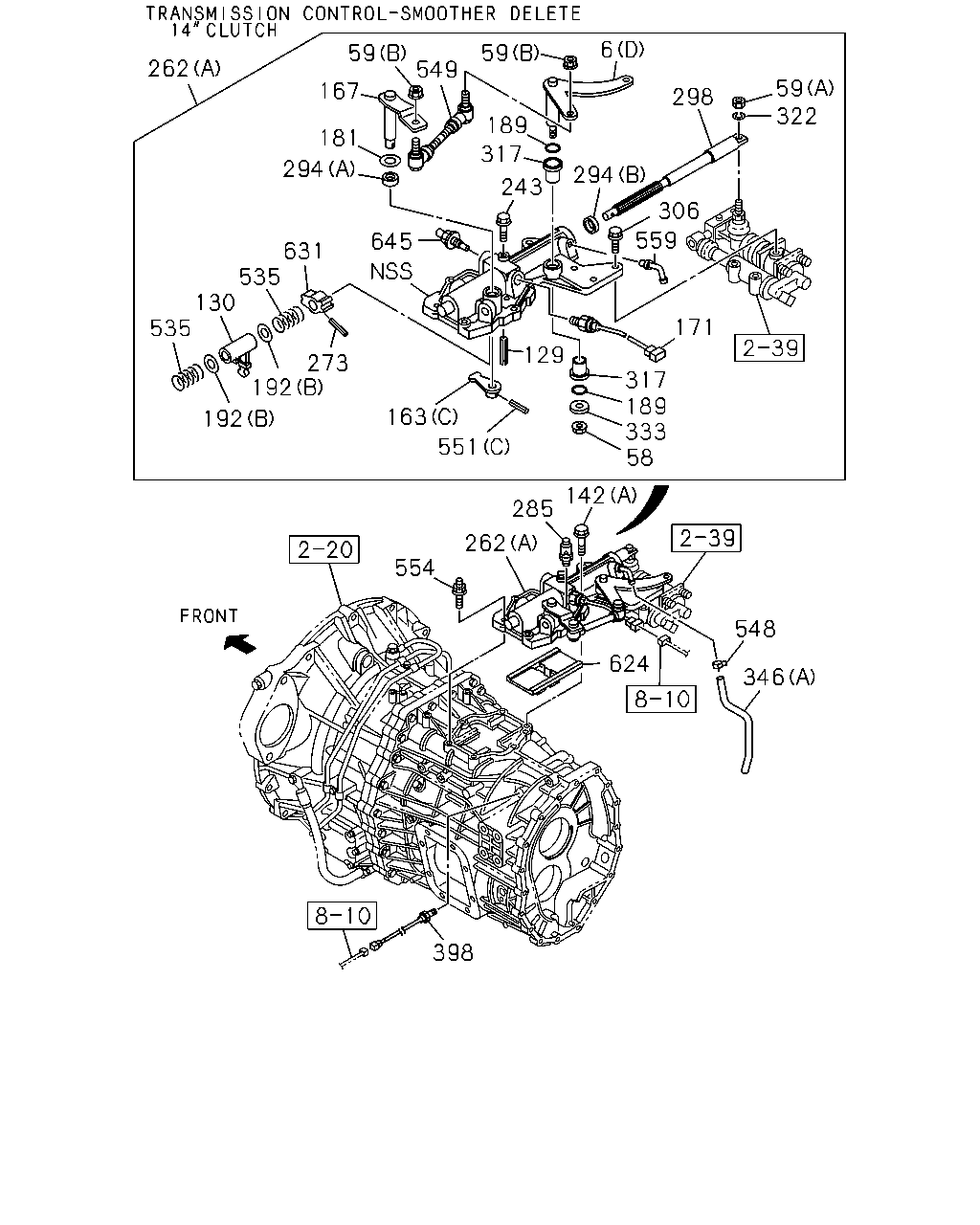

398 346 548 624 262 142 142 651 374 654 551 243 652 651 381 163 551 315 551 631 381 265 655 374 374 654 551 656 655 163 551 654 551 374 171 657 656 265 298 551 133 656 133 559 317 6 317 530 274 294 192 167 243 653 652 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1307-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	1307-
6	LEVER; RELAY 14" CLUTCH(WF6) (D)	8-98014-157-1	01	1	1307-
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	1307-
133	SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-988-0	01	1	1307-
133	SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-989-0	01	1	1307-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE	8-97365-376-0	04	1	1307-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	1307-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	1307-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-97305-663-0	01	1	1307-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-979-0	01	1	1307-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-990-0	01	1	1307-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	1307-
167	LEVER; SELECT,EXTERNAL 14" CLUTCH(WF6)	8-98021-489-0	01	1	1307-
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	1307-
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-172-0	01	1	1307-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1307-1307
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-050-0	01	1	1307-1312
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1307-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-661-0	02	1	1307-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	1307-
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE	1-33739-842-0	11	1	1307-
243	BOLT; COVER 14" CLUTCH(WF6) M6X12 FLANGE	1-33739-842-0	01	1	1307-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98107-814-1	01	1	1307-1307
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98241-122-1	01	1	1307-1411
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98296-530-0	01	1	1412-1509
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98331-686-0	01	1	1510-
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) (A)	8-98207-563-0	01	1	1307-1307
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) (A)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) (A)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) (A)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) (A)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) (B)	8-98207-565-0	01	1	1307-1307
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) (B)	8-98305-335-1	01	1	1508-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97363-225-0	01	1	1307-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-981-0	01	1	1307-
274	COVER; SHAFT,QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-711-0	01	1	1307-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-662-0	01	1	1307-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97363-225-0	01	1	1307-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	1307-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	1307-
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6)	8-98097-117-0	01	1	1307-1507
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6)	8-98305-343-0	01	1	1508-
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9)	8-97305-685-0	01	1	1307-1507
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9)	8-98305-342-0	01	1	1508-
315	LEVER; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-998-0	01	1	1307-1411
315	LEVER; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98296-526-0	01	1	1412-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09330-119-0	02	1	1307-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	1307-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1307-1404
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	1307-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-571-0	03	1	1307-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97349-573-0	01	1	1307-
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	1307-
381	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE	1-33739-842-0	04	1	1307-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1307-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
530	SHAFT; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-996-0	01	1	1307-
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97031-674-0	01	1	1307-1404
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1307-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1307-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1307-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	1307-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	1307-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	1307-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-318-0	01	1	1405-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	1307-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1307-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	1307-
631	STOPPER; SPRING 14" CLUTCH(WF6)	8-98014-158-0	01	1	1307-
631	STOPPER; SPRING 15" CLUTCH(RE9)	8-97305-666-0	01	1	1307-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98048-497-1	01	1	1307-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98048-498-1	01	1	1307-
652	BOLT; SORENOID TRANSMISSION CONTROL-SMOOTHER(8GF) M10X25 FLANGE	0-28151-025-0	06	1	1307-
653	SOLENOID ASM; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98002-761-0	01	1	1307-
654	JOINT; SOLENOID,CASE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-473-0	02	1	1307-
654	JOINT; SOLENOID,CASE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97380-419-0	01	1	1307-
655	SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98107-823-0	01	1	1307-
655	SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98107-824-0	01	1	1307-
656	SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-985-0	01	1	1307-
656	SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-986-0	01	1	1307-
656	SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-987-0	01	1	1307-
657	PLATE; SIDE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-712-0	01	1	1307-

192 6 192 6 192 320 685 6 192 234 682 453 551 82 551 65 683 551 51 78 551 32 551 684 89 102 551 66 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1307-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	1307-
6	LEVER; RELAY 14" CLUTCH(WF6) (D)	8-98014-157-1	01	1	1307-
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	1307-
32	ARM; SHIFT,1ST & 2ND	8-98062-167-0	01	1	1307-1307
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1308-
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1307-
65	BLOCK ASM; SHIFT,5TH & 6TH	8-97388-980-1	01	1	1307-
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1307-
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1307-
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1307-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1307-
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	1307-1506
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1307-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1307-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-661-0	02	1	1307-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	1307-
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1307-
320	SHAFT; LEVER	8-97377-928-0	01	1	1307-
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1307-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1307-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1307-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1307-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	1307-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	1307-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	1307-
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1307-
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1307-
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1307-
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1307-

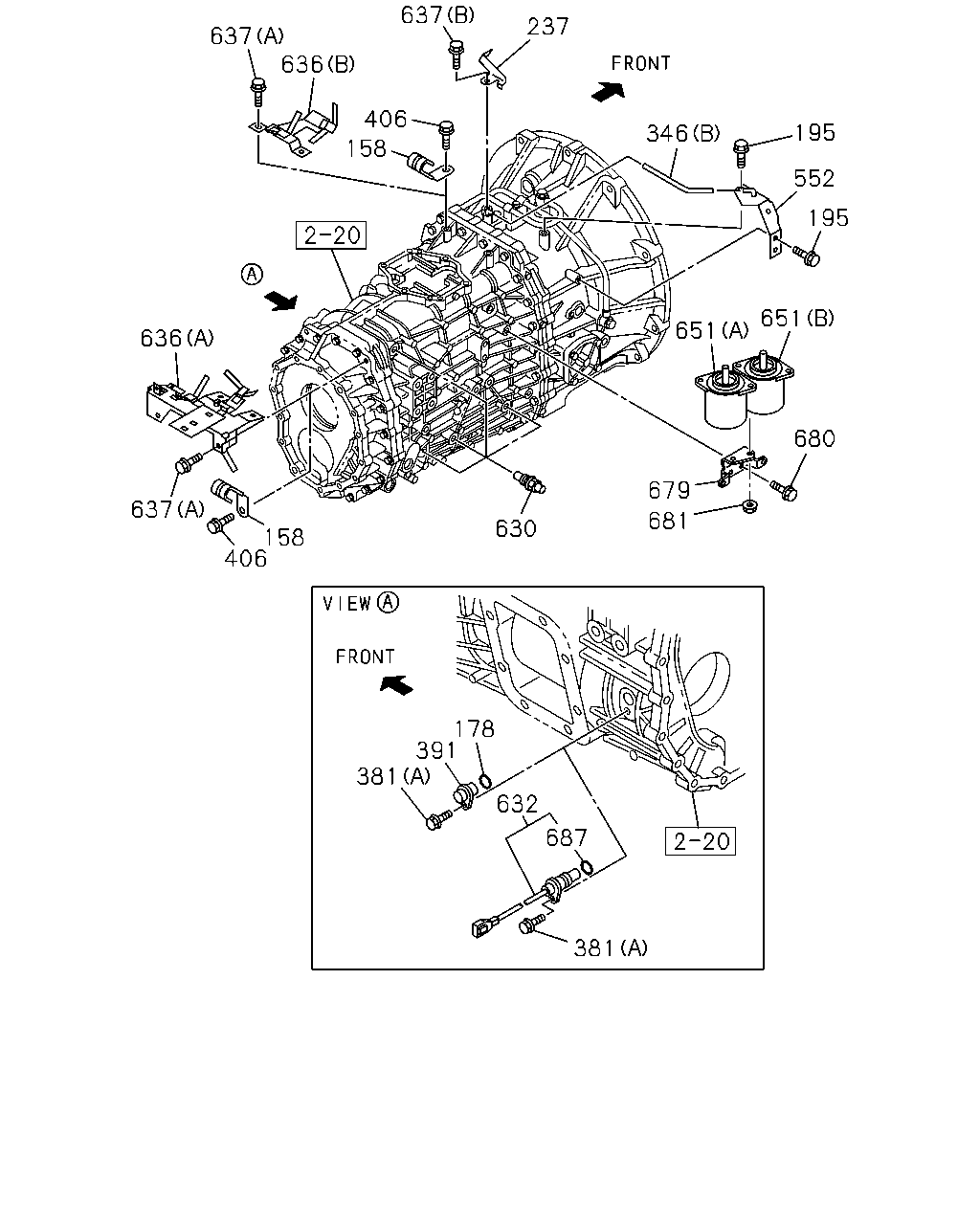

381 687 632 178 391 381 630 681 679 680 651 651 195 552 195 346 237 637 406 158 636 637 158 406 637 636

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1307-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-09567-113-0	01	1	1307-
195	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1307-
237	BRACKET; CABLE,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98009-307-1	01	1	1307-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1307-1404
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	1307-
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	1307-
381	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE	1-33739-842-0	04	1	1307-
391	PLUG; SW HOLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97300-273-1	01	1	1307-
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	1307-
552	BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98005-329-1	01	1	1307-
630	DETENT ASM	8-98019-536-0	04	1	1307-
632	SENSOR; TRANS,REV TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97315-604-1	01	1	1307-
636	BRACKET; CLIP 14" CLUTCH(WF6) (B)	8-97610-092-1	01	1	1307-1502
636	BRACKET; CLIP 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97610-093-1	01	1	1307-
636	BRACKET; CLIP 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-97610-096-2	01	1	1307-
637	BOLT; BRACKET (A) M8X16 FLANGE	0-28050-816-0	02	1	1307-1502
637	BOLT; BRACKET 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1503-
637	BOLT; BRACKET 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X16 FLANGE	0-28050-816-0	02	1	1503-
637	BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1307-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98048-497-1	01	1	1307-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98048-498-1	01	1	1307-
679	BRACKET; HEAT PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98005-332-0	01	1	1307-
680	BOLT; FLANGE TRANSMISSION CONTROL-SMOOTHER(8GF) M10X20 FLANGE	0-28761-020-0	02	1	1307-
681	NUT; FLANGE TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE	0-91180-210-0	02	1	1307-
687	GASKET; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF)	9-09567-113-0	01	1	1307-

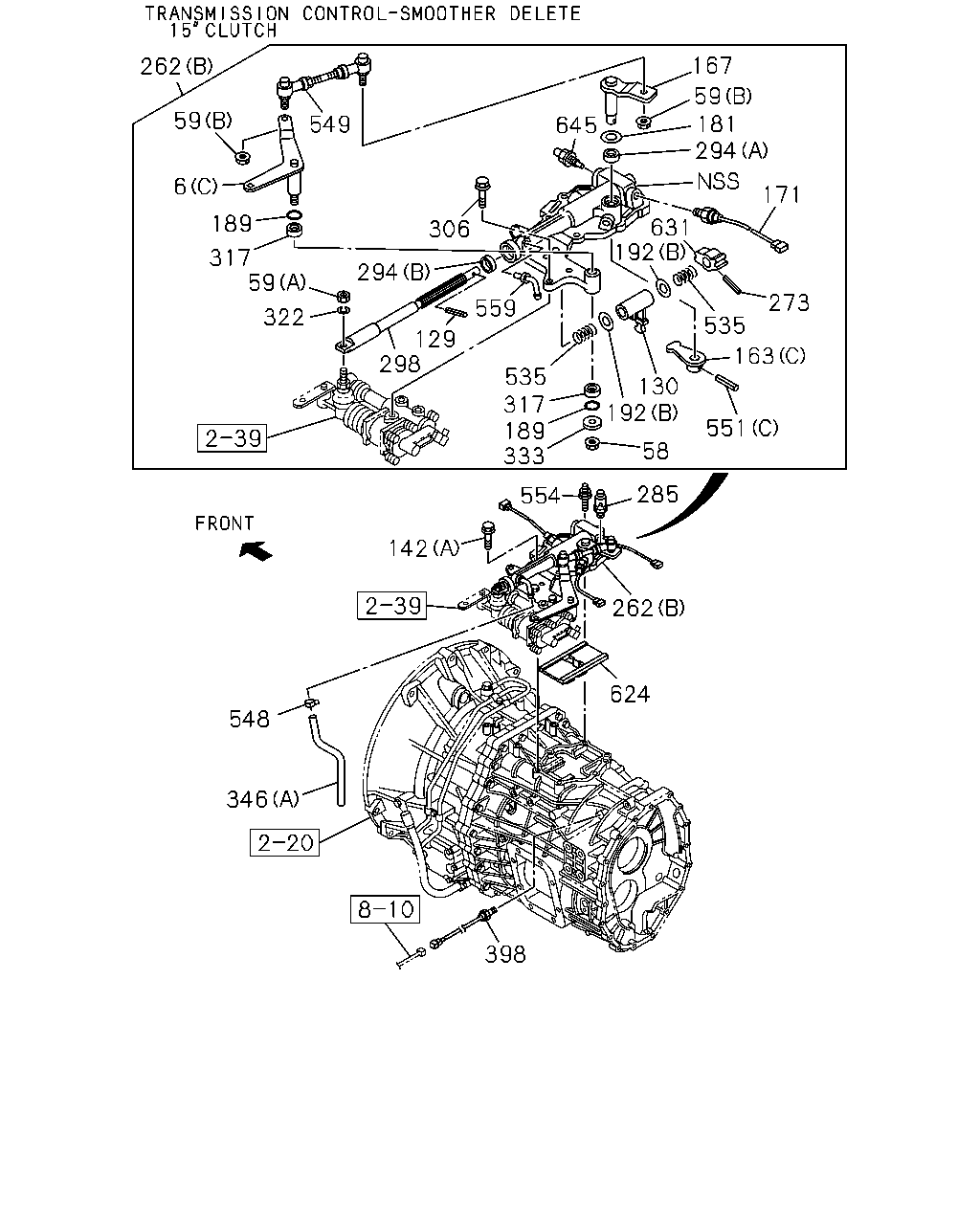

262 59 549 6 189 317 59 322 294 306 559 129 298 535 317 189 333 554 285 262 624 142 548 346 398 551 58 130 192 163 535 273 171 294 181 59 167 645 631 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1307-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	1307-
6	LEVER; RELAY 14" CLUTCH(WF6) (D)	8-98014-157-1	01	1	1307-
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	1307-
58	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-110-0	01	1	1307-
59	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12	0-91110-512-0	01	1	1307-
59	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE	0-91180-108-0	02	1	1307-
129	PIN; SPR,SHIFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=30 OD=4	1-09748-031-0	01	1	1307-
130	LEVER; SHIFT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97306-647-0	01	1	1307-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE	8-97365-376-0	04	1	1307-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	1307-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	1307-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-97305-663-0	01	1	1307-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-979-0	01	1	1307-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-990-0	01	1	1307-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	1307-
167	LEVER; SELECT,EXTERNAL 14" CLUTCH(WF6)	8-98021-489-0	01	1	1307-
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	1307-
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-172-0	01	1	1307-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1307-1307
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-050-0	01	1	1307-1312
181	WASHER; PL,SELECT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97367-327-0	01	1	1307-
189	GASKET; SELECT LEVER,CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09623-594-0	02	1	1307-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1307-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-661-0	02	1	1307-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	1307-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98107-814-1	01	1	1307-1307
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98241-122-1	01	1	1307-1411
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98296-530-0	01	1	1412-1509
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98331-686-0	01	1	1510-
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) (A)	8-98207-563-0	01	1	1307-1307
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) (A)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) (A)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) (A)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) (A)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) (B)	8-98207-565-0	01	1	1307-1307
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) (B)	8-98305-335-1	01	1	1508-
273	PIN; SPR,STOPPER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) D=4.2 L=25	8-97103-142-0	01	1	1307-
285	BREATHER; AIR,QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33149-003-0	01	1	1307-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-662-0	01	1	1307-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97363-225-0	01	1	1307-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	1307-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	1307-
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6)	8-98097-117-0	01	1	1307-1507
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6)	8-98305-343-0	01	1	1508-
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9)	8-97305-685-0	01	1	1307-1507
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9)	8-98305-342-0	01	1	1508-
306	BOLT; SHIFT ASSISTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X50 FLANGE	0-28051-050-0	03	1	1307-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09330-119-0	02	1	1307-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	1307-
322	WASHER; LK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98031-750-0	01	1	1307-
333	WASHER; PL,LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.5	0-91610-710-0	01	1	1307-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1307-1404
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	1307-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1307-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97385-713-0	02	1	1307-
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97031-674-0	01	1	1307-1404
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK 14" CLUTCH(WF6)	8-98023-095-0	01	1	1307-
549	ROD; LINK 15" CLUTCH(RE9)	8-98022-841-0	01	1	1307-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1307-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1307-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1307-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	1307-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	1307-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	1307-
554	STUD; CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49	8-97365-378-0	02	1	1307-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-318-0	01	1	1405-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	1307-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1307-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	1307-
631	STOPPER; SPRING 14" CLUTCH(WF6)	8-98014-158-0	01	1	1307-
631	STOPPER; SPRING 15" CLUTCH(RE9)	8-97305-666-0	01	1	1307-
645	DETENT ASM TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98019-536-0	01	1	1307-

262 167 181 294 189 317 6 59 549 59 298 59 322 535 130 535 631 192 192 273 163 551 645 243 294 129 317 189 333 58 171 306 559 554 285 262 142 548 346 624 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1307-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	1307-
6	LEVER; RELAY 14" CLUTCH(WF6) (D)	8-98014-157-1	01	1	1307-
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	1307-
58	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-110-0	01	1	1307-
59	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12	0-91110-512-0	01	1	1307-
59	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE	0-91180-108-0	02	1	1307-
129	PIN; SPR,SHIFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=30 OD=4	1-09748-031-0	01	1	1307-
130	LEVER; SHIFT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97306-647-0	01	1	1307-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE	8-97365-376-0	04	1	1307-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	1307-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	1307-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-97305-663-0	01	1	1307-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-979-0	01	1	1307-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-990-0	01	1	1307-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	1307-
167	LEVER; SELECT,EXTERNAL 14" CLUTCH(WF6)	8-98021-489-0	01	1	1307-
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	1307-
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-172-0	01	1	1307-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1307-1307
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-050-0	01	1	1307-1312
181	WASHER; PL,SELECT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97367-327-0	01	1	1307-
189	GASKET; SELECT LEVER,CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09623-594-0	02	1	1307-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1307-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-661-0	02	1	1307-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	1307-
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE	1-33739-842-0	11	1	1307-
243	BOLT; COVER 14" CLUTCH(WF6) M6X12 FLANGE	1-33739-842-0	01	1	1307-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98107-814-1	01	1	1307-1307
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98241-122-1	01	1	1307-1411
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98296-530-0	01	1	1412-1509
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98331-686-0	01	1	1510-
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) (A)	8-98207-563-0	01	1	1307-1307
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) (A)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) (A)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) (A)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) (A)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) (B)	8-98207-565-0	01	1	1307-1307
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) (B)	8-98305-335-1	01	1	1508-
273	PIN; SPR,STOPPER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) D=4.2 L=25	8-97103-142-0	01	1	1307-
285	BREATHER; AIR,QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33149-003-0	01	1	1307-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-662-0	01	1	1307-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97363-225-0	01	1	1307-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	1307-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	1307-
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6)	8-98097-117-0	01	1	1307-1507
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6)	8-98305-343-0	01	1	1508-
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9)	8-97305-685-0	01	1	1307-1507
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9)	8-98305-342-0	01	1	1508-
306	BOLT; SHIFT ASSISTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X50 FLANGE	0-28051-050-0	03	1	1307-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09330-119-0	02	1	1307-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	1307-
322	WASHER; LK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98031-750-0	01	1	1307-
333	WASHER; PL,LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.5	0-91610-710-0	01	1	1307-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1307-1404
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	1307-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1307-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97385-713-0	02	1	1307-
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97031-674-0	01	1	1307-1404
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK 14" CLUTCH(WF6)	8-98023-095-0	01	1	1307-
549	ROD; LINK 15" CLUTCH(RE9)	8-98022-841-0	01	1	1307-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1307-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1307-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1307-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	1307-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	1307-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	1307-
554	STUD; CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49	8-97365-378-0	02	1	1307-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-318-0	01	1	1405-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	1307-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1307-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	1307-
631	STOPPER; SPRING 14" CLUTCH(WF6)	8-98014-158-0	01	1	1307-
631	STOPPER; SPRING 15" CLUTCH(RE9)	8-97305-666-0	01	1	1307-
645	DETENT ASM TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98019-536-0	01	1	1307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
