2-07A — CLUTCH BOOSTER; MINIPACK (#123660) — 72 parça

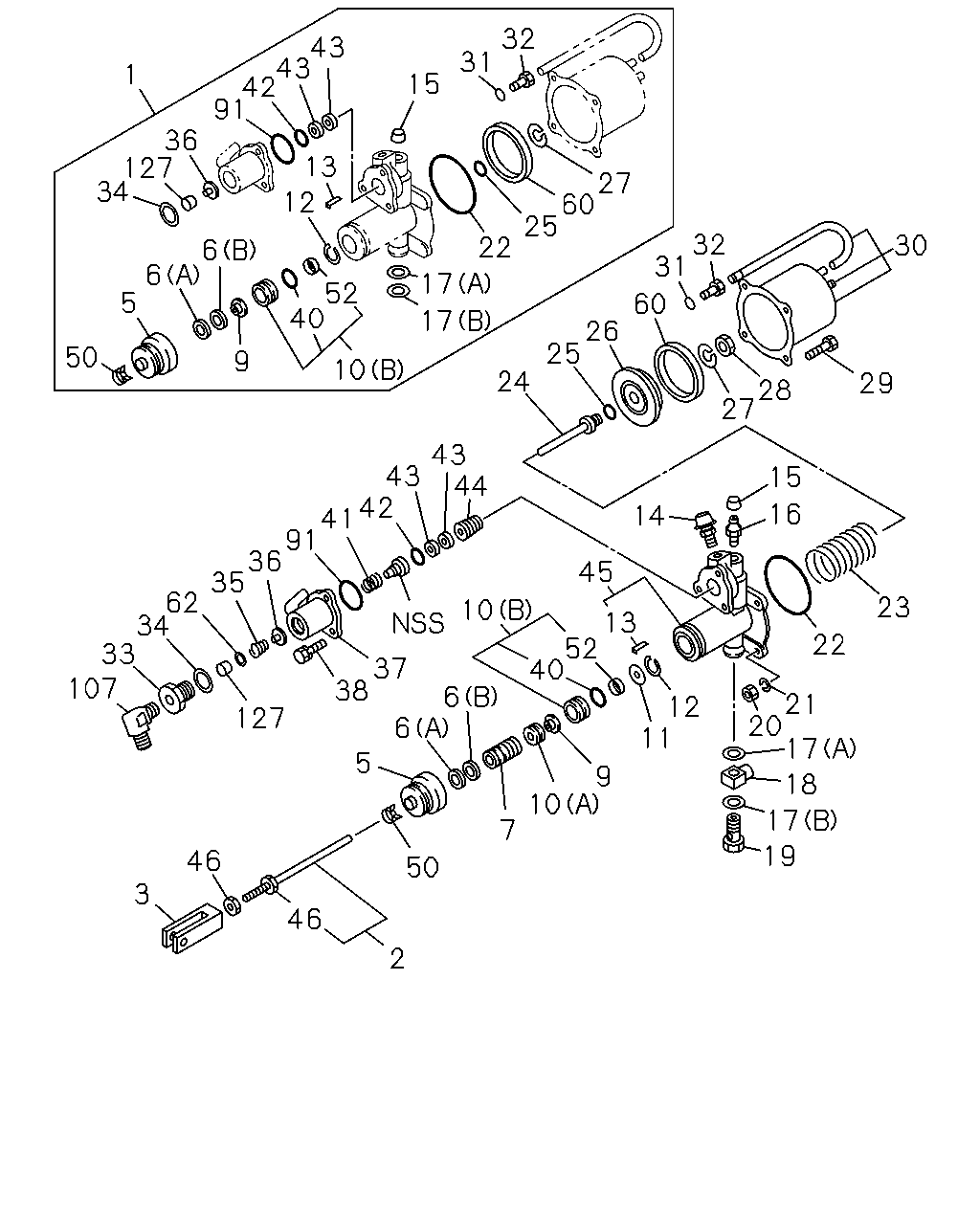

çizim 366064
19 18 17 17 20 22 21 23 16 15 14 29 28 27 45 13 12 11 9 10 7 50 2 46 46 3 5 6 52 10 37 38 127 30 32 31 60 26 25 24 44 43 43 42 41 91 36 35 62 34 33 107 27 60 25 22 17 17 10 52 40 9 32 31 15 13 12 6 6 5 34 43 43 42 36 127 1 40 6 50 91
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER
14" CLUTCH(WF6) 		1-31829-602-0 01 1 1307-
1 REPAIR KIT; CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-603-0 01 1 1307-
2 ROD; PUSH,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31824-240-0 01 1 1307-
3 CLEVIS; PUSH ROD,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31829-186-1 01 1 1307-
5 GUARD; PISTON,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31829-503-0 01 1 1307-
6 GASKET; PISTON CUP,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) (B) 		1-31829-498-0 01 1 1307-
6 GASKET; PISTON CUP,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) (A) 		1-31829-499-0 01 1 1307-
7 PISTON; CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31821-047-0 01 1 1307-
9 GASKET; PISTON CUP,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31829-003-0 01 1 1307-
10 RETAINER; PISTON,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) (B) 		1-31829-107-0 01 1 1307-
10 RETAINER; PISTON,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) (A) 		1-31829-108-0 01 1 1307-
11 WASHER; PISTON,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31829-105-0 01 1 1307-
12 RING; RET,CLU BOOSTER
14" CLUTCH(WF6) 		9-83315-315-0 01 1 1307-
12 RING; RET,CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-142-0 01 1 1307-
13 PIN; SPR
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31829-109-0 01 1 1307-
14 COVER; EXH,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31829-564-0 01 1 1307-
15 PROTECTOR; END PLATE,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		9-83335-044-0 01 1 1307-
16 PLUG; END PLATE,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		9-83331-704-0 01 1 1307-
17 GASKET; CONN,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) (A) 		9-09920-267-0 01 1 1307-
17 GASKET; CONN,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) (B) 		9-09920-268-0 01 1 1307-
18 CONNECTOR; END PLATE,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31829-248-0 01 1 1307-
19 BOLT; EYE,END PLATE,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		9-83315-047-0 01 1 1307-
20 NUT; END PLATE TO SHELL,CLU BOOSTER
14" CLUTCH(WF6) 		9-83315-085-0 04 1 1307-
20 NUT; END PLATE TO SHELL,CLU BOOSTER
15" CLUTCH(RE9) M10 		9-09111-410-0 04 1 1307-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
14" CLUTCH(WF6) ID=8.2 		9-09150-508-0 04 1 1307-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
15" CLUTCH(RE9) ID=10.2 		9-09150-510-0 04 1 1307-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER
14" CLUTCH(WF6) 		1-09623-327-0 01 1 1307-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER
15" CLUTCH(RE9) 		1-09623-322-0 01 1 1307-
23 SPRING; SHELL,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31829-358-0 01 1 1307-
24 ROD; PUSH,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31829-112-0 01 1 1307-
25 GASKET; PUSH ROD,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-09623-321-0 01 1 1307-
26 PISTON; SHELL,CLU BOOSTER
14" CLUTCH(WF6) 		1-31821-083-0 01 1 1307-
26 PISTON; SHELL,CLU BOOSTER
15" CLUTCH(RE9) 		1-31821-084-0 01 1 1307-
27 SPRING; CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31829-111-0 01 1 1307-
28 NUT; PUSH ROD,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		9-88510-365-0 01 1 1307-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER
14" CLUTCH(WF6) 		1-31829-015-0 04 1 1307-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER
15" CLUTCH(RE9) 		9-83315-099-0 04 1 1307-
30 SHELL; CYL,CLU BOOSTER
14" CLUTCH(WF6) 		1-31811-123-0 01 1 1307-
30 SHELL; CYL,CLU BOOSTER
15" CLUTCH(RE9) 		1-31811-124-0 01 1 1307-
31 GASKET; SHELL,CLU BOOSTER
14" CLUTCH(WF6) 		1-31829-113-0 01 1 1307-
31 GASKET; SHELL,CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-279-0 01 1 1307-
32 BUSHING; SHELL,CLU BOOSTER
14" CLUTCH(WF6) 		1-31829-114-0 01 1 1307-
32 BUSHING; SHELL,CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-280-0 01 1 1307-
33 CONNECTOR; UPR,VLV,CLU BOOSTER
14" CLUTCH(WF6) 		1-31829-212-0 01 1 1307-
33 CONNECTOR; UPR,VLV,CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-214-0 01 1 1307-
34 GASKET; CONN,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31829-053-0 01 1 1307-
35 SPRING; POPPET VLV,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31829-537-0 01 1 1307-
36 VALVE; POPPET,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31829-536-0 01 1 1307-
37 BODY; UPR,VLV,CLU BOOSTER
14" CLUTCH(WF6) 		1-31811-146-0 01 1 1307-
37 BODY; UPR,VLV,CLU BOOSTER
15" CLUTCH(RE9) 		1-31811-147-0 01 1 1307-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE
15" CLUTCH(RE9),14" CLUTCH(WF6) 		9-83315-113-0 03 1 1307-
40 GASKET; PISTON,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31829-037-0 01 1 1307-1412
40 GASKET; PISTON,CLU BOOSTER
14" CLUTCH(WF6) 		1-31829-037-0 01 1 1501-
41 SPRING; DIAPH,CLU BOOSTER
14" CLUTCH(WF6) 		1-31829-545-0 01 1 1307-
41 SPRING; DIAPH,CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-420-0 01 1 1307-
42 GASKET; FITTING,CLU BOOSTER
14" CLUTCH(WF6) 		1-31829-507-0 01 1 1307-
42 GASKET; FITTING,CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-143-0 01 1 1307-
43 GASKET; UPR VLV,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31829-060-0 02 1 1307-
44 PISTON; UPR VLV,CLU BOOSTER
14" CLUTCH(WF6) 		1-31821-051-0 01 1 1307-
44 PISTON; UPR VLV,CLU BOOSTER
15" CLUTCH(RE9) 		1-31821-087-0 01 1 1307-
45 PLATE; END,CLU BOOSTER
14" CLUTCH(WF6) 		1-31811-142-0 01 1 1307-
45 PLATE; END,CLU BOOSTER
15" CLUTCH(RE9) 		1-31811-143-0 01 1 1307-
46 NUT; PUSH ROD,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) M10 		9-09111-410-0 02 1 1307-
50 CLAMP; PISTON GUARD,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31829-504-0 01 1 1307-
52 SEAL; OIL,END PLATE,CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		9-83315-118-0 01 1 1307-1412
52 SEAL; OIL,END PLATE,CLU BOOSTER
14" CLUTCH(WF6) 		9-83315-118-0 01 1 1501-
60 GASKET; SHELL,CLU BOOSTER
14" CLUTCH(WF6) 		1-31829-535-0 01 1 1307-
60 GASKET; SHELL,CLU BOOSTER
15" CLUTCH(RE9) 		1-31829-544-0 01 1 1307-
62 RETAINER; POPPET
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31829-489-0 01 1 1307-
91 GASKET; CLU BOOSTER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31829-103-0 01 1 1307-
107 CONNECTOR; ELBOW
14" CLUTCH(WF6) 		1-09650-358-1 01 1 1307-
127 FILTER; POPPET
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31829-495-0 01 1 1307-
