◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#123659) — 148 parça
çizim 362818
104 23 50 184 239 106 101 48 50
BalonParca AdiParca NoAdetTipApplied Date A B C
23 GROMMET; CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1307-1312 ● ●
23 GROMMET; CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1401- ● ● ●
48 GASKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 01 1 1307-1312 ● ●
48 GASKET; FLEX HOSE,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 01 1 1307-1312 ● ●
48 GASKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 01 1 1401- ● ● ●
48 GASKET; FLEX HOSE,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 01 1 1401- ● ● ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 		0-91111-512-0 01 1 1307-1312 ● ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 		0-91111-512-0 01 1 1401- ● ● ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 		9-09840-280-0 01 1 1307-1312 ● ●
50 NUT; UNION
ASSISTOR SHIFT CONTROL<WX8> 15" CLUTCH(RE9),14" CLUTCH(WF6) (A) M12 		9-09840-280-0 01 1 1307-1312 ● ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 		9-09840-280-0 01 1 1401- ● ● ●
50 NUT; UNION
ASSISTOR SHIFT CONTROL<WX8> 15" CLUTCH(RE9),14" CLUTCH(WF6) (A) M12 		9-09840-280-0 01 1 1401- ● ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=500 		8-98072-350-0 01 1 1307-1312 ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=500 		8-98072-350-0 01 1 1401- ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=2542 		8-98234-774-0 01 1 1307- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=2695 		8-98078-148-2 01 1 1307-1312 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=2695 		8-98078-148-2 01 1 1401- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=336 		8-98067-058-0 01 1 1307-1312 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=336 		8-98067-058-0 01 1 1401- ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) SERVICED BY L=2650 		1-47428-743-0 01 1 1307- ●
106 UNION; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) M12 2WAY 		1-09654-059-2 01 1 1307-1312 ● ●
106 UNION; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) M12 2WAY 		1-09654-059-2 01 1 1401- ● ● ●
106 UNION; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) H.S.A SYSTEM<6EP> (B) M12 3WAY 		8-98051-113-0 01 1 1307-1312 ● ●
106 UNION; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) H.S.A SYSTEM<6EP> (B) M12 3WAY 		8-98051-113-0 01 1 1401- ● ● ●
184 UNION; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98150-865-0 01 1 1307-1312 ● ●
184 UNION; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98150-865-0 01 1 1401- ● ● ●
239 UNION; CLU HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 L=66.5 		0-92113-306-0 01 1 1307-1312 ● ●
239 UNION; CLU HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 L=66.5 		0-92113-306-0 01 1 1401- ● ● ●

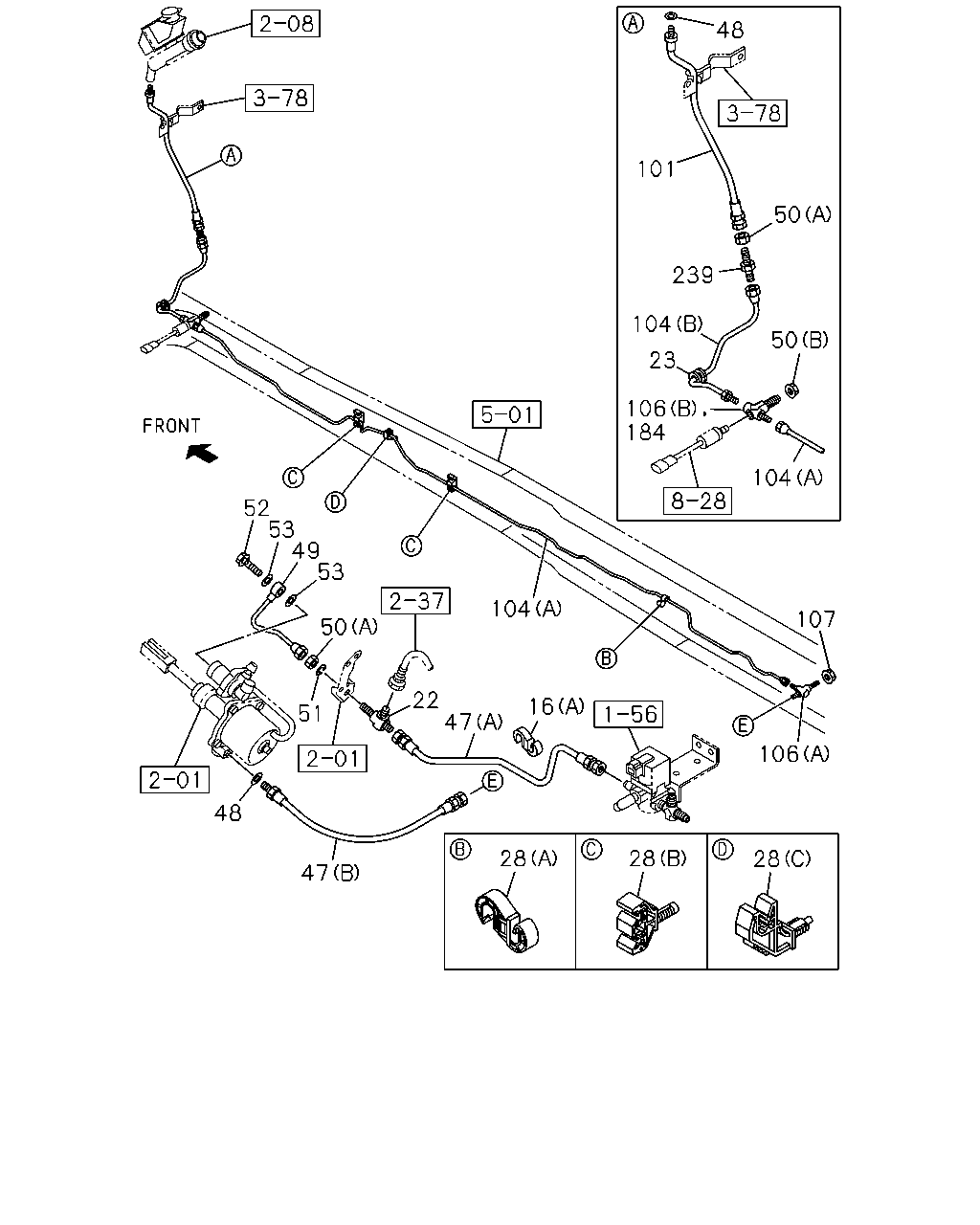

çizim 362961
48 101 50 239 104 23 50 106 184 104 52 53 49 53 50 51 22 47 16 107 106 28 28 28 47 48 104
BalonParca AdiParca NoAdetTipApplied Date A B C
16 CLIP; FLEX HOSE
6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=10 & 12 		1-09709-278-1 02 1 1307-1312 ● ●
16 CLIP; FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=10 & 12 		1-09709-278-1 02 1 1401- ● ● ●
16 CLIP; FLEX HOSE
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=15 L=28 		1-09701-216-0 01 1 1307- ●
16 CLIP; FLEX HOSE
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=10 & 10 		1-09709-277-1 01 1 1307- ●
16 CLIP; FLEX HOSE
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=10 & 12 		1-09709-278-1 01 1 1307- ●
22 UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1307-1312 ● ●
22 UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1401- ● ● ●
23 GROMMET; CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1307-1312 ● ●
23 GROMMET; CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1401- ● ● ●
28 CLIP; OIL PIPE
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=6.35 		1-09701-247-1 01 1 1307-1312 ●
28 CLIP; OIL PIPE
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=6.35 		1-09701-247-1 01 1 1307-1312 ●
28 CLIP; OIL PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=6.35 		1-09701-247-1 01 1 1401- ● ●
28 CLIP; OIL PIPE
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=6.35 		1-09701-247-1 01 1 1401- ●
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 1307-1312 ● ●
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 1401- ● ● ●
28 CLIP; OIL PIPE
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98012-254-1 01 1 1307-1312 ●
28 CLIP; OIL PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98012-254-1 01 1 1401- ● ●
28 CLIP; OIL PIPE
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=4.76 & 6.35 		1-09709-304-0 01 1 1307- ●
28 CLIP; OIL PIPE
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98012-254-1 02 1 1307- ●
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=540 		1-09363-612-1 01 1 1307-1312 ● ●
47 HOSE; FLEX,CLU CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=540 		1-09363-612-1 01 1 1401- ● ● ●
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=470 		8-98072-353-0 01 1 1307-1312 ● ●
47 HOSE; FLEX,CLU CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=470 		8-98072-353-0 01 1 1401- ● ● ●
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=660 		1-09363-971-0 01 1 1307- ●
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) L=550 		8-98080-979-0 01 1 1307- ●
48 GASKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 01 1 1307-1312 ● ●
48 GASKET; FLEX HOSE,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 01 1 1307-1312 ● ●
48 GASKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 01 1 1401- ● ● ●
48 GASKET; FLEX HOSE,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 01 1 1401- ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) 15" CLUTCH(RE9) L=239 		1-49117-401-0 01 1 1307-1312 ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) 15" CLUTCH(RE9) L=239 		1-49117-401-0 01 1 1401- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) 15" CLUTCH(RE9) L=239 		1-49117-401-0 01 1 1401- ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) 14" CLUTCH(WF6) L=204 		1-49117-400-0 01 1 1307- ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 		0-91111-512-0 01 1 1307-1312 ● ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 		0-91111-512-0 01 1 1401- ● ● ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 		9-09840-280-0 01 1 1307-1312 ● ●
50 NUT; UNION
ASSISTOR SHIFT CONTROL<WX8> 15" CLUTCH(RE9),14" CLUTCH(WF6) (A) M12 		9-09840-280-0 01 1 1307-1312 ● ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 		9-09840-280-0 01 1 1401- ● ● ●
50 NUT; UNION
ASSISTOR SHIFT CONTROL<WX8> 15" CLUTCH(RE9),14" CLUTCH(WF6) (A) M12 		9-09840-280-0 01 1 1401- ● ● ●
51 WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-812-0 01 1 1307-1312 ● ●
51 WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-812-0 01 1 1401- ● ● ●
52 BOLT; EYE,AIR PIPE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) 15" CLUTCH(RE9) M14X27 FLANGE 		1-09675-086-0 01 1 1307-1312 ● ●
52 BOLT; EYE,AIR PIPE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) 15" CLUTCH(RE9) M14X27 FLANGE 		1-09675-086-0 01 1 1401- ● ●
52 BOLT; EYE,AIR PIPE
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) 15" CLUTCH(RE9) M14X27 FLANGE 		1-09675-086-0 01 1 1401- ●
53 GASKET; JOINT BOLT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) 15" CLUTCH(RE9) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1307-1312 ● ●
53 GASKET; JOINT BOLT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) 15" CLUTCH(RE9) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-1401 ● ●
53 GASKET; JOINT BOLT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) 15" CLUTCH(RE9) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
53 GASKET; JOINT BOLT
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) 15" CLUTCH(RE9) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=500 		8-98072-350-0 01 1 1307-1312 ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=500 		8-98072-350-0 01 1 1401- ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=2542 		8-98234-774-0 01 1 1307- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=2695 		8-98078-148-2 01 1 1307-1312 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=2695 		8-98078-148-2 01 1 1401- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=336 		8-98067-058-0 01 1 1307-1312 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=336 		8-98067-058-0 01 1 1401- ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) SERVICED BY L=2650 		1-47428-743-0 01 1 1307- ●
106 UNION; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) M12 2WAY 		1-09654-059-2 01 1 1307-1312 ● ●
106 UNION; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) M12 2WAY 		1-09654-059-2 01 1 1401- ● ● ●
106 UNION; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) H.S.A SYSTEM<6EP> (B) M12 3WAY 		8-98051-113-0 01 1 1307-1312 ● ●
106 UNION; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) H.S.A SYSTEM<6EP> (B) M12 3WAY 		8-98051-113-0 01 1 1401- ● ● ●
107 NUT; UNION,OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M12 		0-91111-512-0 01 1 1307-1312 ● ●
107 NUT; UNION,OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M12 		0-91111-512-0 01 1 1401- ● ● ●
184 UNION; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98150-865-0 01 1 1307-1312 ● ●
184 UNION; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98150-865-0 01 1 1401- ● ● ●
239 UNION; CLU HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 L=66.5 		0-92113-306-0 01 1 1307-1312 ● ●
239 UNION; CLU HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 L=66.5 		0-92113-306-0 01 1 1401- ● ● ●

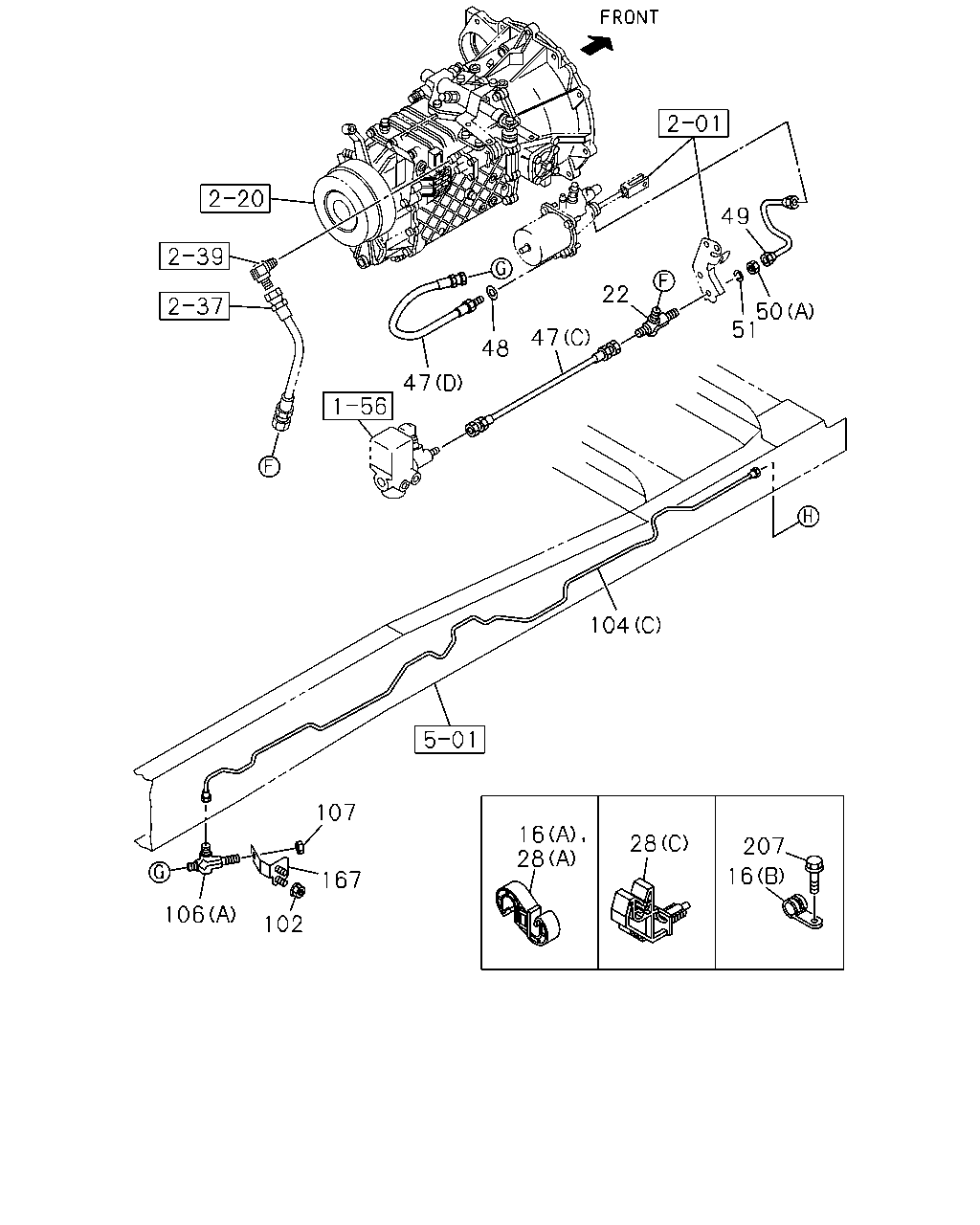

çizim 362977
49 22 47 48 47 50 51 104 107 167 106 102 16 28 28 207 16
BalonParca AdiParca NoAdetTipApplied Date A B C
16 CLIP; FLEX HOSE
6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=10 & 12 		1-09709-278-1 02 1 1307-1312 ● ●
16 CLIP; FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=10 & 12 		1-09709-278-1 02 1 1401- ● ● ●
16 CLIP; FLEX HOSE
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=15 L=28 		1-09701-216-0 01 1 1307- ●
16 CLIP; FLEX HOSE
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=10 & 10 		1-09709-277-1 01 1 1307- ●
16 CLIP; FLEX HOSE
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=10 & 12 		1-09709-278-1 01 1 1307- ●
22 UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1307-1312 ● ●
22 UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1401- ● ● ●
28 CLIP; OIL PIPE
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=6.35 		1-09701-247-1 01 1 1307-1312 ●
28 CLIP; OIL PIPE
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=6.35 		1-09701-247-1 01 1 1307-1312 ●
28 CLIP; OIL PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=6.35 		1-09701-247-1 01 1 1401- ● ●
28 CLIP; OIL PIPE
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=6.35 		1-09701-247-1 01 1 1401- ●
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 1307-1312 ● ●
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 1401- ● ● ●
28 CLIP; OIL PIPE
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98012-254-1 01 1 1307-1312 ●
28 CLIP; OIL PIPE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98012-254-1 01 1 1401- ● ●
28 CLIP; OIL PIPE
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=4.76 & 6.35 		1-09709-304-0 01 1 1307- ●
28 CLIP; OIL PIPE
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98012-254-1 02 1 1307- ●
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=540 		1-09363-612-1 01 1 1307-1312 ● ●
47 HOSE; FLEX,CLU CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=540 		1-09363-612-1 01 1 1401- ● ● ●
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=470 		8-98072-353-0 01 1 1307-1312 ● ●
47 HOSE; FLEX,CLU CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=470 		8-98072-353-0 01 1 1401- ● ● ●
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=660 		1-09363-971-0 01 1 1307- ●
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) L=550 		8-98080-979-0 01 1 1307- ●
48 GASKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 01 1 1307-1312 ● ●
48 GASKET; FLEX HOSE,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 01 1 1307-1312 ● ●
48 GASKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 01 1 1401- ● ● ●
48 GASKET; FLEX HOSE,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 01 1 1401- ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) 15" CLUTCH(RE9) L=239 		1-49117-401-0 01 1 1307-1312 ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) 15" CLUTCH(RE9) L=239 		1-49117-401-0 01 1 1401- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) 15" CLUTCH(RE9) L=239 		1-49117-401-0 01 1 1401- ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) 14" CLUTCH(WF6) L=204 		1-49117-400-0 01 1 1307- ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 		0-91111-512-0 01 1 1307-1312 ● ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 		0-91111-512-0 01 1 1401- ● ● ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 		9-09840-280-0 01 1 1307-1312 ● ●
50 NUT; UNION
ASSISTOR SHIFT CONTROL<WX8> 15" CLUTCH(RE9),14" CLUTCH(WF6) (A) M12 		9-09840-280-0 01 1 1307-1312 ● ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 		9-09840-280-0 01 1 1401- ● ● ●
50 NUT; UNION
ASSISTOR SHIFT CONTROL<WX8> 15" CLUTCH(RE9),14" CLUTCH(WF6) (A) M12 		9-09840-280-0 01 1 1401- ● ● ●
51 WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-812-0 01 1 1307-1312 ● ●
51 WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-812-0 01 1 1401- ● ● ●
102 NUT; FLEX HOSE,CLU CONT
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 1307- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=2542 		8-98234-774-0 01 1 1307- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=2695 		8-98078-148-2 01 1 1307-1312 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=2695 		8-98078-148-2 01 1 1401- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=336 		8-98067-058-0 01 1 1307-1312 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=336 		8-98067-058-0 01 1 1401- ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) SERVICED BY L=2650 		1-47428-743-0 01 1 1307- ●
106 UNION; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) M12 2WAY 		1-09654-059-2 01 1 1307-1312 ● ●
106 UNION; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> (A) M12 2WAY 		1-09654-059-2 01 1 1401- ● ● ●
106 UNION; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) H.S.A SYSTEM<6EP> (B) M12 3WAY 		8-98051-113-0 01 1 1307-1312 ● ●
106 UNION; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) H.S.A SYSTEM<6EP> (B) M12 3WAY 		8-98051-113-0 01 1 1401- ● ● ●
107 NUT; UNION,OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M12 		0-91111-512-0 01 1 1307-1312 ● ●
107 NUT; UNION,OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M12 		0-91111-512-0 01 1 1401- ● ● ●
167 BRACKET; UNION
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98086-811-1 01 1 1307- ●
207 BOLT; CLIP
4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
