◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11548 - FRR AUST/NZ EURO5 EXC.SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01A - CLUTCH ▶
2-01A — CLUTCH (#123657) — 132 parça

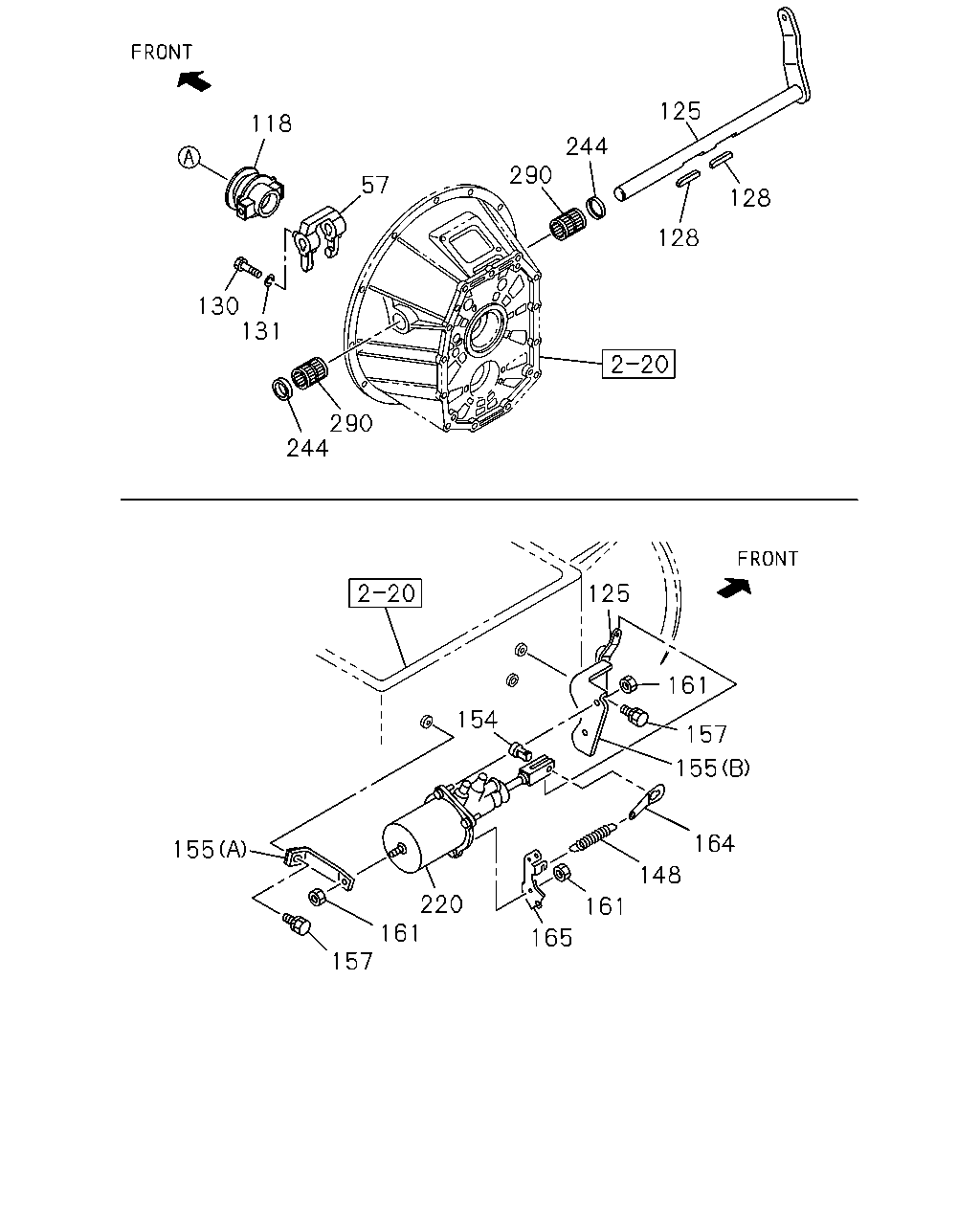

çizim 362935
118 57 130 131 244 290 290 244 125 128 128 155 157 161 220 165 161 148 164 155 161 157 154 125
BalonParca AdiParca NoAdetTipApplied Date
57 FORK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31341-048-2 01 1 1307-
118 BEARING; CLU RELEASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		1-87610-109-0 01 1 1307-
118 BEARING; CLU RELEASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31310-026-0 01 1 1307-
125 SHAFT; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31342-335-0 01 1 1307-
128 KEY; FEATHER,CLU SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		9-09867-008-0 02 1 1307-
130 SCREW; SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X14 		0-61200-814-0 01 1 1307-
131 WASHER; LK,SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.2 		0-91510-508-0 01 1 1307-
148 SPRING; CLU RETURN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=135 		1-09583-305-0 01 1 1307-
154 PIN; JAW JOINT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31424-009-0 01 1 1307-
155 BRACKET; MINIPACK
14" CLUTCH(WF6) (A) 		1-31429-474-1 01 1 1307-
155 BRACKET; MINIPACK
14" CLUTCH(WF6) (B) 		1-31429-477-0 01 1 1307-
155 BRACKET; MINIPACK
15" CLUTCH(RE9) (A) 		1-31429-475-1 01 1 1307-
155 BRACKET; MINIPACK
15" CLUTCH(RE9) (B) 		1-31429-478-0 01 1 1307-
157 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X25 FLANGE 		0-28751-025-0 03 1 1307-
161 NUT; BRKT
14" CLUTCH(WF6) M8 FLANGE 		0-91180-208-0 05 1 1307-
161 NUT; BRKT
15" CLUTCH(RE9) M10 FLANGE 		0-91180-210-0 05 1 1307-
164 EYE; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31426-041-0 01 1 1307-
165 BRACKET; SPR EYE,MINIPACK,FLEX TUBE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-47477-789-0 01 1 1307-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9) BEST VALUE PARTS 		1-87610-089-0 01 1 1307-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 14" CLUTCH(WF6) 		1-31800-510-2 01 1 1307-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 15" CLUTCH(RE9) 		1-31800-511-2 01 1 1307-
244 SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09625-002-0 02 1 1307-
290 BEARING; NEEDLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) NTN 		1-09811-002-1 02 1 1307-

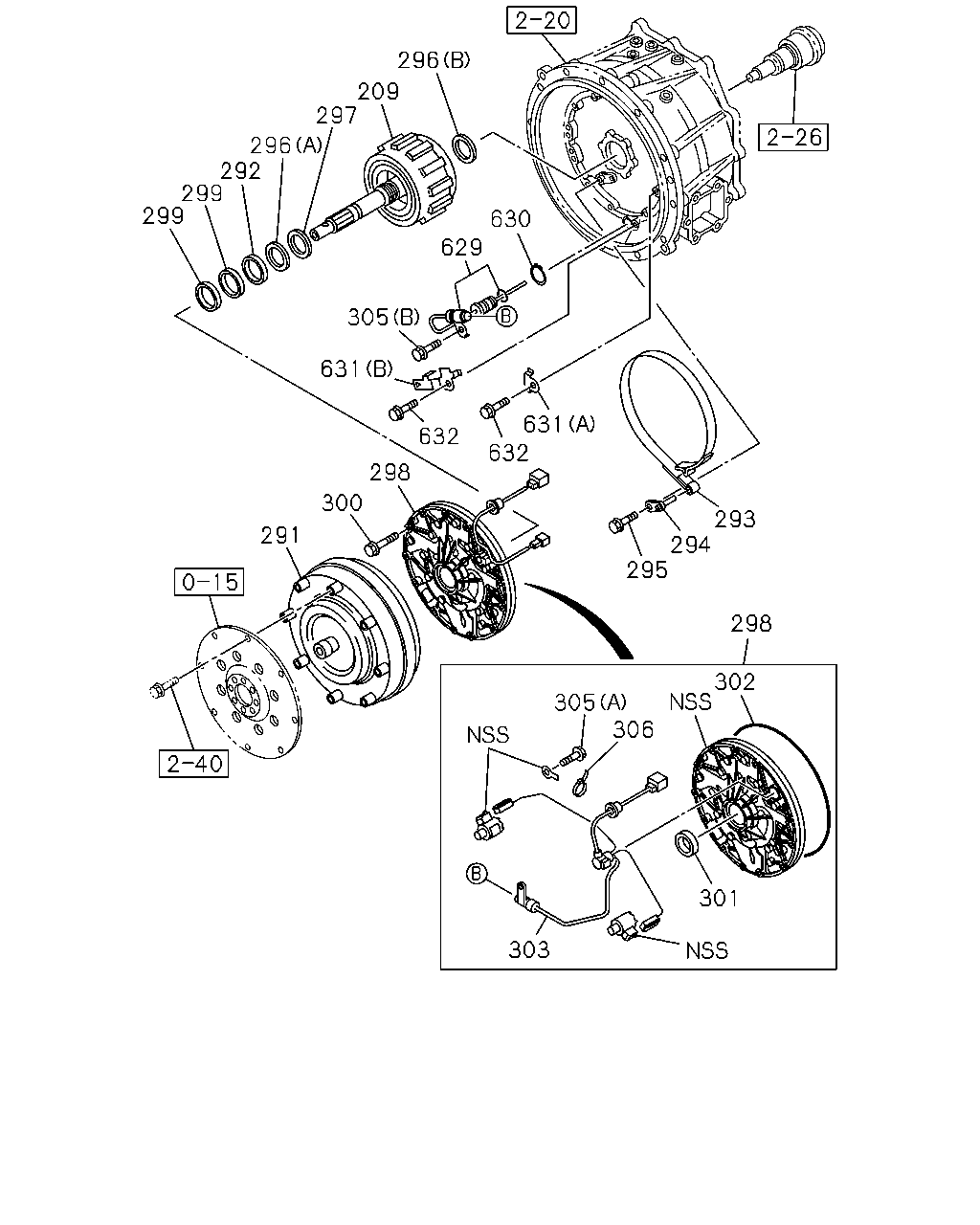

çizim 363873
296 209 297 296 292 299 299 630 629 305 631 632 298 300 291 631 632 293 294 295 298 302 305 306 301 303
BalonParca AdiParca NoAdetTipApplied Date
209 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98044-527-3 01 1 1307-1412
209 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98275-315-0 01 1 1501-
291 COUPLING; FLUID
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98009-304-2 01 1 1307-1308
291 COUPLING; FLUID
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98248-559-1 01 1 1309-
291 COUPLING; FLUID
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97371-295-3 01 1 1307-1308
291 COUPLING; FLUID
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98248-560-1 01 1 1309-
292 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-329-0 01 1 1307-
293 BAND; BRAKE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97254-651-0 01 1 1307-
294 PIN; ANCHOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-703-0 01 1 1307-
295 BOLT; ANCHOR PIN
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 01 1 1307-
296 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97255-688-0 01 1 1307-
296 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97255-689-0 01 1 1307-
297 WASHER; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97300-070-0 01 1 1307-
298 PUMP ASM; OIL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98107-925-2 01 1 1307-
299 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-330-0 02 1 1307-
300 BOLT; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X45 FLANGE 		0-28050-845-0 11 1 1307-
301 SEAL; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97289-811-0 01 1 1307-
302 RING; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-188-0 01 1 1307-
303 HARNESS ASM; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98020-613-1 01 1 1307-
305 BOLT; BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X12 FLANGE 		0-28050-612-0 01 1 1307-
305 BOLT; BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X16 FLANGE 		0-28650-616-0 01 1 1307-
306 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER(8GF) L=100 		8-94279-939-0 02 1 1307-
629 SENSOR; OIL TEMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98021-895-0 01 1 1307-
630 RING; SNAP
TRANSMISSION CONTROL-SMOOTHER(8GF) ID=17.5 		9-09180-019-0 01 1 1307-
631 PLATE; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98021-285-0 02 1 1307-
631 PLATE; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98023-254-0 01 1 1307-
632 BOLT; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 03 1 1307-

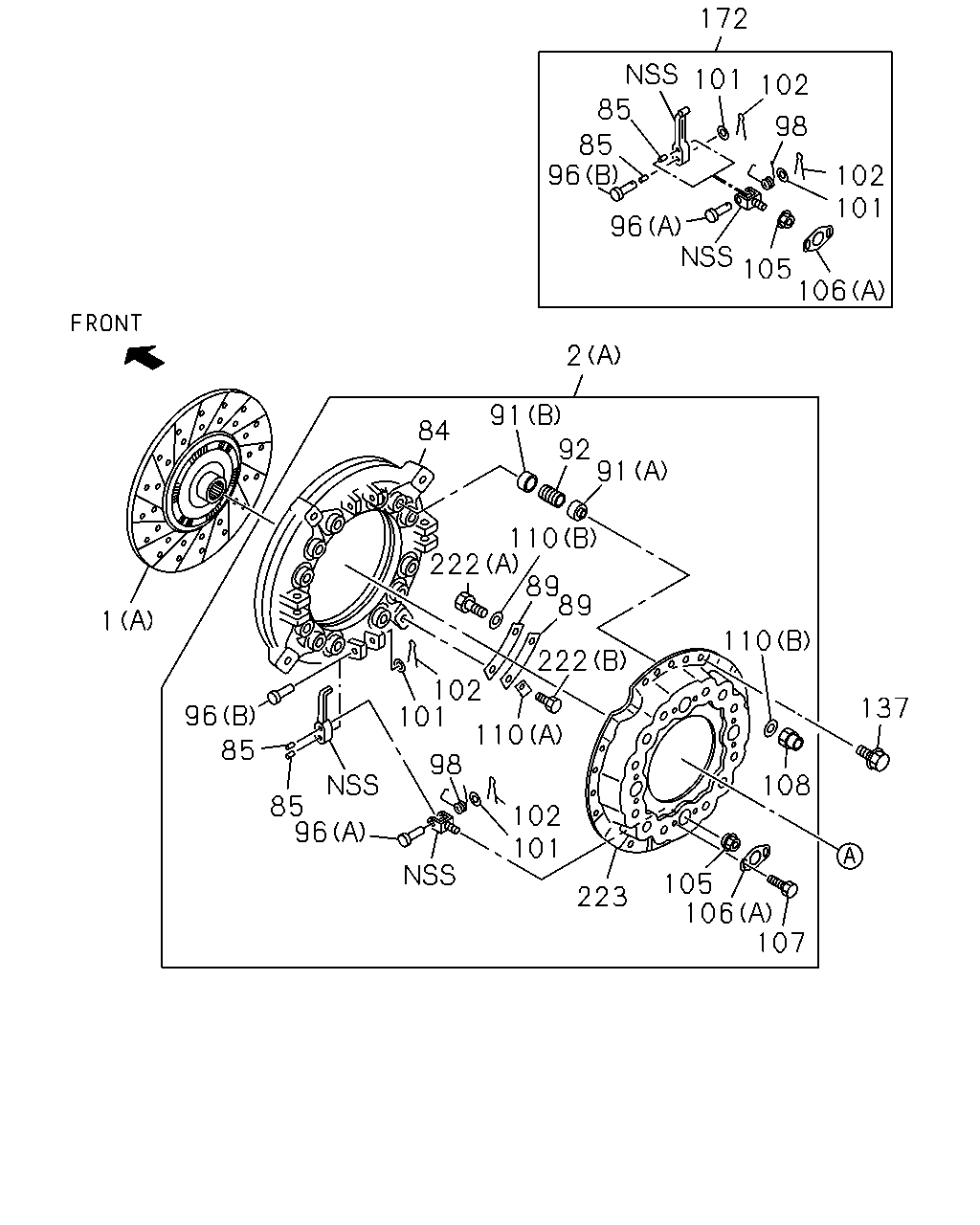

çizim 366226
102 101 106 105 96 96 85 85 101 102 72 2 92 91 84 110 222 89 89 222 110 137 107 106 105 223 101 102 98 101 110 91 96 85 85 96 102 108 1 98
BalonParca AdiParca NoAdetTipApplied Date
1 DISC; CLUTCH
15" CLUTCH(RE9) (A) BEST VALUE PARTS 		1-87610-119-0 01 1 1411-
1 DISC; CLUTCH
14" CLUTCH(WF6) (B) BEST VALUE PARTS 		1-87610-140-0 01 1 1411-
1 DISC; CLUTCH
14" CLUTCH(WF6) (B) 14" 		1-31240-971-1 01 1 1307-1401
1 DISC; CLUTCH
14" CLUTCH(WF6) (B) 14" 		1-31260-040-1 01 1 1402-
1 DISC; CLUTCH
15" CLUTCH(RE9) (A) 15" 		1-31240-851-2 01 1 1307-
2 PLATE ASM; PRESSURE,CLU
6HK1-TCC ENG(81L) 15" CLUTCH(RE9) (A) 		1-31220-377-2 01 1 1401-
2 PLATE ASM; PRESSURE,CLU
14" CLUTCH(WF6) (B) 		1-31220-411-0 01 1 1307-
2 PLATE ASM; PRESSURE,CLU
6HK1-TCN ENG(82L) 15" CLUTCH(RE9) (A) 		1-31220-374-2 01 1 1307-
2 PLATE ASM; PRESSURE,CLU
14" CLUTCH(WF6) (B) BEST VALUE PARTS 		1-87610-147-0 01 1 1307-
2 PLATE ASM; PRESSURE,CLU
6HK1-TCC ENG(81L) 15" CLUTCH(RE9) (A) BEST VALUE PARTS 		1-87610-146-0 01 1 1401-
2 PLATE ASM; PRESSURE,CLU
6HK1-TCN ENG(82L) 15" CLUTCH(RE9) (A) BEST VALUE PARTS 		1-87610-120-0 01 1 1307-
84 PLATE; PRESSURE
14" CLUTCH(WF6) 14" 		1-31221-136-0 01 1 1307-
84 PLATE; PRESSURE
15" CLUTCH(RE9) 15" 		1-31221-100-0 01 1 1307-
85 BUSHING; RELEASE LEVER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		9-31239-116-0 08 1 1307-
89 PLATE; STRAP
14" CLUTCH(WF6) 		1-31229-001-0 08 1 1307-
89 PLATE; STRAP
15" CLUTCH(RE9) 		1-31229-050-0 16 1 1307-
91 SEAT; SPR
14" CLUTCH(WF6) (A) ID=37 H=25 		1-31219-012-0 08 1 1307-
91 SEAT; SPR
14" CLUTCH(WF6) (B) ID=37 H=15 		1-31219-013-0 08 1 1307-
91 SEAT; SPR
15" CLUTCH(RE9) (A) ID=37 H=25 		1-31219-012-0 12 1 1307-
91 SEAT; SPR
15" CLUTCH(RE9) (B) ID=37 H=15 		1-31219-013-0 12 1 1307-
92 SPRING; CLU
6HK1-TCC ENG(81L) 15" CLUTCH(RE9) 		1-31214-066-0 12 1 1401-
92 SPRING; CLU
14" CLUTCH(WF6) 		1-31214-095-0 08 1 1307-
92 SPRING; CLU
6HK1-TCN ENG(82L) 15" CLUTCH(RE9) 		1-31214-086-0 12 1 1307-
96 PIN; RELEASE LEVER
15" CLUTCH(RE9),14" CLUTCH(WF6) (A) L=49.0 		1-31232-005-0 04 1 1307-
96 PIN; RELEASE LEVER
15" CLUTCH(RE9),14" CLUTCH(WF6) (B) L=57.0 		1-31232-014-0 04 1 1307-
98 SPRING; RETURN
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31233-003-0 04 1 1307-
101 WASHER; RELEASE LEVER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31239-058-0 08 1 1307-
102 PIN; SPLIT,RELEASE LEVER
14" CLUTCH(WF6) OD=2.7 L=22 		9-08113-022-0 08 1 1307-
102 PIN; SPLIT,RELEASE LEVER
15" CLUTCH(RE9) OD=2.7 L=22 		9-08103-022-0 08 1 1307-
105 NUT; SUPPORT
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31235-014-0 04 1 1307-
106 PLATE; LK,LEVER SUPPORT
14" CLUTCH(WF6) (B) 		1-31235-008-0 04 1 1307-
106 PLATE; LK,LEVER SUPPORT
15" CLUTCH(RE9),14" CLUTCH(WF6) (A) 		1-31239-019-0 04 1 1307-
107 BOLT; LK PLATE
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31239-061-0 08 1 1307-
108 NUT; STRAP
15" CLUTCH(RE9) 		1-09449-036-0 04 1 1307-
110 WASHER; SPECIAL,STRAP
15" CLUTCH(RE9) (A) T=1.2 		1-31229-009-0 04 1 1307-
110 WASHER; SPECIAL,STRAP
15" CLUTCH(RE9) (B) T=3.2 		8-97374-512-0 08 1 1307-
137 BOLT; CLU COVER
15" CLUTCH(RE9),14" CLUTCH(WF6) M10X20 FLANGE 		0-28151-020-0 12 1 1307-
222 BOLT; STRAP
14" CLUTCH(WF6) (C) 		1-31239-059-0 04 1 1307-
222 BOLT; STRAP
15" CLUTCH(RE9) (B) M10X23.2 		1-09040-042-0 04 1 1307-
222 BOLT; STRAP
15" CLUTCH(RE9) (A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 1307-
223 COVER; CLU
15" CLUTCH(RE9) 		1-31211-019-1 01 1 1307-

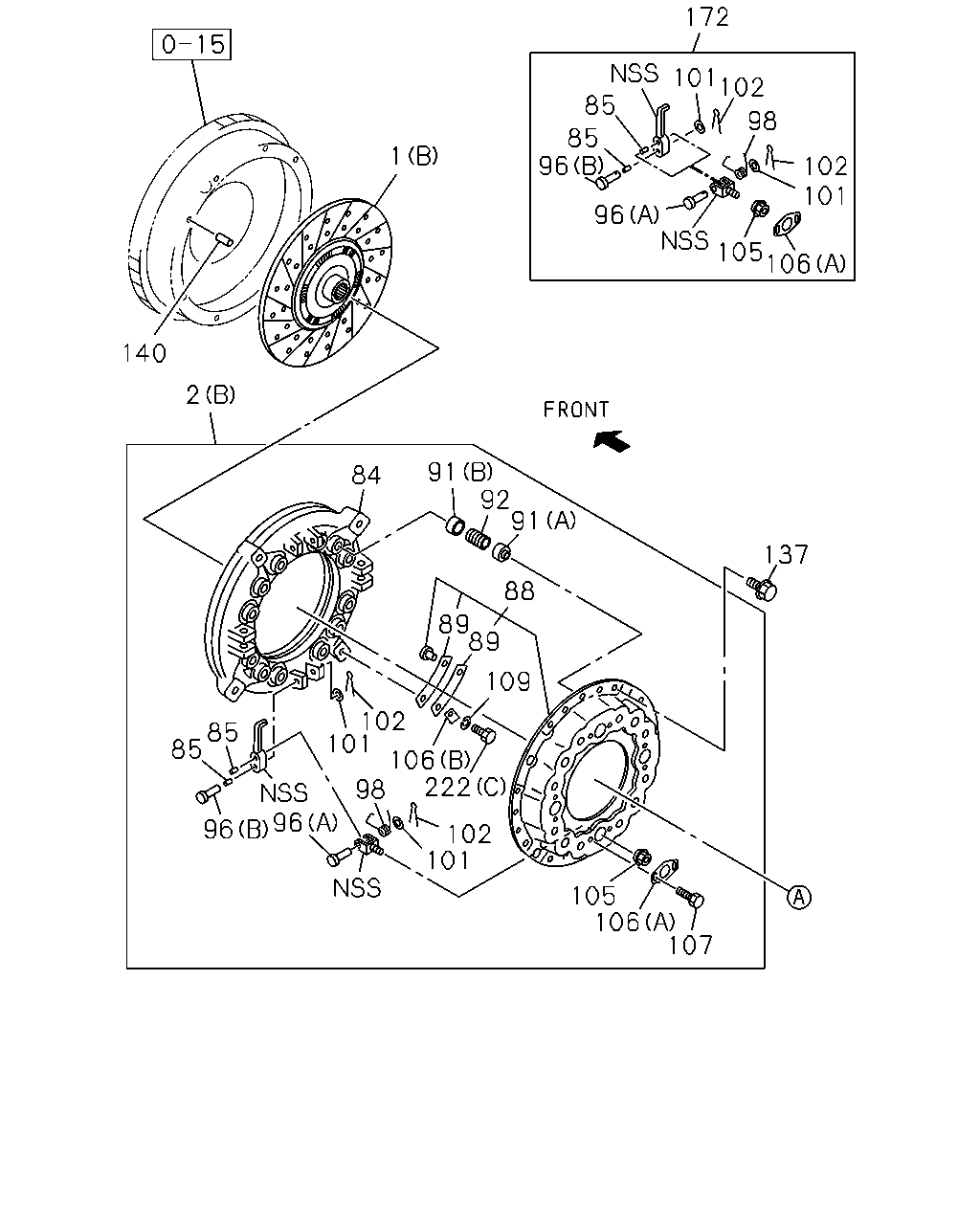

çizim 367100
137 106 101 2 8 02 101 172 85 85 96 96 105 91 92 91 84 89 89 109 222 102 101 105 106 107 98 102 101 106 96 96 85 85 2 140 1 88
BalonParca AdiParca NoAdetTipApplied Date
1 DISC; CLUTCH
15" CLUTCH(RE9) (A) BEST VALUE PARTS 		1-87610-119-0 01 1 1411-
1 DISC; CLUTCH
14" CLUTCH(WF6) (B) BEST VALUE PARTS 		1-87610-140-0 01 1 1411-
1 DISC; CLUTCH
14" CLUTCH(WF6) (B) 14" 		1-31240-971-1 01 1 1307-1401
1 DISC; CLUTCH
14" CLUTCH(WF6) (B) 14" 		1-31260-040-1 01 1 1402-
1 DISC; CLUTCH
15" CLUTCH(RE9) (A) 15" 		1-31240-851-2 01 1 1307-
2 PLATE ASM; PRESSURE,CLU
6HK1-TCC ENG(81L) 15" CLUTCH(RE9) (A) 		1-31220-377-2 01 1 1401-
2 PLATE ASM; PRESSURE,CLU
14" CLUTCH(WF6) (B) 		1-31220-411-0 01 1 1307-
2 PLATE ASM; PRESSURE,CLU
6HK1-TCN ENG(82L) 15" CLUTCH(RE9) (A) 		1-31220-374-2 01 1 1307-
2 PLATE ASM; PRESSURE,CLU
14" CLUTCH(WF6) (B) BEST VALUE PARTS 		1-87610-147-0 01 1 1307-
2 PLATE ASM; PRESSURE,CLU
6HK1-TCC ENG(81L) 15" CLUTCH(RE9) (A) BEST VALUE PARTS 		1-87610-146-0 01 1 1401-
2 PLATE ASM; PRESSURE,CLU
6HK1-TCN ENG(82L) 15" CLUTCH(RE9) (A) BEST VALUE PARTS 		1-87610-120-0 01 1 1307-
84 PLATE; PRESSURE
14" CLUTCH(WF6) 14" 		1-31221-136-0 01 1 1307-
84 PLATE; PRESSURE
15" CLUTCH(RE9) 15" 		1-31221-100-0 01 1 1307-
85 BUSHING; RELEASE LEVER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		9-31239-116-0 08 1 1307-
88 COVER SUB ASM; CLU
14" CLUTCH(WF6) 		1-31211-038-0 01 1 1307-
89 PLATE; STRAP
14" CLUTCH(WF6) 		1-31229-001-0 08 1 1307-
89 PLATE; STRAP
15" CLUTCH(RE9) 		1-31229-050-0 16 1 1307-
91 SEAT; SPR
14" CLUTCH(WF6) (A) ID=37 H=25 		1-31219-012-0 08 1 1307-
91 SEAT; SPR
14" CLUTCH(WF6) (B) ID=37 H=15 		1-31219-013-0 08 1 1307-
91 SEAT; SPR
15" CLUTCH(RE9) (A) ID=37 H=25 		1-31219-012-0 12 1 1307-
91 SEAT; SPR
15" CLUTCH(RE9) (B) ID=37 H=15 		1-31219-013-0 12 1 1307-
92 SPRING; CLU
6HK1-TCC ENG(81L) 15" CLUTCH(RE9) 		1-31214-066-0 12 1 1401-
92 SPRING; CLU
14" CLUTCH(WF6) 		1-31214-095-0 08 1 1307-
92 SPRING; CLU
6HK1-TCN ENG(82L) 15" CLUTCH(RE9) 		1-31214-086-0 12 1 1307-
96 PIN; RELEASE LEVER
15" CLUTCH(RE9),14" CLUTCH(WF6) (A) L=49.0 		1-31232-005-0 04 1 1307-
96 PIN; RELEASE LEVER
15" CLUTCH(RE9),14" CLUTCH(WF6) (B) L=57.0 		1-31232-014-0 04 1 1307-
98 SPRING; RETURN
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31233-003-0 04 1 1307-
101 WASHER; RELEASE LEVER
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31239-058-0 08 1 1307-
102 PIN; SPLIT,RELEASE LEVER
14" CLUTCH(WF6) OD=2.7 L=22 		9-08113-022-0 08 1 1307-
102 PIN; SPLIT,RELEASE LEVER
15" CLUTCH(RE9) OD=2.7 L=22 		9-08103-022-0 08 1 1307-
105 NUT; SUPPORT
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31235-014-0 04 1 1307-
106 PLATE; LK,LEVER SUPPORT
14" CLUTCH(WF6) (B) 		1-31235-008-0 04 1 1307-
106 PLATE; LK,LEVER SUPPORT
15" CLUTCH(RE9),14" CLUTCH(WF6) (A) 		1-31239-019-0 04 1 1307-
107 BOLT; LK PLATE
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-31239-061-0 08 1 1307-
109 WASHER; LK,STRAP
14" CLUTCH(WF6) ID=10.2 		0-91510-510-0 04 1 1307-
137 BOLT; CLU COVER
15" CLUTCH(RE9),14" CLUTCH(WF6) M10X20 FLANGE 		0-28151-020-0 12 1 1307-
140 PIN; STRAIGHT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=25 		8-94410-361-0 02 1 1307-
172 LEVER KIT; RELEASE,CLU
15" CLUTCH(RE9),14" CLUTCH(WF6) 		1-87831-170-1 01 1 1307-
222 BOLT; STRAP
14" CLUTCH(WF6) (C) 		1-31239-059-0 04 1 1307-
222 BOLT; STRAP
15" CLUTCH(RE9) (B) M10X23.2 		1-09040-042-0 04 1 1307-
222 BOLT; STRAP
15" CLUTCH(RE9) (A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 1307-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
